What is the lifting capacity of the Challenger 4030EAX? ▾
The Challenger 4030EAX has an ALI/ETL certified lifting capacity of 30,000 lb. This heavy-duty capacity handles medium and heavy-duty trucks, fleet vehicles, RVs, and commercial vehicles with ease.
What is the maximum wheelbase the 4030EAX can accommodate? ▾
The 4030EAX accommodates vehicles with wheelbases up to 281". For two-wheel alignment, the maximum wheelbase is 256". The 4030 Series is also available in other lengths to accommodate wheelbases from 244.5" to 318.625" depending on the model configuration.
What are the electrical requirements for the 4030EAX? ▾
The 4030EAX requires 208V-230V single-phase power for the standard 3 HP motor. A licensed electrician should install and verify the electrical supply. Additionally, the lift requires 90-120 PSI compressed air for the lock release system.
What size bay do I need for the Challenger 4030EAX? ▾
Challenger recommends a minimum bay size of 31' x 17' for the 4030EAX. The lift itself measures 344" long by 172.75" wide. Ensure adequate ceiling clearance above the 92.25" column height plus the height of your tallest vehicle at full rise.
Is the 4030EAX compatible with wheel alignment systems? ▾
Yes, the 4030EAX is designed for professional alignment work and is compatible with the industry's latest camera imaging alignment systems. The alignment model features recessed turn plate pockets for easy drive-on, and optional recessed heavy-duty steel turnplates are available for accurate alignment readings.
What warranty does the Challenger 4030EAX include? ▾
The 4030EAX includes Challenger's comprehensive warranty: 5 years on structural parts (columns, runways, cross beams), 2 years on functional parts (power unit, cylinders, cables, sheaves), and 1 year on labor. Warranty must be registered online at challengerlifts.com to activate the full coverage period.
What is included with the Challenger 4030EAX purchase? ▾

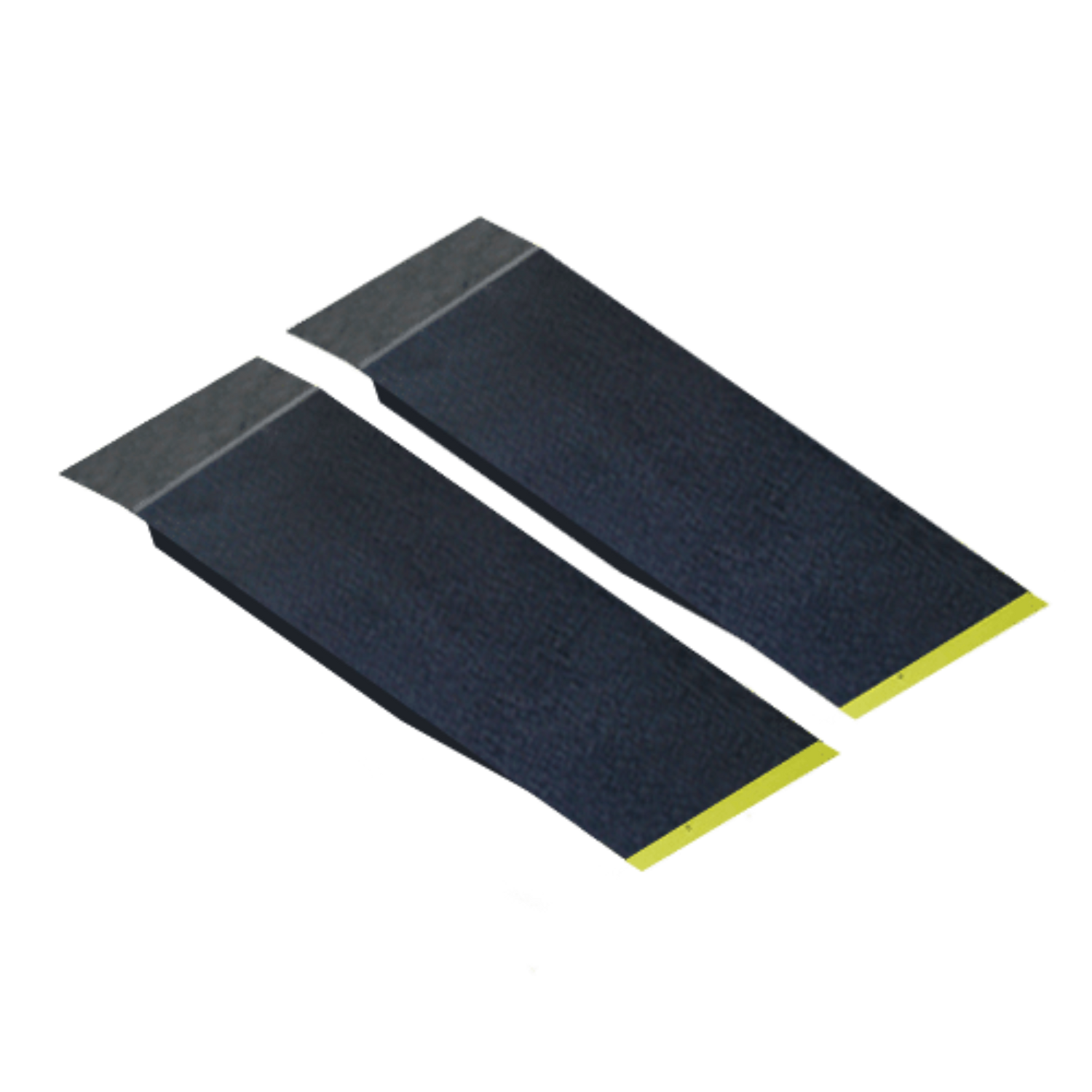

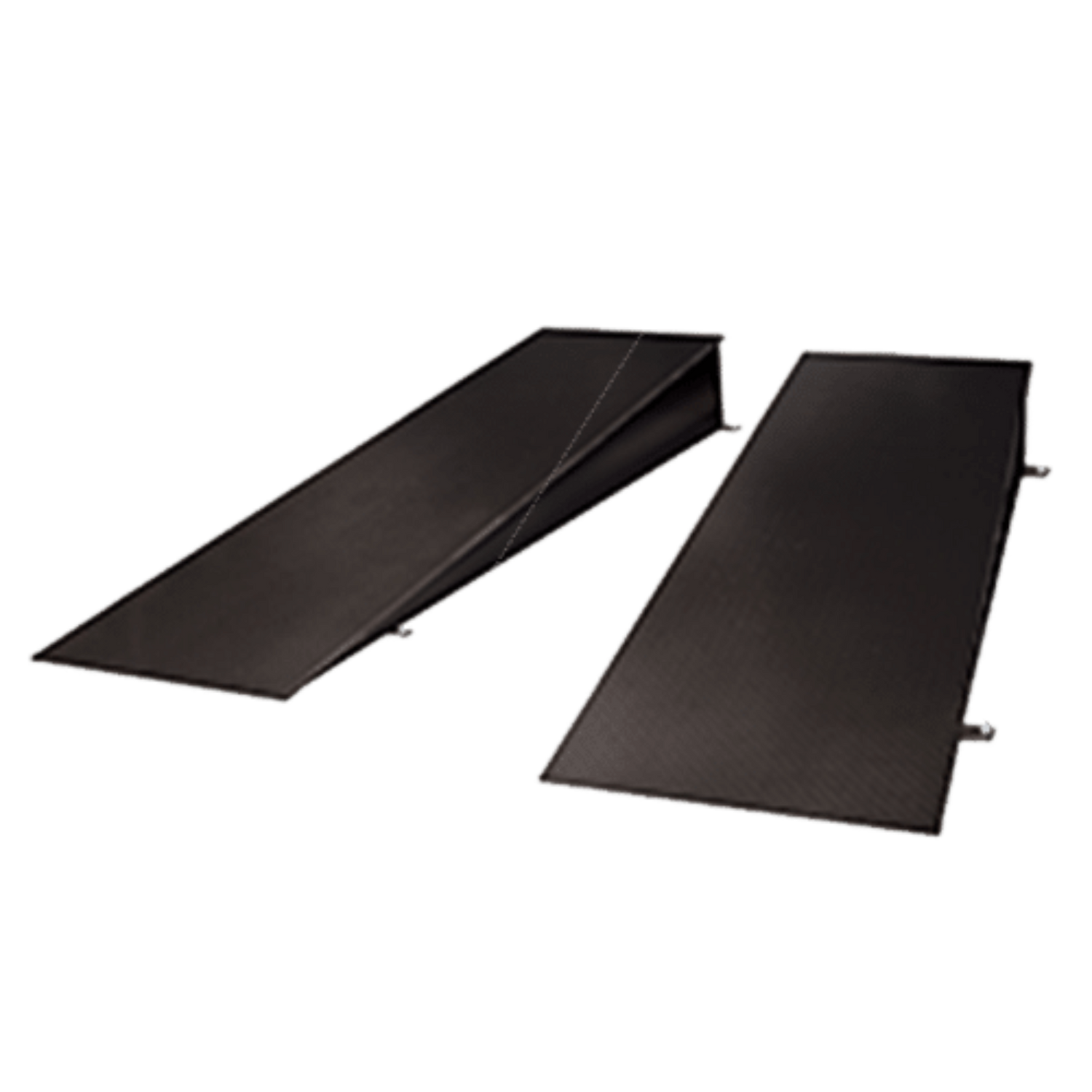

The 4030EAX includes the complete lift assembly, power unit, cable-driven lift system, single-point air actuated lock release, diamond-plate approach ramps, recessed turn plate pockets, built-in runway rail system, adjustable lock ladders, anchor hardware, and installation manual. Optional accessories like rolling jacks, oil drain pans, and turnplates are sold separately.
How is the 4030EAX shipped and delivered? ▾
The 4030EAX ships via freight with free delivery to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading. Delivery is curbside to commercial addresses. Always inspect shipments for damage before signing the Bill of Lading.

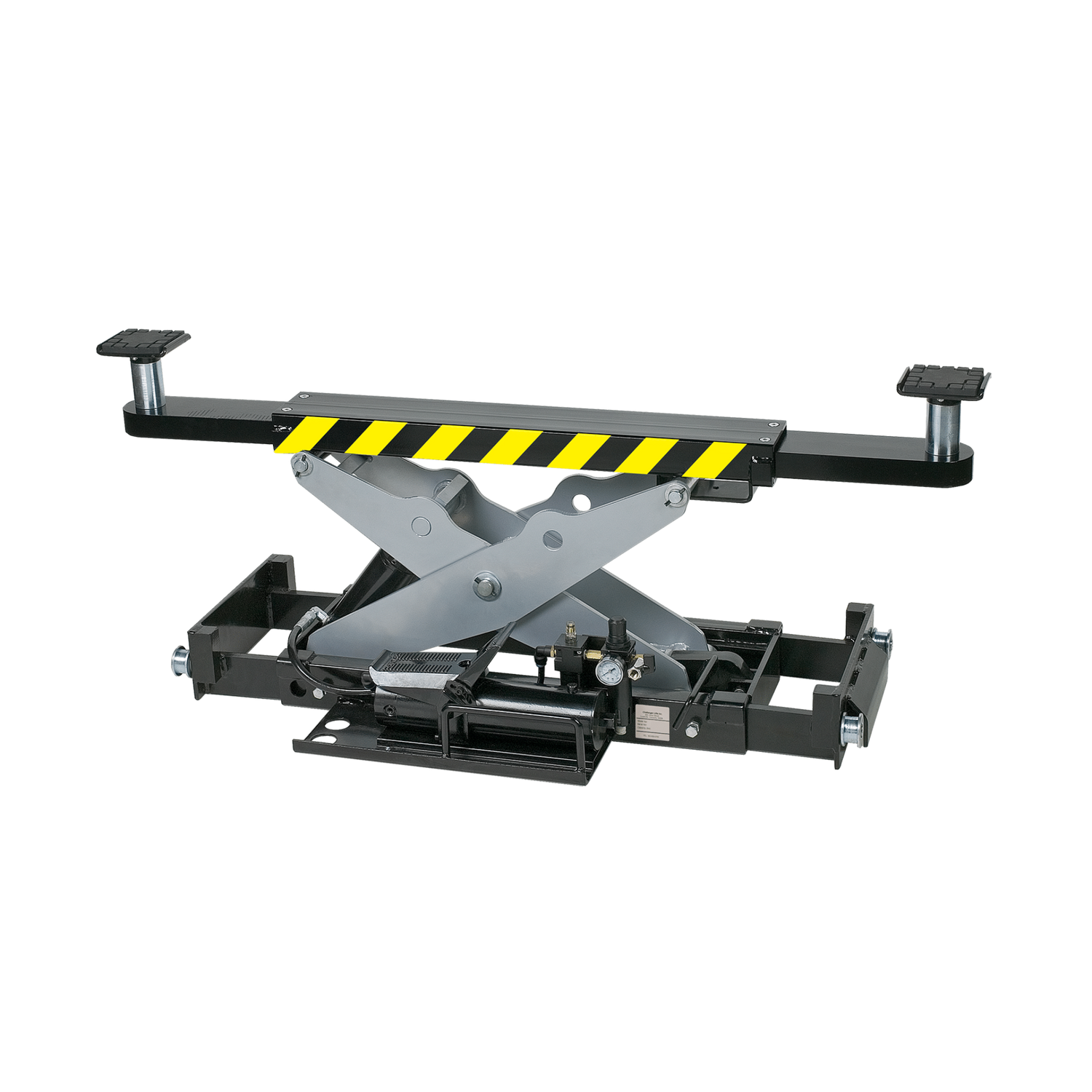

Can I add rolling jacks or oil drain accessories to the 4030EAX? ▾
Yes, the 4030EAX features a built-in runway rail system specifically designed to accept optional rolling jacks and sliding oil drain pans. These accessories enhance productivity and are available separately.
What makes the 4030EAX different from other four post lifts? ▾
The 4030EAX is a closed-front alignment configuration with ALI/ETL certification at 30,000 lb capacity. Key differentiators include the time-proven cable-driven system with heavy-duty steel sheaves, single-point air actuated lock release, 71.75" rise height for maximum working clearance, and compatibility with modern camera alignment systems.
Does the 4030EAX require professional installation? ▾
Professional installation is strongly recommended to ensure safe operation and maintain warranty coverage. The lift must be properly anchored to adequate concrete (minimum 4" thick, 3,000 PSI), and electrical connections must be made by a licensed electrician. Challenger requires product registration to activate the full warranty.
What maintenance does the Challenger 4030EAX require? ▾
The 4030EAX is designed for minimal maintenance thanks to its heavy-duty cylinder and robust cable system. Regular maintenance includes inspecting cables and sheaves, checking hydraulic fluid levels, lubricating moving parts, and verifying lock engagement. Refer to the installation and operation manual for the complete maintenance schedule.
