BCP5
Challenger Lifts  |  SKU: 4030SAX

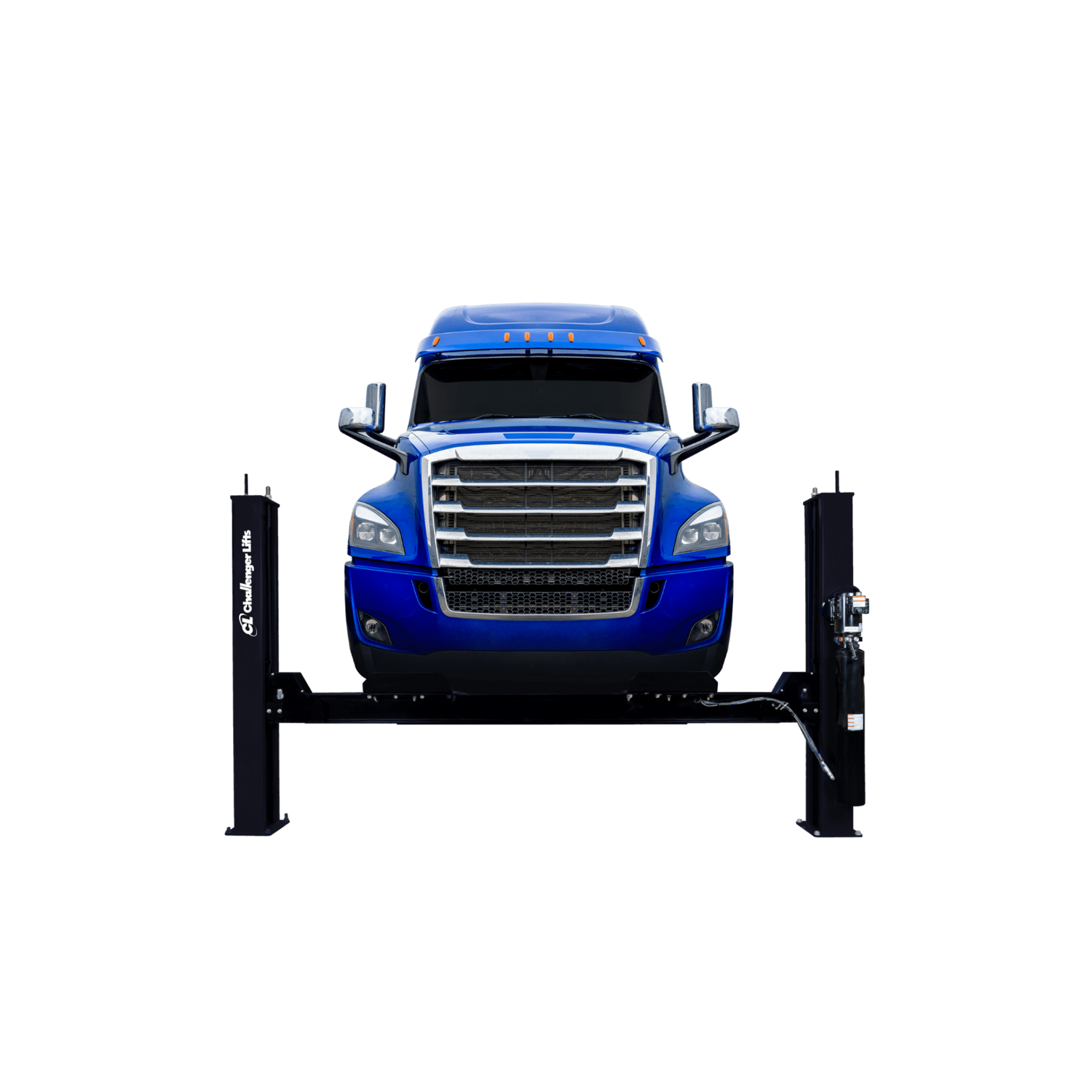

Challenger 4030SAX Four Post Alignment Lift 30000 lb Heavy-Duty

Regular price $36,167.85
Talk to an Expert Call 800-736-6265
Shipping calculated at checkout.

Authorized Challenger Lifts Dealer

Warranty: (5) Years on Structure, (2) Years on Functional Parts, (1) Year Labor

  • US-Based Support
  • Trusted Automotive Lift Brand
  • Part of Snap-on Incorporated
  • Engineered lifting solutions since 1987
  • ANSI/ALI certified
Estimated lead time: 75 days from the day of order, excluding weekends and holidays.


Shipping & Price Match Guarantee

Enjoy Free Shipping on orders over $200 and a Price Match Guarantee!

Find a lower advertised price on an identical, in-stock item from an authorized U.S. retailer within 14 days of purchase? Email support@bluecollarplanet.com with your order number, the competitor's product link, and a screenshot, and we'll match it.

See our Price Match Guarantee Policy for more information)

What is your Return Policy?

Cancel within 24 hours of placing your order for a full refund.

After 24 hours or once processing begins, a 25% restocking fee applies even before shipping.

Once your order has shipped, our 30-Day Return Policy applies — see Return Policy for full details.

Customer is responsible for return shipping unless the item arrived damaged or defective.

Click Learn more to read our Detailed Return Policy.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop with confidence - your transactions are SSL-encrypted and your payment details are securely transmitted.

We never store or have access to your credit card information.

Warranty

Warranty
Warranty basics
Challenger Lifts, Inc. (CLI) warrants its lifts to the original owner only; the coverage is not transferable. CLI will, at its discretion, repair or replace any part that is found on inspection to be defective during the applicable warranty period. Coverage applies only when the lift is installed, operated, and maintained in line with CLI's installation, operation, and maintenance instructions. Using unapproved parts or accessories voids the warranty, as does any repair attempted by someone who is not a CLI authorized service representative. Normal maintenance, adjustments, wear and tear, and damage from improper handling, abuse, misuse, or negligence are not covered. The warranty is valid only if the lift is registered with Challenger Lifts; registration must be completed online (challengerlifts.com/register-your-lift), otherwise the warranty period begins from the invoice date of purchase.
Warranty length
5 years on structural parts, 2 years on functional parts, and 1 year on labor. Structural parts include the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers. Functional parts include power units, cylinders, sheaves, sheave pins, hoses, hydraulic and pneumatic fittings, cables, adapters, latches, valves, and controls.
Remedies and costs
Repair or replacement of defective parts is the exclusive remedy under this warranty. For the covered period, CLI also pays reasonable transportation and/or labor costs to replace those parts. This warranty is exclusive and replaces all other warranties, express or implied, including any implied warranty of fitness for a particular purpose, which is expressly excluded. No employee, agent, dealer, or other party may extend warranties on CLI's behalf. CLI is not liable for special, consequential, or incidental damages arising from any breach or delay in performance of the warranty. The warranty is governed by the laws of the Commonwealth of Kentucky and is subject to the exclusive jurisdiction of the courts of Jefferson County, Kentucky.

FAQs

What is the lifting capacity of the Challenger 4030SAX? ▾
The Challenger 4030SAX has an ALI/ETL certified lifting capacity of 30,000 lb, making it suitable for medium and heavy-duty trucks, buses, RVs, and fleet vehicles.
What size bay do I need for the 4030SAX? ▾
Challenger recommends a minimum bay size of 28' x 17' for the 4030SAX. The lift itself measures 308" in overall length and 172.75" in overall width. Bay height must accommodate the 71.75" rise plus the height of the vehicle being serviced.
What are the electrical requirements for the 4030SAX? ▾
The 4030SAX requires 208-230V single-phase power with a 30-amp breaker. A 3-phase motor upgrade is available for purchase. All electrical work should be performed by a licensed electrician to meet local codes and warranty requirements.
What are the concrete requirements for installation? ▾
The lift requires a minimum 4" thick reinforced concrete floor, free from cracks and seams, rated at 3,500+ psi, and cured for at least 28 days before installation. Proper anchoring to a solid foundation is critical for safe operation.
What is included with the 4030SAX purchase? ▾
The lift includes the complete four post structure, 3HP power unit, cables and sheaves, pneumatic lock release system, approach ramps, recessed turnplate pockets, built-in runway rail system, adjustable lock ladders, anchor hardware, and installation manual. Turnplates, rolling jacks, and oil drain pans are sold separately.
How is the 4030SAX shipped and delivered? ▾
The lift ships via freight truck with free delivery to commercial addresses in the 48 contiguous US states. A forklift or loading dock is required for unloading as lift-gate service is not available for equipment of this size. Typical lead time is 5-10 business days.
What accessories are available for the 4030SAX? ▾
Optional accessories include rolling jacks, sliding oil drain pans, recessed heavy-duty steel turnplates for alignment work, and a 3-phase motor upgrade. The built-in runway rail system allows easy addition of these accessories.
What is the difference between the 4030SAX and other 4030 series models? ▾
The 4030 series is available in three lengths: S (standard - 244.5" wheelbase), E (extended - 281" wheelbase), and X (extra-long - 317" wheelbase). Models ending in "A" are alignment-ready with recessed turnplate pockets, while "F" models are designed for general service without alignment features. The 4030SAX is the standard-length alignment model.
What maintenance does the 4030SAX require? ▾
Regular maintenance includes inspecting cables and sheaves for wear, checking hydraulic fluid levels, lubricating moving parts per the maintenance schedule, and verifying lock mechanism function. Following Challenger's recommended maintenance schedule ensures safe operation and maintains warranty coverage.
Is the 4030SAX compatible with wheel alignment systems? ▾
Yes, the 4030SAX is designed for alignment service and is compatible with the industry's latest camera imaging alignment systems. Recessed turnplate pockets provide easy drive-on positioning, and optional heavy-duty steel turnplates deliver accurate alignment readings.
Can the 4030SAX be installed on uneven floors? ▾
The 4030SAX features adjustable lock ladders that accommodate minor floor variations during installation. However, proper leveling is essential for safe operation. Significant floor irregularities should be addressed before installation.
