What is the lifting capacity of the Challenger E15? ▾
The Challenger E15 has a total lifting capacity of 15,000 lbs when the load is equally distributed across all four arms. Each individual arm is rated for a maximum of 3,750 lbs. This capacity makes it suitable for most medium-duty trucks, cargo vans, fleet vehicles, and larger SUVs. Always refer to your vehicle's GVWR and consult manufacturer lifting points before lifting.
What ceiling height do I need for the Challenger E15? ▾
The E15 requires a minimum ceiling height of 14'7" for the standard configuration or 16'7" when using the full 2-foot column extension. The adjustable column height extension allows you to configure the lift to either 14'6" or 16'6" overall height, so you can optimize the lift for your specific facility while maintaining adequate clearance for the overhead shut-off system.
What are the electrical requirements for the E15? ▾
The E15 requires 208-230V single-phase power at 50/60Hz with a 30A dedicated circuit protected by a circuit breaker or time delay fuse. The lift is powered by a 2HP motor. A licensed electrician should install and verify the electrical supply. Three-phase power configurations are available with the optional contactor enclosure for 240V or 440-480V applications.
What concrete specifications are required for installation? ▾
The E15 requires a minimum 4-inch thick concrete floor with steel reinforcement, rated at 3,500 PSI minimum, and properly cured for at least 28 days. The floor must be level within 3/8" across the installation area. No anchor bolts may be installed within 8 inches of any crack, edge, or expansion joint. If your existing floor doesn't meet these requirements, a dedicated concrete pad can be poured to accommodate the lift.
Is the Challenger E15 ALI certified? ▾
Yes, the Challenger E15 is ALI/ETL certified. This certification means the lift has been independently tested and verified to meet the safety standards established by the Automotive Lift Institute (ALI) and the nationally recognized testing laboratory ETL. ALI certification is often required for insurance purposes and provides assurance of safe design and manufacturing.
What is included with the Challenger E15? ▾
The E15 comes complete with both column assemblies, column extensions, overhead assembly with limit switch, four 2-stage lifting arms, synchronizer cables, mechanical lock release system, four foot pad assemblies, adapter rack with extension adapters, stack adapters, door guards, all mounting hardware, and complete documentation. Not included: hydraulic oil (3 gallons required), electrical connections, and installation labor.
How is the Challenger E15 shipped? ▾
The E15 ships via freight carrier from Challenger's facility in Louisville, Kentucky. Free freight shipping is included to commercial addresses in the 48 contiguous United States. Delivery is curbside, so you'll need a forklift or loading dock to unload the shipment. Lift-gate service is available for an additional fee. Always inspect the shipment thoroughly and note any damage on the bill of lading before signing.

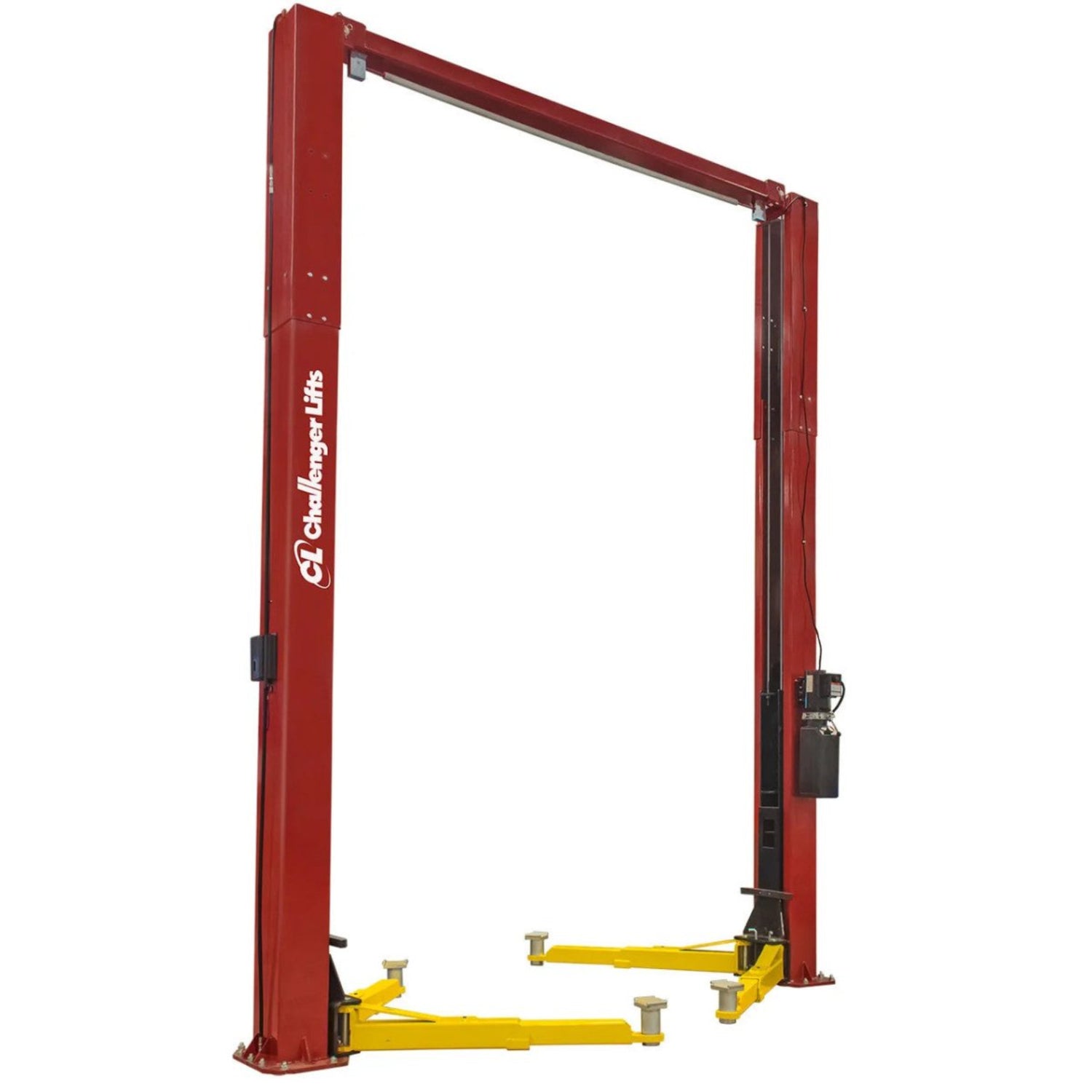

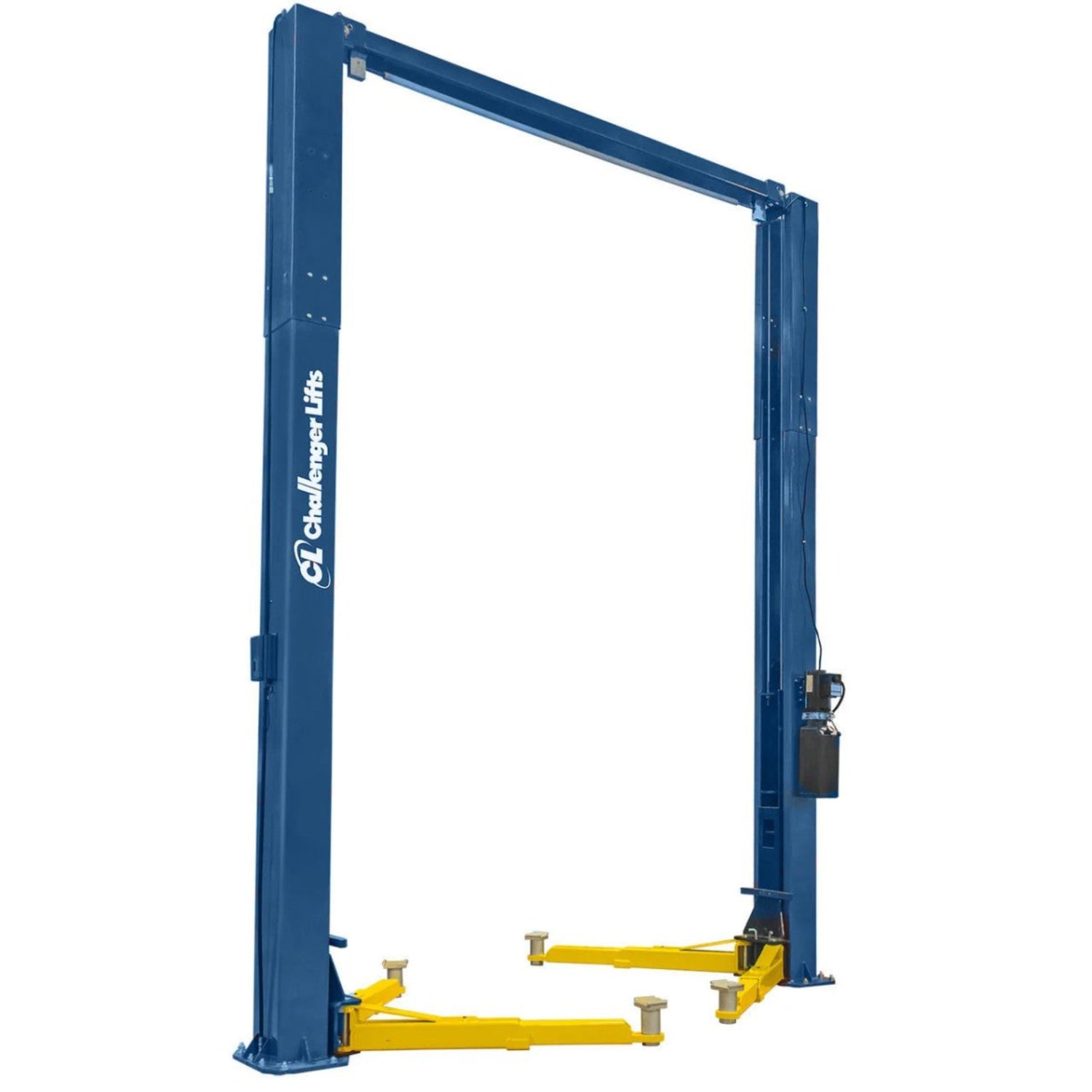

What colors is the E15 available in? ▾
The Challenger E15 is available in Red or Blue powder coat finishes. The durable powder coat finish provides long-lasting protection against corrosion and wear while maintaining a professional appearance in your service bay. Specify your preferred color when ordering.
How does the E15 compare to other Challenger two-post lifts? ▾
The E15 is positioned as Challenger's economic option for heavy-duty lifting, offering 15,000 lb capacity at a competitive price point. It features the jacketed single-point lock release system that was previously exclusive to the premium CL Series. For higher capacity needs, consider the Challenger CL Series. For lighter-duty applications, Challenger offers lower-capacity models. Contact our team for help selecting the right lift for your specific requirements.
What maintenance does the E15 require? ▾
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and verifying arm stop hardware engagement. Weekly tasks include inspecting synchronizer cables and sheaves and checking lock release cable adjustment. Monthly maintenance involves torquing anchor bolts to 80 ft-lbs, testing the overhead shut-off switch, lubricating carriage slide tracks with heavy grease, and inspecting the concrete floor around the base plates.
Can I install the Challenger E15 myself? ▾
While the E15 can technically be self-installed by following the detailed manual, professional installation by qualified personnel is strongly recommended. Proper installation is critical for safe operation and warranty coverage. Installation must comply with ANSI/ALI ALIS standards, and local building codes may require permits and inspections. A qualified person should address seismic loads and other local requirements.
What is the arm reach range on the E15? ▾
The E15 features heavy-duty 2-stage front and rear arms with a reach range of 36-1/2" minimum to 55" maximum. This wide range of adjustment allows you to properly position the lift pads under manufacturer-recommended lifting points on a variety of vehicle wheelbases and body styles, from compact trucks to full-size vans and extended cab pickups.
