BCP5
Challenger Lifts  |  SKU: CLHM-190W

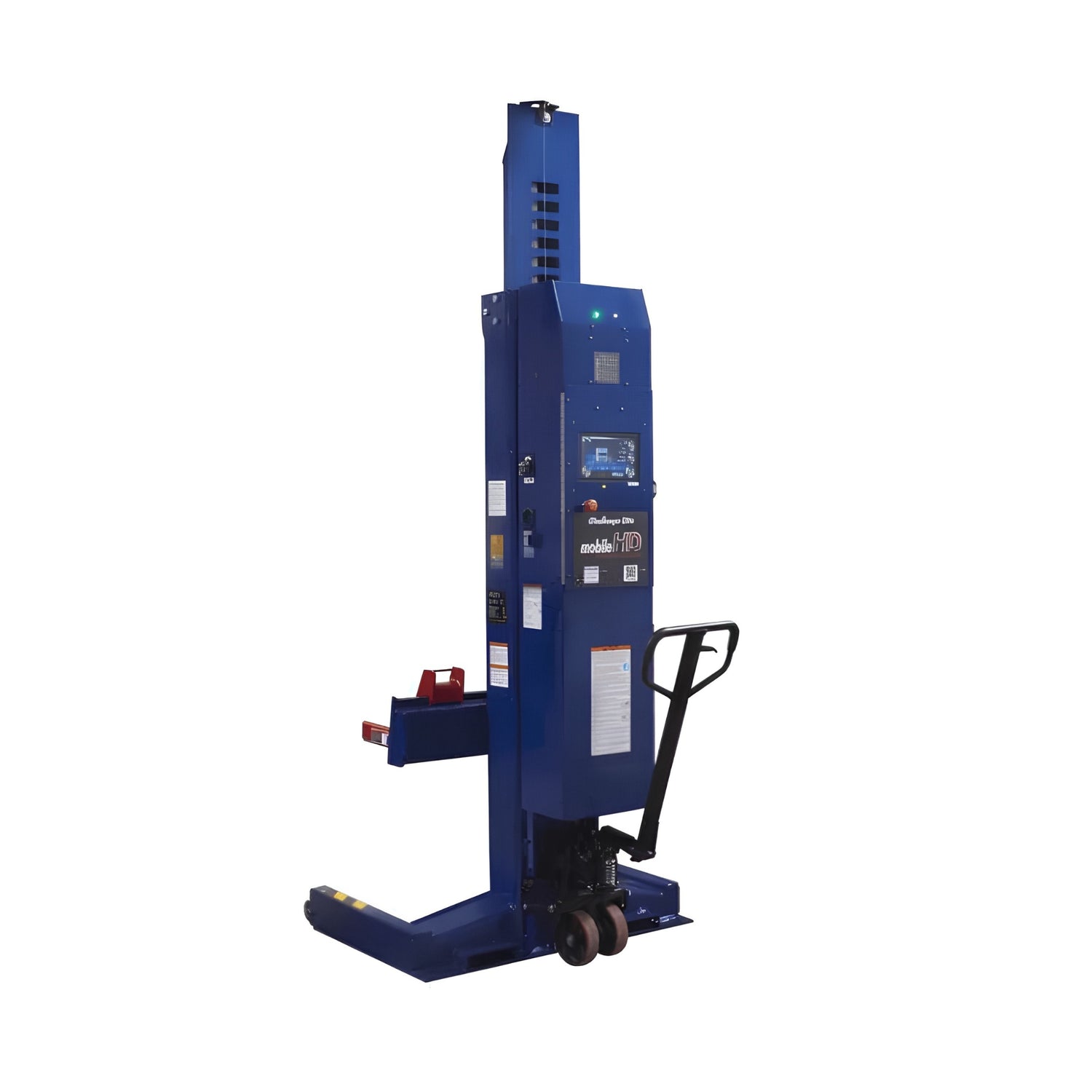

Challenger CLHM-190W Wireless Mobile Column Lift 19,000 lb Wide

Regular price $16,480.33
Talk to an Expert Call 800-736-6265
Shipping calculated at checkout.

Authorized Challenger Lifts Dealer

Warranty: (5) Years on Structure, (2) Years on Functional Parts, (1) Year Labor

  • US-Based Support
  • Trusted Automotive Lift Brand
  • Part of Snap-on Incorporated
  • Engineered lifting solutions since 1987
  • ANSI/ALI certified
Estimated lead time: 10 days from the day of order, excluding weekends and holidays.


Shipping & Price Match Guarantee

Enjoy Free Shipping on orders over $200 and a Price Match Guarantee!

Find a lower advertised price on an identical, in-stock item from an authorized U.S. retailer within 14 days of purchase? Email support@bluecollarplanet.com with your order number, the competitor's product link, and a screenshot, and we'll match it.

See our Price Match Guarantee Policy for more information)

What is your Return Policy?

Cancel within 24 hours of placing your order for a full refund.

After 24 hours or once processing begins, a 25% restocking fee applies even before shipping.

Once your order has shipped, our 30-Day Return Policy applies — see Return Policy for full details.

Customer is responsible for return shipping unless the item arrived damaged or defective.

Click Learn more to read our Detailed Return Policy.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop with confidence - your transactions are SSL-encrypted and your payment details are securely transmitted.

We never store or have access to your credit card information.

Warranty

Warranty
Warranty basics
Challenger Lifts, Inc. (CLI) warrants its lifts to the original owner only; the coverage is not transferable. CLI will, at its discretion, repair or replace any part that is found on inspection to be defective during the applicable warranty period. Coverage applies only when the lift is installed, operated, and maintained in line with CLI's installation, operation, and maintenance instructions. Using unapproved parts or accessories voids the warranty, as does any repair attempted by someone who is not a CLI authorized service representative. Normal maintenance, adjustments, wear and tear, and damage from improper handling, abuse, misuse, or negligence are not covered. The warranty is valid only if the lift is registered with Challenger Lifts; registration must be completed online (challengerlifts.com/register-your-lift), otherwise the warranty period begins from the invoice date of purchase.
Warranty length
5 years on structural parts, 2 years on functional parts, and 1 year on labor. Structural parts include the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers. Functional parts include power units, cylinders, sheaves, sheave pins, hoses, hydraulic and pneumatic fittings, cables, adapters, latches, valves, and controls.
Remedies and costs
Repair or replacement of defective parts is the exclusive remedy under this warranty. For the covered period, CLI also pays reasonable transportation and/or labor costs to replace those parts. This warranty is exclusive and replaces all other warranties, express or implied, including any implied warranty of fitness for a particular purpose, which is expressly excluded. No employee, agent, dealer, or other party may extend warranties on CLI's behalf. CLI is not liable for special, consequential, or incidental damages arising from any breach or delay in performance of the warranty. The warranty is governed by the laws of the Commonwealth of Kentucky and is subject to the exclusive jurisdiction of the courts of Jefferson County, Kentucky.

FAQs

What is the lifting capacity of the CLHM-190W? ▾
Each CLHM-190W column has a lifting capacity of 19,000 lb. When used as a set of 2, the combined capacity is 38,000 lb. A full set of 8 columns provides 152,000 lb total lifting capacity, suitable for large multi-axle commercial vehicles, buses, and heavy equipment.
What is the difference between the CLHM-190W and CLHM-190? ▾
The CLHM-190W is the wide version of the CLHM-190. The 190W features a 49" width compared to 44.25" on the standard model, along with a larger footprint (705 sq in vs 560 sq in) and expanded wheel diameter range starting at 4" minimum instead of 5". This makes the 190W ideal for oversized commercial tires and dual-wheel configurations.
How does the wireless system work? ▾
The CLHM-190W uses a wireless radio communication system with 12 available frequencies to prevent interference. Linear position transducers in each column maintain precise synchronization, while integrated touch screen consoles allow operation from any column. This eliminates all cables between units for a completely wireless work area.
What power source do the columns require? ▾
The columns operate on 12-volt deep cycle batteries (2 per column) providing 26 VDC operation during lifting. No external power is required during use. Each column has a built-in multi-stage charging system requiring 122 VAC @ 60 Hz, 2.3 amps for recharging between uses.
What are the space requirements for using these lifts? ▾
Minimum bay width is 14' 8" with 14' recommended. Bay length of 28' is recommended for full vehicle access. Ceiling height must accommodate the 157.125" overall height at full rise plus adequate clearance. The columns can be used on any solid, level surface indoors or outdoors.
Is the CLHM-190W ALI certified? ▾
Yes, the CLHM-190W is both ALI (Automotive Lift Institute) and ETL certified, confirming it meets industry safety and performance standards for commercial automotive lifting equipment.
How many columns do I need for my application? ▾
Column requirements depend on vehicle weight and configuration. Two columns provide 38,000 lb capacity with 32" max lift height. Four or more columns provide 69" max lift height and higher total capacity. For multi-axle vehicles, use one pair of columns per axle. Contact our equipment specialists for help sizing a system for your specific fleet.
What is included with the lift and what do I need to supply? ▾
Each column includes the integrated touch screen console, charging system, tow handle, and adjustable wheel carriages. You will need to supply 12-volt deep cycle batteries (2 per column) and provide 120V outlets for charging. Optional accessories are available for specialty applications.
How is the lift shipped and delivered? ▾
The CLHM-190W ships via freight to commercial addresses in the lower 48 states with free shipping. Each column weighs 1,575 lb, so a forklift or loading dock is required for unloading. Curbside delivery is standard. Inspect shipments for damage before signing the bill of lading.
Can these lifts be used outdoors? ▾
Yes, the CLHM-190W can operate on any solid, level surface indoors or outdoors. The battery-powered operation means no external power connections are needed during use. This makes them ideal for fleet yards, outdoor service areas, and locations without permanent lift installations.
What maintenance is required? ▾
Regular maintenance includes keeping batteries charged, inspecting hydraulic fluid levels, checking wheel carriages and forks for wear, and verifying proper operation of safety locks and synchronization systems. Refer to the operation manual for complete maintenance schedules and procedures.
Are the lifts suitable for electric vehicle service? ▾
Yes, the CLHM-190W is EV Service Ready. The wireless design eliminates grounding concerns, and the high capacity handles heavy EV battery packs. These columns are suitable for electric buses, delivery trucks, and commercial EV fleet vehicles.
