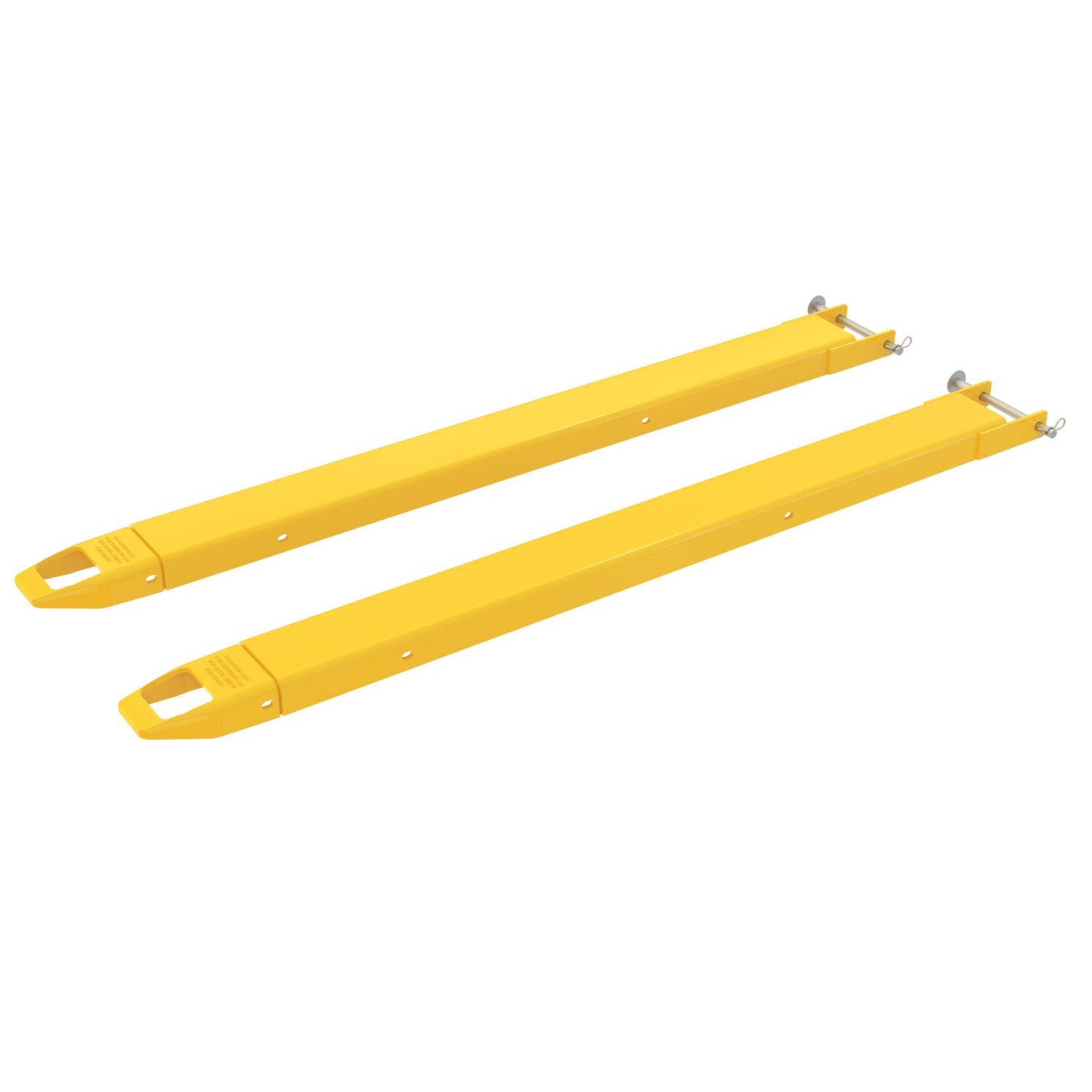

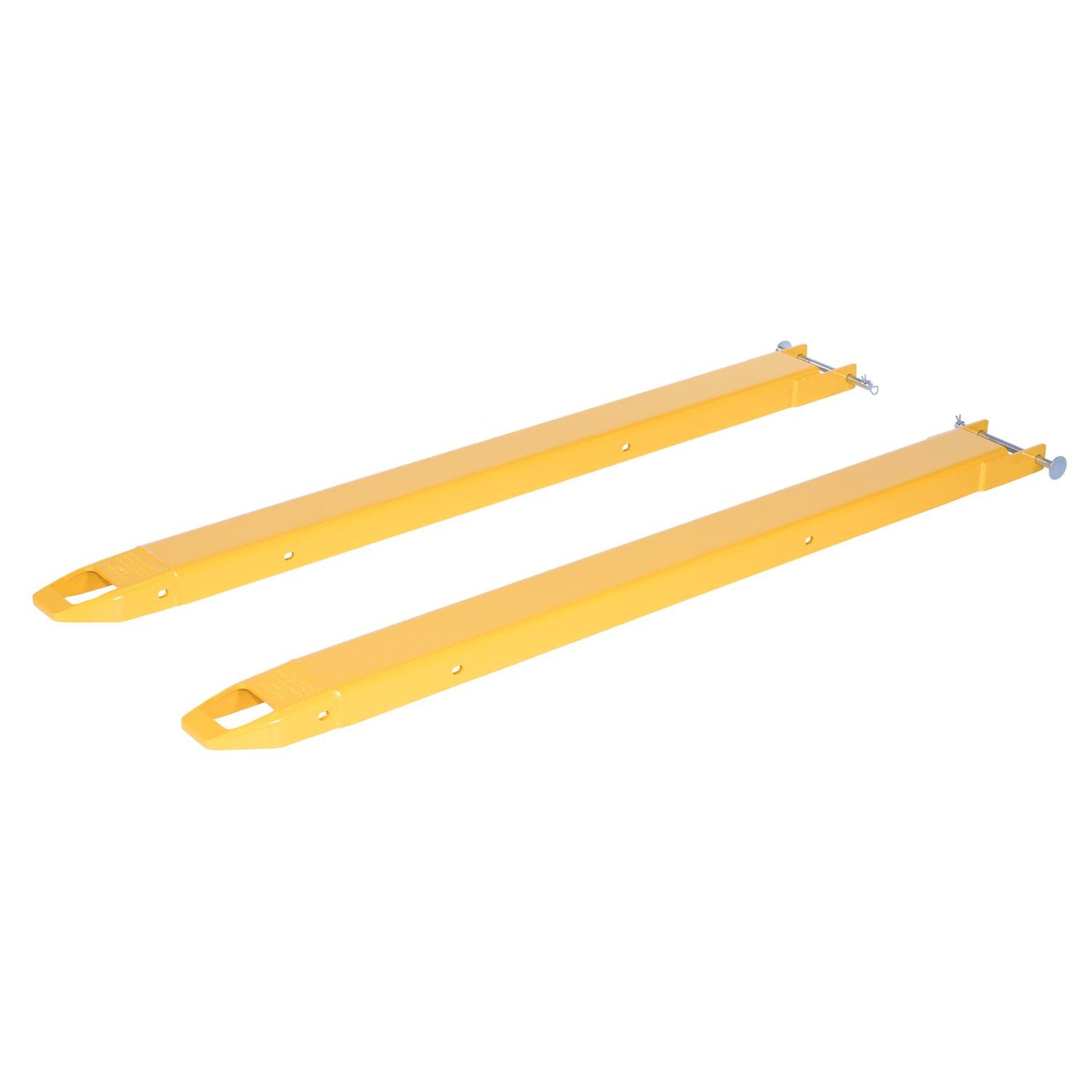

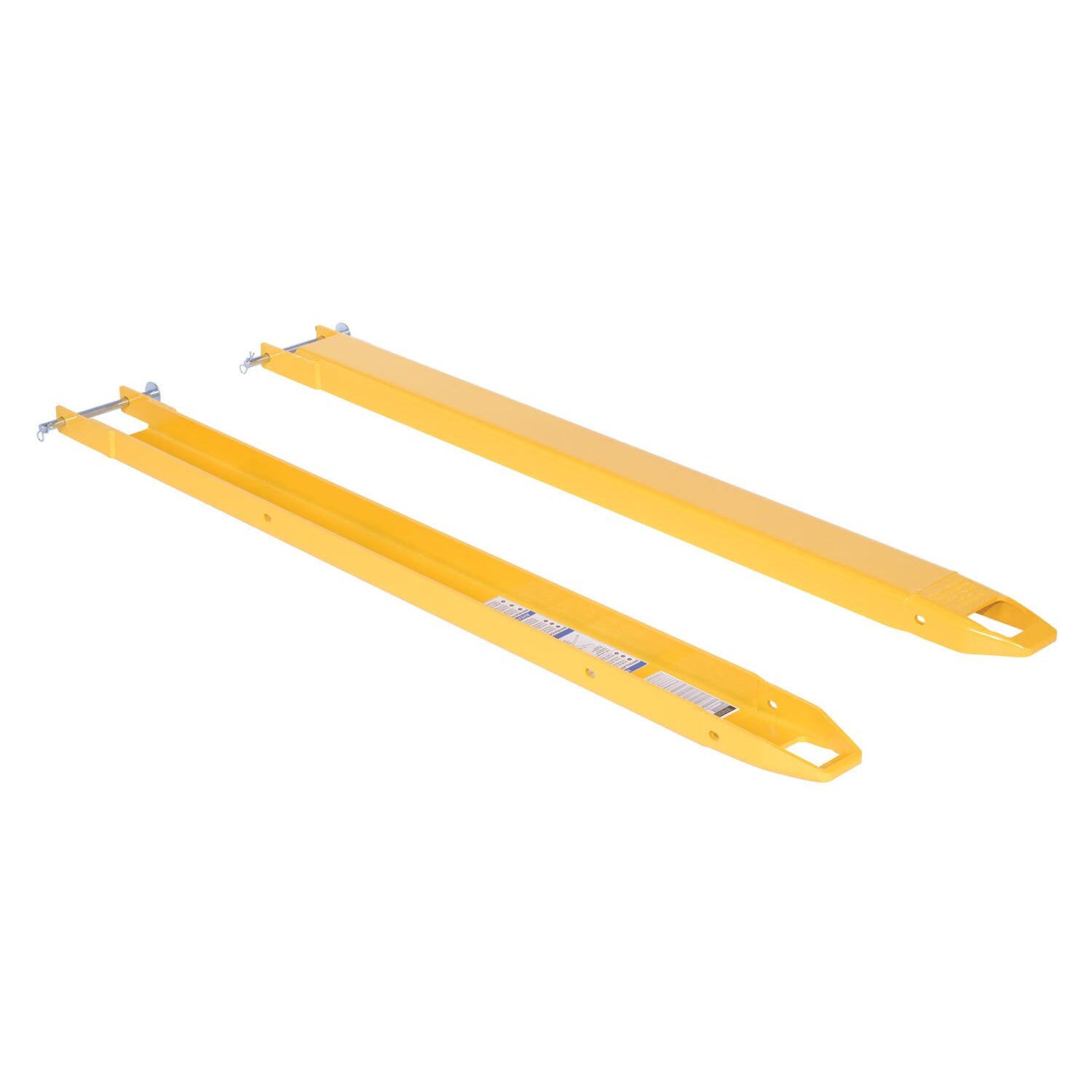

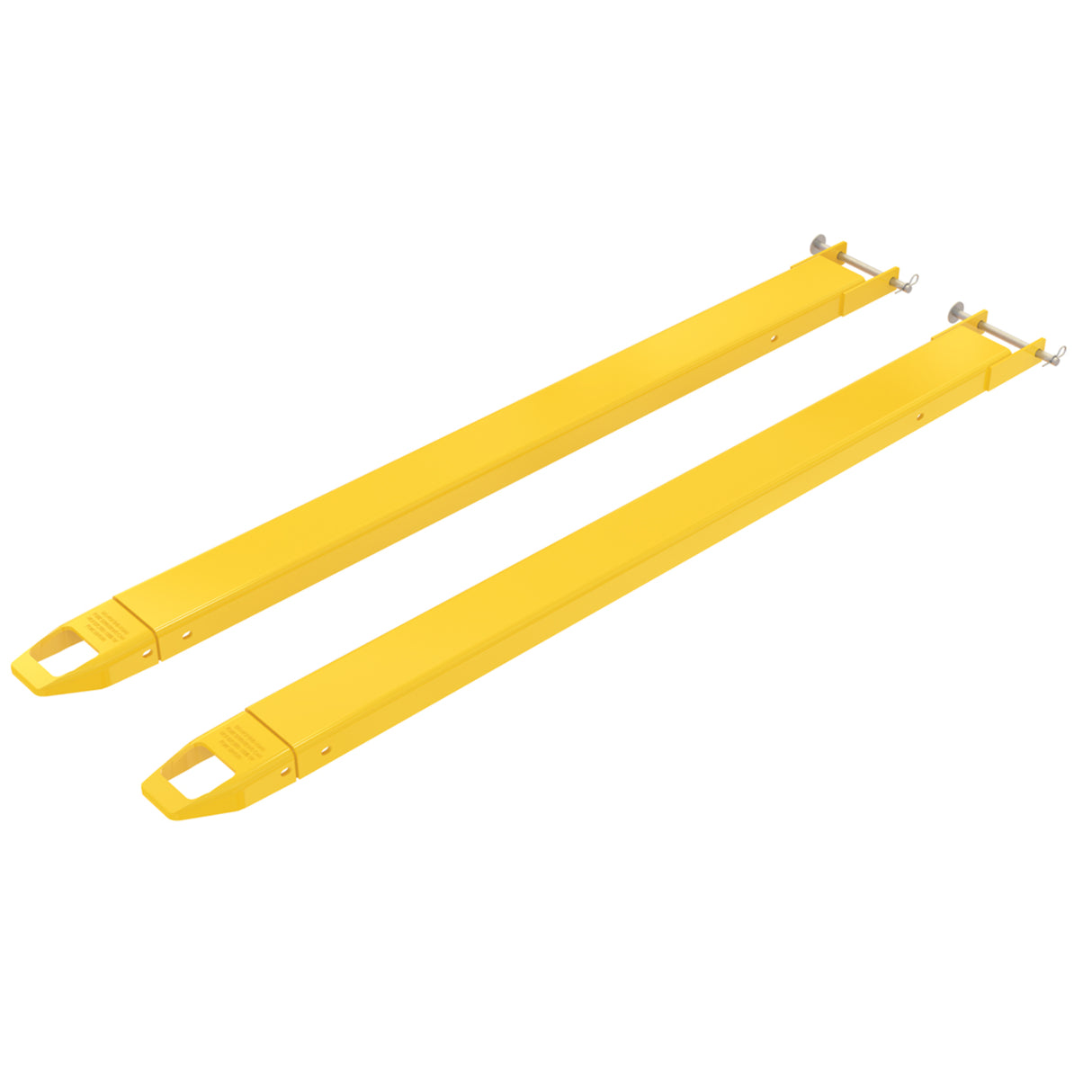

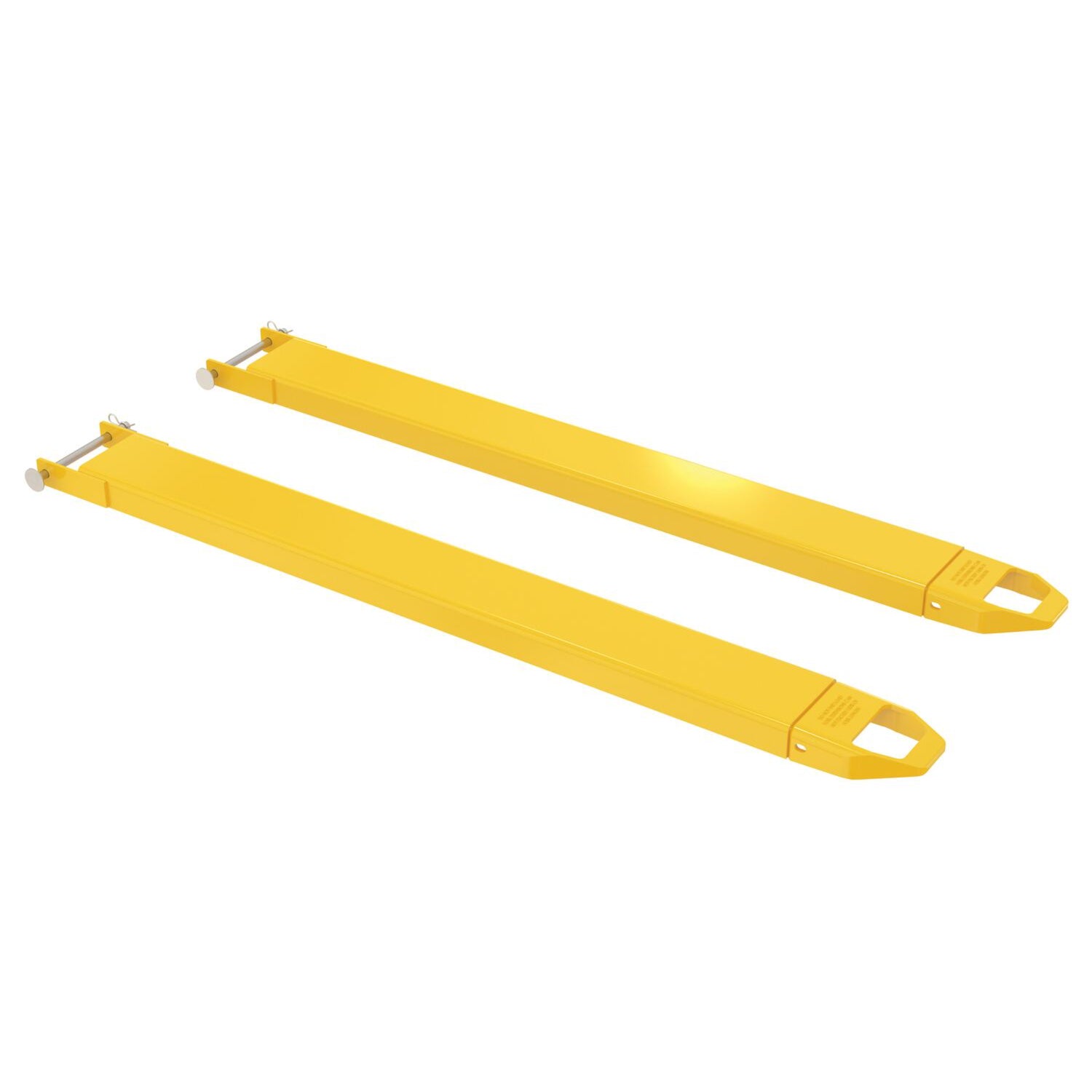

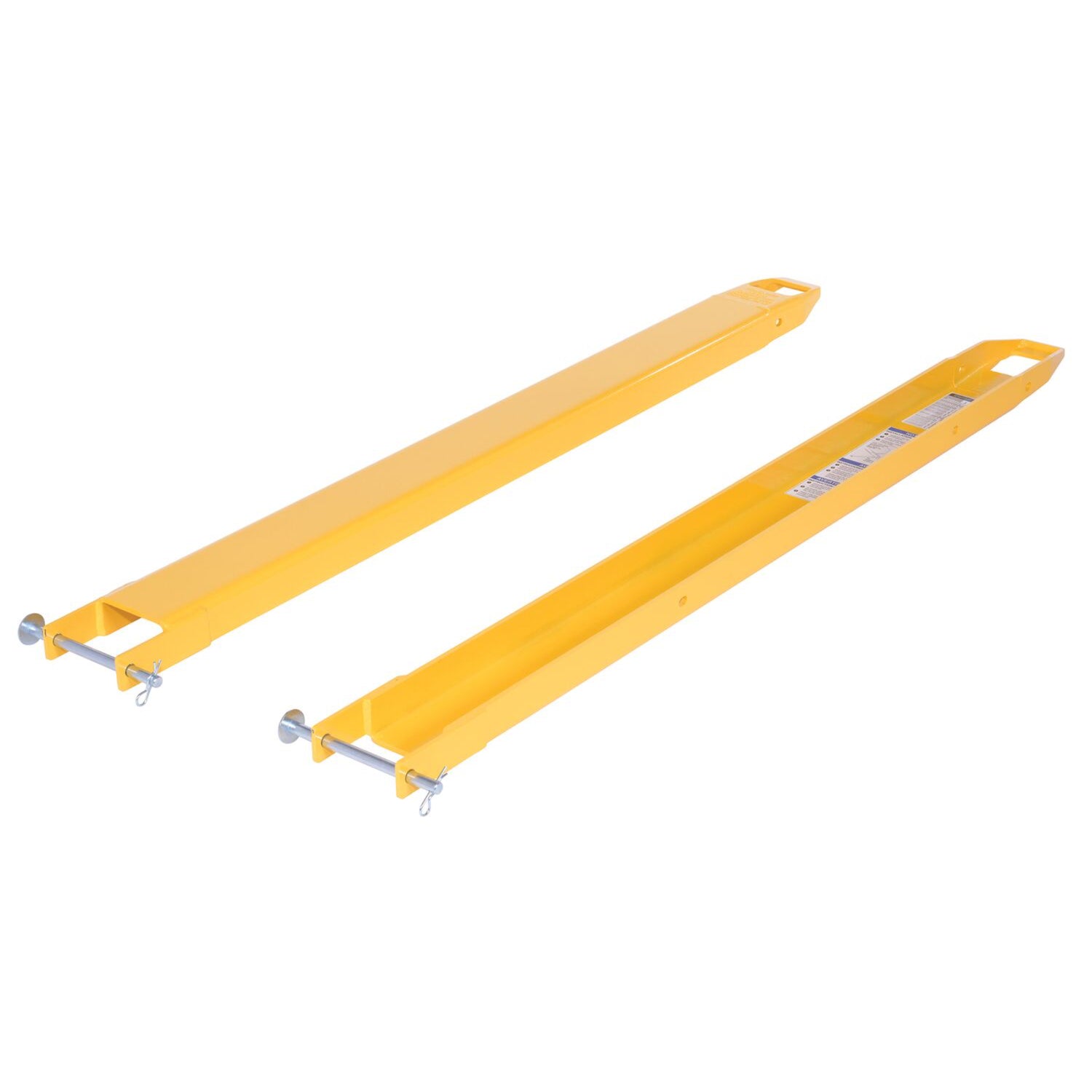

Vestil FE-P Cast-Tip Pin Style Fork Extensions — 4,000 lb Per Pair, Cast Steel Tips

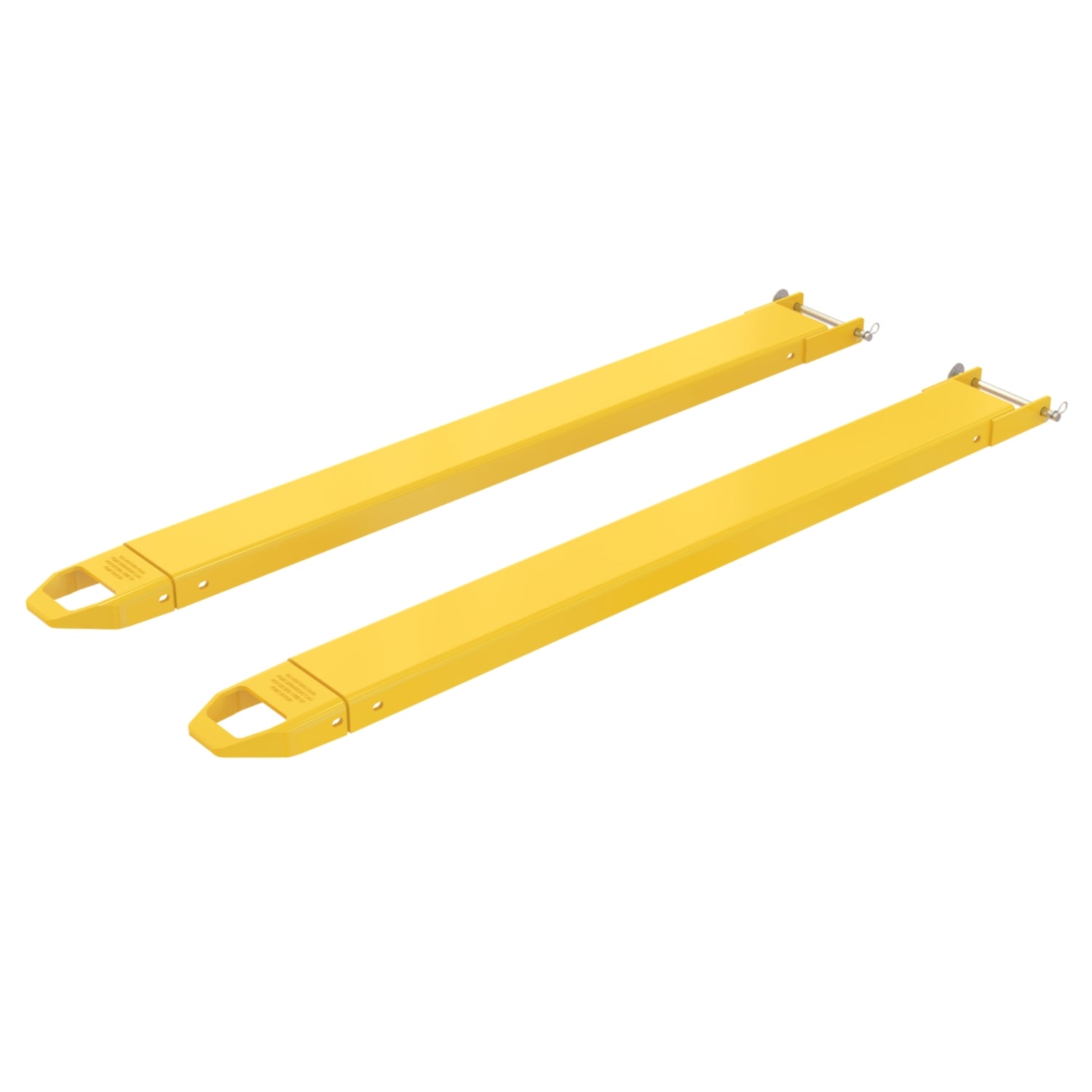

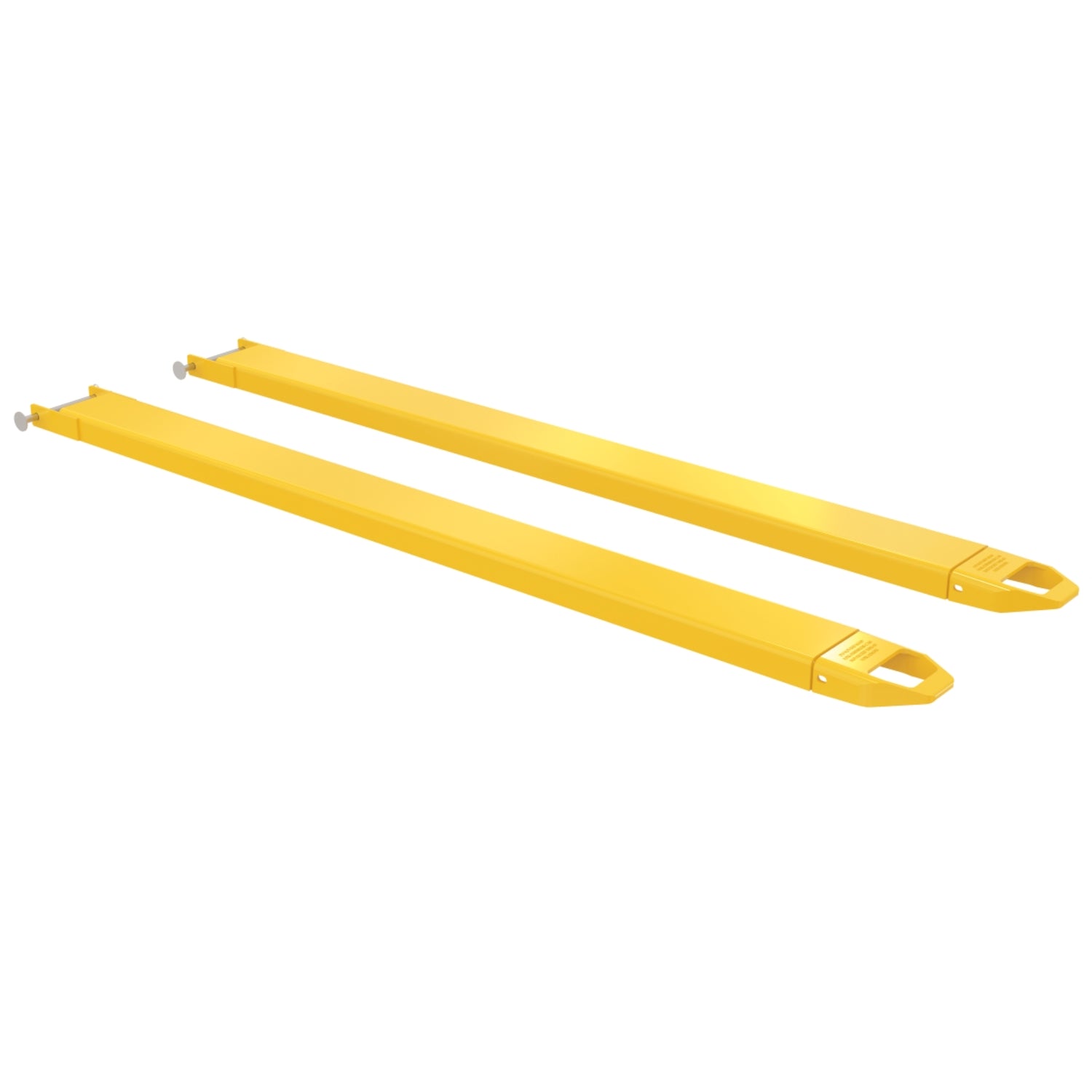

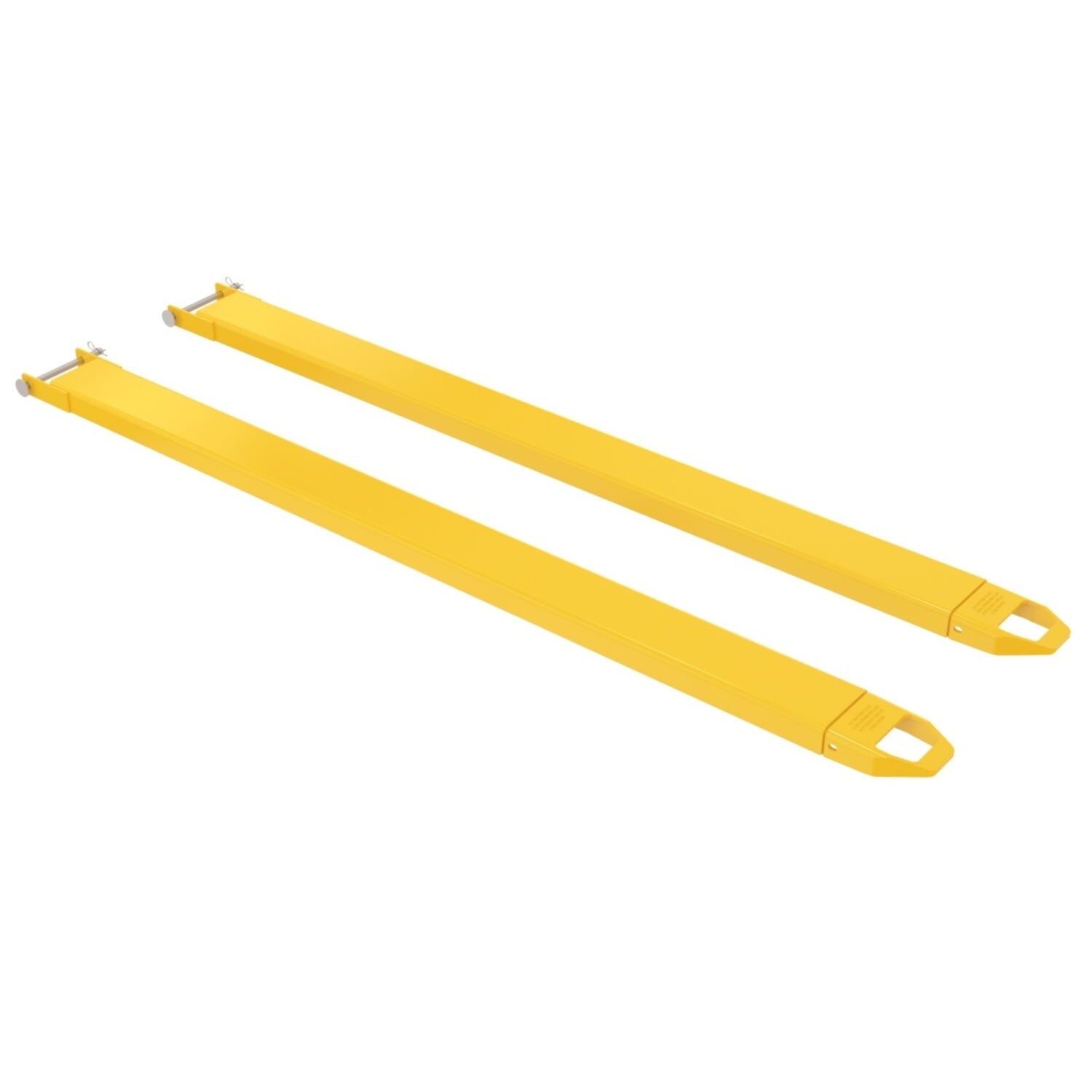

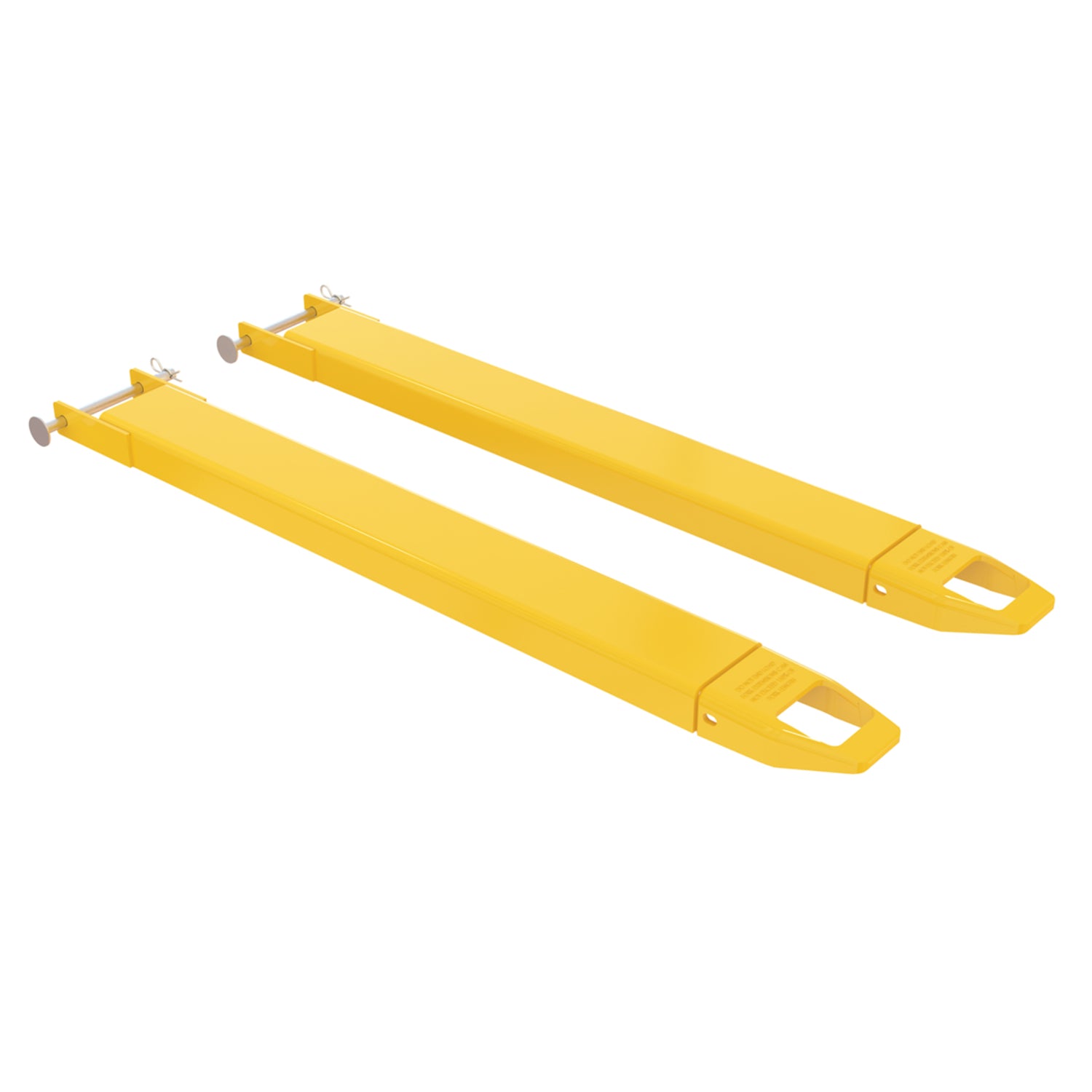

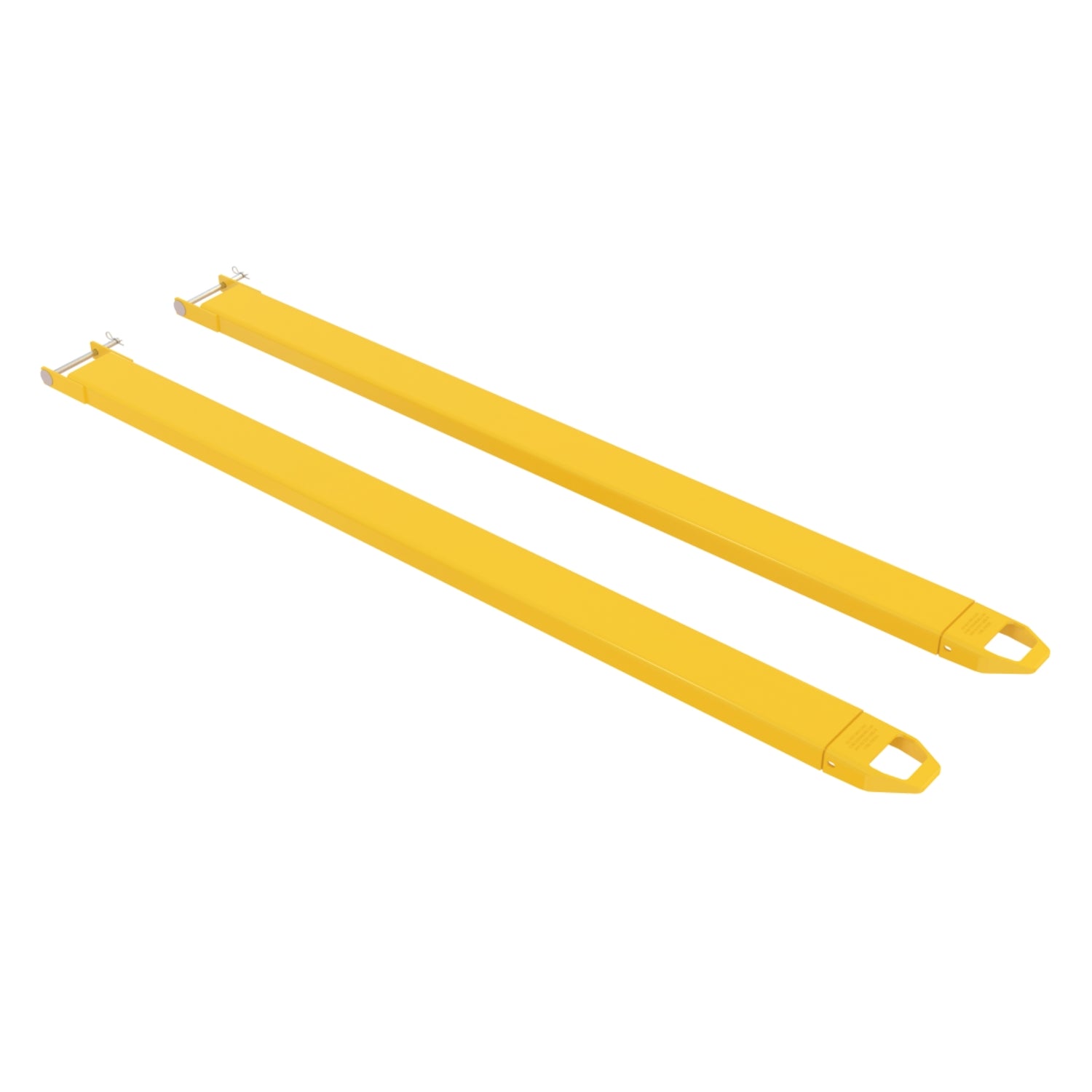

Vestil Pin Style Fork Extensions (FE-P) provide the extra support needed to lift long or large objects with a fork truck. This cast-tip range — fork widths 4", 5", and 6" — features cast steel tips on a welded steel body, with a baked-in powder-coat yellow finish for lasting durability. Pin retention makes them quick to install and remove, and each extension includes warning and operating stickers for worker safety. Maximum capacity 4,000 lb, evenly distributed per pair.

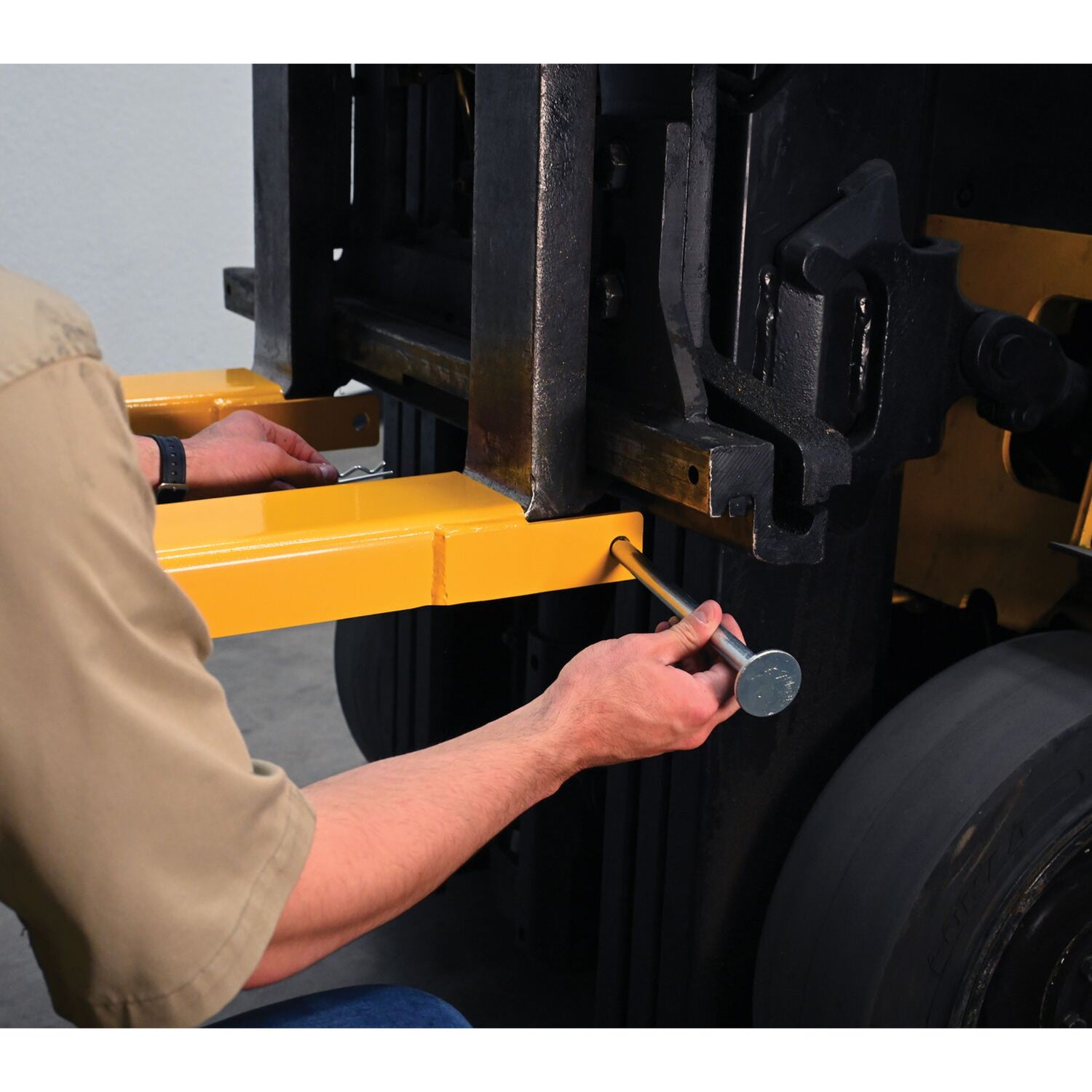

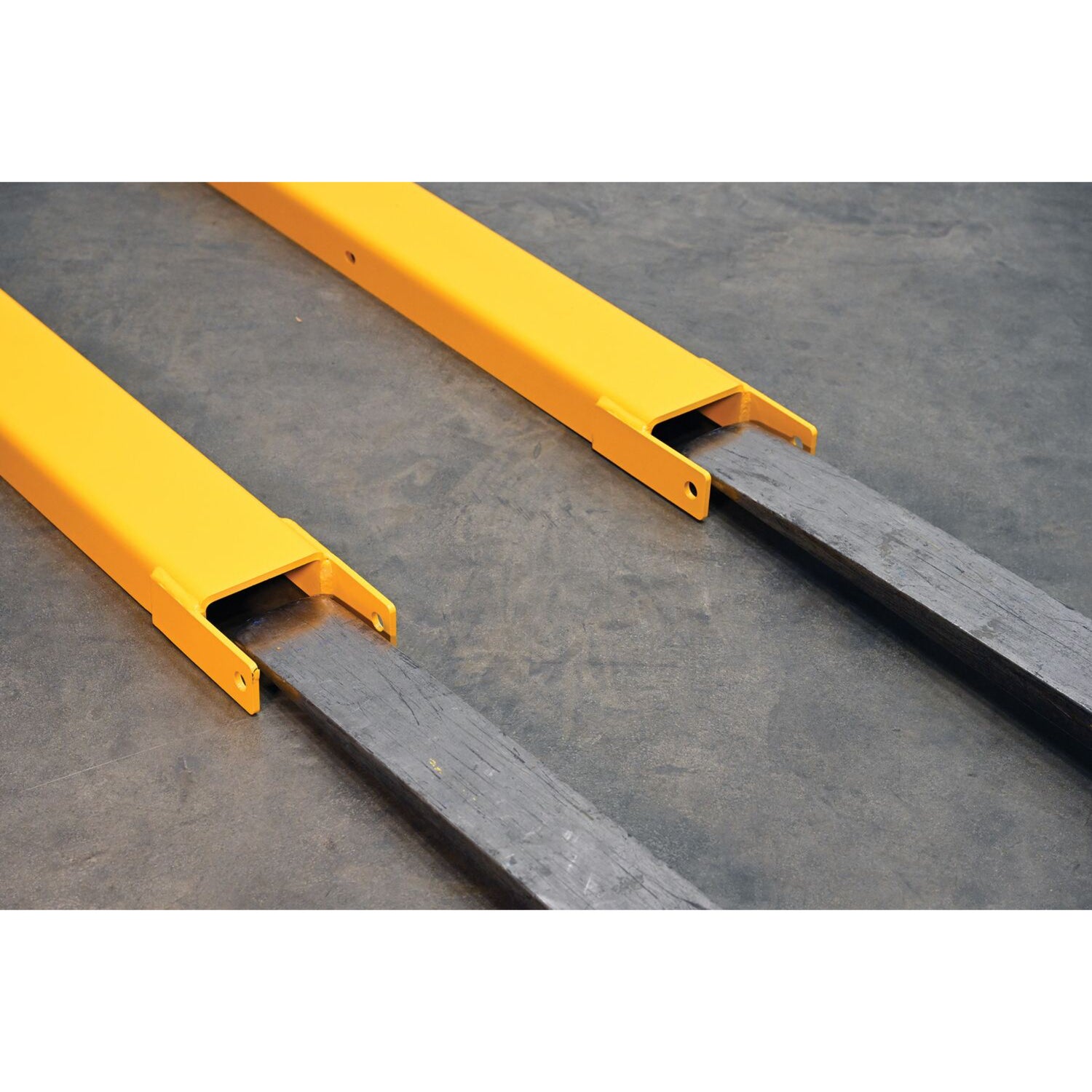

Why It's Different: Unlike loop-only extensions, the FE-P secures with a pin behind the heel of the fork — remove the pin, lay the extension over the fork (or drive the truck into it), then re-insert the pin to lock it in place. The 4/5/6" widths use cast steel tips for clean entry under loads.

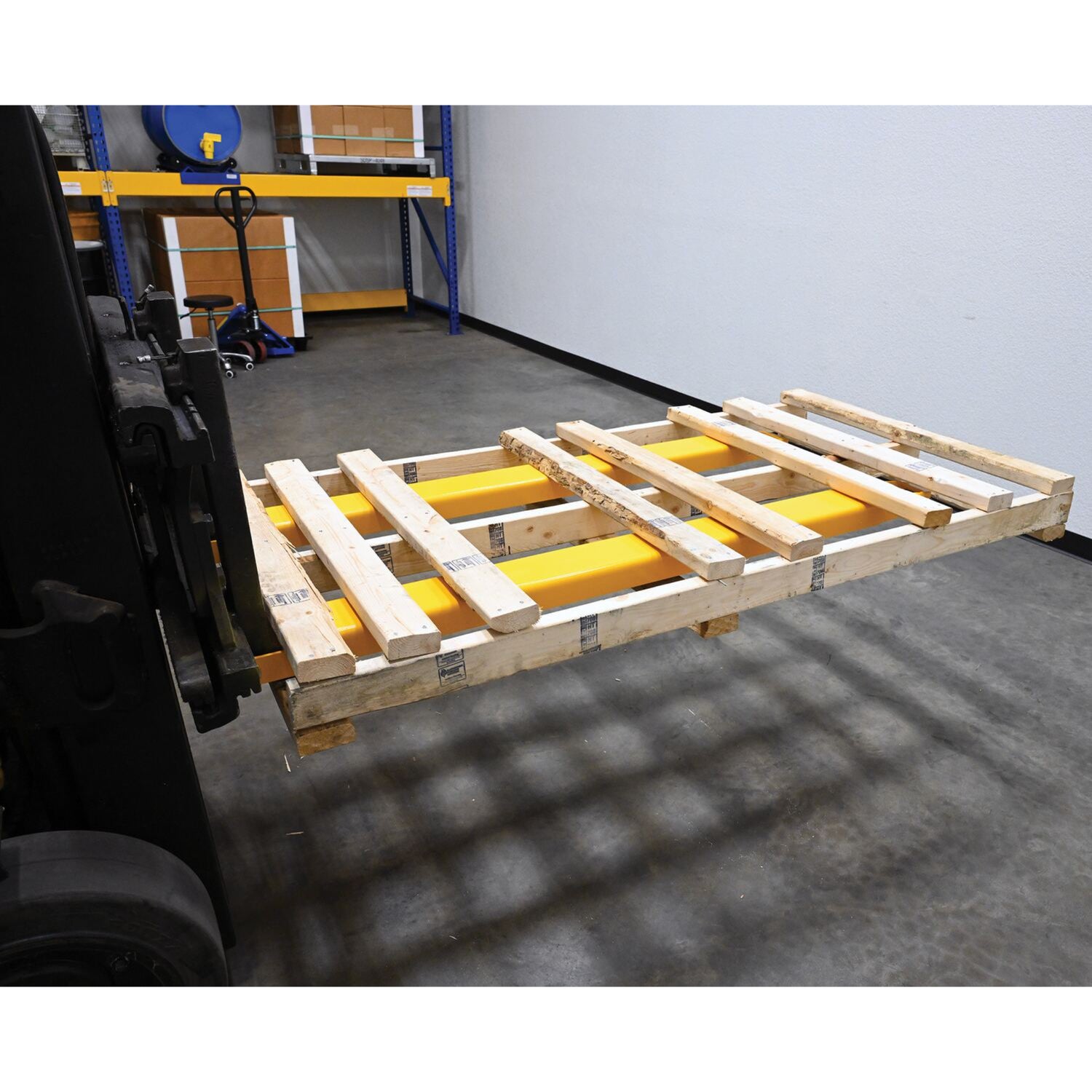

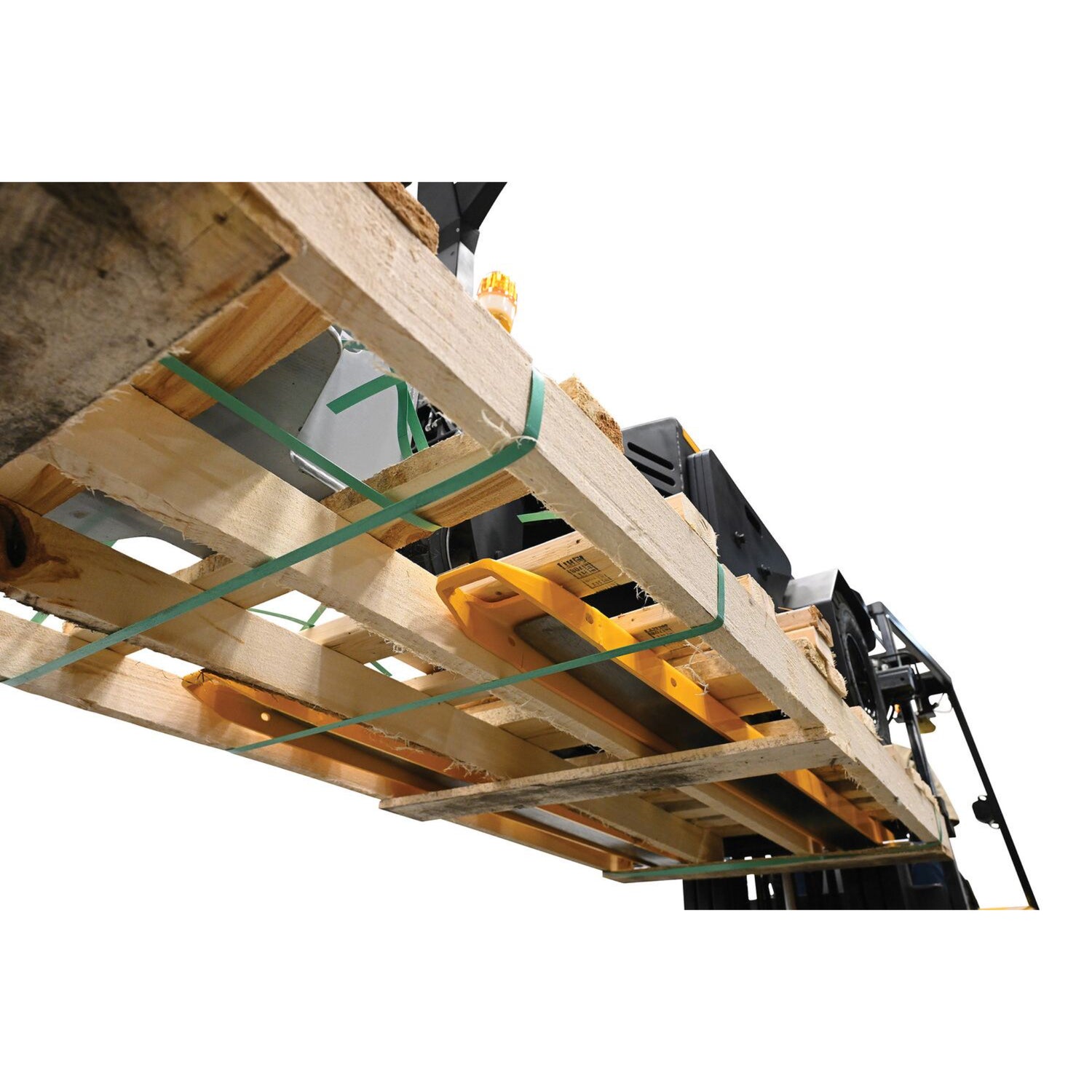

Best For: Warehouses and manufacturing handling lumber, pipe, panels, drywall, carpet, and other long or oversized loads where standard forks can't reach. Choose the width to match your forks and the length for your load.
⚠️ For use with Class 2 and Class 3 forks ONLY. Confirm your fork class before ordering.
⚠️ OSHA 150% rule: fork extensions must not exceed 150% of the existing fork length (e.g., 48" forks → 72" maximum extension). With lengths up to 120" offered, confirm your existing fork length before selecting.
⚠️ Fork width must match your existing forks — available in 4", 5", and 6".
⚠️ 4,000 lb capacity is the maximum per PAIR, evenly distributed. A single extension ("Sold As: Each") is intended for pair use or as a replacement and is not individually rated at 4,000 lb. Buying a pair also costs less than two singles.

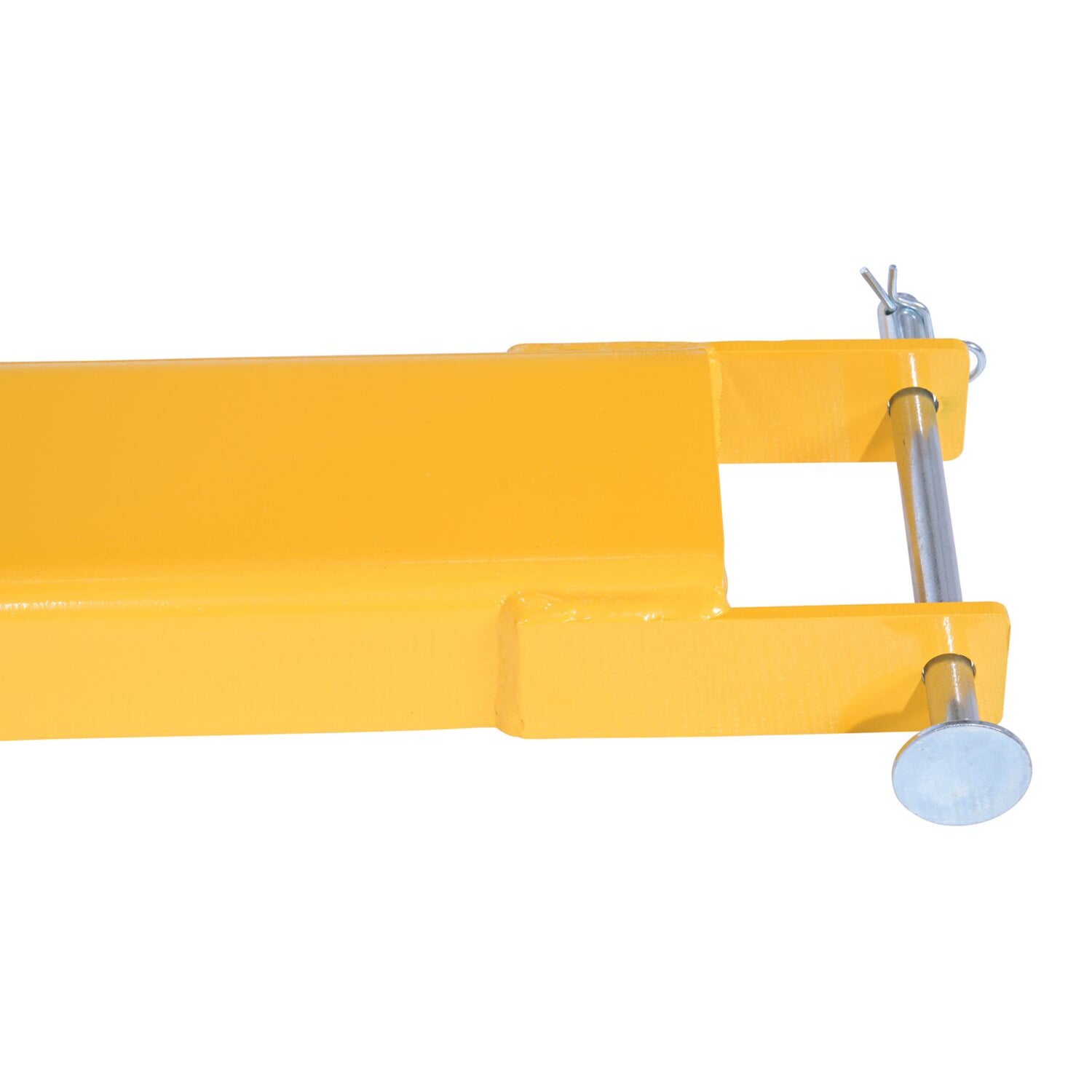

⚠️ Pin retention: the pin must be re-inserted behind the fork heel to secure the extension.
⚠️ Long versions (108"/120") are heavy and oversized — two-person handling and freight shipping.
Features
-
Made in Indiana, USA by Vestil Manufacturing
-

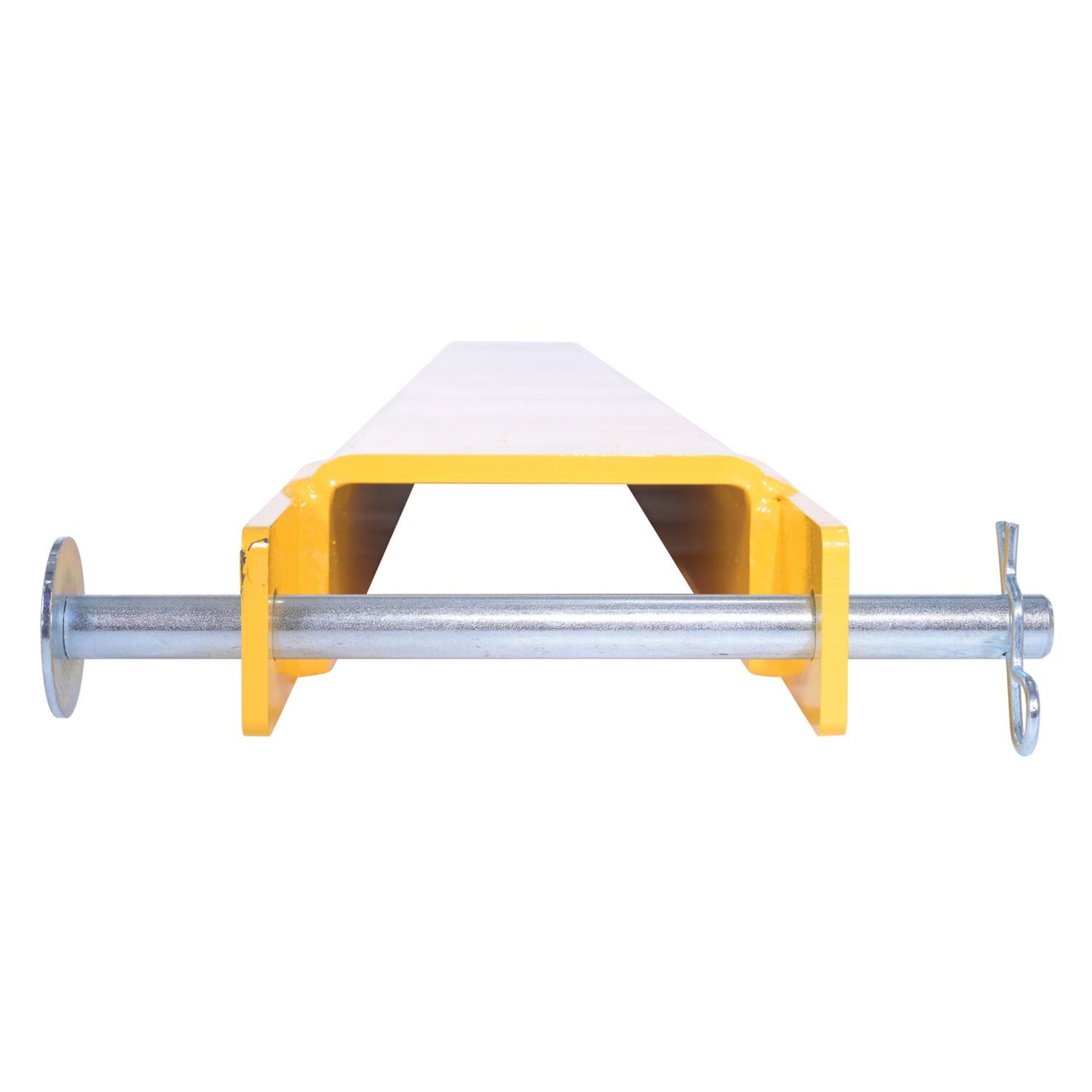

Pin-style retention — secures with a pin behind the fork heel
- Welded steel construction with cast steel tips (4/5/6" widths)
- 4,000 lb maximum capacity, evenly distributed per pair
- Baked-in powder-coat yellow finish for lasting durability

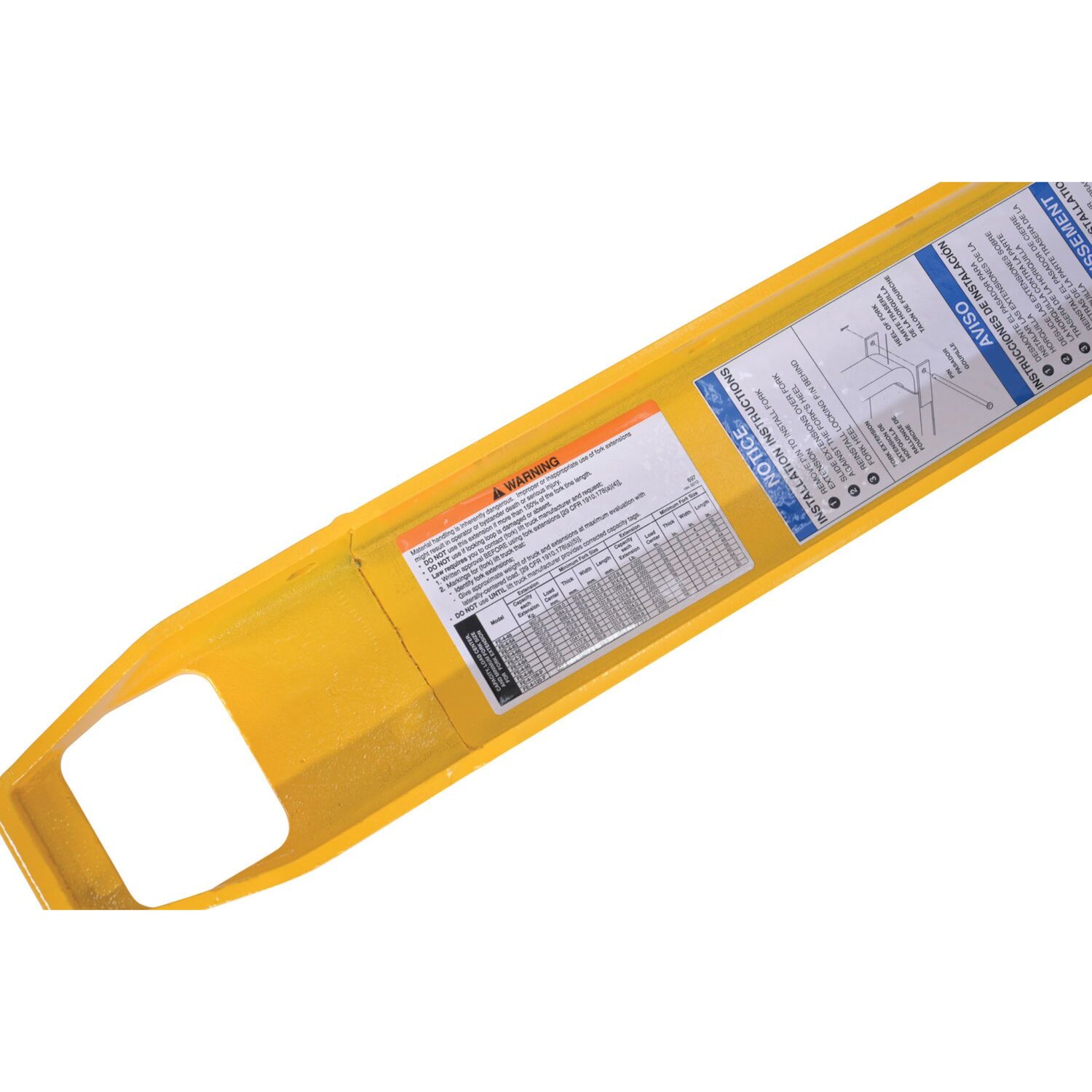

- Includes warning and operating stickers for worker safety
- Provides extra length when standard forks can't reach the product
- Available in 4", 5", and 6" widths
- Lengths from 48" up to 120"
- Sold as a pair (standard) or as a single extension (replacement)
- For Class 2 and Class 3 forks only
- Owner's manual, engineering drawings, and testing certificates available
- ⚠️ Class 2 & 3 forks only
- ⚠️ OSHA 150% fork-length rule applies
- ⚠️ Capacity is per pair, evenly distributed
Specifications
| Model (Pair) |
Fork Width |
Usable Length |
Capacity / Pair |
Tip |
| FE-4-48-P |
4" |
48" |
4,000 lb |
Cast steel |

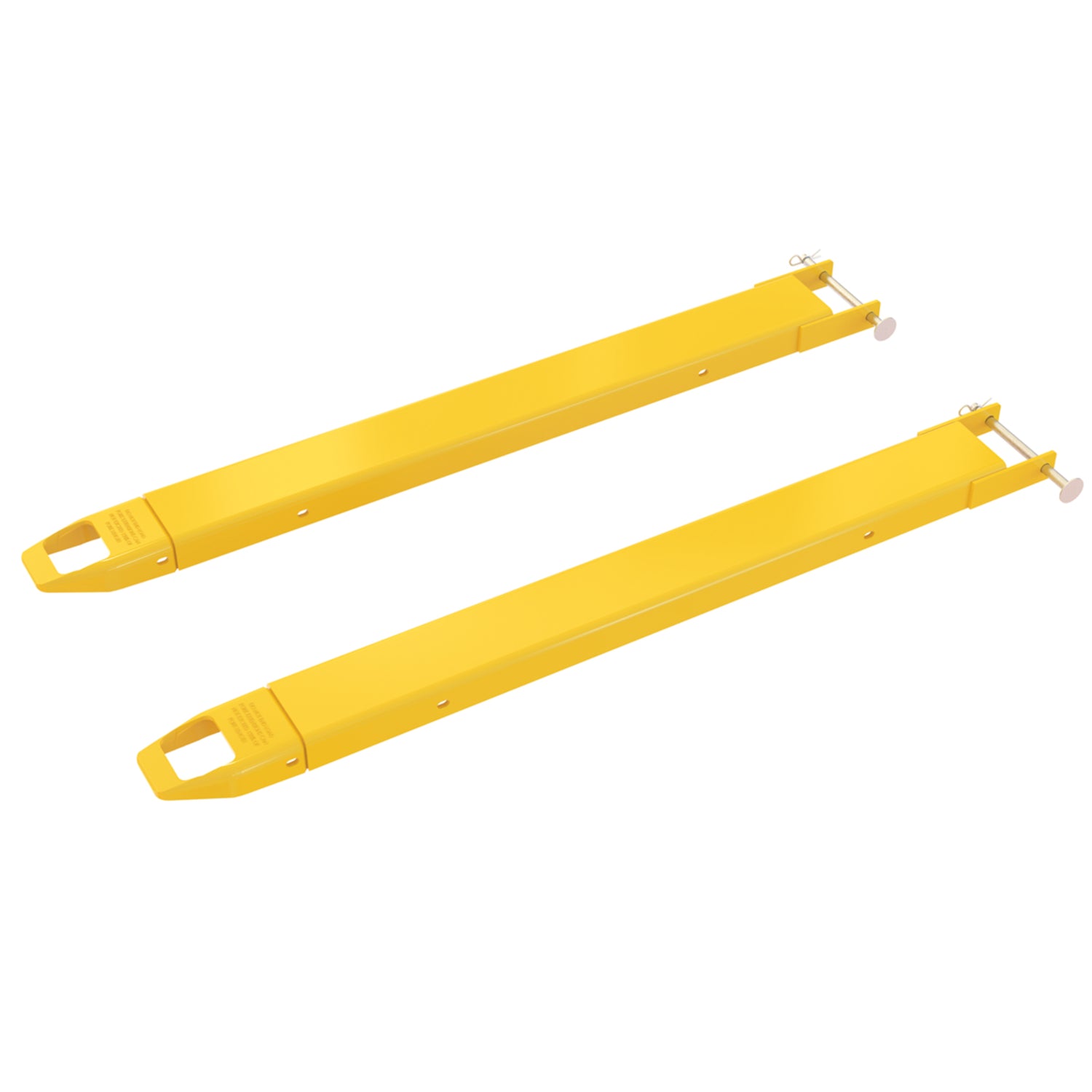

| FE-4-54-P |
4" |
54" |
4,000 lb |
Cast steel |
| FE-4-60-P |
4" |
60" |
4,000 lb |
Cast steel |

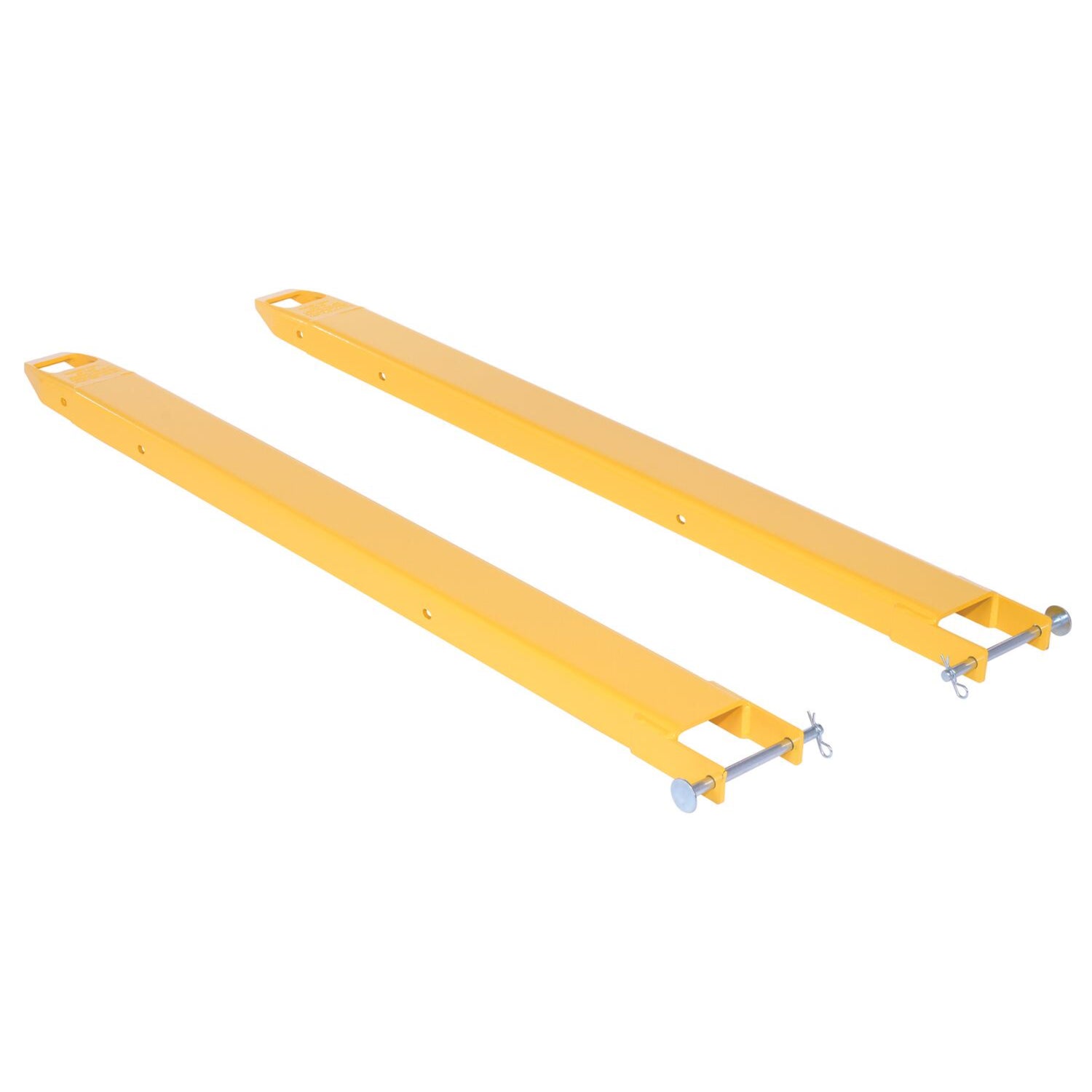

| FE-4-63-P |
4" |
63" |
4,000 lb |
Cast steel |

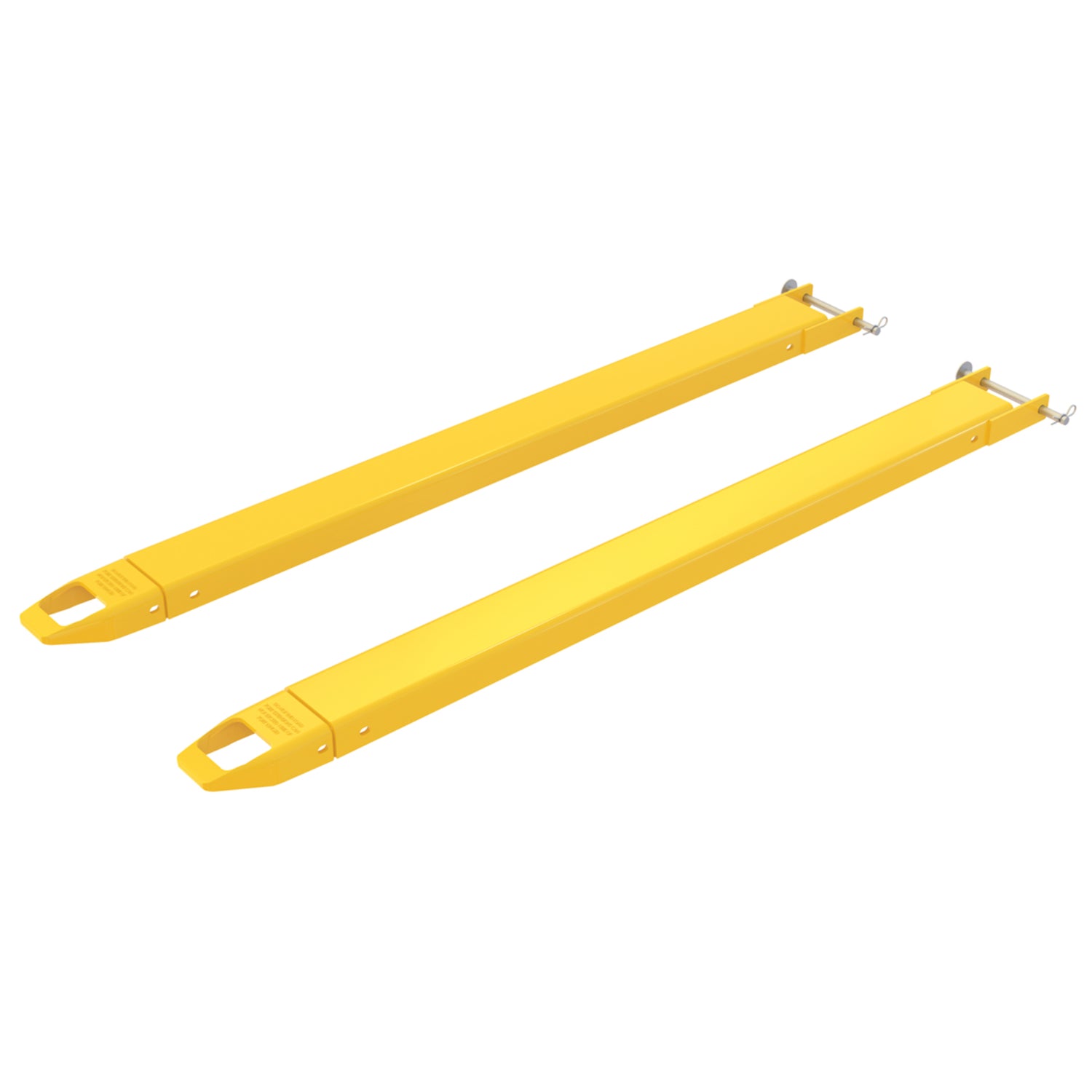

| FE-4-66-P |
4" |
66" |
4,000 lb |
Cast steel |

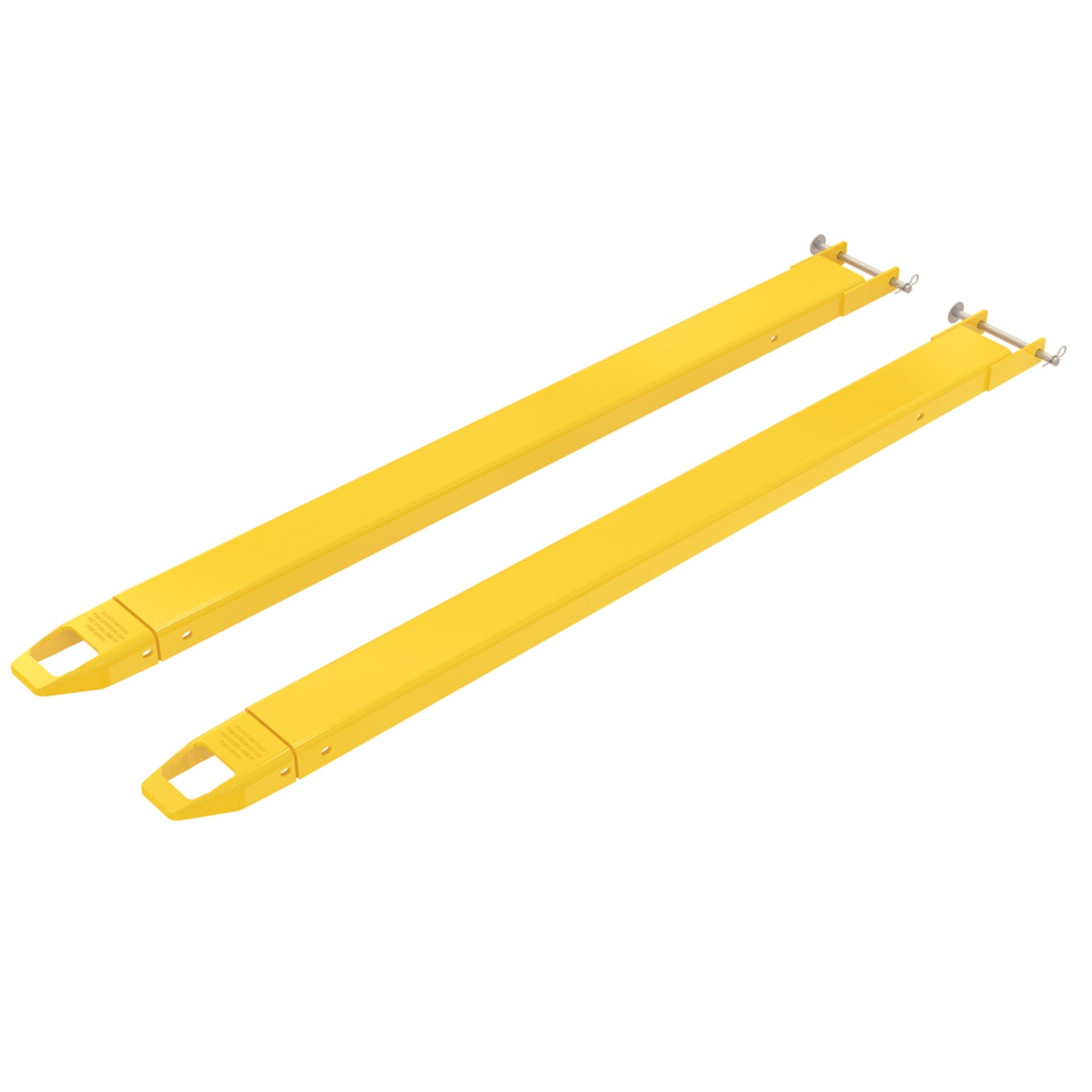

| FE-4-72-P |
4" |
72" |
4,000 lb |
Cast steel |

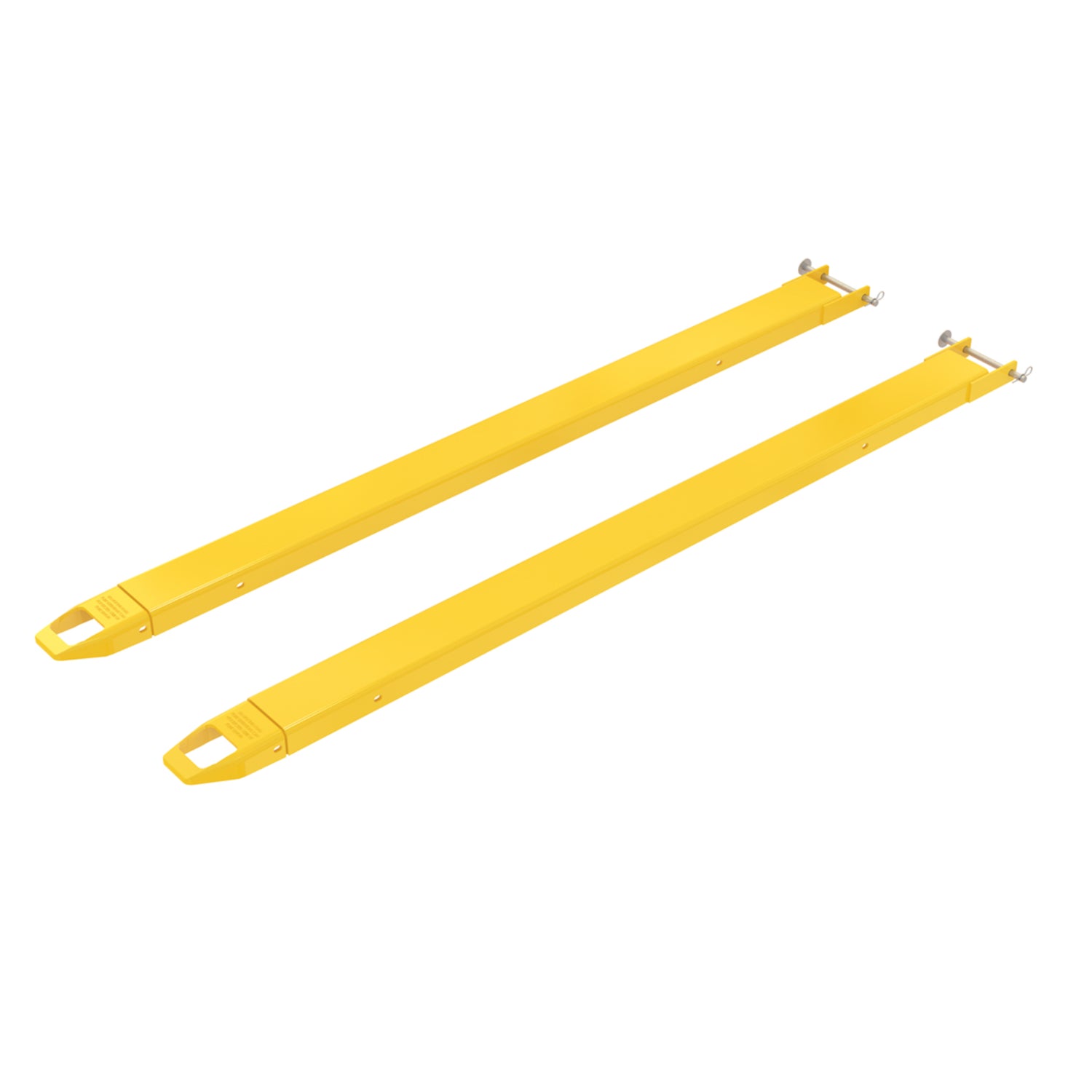

| FE-4-84-P |
4" |
84" |
4,000 lb |
Cast steel |

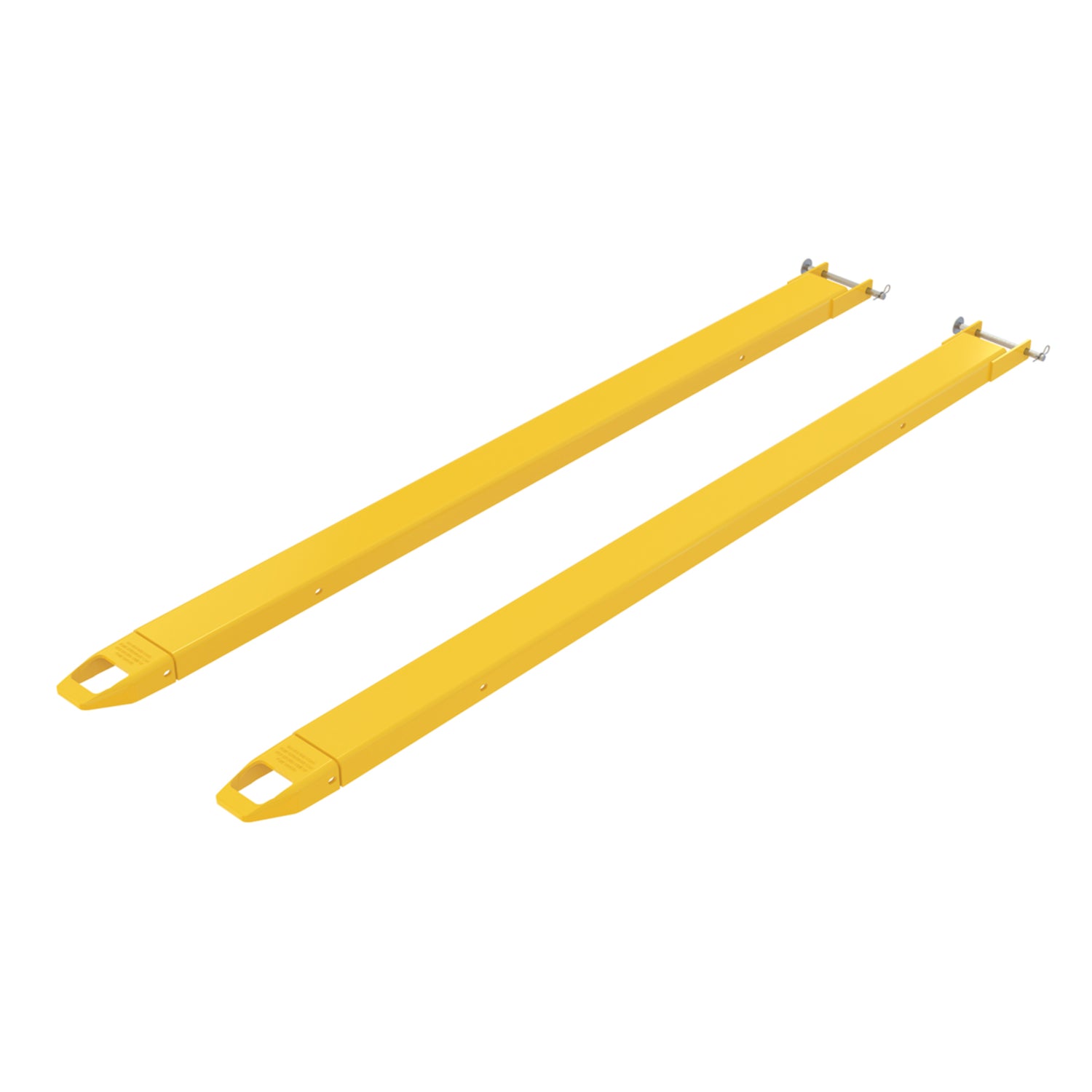

| FE-4-90-P |
4" |
90" |
4,000 lb |
Cast steel |

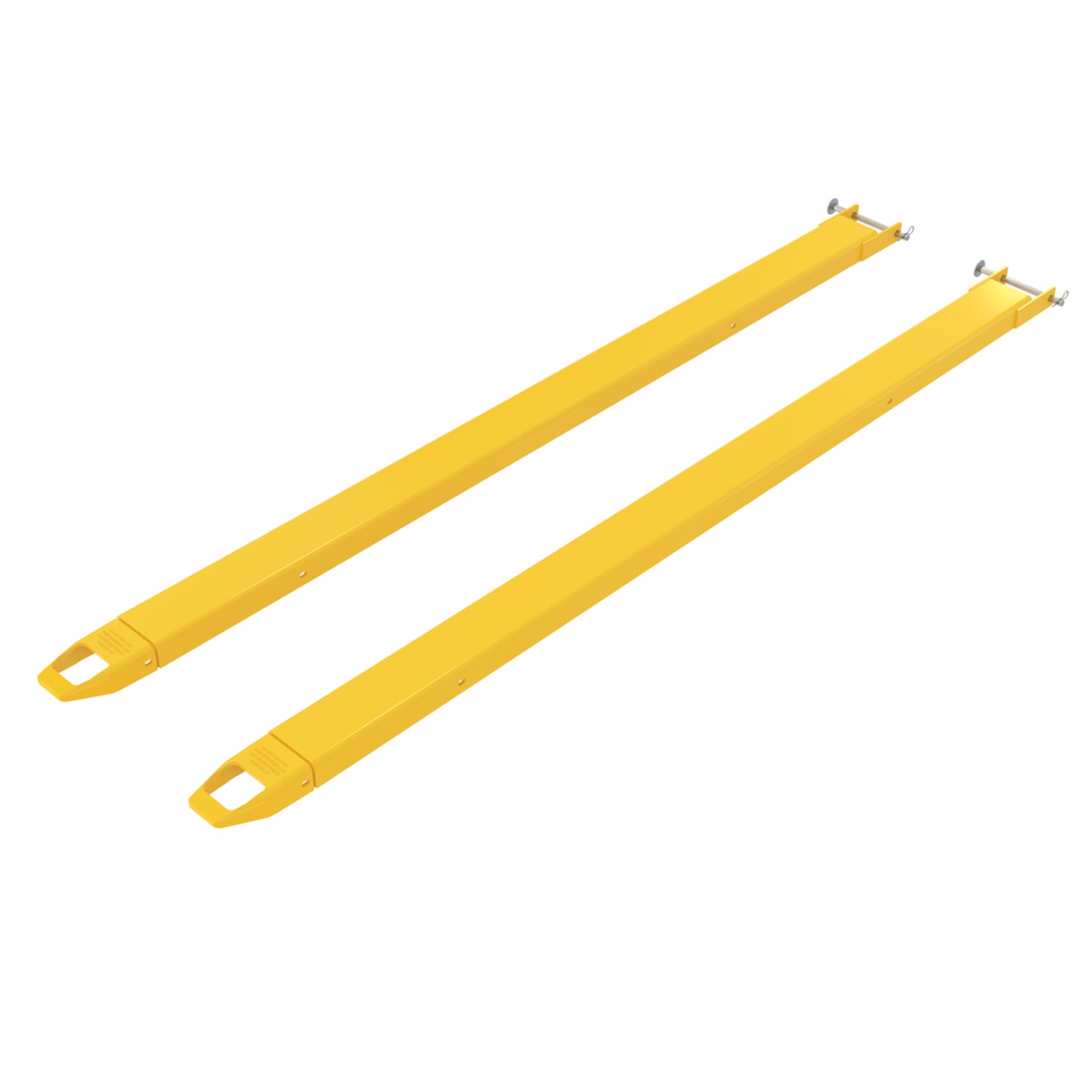

| FE-4-96-P |
4" |
96" |
4,000 lb |
Cast steel |
| FE-4-108-P |
4" |
108" |
4,000 lb |
Cast steel |

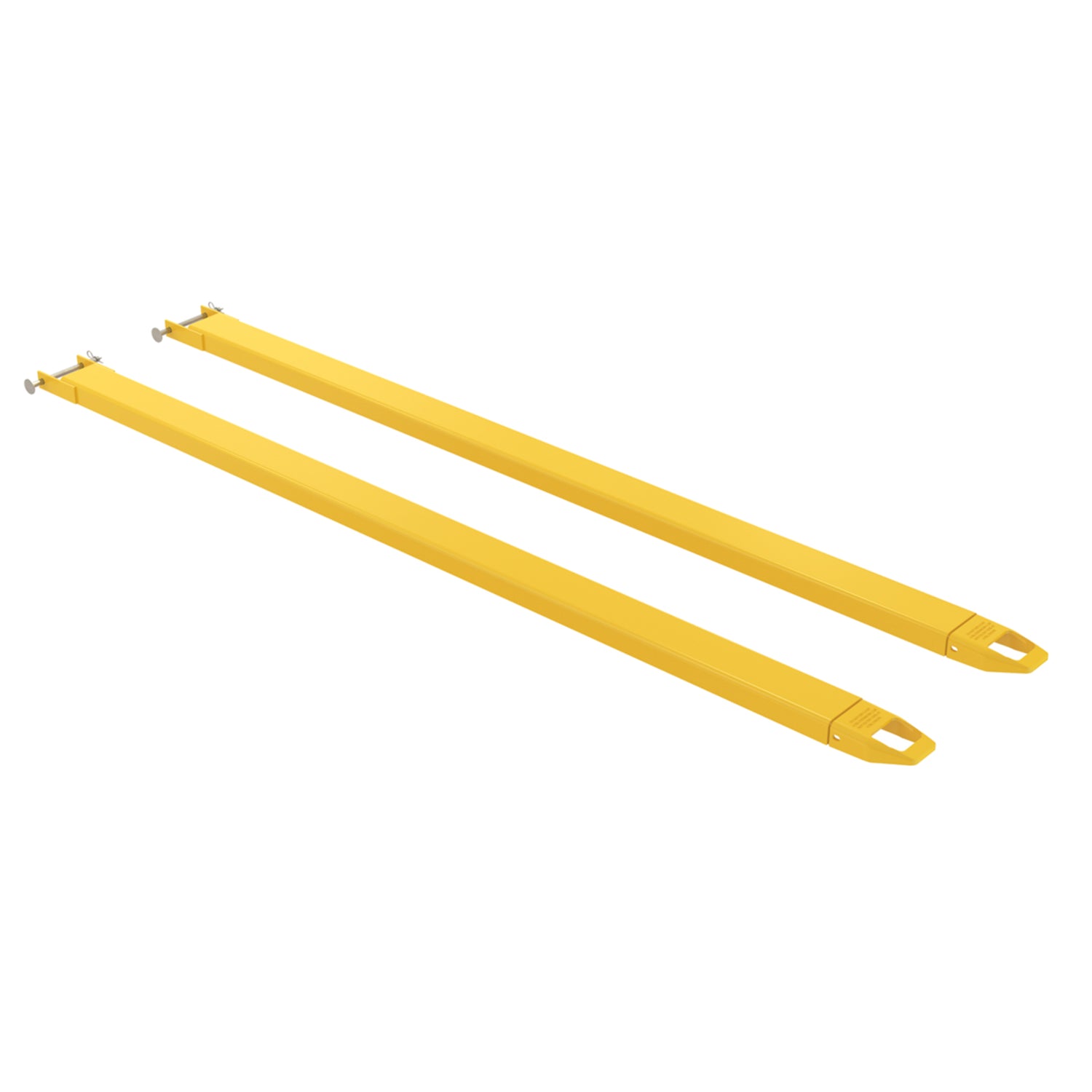

| FE-4-120-P |
4" |
120" |
4,000 lb |
Cast steel |

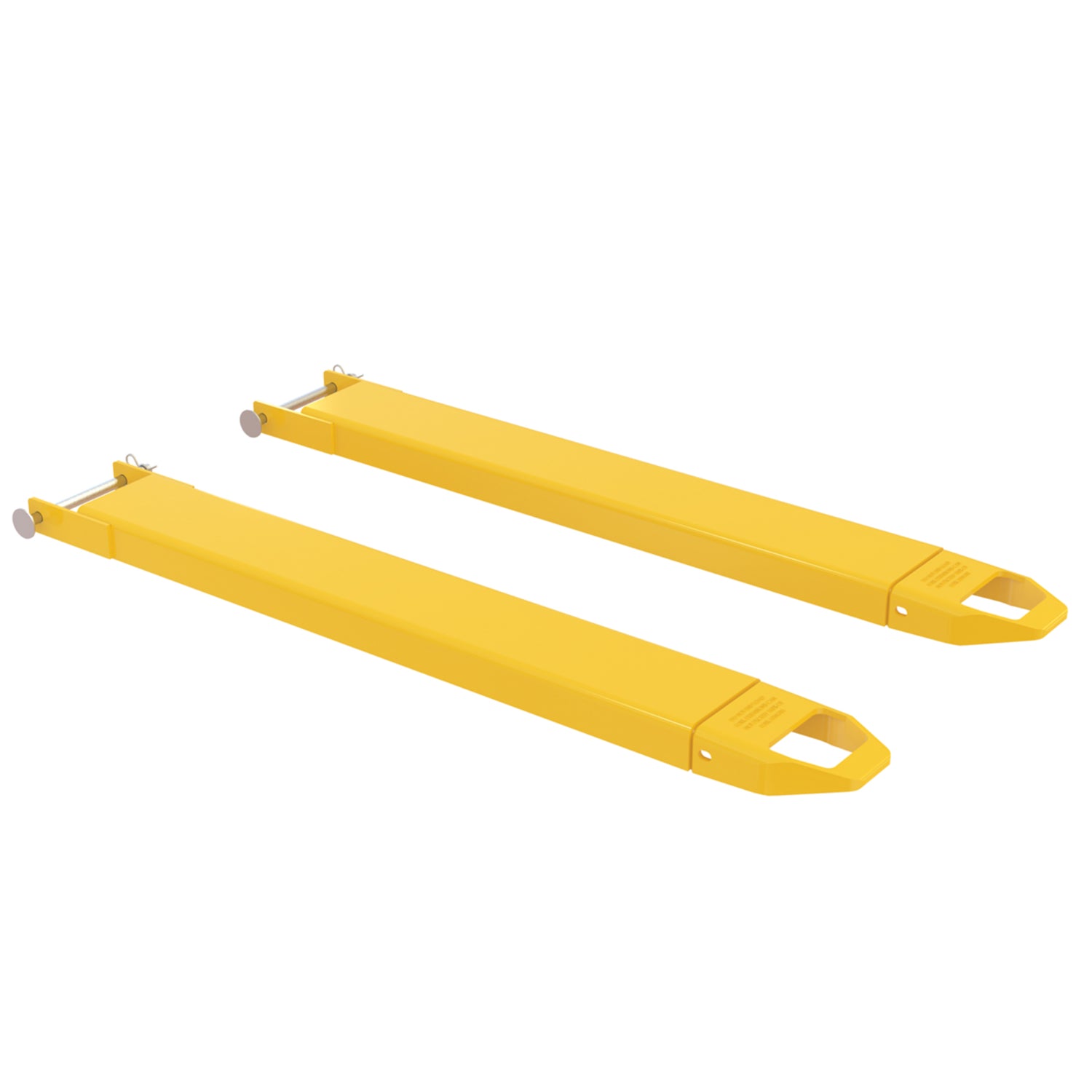

| FE-5-48-P |
5" |
48" |
4,000 lb |
Cast steel |

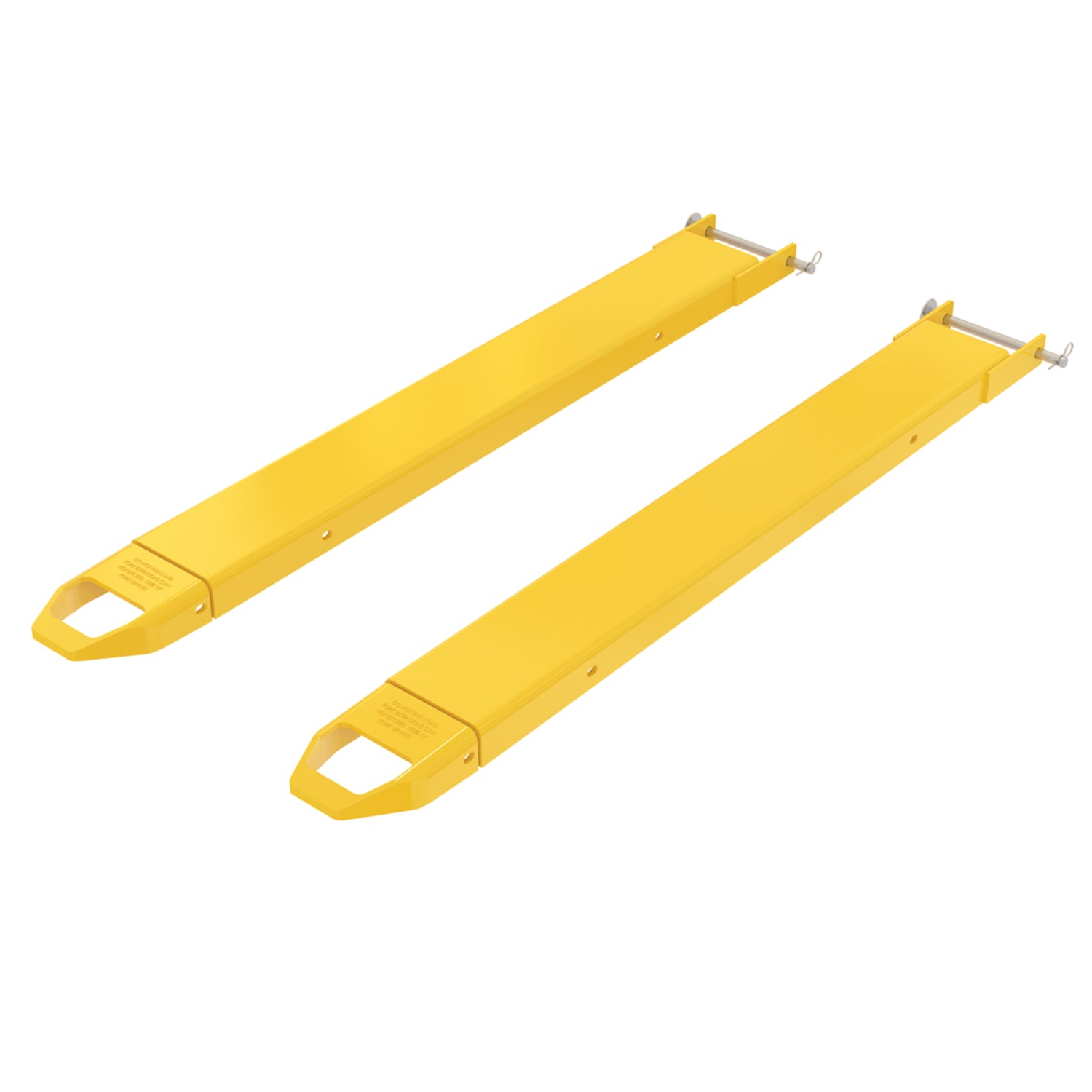

| FE-5-54-P |
5" |
54" |
4,000 lb |
Cast steel |
| FE-5-60-P |
5" |
60" |
4,000 lb |
Cast steel |
| FE-5-63-P |
5" |
63" |
4,000 lb |
Cast steel |
| FE-5-66-P |
5" |
66" |
4,000 lb |
Cast steel |
| FE-5-72-P |
5" |
72" |
4,000 lb |
Cast steel |
| FE-5-84-P |
5" |
84" |
4,000 lb |
Cast steel |
| FE-5-90-P |
5" |
90" |
4,000 lb |
Cast steel |
| FE-5-96-P |
5" |
96" |
4,000 lb |
Cast steel |

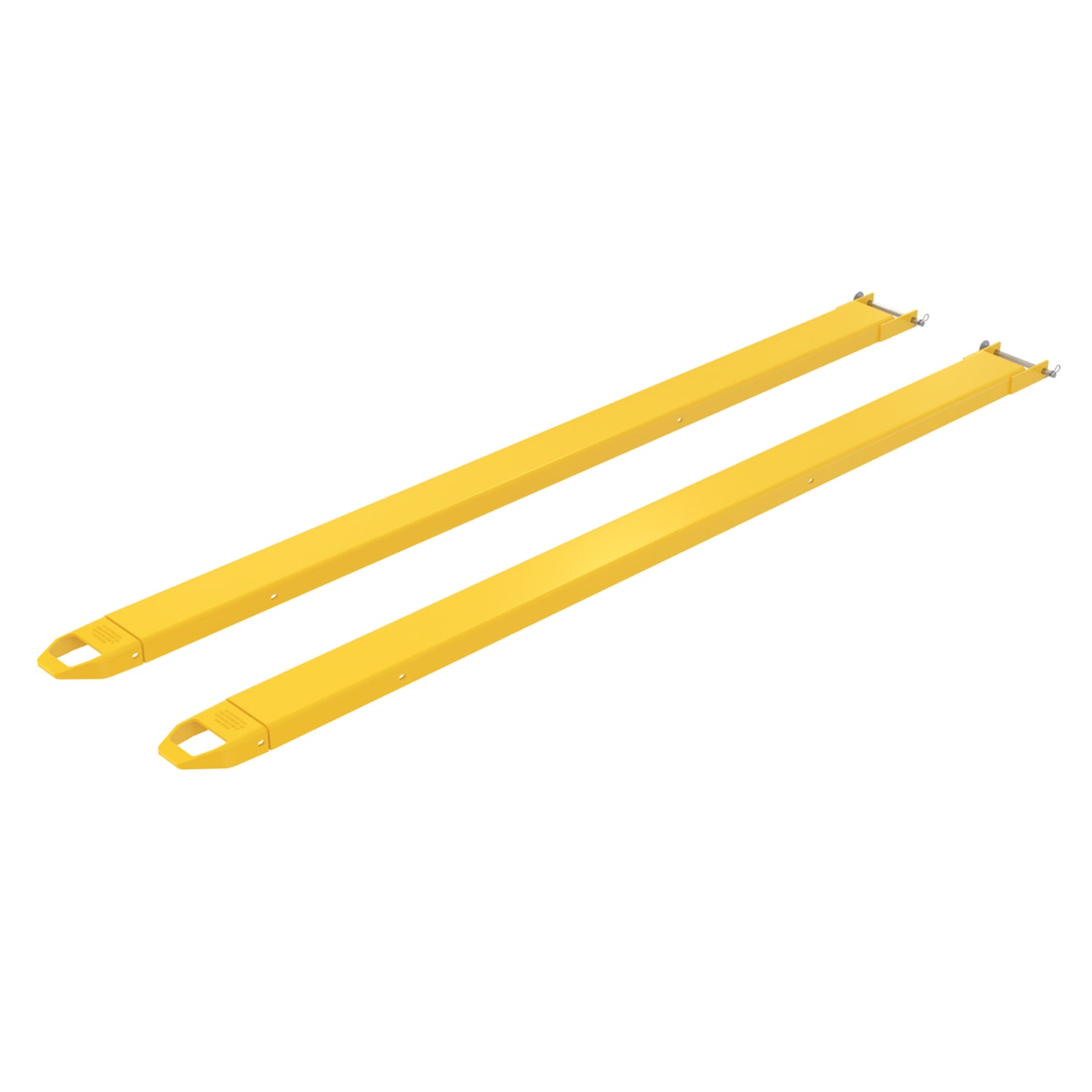

| FE-5-108-P |
5" |
108" |
4,000 lb |
Cast steel |

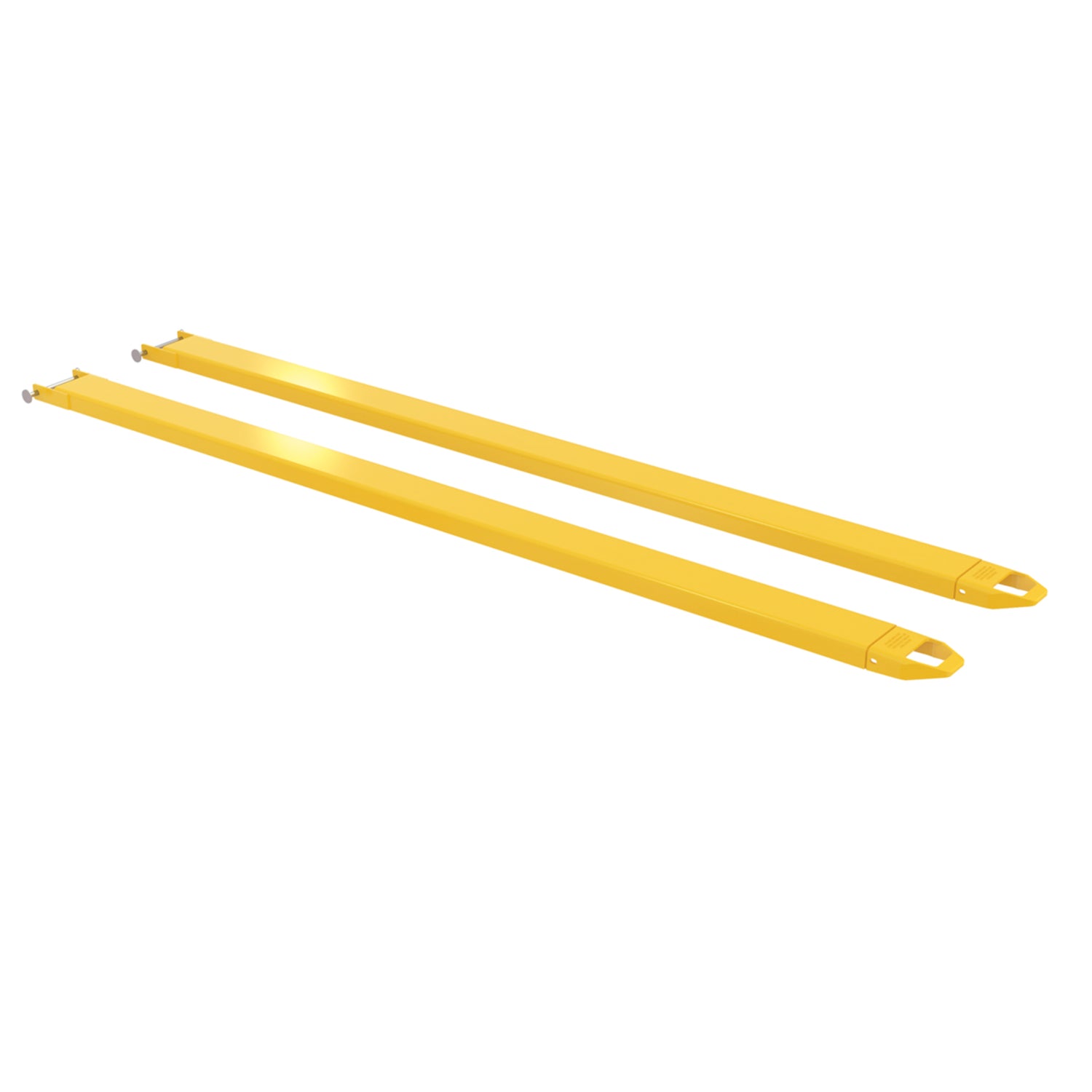

| FE-5-120-P |
5" |
120" |
4,000 lb |
Cast steel |

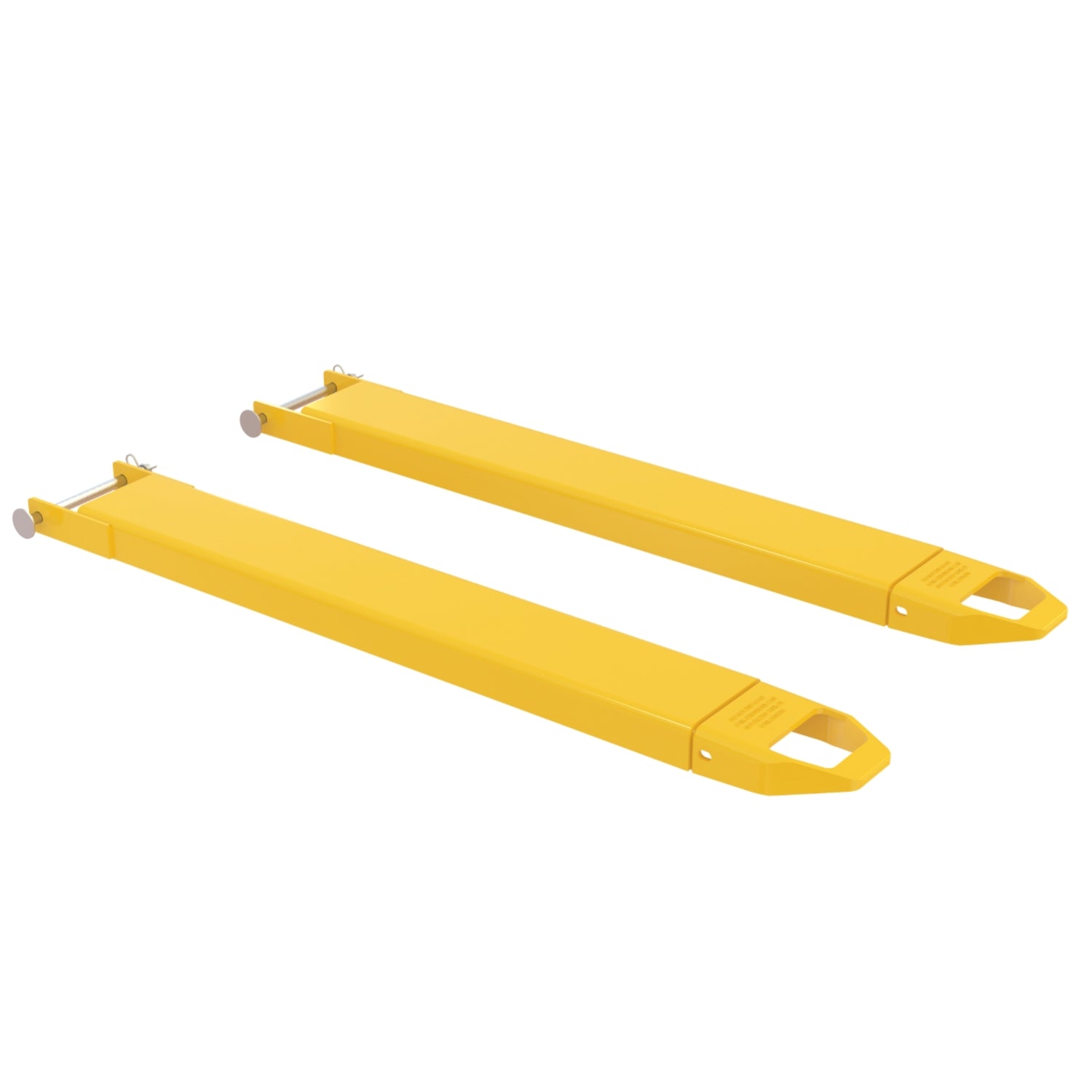

| FE-6-48-P |
6" |
48" |
4,000 lb |
Cast steel |
| FE-6-54-P |
6" |
54" |
4,000 lb |
Cast steel |
| FE-6-60-P |
6" |
60" |
4,000 lb |
Cast steel |
| FE-6-63-P |
6" |
63" |
4,000 lb |
Cast steel |
| FE-6-66-P |
6" |
66" |
4,000 lb |
Cast steel |

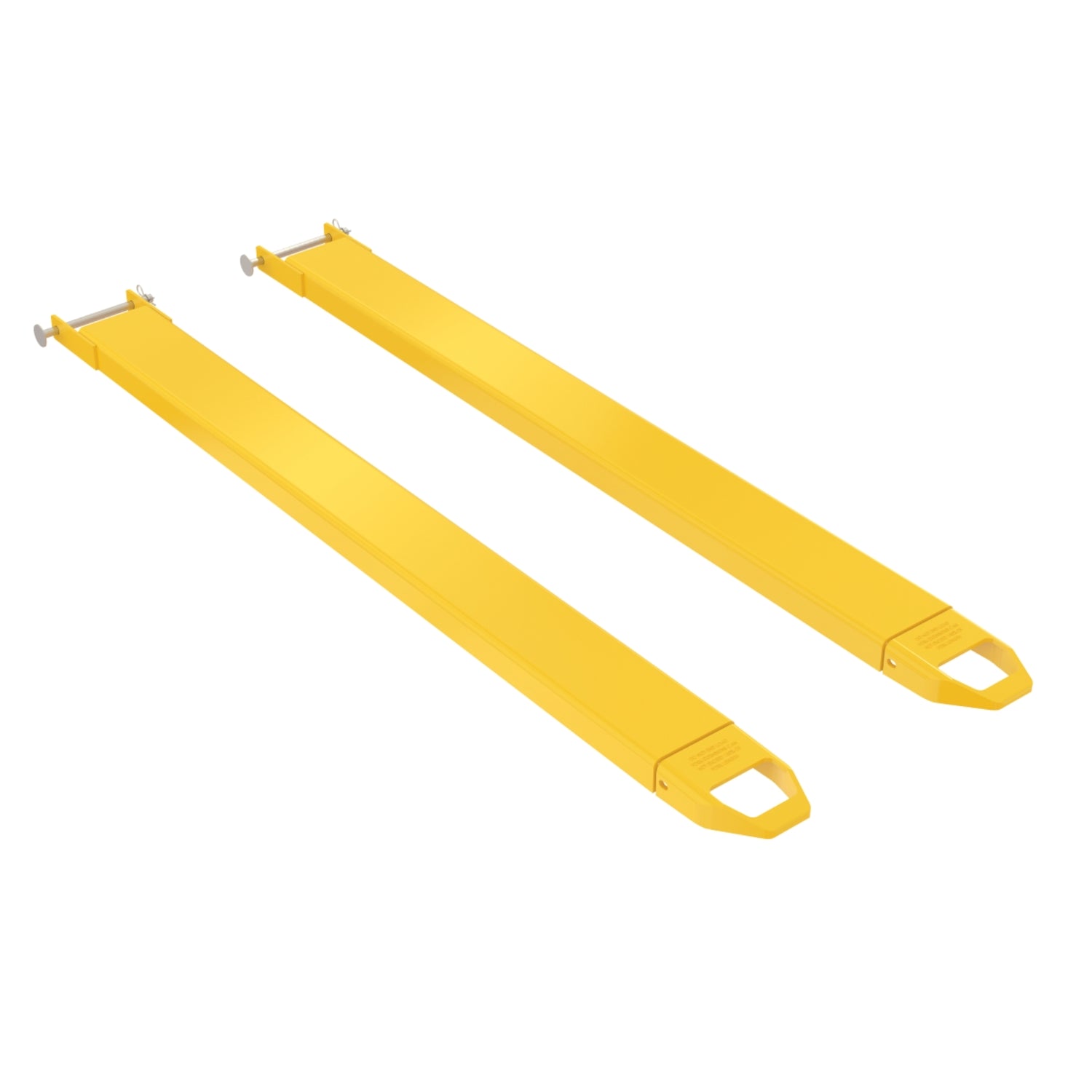

| FE-6-72-P |
6" |
72" |
4,000 lb |
Cast steel |
| FE-6-84-P |
6" |
84" |
4,000 lb |
Cast steel |
| FE-6-90-P |
6" |
90" |
4,000 lb |
Cast steel |
| FE-6-96-P |
6" |
96" |
4,000 lb |
Cast steel |
| FE-6-108-P |
6" |
108" |
4,000 lb |
Cast steel |
| FE-6-120-P |
6" |
120" |
4,000 lb |
Cast steel |
Shared specifications (all cast-tip FE-P models): welded steel construction · cast steel tips · 4,000 lb maximum capacity per pair, evenly distributed · pin-style retention · baked-in powder-coat yellow finish · includes warning/operating stickers · for Class 2 & 3 forks only. Single extensions are available under "Sold As: Each"; the per-pair capacity rating applies to a matched pair.
Manuals & Documentation
- Owner's Manual: FE Pin Style Fork Extensions (available on request)
- Engineering Drawings: available for all cast-tip models
- Testing Certificates: available for all cast-tip models
Per-model dimensions and weights are detailed on the individual engineering drawings — contact us for the drawing for any model. A product video is available on the Vestil Manufacturing YouTube channel.
