Vestil L-Series Tote Lifter — Powered or Hand-Pump Ergonomic Lifter for Skids, Totes, Boxes, and Baskets

Powered or Hand-Pump Tote Lifter — Raise Skids, Totes, Boxes, and Baskets to Ergonomic Working Height (3,000 lb Capacity)

The Vestil L-Series Tote Lifter is a Best Seller in Vestil's ergonomic solutions catalog — a versatile walk-behind lifter designed to raise open-bottom skids, totes, boxes, baskets, and other industrial containers to ergonomic working height. Unlike heavier-duty skid lifters limited to flat skid platforms, the L-Series handles a wider range of load types: open-bottom skids, plastic totes, cardboard boxes, wire baskets, and similar containers with under-clearance for the fork engagement. With 3,000 lb load capacity, your choice of hand pump or 12V DC battery operation, two width options (20-1/2" or 27"), automatic side stabilizers that lock the lift in place at elevated heights, and smooth-rolling poly-on-steel wheels, the L-Series is the ergonomic productivity tool for tote handling stations, order picking and kitting operations, manufacturing assembly work, quality control inspection, box handling for packing, wire basket lifting in metal shops and parts cleaning operations, light industrial maintenance, print and binding shops, and e-commerce fulfillment.

Why Tote Lifters Matter for Worker Health and Productivity: Workers who repeatedly bend over to access floor-level totes, boxes, and baskets accumulate musculoskeletal injuries — chronic back pain, shoulder strain, repetitive stress injuries — that drive up workers' compensation claims, reduce productivity, and accelerate employee turnover. The L-Series solves the problem by lifting the entire load to a comfortable working height (waist or chest level), eliminating bending entirely. The result is fewer injuries, fewer sick days, better employee retention, and measurable productivity gains as workers process more units per shift without fatigue. For high-volume operations with repetitive lifting cycles, the productivity ROI typically pays back the unit cost within months.

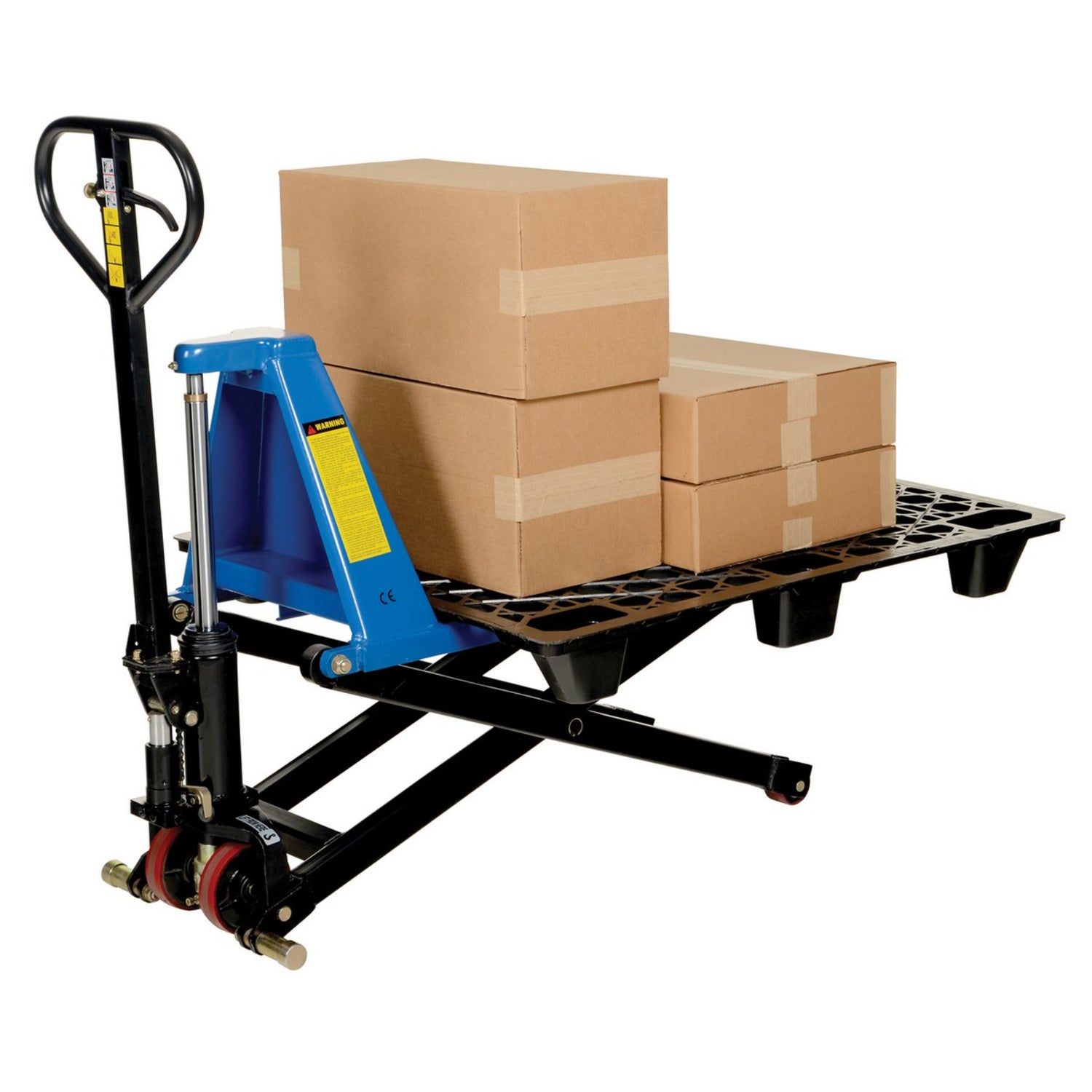

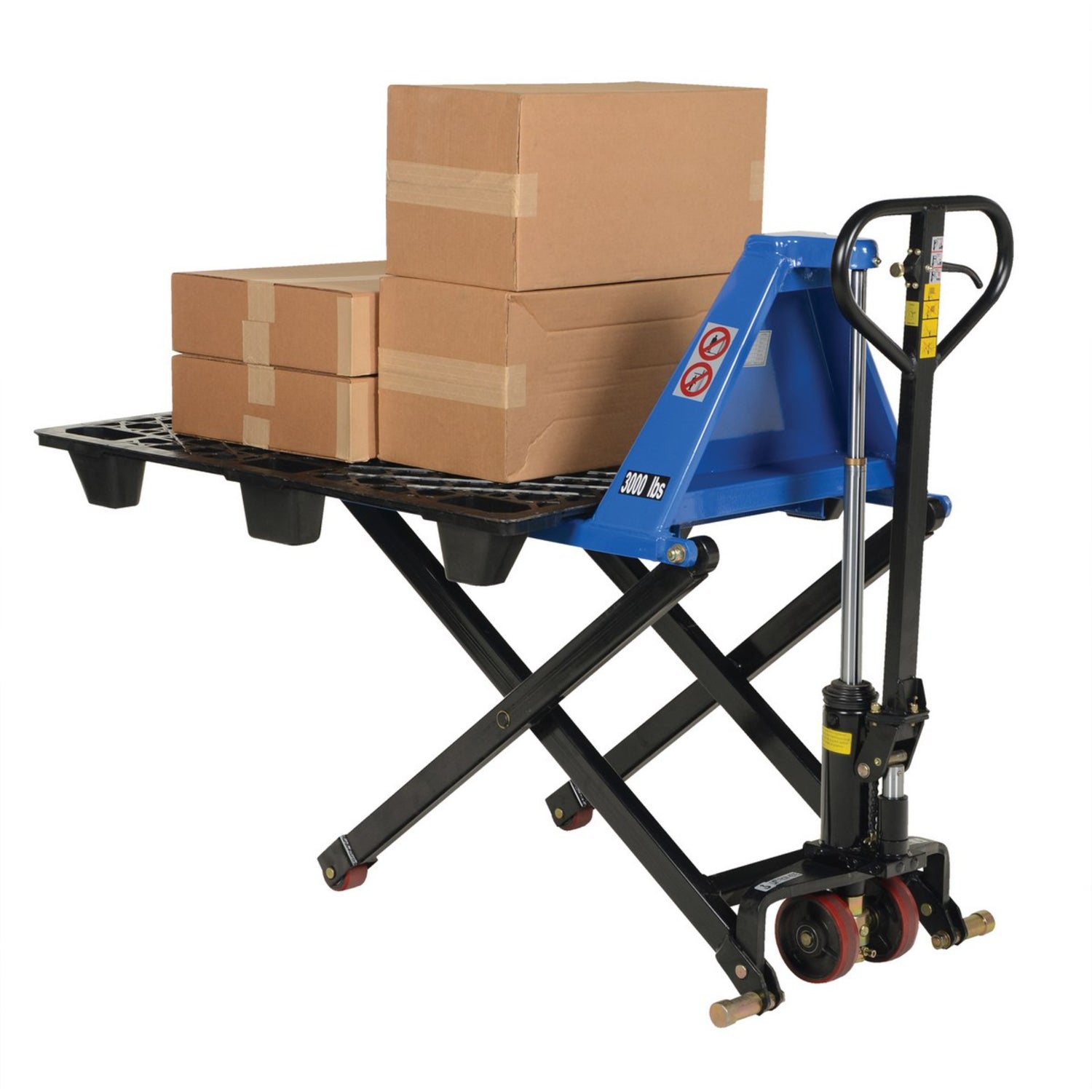

Flexible Load Compatibility — Skids, Totes, Boxes, AND Baskets: The L-Series accommodates any load with open-bottom geometry that allows the forks to engage from underneath. This includes traditional skids (two-runner platforms), plastic stacking totes, cardboard shipping boxes on supports, wire mesh baskets, parts containers, and similar industrial containers. For loads WITHOUT open-bottom geometry — flat boxes that need a solid support surface, loose loads, or containers with closed bottoms — Vestil offers optional L-PLATE solid platforms (sold separately) that lay across the forks to convert the lifter into a flat-platform lifter. The platform accessory expands the L-Series's versatility to handle virtually any load shape.

Choose Your Configuration — Two Critical Decisions:

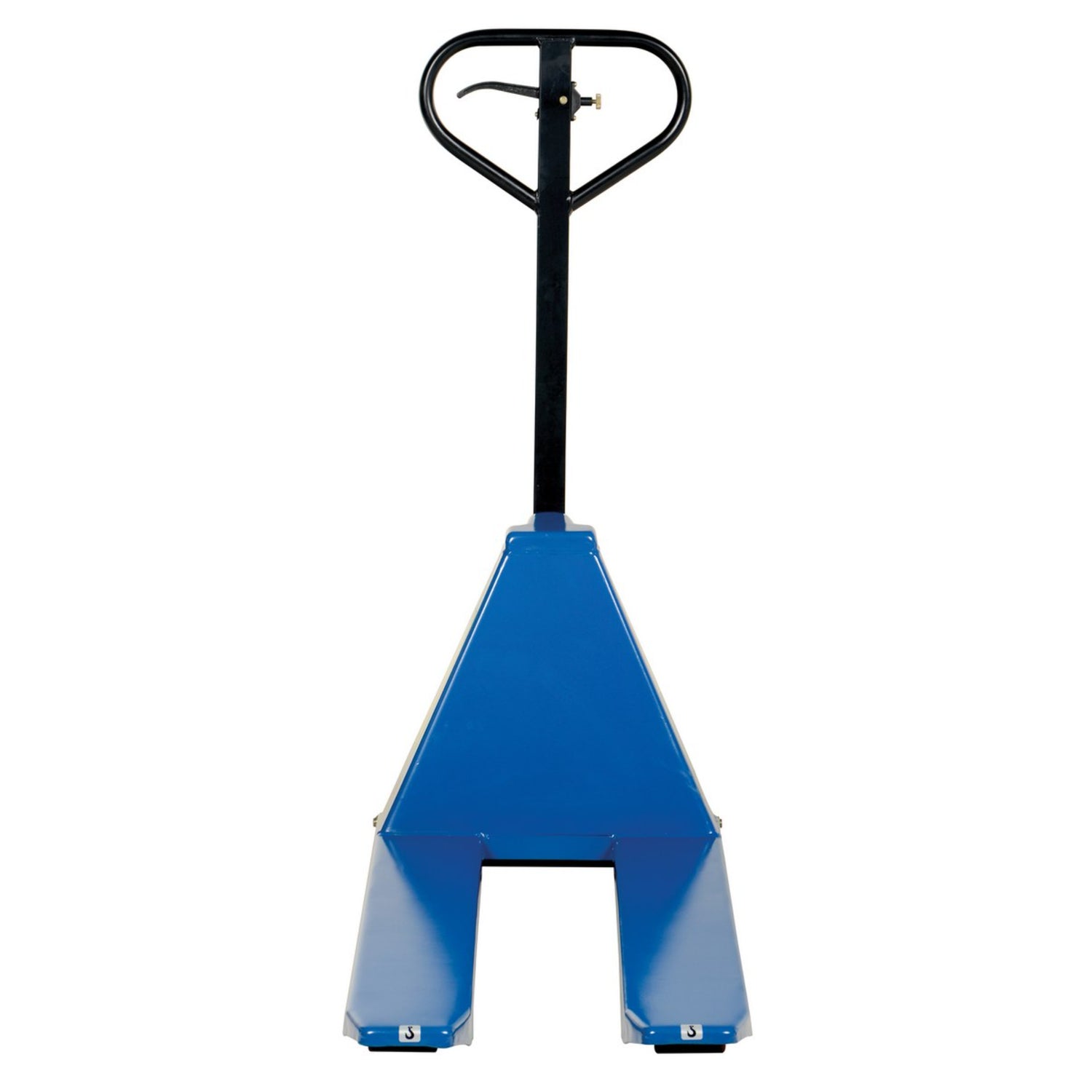

• Width — 20-1/2" or 27": Choose 20-1/2" (L-220 series) for narrower totes and tighter aisle handling, or 27" (L-270 series) for wider totes and more stable load support. The 27" width also provides more workspace area when used with an L-PLATE platform accessory.
• Operation — Hand Pump or DC Battery: Hand Pump variants use an ergonomic pump handle with TWO lifting speeds (fast speed for light loads, slow speed for heavy loads — operator selects per lift). Hand Pump is lower cost, no battery to maintain, and works anywhere without power. DC Battery variants use a rocker switch to raise and lower the lift hydraulically — much less operator labor for repeated lift cycles, but requires battery charging. Hand Pump is the right choice for low-volume operations; DC is the right choice for high-volume operations with many lift cycles per shift.

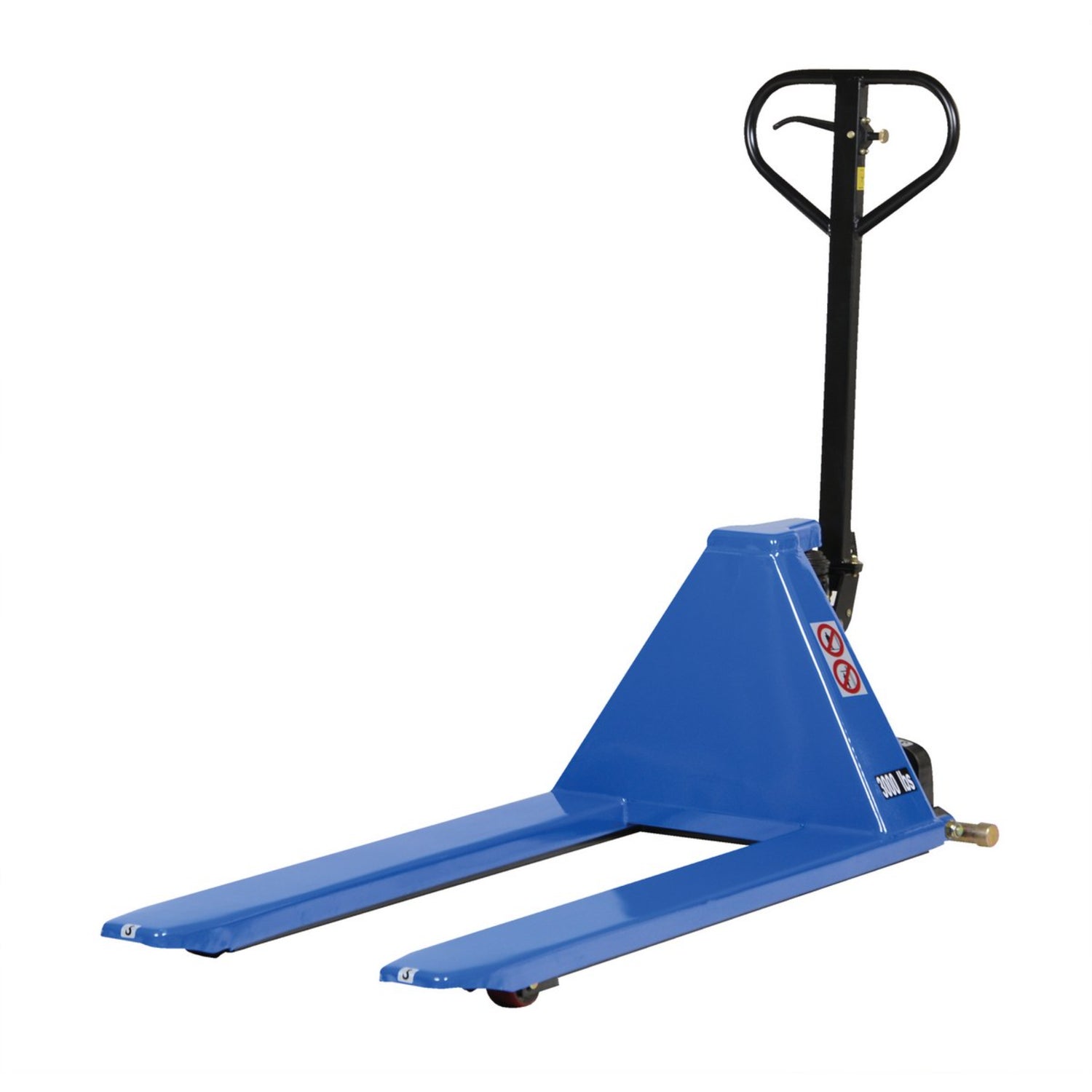

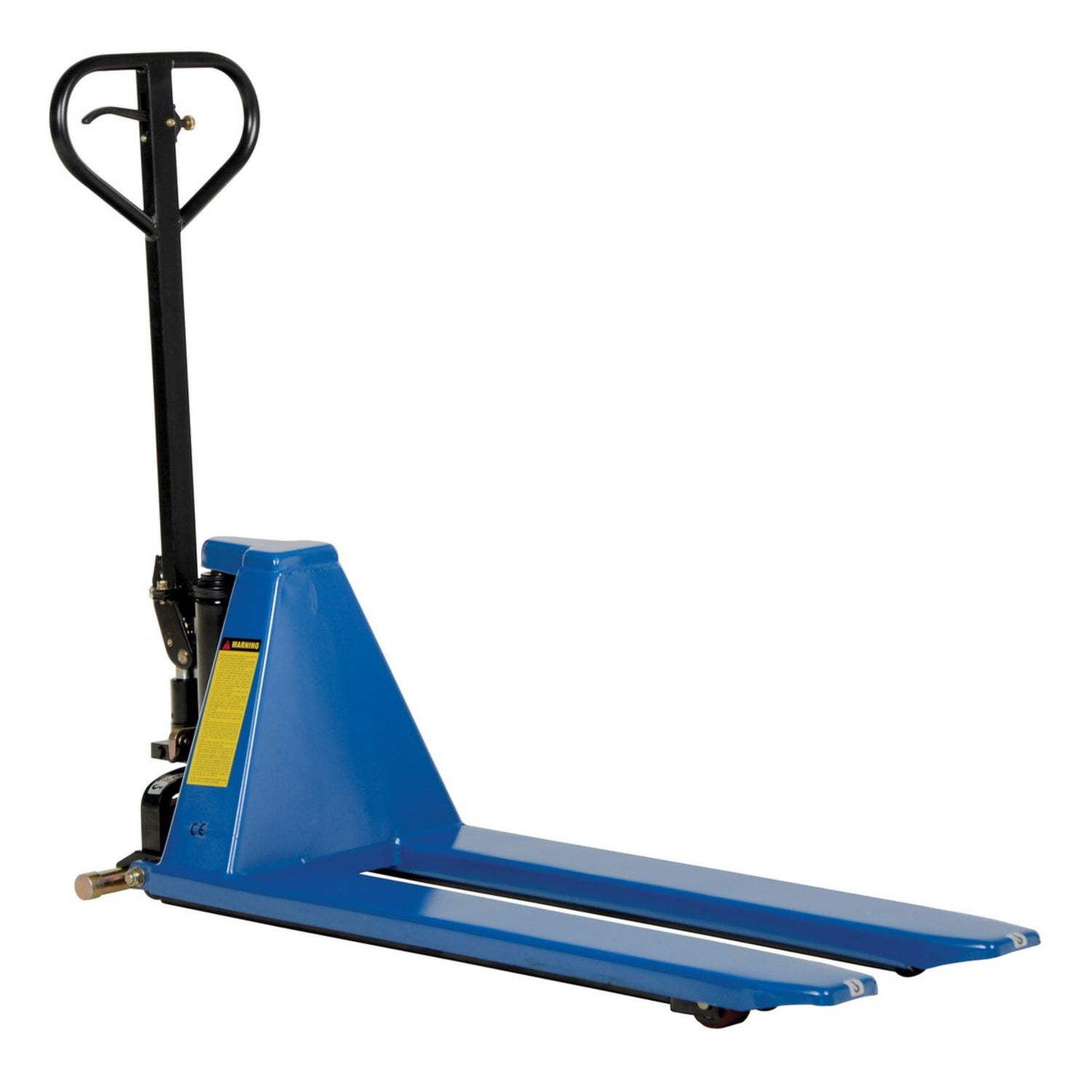

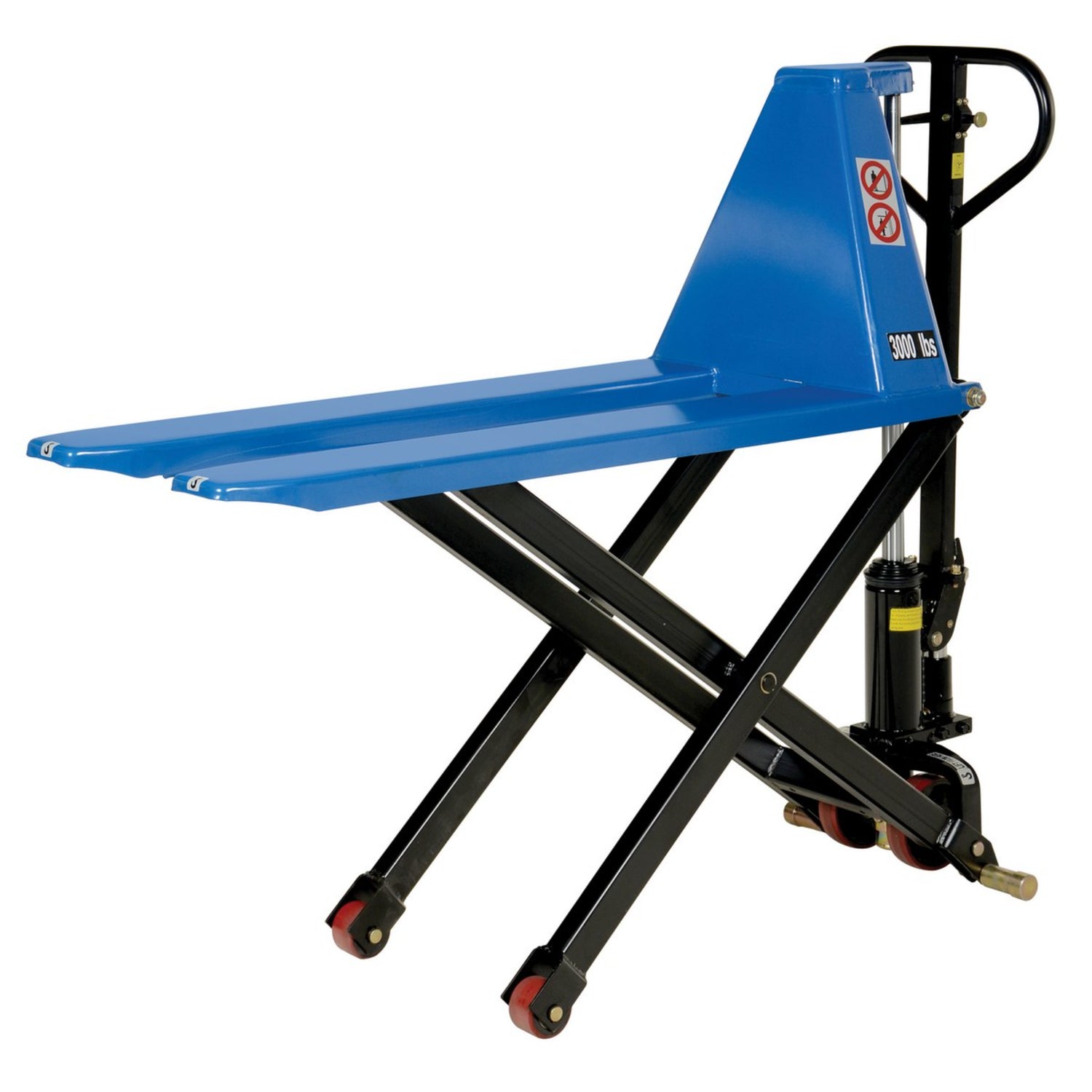

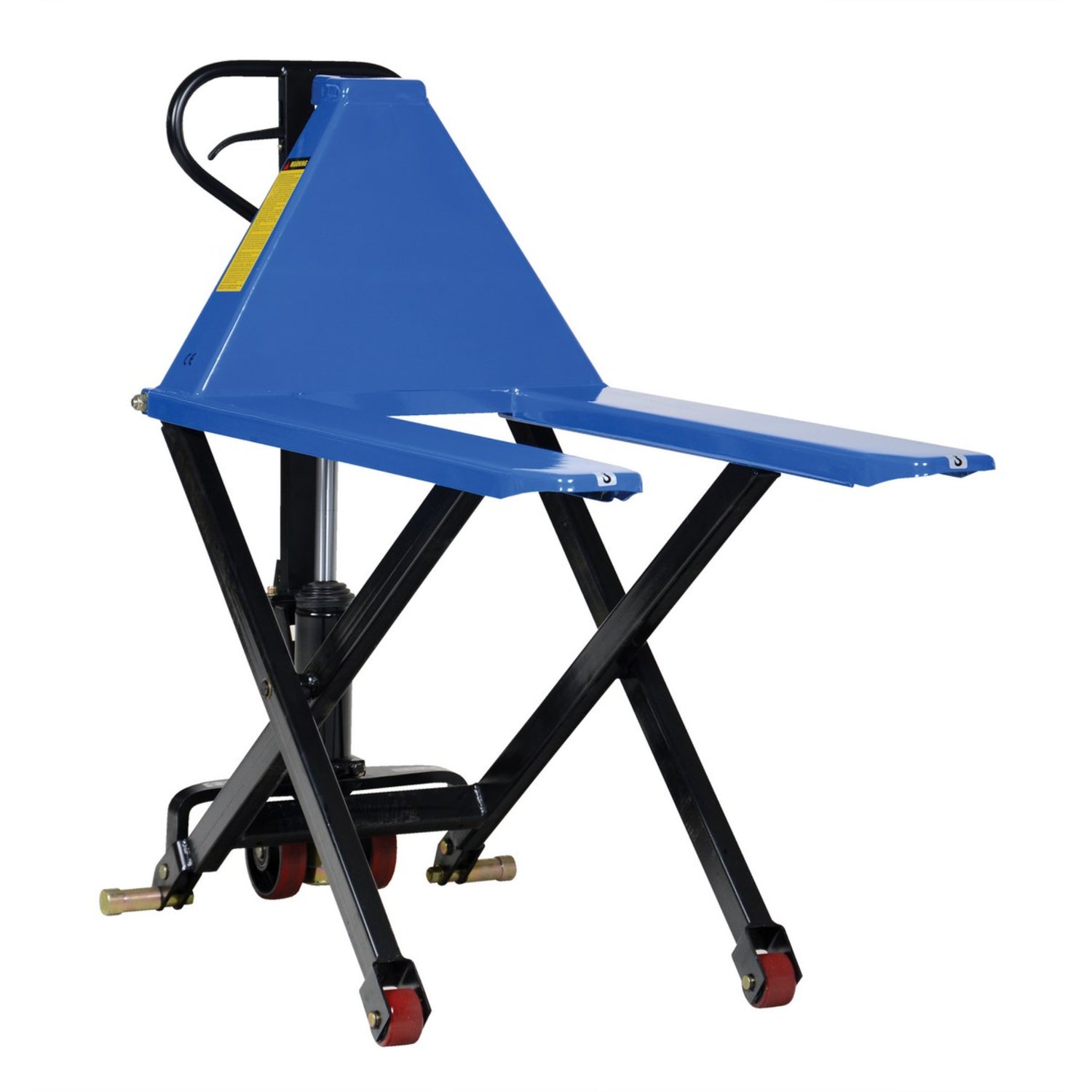

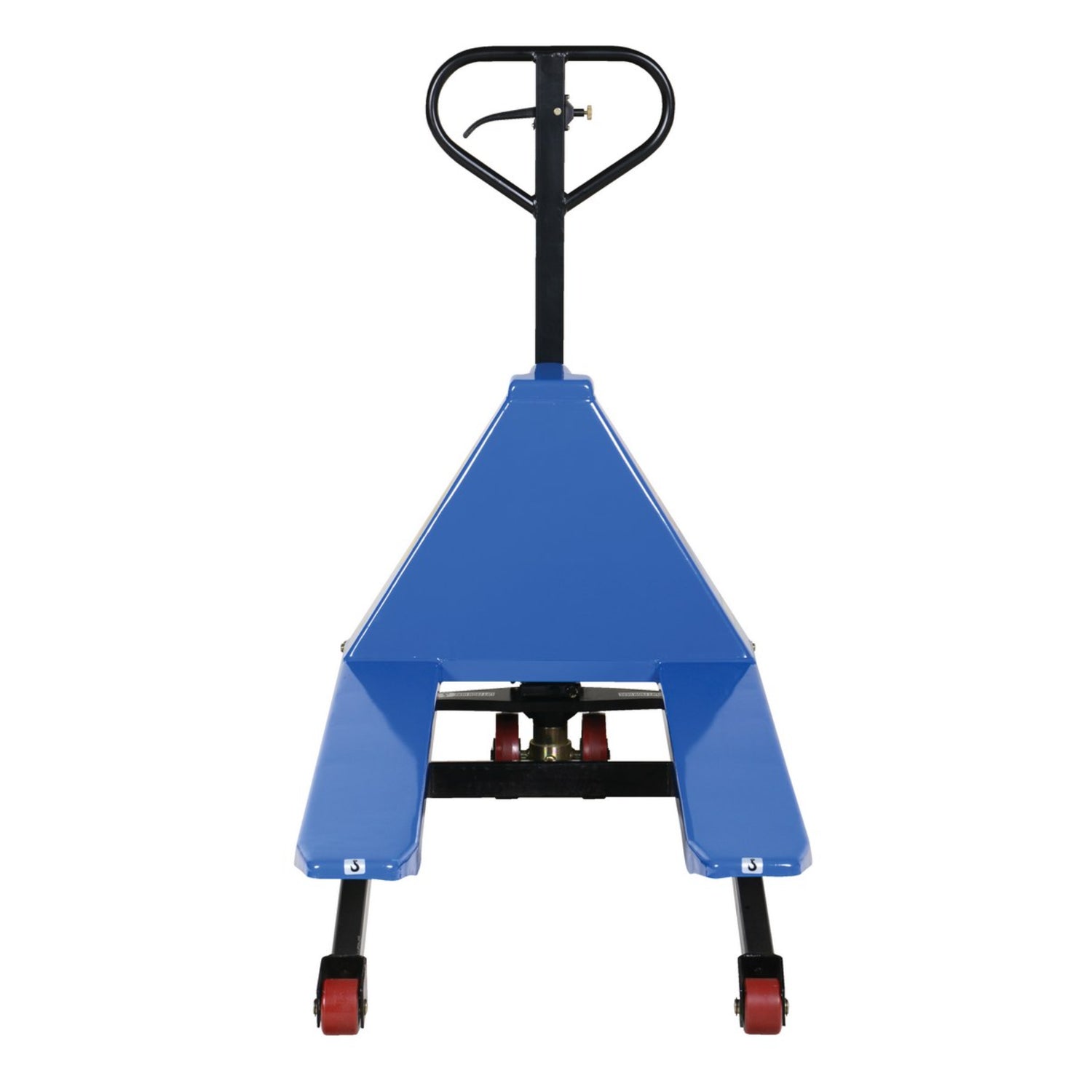

Hand Pump — Two Lifting Speeds: The Hand Pump variants (L-220-HD and L-270-HD) feature an ergonomic pump handle with two distinct lifting speeds — operators select fast or slow based on the load weight. Fast speed delivers more lift per pump stroke for light loads (under ~1,000 lbs); slow speed delivers more pumping force for heavy loads (1,000-3,000 lbs). This dual-speed design reduces operator fatigue on heavy lifts while maintaining productivity on light lifts. No battery, no charger, no power supply — true portable operation anywhere.

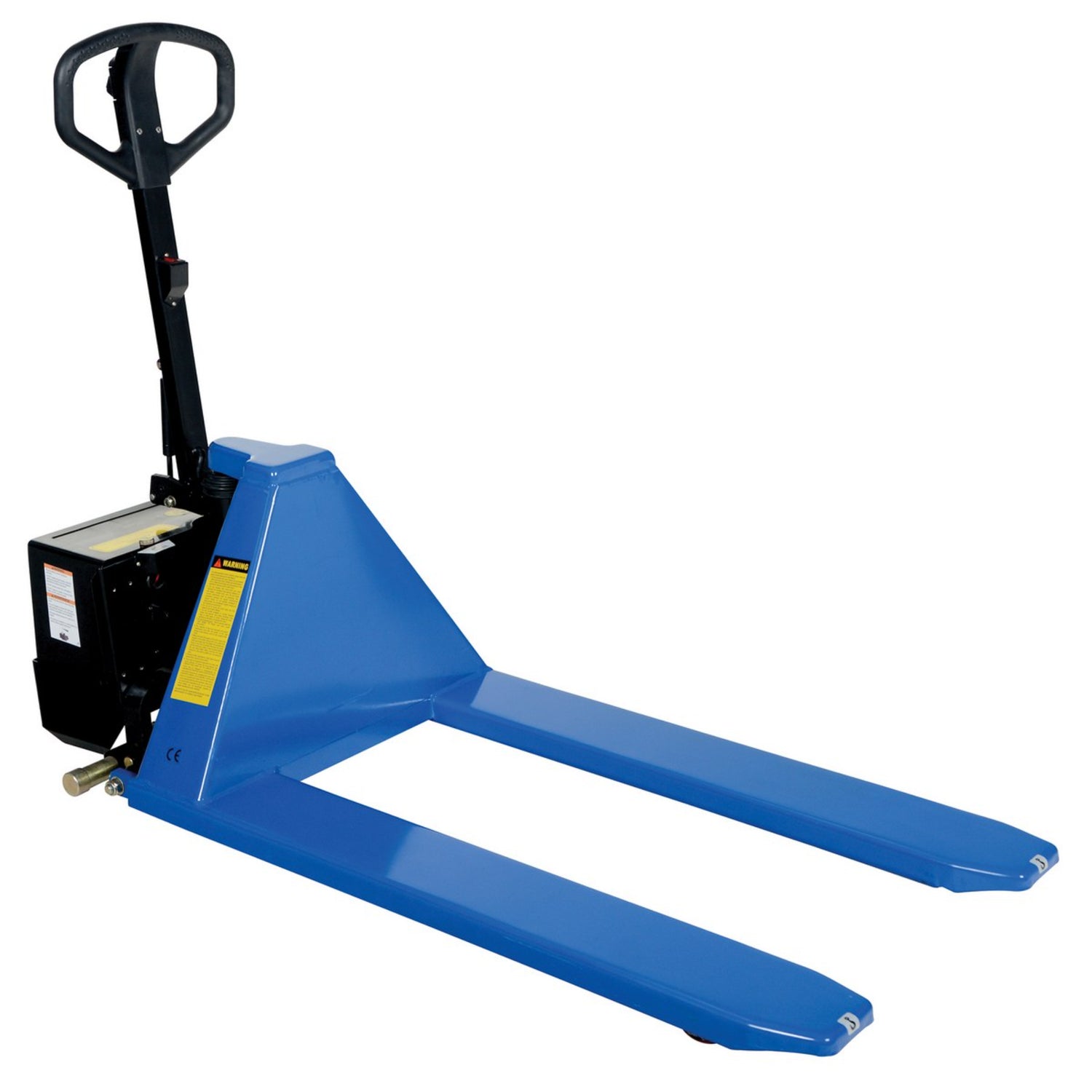

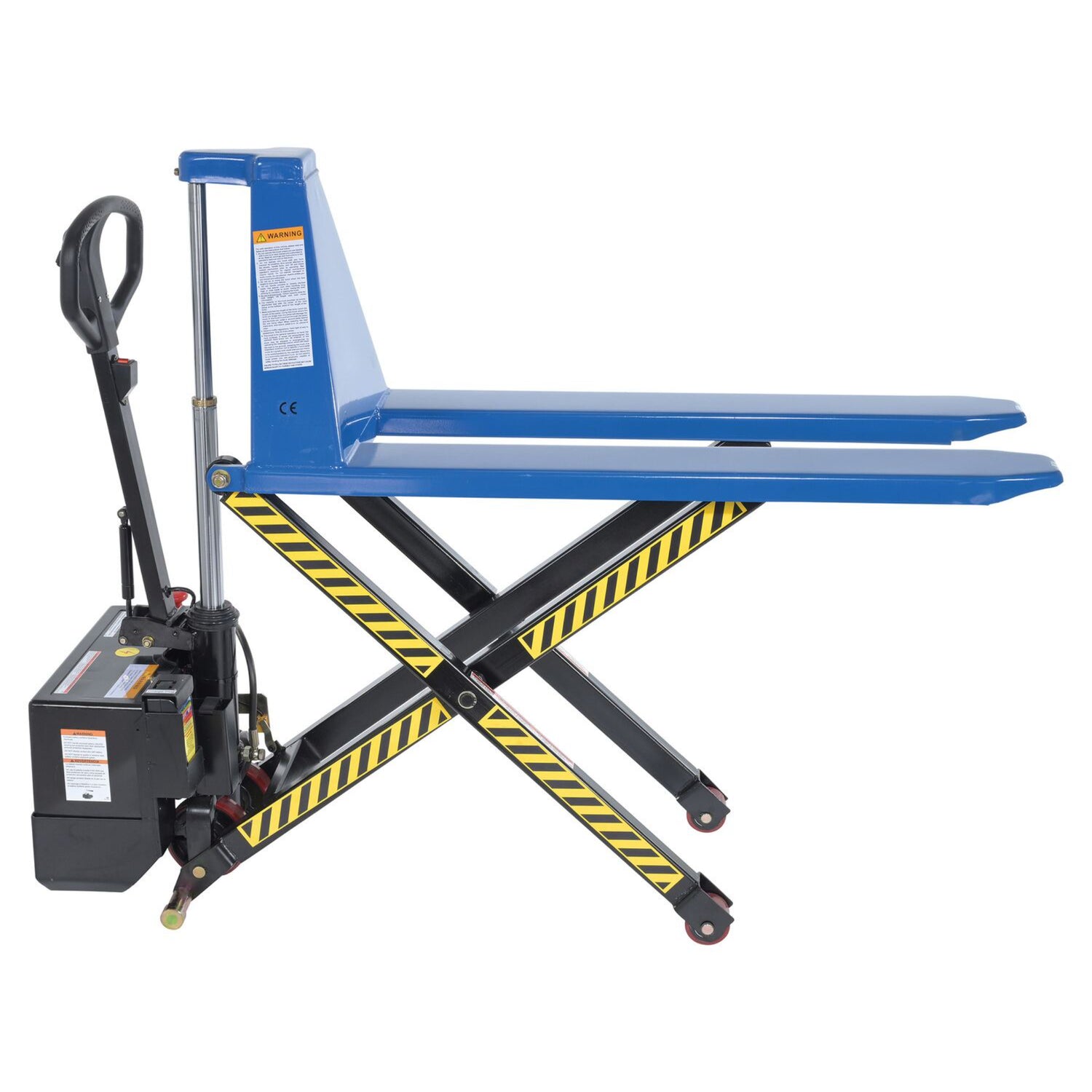

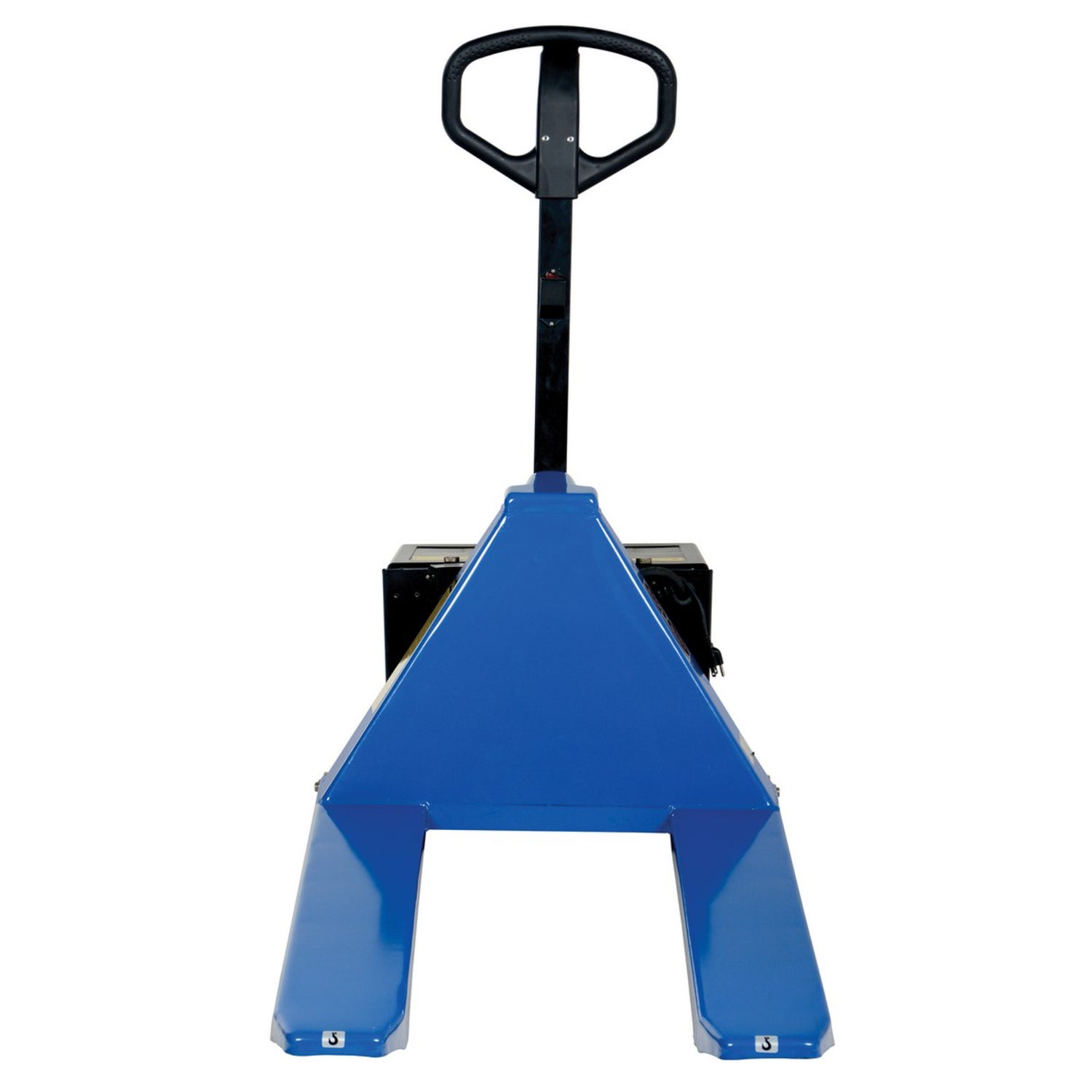

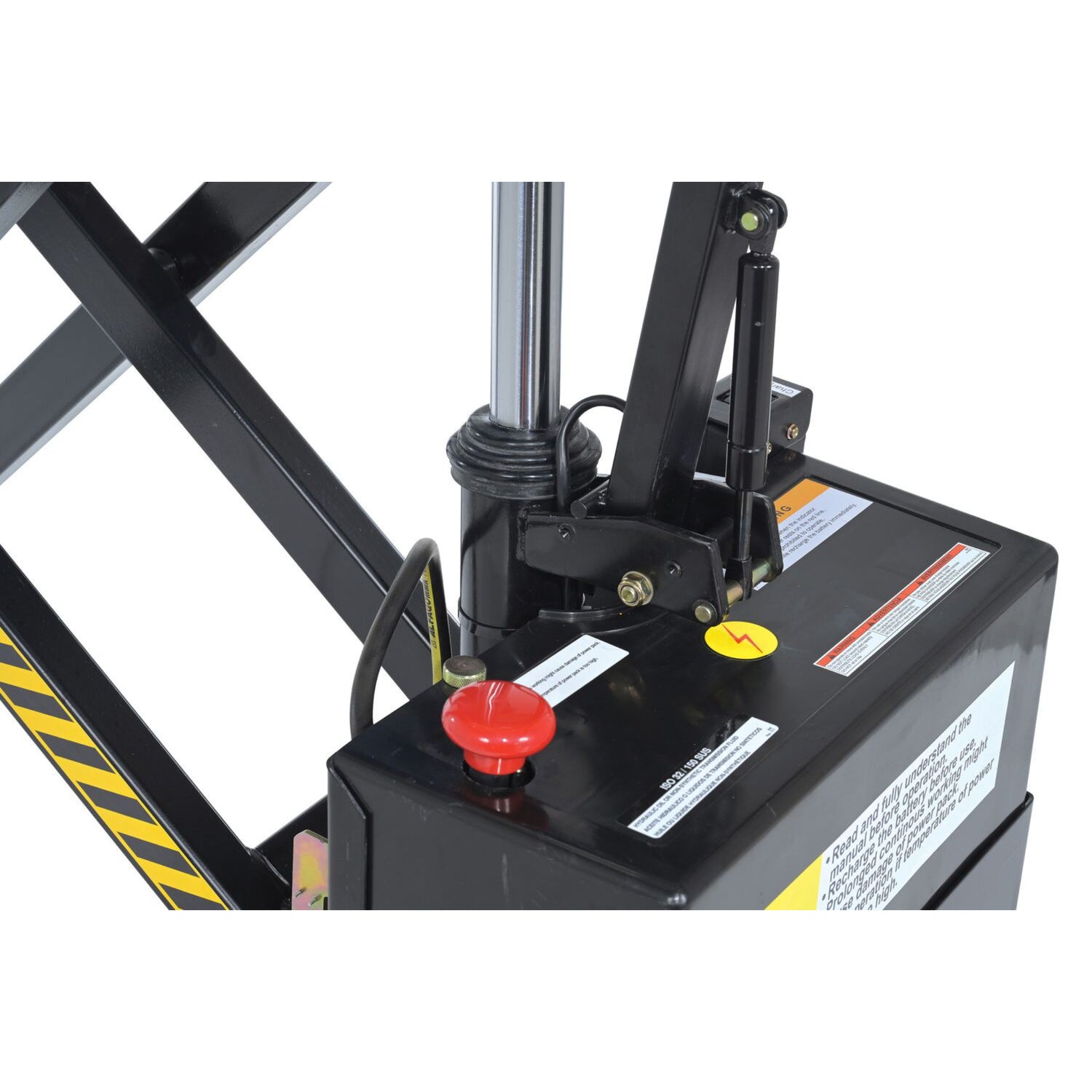

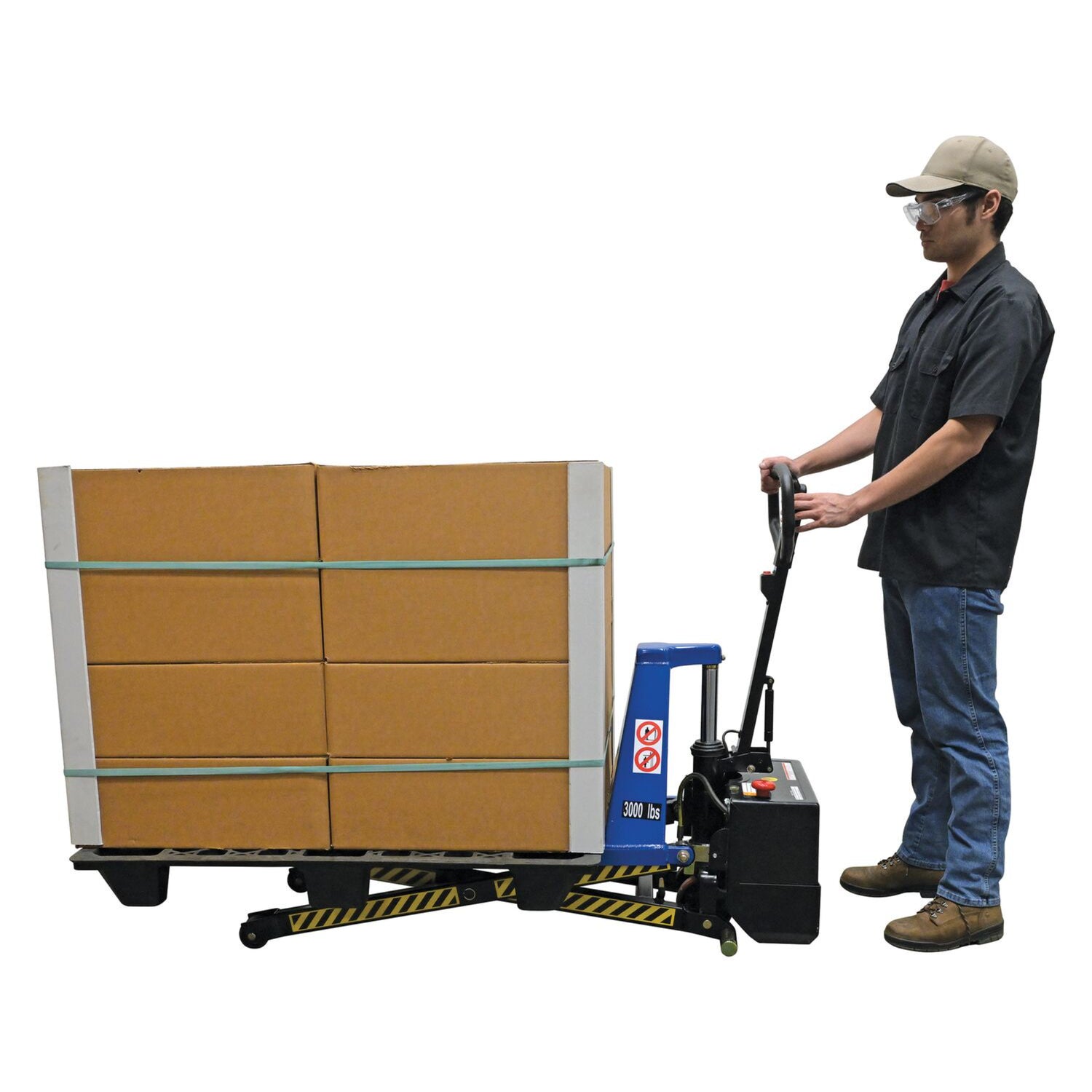

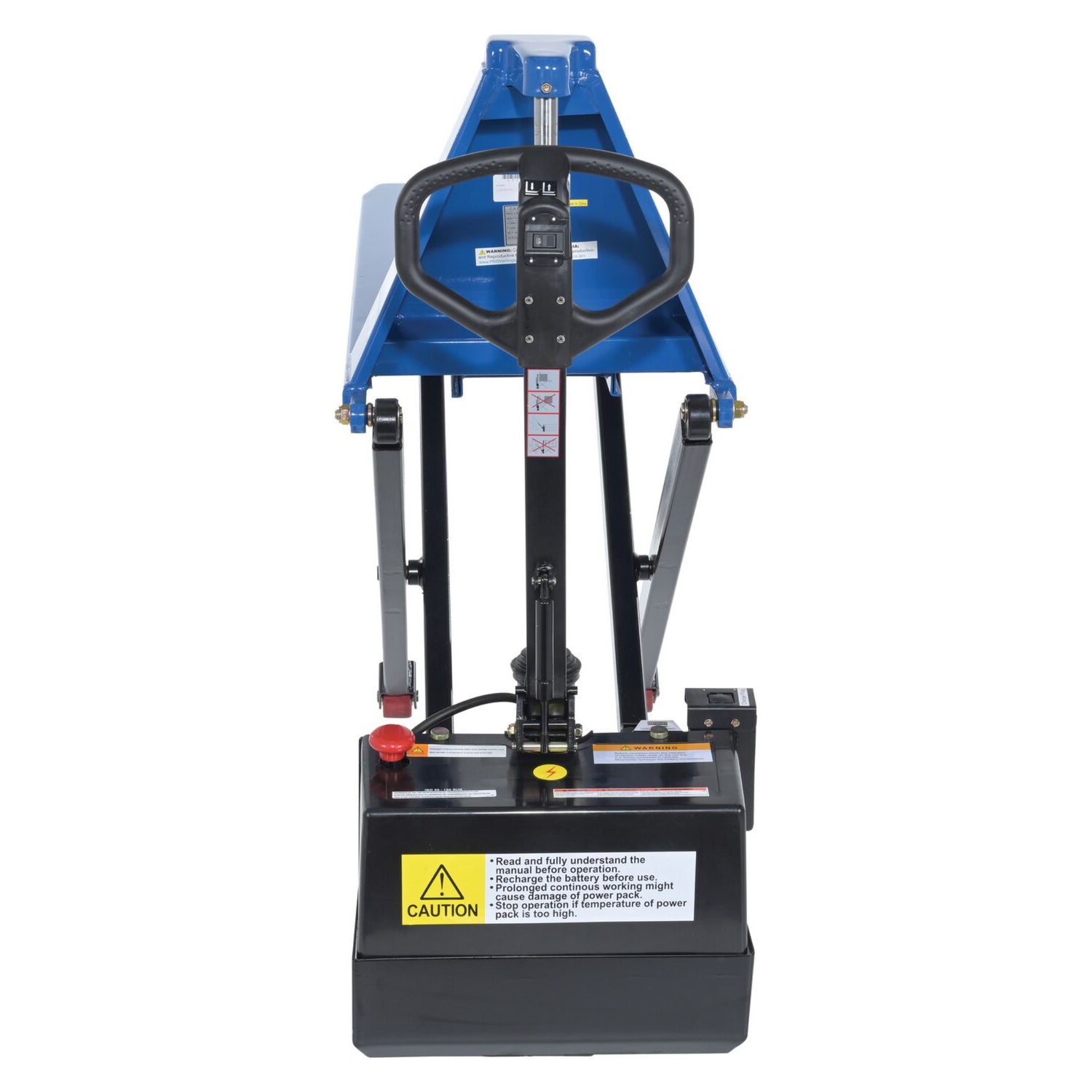

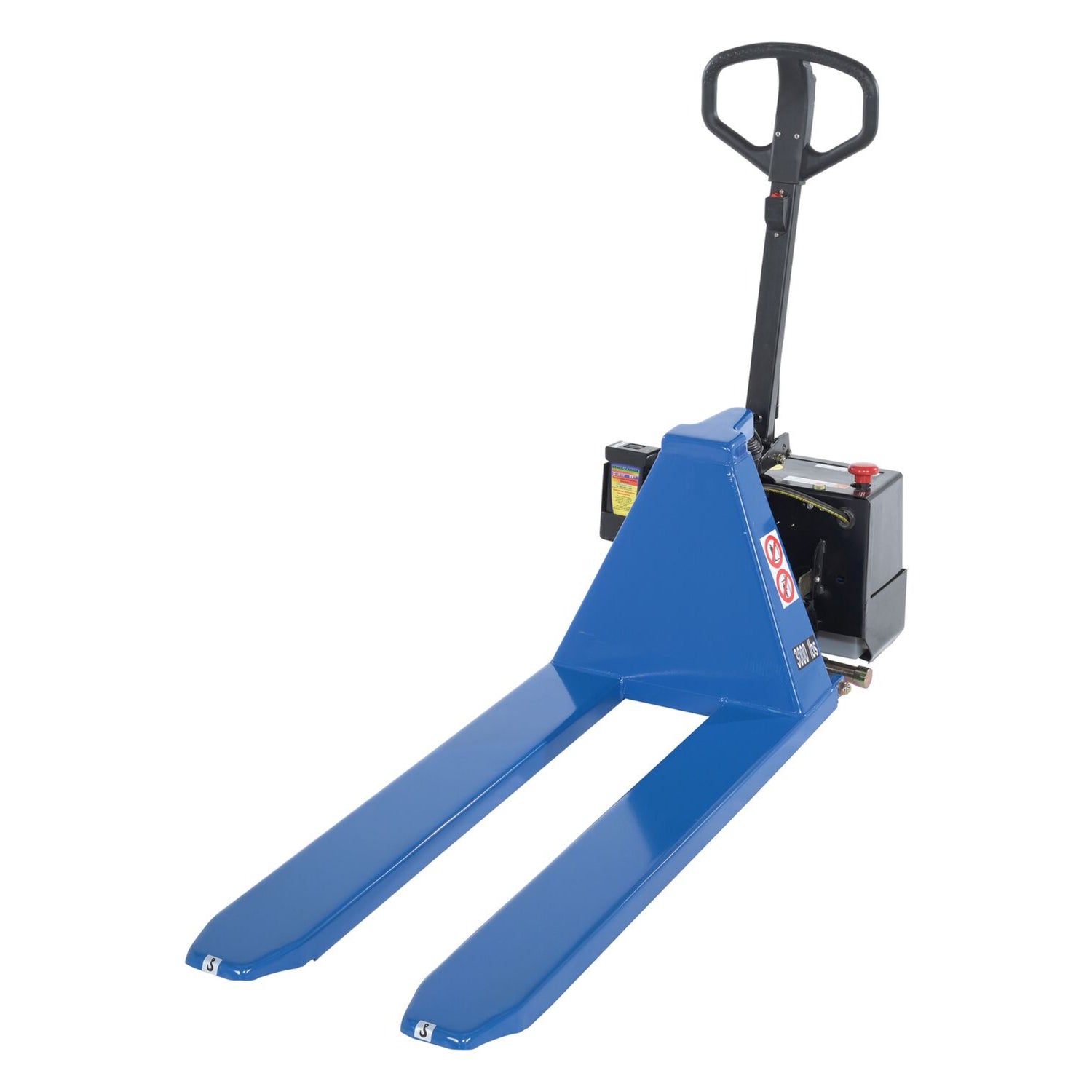

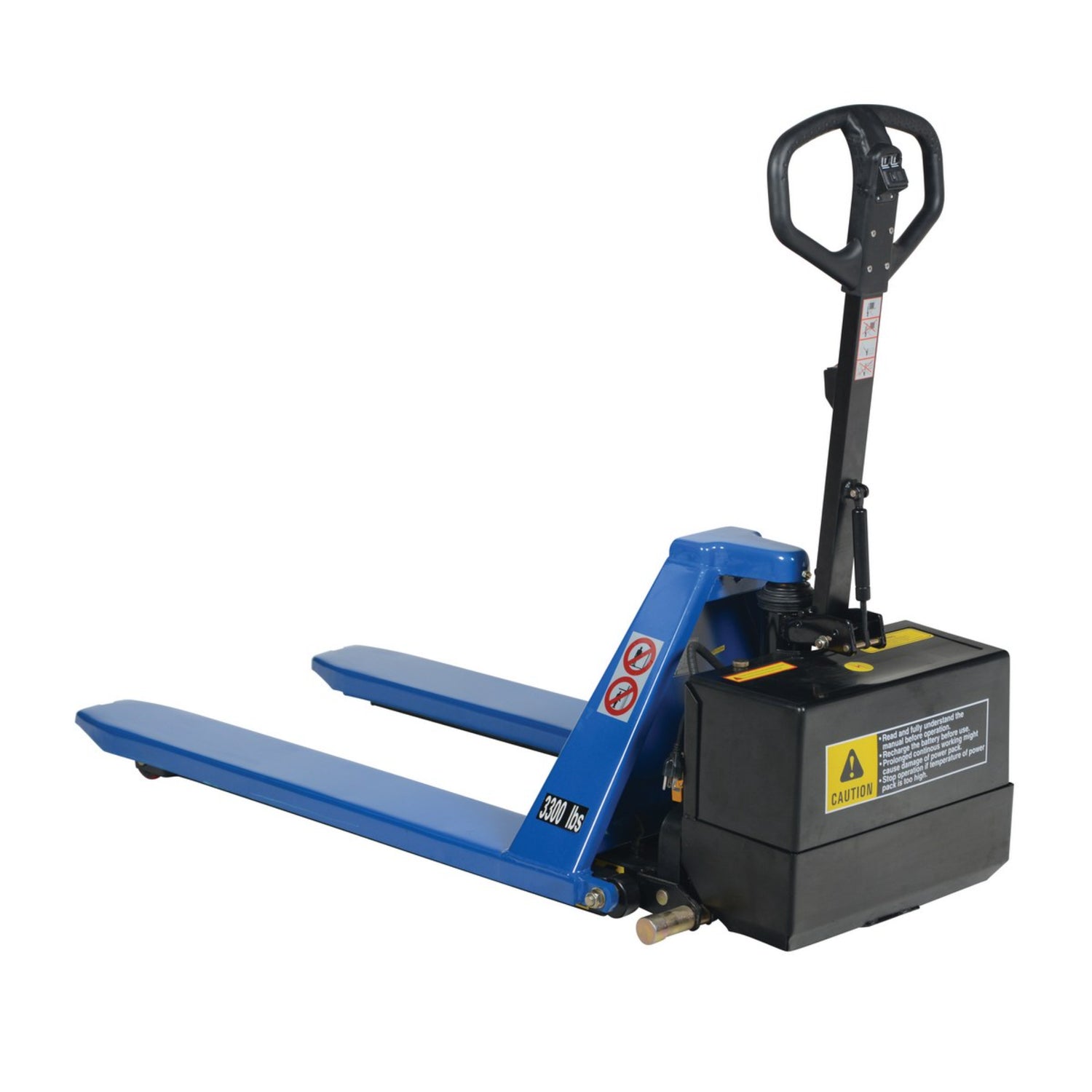

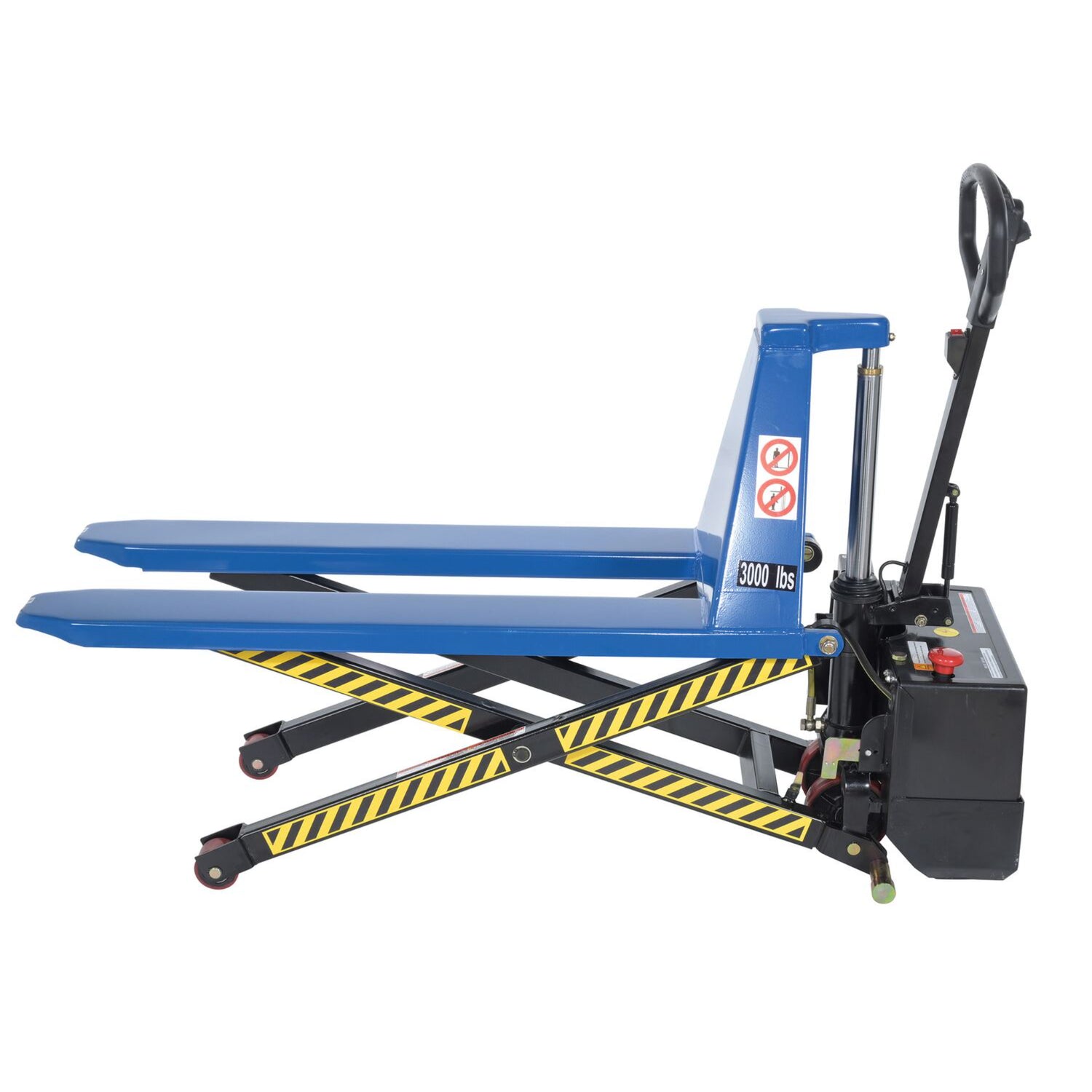

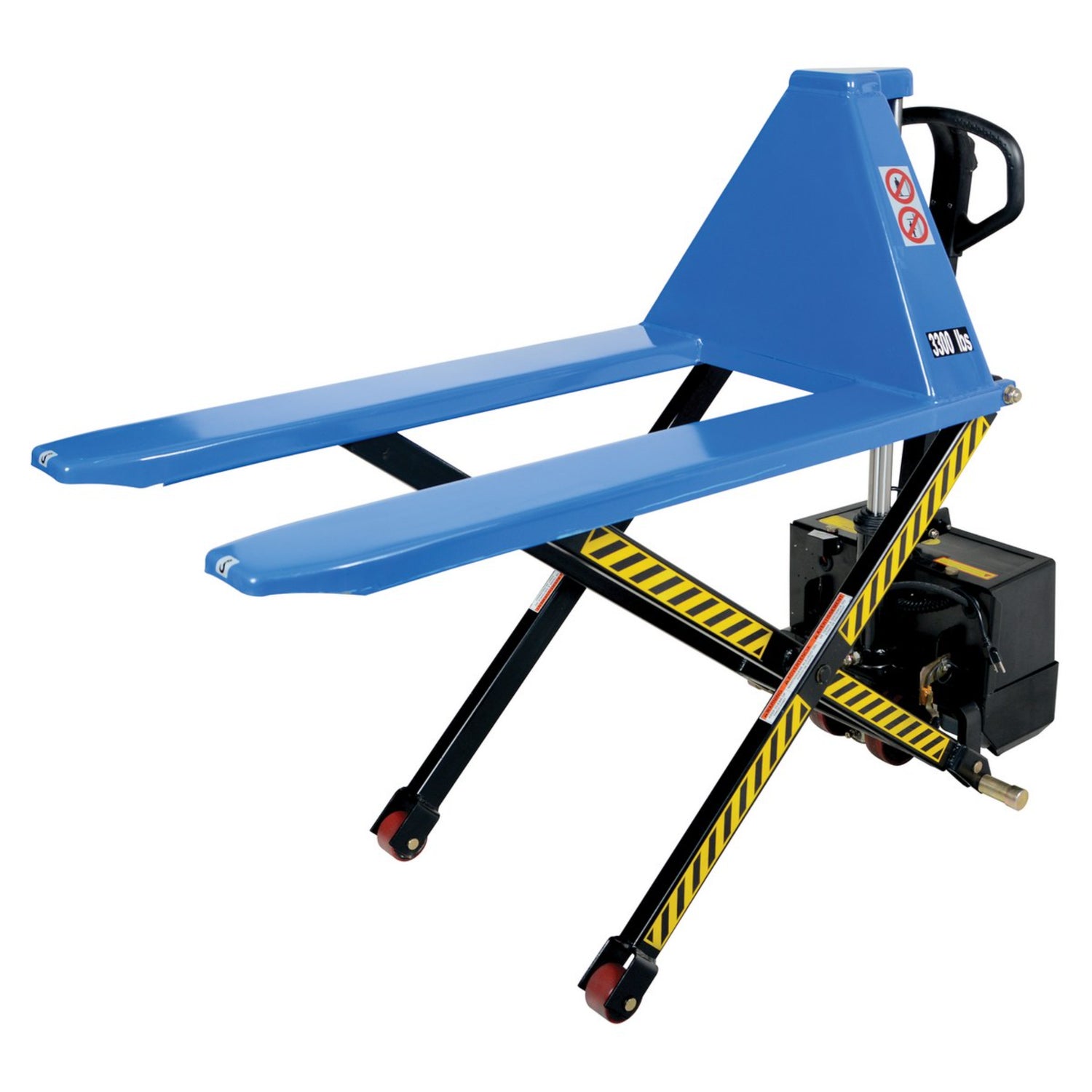

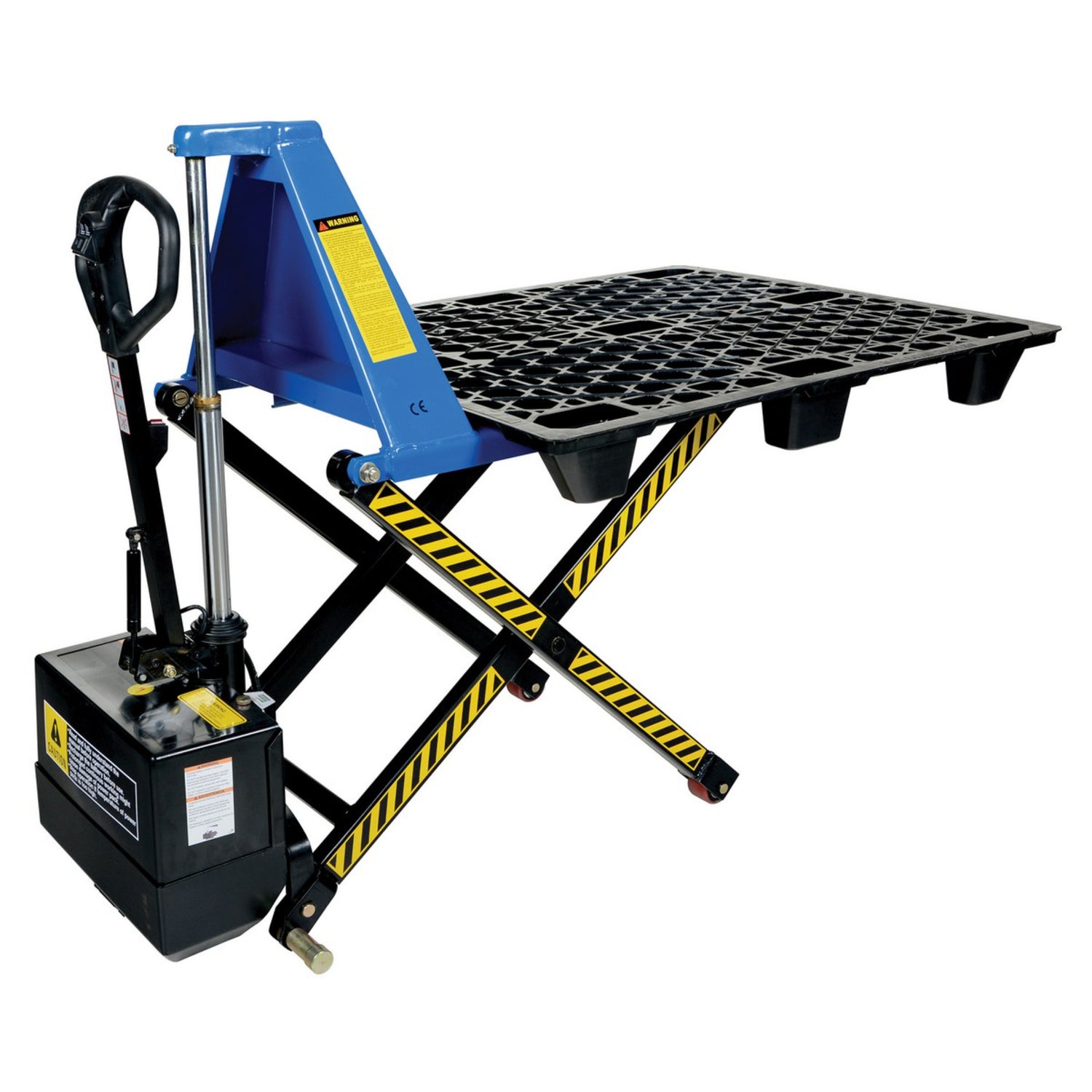

DC Battery — Onboard Power and Charger: The DC variants (L-220-DC-HD and L-270-DC-HD) ship with one 12V DC battery and an onboard battery charger. Operators control the lift via a rocker switch — UP raises the lift, DOWN lowers it, no pumping required. The onboard charger plugs into any standard 115V outlet for overnight or between-shift charging. DC operation dramatically reduces operator labor on repeated lift cycles, making it the right choice for high-throughput tote handling stations.

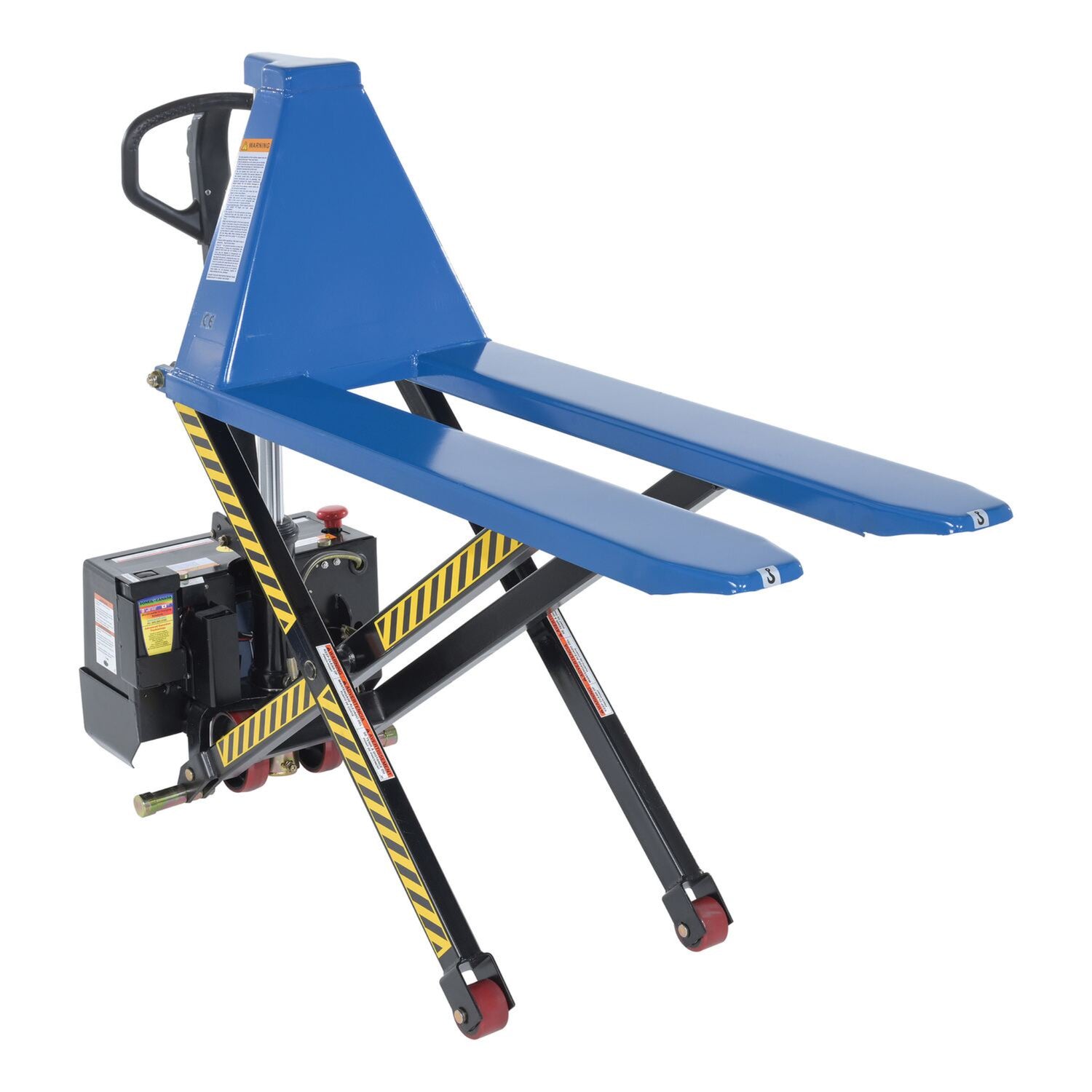

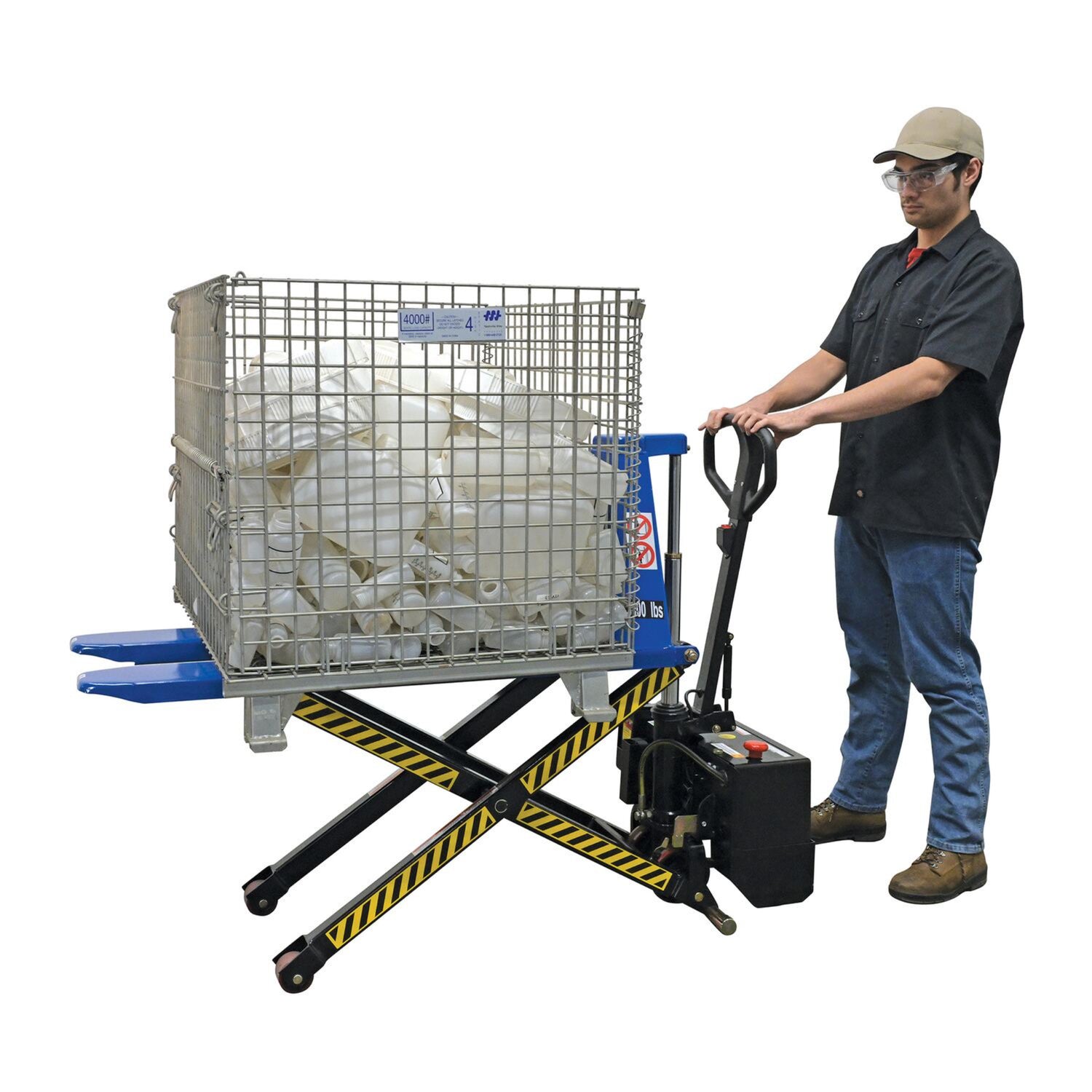

Side Stabilizers — Automatic Safety Lock: The L-Series features side stabilizers that automatically engage when the lift is raised above approximately 20-1/2". These stabilizers physically lock the unit in place — preventing accidental rolling when workers are accessing loads at elevated heights. This is a major safety feature: when you raise the load above the stabilizer threshold, the unit STAYS PUT until you lower it again, eliminating the tip-over risk that comes from rolling units with elevated loads. The stabilizers automatically release when the lift is lowered back below the threshold.

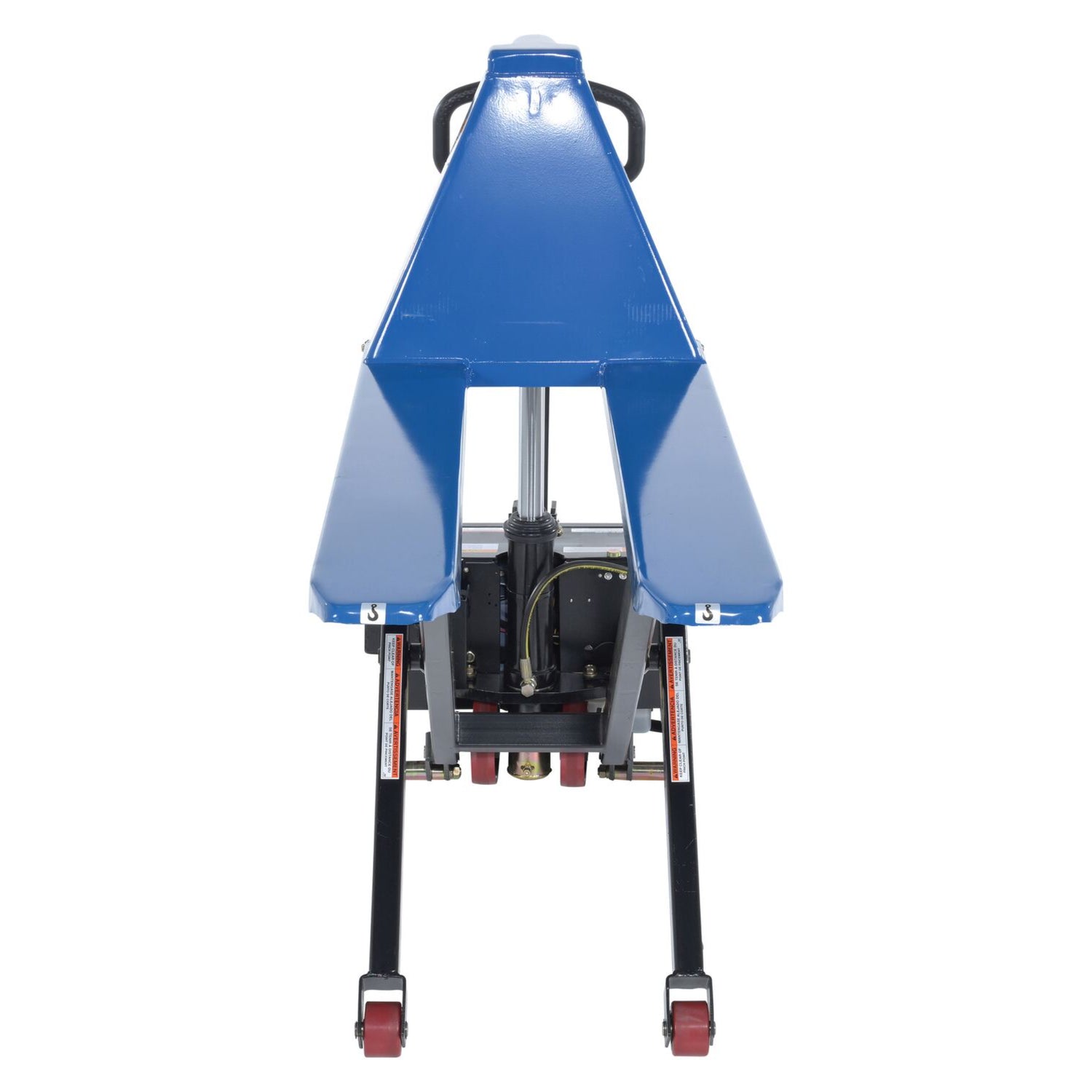

Poly-on-Steel Wheels: The L-Series rolls on poly-on-steel wheels — combining the load capacity of steel wheel cores with the floor protection and quiet operation of polyurethane treads. These wheels resist chemicals and oils common in industrial environments while protecting concrete and finished floors from scuffing.

⚠️ WORKS WITH OPEN-BOTTOM LOADS: The L-Series engages loads via forks that slide UNDER the load. This requires open-bottom geometry — skids with runners, totes with supports, boxes on standoffs, baskets with feet. Closed-bottom pallets (standard GMA pallets with bottom deck boards) and loose containers without bottom clearance are NOT compatible. For closed-bottom loads, use an L-PLATE platform accessory (sold separately) to provide a flat lifting surface, or see our standard pallet truck listings (EPT electric series, ALL-T-GPT all-terrain gas series) instead.

⚠️ Open-Bottom Compatibility — Verify Before Ordering: Before purchase, verify your loads have open-bottom geometry that allows the forks to engage. Standard tote dimensions vary widely — measure the under-clearance and the support feet of your typical loads to confirm compatibility with the L-220 (20-1/2" fork spacing) or L-270 (27" fork spacing).

Optional L-PLATE Platform Accessory: For loads that DON'T have open-bottom geometry (flat boxes, closed containers, loose loads, irregular items), Vestil offers L-PLATE solid steel platforms that lay across the forks to create a flat lifting surface. Two sizes are available: L-PLATE-20 (44" × 21-1/4" × 7/8") for the L-220 series, and L-PLATE-27 (43-7/8" × 27-3/4" × 7/8") for the L-270 series. Platforms convert the L-Series tote lifter into a versatile flat-platform lifter — same ergonomic benefits, broader load compatibility. Note that platforms ship separately from the lifter and carry a 30-day limited warranty (vs the 90-day warranty on the main lifters).

⚠️ LTL Freight Delivery Required: At 275-428 lbs depending on configuration, the L-Series ships via LTL freight — not UPS or FedEx. Verify freight delivery access at your receiving location before ordering.
