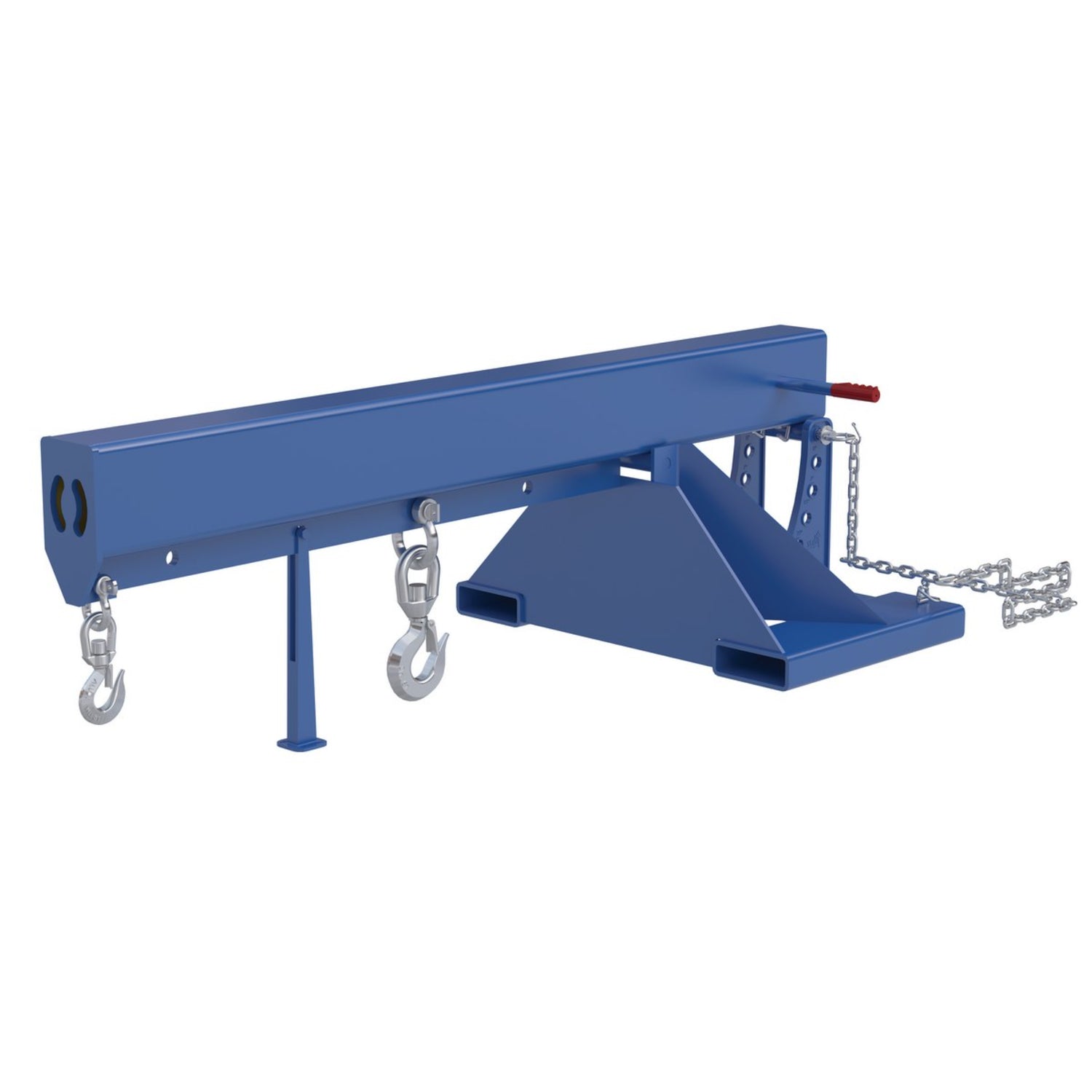

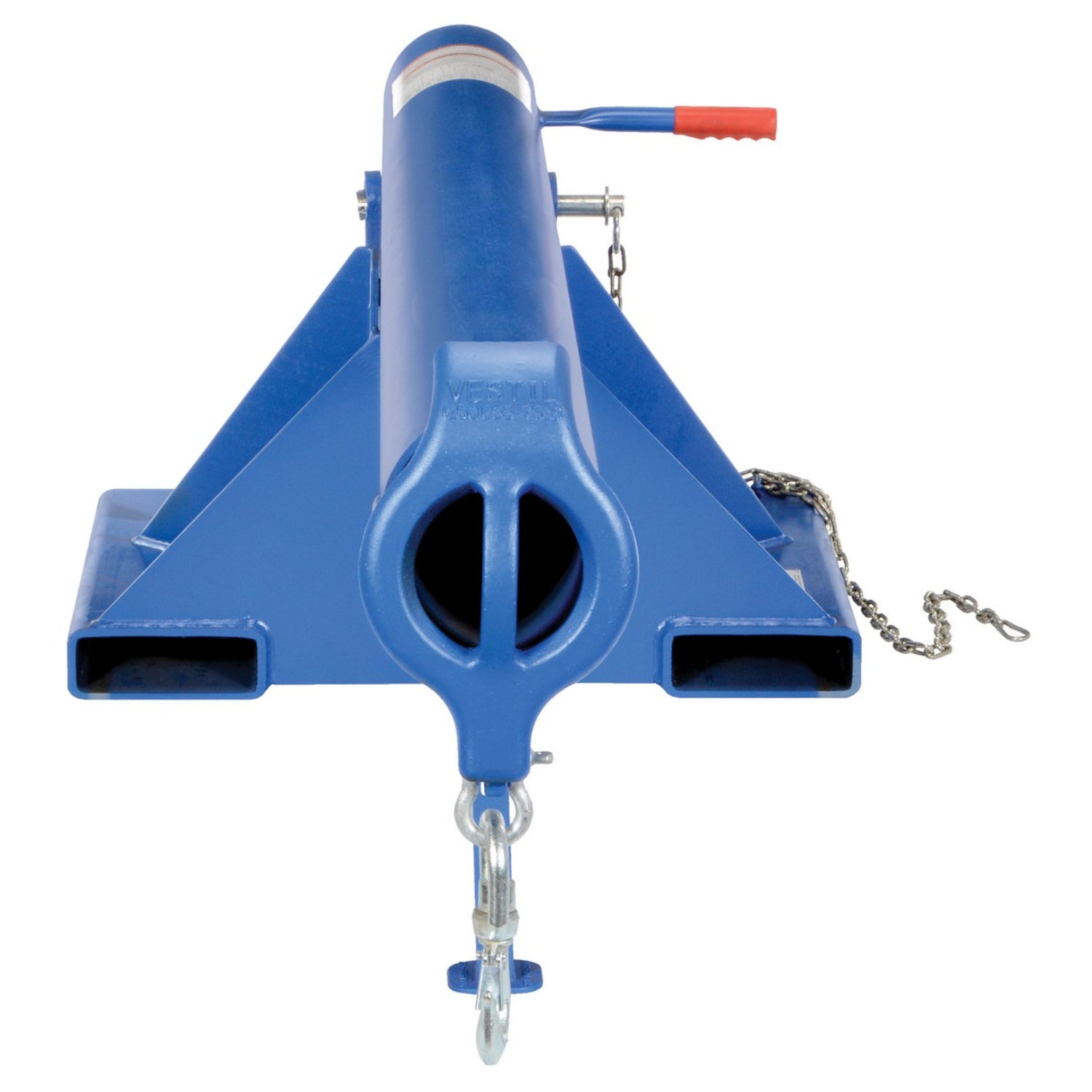

Vestil LM-OBNT Orbiting Non-Telescoping Forklift Lift Boom — Rotating Hook for Load Positioning Without Moving the Forklift

Orbiting Non-Telescoping Forklift Lift Boom — Rotating Hook for Load Positioning Without Moving the Forklift

The Vestil LM-OBNT Orbiting Non-Telescoping Lift Boom is a Best Seller in Vestil's Lift Master family — and for good reason. Where standard forklift booms lift loads with the load orientation FIXED to the boom direction, the Orbiting boom adds a rotating mechanism at the lifting hook that lets operators PIVOT the load around the hook's vertical axis WITHOUT moving the forklift. The result is dramatically faster, more precise load positioning for operations that require specific load orientation: construction site rigging where beams and equipment must align with installation points, truck loading and unloading where loads must face the right direction, warehouse rack placement, manufacturing installation work, maintenance and repair operations, farming and agriculture equipment handling, HVAC and transformer installation, and any operation where "set it down, reposition the forklift, lift again" wastes time and creates safety risks.

Why Orbiting vs Standard Booms: With a standard lift boom (LM-1NT, LM-EBNT), if a load lifts up oriented one way but needs to be installed oriented 90° differently, you have three options: (1) set the load down, manually rotate it, lift again — slow and risky; (2) reposition the forklift to change the boom direction — slow and requires open floor space; (3) hand-rotate the load mid-air using rope/restraints — unsafe and uncontrolled. The Orbiting boom eliminates all three problems. Operators rotate the load smoothly at the hook itself, in place, while the forklift stays put. For operations that perform load orientation frequently — most construction, manufacturing, and rack-placement work — this is the productivity feature that makes the LM-OBNT a Best Seller.

Non-Telescoping = Fixed Reach for Known Distances: The LM-OBNT is the non-telescoping variant — meaning the boom reach is fixed at the configuration you order. Non-telescoping booms have fewer mechanical components, lower cost, lighter weight, and longer service life than telescoping equivalents. They're the right choice when load distances are predictable but load orientation varies. If your operation needs variable reach AND rotation (loads at different distances with different orientations), see our telescoping LM-OBT listing instead — that's the most versatile boom in the LM catalog.

Choose Your Configuration — Two Critical Decisions:

• Capacity (4,000 / 6,000 / 8,000 lb): Match to your forklift's de-rated capacity at the load center — NOT to your forklift's nameplate rating. Adding any boom dramatically shifts the load center forward, reducing the forklift's effective capacity.
• Fork Pocket Center (24" / 30" / 36"): The distance between the center of your forklift's two forks. This MUST match your forklift's actual fork spread. Note: 11" fork pocket center is NOT offered in the Orbiting series — narrow-fork forklifts should use the standard LM-1NT series instead. Measure your forklift's fork spread before ordering.

Premium Construction: The LM-OBNT features heavy-gauge structural steel construction with AWS-welded joints (American Welding Society standards) — same premium build as the standard LM-1NT series, with the addition of the rotating hook mechanism engineered for repeated rotation cycles under load. The blue powder coat finish provides long-term industrial durability and high visibility for safety. Two integrated lifting hooks at the boom end allow flexible rigging — use one for centered lifts, both for spread loads. The included safety restraint physically secures the boom to the forklift carriage, preventing accidental dislodging during operation.

⚠️ Weight Considerations: Net weights range from 337 lbs (LM-OBNT-4-24) to 814 lbs (LM-OBNT-8-36). The 4K and 6K capacity SKUs are similar in weight to standard LM-1NT equivalents, but 8K SKUs are significantly heavier (792-814 lbs) due to the structural reinforcement needed for rotating heavy loads. Factor this into your forklift lost load calculations.

Custom Fork Pocket Sizes Available: Standard fork pocket dimensions ship with each boom. Alternative fork pocket sizes (8.25" × 4.25", 7" × 3", or 9" × 3") are available — contact us before ordering to specify your forklift's fork dimensions and we'll configure the boom to match.

⚠️ Critical Fit Requirement: Verify your forklift's fork pocket center (the distance from center of one fork to center of the other) matches the boom you order. Custom dimensions are available via Vestil's custom fabrication program — contact us if your forklift has non-standard fork spread.

⚠️ Load Center Safety Notice: NEVER EXCEED LOAD CENTER RATING PER FORKLIFT MANUFACTURER'S GUIDELINES. Adding any attachment shifts the load center forward, reducing the forklift's effective capacity. Consult your forklift's load center capacity chart before purchase and during operation. When rotating loads, operators should rotate smoothly and gradually — never spin loads with momentum that could destabilize the forklift.
