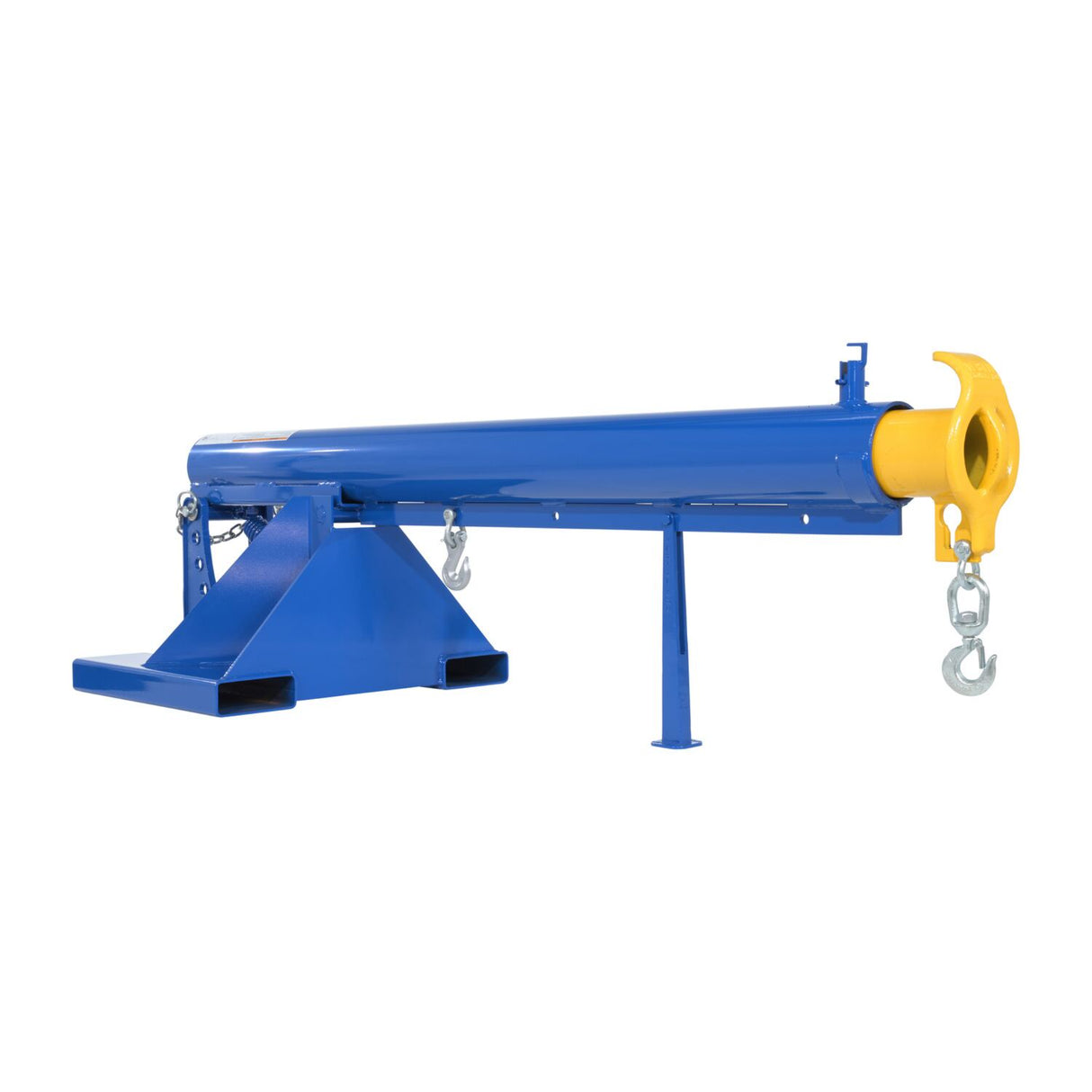

Vestil LM-OBT Orbiting Telescoping Forklift Lift Boom — Rotating Hook with Extendable Reach for Maximum Lift Versatility

Orbiting Telescoping Forklift Lift Boom — Rotating Hook with Extendable Reach for Maximum Lift Versatility

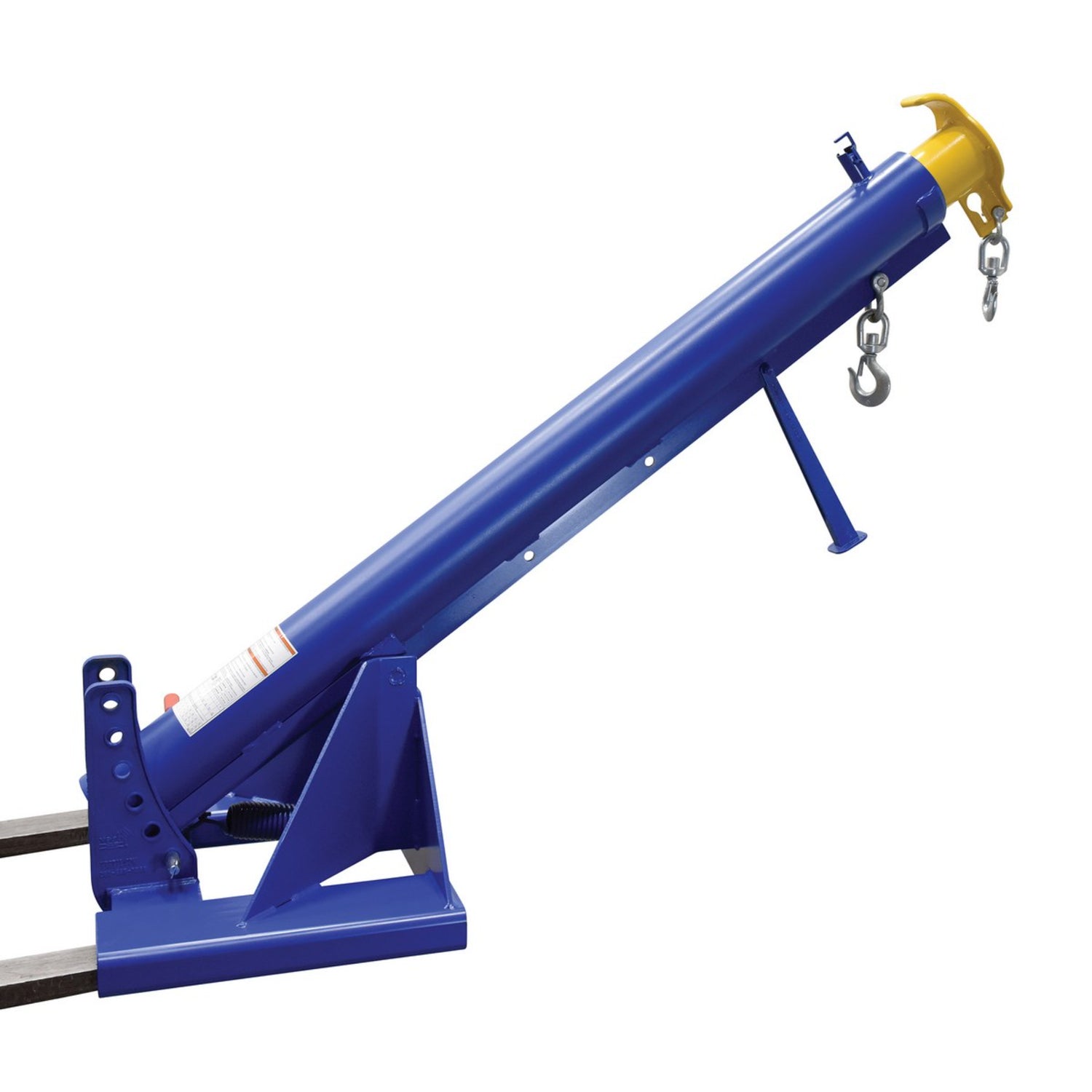

The Vestil LM-OBT Orbiting Telescoping Lift Boom is the most versatile boom in Vestil's standard catalog — combining TWO premium features in a single product: a rotating hook mechanism that pivots loads without moving the forklift, AND telescoping extendable reach that adjusts boom length for variable load distances. Where the standard LM-1T offers reach flexibility and the LM-OBNT offers load rotation, the LM-OBT delivers both simultaneously. The result is a Best Seller in Vestil's Lift Master family that handles ANY lift configuration: short reach with rotation, long reach with rotation, mid-range with rotation, fixed loads at variable distances, rotated loads at variable distances. For operations with diverse lifting requirements — construction sites, manufacturing facilities, multi-zone warehouses, busy maintenance yards, large-scale farming operations — this is the boom that eliminates the need for multiple specialty attachments.

Why Both Features Together: Operations that need rotation typically also need reach flexibility, and vice versa. A construction site rigger doesn't just need to orient a beam — they also need to extend the boom to reach the installation point. A manufacturing technician installing machinery doesn't just need to adjust reach for different work cells — they also need to orient equipment in alignment with mounting points. Pairing rotation + telescoping in a single boom eliminates the inefficient "use rotation boom for some tasks, telescoping boom for others" workflow and the capital cost of buying two specialty attachments.

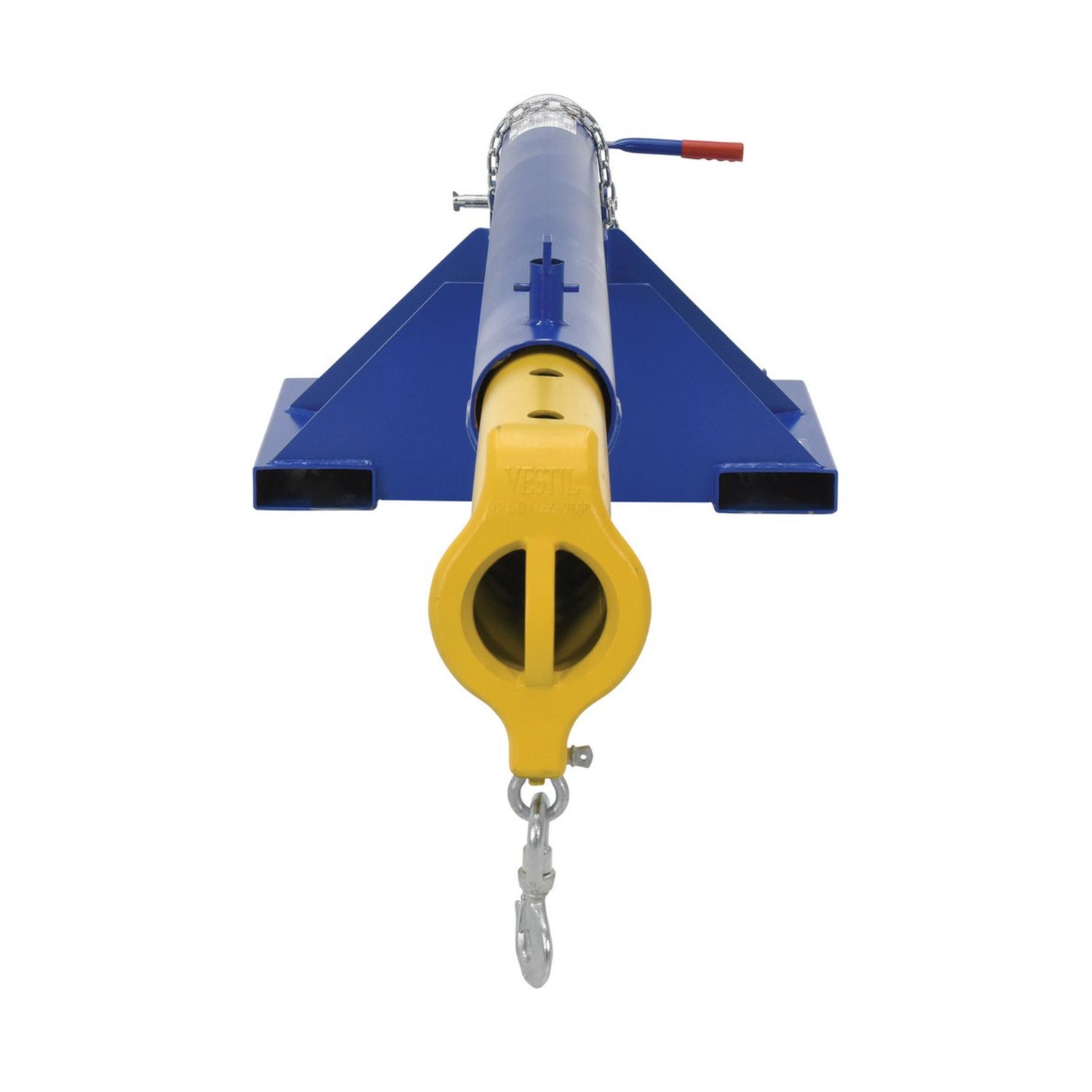

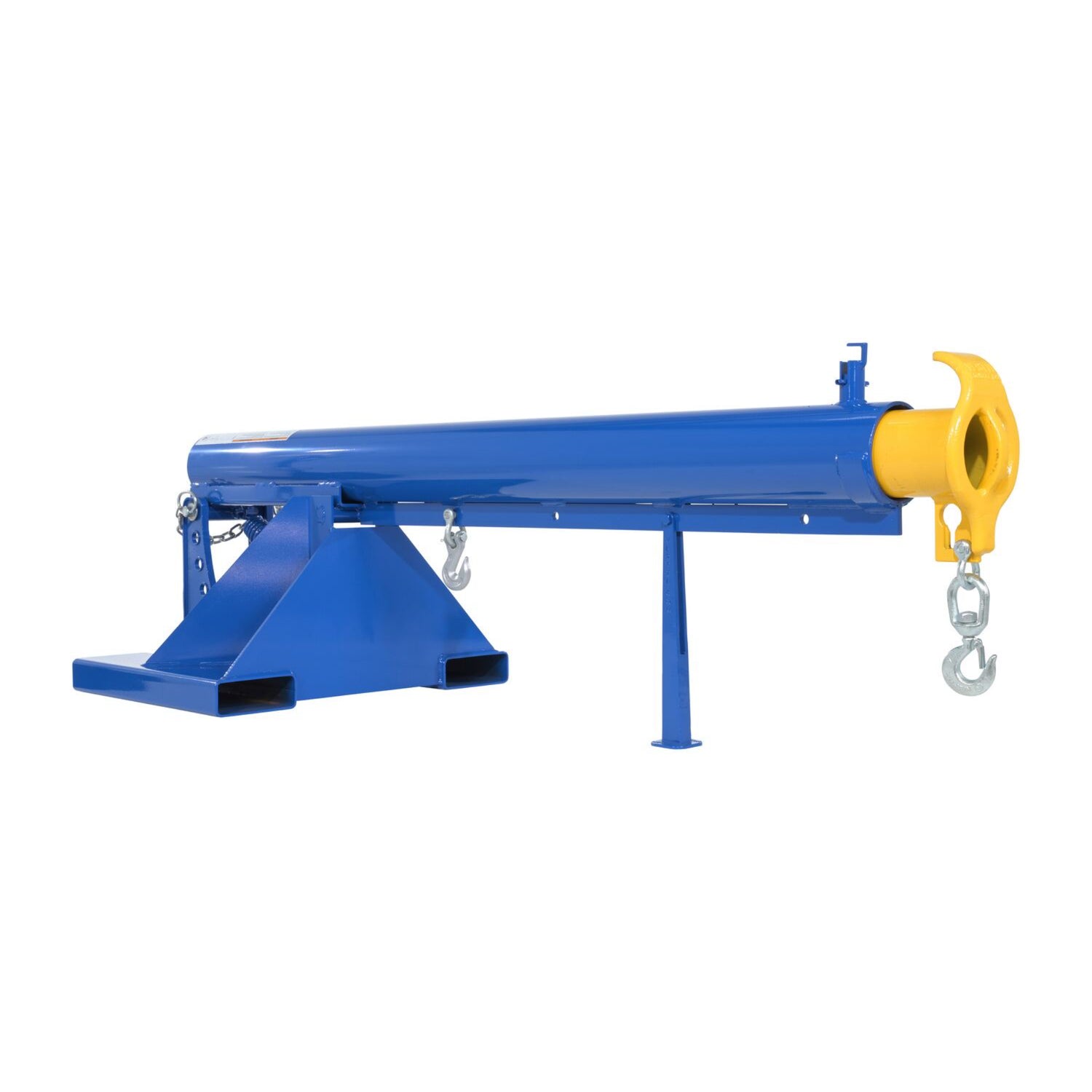

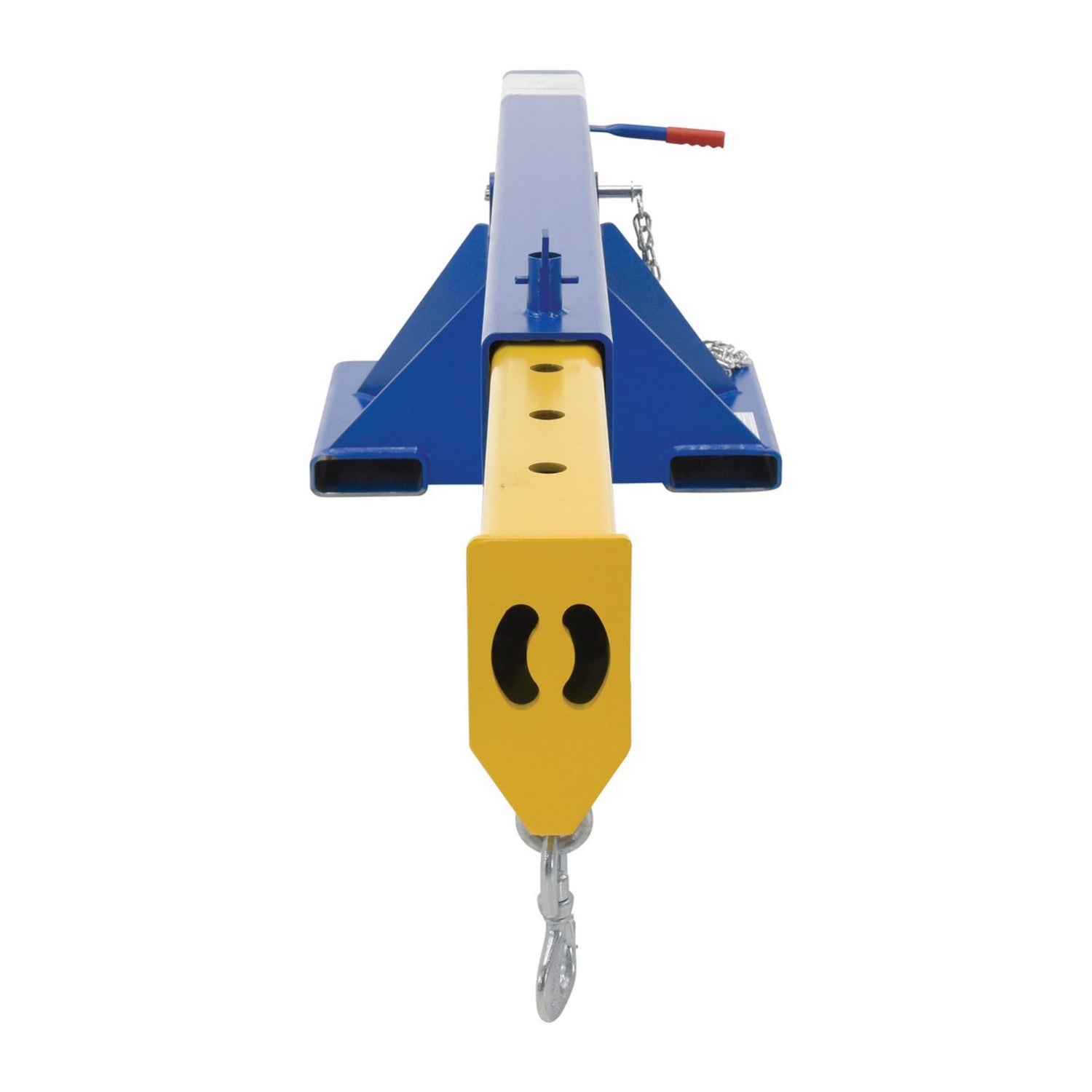

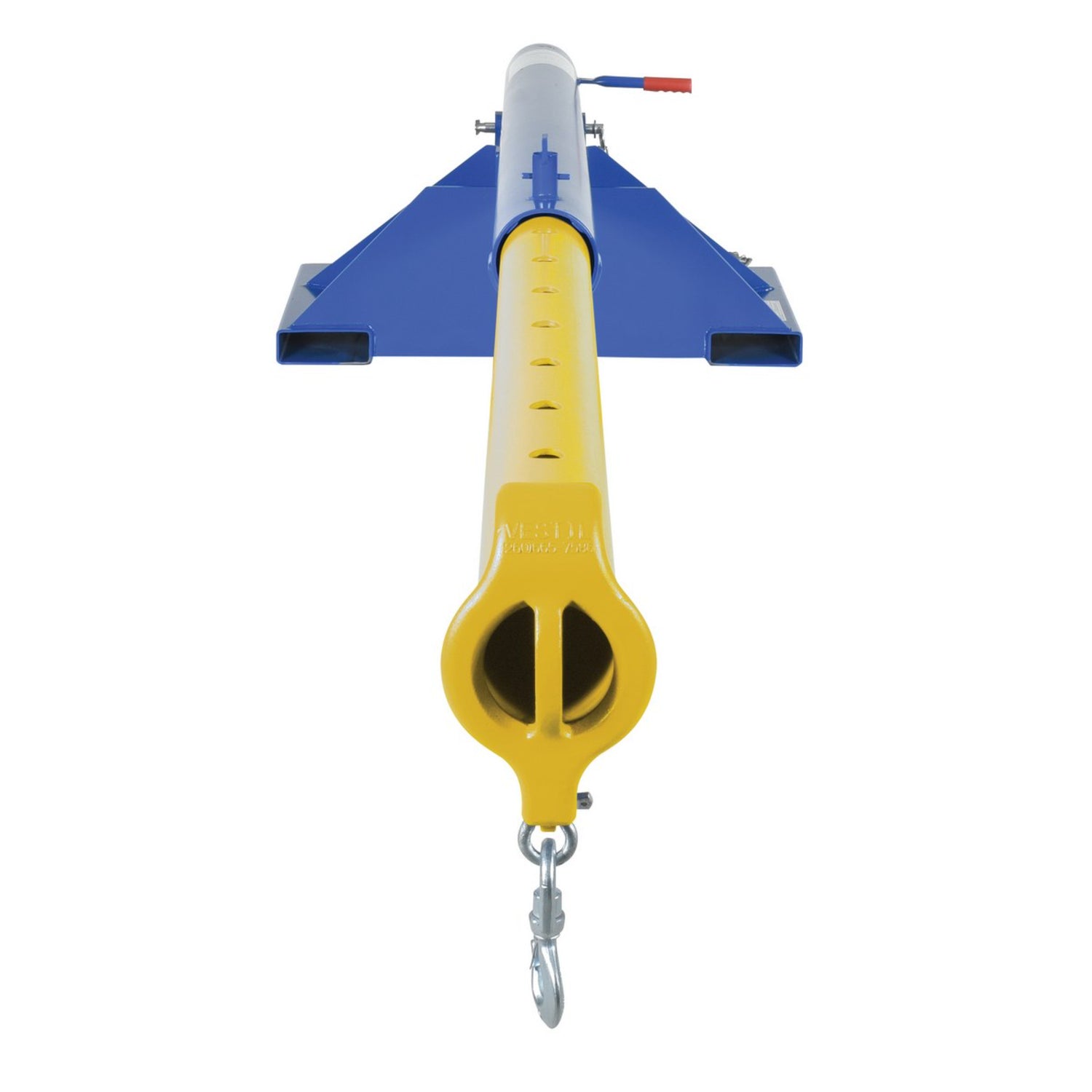

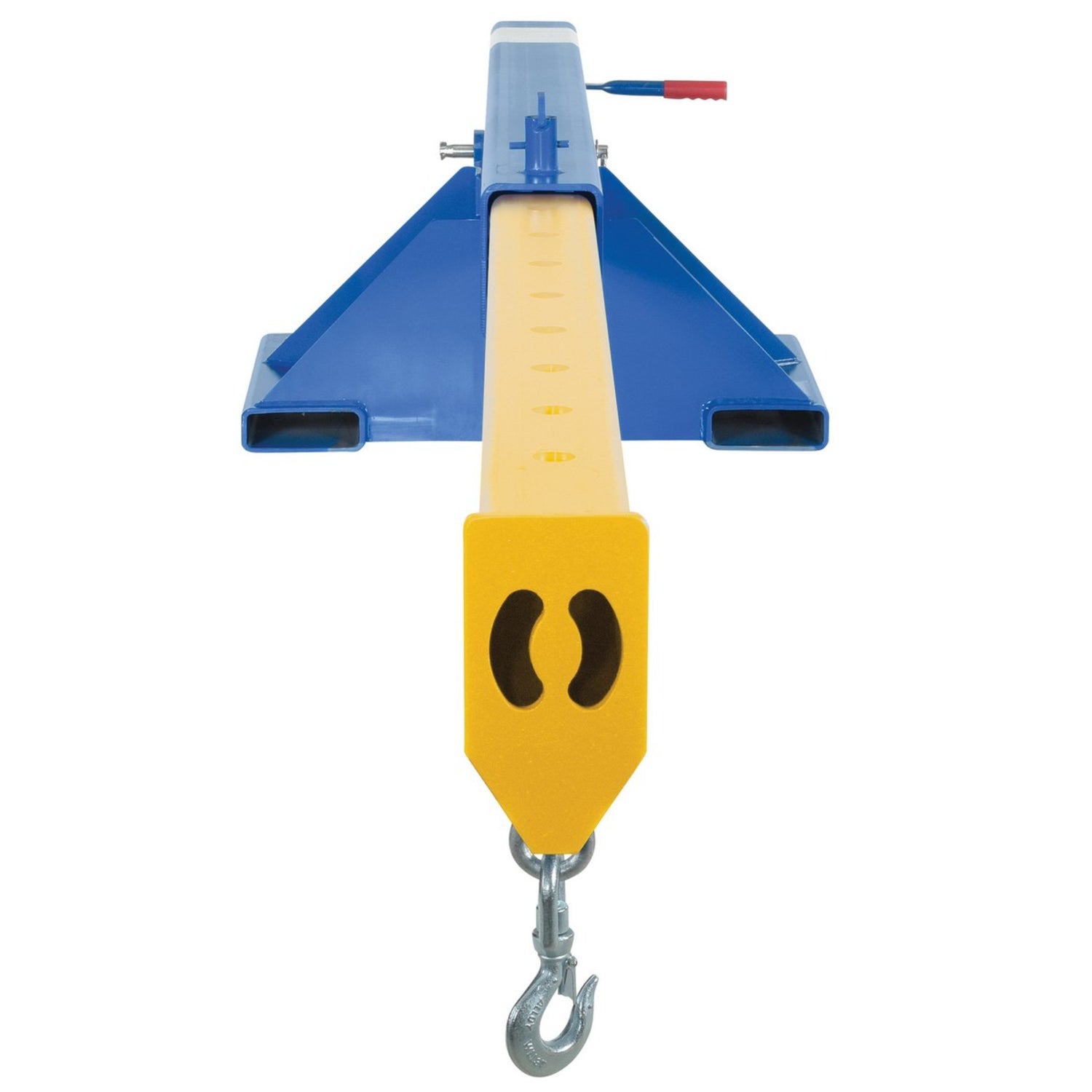

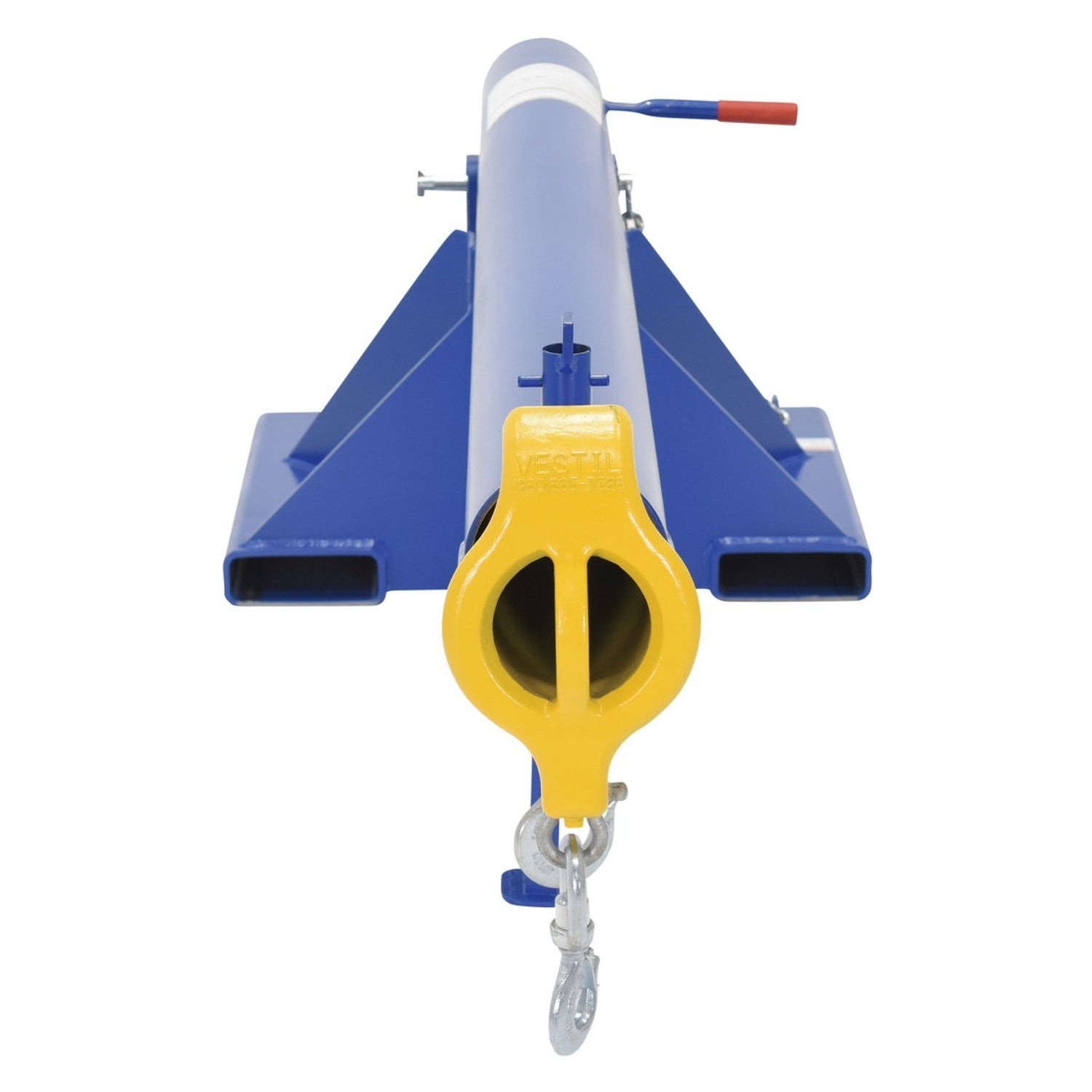

The Orbiting Feature — Rotation at the Hook: The rotating mechanism at the lifting hook lets operators PIVOT the load around the hook's vertical axis WITHOUT moving the forklift. Standard booms (LM-1NT, LM-1T) lift loads with the load orientation FIXED to the boom direction — meaning if a load lifts up oriented one way but needs to be installed oriented 90° differently, the operator must set it down and reposition the forklift or hand-rotate the load mid-air. The Orbiting boom eliminates this — operators rotate the load smoothly at the hook itself, in place, while the forklift stays put.

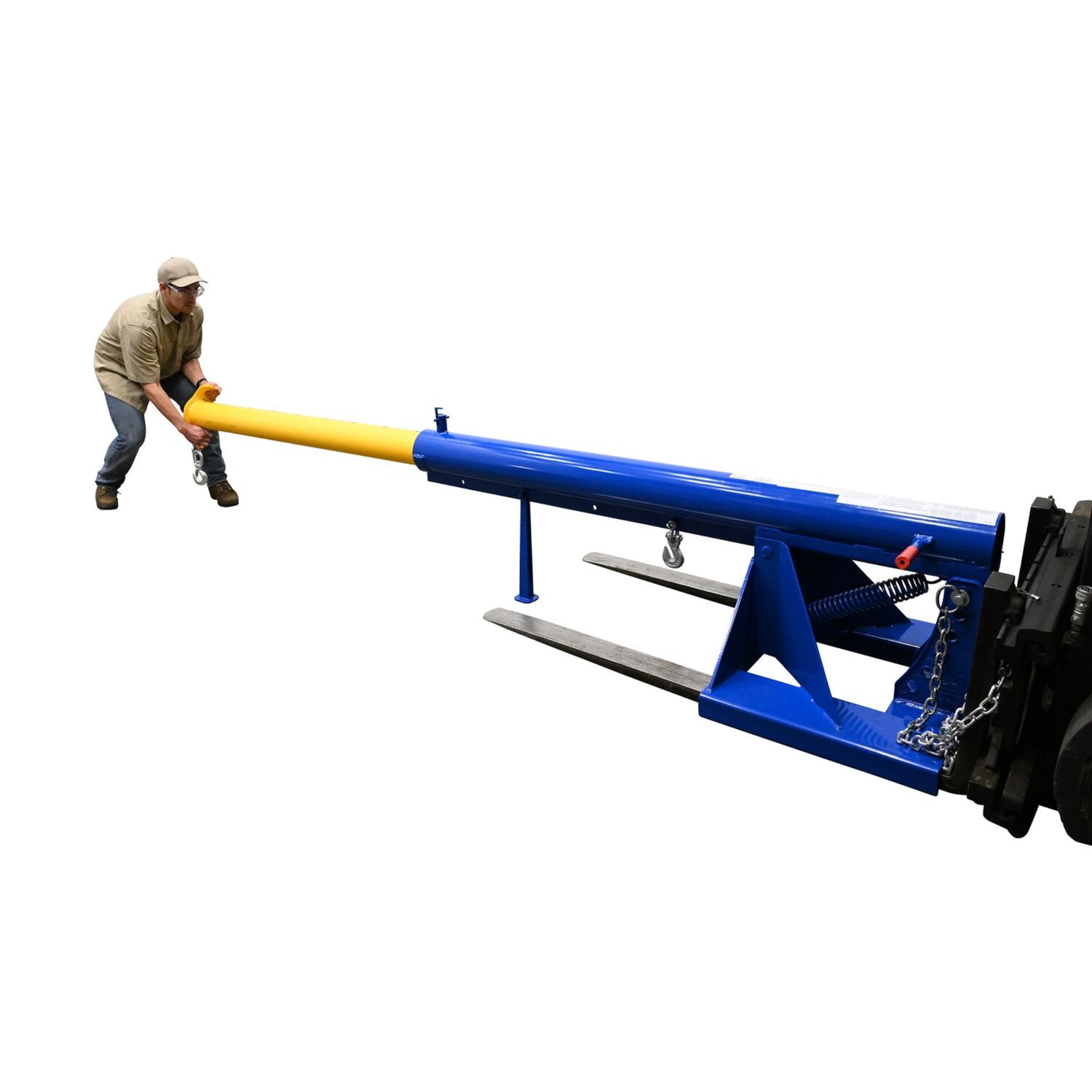

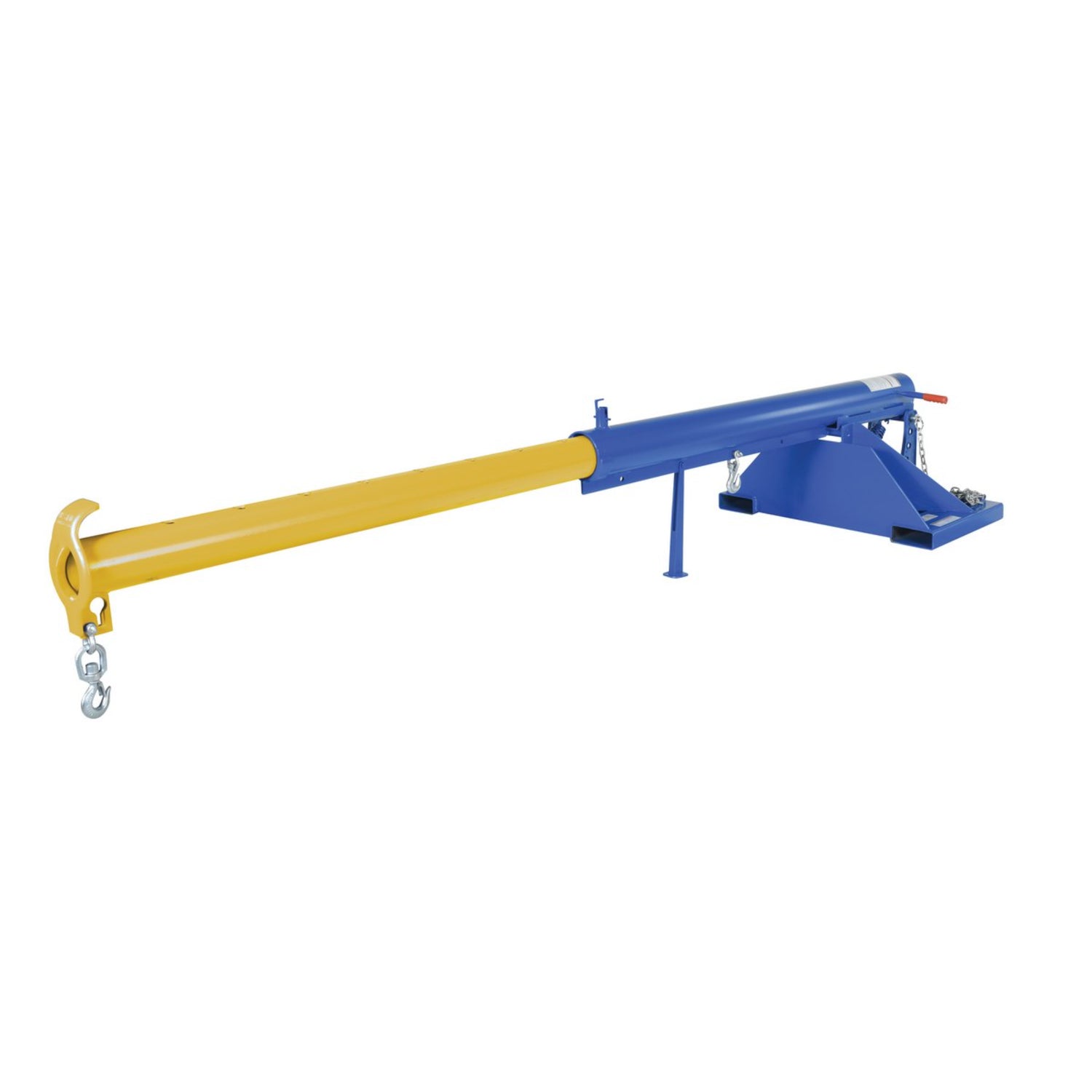

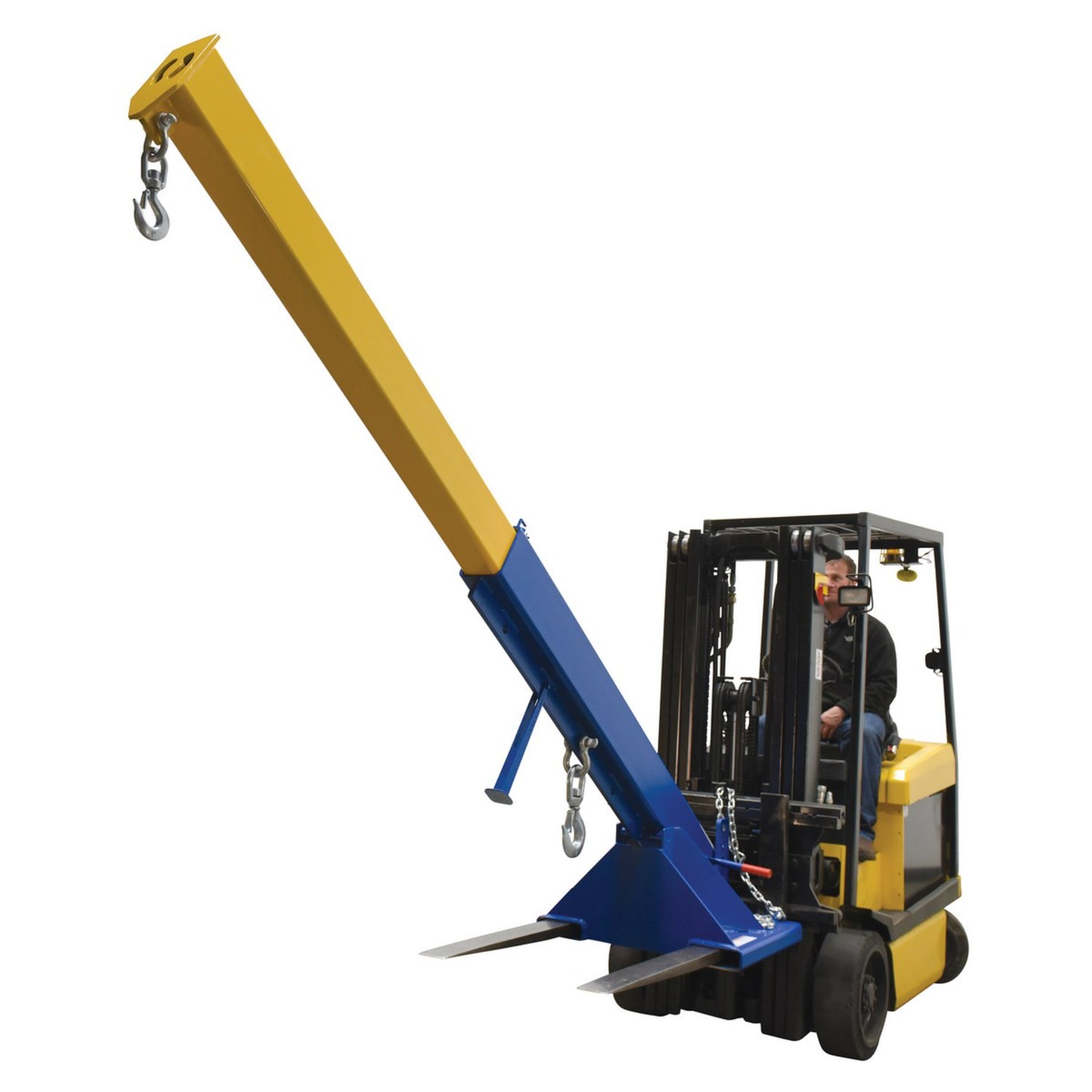

The Telescoping Feature — Variable Reach: Manually extendable boom length lets operators adjust reach for each lift. Short lifts use short reach for stability; long lifts extend for distance. A single boom handles the full reach range without needing multiple booms or repositioning the forklift between lifts.

Choose Your Configuration — Two Critical Decisions:

• Capacity (3,000 / 4,000 / 6,000 / 8,000 lb): Match to your forklift's de-rated capacity at the load center — NOT to your forklift's nameplate rating. Adding any boom dramatically shifts the load center forward, reducing the forklift's effective capacity. Note: the 3,000 lb option is exclusive to the telescoping LM-OBT-3-24 SKU, available for buyers needing lighter-duty rotation+reach capability.

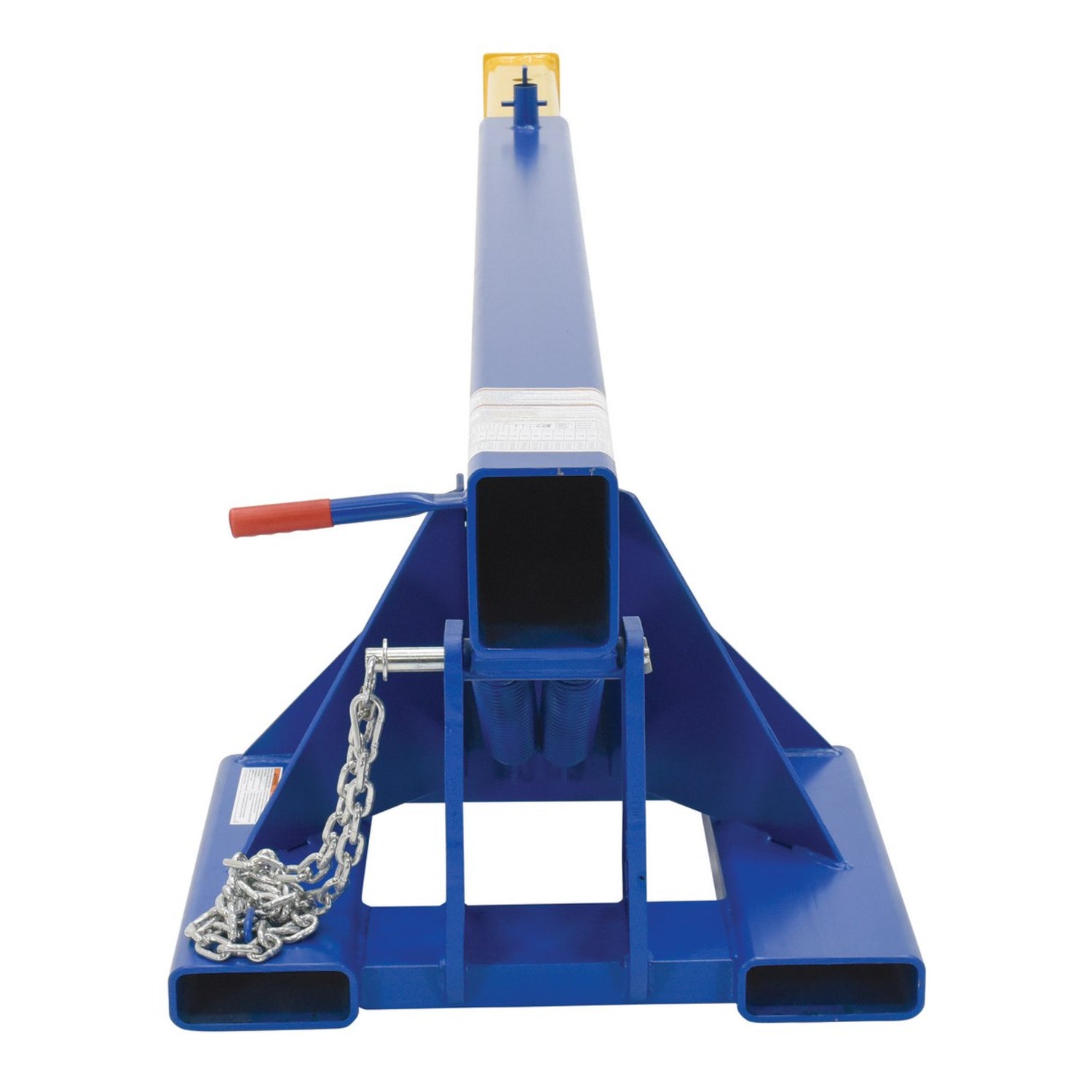

• Fork Pocket Center (24" / 30" / 36"): The distance between the center of your forklift's two forks. This MUST match your forklift's actual fork spread. Note: 11" fork pocket center is NOT offered in the Orbiting series — narrow-fork forklifts should use the standard LM-1T series instead. Measure your forklift's fork spread before ordering.

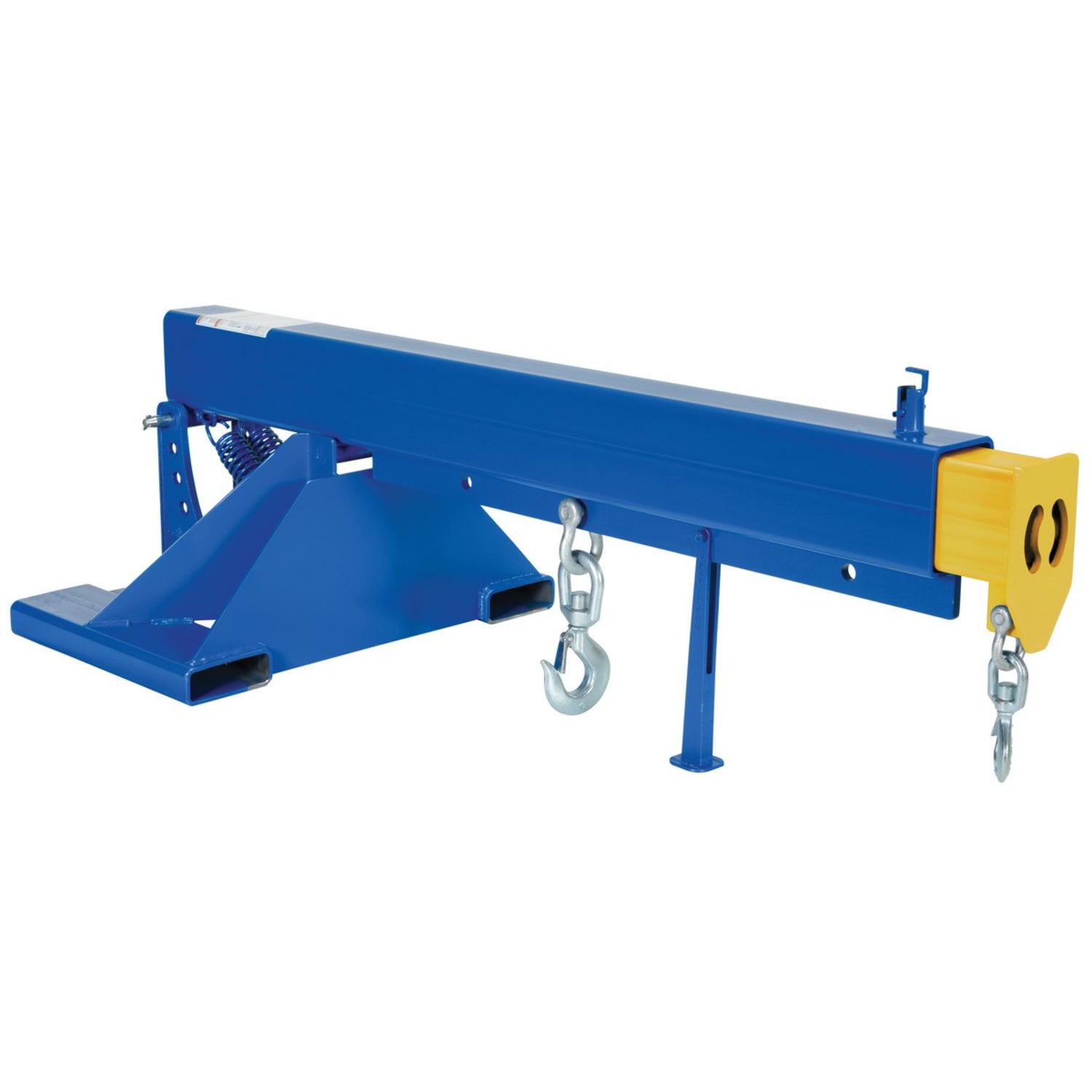

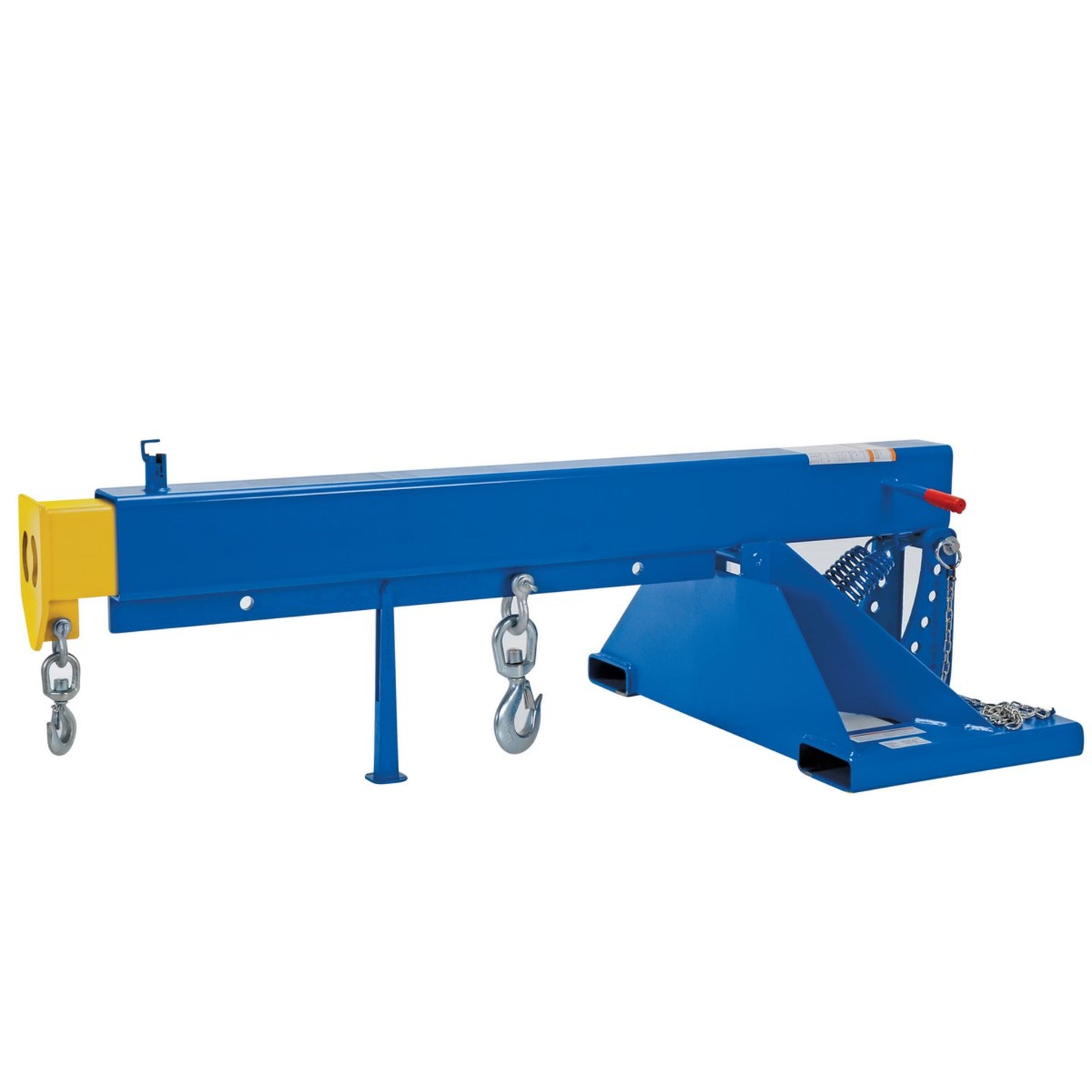

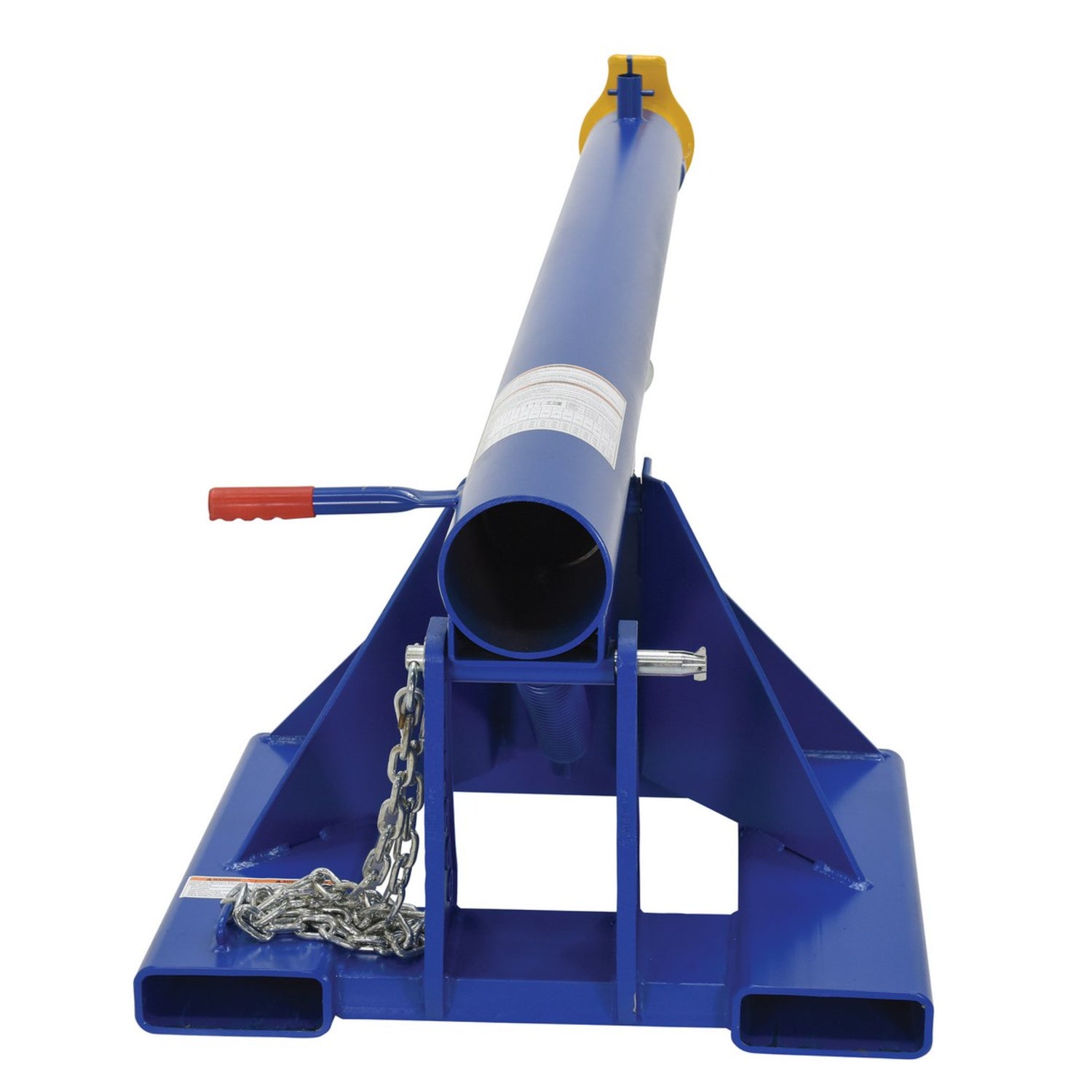

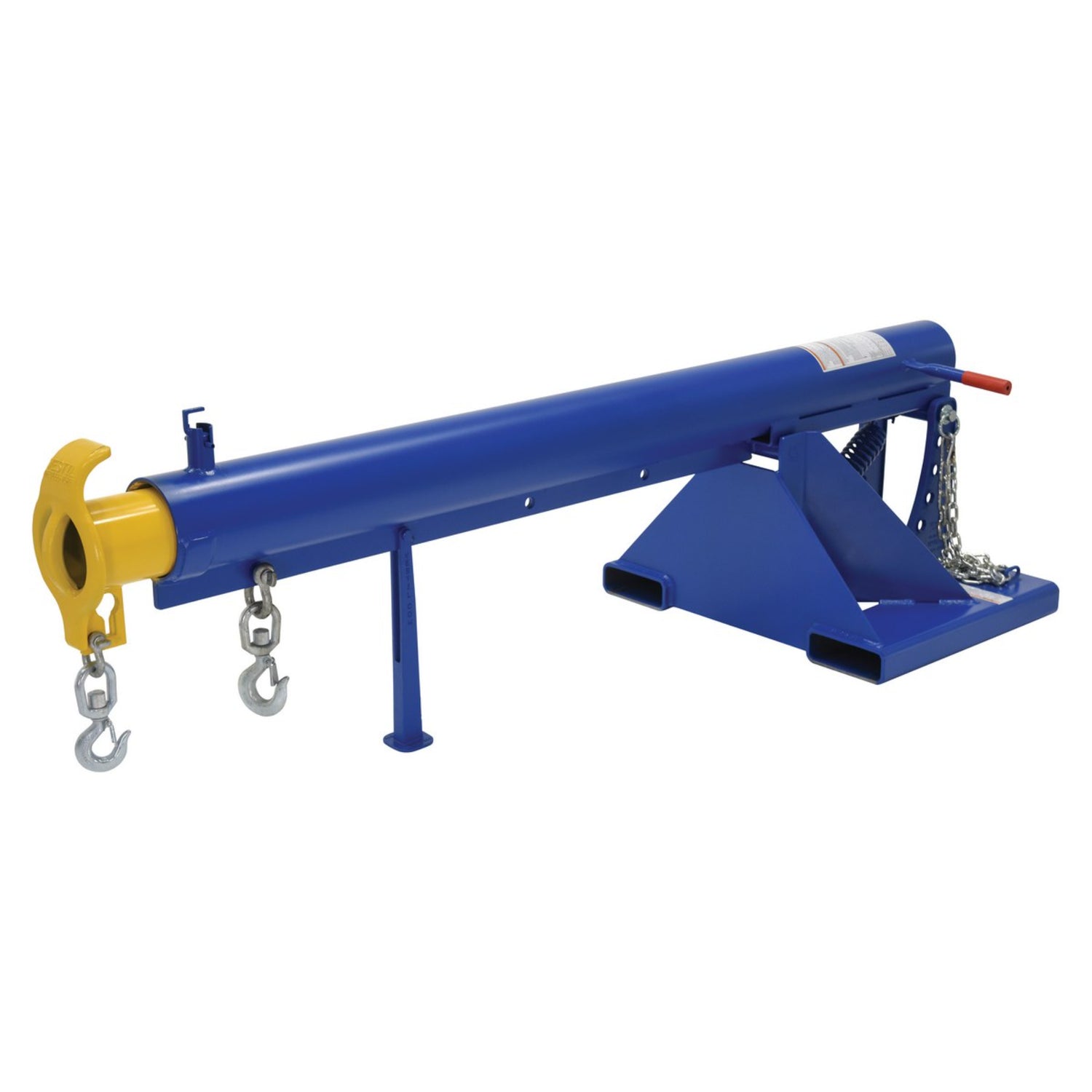

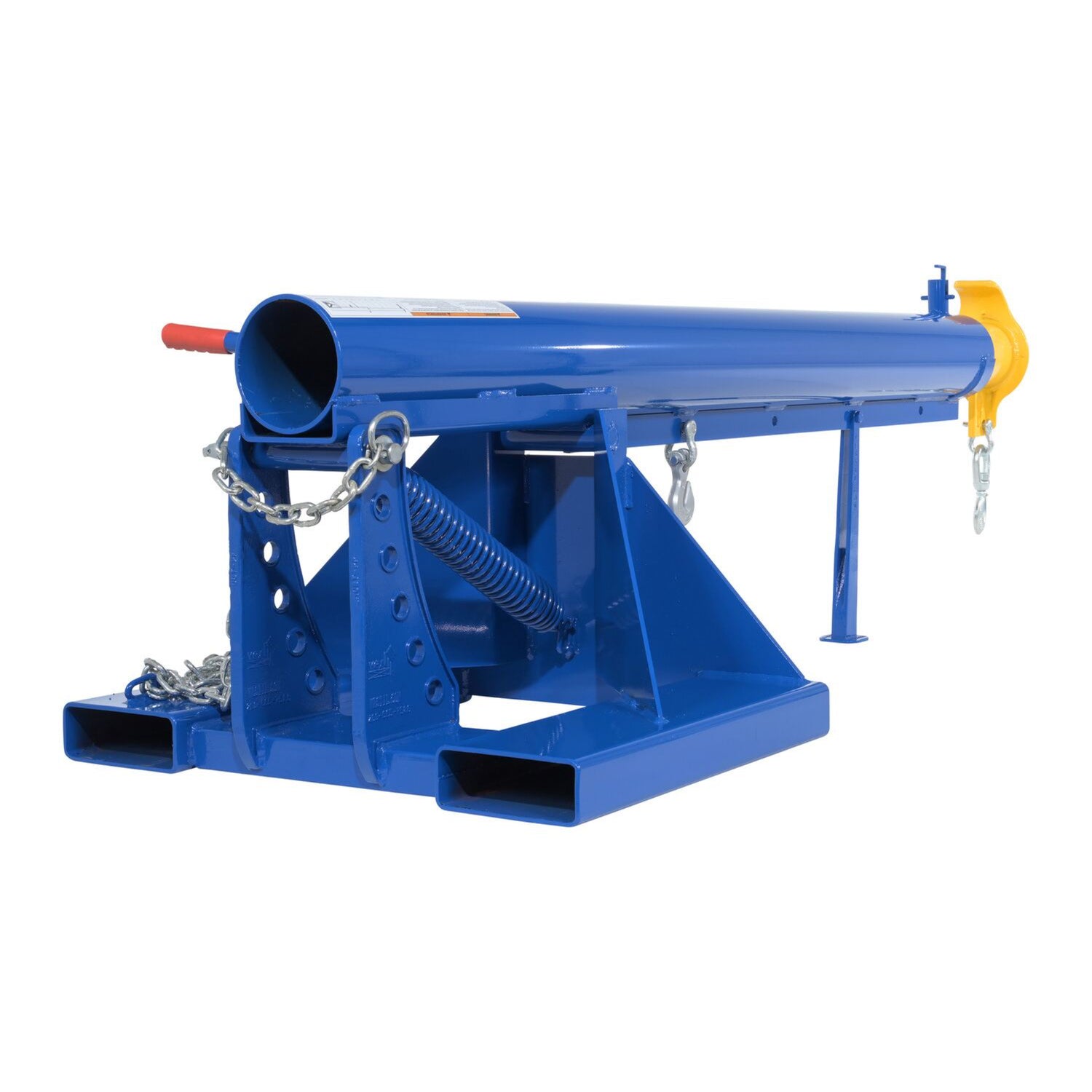

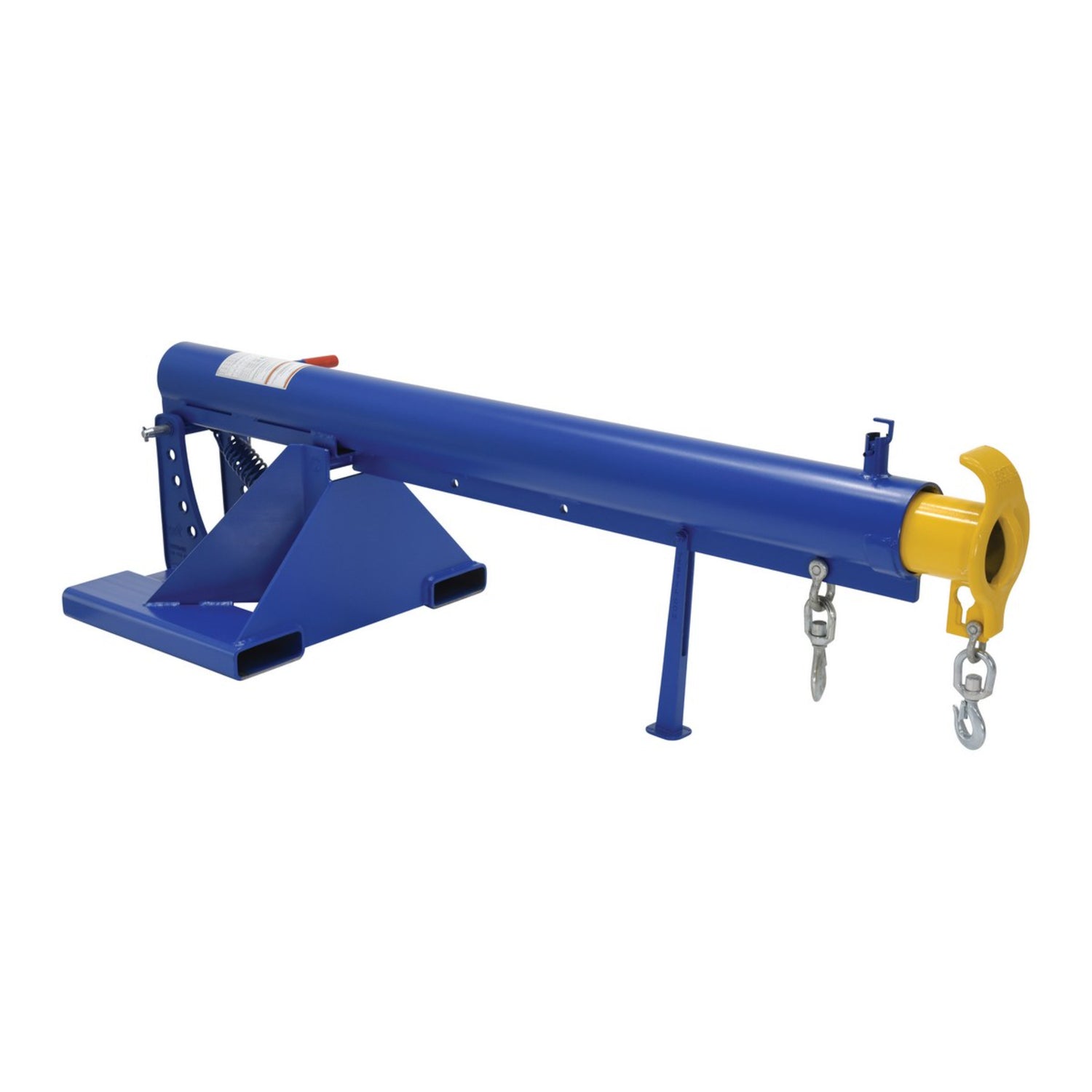

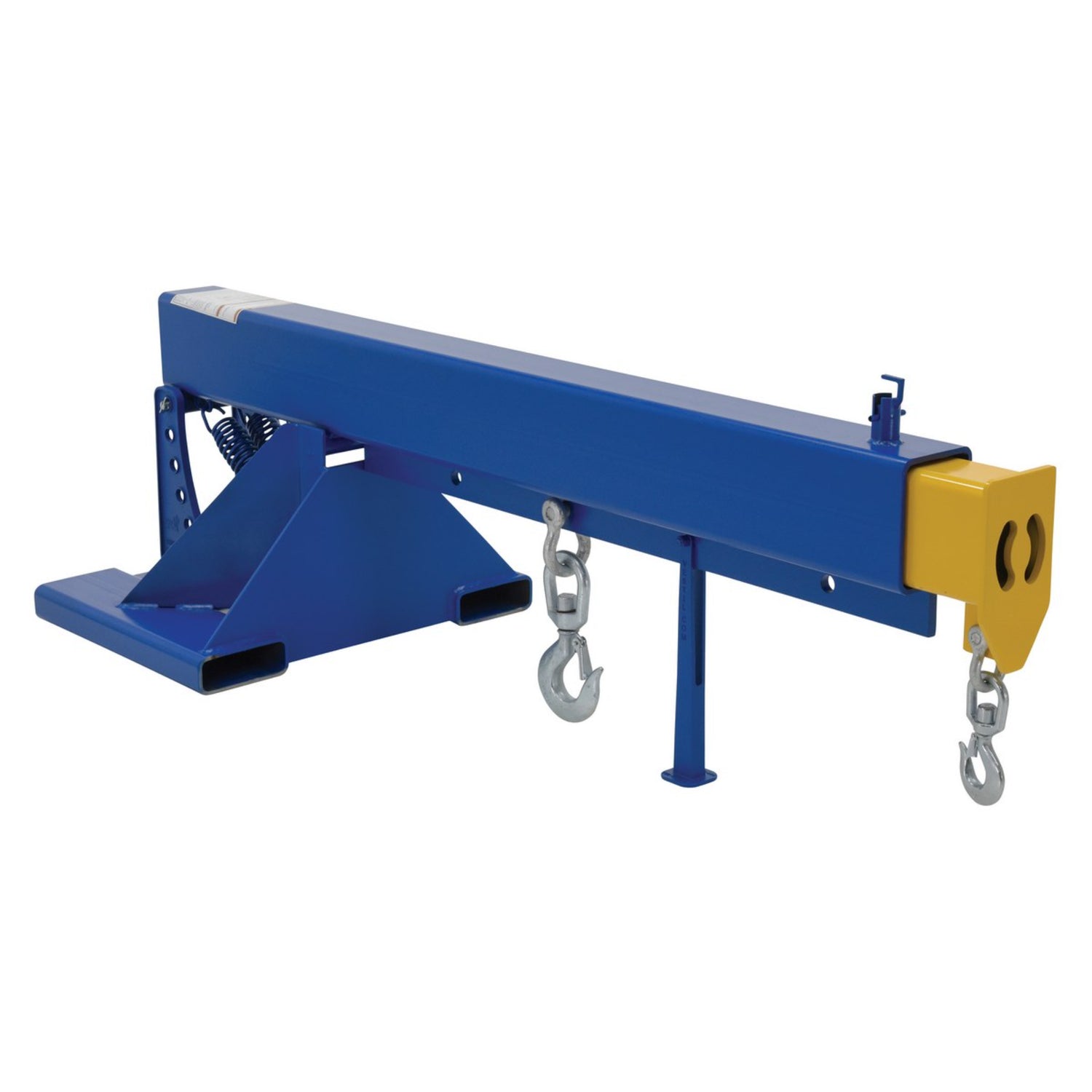

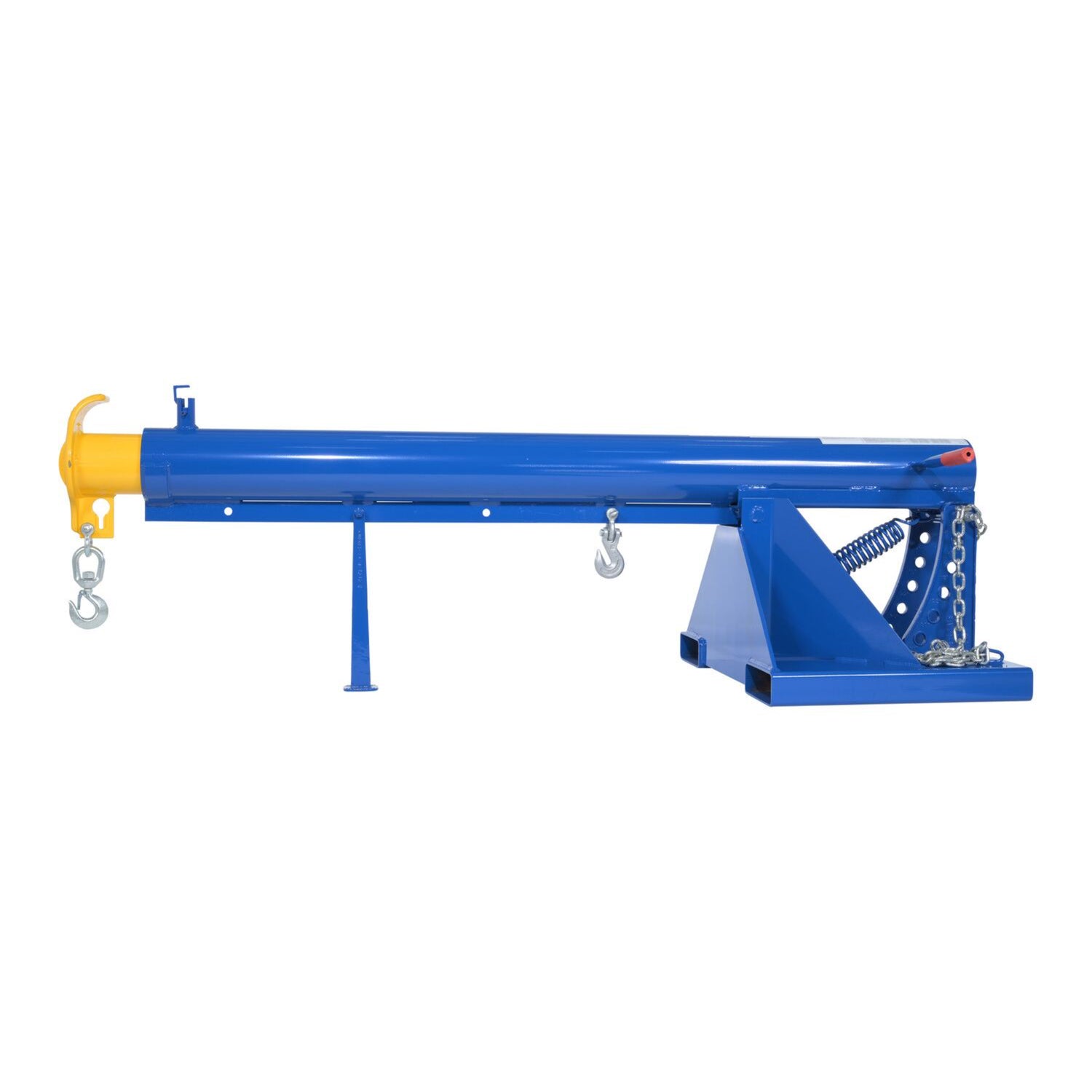

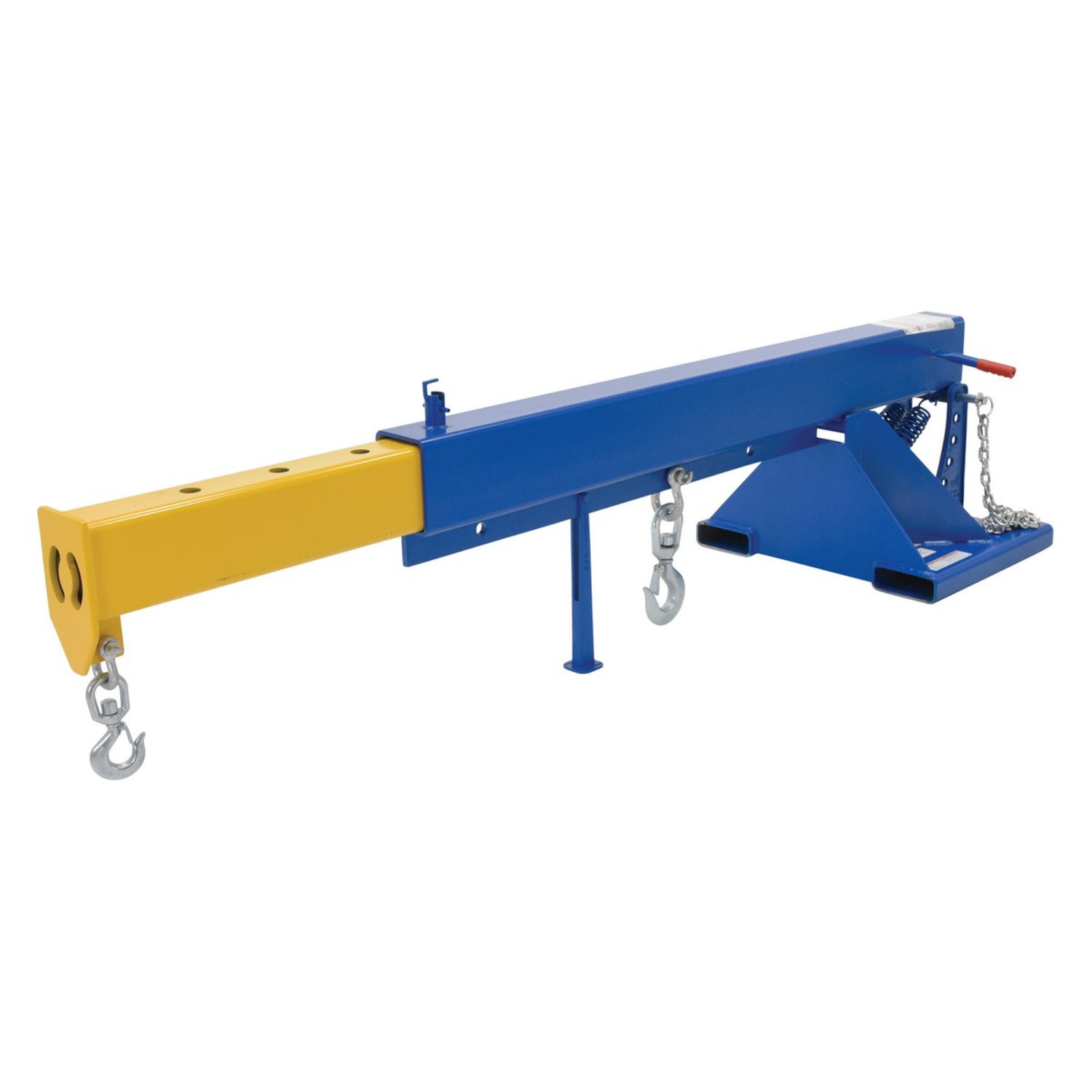

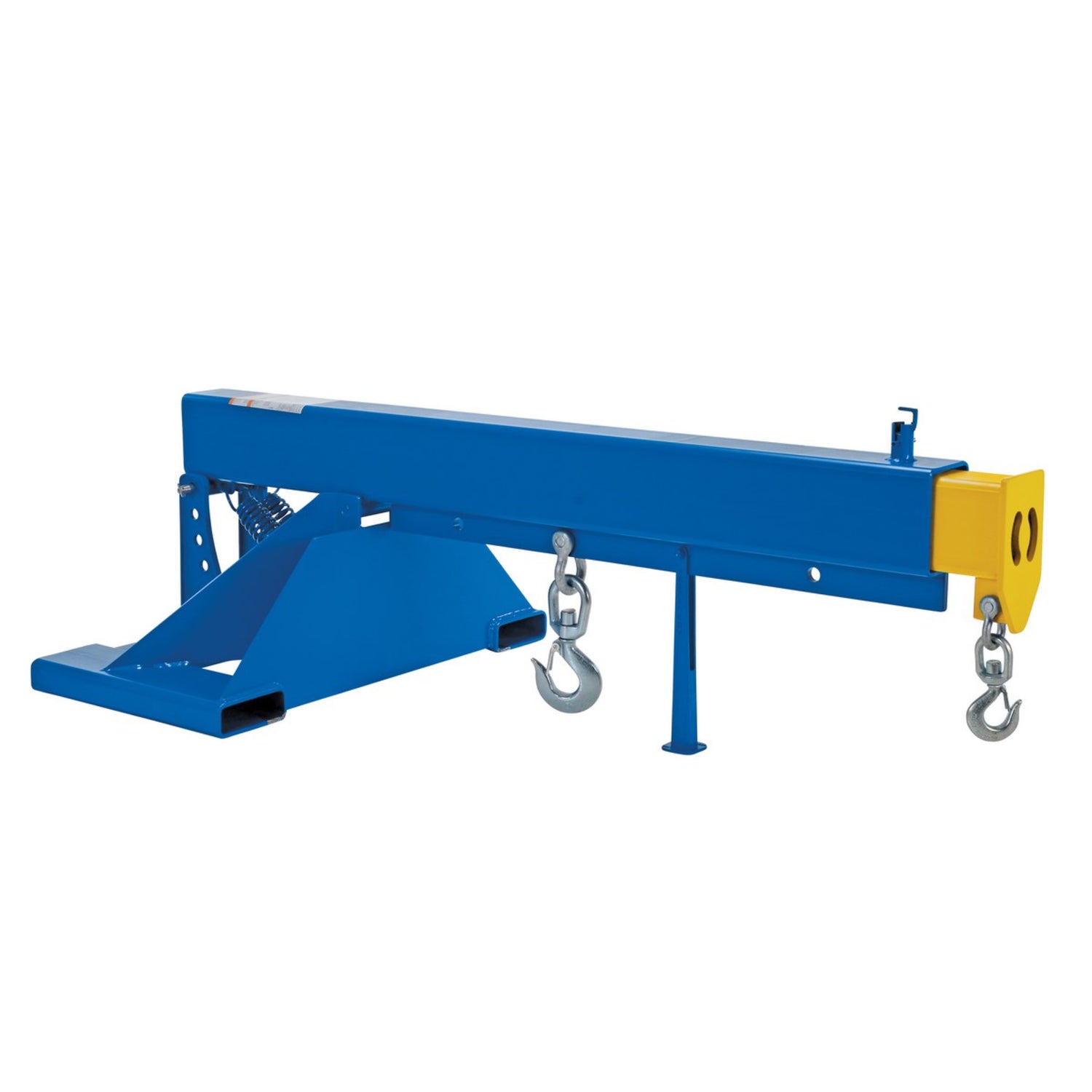

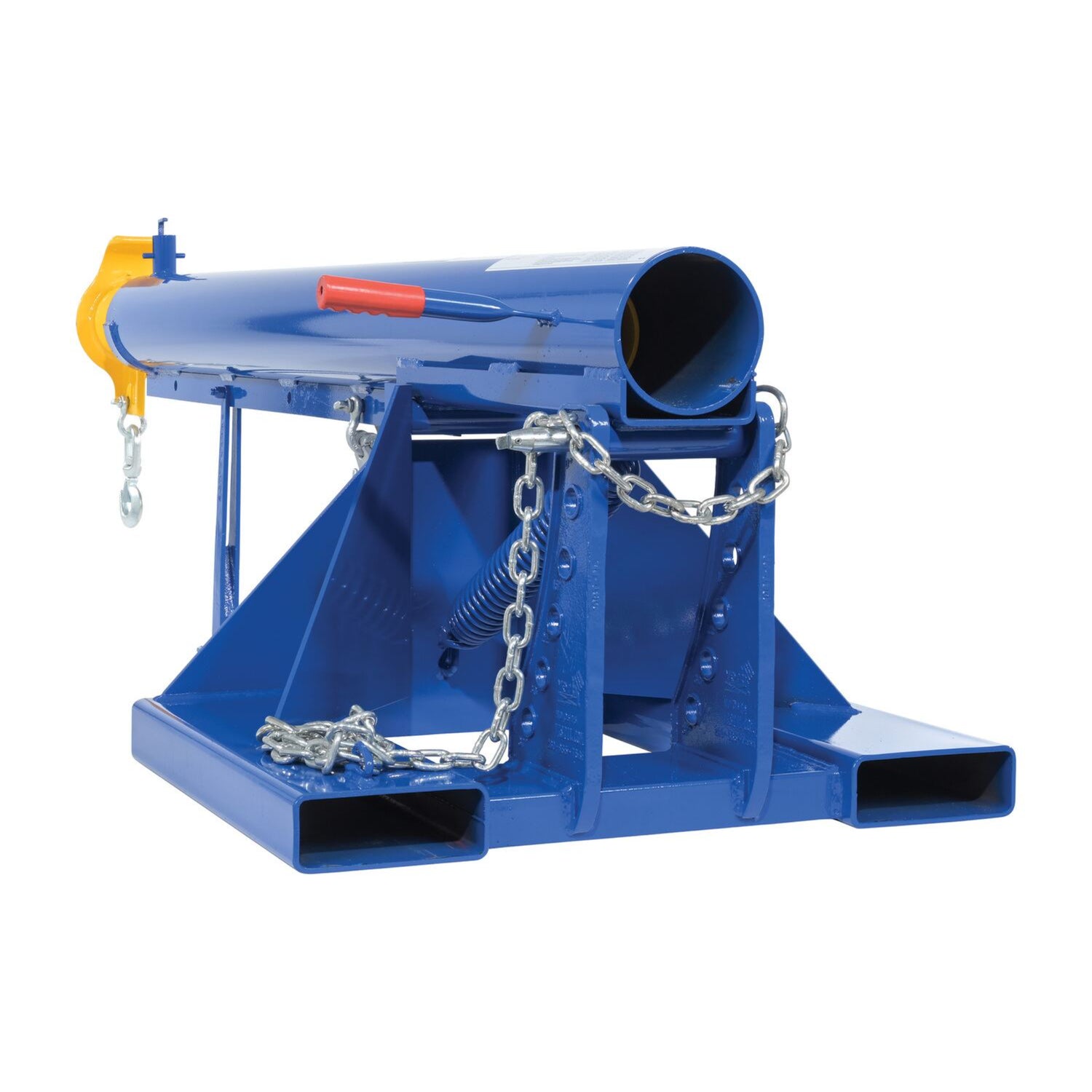

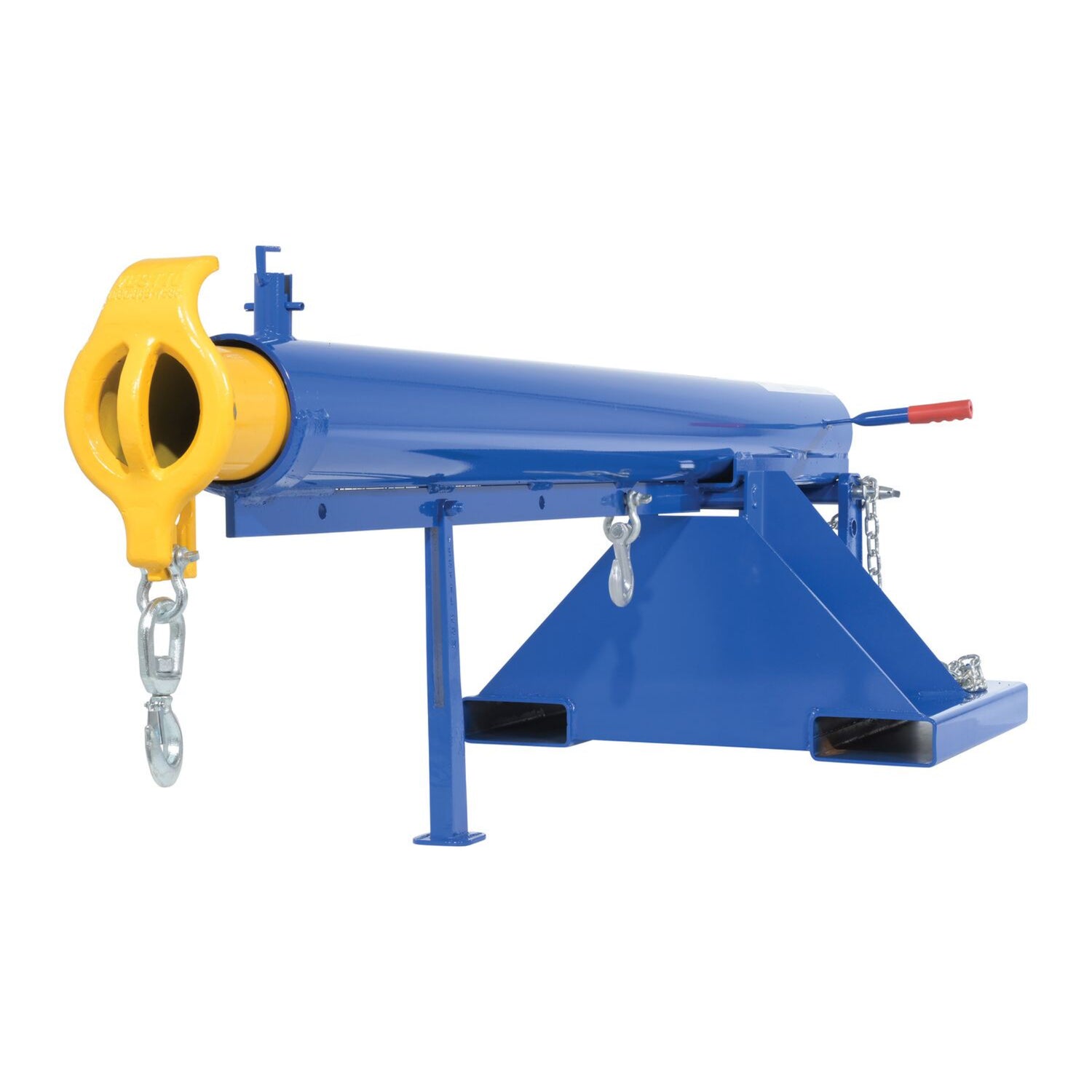

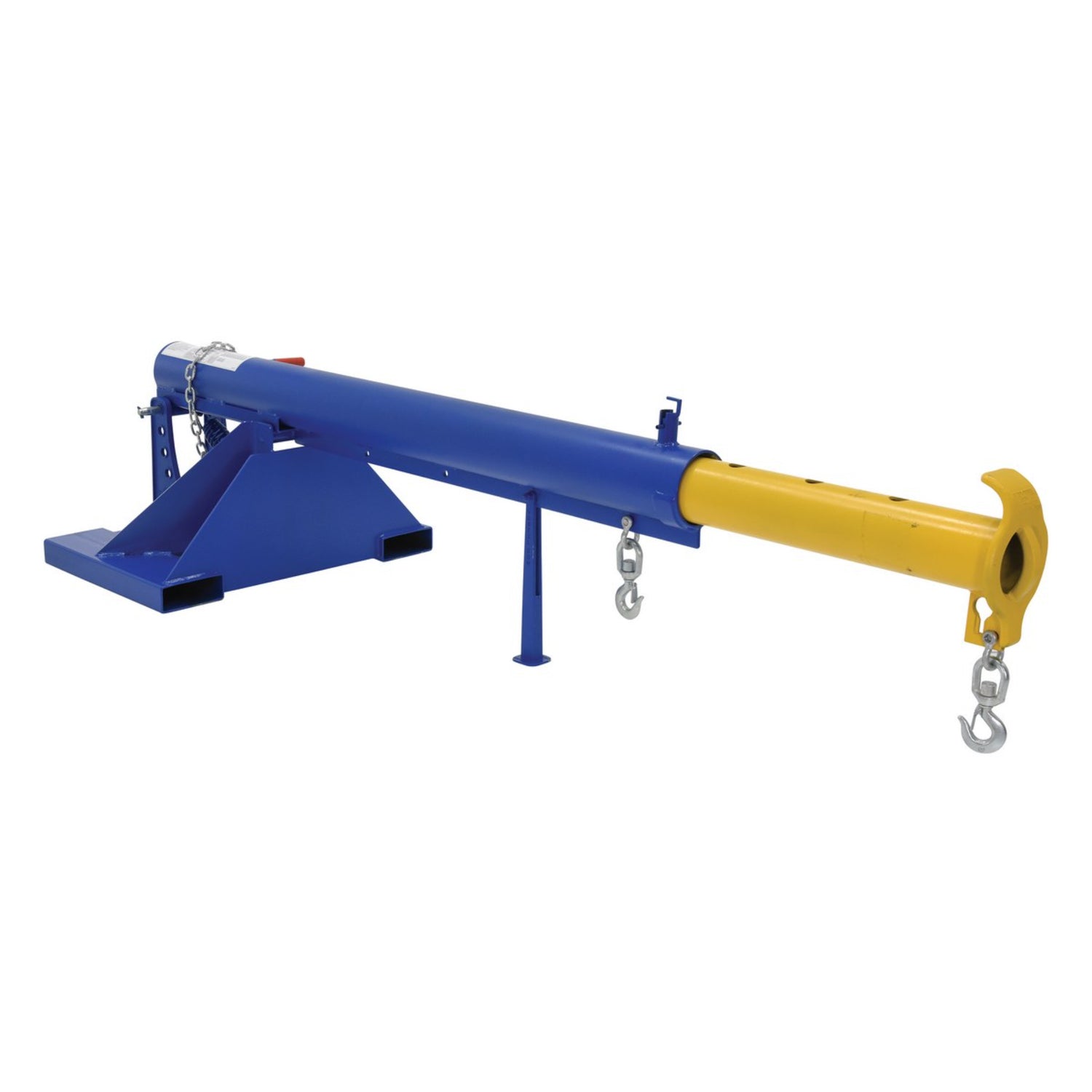

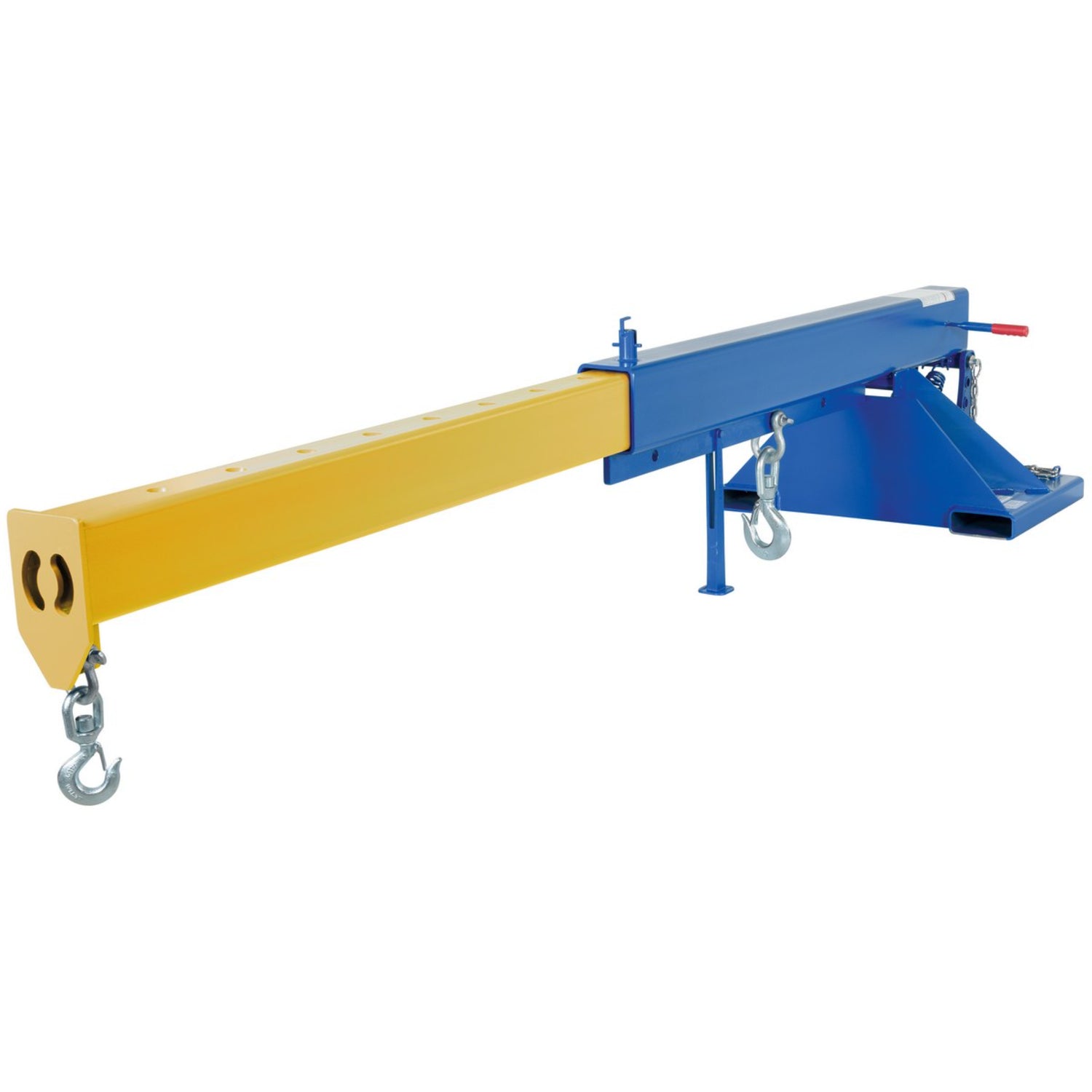

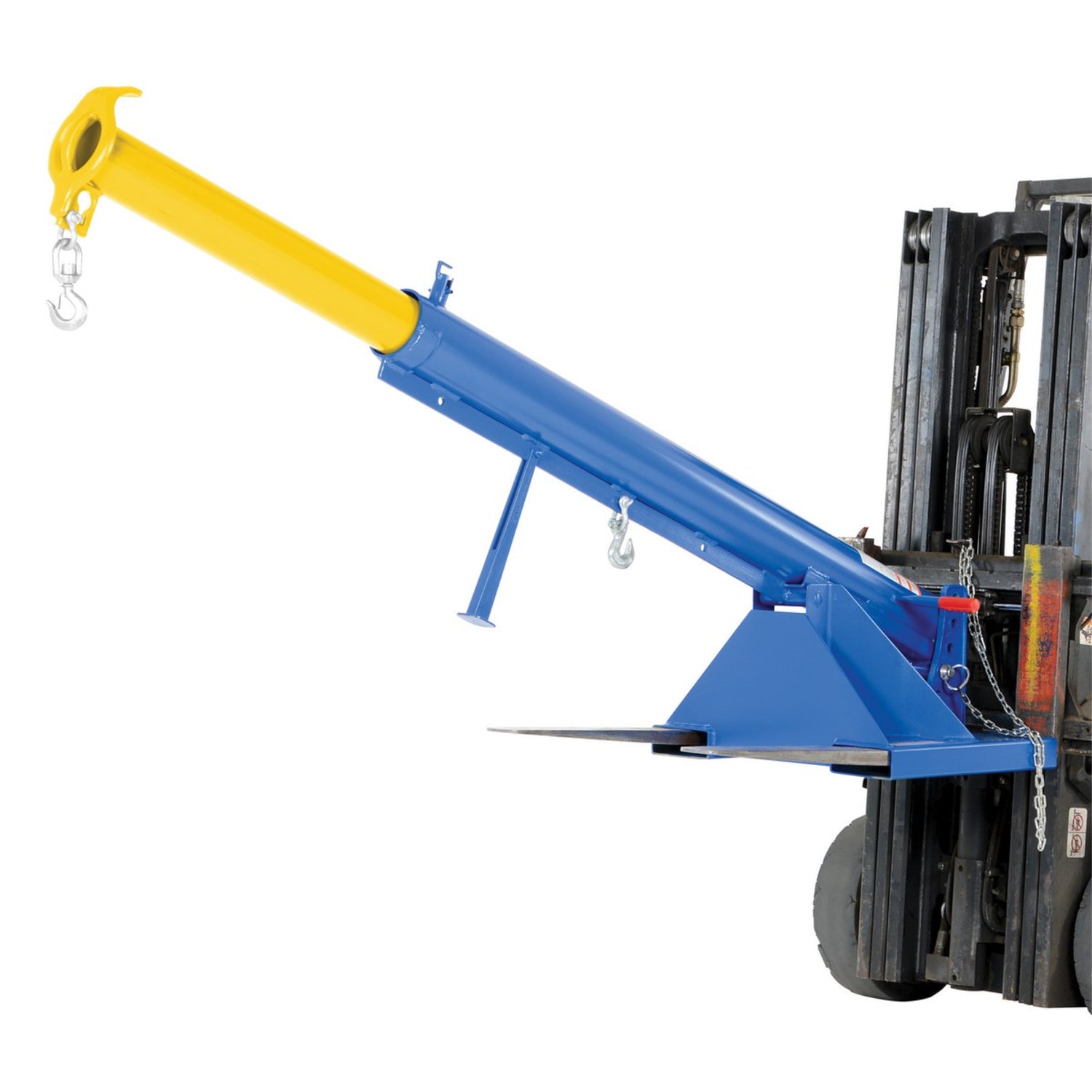

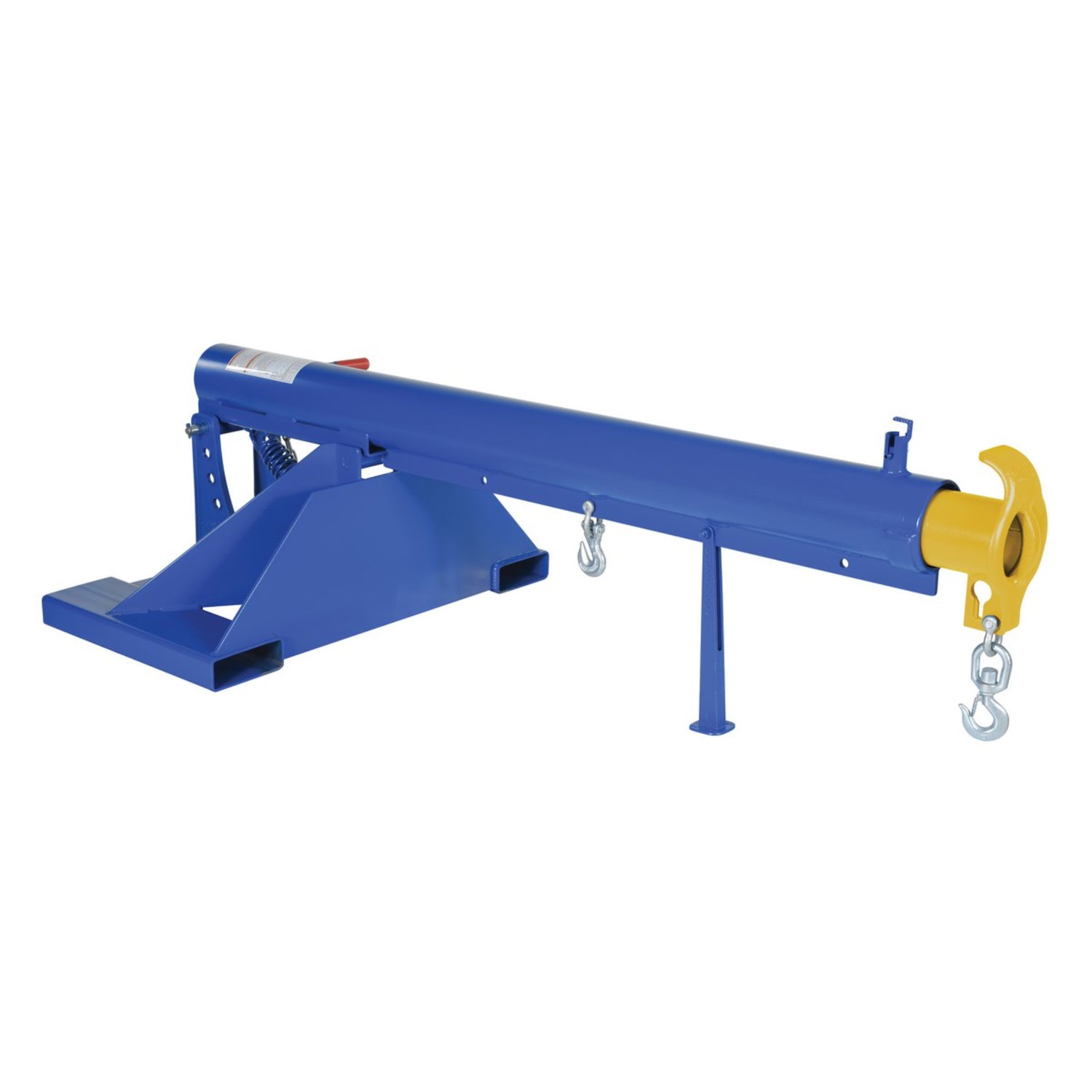

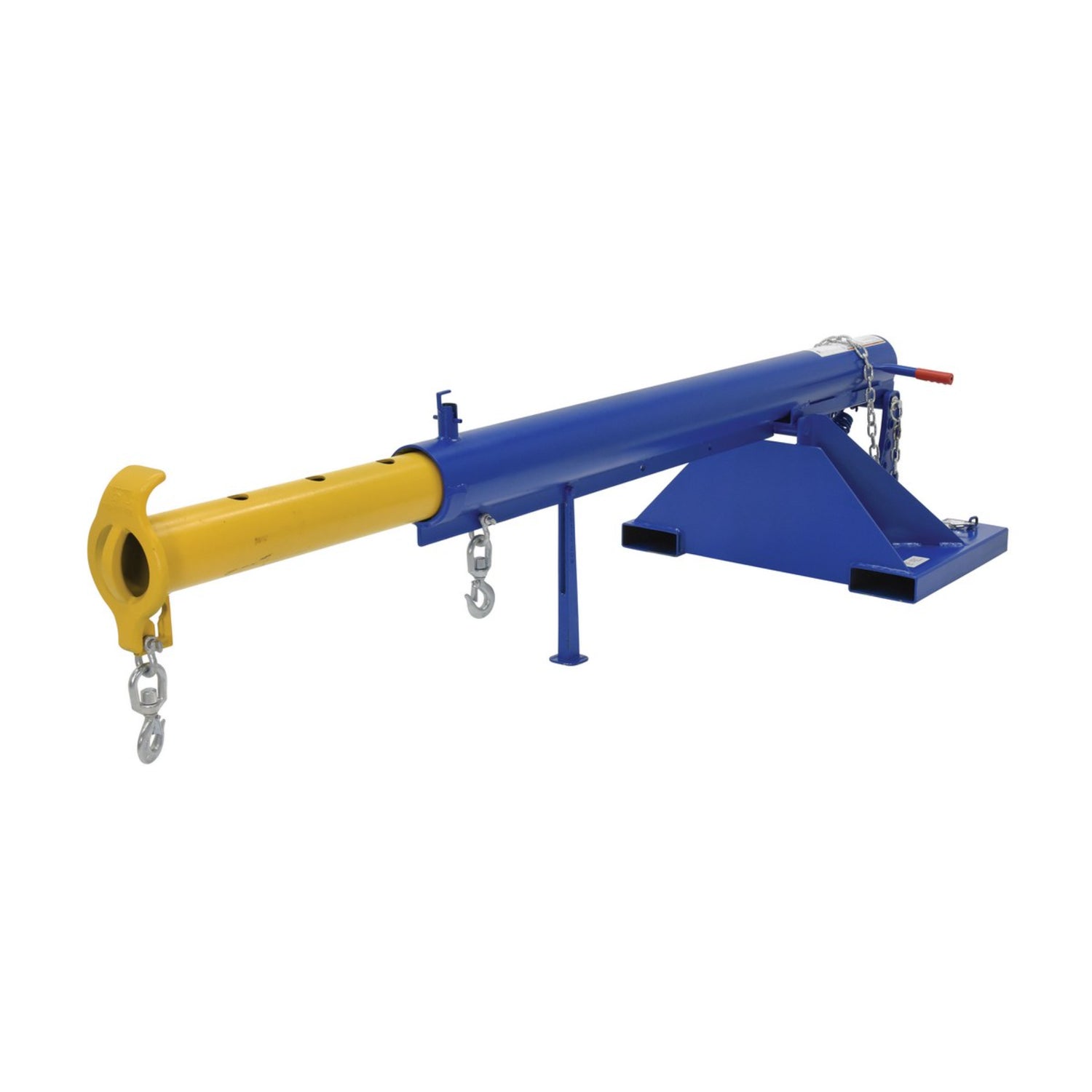

Premium Construction: The LM-OBT features heavy-gauge structural steel construction with AWS-welded joints (American Welding Society standards) — same premium build as the standard LM-1T series, with the addition of BOTH the rotating hook mechanism AND the telescoping extension mechanism, each engineered for repeated cycles under load. The blue powder coat finish provides long-term industrial durability. Two integrated lifting hooks at the boom end allow flexible rigging. The included safety restraint physically secures the boom to the forklift carriage.

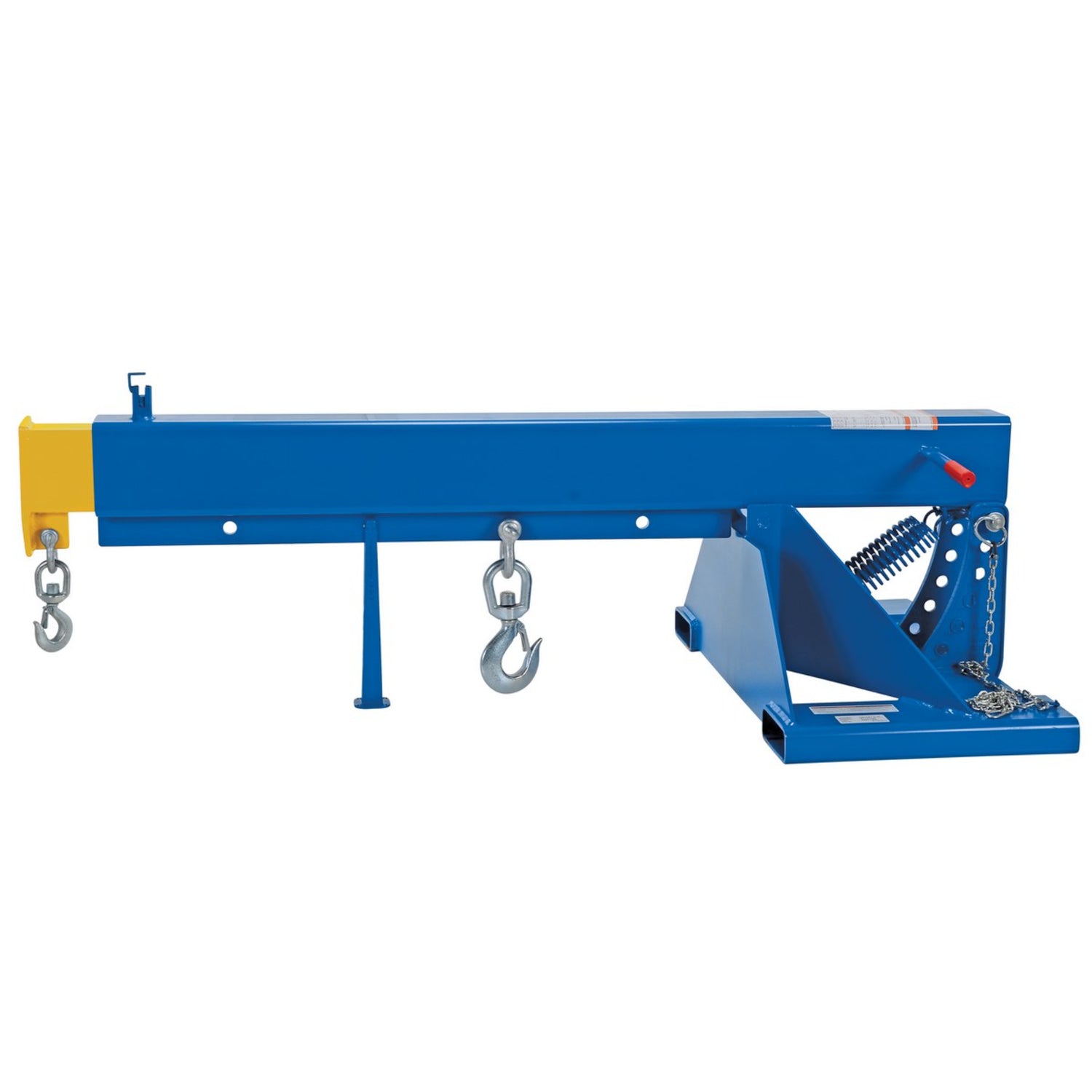

⚠️ Weight Considerations: Net weights range from 432 lbs (LM-OBT-3-24) to 792 lbs (LM-OBT-8-36). The 4K and 6K capacity SKUs are similar in weight to standard LM-1T equivalents, but 8K SKUs are heavier (622-792 lbs) due to the structural reinforcement needed for the dual rotation+telescoping mechanisms. Factor this into your forklift lost load calculations.

Custom Fork Pocket Sizes Available: Standard fork pocket dimensions ship with each boom. Alternative fork pocket sizes (8.25" × 4.25", 7" × 3", or 9" × 3") are available — contact us before ordering to specify your forklift's fork dimensions and we'll configure the boom to match.

⚠️ Critical Fit Requirement: Verify your forklift's fork pocket center matches the boom you order. Custom dimensions are available via Vestil's custom fabrication program.

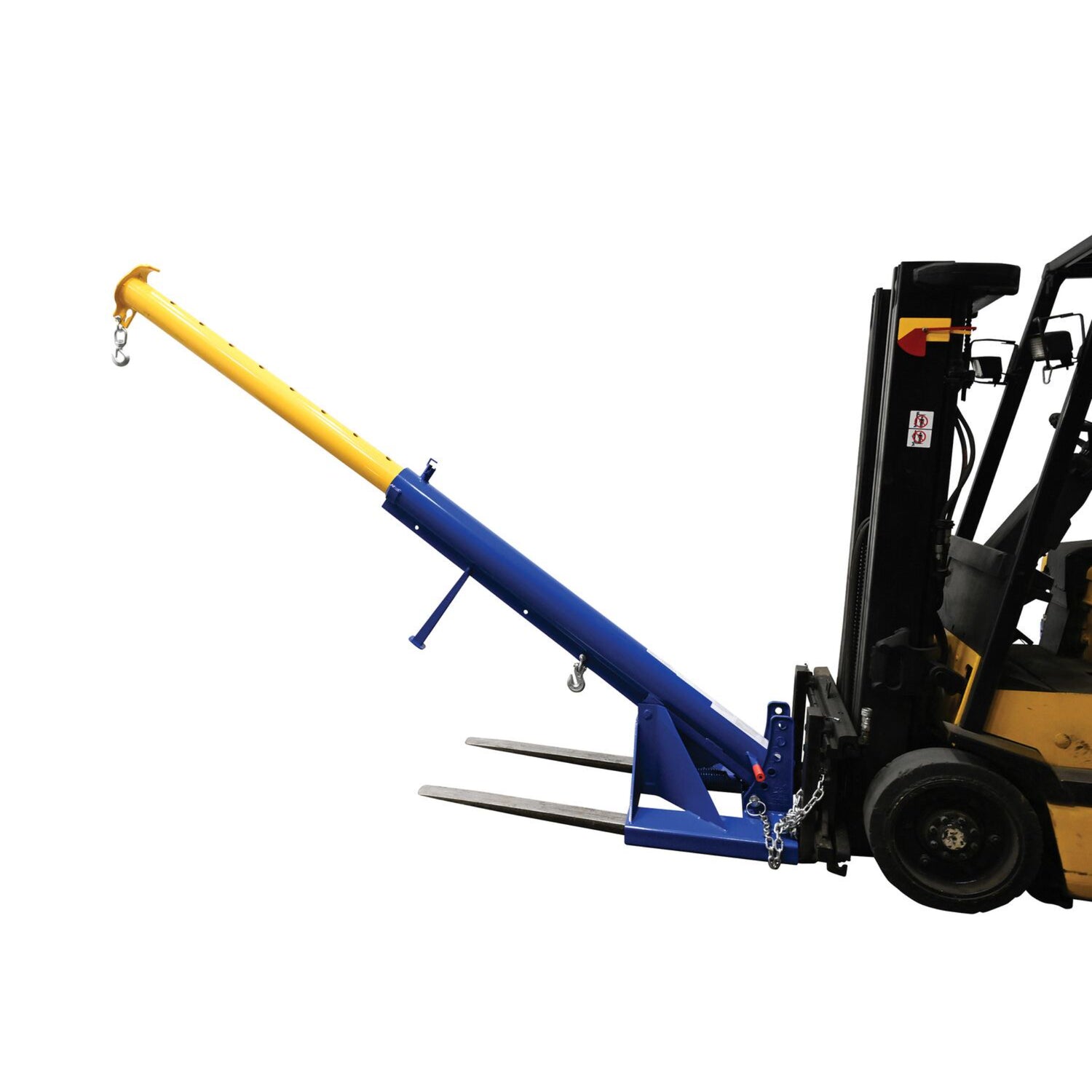

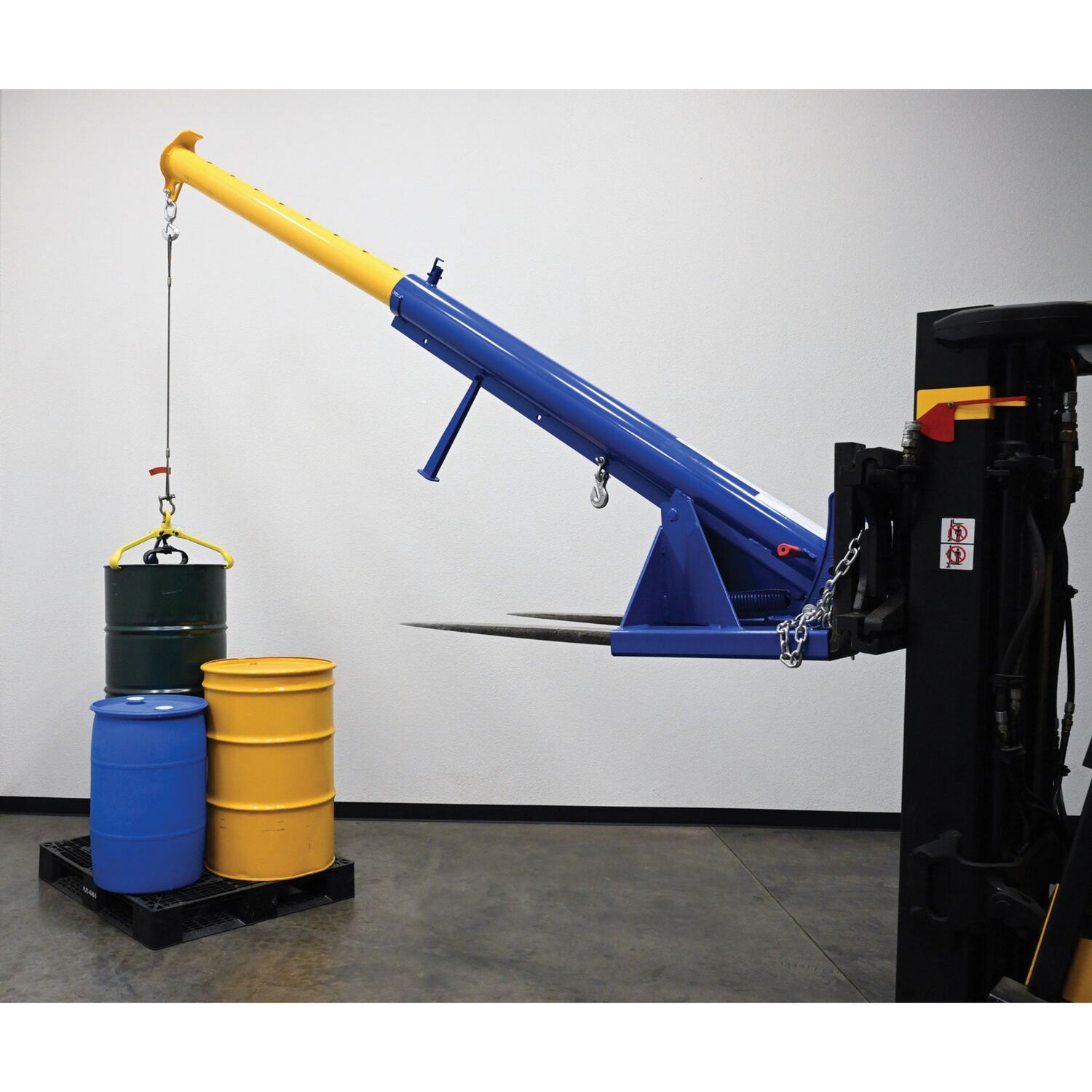

⚠️ Load Center Safety Notice: NEVER EXCEED LOAD CENTER RATING PER FORKLIFT MANUFACTURER'S GUIDELINES. As the boom telescopes out, the load center moves further forward — operators must reduce load weight accordingly. When rotating loads, rotate smoothly and gradually — never spin with momentum that could destabilize the forklift. Consult your forklift's load center capacity chart before purchase and during operation.
