Vestil PMPS Pallet Master/Server Stacker — 4,000 lb Capacity, Pallet & Skid Compatible
The Vestil Pallet Master/Server (PMPS) is a heavy-duty walk-behind stacker built as an affordable alternative to fork trucks. Rated at 4,000 lb capacity at an 18" load center, it lifts to either 50" or 60" raised height and handles both pallets and skids — with or without an understructure. Choose from three power configurations to match your facility: 115V AC corded, 12V DC battery (with onboard charger), or reciprocating Air/Oil with foot treadle control.
Why It's Different: Unlike most stackers that require a pallet's bottom deck boards, the PMPS is engineered to lift skids without an understructure — making it one of the few units that genuinely covers mixed pallet/skid operations on a single platform.
Best For: Receiving and shipping docks, manufacturing lines, mixed pallet/skid environments, facilities operating without fork trucks, and production areas needing repeatable load positioning at elevation. Heavy-duty steel construction and standard floor lock make this a fixture-grade unit for continuous-shift use.
⚠️ Capacity Rating: Rated 4,000 lb at 18" load center regardless of fork length — loads pushed further out exceed rated capacity.
⚠️ AIR variants require shop air supply — not a standalone unit; must connect to facility compressed air.
⚠️ AC variants are corded (115V) — operating range limited by outlet access.
⚠️ DC variants include lead-acid battery — California Prop 65 warning applies.
⚠️ Base units are manual walk-behind — operator pushes the unit. Add the PMPS-PTDS-E factory-installed Power Traction Drive for powered movement.
⚠️ LTL freight required — units weigh 962–1,173 lb. Receiving location must accommodate freight delivery and have means to offload.
Features
-
Made in Indiana, USA by Vestil Manufacturing
- 4,000 lb uniform capacity at 18" load center
- 50" or 60" maximum raised lift height
- 36" standard fork length (48" optional via PMPS-48FORK APO)
- Handles pallets AND skids — with or without understructure
- Three power options: 115V AC, 12V DC battery, or reciprocating Air/Oil
- DC variants include one (1) 12V battery, onboard charger, and battery charge indicator gauge

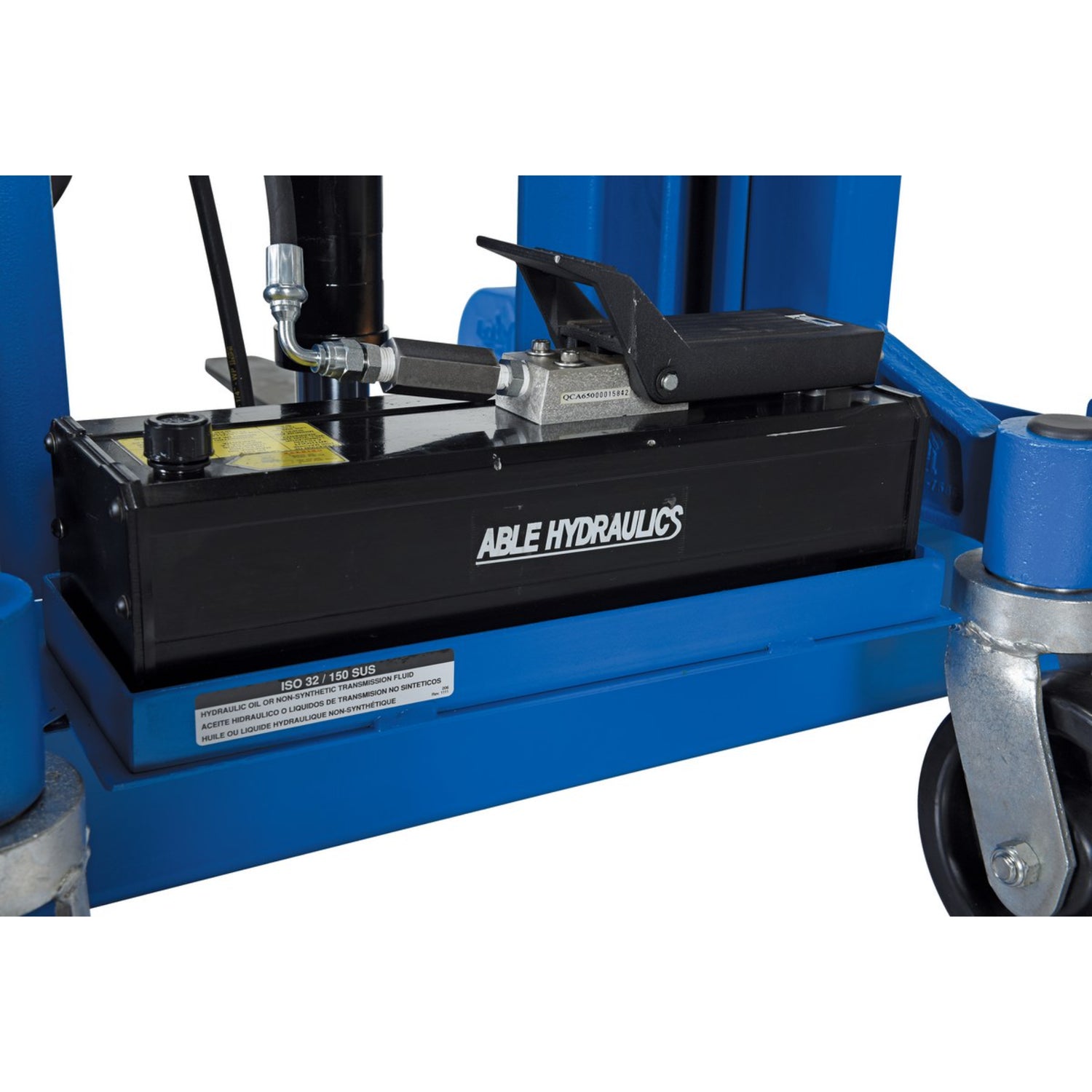

- AIR variants use heel/toe foot treadle control for reciprocating air/oil power
- AC and DC variants use push-button hand control
- 8" × 3" phenolic swivel rear casters for smooth maneuvering
- Floor lock standard on all PMPS models
- 36" comfortable operator handle height
- Heavy-duty steel construction, Blue powder coat finish
- Optional Power Traction Drive (PMPS-PTDS-E): 24V DC, 2.5 mph max — factory install only
- Optional factory-installed Drum Carrier/Rotator (PMPS-DCR): 800 lb capacity
- Optional 48" replacement forks (PMPS-48FORK) for oversized pallets
- Optional Hand Control Pedestal (HCP-2642)
- Designed as accessible fork truck alternative for low-to-moderate frequency lifting
- Suited for warehouses, manufacturing floors, receiving docks, and mixed pallet/skid operations
- ⚠️ AIR variants require facility shop air supply
- ⚠️ DC variants include lead-acid battery — Prop 65 applies
- ⚠️ Capacity rated at 18" load center regardless of fork length
- ⚠️ Base units are walk-behind manual; PTDS-E factory install required for powered drive
Specifications

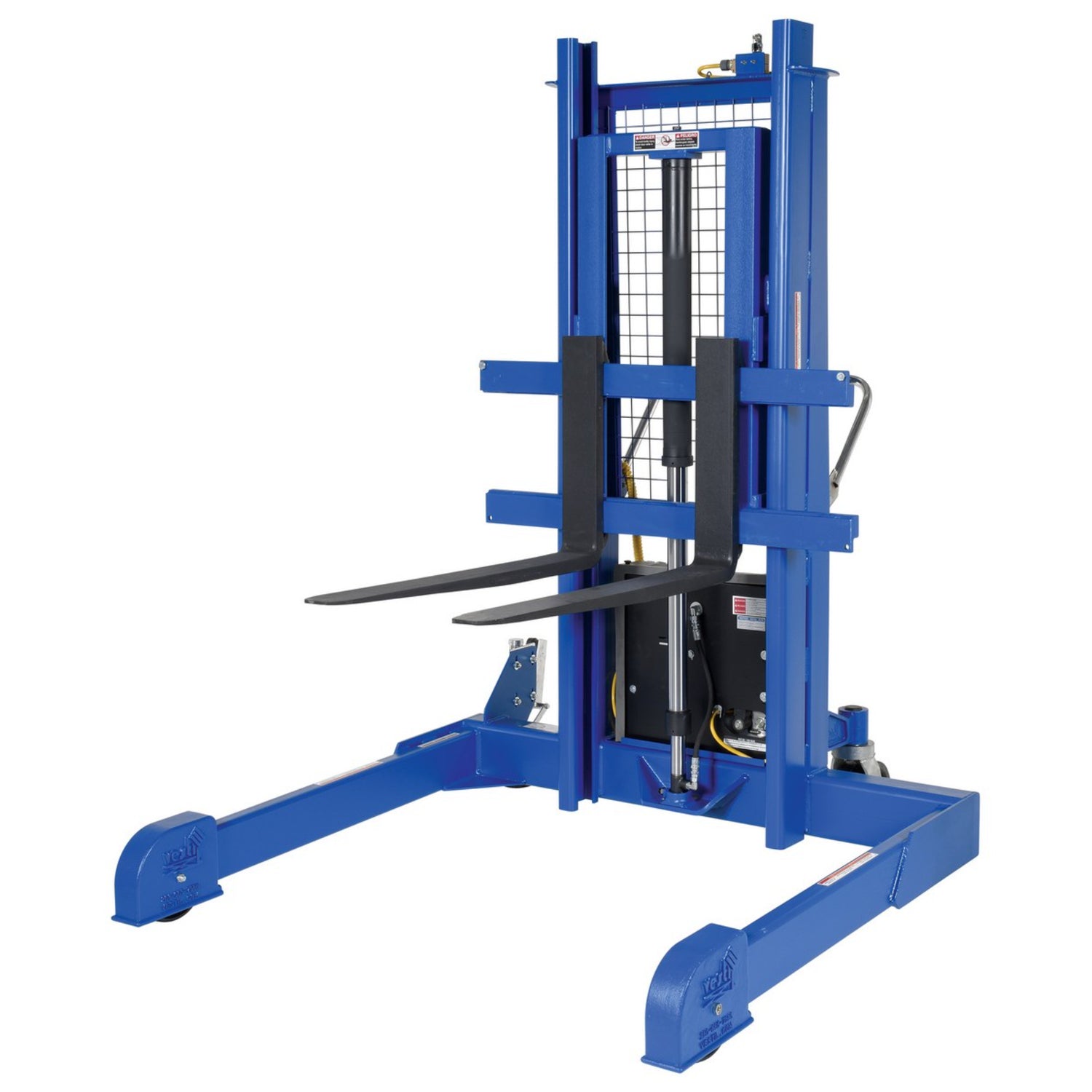

| PMPS-50-AC |
| Description |

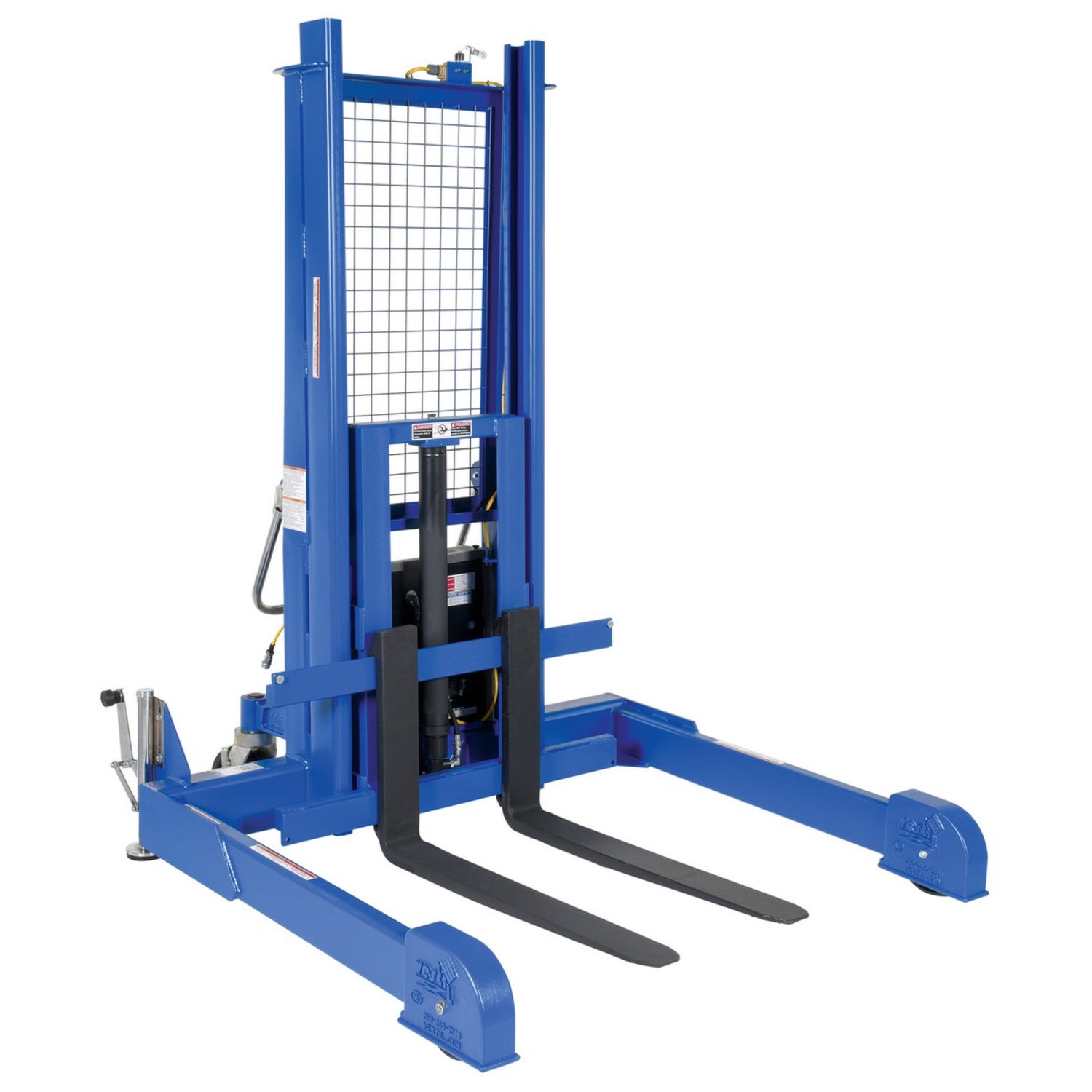

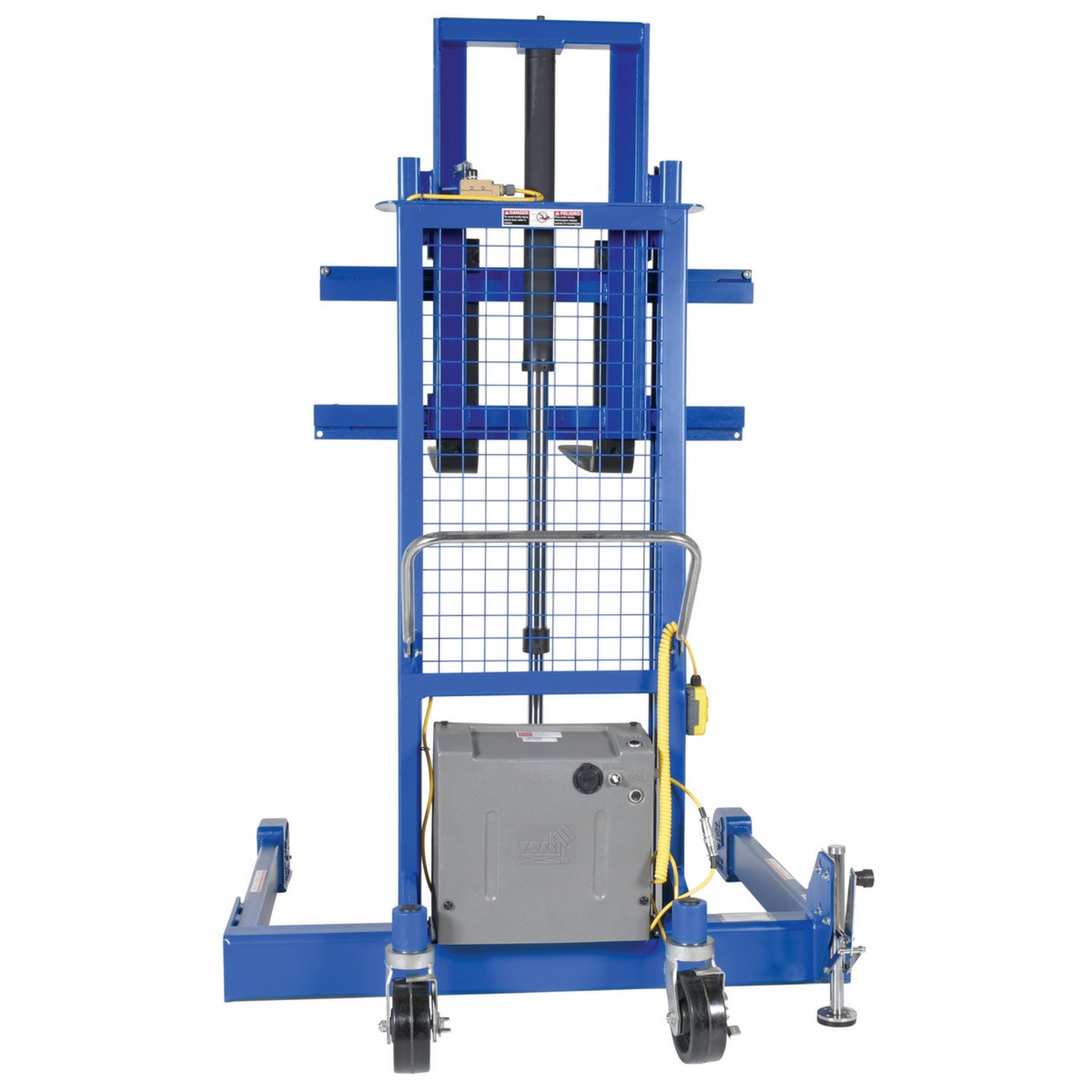

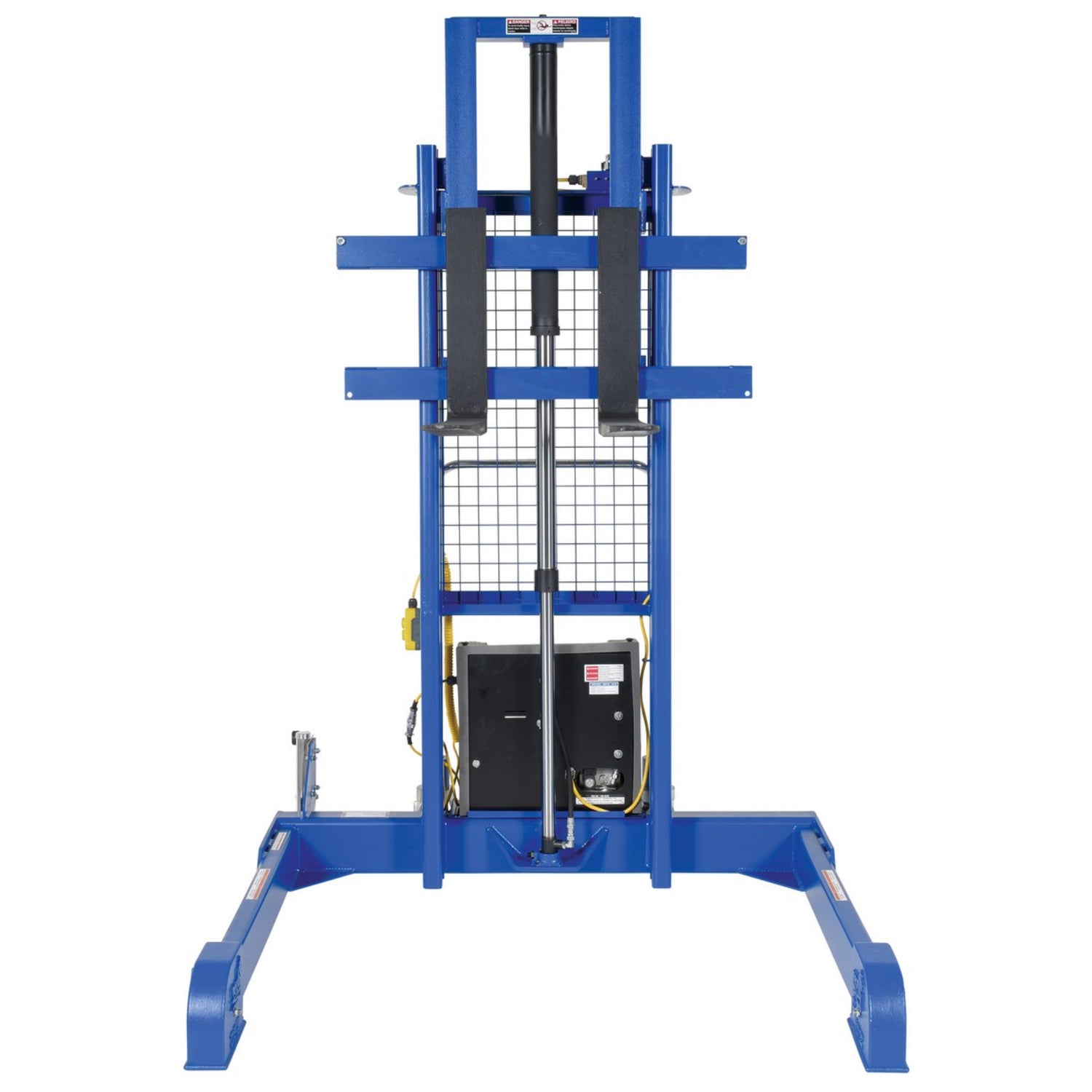

Steel Pallet Master/Server Stacker, 115V AC Powered, 50" Raised Height, Blue |
| Capacity |
4,000 lb @ 18" load center ⚠️ |
| Raised Height |
50" |
| Fork Length |
36" standard |
| Drive |
Manual walk-behind |
| Lift Power |
115V AC, single phase, push-button hand control |
| Battery |
N/A (corded) |
| Casters |
8" × 3" phenolic swivel rear, floor lock standard |
| Operator Position |
Walk-behind, 36" handle height |
| Color |
Blue |
| Net Weight |
1,055 lb |

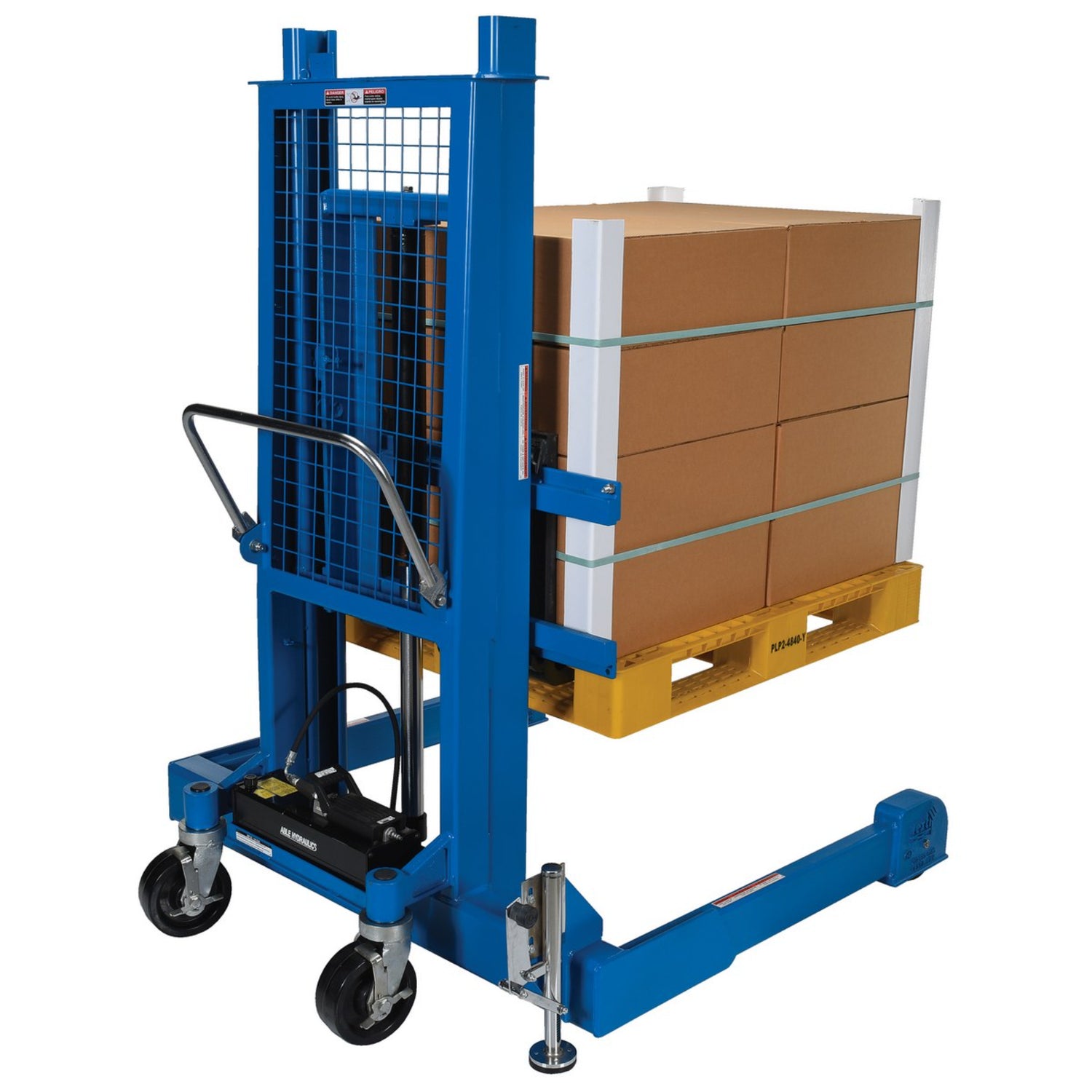

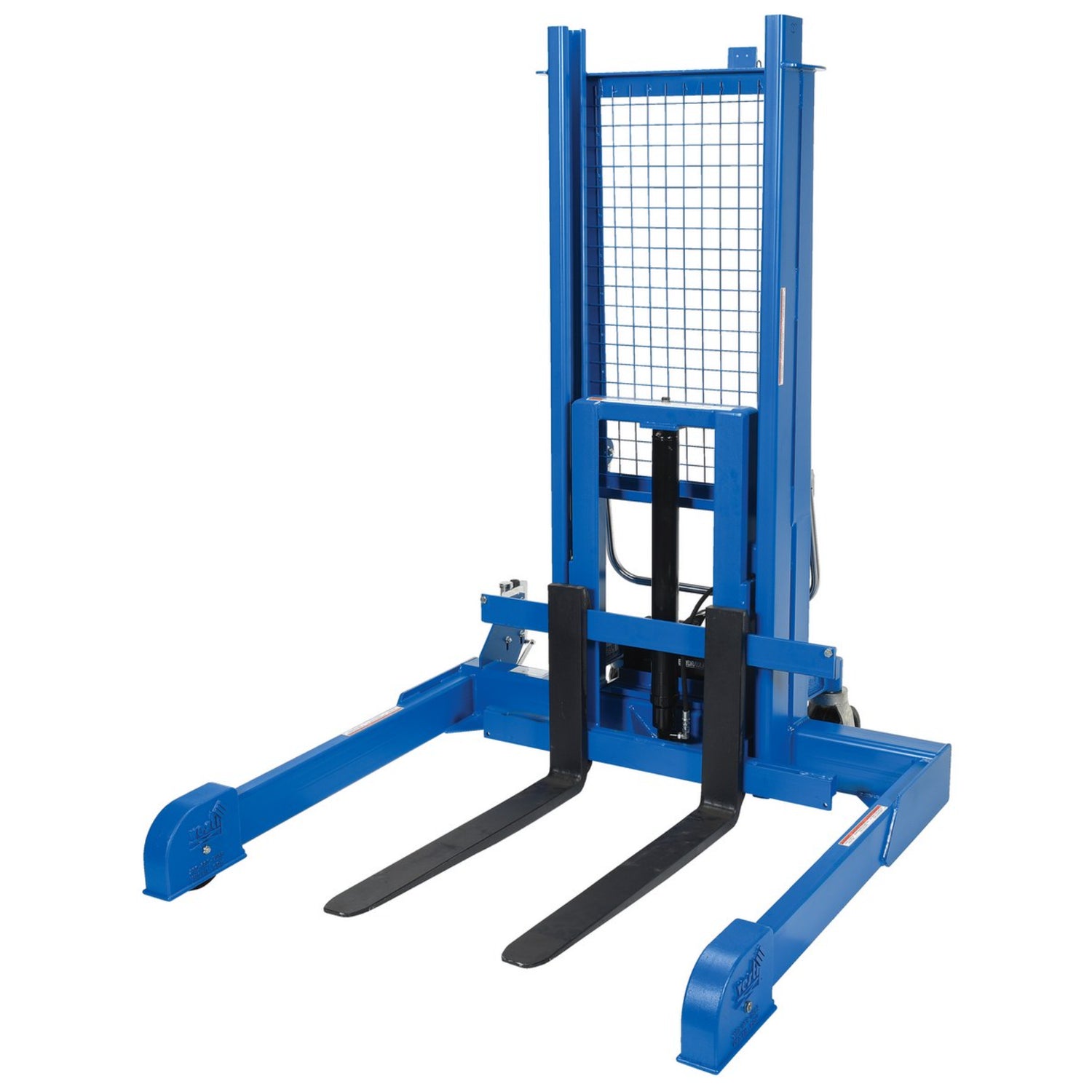

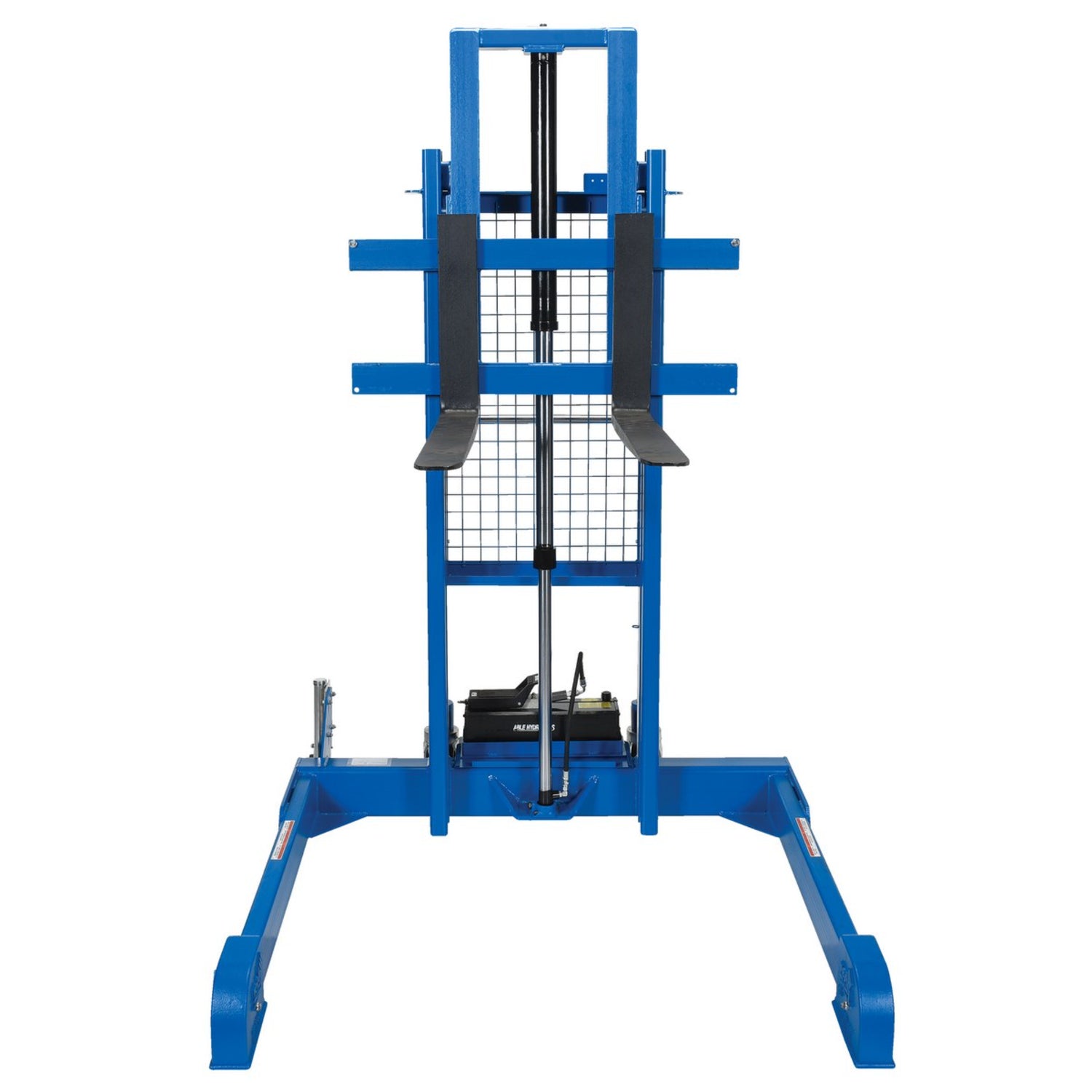

| PMPS-50-AIR |
| Description |

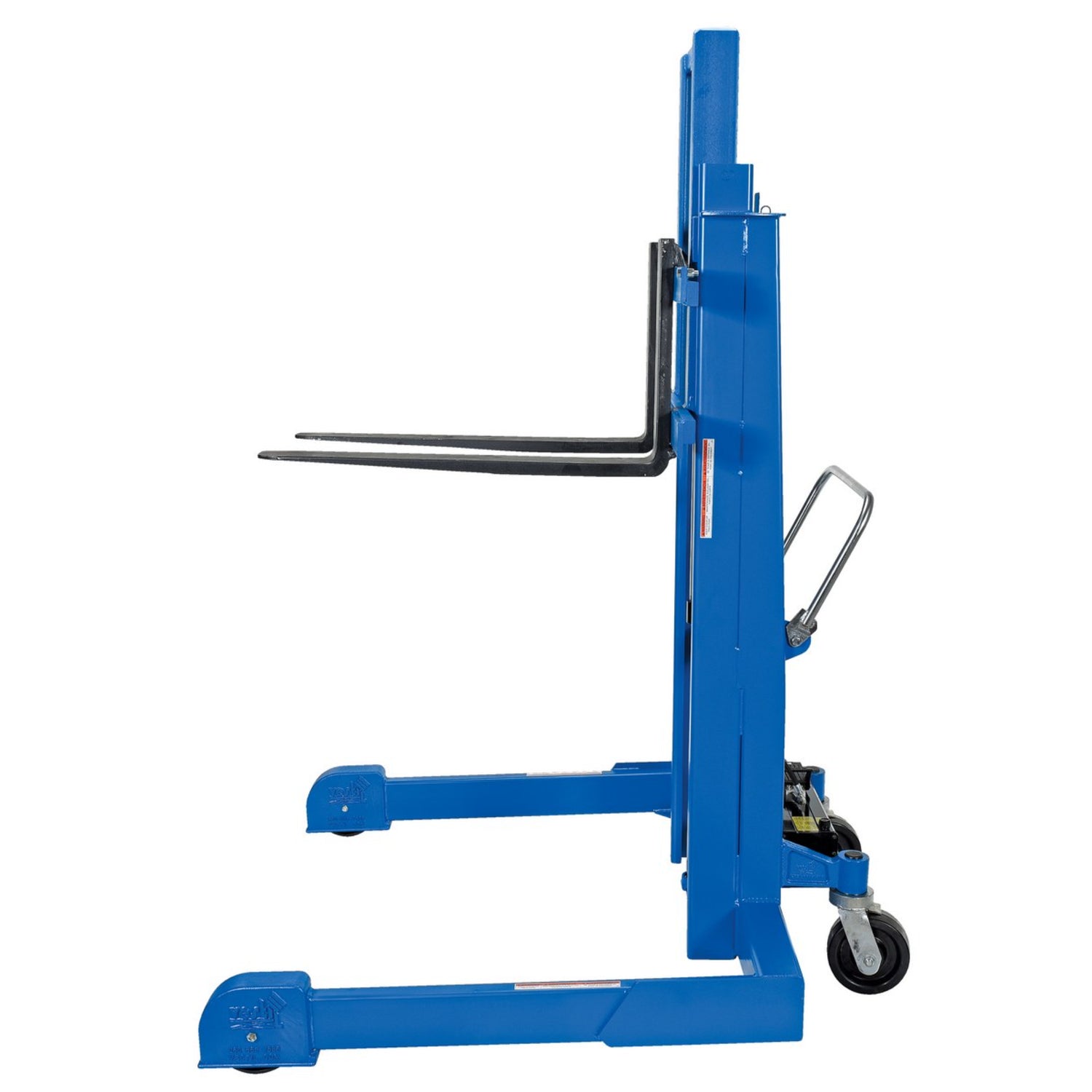

Steel Pallet Master/Server Stacker, Reciprocating Air/Oil Powered, 50" Raised Height, Blue |
| Capacity |
4,000 lb @ 18" load center ⚠️ |
| Raised Height |
50" |
| Fork Length |
36" standard |
| Drive |
Manual walk-behind |
| Lift Power |
Reciprocating Air/Oil, heel/toe foot treadle control ⚠️ Requires shop air |
| Battery |
N/A (air powered) |
| Casters |
8" × 3" phenolic swivel rear, floor lock standard |
| Operator Position |
Walk-behind, 36" handle height |
| Color |
Blue |
| Net Weight |
962 lb |

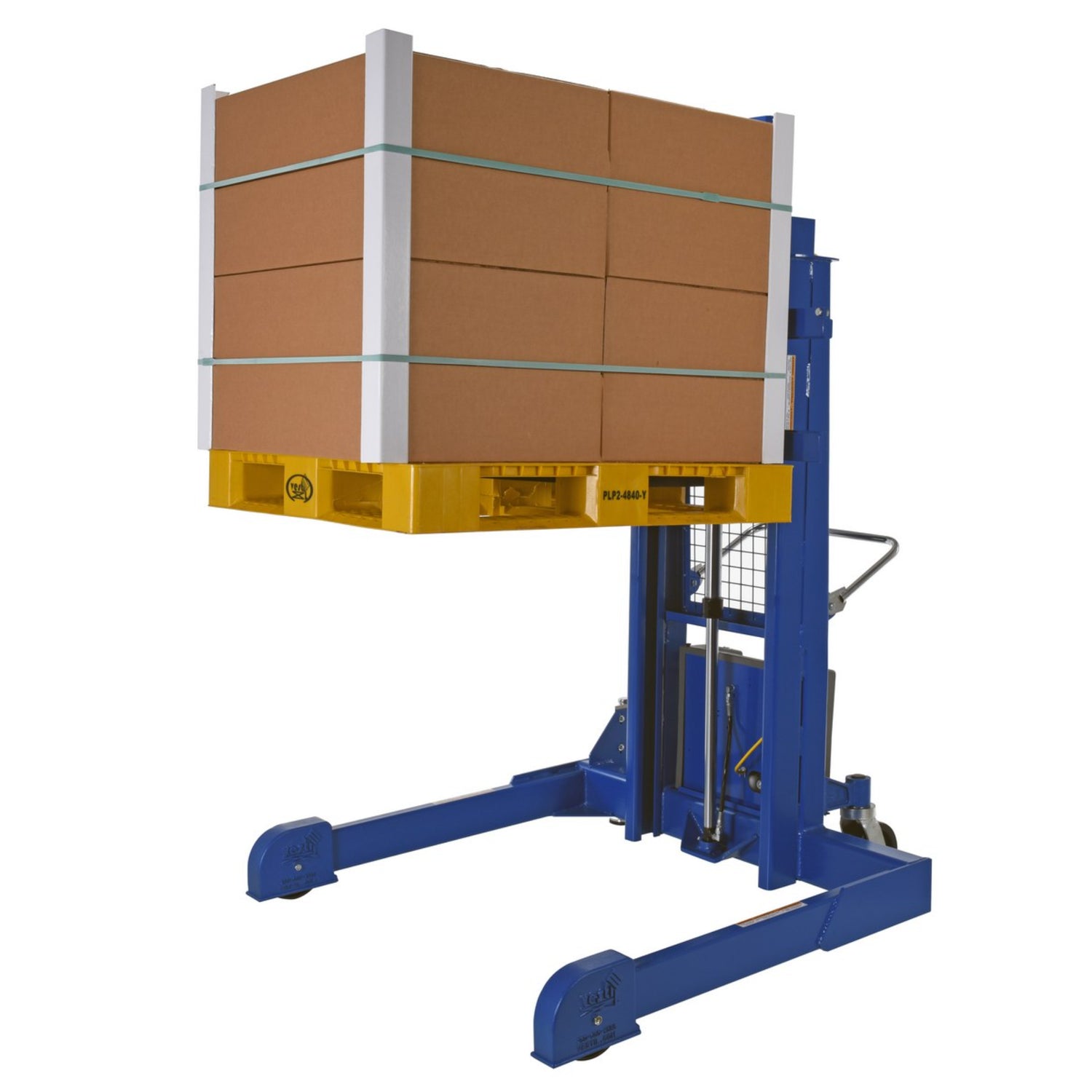

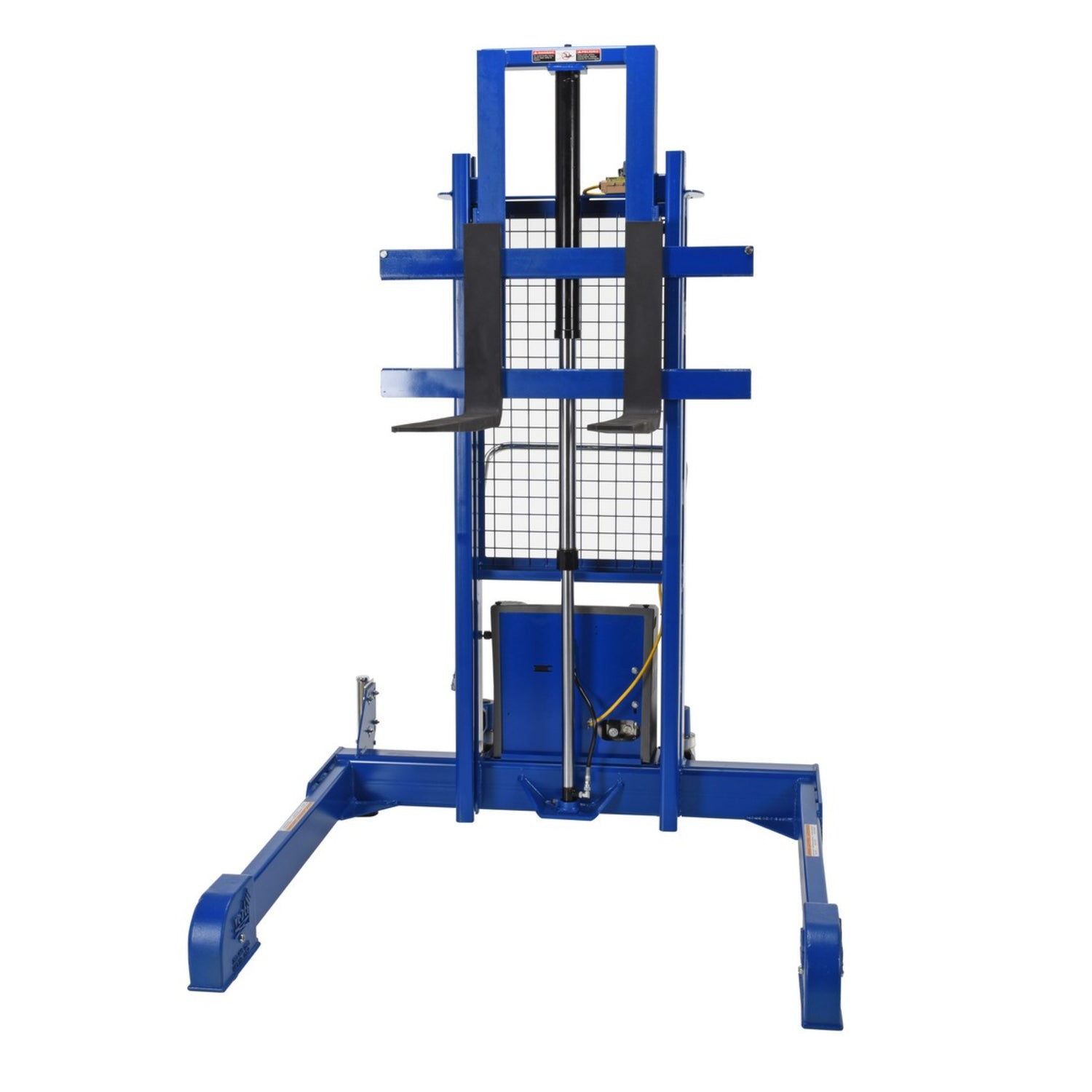

| PMPS-50-DC |
| Description |

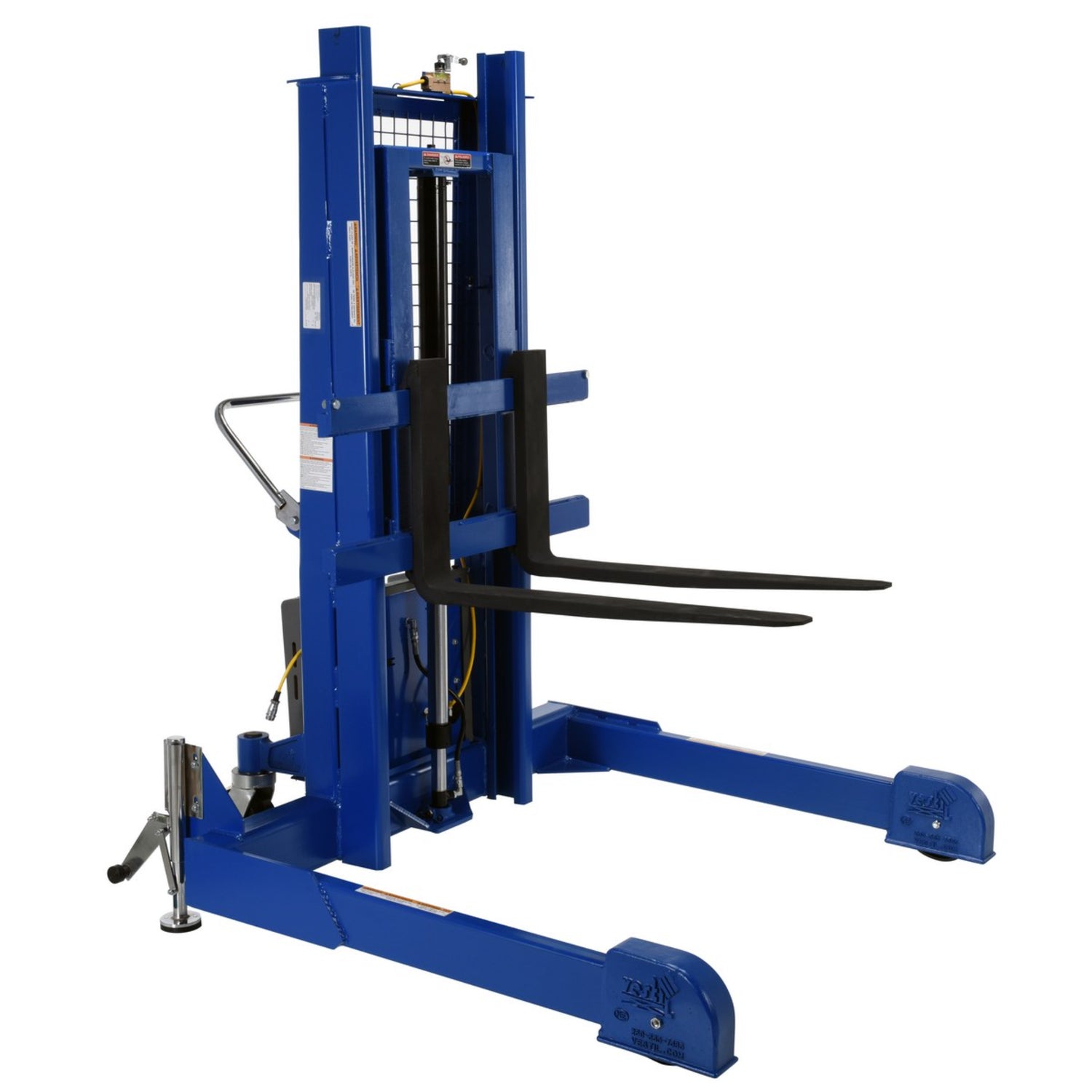

Steel Pallet Master/Server Stacker, 12V DC Powered, 50" Raised Height, Blue |
| Capacity |
4,000 lb @ 18" load center ⚠️ |
| Raised Height |
50" |
| Fork Length |
36" standard |
| Drive |
Manual walk-behind |
| Lift Power |
12V DC battery, push-button hand control |
| Battery |
One (1) 12V lead-acid + onboard charger + charge gauge ⚠️ Prop 65 |
| Casters |
8" × 3" phenolic swivel rear, floor lock standard |
| Operator Position |
Walk-behind, 36" handle height |
| Color |
Blue |
| Net Weight |
1,173 lb |
| PMPS-60-AC |
| Description |

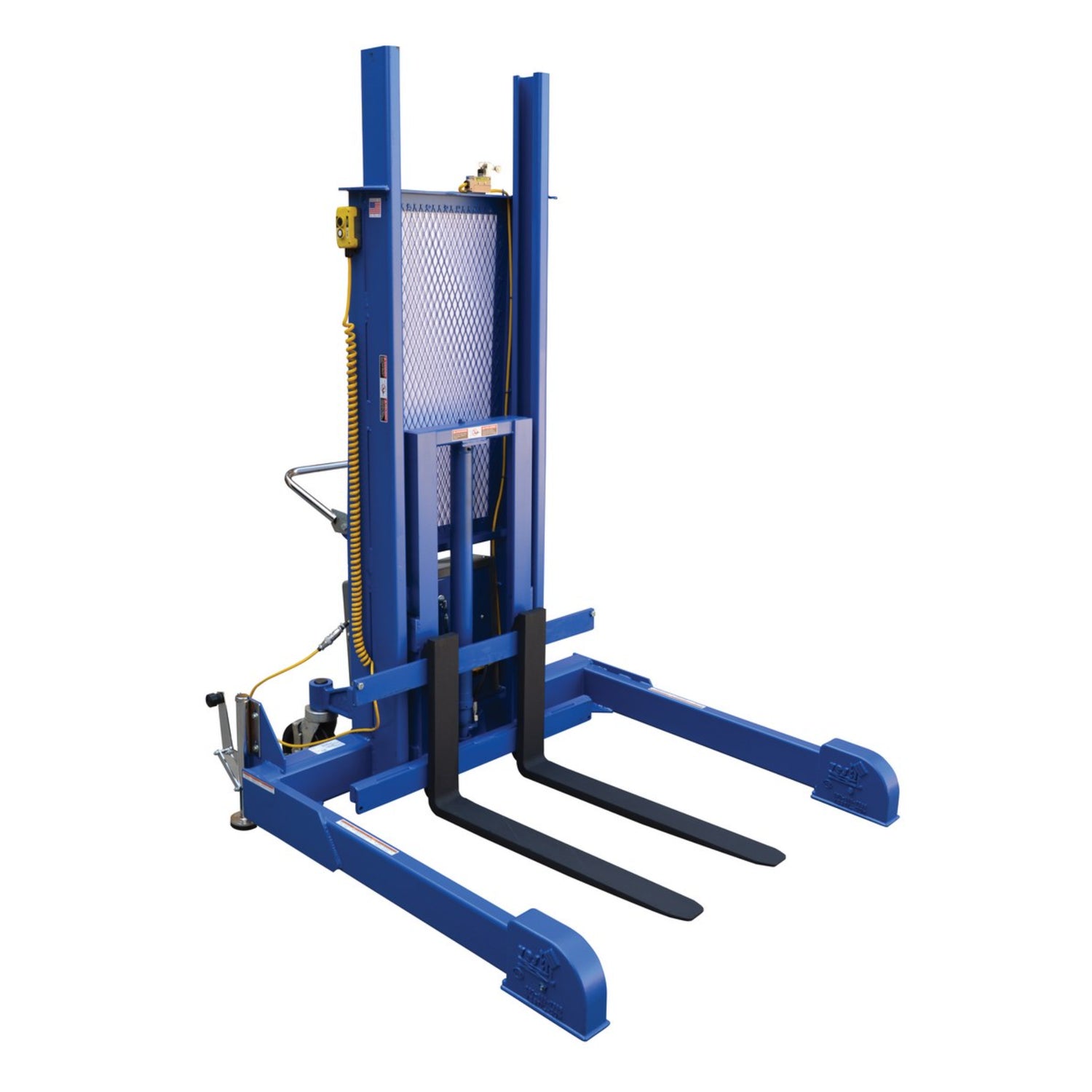

Steel Pallet Master/Server Stacker, 115V AC Powered, 60" Raised Height, Blue |
| Capacity |
4,000 lb @ 18" load center ⚠️ |
| Raised Height |
60" |
| Fork Length |
36" standard |
| Drive |
Manual walk-behind |
| Lift Power |
115V AC, single phase, push-button hand control |
| Battery |
N/A (corded) |
| Casters |
8" × 3" phenolic swivel rear, floor lock standard |
| Operator Position |
Walk-behind, 36" handle height |
| Color |
Blue |
| Net Weight |
1,065 lb |
| PMPS-60-AIR |
| Description |

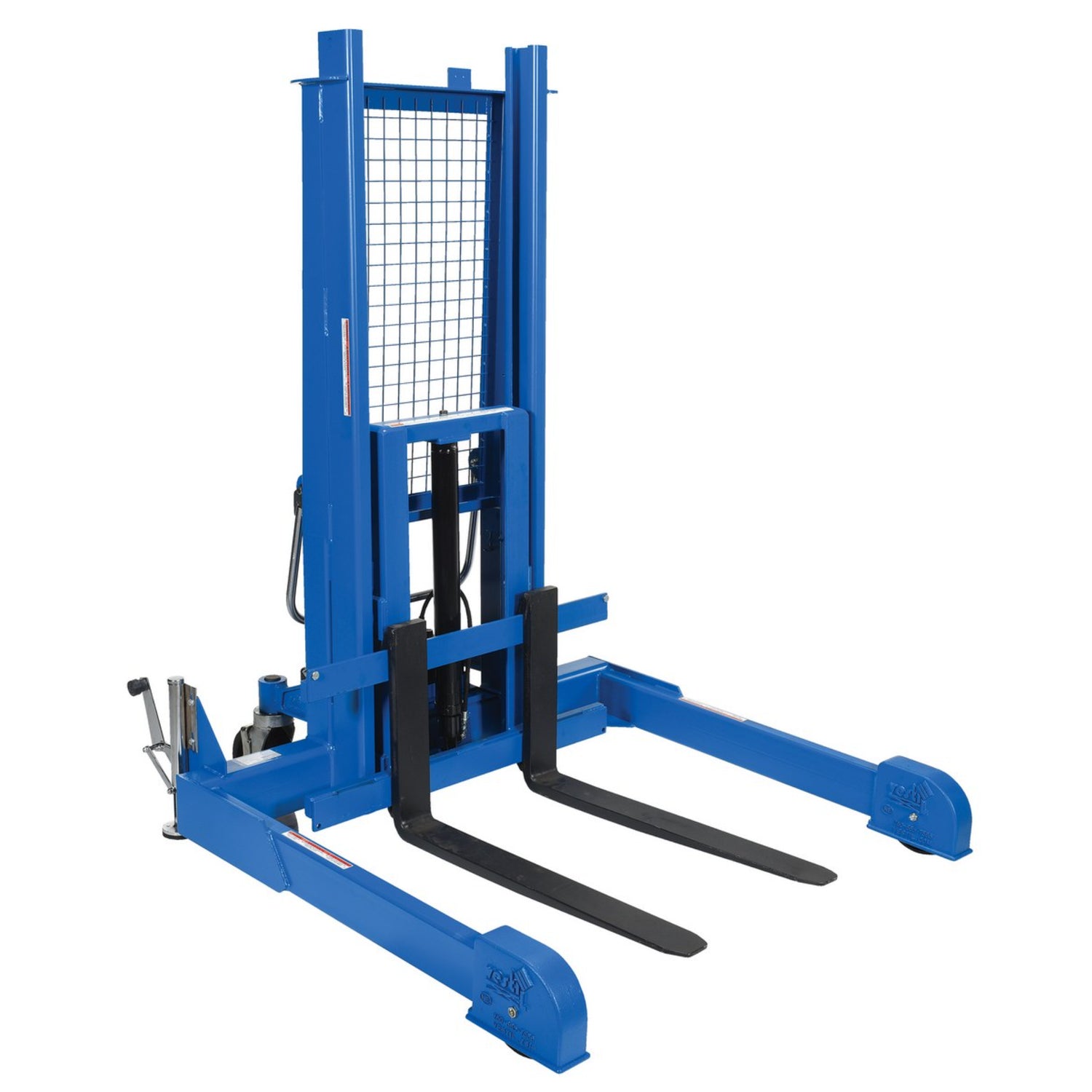

Steel Pallet Master/Server Stacker, Reciprocating Air/Oil Powered, 60" Raised Height, Blue |
| Capacity |
4,000 lb @ 18" load center ⚠️ |
| Raised Height |
60" |
| Fork Length |
36" standard |
| Drive |
Manual walk-behind |
| Lift Power |
Reciprocating Air/Oil, heel/toe foot treadle control ⚠️ Requires shop air |
| Battery |
N/A (air powered) |
| Casters |
8" × 3" phenolic swivel rear, floor lock standard |
| Operator Position |
Walk-behind, 36" handle height |
| Color |
Blue |
| Net Weight |
1,029 lb |

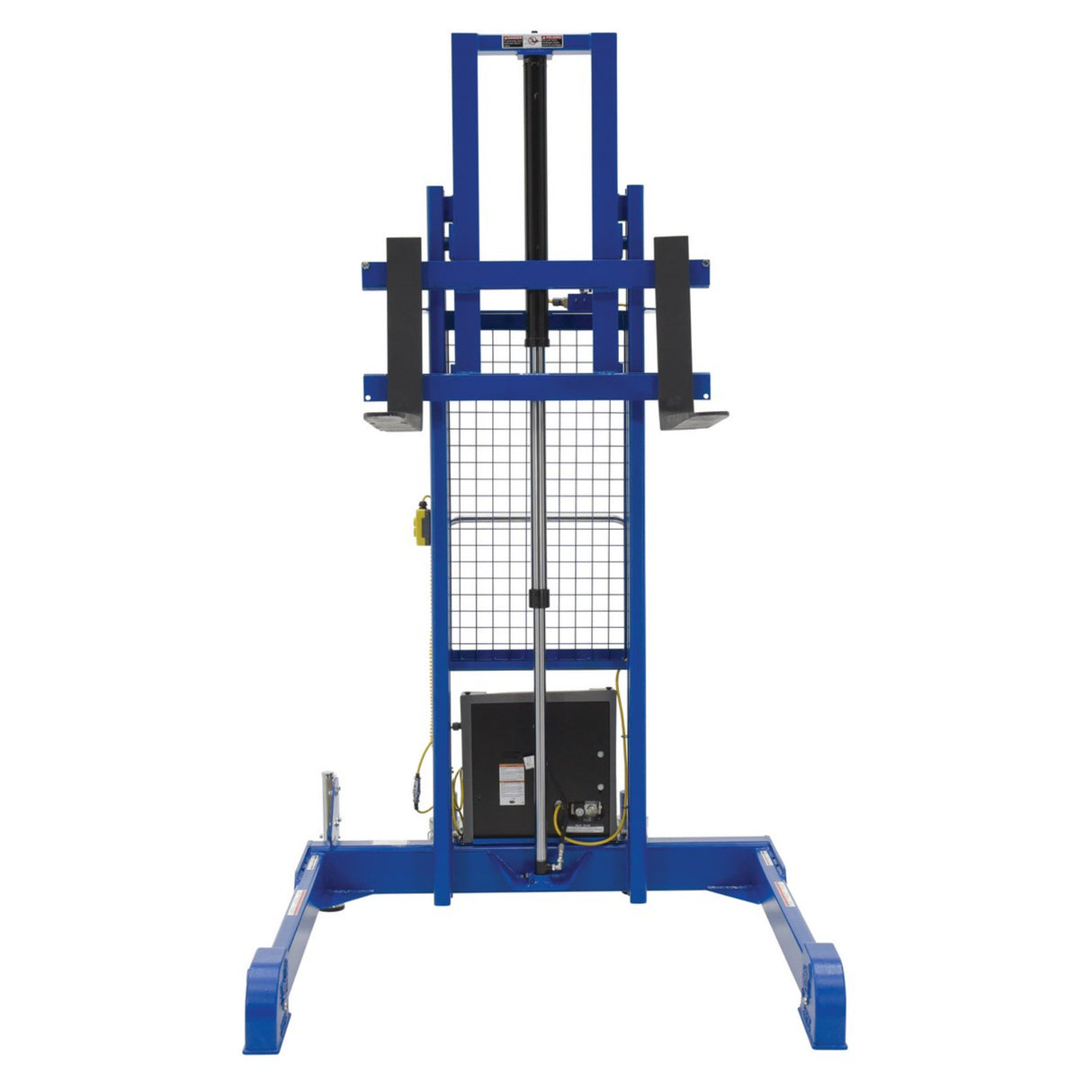

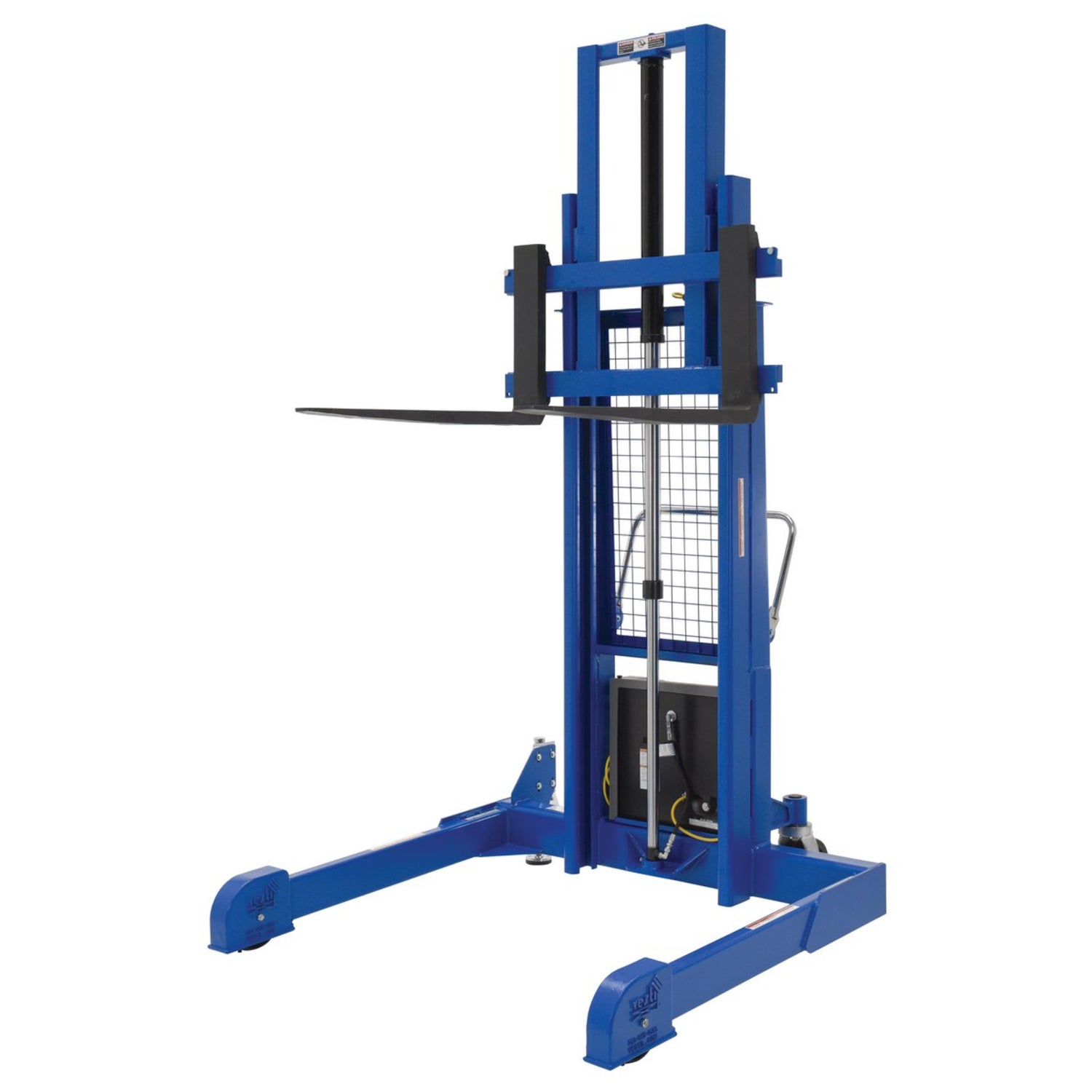

| PMPS-60-DC |
| Description |
Steel Pallet Master/Server Stacker, 12V DC Powered, 60" Raised Height, Blue |
| Capacity |
4,000 lb @ 18" load center ⚠️ |
| Raised Height |
60" |
| Fork Length |
36" standard |
| Drive |
Manual walk-behind |
| Lift Power |
12V DC battery, push-button hand control |
| Battery |
One (1) 12V lead-acid + onboard charger + charge gauge ⚠️ Prop 65 |
| Casters |
8" × 3" phenolic swivel rear, floor lock standard |
| Operator Position |
Walk-behind, 36" handle height |
| Color |
Blue |
| Net Weight |
1,060 lb |
Manuals & Documentation
- Owner's Manuals: PMPS, LL-PMPS, AUTOSHIFTER (all available on request)
- Engineering Drawings: PMPS-50-AC, PMPS-50-AIR, PMPS-50-DC, PMPS-60-AC, PMPS-60-AIR, PMPS-60-DC
- Testing Certificates: All 6 main SKUs + PMPS-48FORK, PMPS-DCR, PMPS-PTDS-E
- SDS Sheets: Hydraulic Oil (HO150) for all variants; Lead/Acid Battery SDS for DC variants and PTDS-E
Additional product videos available on the Vestil Manufacturing YouTube channel. Marketing brochure not currently published — contact us to request additional documentation through our dealership.
⚠️ California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds (DC variants and PTDS-E configurations) and hydraulic oil components, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
