Rough Terrain Tilting Electric Pallet Truck — Three Specialty Capabilities in One Unit
The RT-EPT-2.5-60-TLT combines three specialty capabilities that no other pallet truck offers together: rough terrain operation (indoor and outdoor), 30-degree fork tilt for dumping and positioning, and a ride-on platform for operator transport. Move heavy loads across warehouses, construction sites, gravel pits, and outdoor yards — then tilt the forks to dump materials, pour from containers, or position angled loads. All controlled from the driving handle.
Why It's Different: Standard pallet trucks transport loads only. Indoor tilting tilters transport AND tilt but can't go outside. Rough terrain pallet trucks transport over rough surfaces but can't tilt or dump. The RT-EPT-TLT does ALL three — rough terrain transport, 30° tilt dump/positioning, and ride-on platform operation. Eliminates the need for three separate pieces of equipment.
Three Powered Functions in One Unit:
-
Powered Drive — Butterfly switch throttle with infinite forward/reverse speed control.
-
Powered Lift — Raise/lower from 2-3/4" to 11-3/4" with handle-mounted buttons.
-

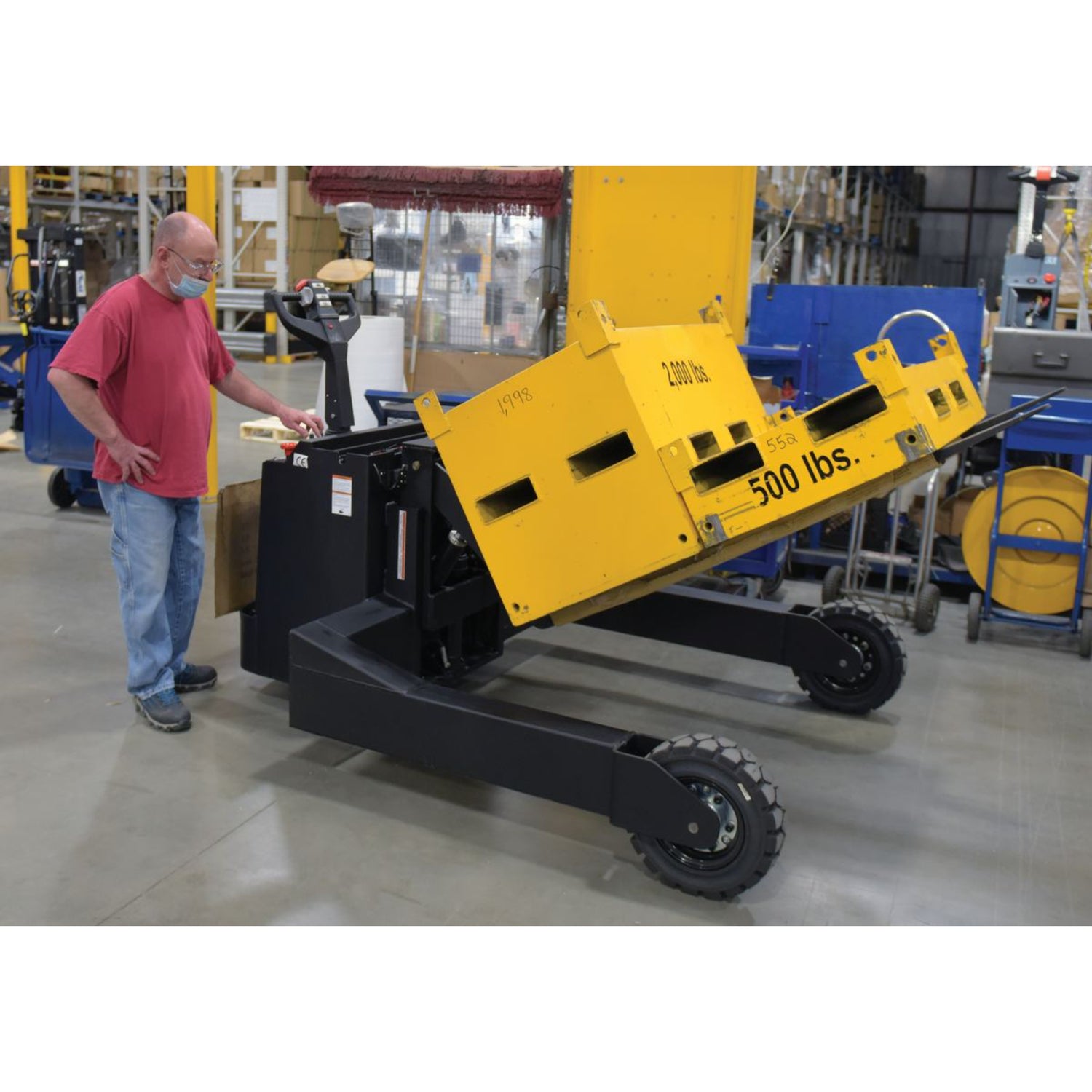

Powered Tilt — Tilt forks up to 30 degrees for dumping, pouring, and angled positioning.

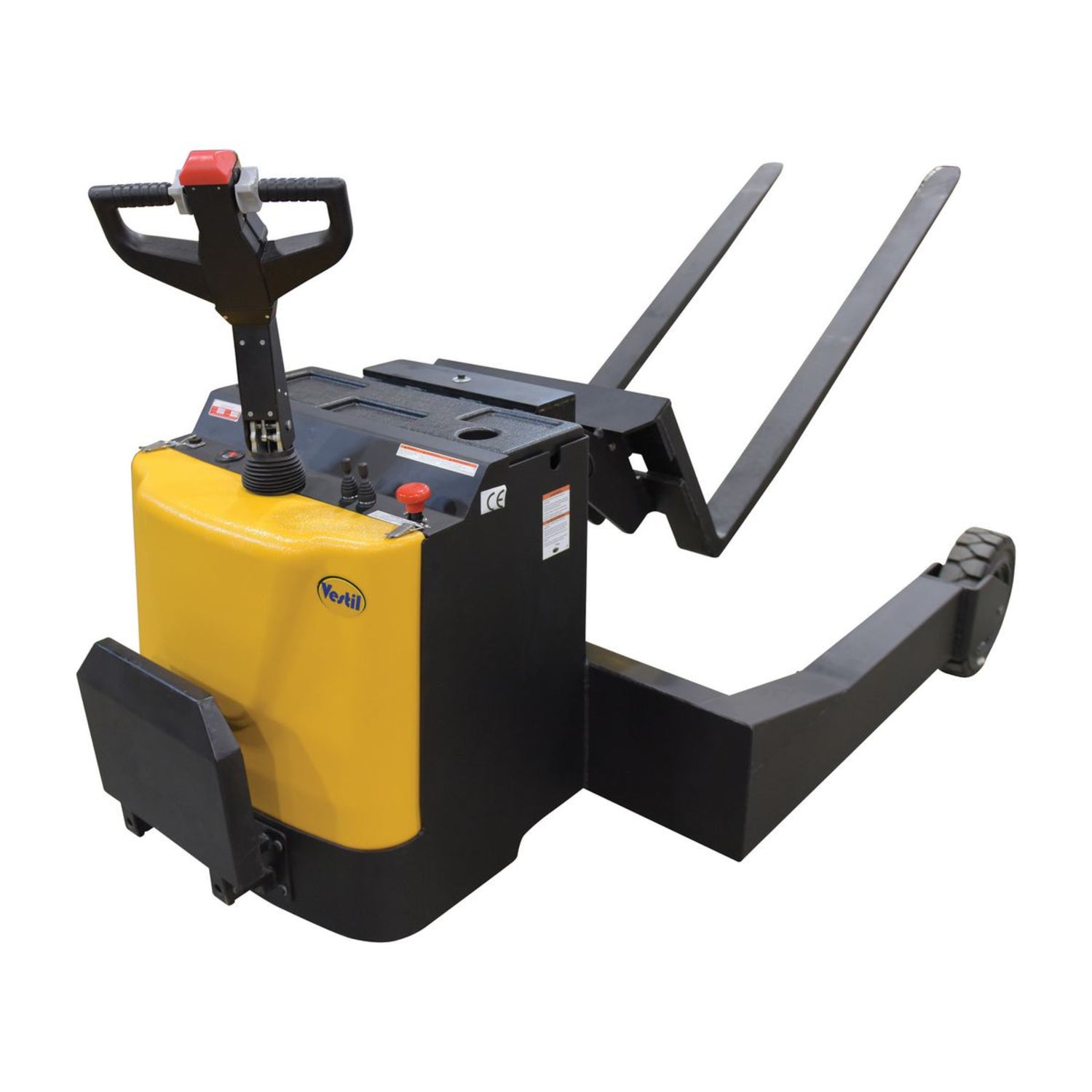

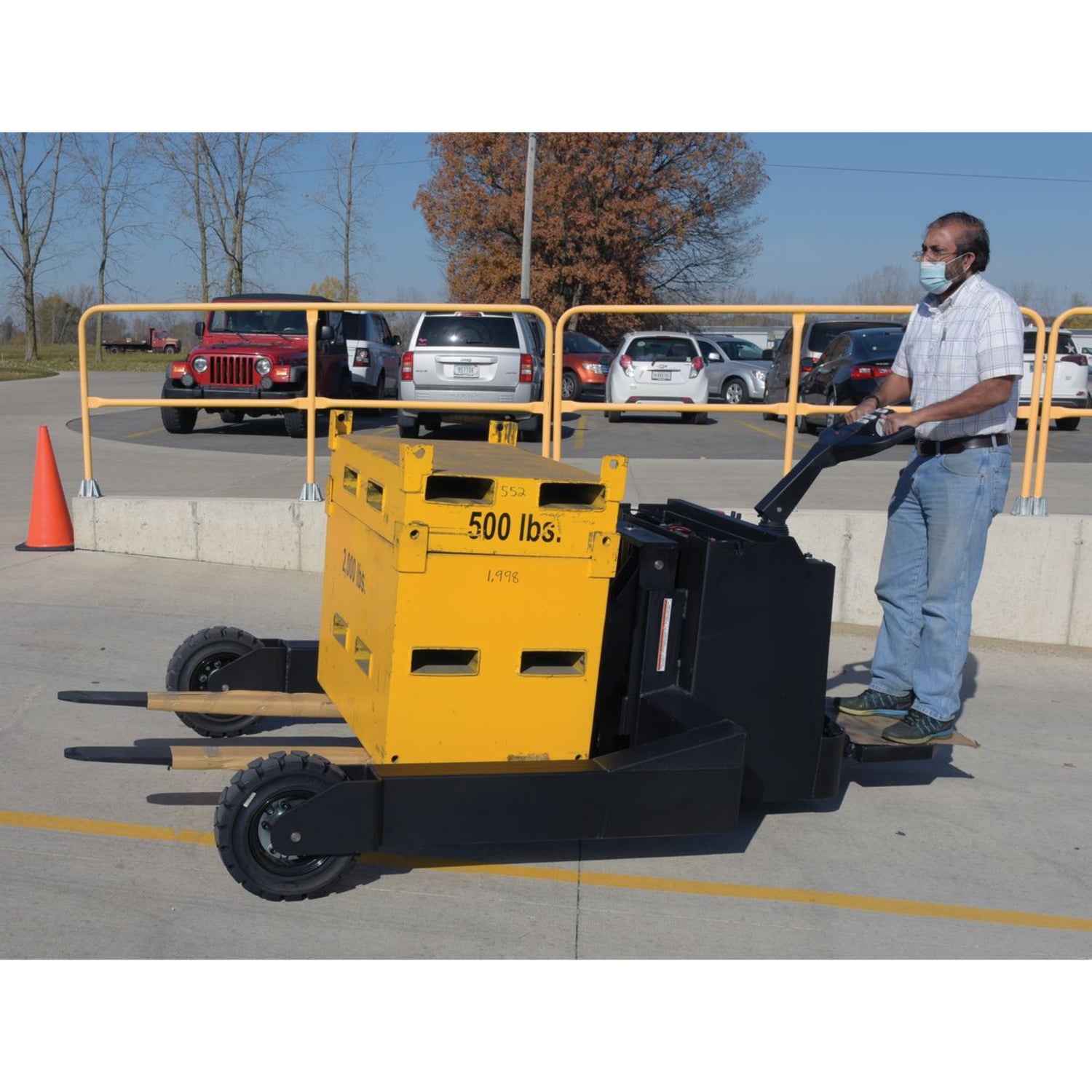

Ride-On Platform — Productivity Advantage: Unique among Vestil electric pallet trucks, the RT-EPT-TLT has a ride-on platform for the operator. Reduces operator fatigue during long-distance transport, increases travel speed between work zones, and provides better visibility from the elevated position. Especially valuable for operations covering large outdoor distances (construction sites, yards, agricultural operations).
Indoor + Outdoor Capability: Large 16" rigid rubber front tires and 11" swivel rubber rear casters roll over gravel, dirt, and uneven outdoor surfaces — while still operating smoothly indoors on warehouse floors. Wide wheel base provides stability with tilted loads.
Best For: Construction sites (dumping bulk materials outdoors), foundries and metal operations (positioning angled loads), recycling and waste operations (dumping into hoppers), agricultural and feedlot operations (dumping feed/grain), nurseries (dumping mulch/soil), mining and quarry operations, and any facility needing transport + dump capability across mixed indoor/outdoor surfaces.
⚠️ Built-to-Order — ~14 Week Lead Time: The RT-EPT-2.5-60-TLT is a specialty built-to-order product. Estimated lead time is approximately 14 weeks from order to delivery. Plan procurement timelines accordingly. Contact us for current lead time before ordering — actual production schedule may vary.
⚠️ Assembly Required: Ships knocked down for freight efficiency. Hardware and horn included. Operator/maintenance team will need to assemble before first use.
⚠️ 2,500 lb Capacity Ceiling: Lower than standard indoor EPTs (3,300-4,500 lbs). For heavier standard pallet loads without tilt/rough terrain needs, see our EPT Fully Powered line.

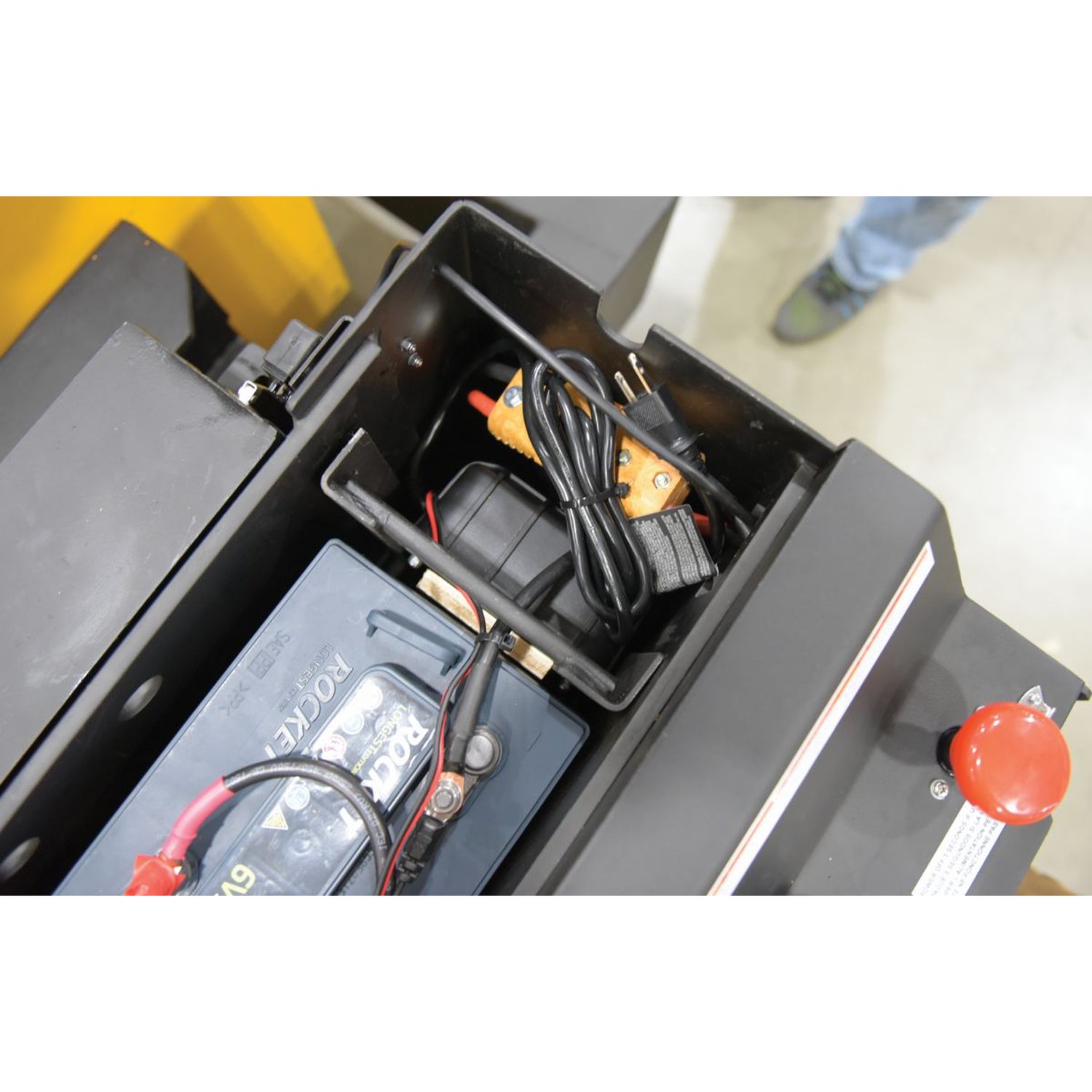

⚠️ Spillable Lead-Acid Batteries: Standard flooded lead-acid (not sealed AGM, not lithium-ion). Requires periodic water topping, ventilated charging area, and acid handling protocols. Plan for battery maintenance routine.

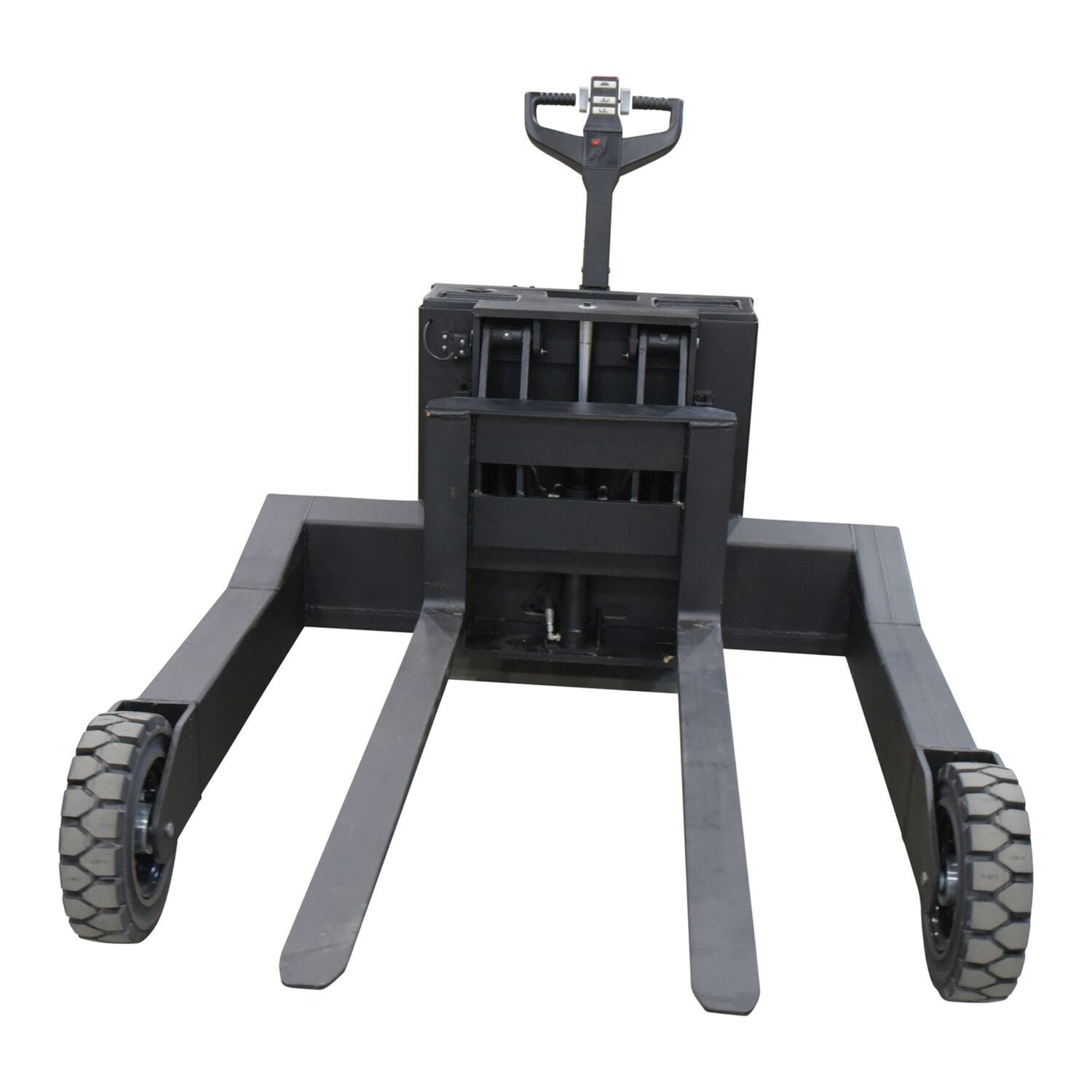

⚠️ Fixed Fork Spacing: Forks are fixed at 26-3/4" outer / 18-3/4" inner spacing. NOT adjustable. Verify your load geometry fits these dimensions before ordering.
⚠️ Heavy Unit (1,525 lbs): Heaviest in the RT-EPT line. LTL freight required, possibly flatbed delivery. Forklift required at receiving location for offloading.
Documentation Note: Owner's manual, engineering drawing, and testing certificate availability for this NEW PRODUCT is being verified with Vestil. Contact us before ordering if you need this documentation for facility planning or operator training — we can request these documents from Vestil for your specific purchase.
| RT-EPT-2.5-60-TLT (Rough Terrain Tilting Electric Pallet Truck with Ride-On Platform) |
| Description |
Steel Rough Terrain Electric Pallet Truck with 30° Tilting Forks and Ride-On Platform, 60" Fork Length, 2,500 lb Capacity |
| Uniform Load Capacity |
2,500 lbs |
| Service Range (Lift Height) |
2-3/4" to 11-3/4" |
| Maximum Tilt Angle |
30 degrees |
| Fork Length |
60" |
| Fork Spacing |
Fixed — 26-3/4" Outer Diameter / 18-3/4" Inner Diameter |
| Leg Spacing |
Fixed — 52" Inner Diameter / 64" Outer Diameter |
| Usable Load Width |
50" |
| Drive |
Fully Electric (Powered) |
| Lift |
Fully Electric Hydraulic (Powered) |
| Tilt |
Fully Electric (Powered) |
| Operator Position |
Ride-On Platform (Standing) |
| Battery |
2× 12V DC Spillable Lead-Acid (Maintenance Required) |
| Front Wheels |
(2) 16" × 3" Rigid Rubber Casters |
| Rear Wheels |
(2) 11" × 3" Swivel Rubber Casters |
| Surface Compatibility |
Smooth Floors, Gravel, Dirt, Uneven Outdoor Surfaces |
| Handle Controls |

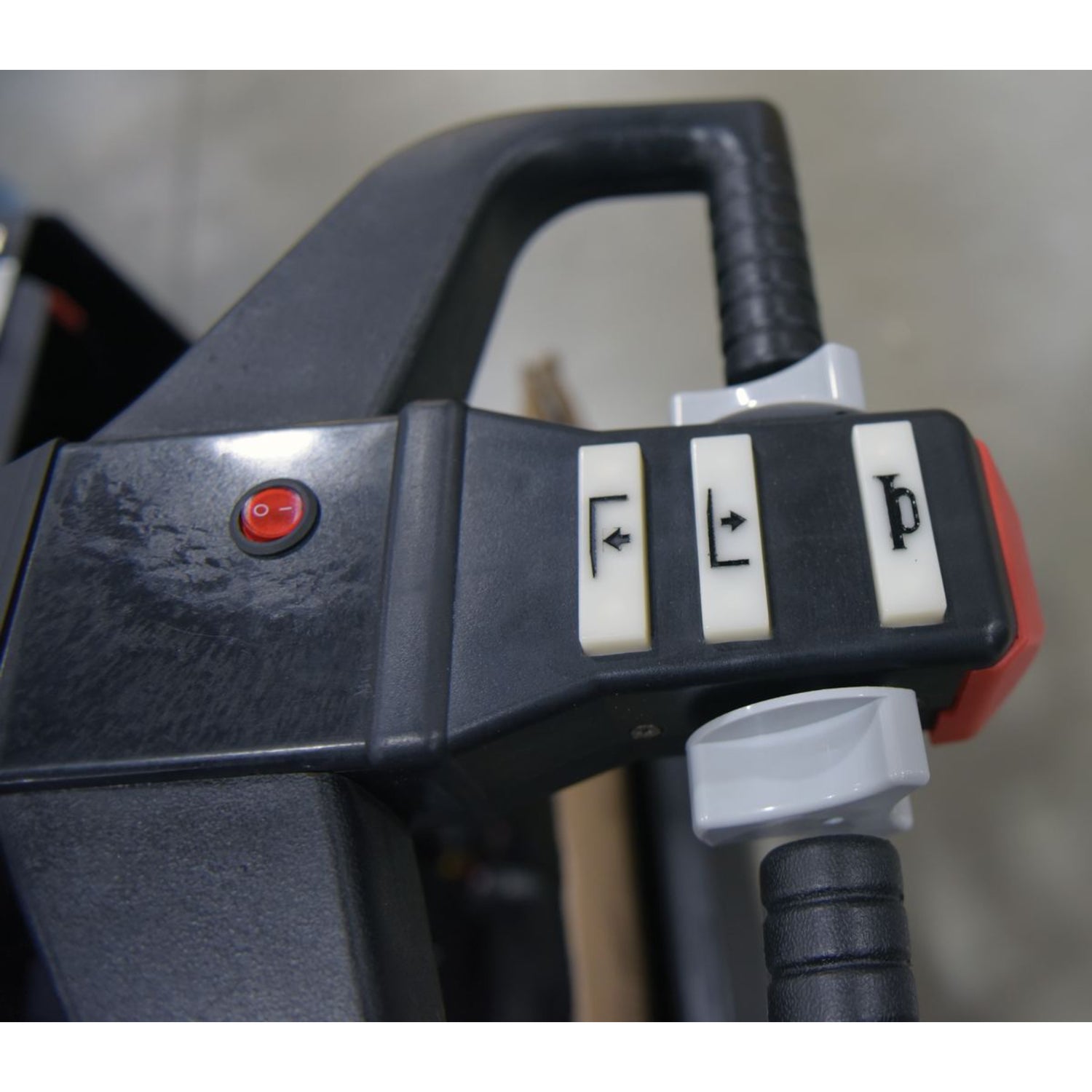

Butterfly Switch Throttle, Forward/Reverse Speed, Raise/Lower Buttons, Emergency Stop Belly Switch, Horn |
| Construction |
Welded Steel |
| Overall Dimensions (W × L × H) |
65" × 100" × 58" |
| Use Environment |
Indoor AND Outdoor |
| Assembly |
Required (Ships Knocked Down — Hardware and Horn Included) |
| Manufacturing |
Built-to-Order (~14 Week Lead Time) |
| Net Weight |
1,525 lbs |
Documentation availability for this NEW PRODUCT is being verified with Vestil. Contact us if you need any of the following for your purchase decision, facility planning, or operator training:
As an authorized Vestil dealer, we can request these documents from Vestil for your specific purchase. Contact us before ordering if documentation is essential to your purchase decision.
