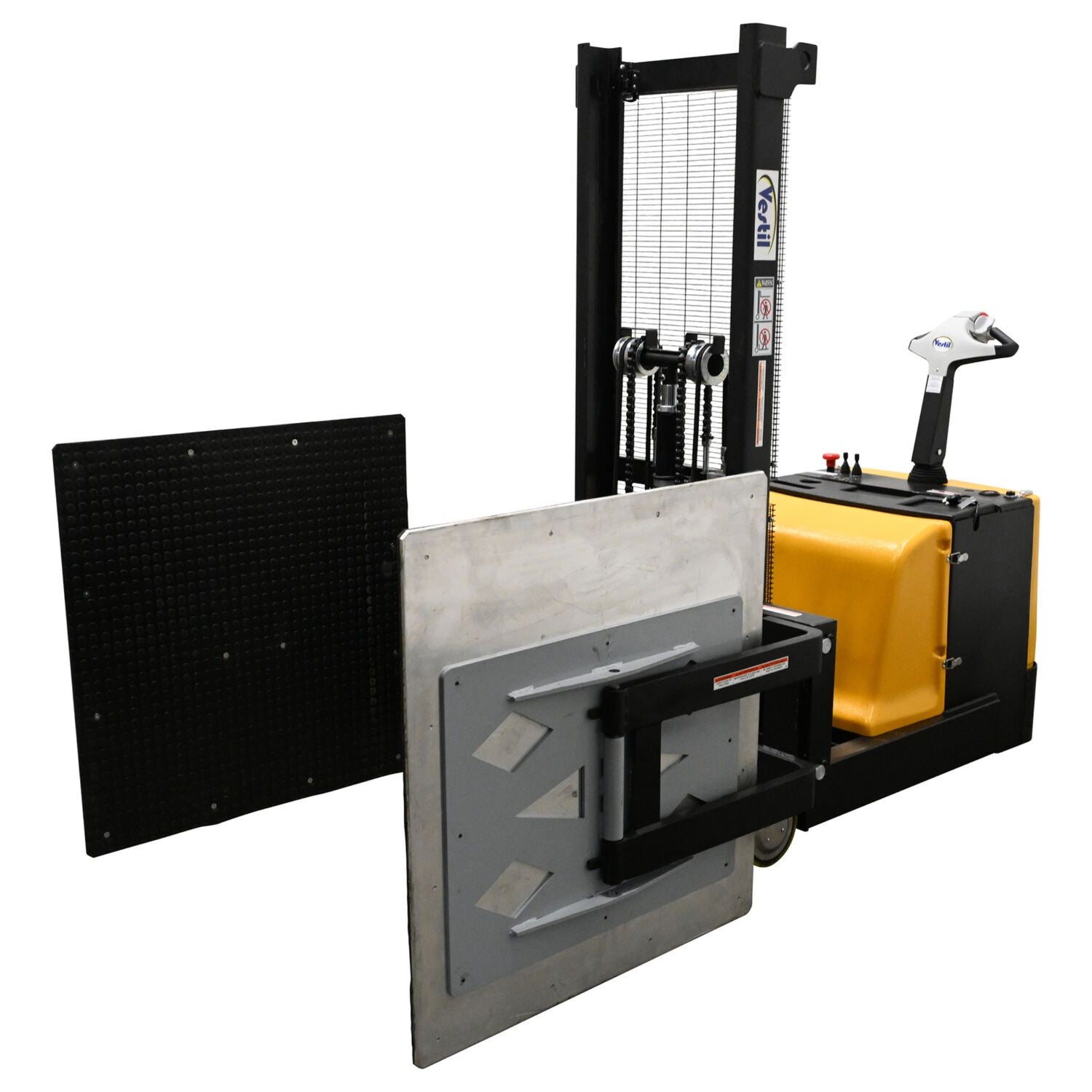

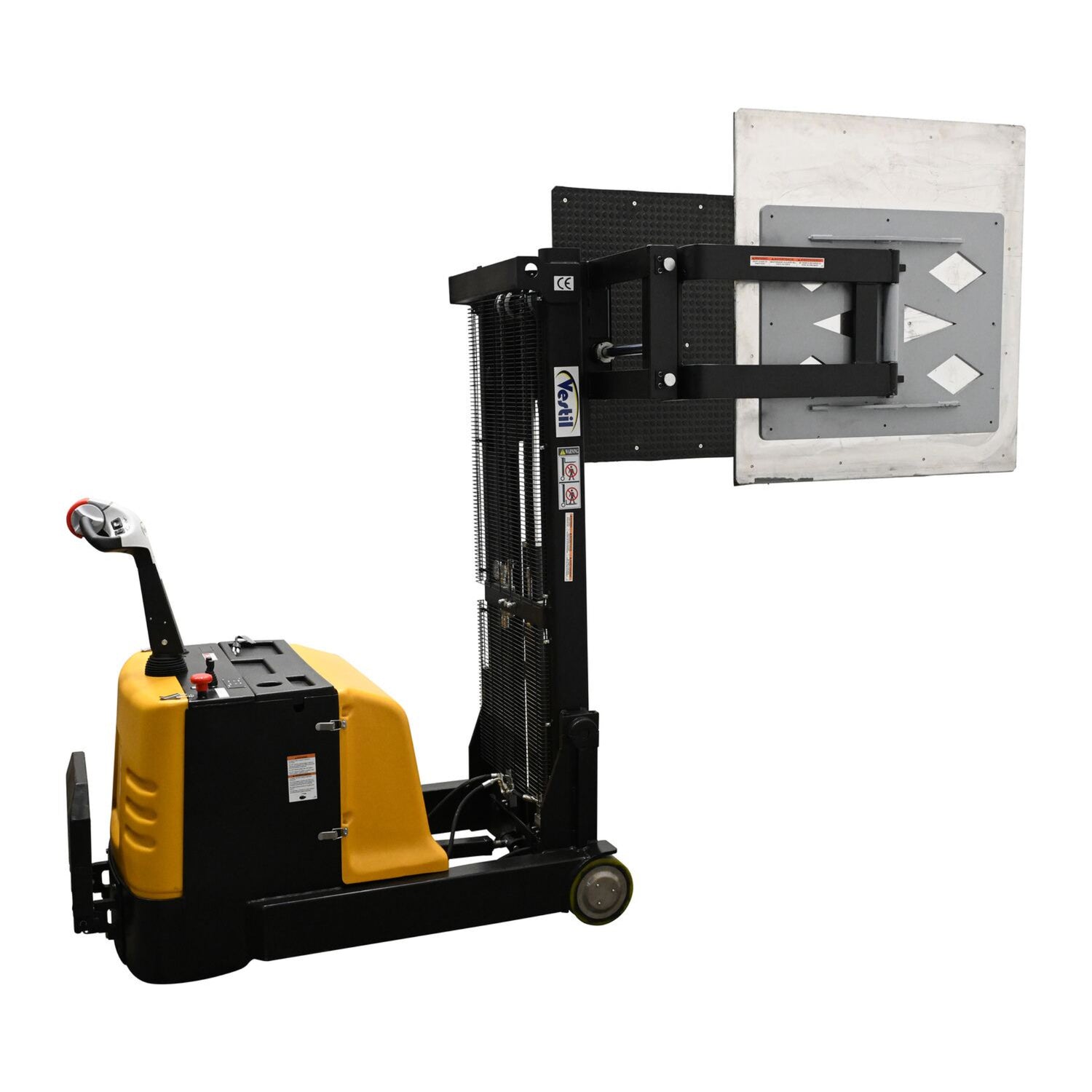

Vestil S-CB-BCF Fully Powered Bale Clamp & Lift Stacker — 800 lb, Ride-On, Counter-Balanced

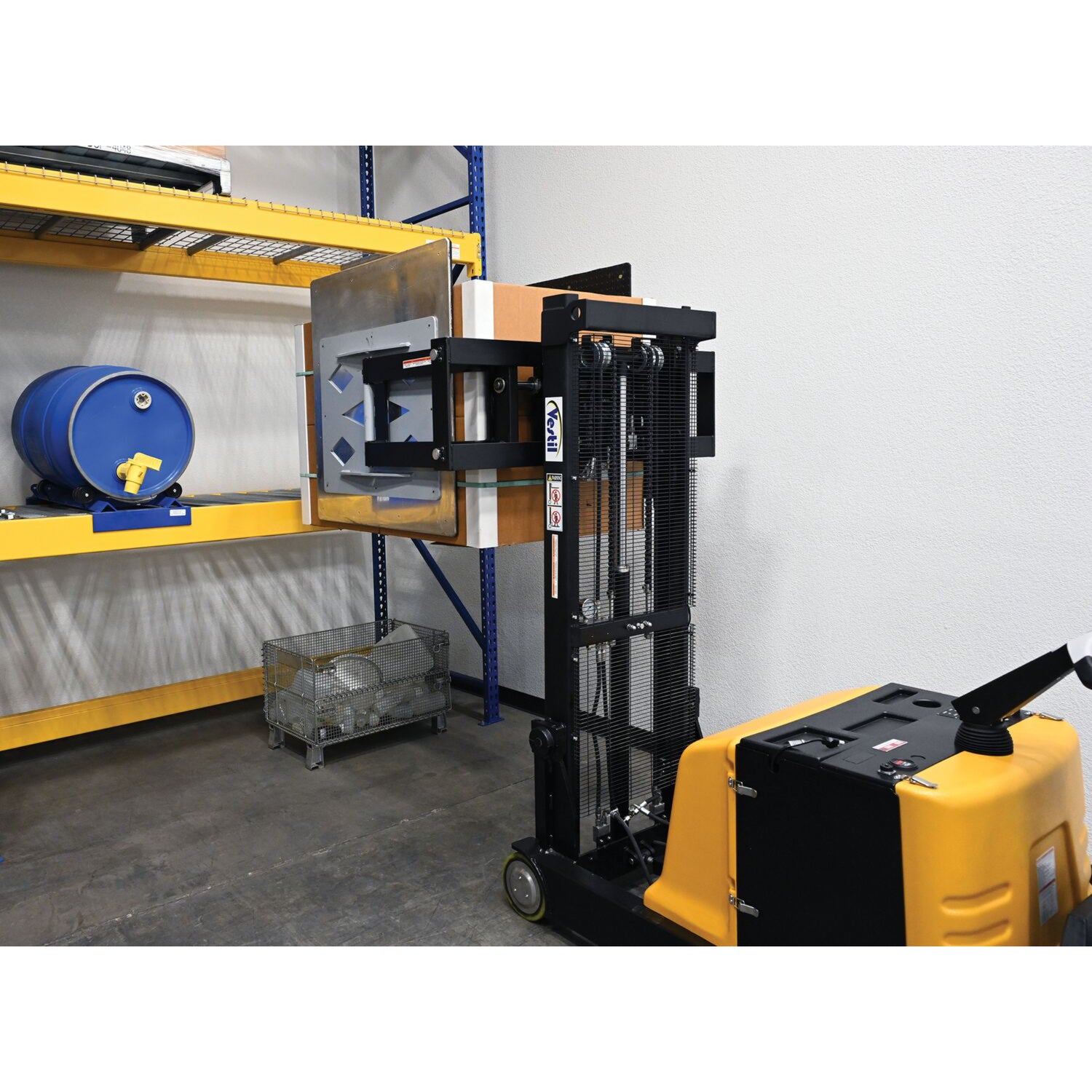

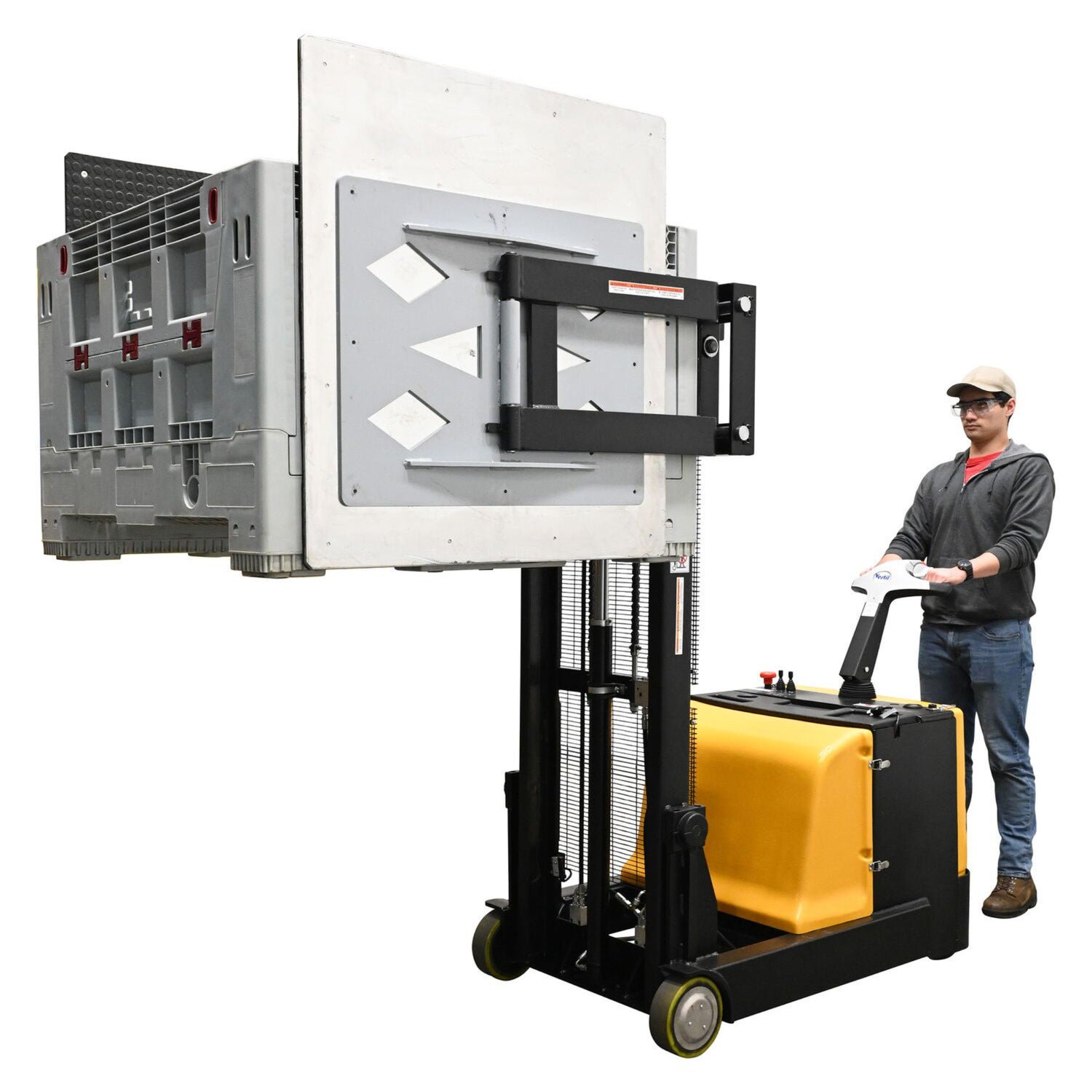

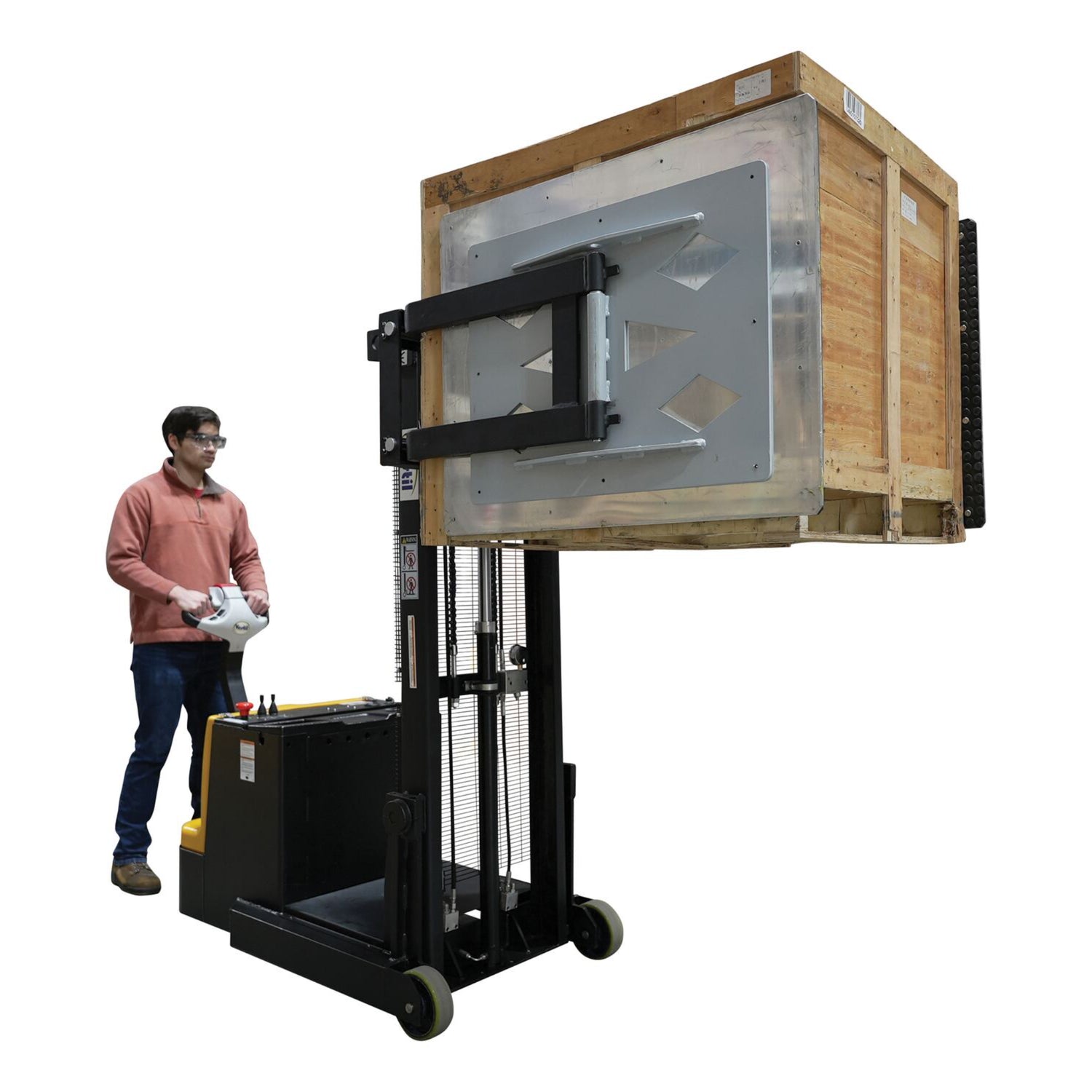

The Vestil S-CB-BCF is a NEW fully powered, counter-balanced bale clamp stacker built for handling bales and boxes that forks can't easily grip. Instead of forks, it uses a powered side clamp to grip, lift, and move loads — ideal for die loading, machine feeding, and truck loading/unloading. A ride-on platform and high-torque 24V powered drive and lift make it efficient for moving uniform-sided loads across a facility, rated at 800 lb capacity.

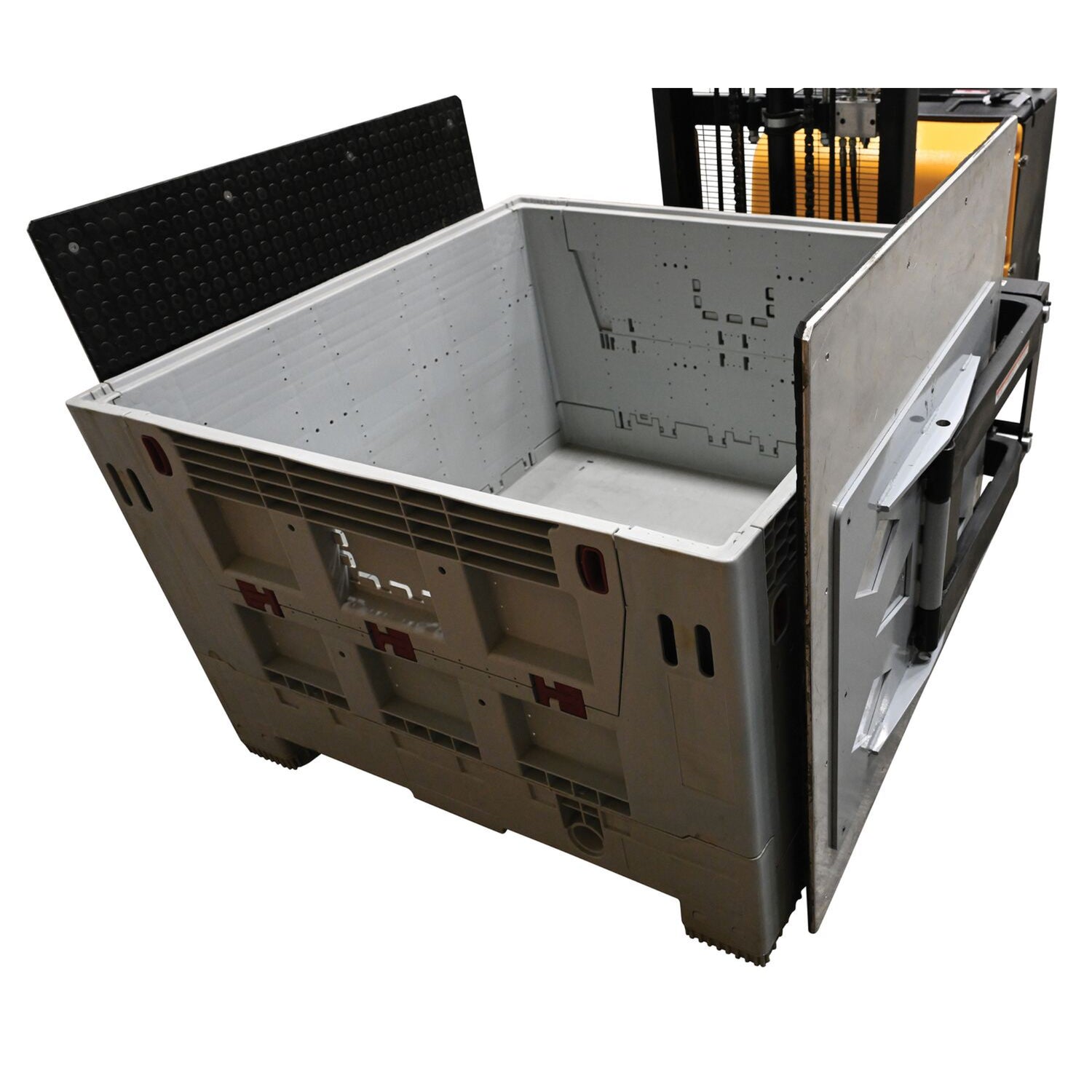

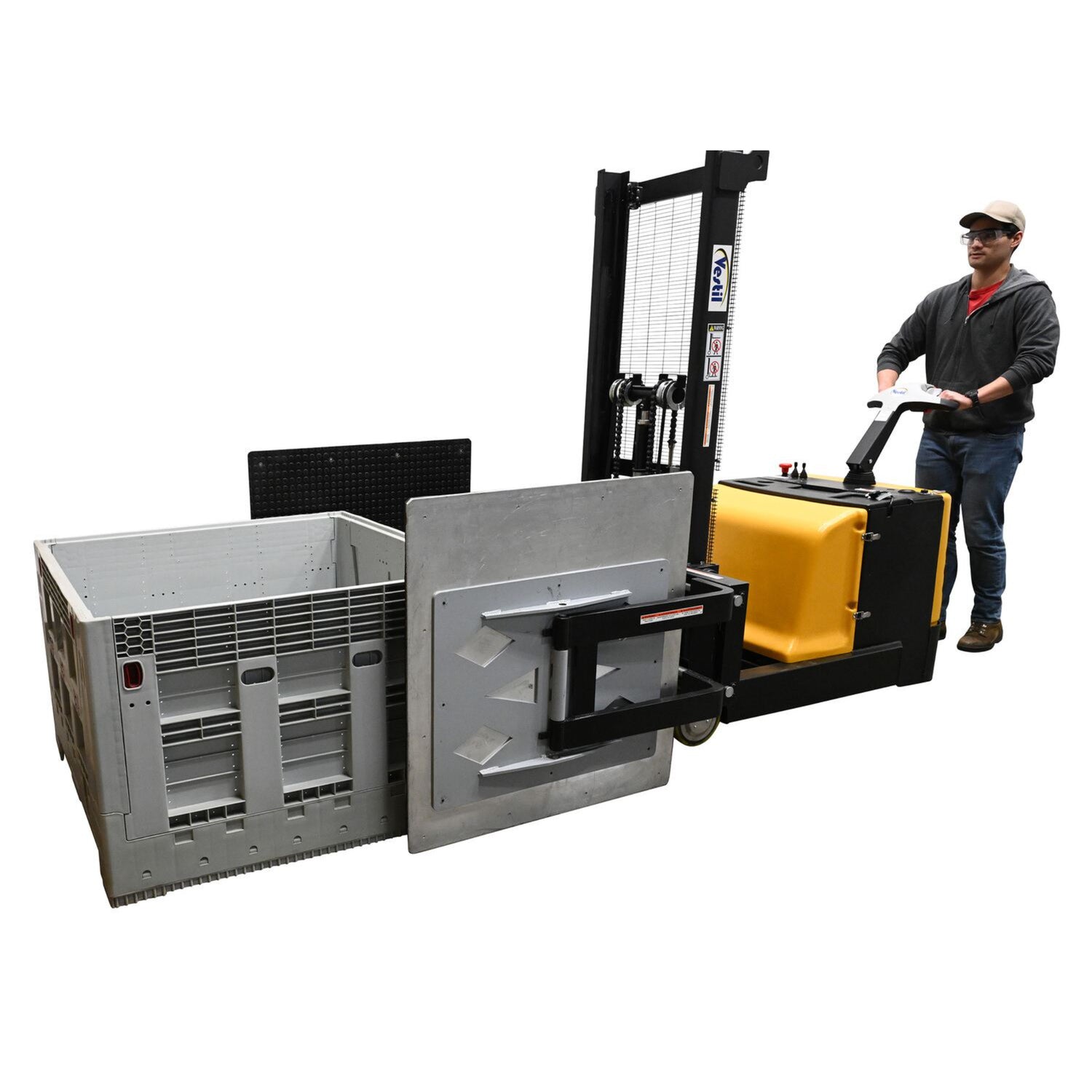

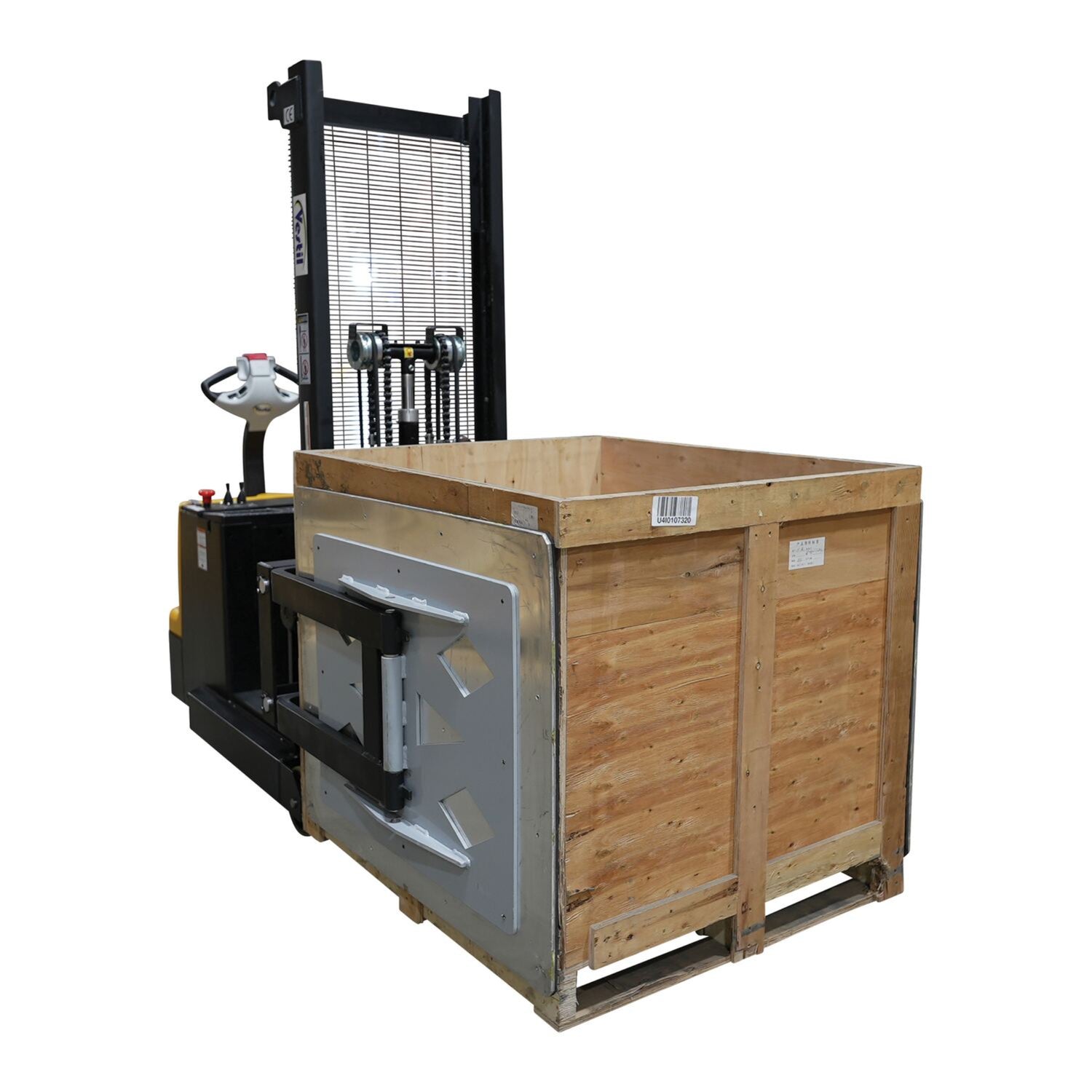

Why It's Different: Most stackers need a pallet. This one clamps the load directly from the sides — so baled, boxed, or wrapped goods can be handled without a pallet at all. The counter-balanced design and ride-on platform add forklift-style access and operator efficiency.
Best For: Recycling and paper/textile operations handling baled goods, manufacturers feeding machines with boxed stock, and warehouses loading/unloading trucks with uniform boxed or baled loads. Choose the clamp range that fits your load width: 23"–41" or 27"–51".
⚠️ Bale clamp — NOT forks. This unit grips loads from the sides; it is not designed for standard palletized loads. For fork handling, see Vestil's counter-balanced powered drive lifts.
⚠️ Match clamp range to your load width: the 23"–41" and 27"–51" models clamp within those ranges. Load width must fall inside the selected clamp range.
⚠️ Includes ride-on platform — requires smooth, level floors. Ride-on operation needs appropriate floor conditions and operator training.
⚠️ Powered industrial truck — OSHA operator training required. Operators must be trained and authorized, including on the emergency reverse safety circuit.
⚠️ 800 lb capacity — the clamp handling capability is the specialty; verify your load weight falls within rating.
⚠️ Lead-acid batteries (two 12V) — California Prop 65 applies. Requires a charging outlet.
⚠️ LTL freight required — heavy unit; tall/heavy configuration may require a flatbed. Receiving location must accommodate freight delivery with means to offload.
Features
-
NEW PRODUCT from Vestil Manufacturing
- Made in Indiana, USA
- 800 lb capacity
-

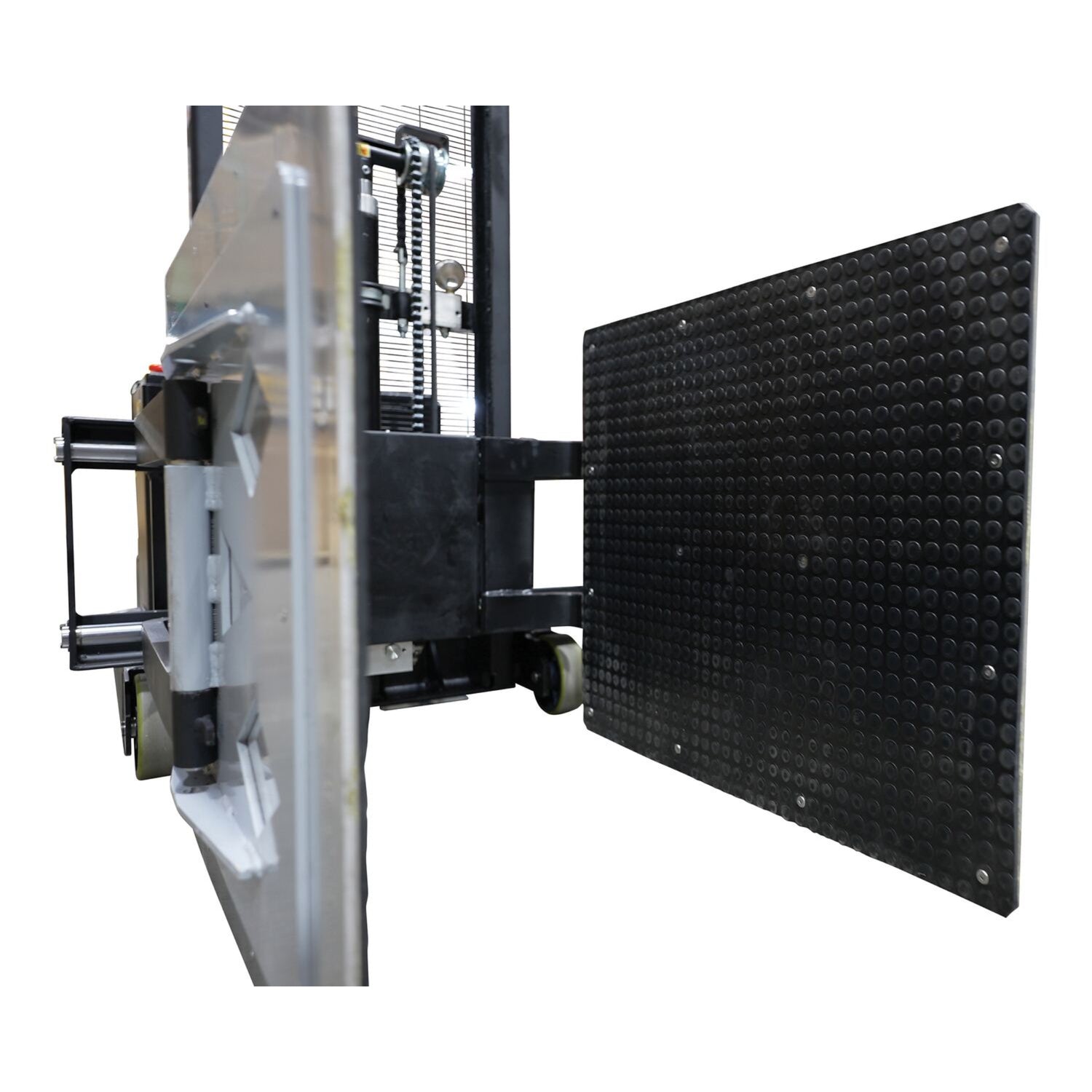

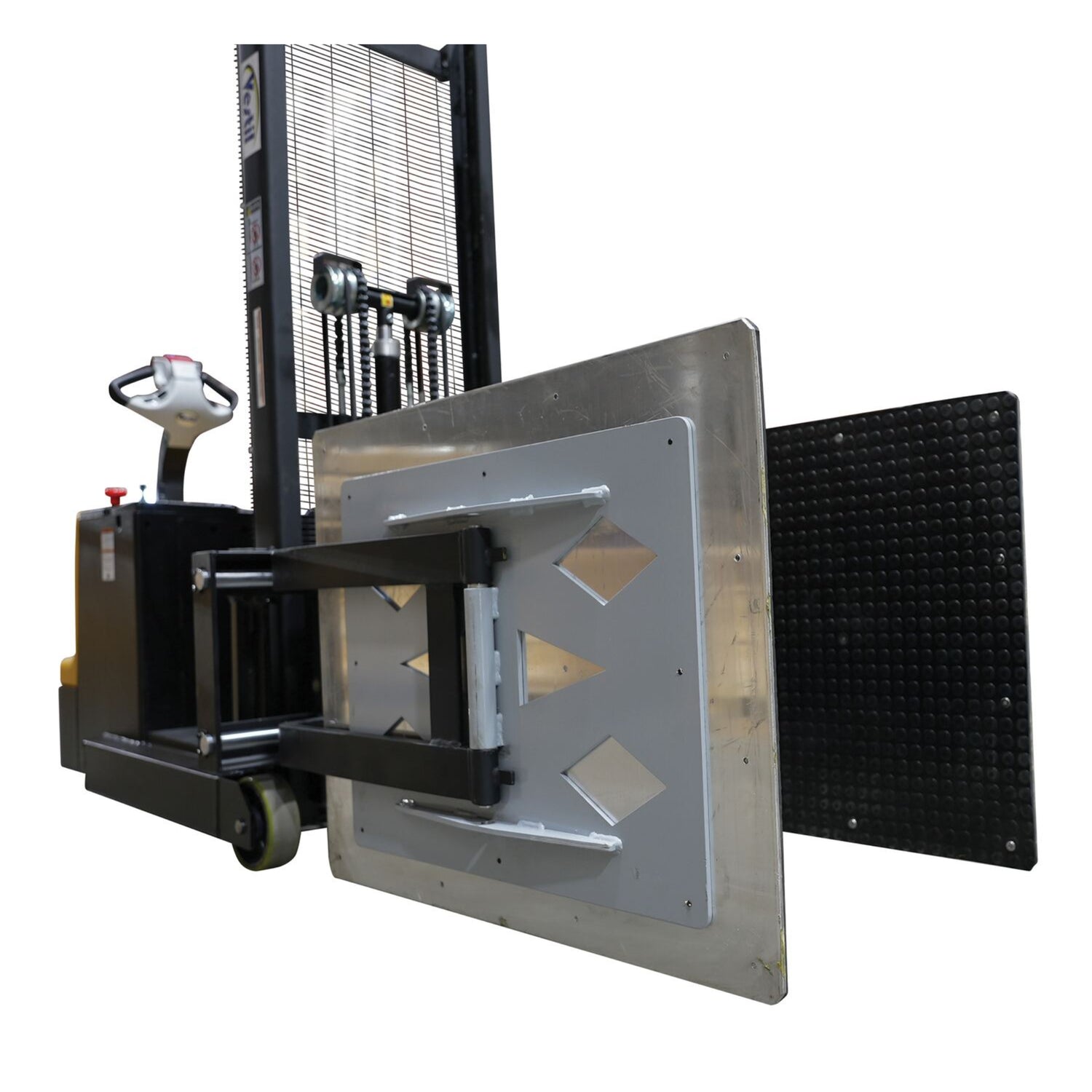

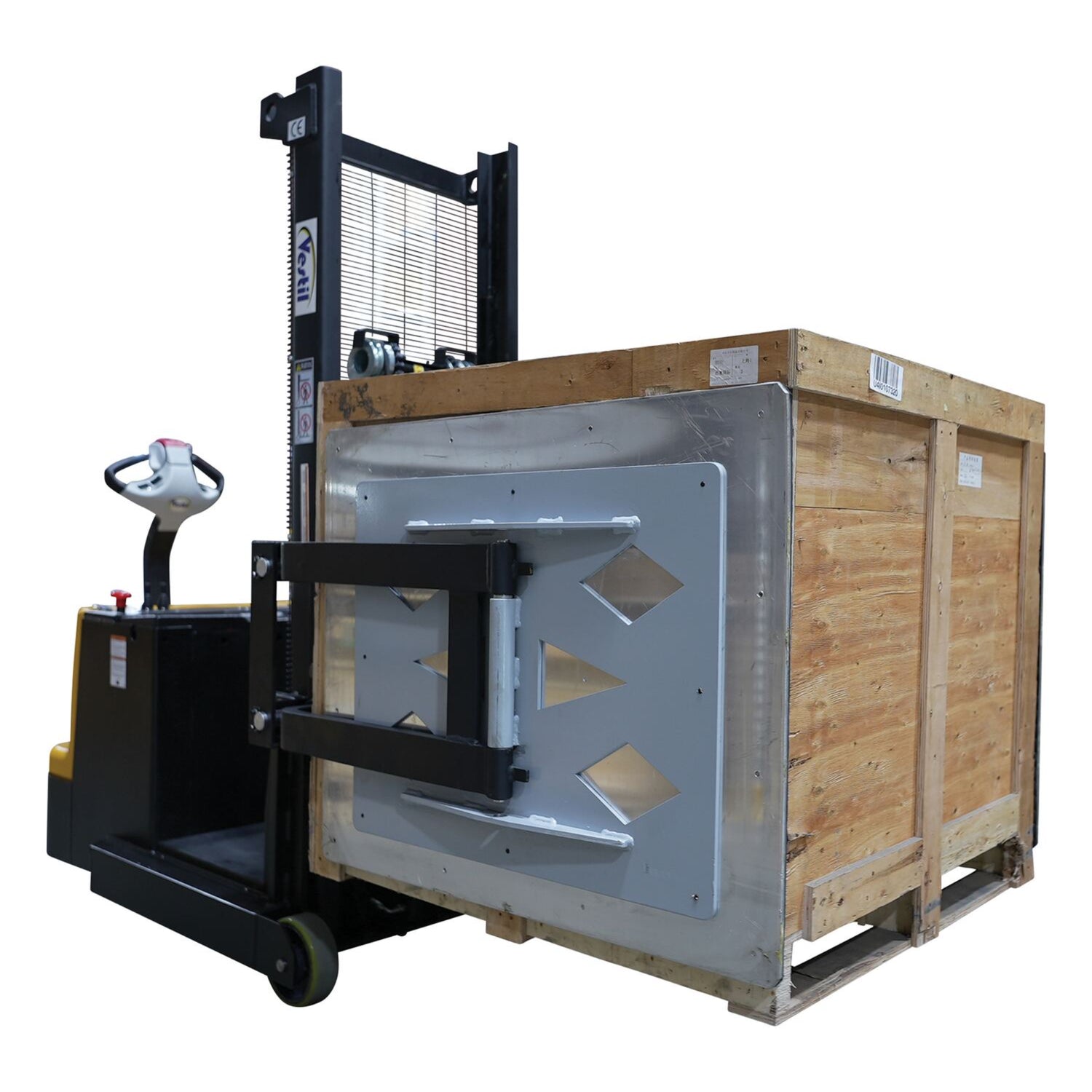

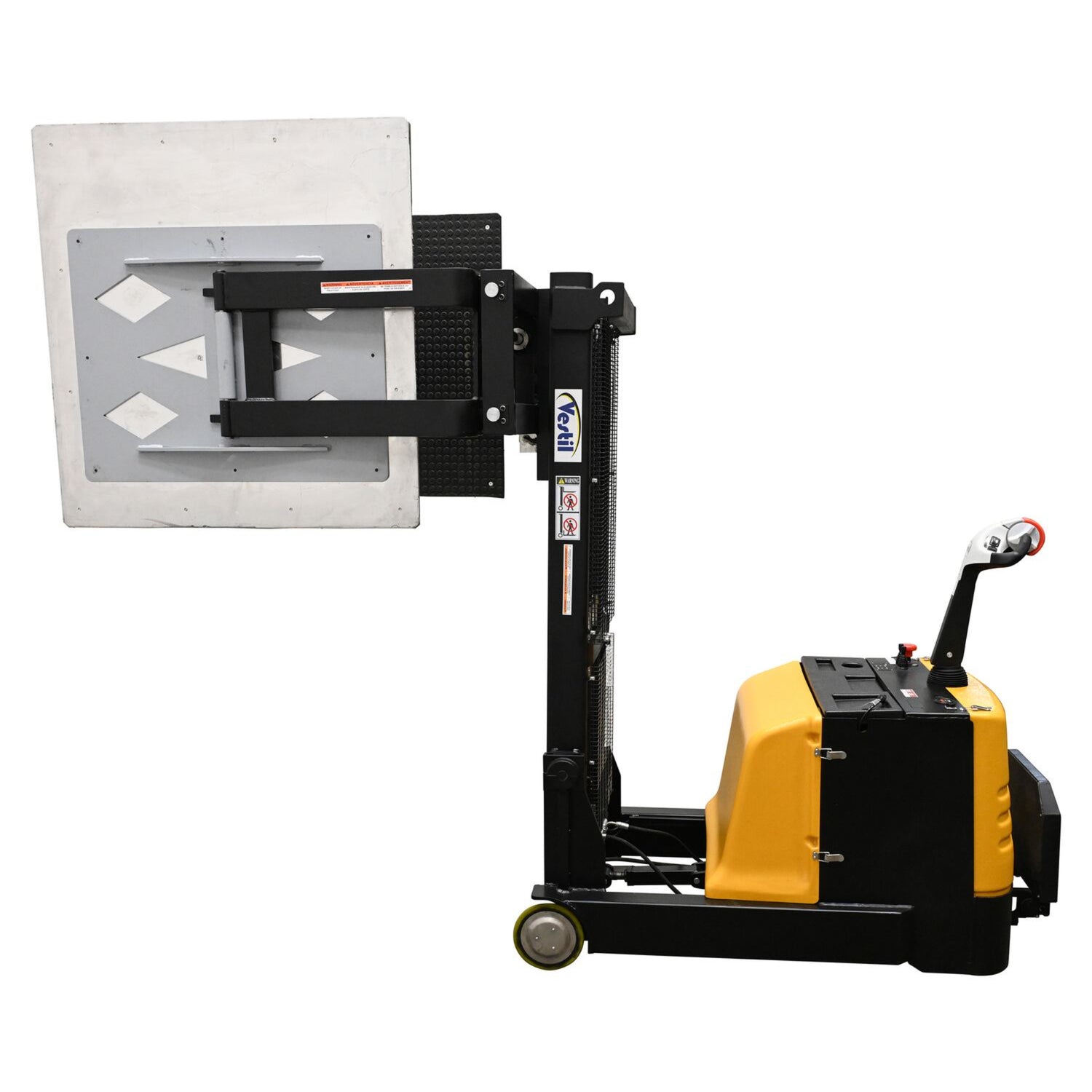

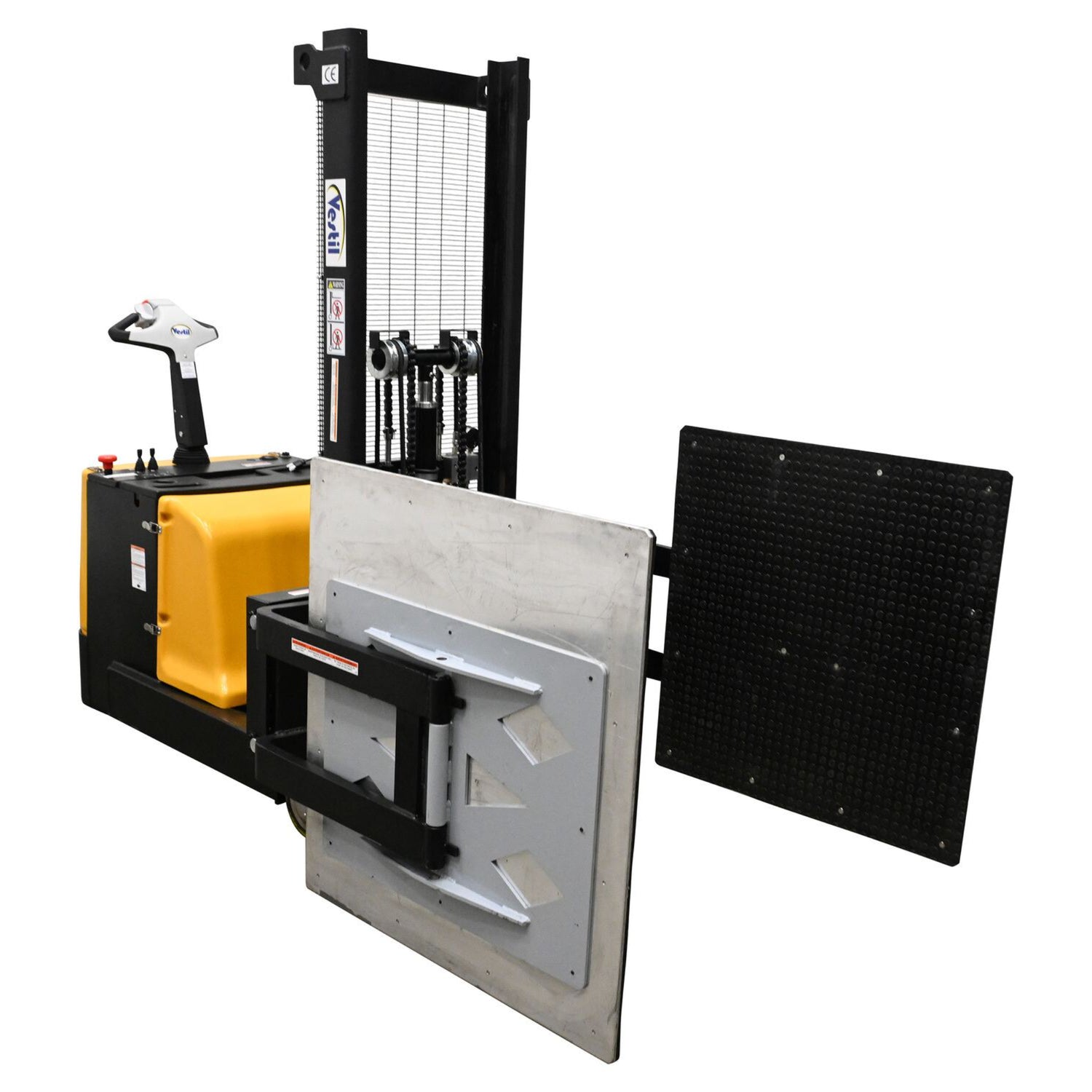

Powered bale/box side clamp — handles loads without a pallet
- Counter-balanced design — fork-truck-style access for die loading, machine feeding, truck loading/unloading
-

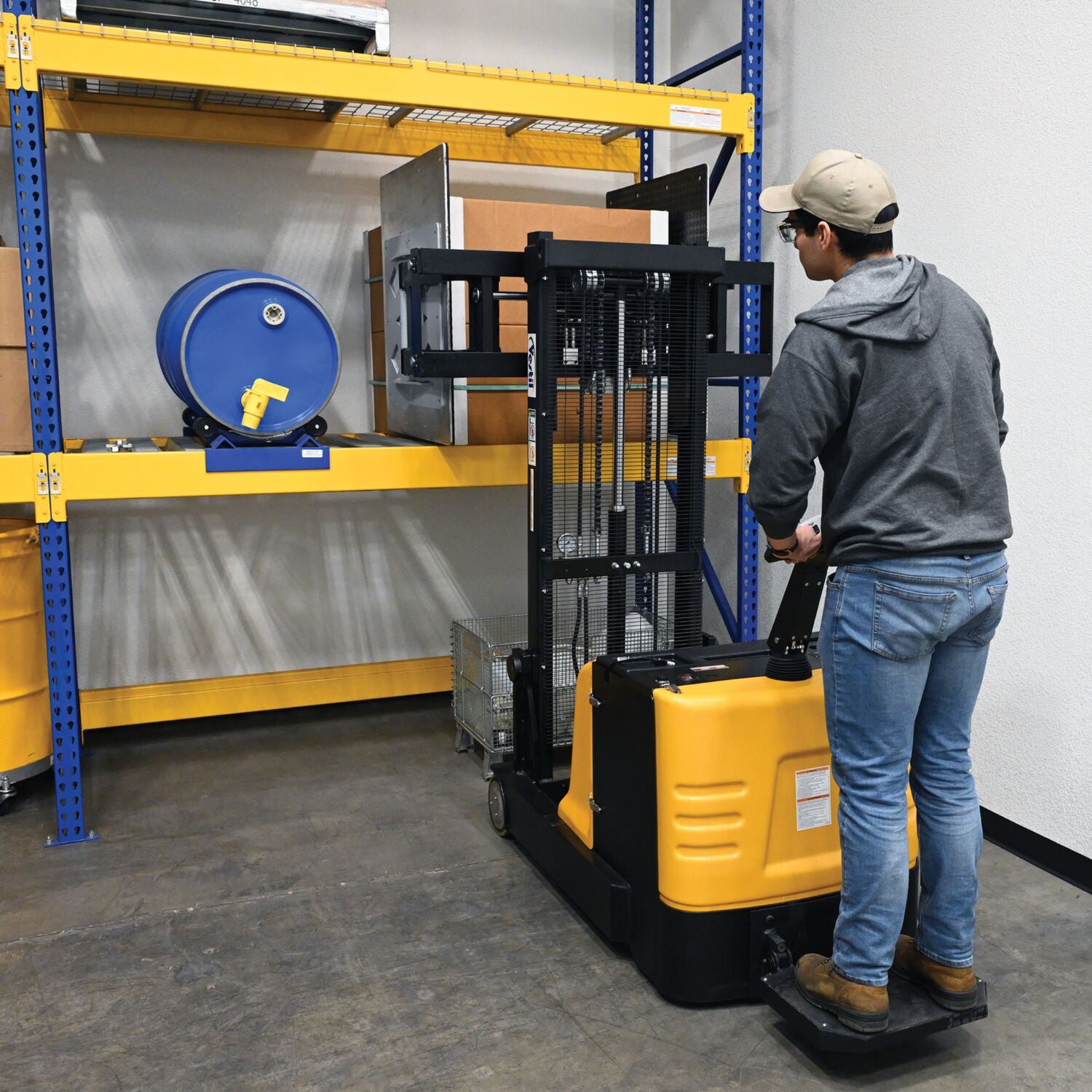

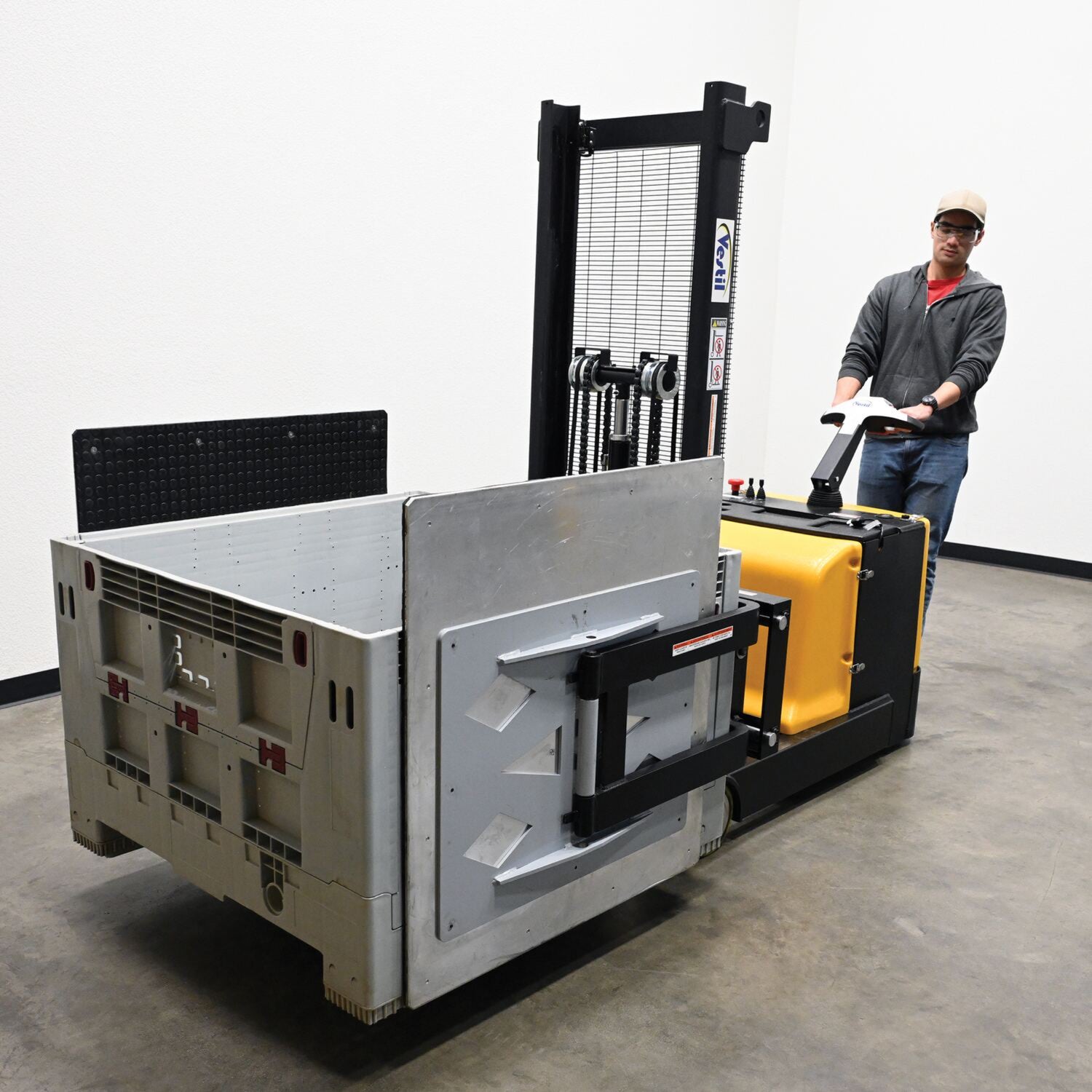

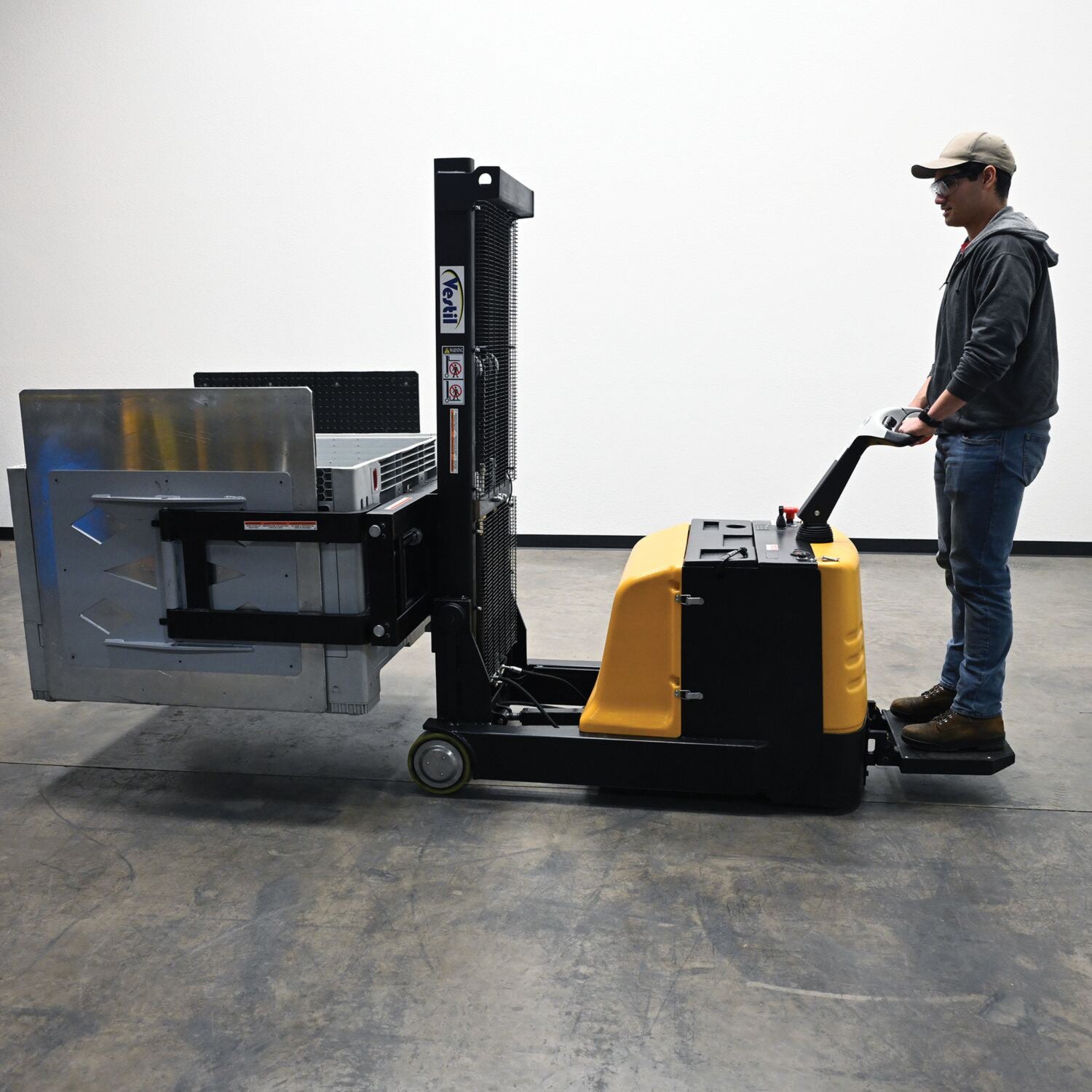

Ride-on platform for operator efficiency
- Fully powered: 0.7 KW drive motor + 2.0 KW lift motor

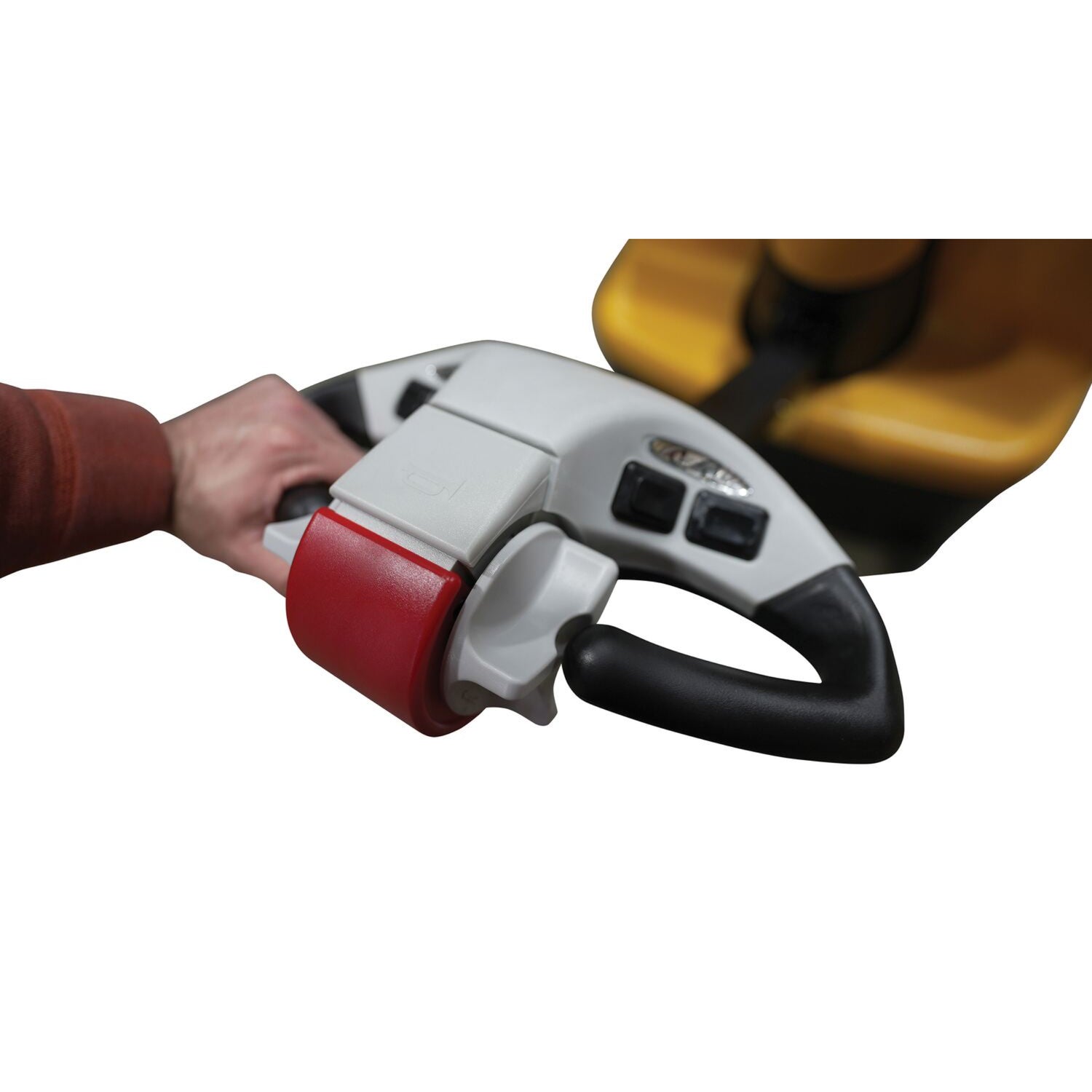

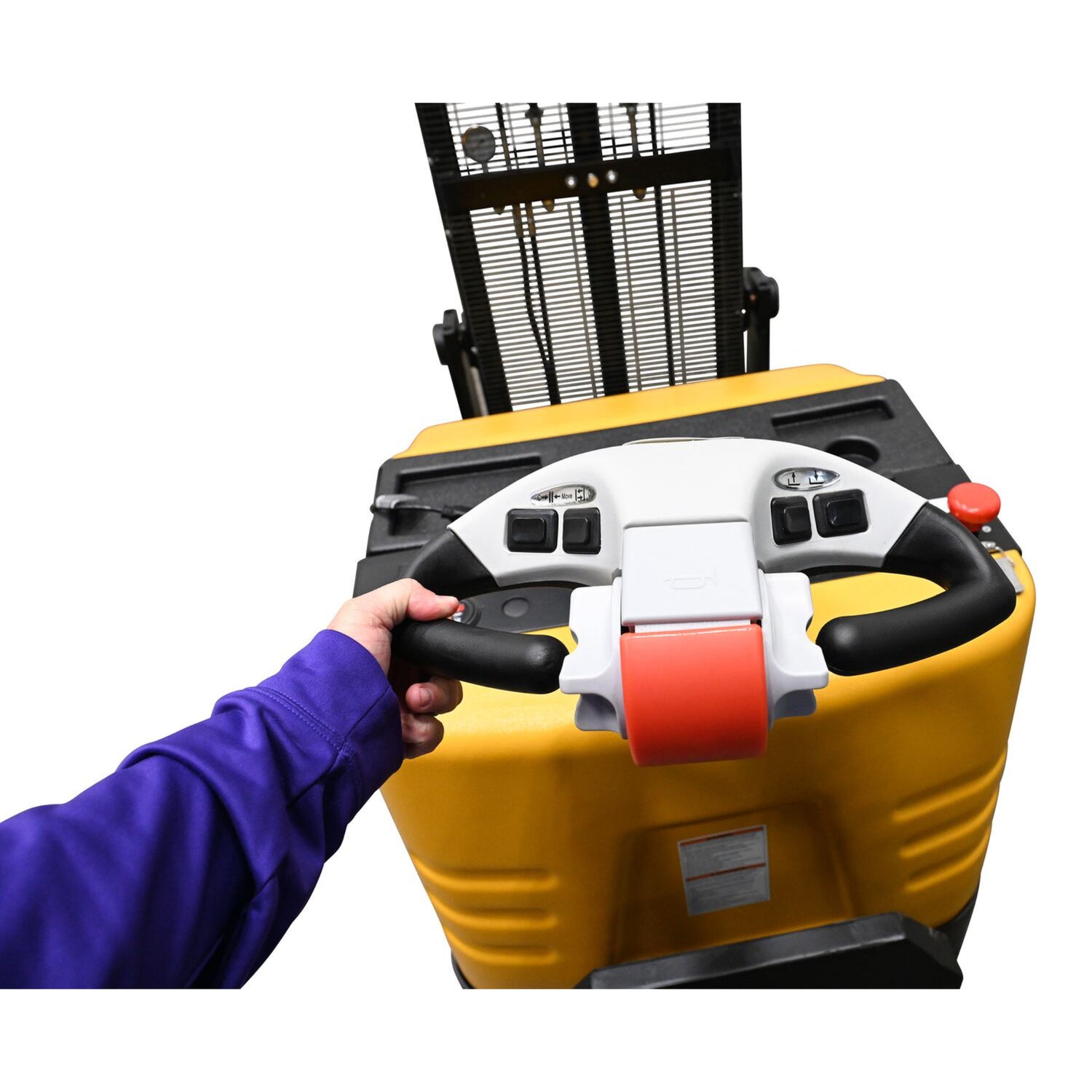

- Ergonomic handle with infinitely adjustable forward/reverse throttle

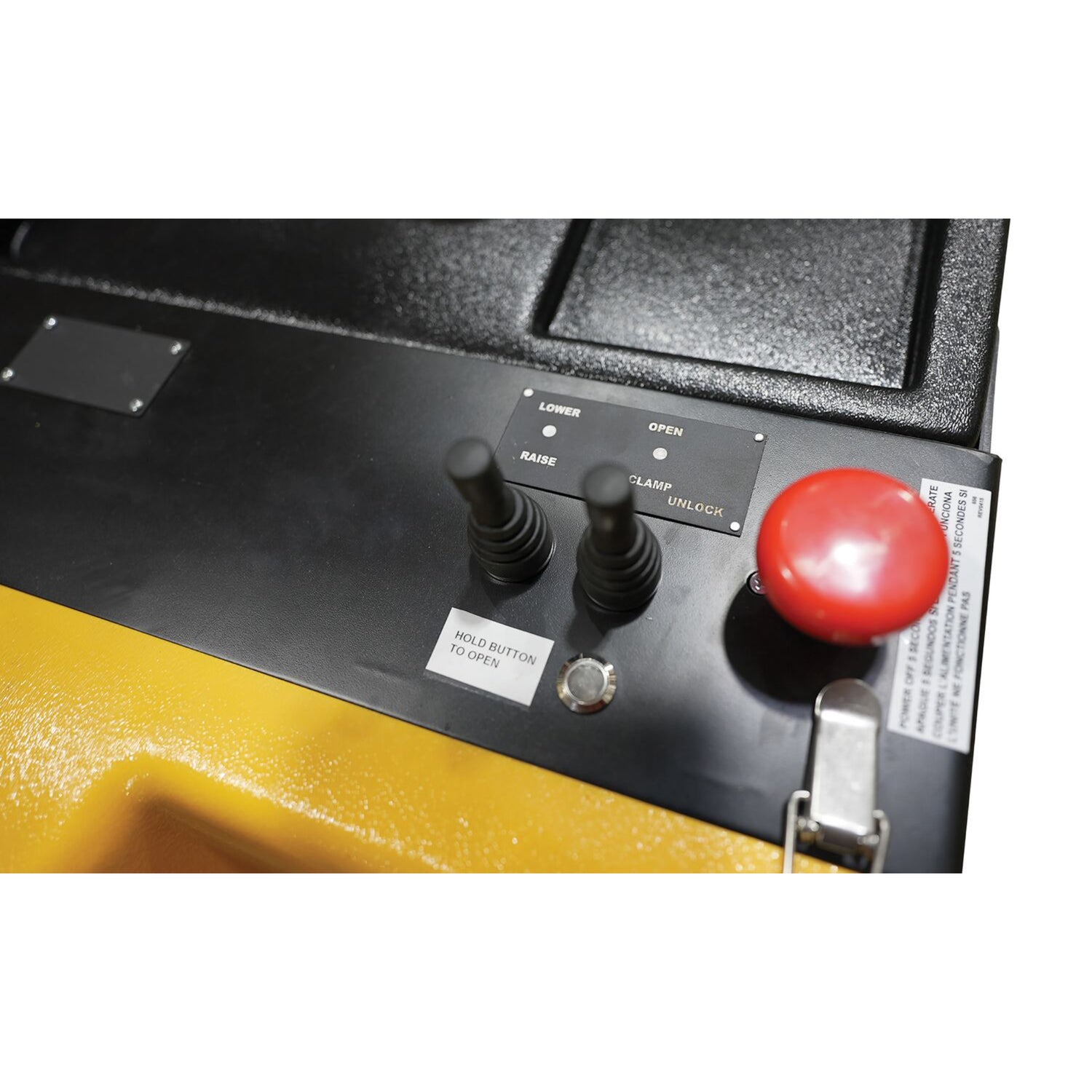

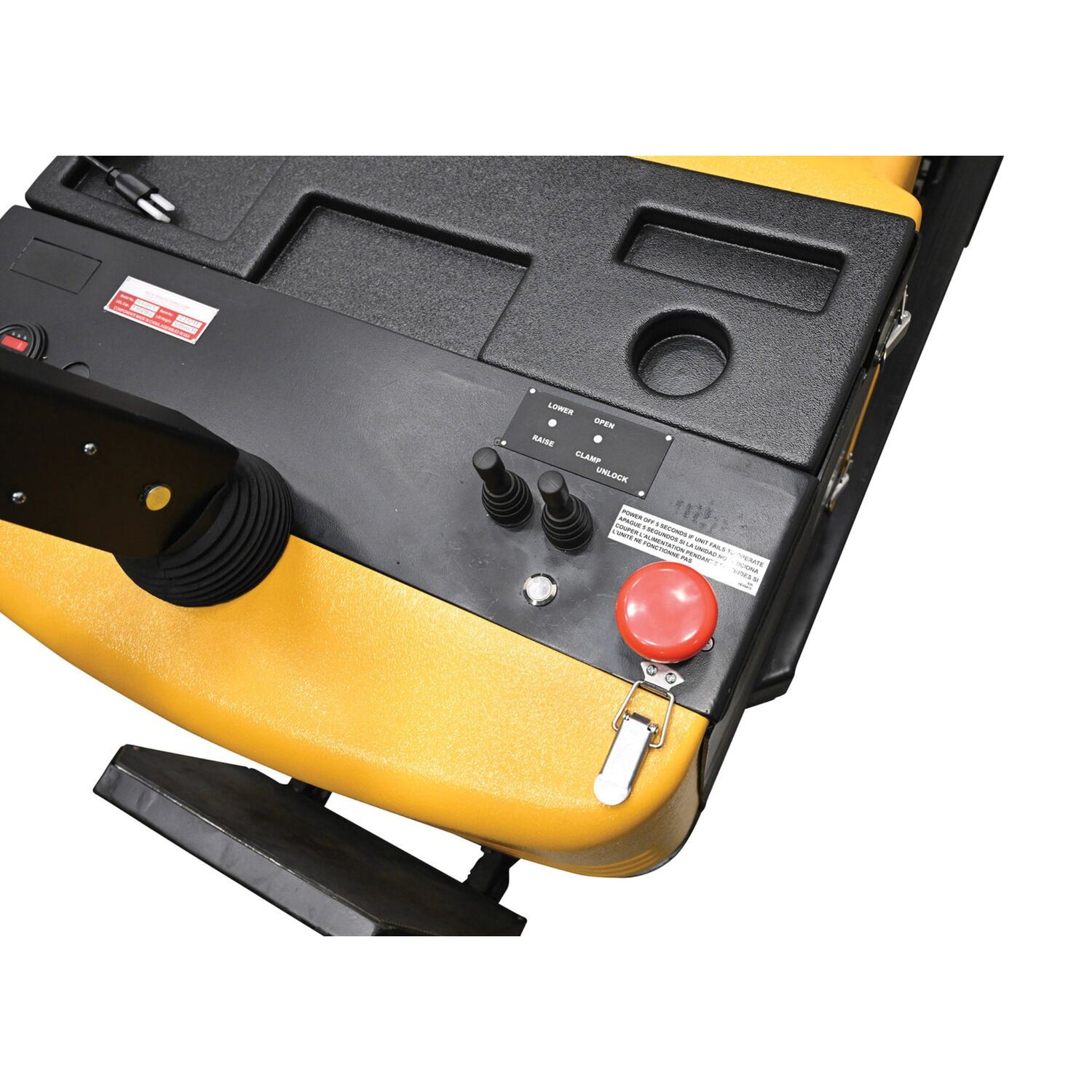

- Integrated lift/lower controls
-
Proprietary emergency reverse belly switch — instant directional reversal with 5-second safety auto-disable and reset
- Poly-on-steel steer and load wheels for smooth rolling
- Two 12V lead-acid batteries with integral charging
- 3-4 hour continuous / 8-hour intermittent operation per charge
- Available in two clamp ranges: 23"–41" or 27"–51"
- Engineering drawings and testing certificates available
- ⚠️ Bale clamp, not forks — for baled/boxed loads, not pallets
- ⚠️ Ride-on platform — requires smooth, level floors
- ⚠️ Powered industrial truck — OSHA operator training required
- ⚠️ Lead-acid batteries — Prop 65 applies
- ⚠️ LTL freight required
Specifications
| S-CB-2341-BCF (23"–41" Clamp Range) |
| Description |
Counter-Balanced Powered 23"–41" Bale Clamp Lifter, 800 lb Capacity, Black/Yellow |
| Capacity |
800 lb uniform |
| Clamp Range |
23" – 41" |
| Minimum Clamp Width |
23-5/8" |
| Drive |
24VDC powered drive, 0.7 KW motor, ride-on platform |
| Lift |
24VDC powered lift, 2.0 KW motor |
| Battery |
Two 12V lead-acid + integral charger ⚠️ Prop 65 |
| Run Time |
3-4 hr continuous / 8 hr intermittent per charge |
| Wheels |
Poly-on-steel steer & load wheels |
| Safety |
Emergency reverse belly switch (5-sec auto-disable + reset) |
| Operator Position |
Ride-on platform |
| Color |
Black / Yellow |
| Net Weight |
Confirm at order (contact us) |
| S-CB-2751-BCF (27"–51" Clamp Range) |
| Description |
Counter-Balanced Powered 27"–51" Bale Clamp Lifter, 800 lb Capacity, Black/Yellow |
| Capacity |
800 lb uniform |
| Clamp Range |
27" – 51" |
| Minimum Clamp Width |
27-9/16" |
| Drive |
24VDC powered drive, 0.7 KW motor, ride-on platform |
| Lift |
24VDC powered lift, 2.0 KW motor |
| Battery |
Two 12V lead-acid + integral charger ⚠️ Prop 65 |
| Run Time |
3-4 hr continuous / 8 hr intermittent per charge |
| Wheels |
Poly-on-steel steer & load wheels |
| Safety |
Emergency reverse belly switch (5-sec auto-disable + reset) |
| Operator Position |
Ride-on platform |
| Color |
Black / Yellow |
| Net Weight |
2,641 lb |
Manuals & Documentation
- Engineering Drawings: S-CB-2341-BCF, S-CB-2751-BCF
- Testing Certificates: S-CB-2341-BCF, S-CB-2751-BCF
- SDS: Lead/Acid Battery (Midwest) + Hydraulic Oil (HO150)
- Marketing Brochure: Fully Powered Bale Clamp & Lift Stackers (available on request)
Owner's manual not yet published for this new model — contact us and we will request it from Vestil through our dealership.
⚠️ California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds (lead-acid batteries) and hydraulic oil components, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
