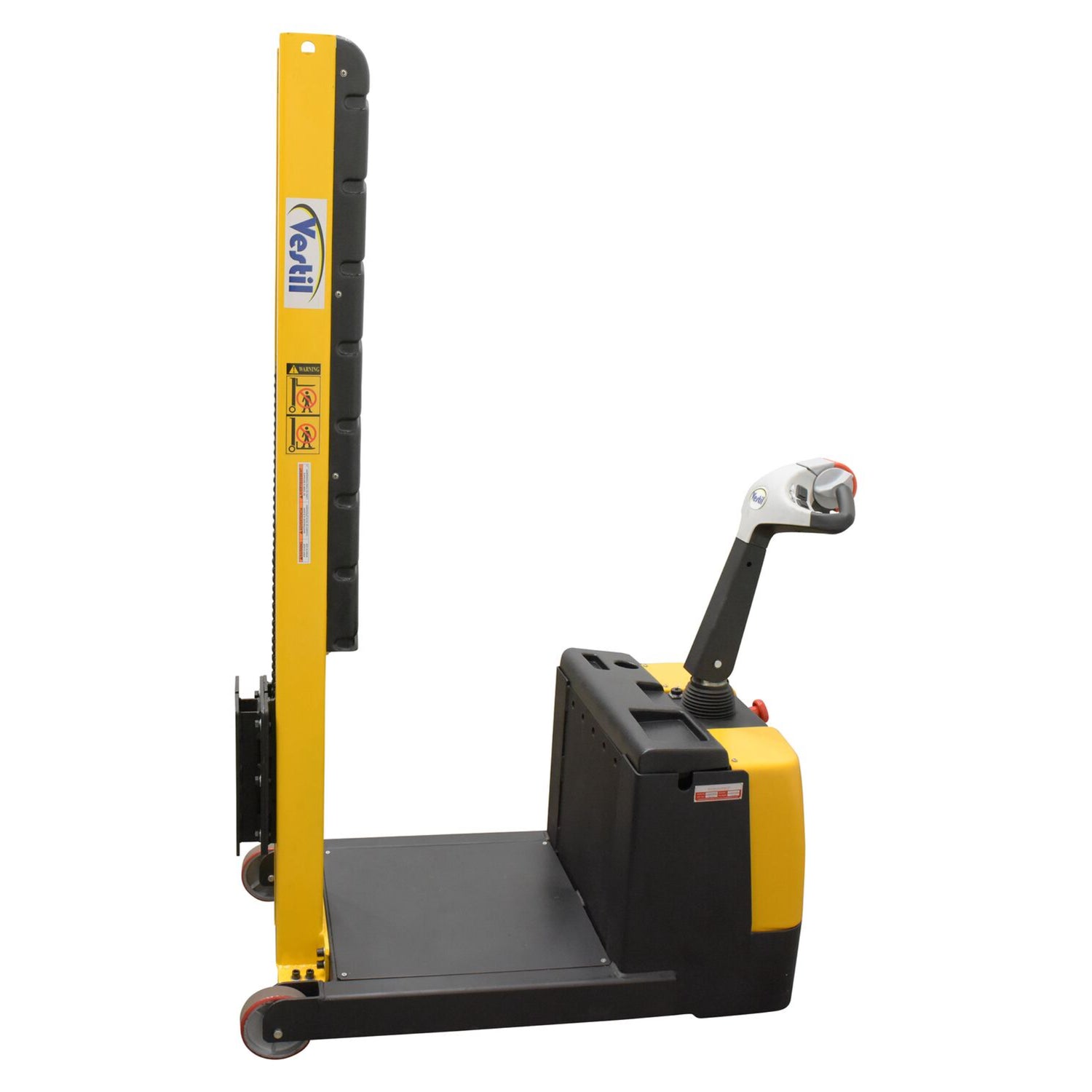

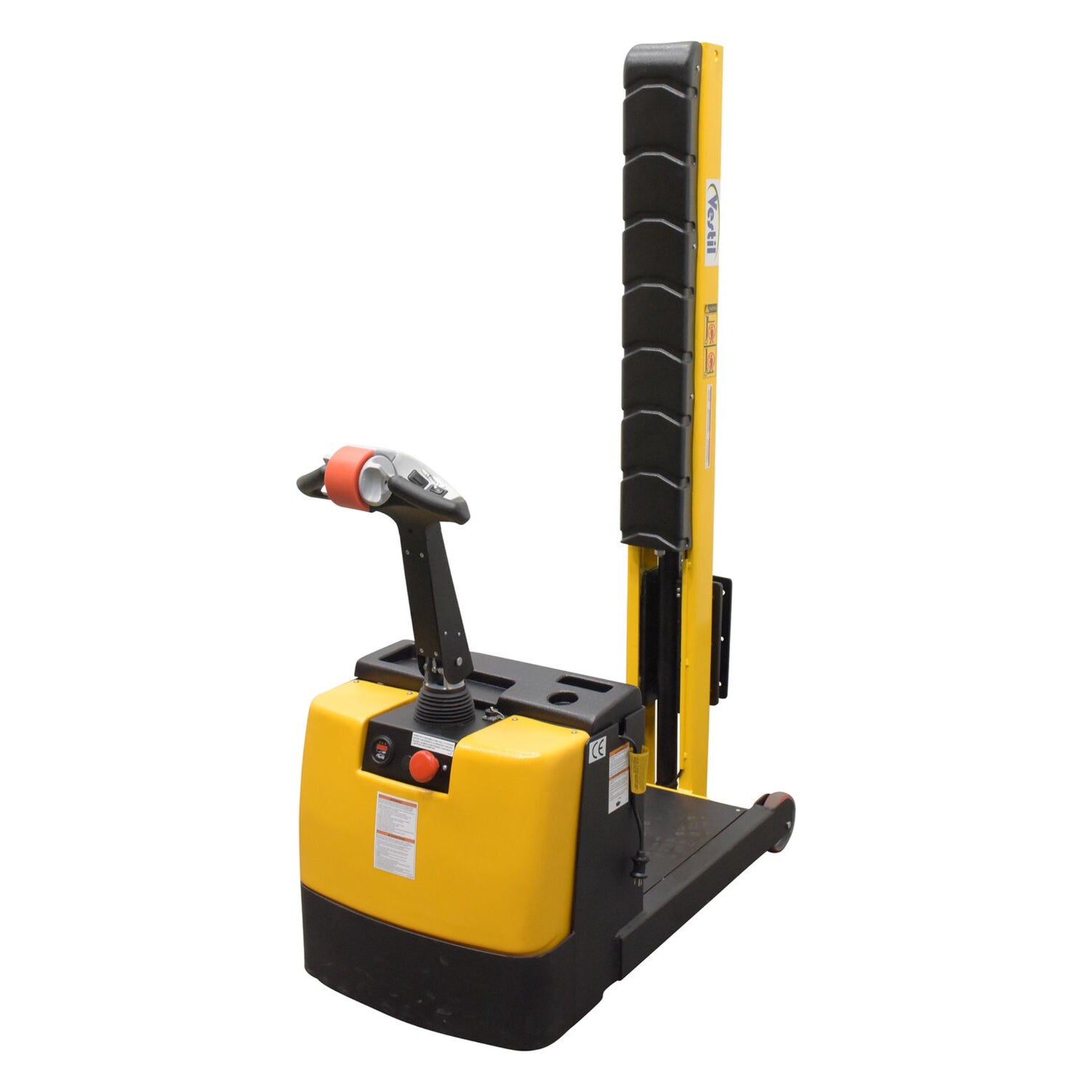

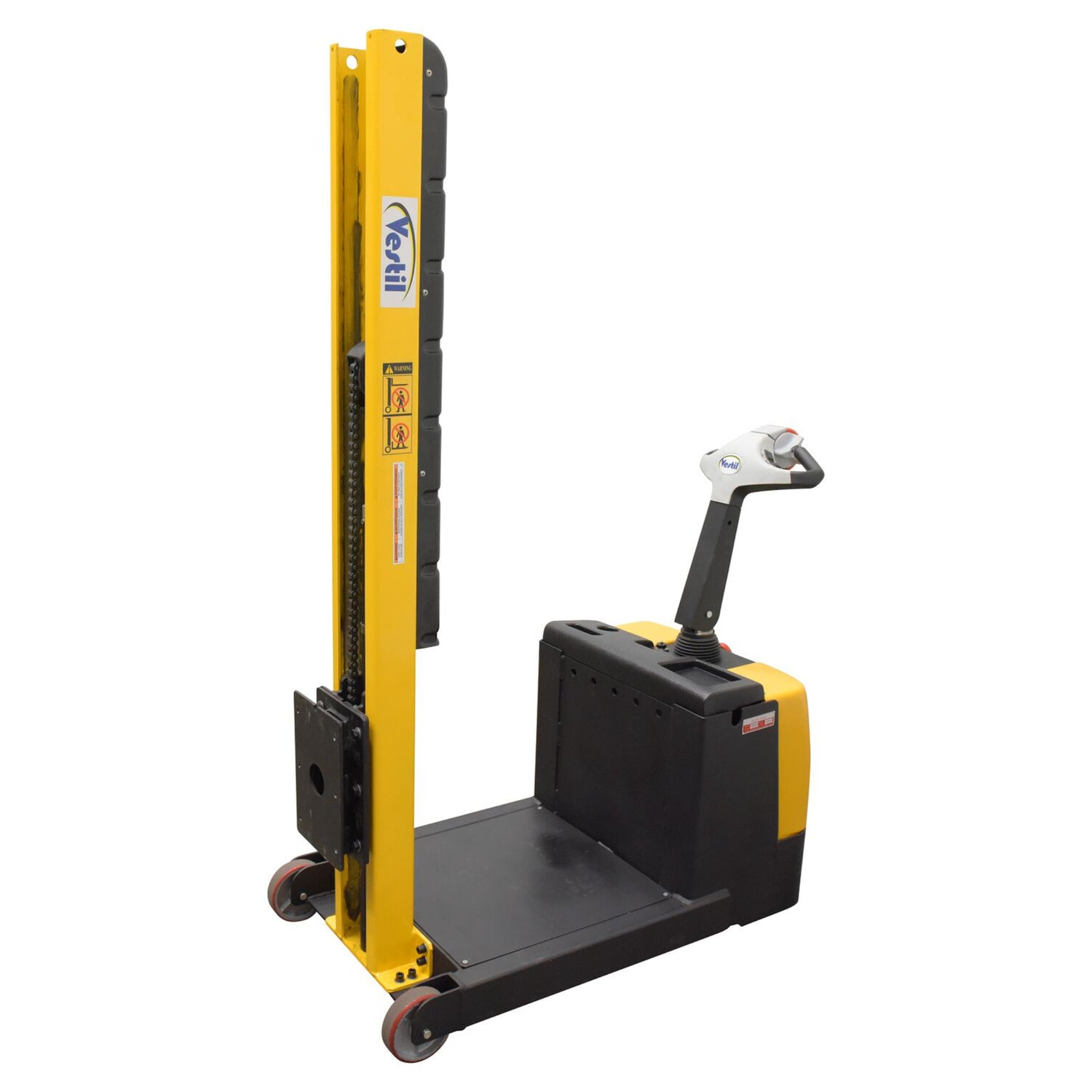

Vestil S-CB-NM-60 Counter-Balanced Narrow Mast Powered Stacker — 600 lb, 60" Lift, 17 Quick-Change Attachments
The Vestil S-CB-NM-60 is a NEW counter-balanced narrow mast powered stacker built for die loading, machine feeding, and truck loading/unloading in confined areas. Rated at 600 lb capacity with a 60" lift height and a compact 51-9/16"L × 25-9/16"W footprint, its real strength is versatility: a quick-attach system supports 17 interchangeable attachments (forks, drum grippers, roll lifters, spindles, reel rotators, and more), turning one base unit into a complete material-handling toolkit.
Why It's Different: No other compact stacker in this class offers this breadth of swappable tooling on a single counter-balanced narrow mast platform that fits where larger equipment can't.
Best For: Confined-area die loading and machine feeding, tight-aisle warehouse operations, drum handling facilities, paper/carpet/textile operations, reel and spool handling, and any multi-task operation that benefits from one compact base unit with interchangeable tooling.
⚠️ 600 lb base capacity — this is a compact, light-duty unit. For heavier loads, see the Vestil S-CB / S-2CB Counter-Balanced Powered Drive Lifts (1,000–2,000 lb).
⚠️ Attachment capacities vary — each attachment carries its own rating (e.g., Ball Hitch 600 lb, Reel Rotator 200 lb). Match the attachment to your load.
⚠️ Drum grippers are application-specific — verify poly vs steel drum and 30 vs 55 gallon before selecting.
⚠️ Powered industrial truck — OSHA operator training required. Operators must be trained and authorized.
⚠️ Lead-acid battery standard — California Prop 65 applies.
⚠️ LTL freight required — base unit weighs 815 lb. Receiving location must accommodate freight delivery with means to offload.
Features
-
NEW PRODUCT from Vestil Manufacturing
- Made in Indiana, USA
- 600 lb capacity, 60" raised lift height
- Counter-balanced narrow mast design — no straddle legs, fits confined areas
- Compact footprint: 51-9/16"L × 25-9/16"W × 61-13/16"H
- Powered drive with ergonomic throttle (infinite forward/reverse speed adjustment)
- Integrated lift/lower controls

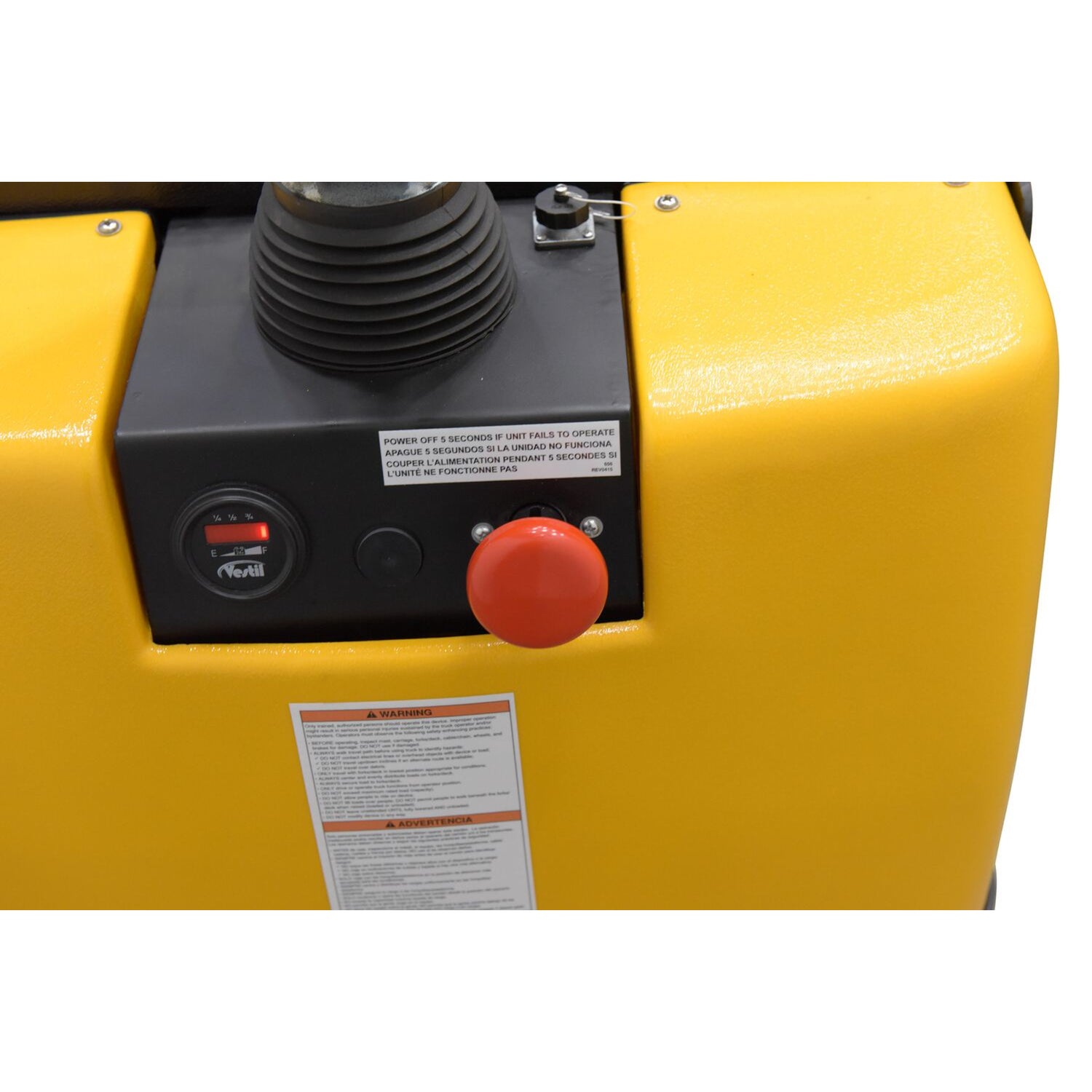

- Emergency reverse function for operator safety
- Automatic dead-man feature — activates when handle is released

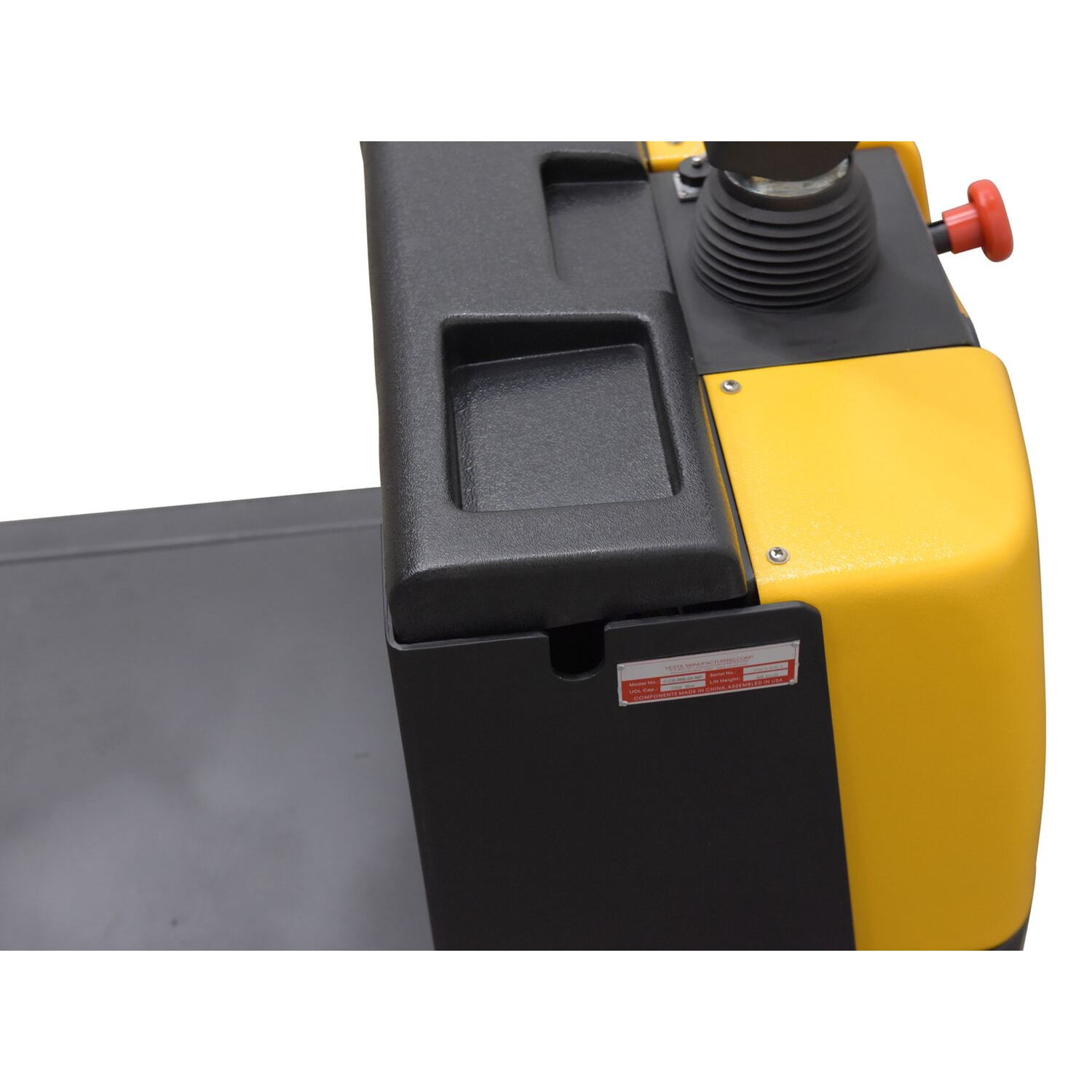

- Batteries, integral battery charger, and battery level gauge included
- Easy-access battery compartment for simplified maintenance

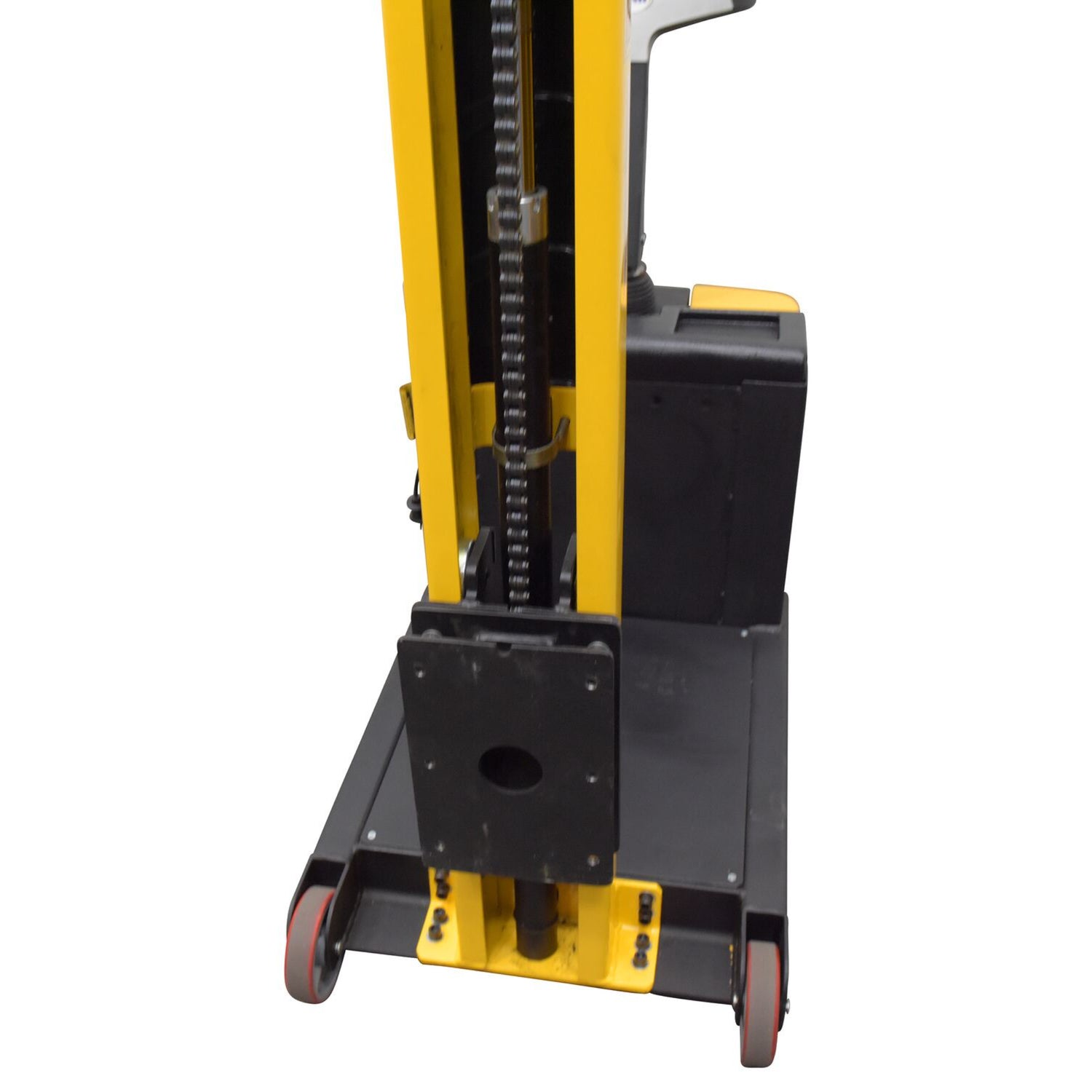

- Quick-attach system supporting 17 interchangeable attachments
- Durable steel construction, low-maintenance design
- Powder-coated Black/Yellow safety finish

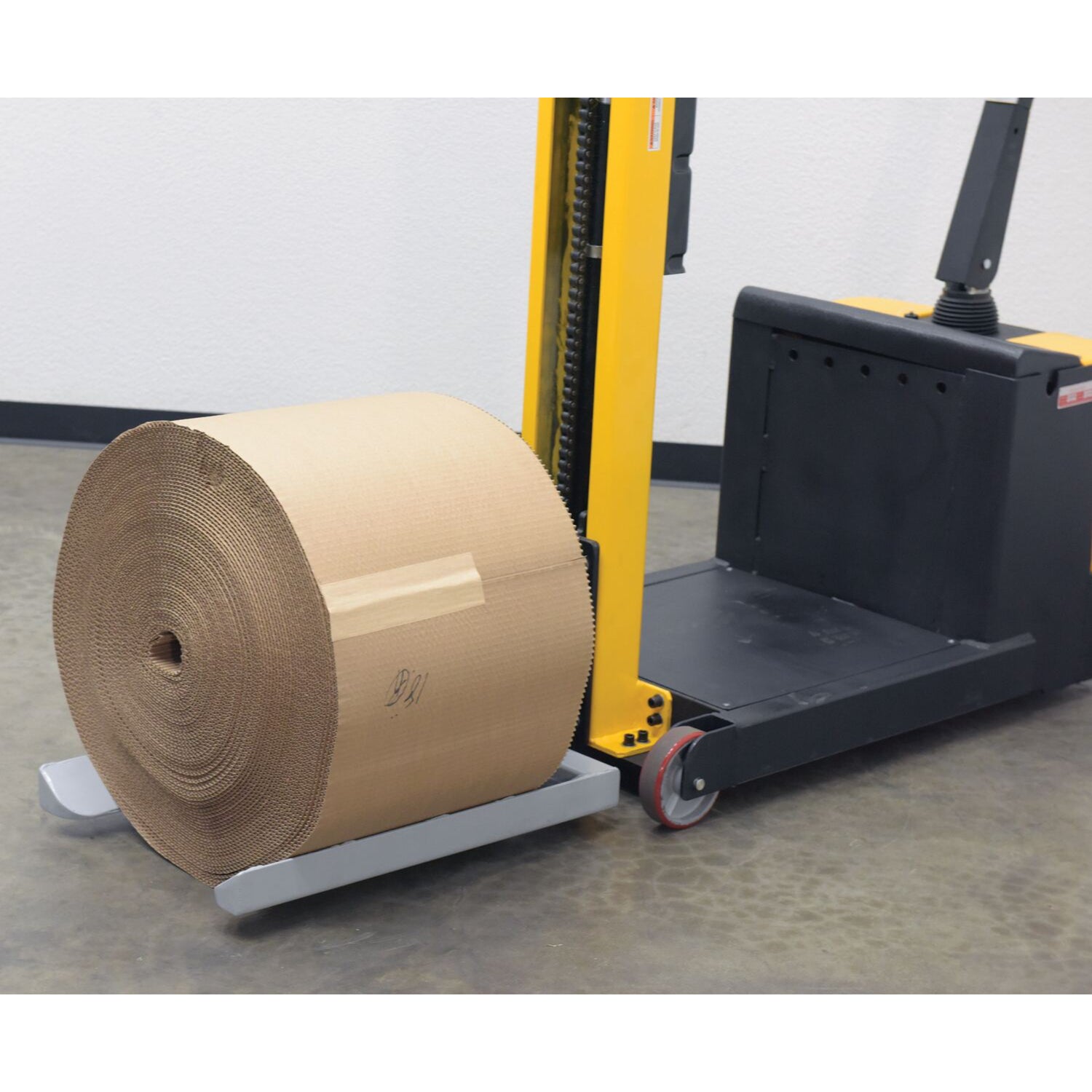

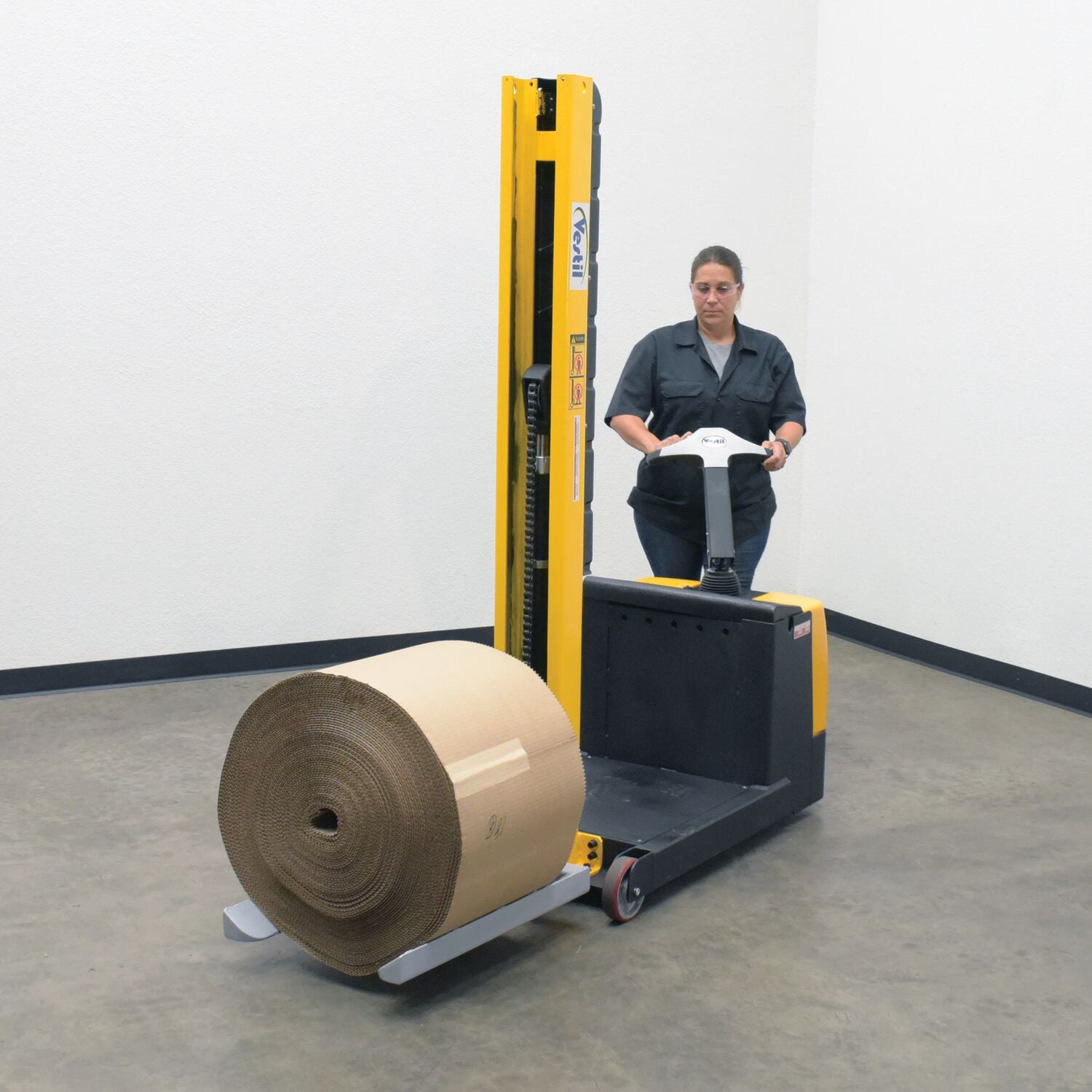

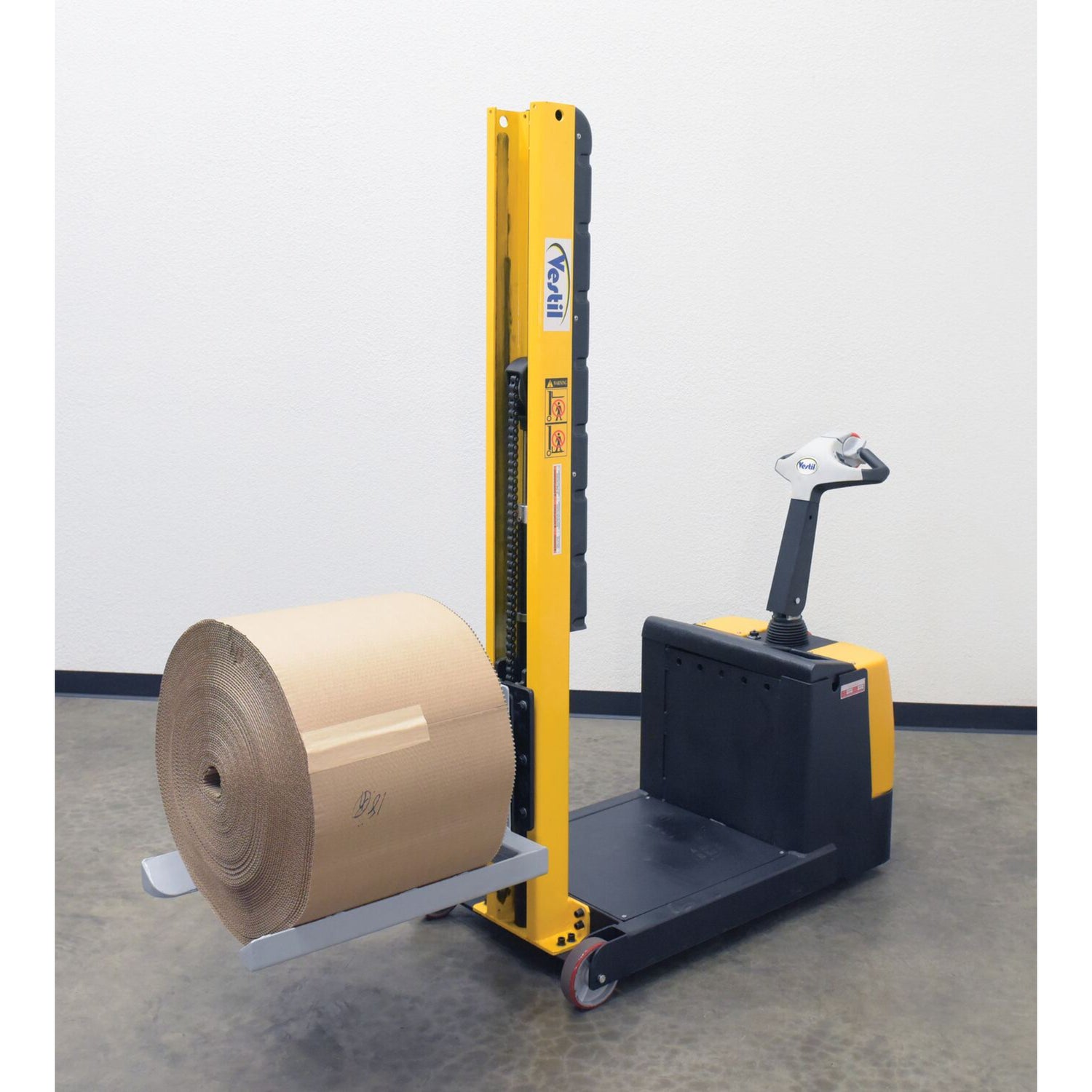

- Fork attachments: adjustable 42", fixed 30", fixed roll forks 20"/24"

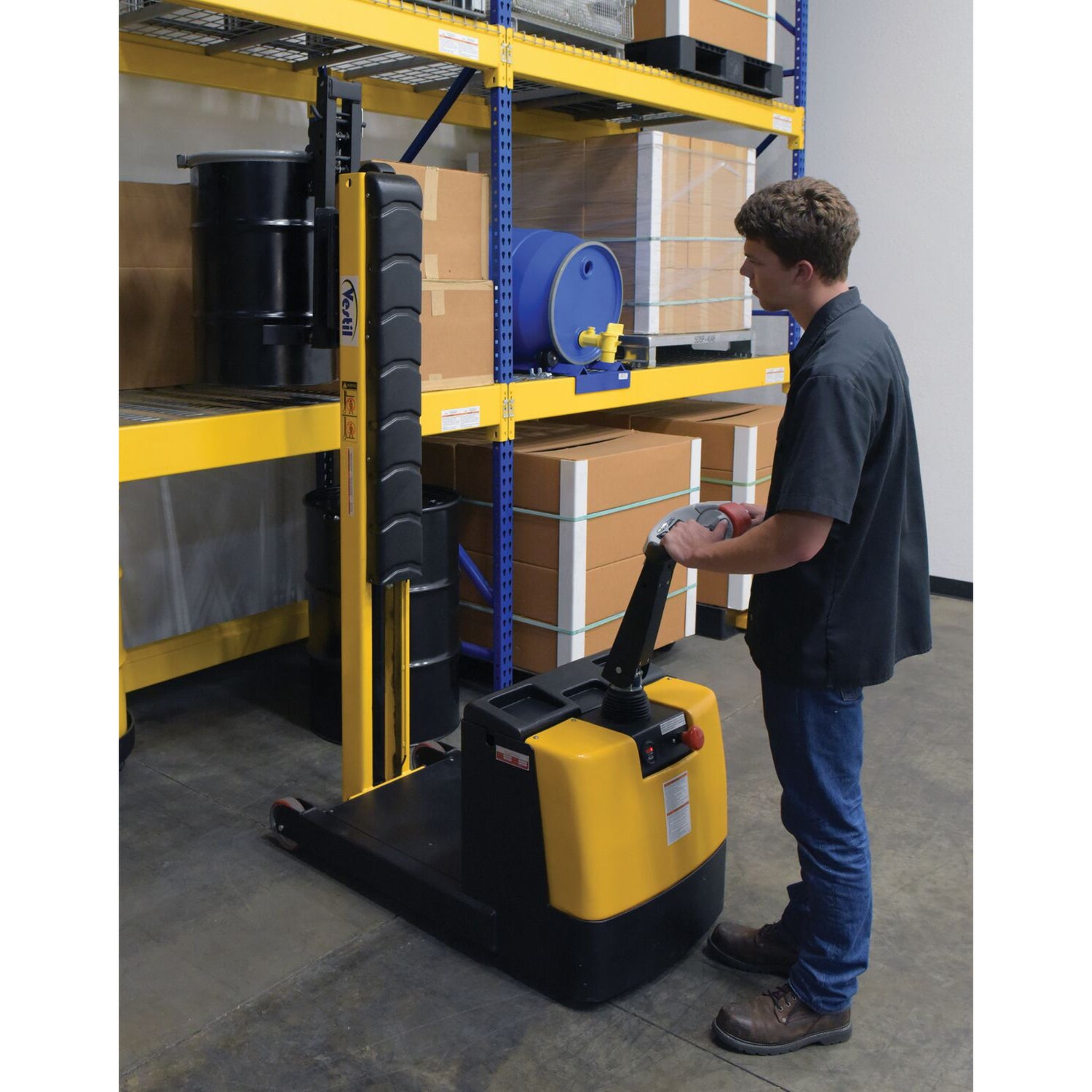

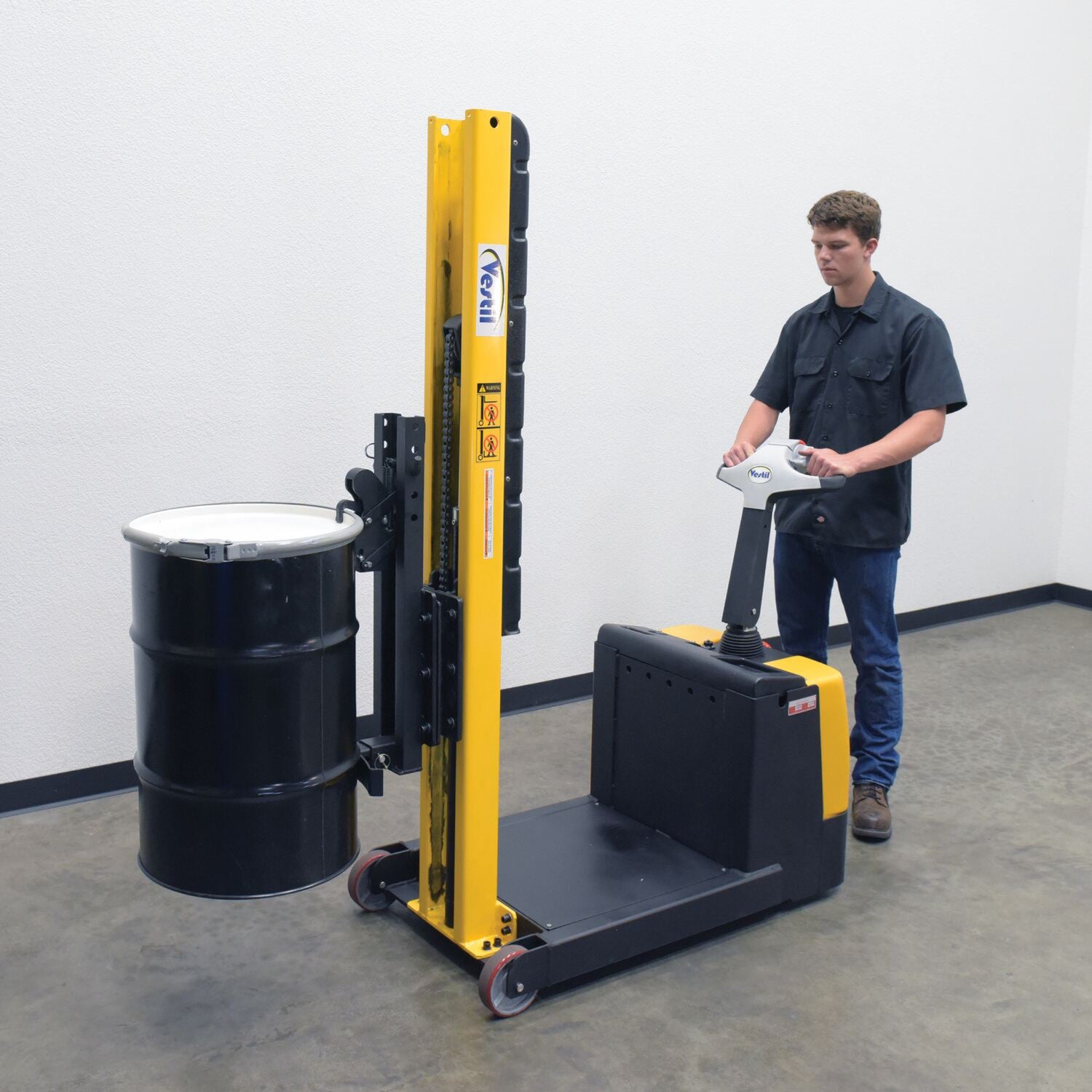

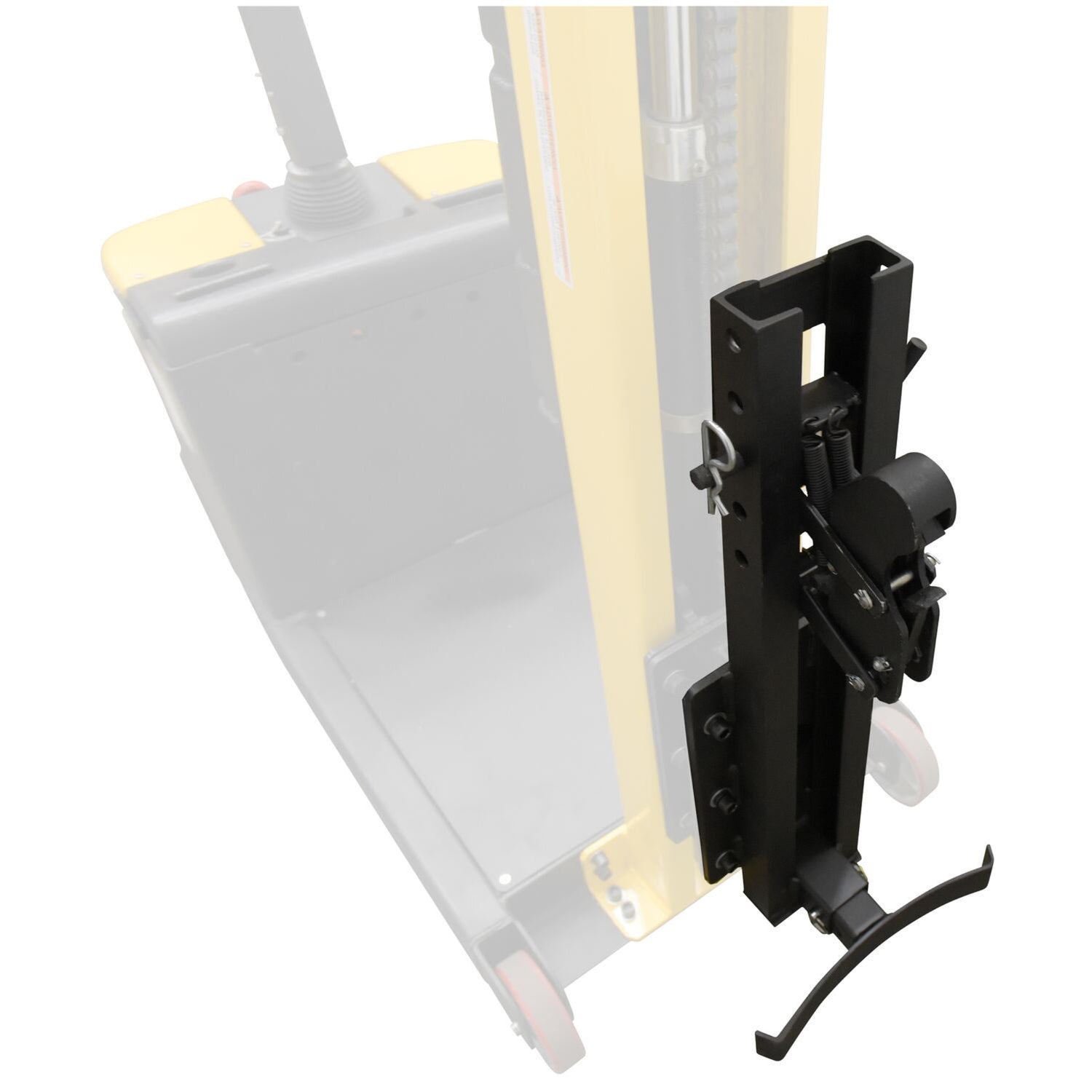

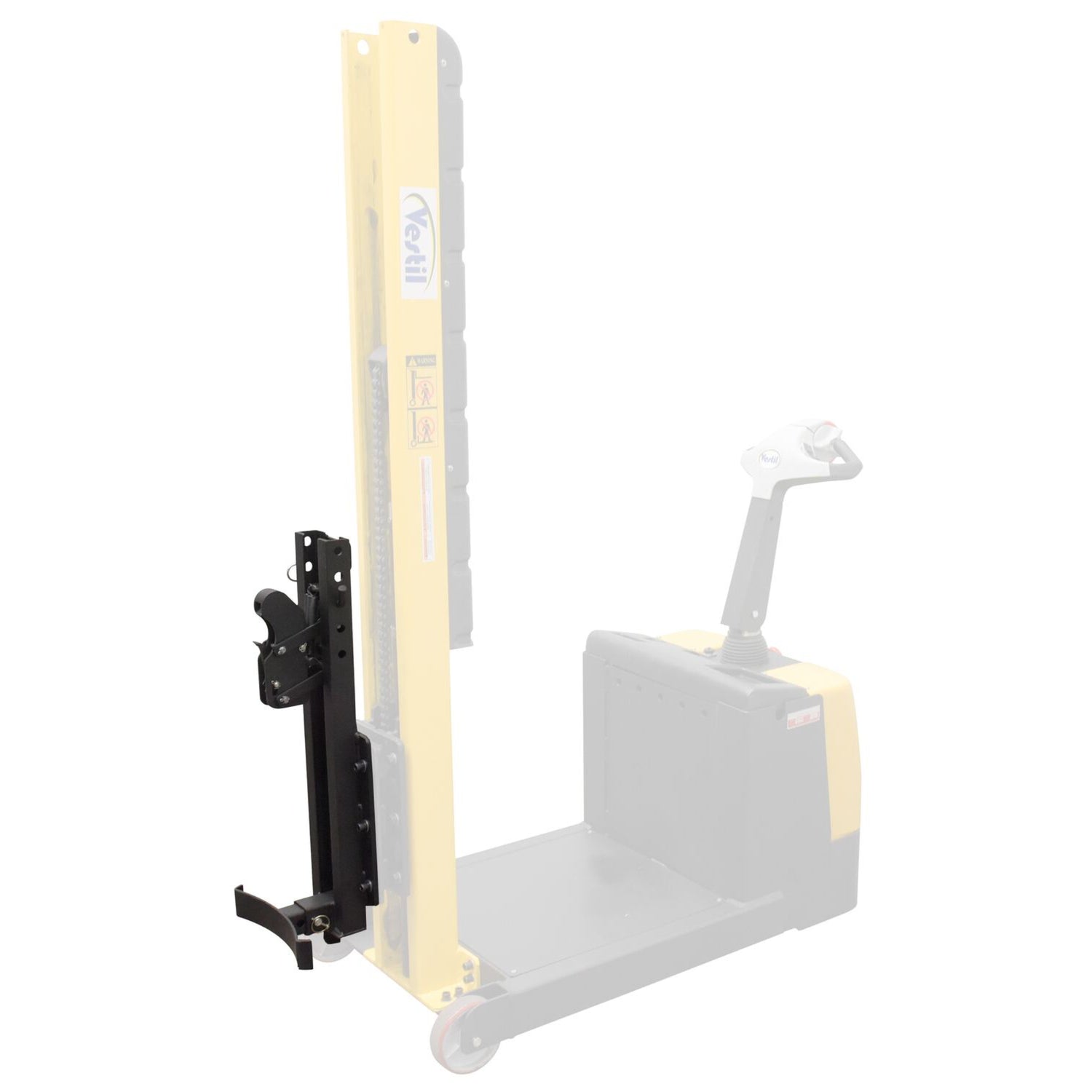

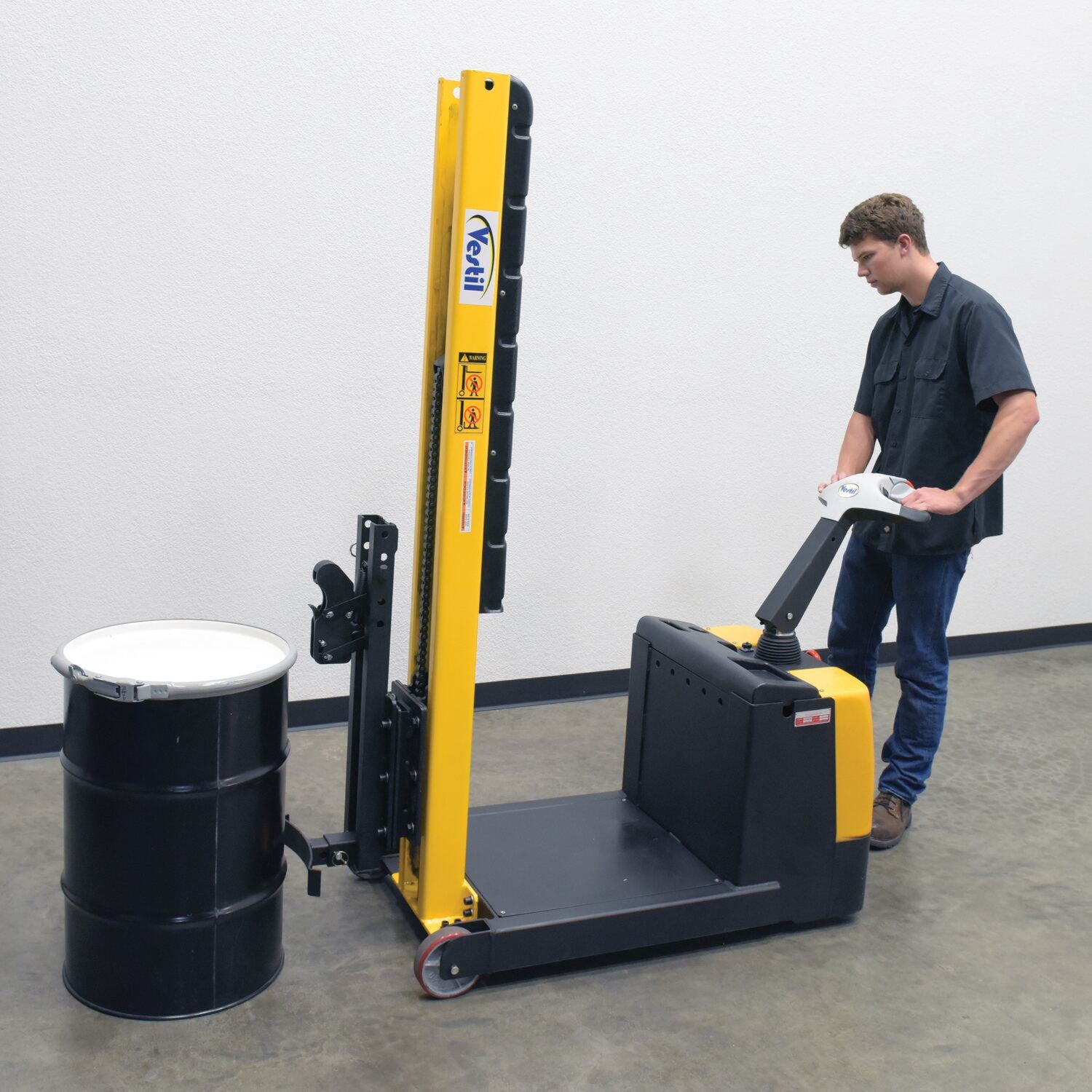

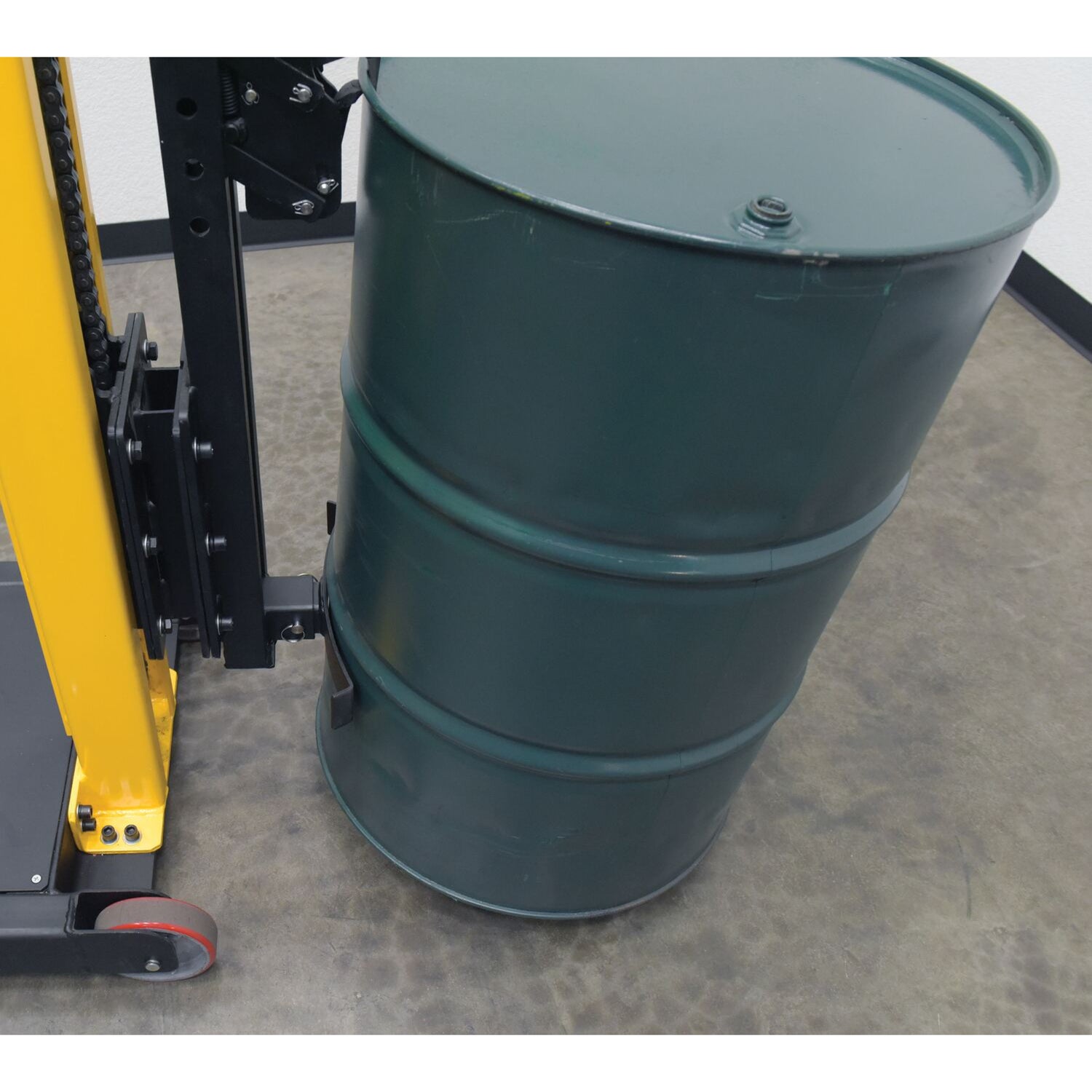

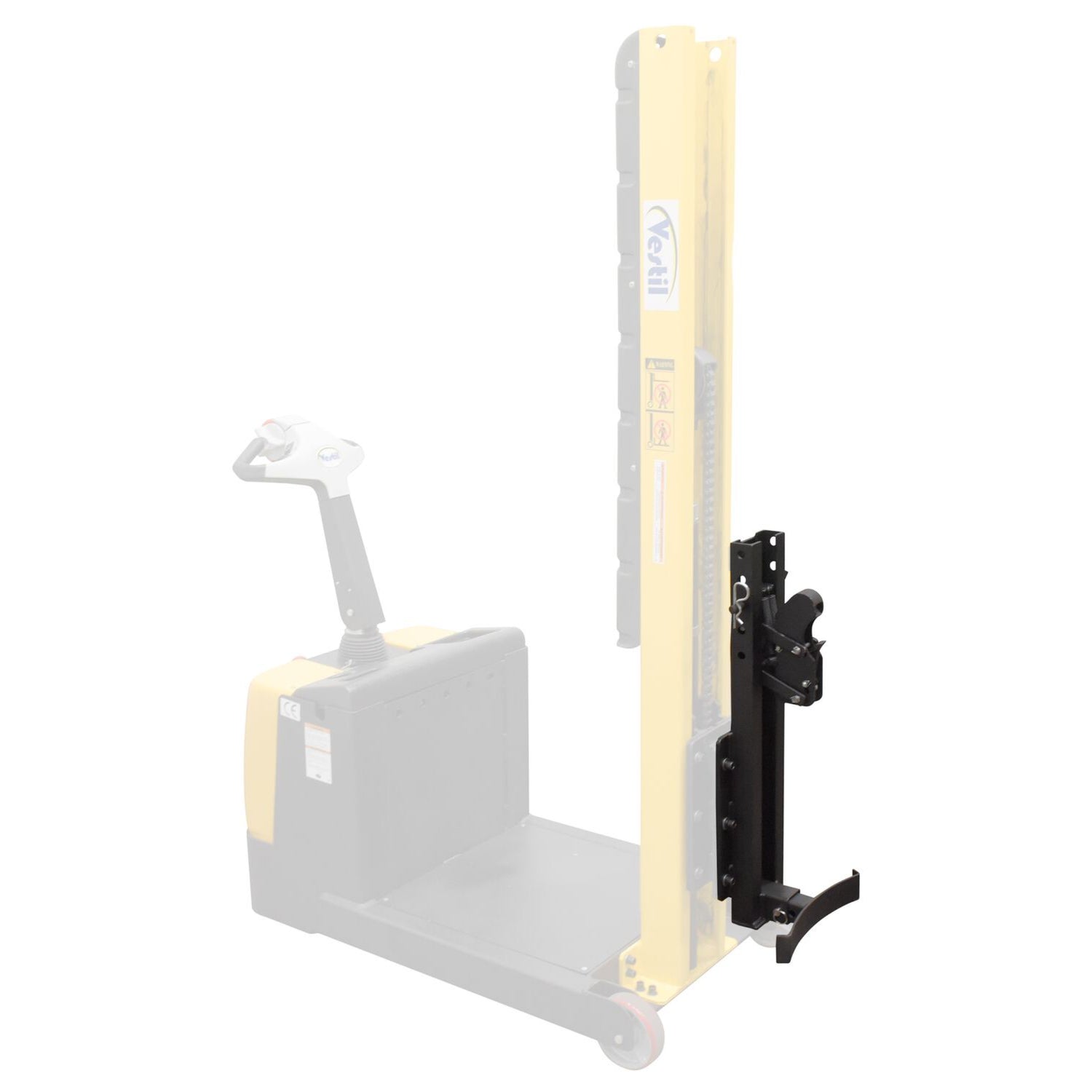

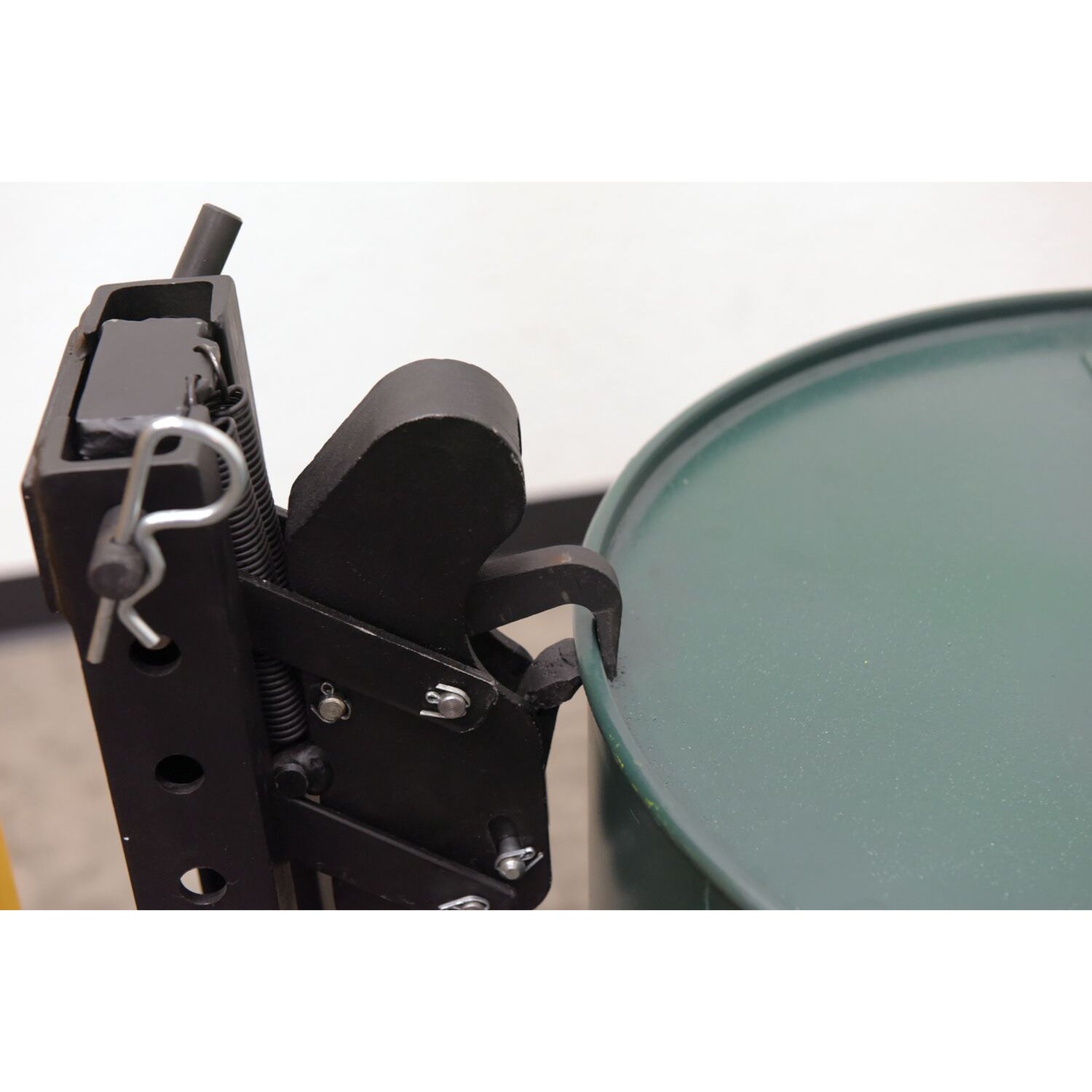

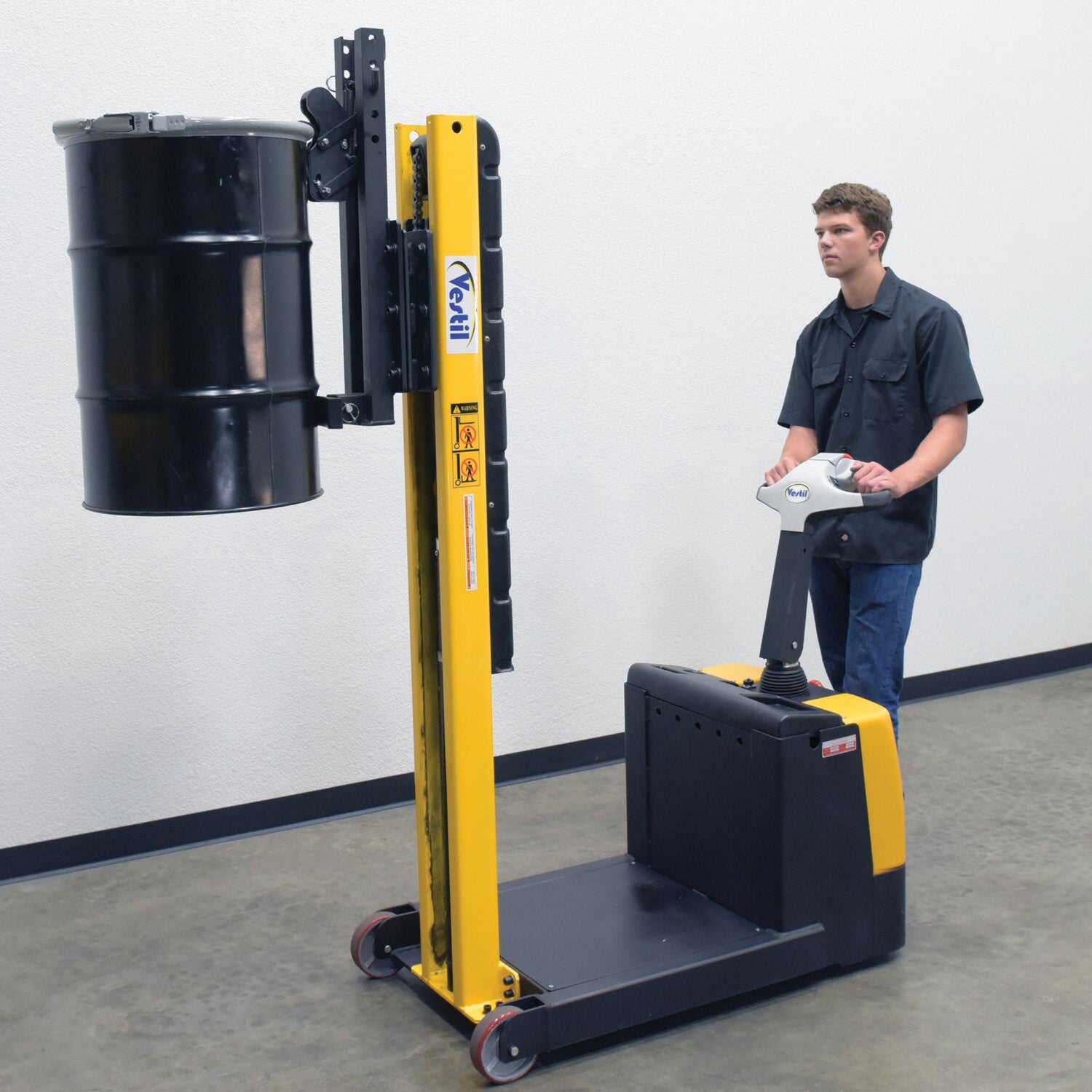

- Drum handling: single, hydraulic, steel 55-gal, poly 55-gal, poly 30-gal grippers

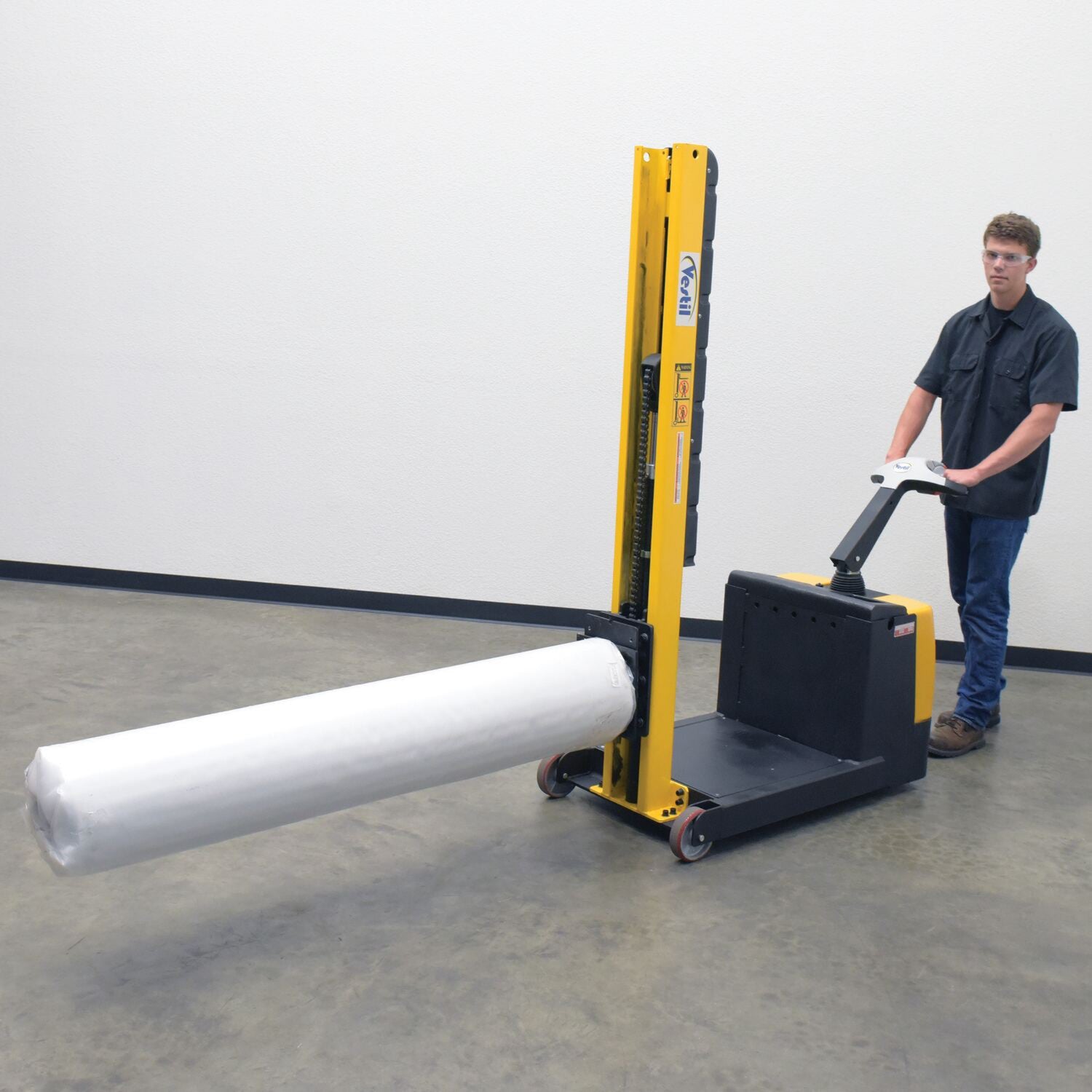

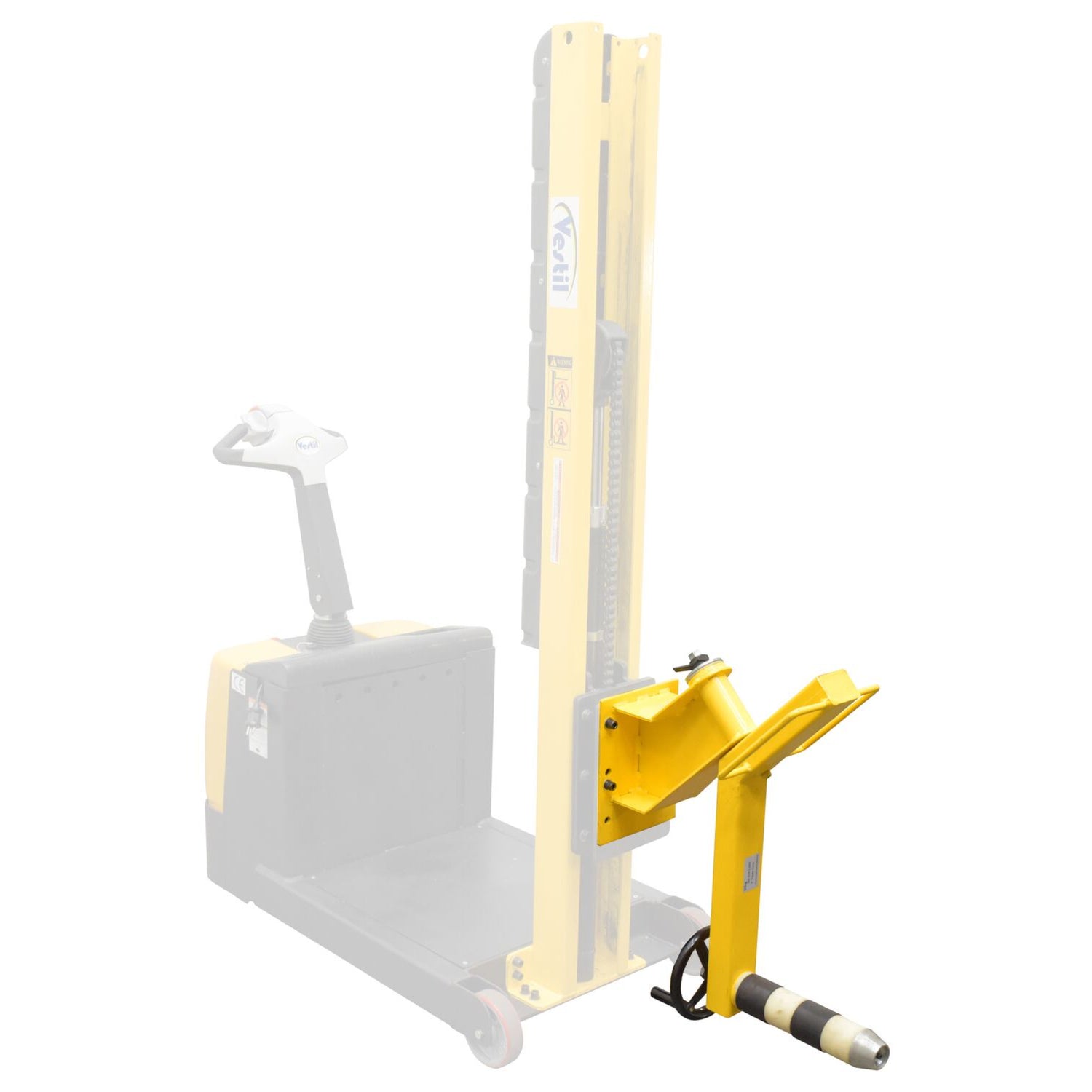

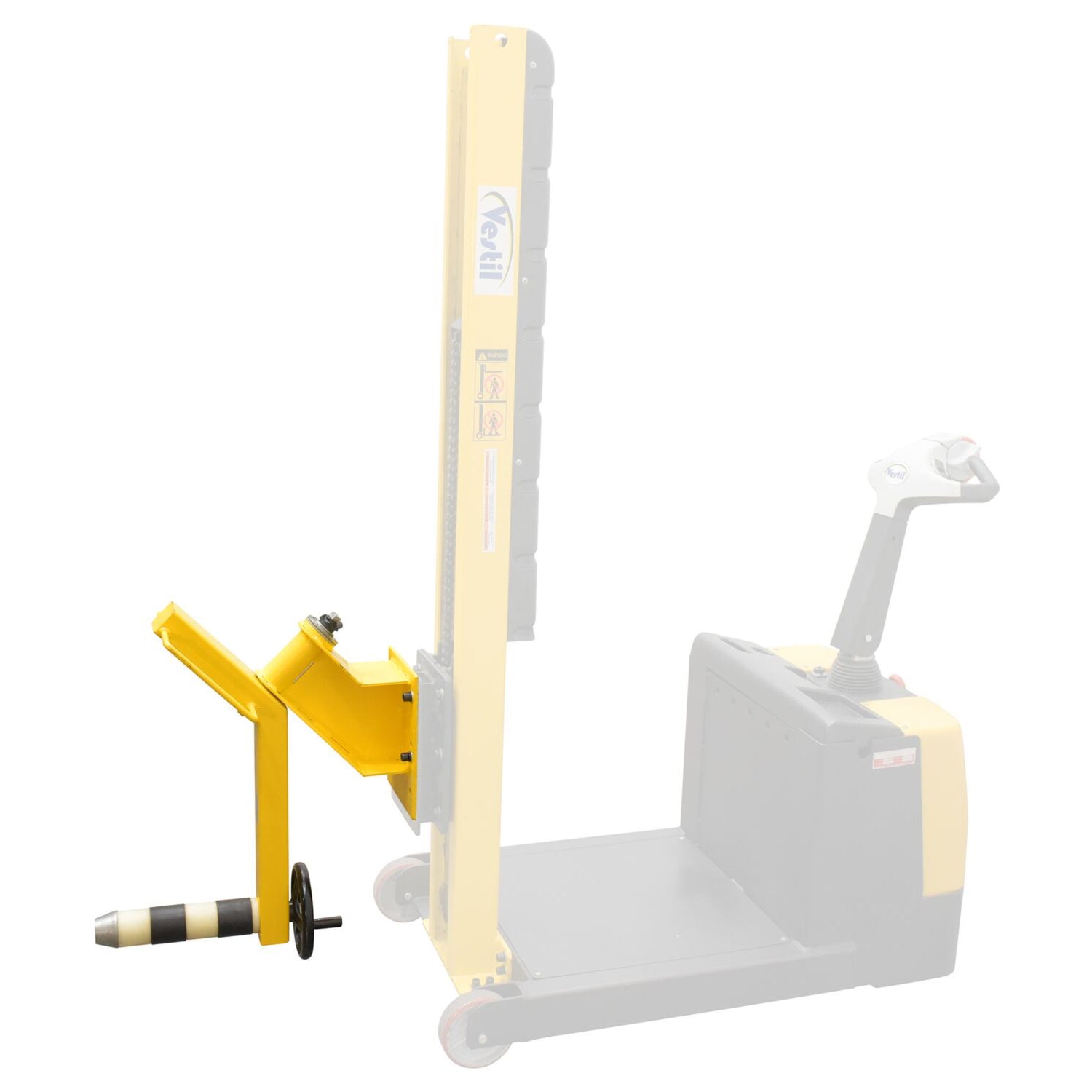

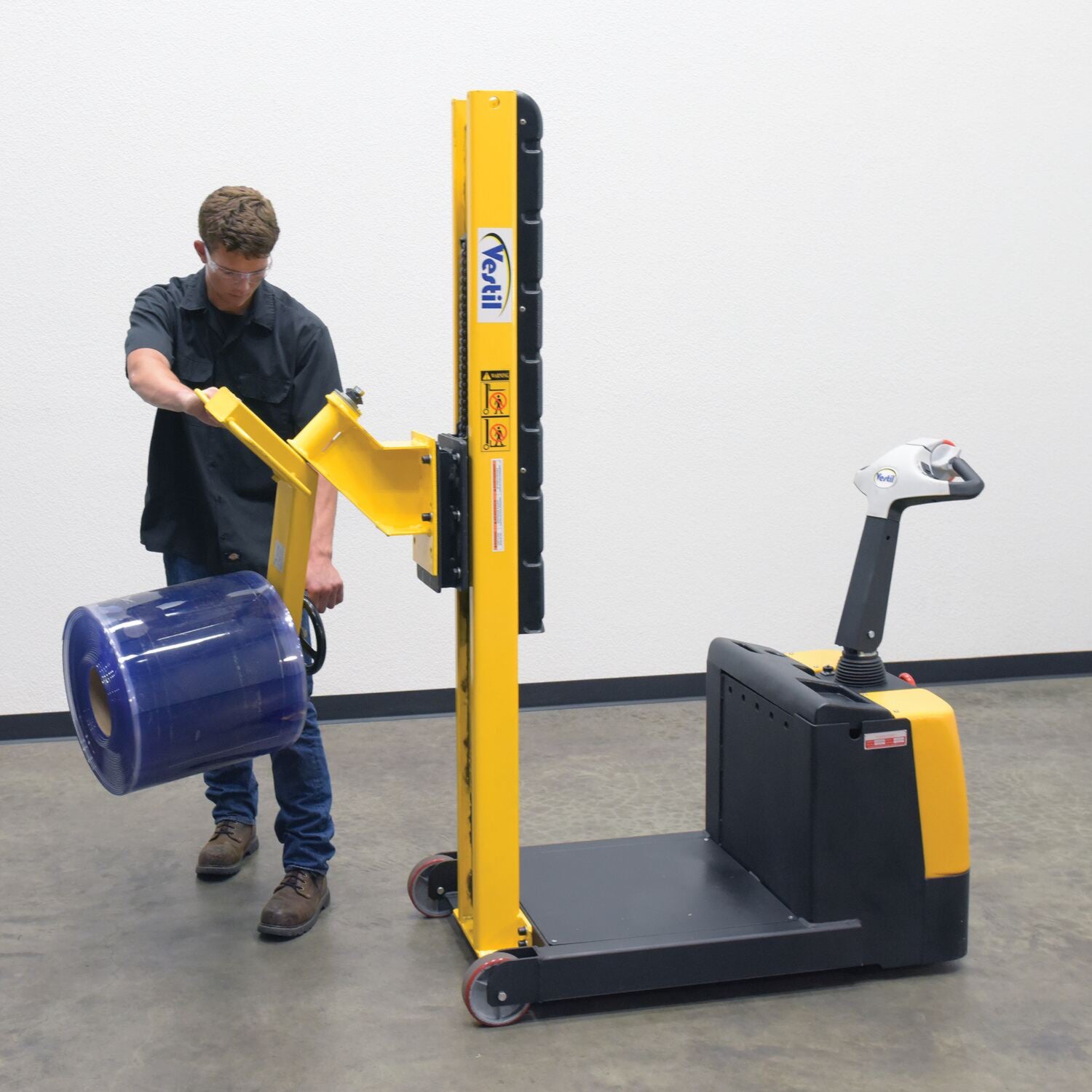

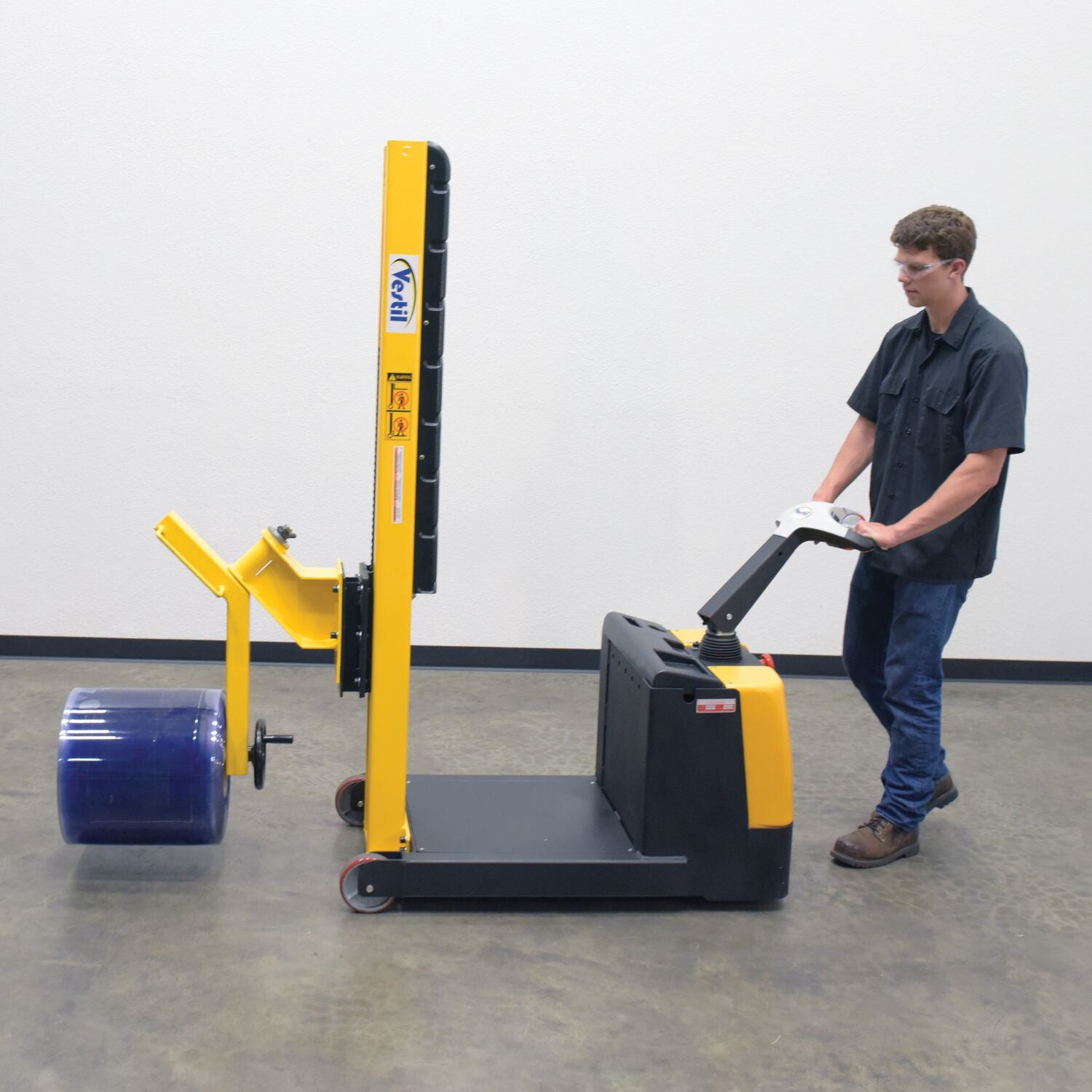

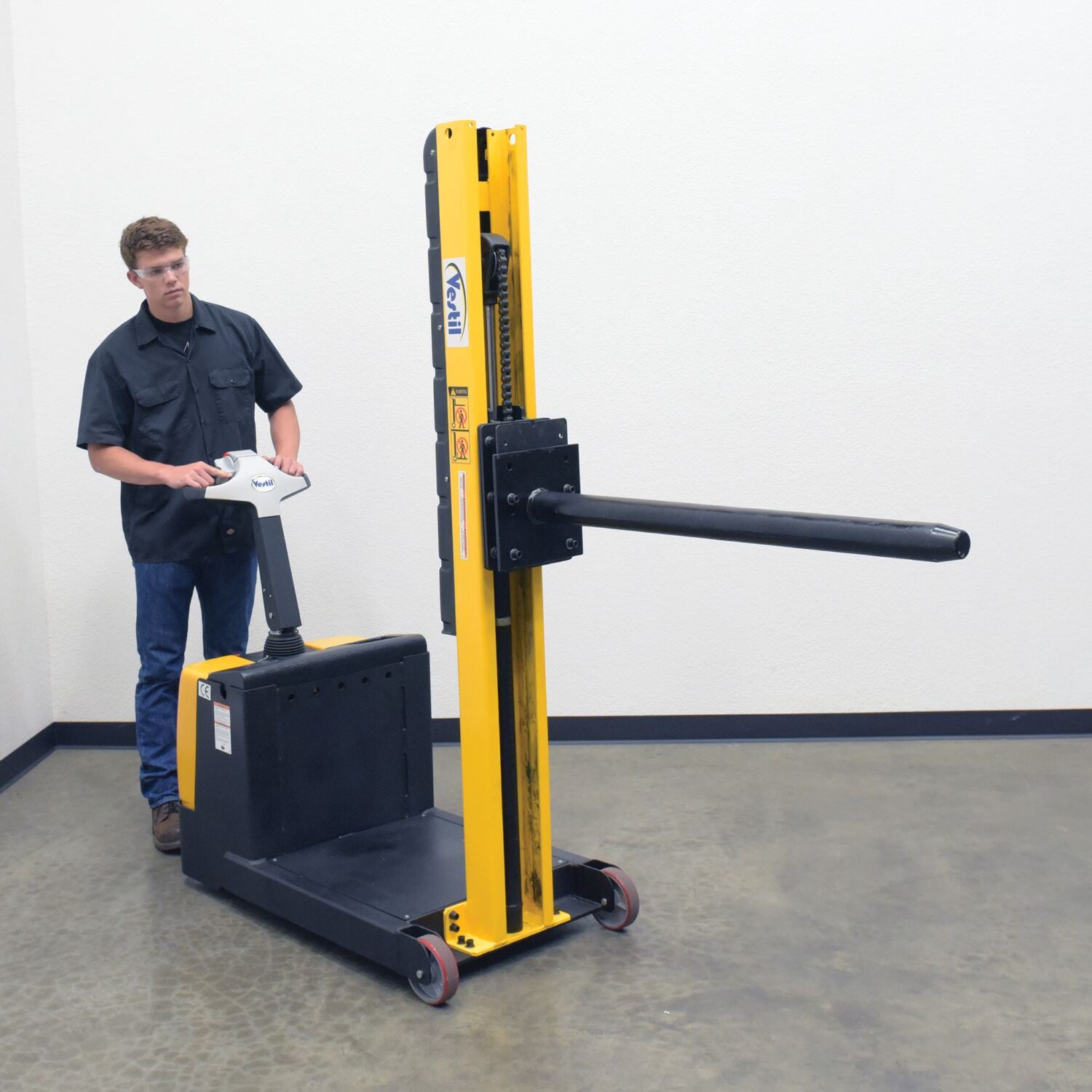

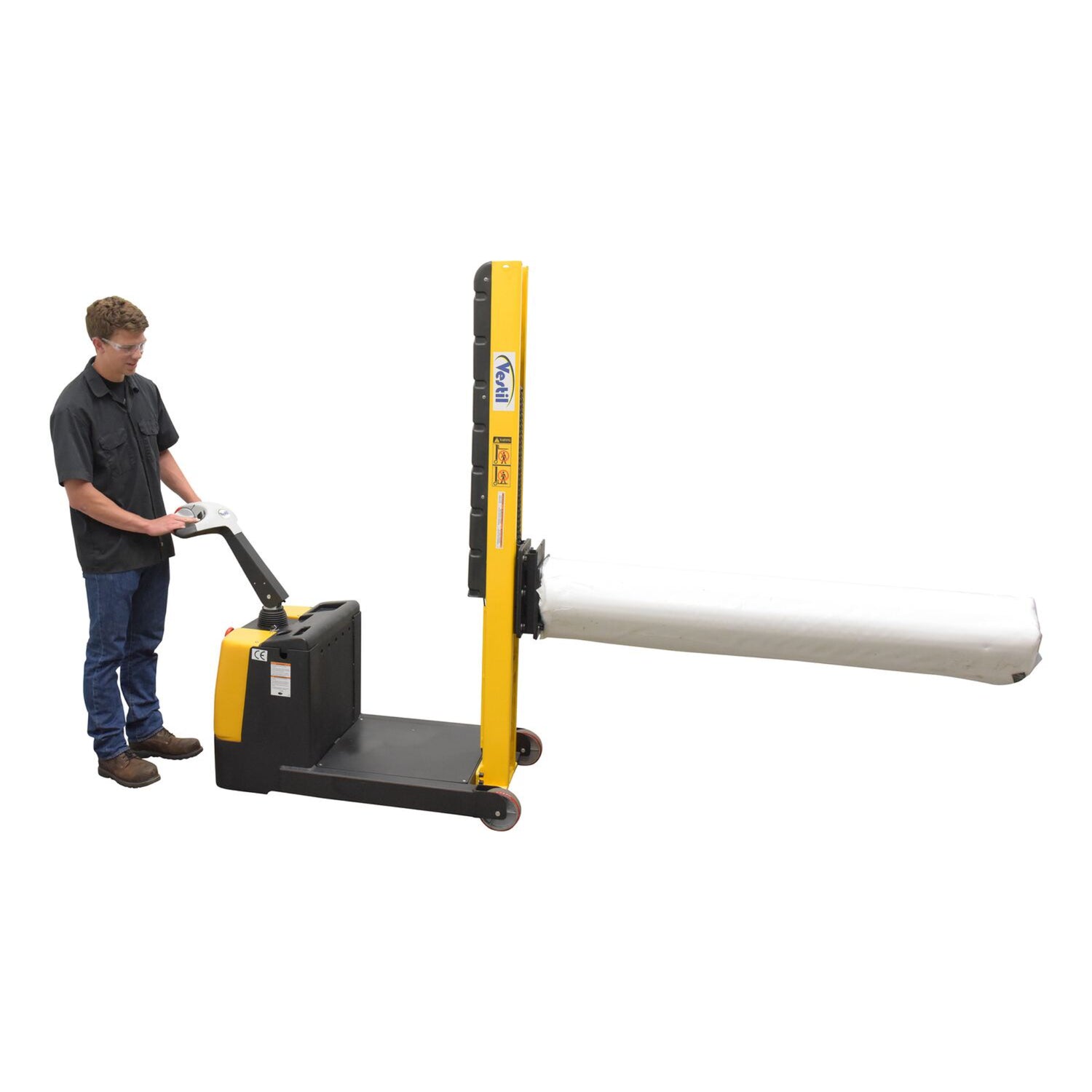

- Roll/reel/spindle: paper roll lifter, 20" roll lifter, reel rotator, double & single spindles

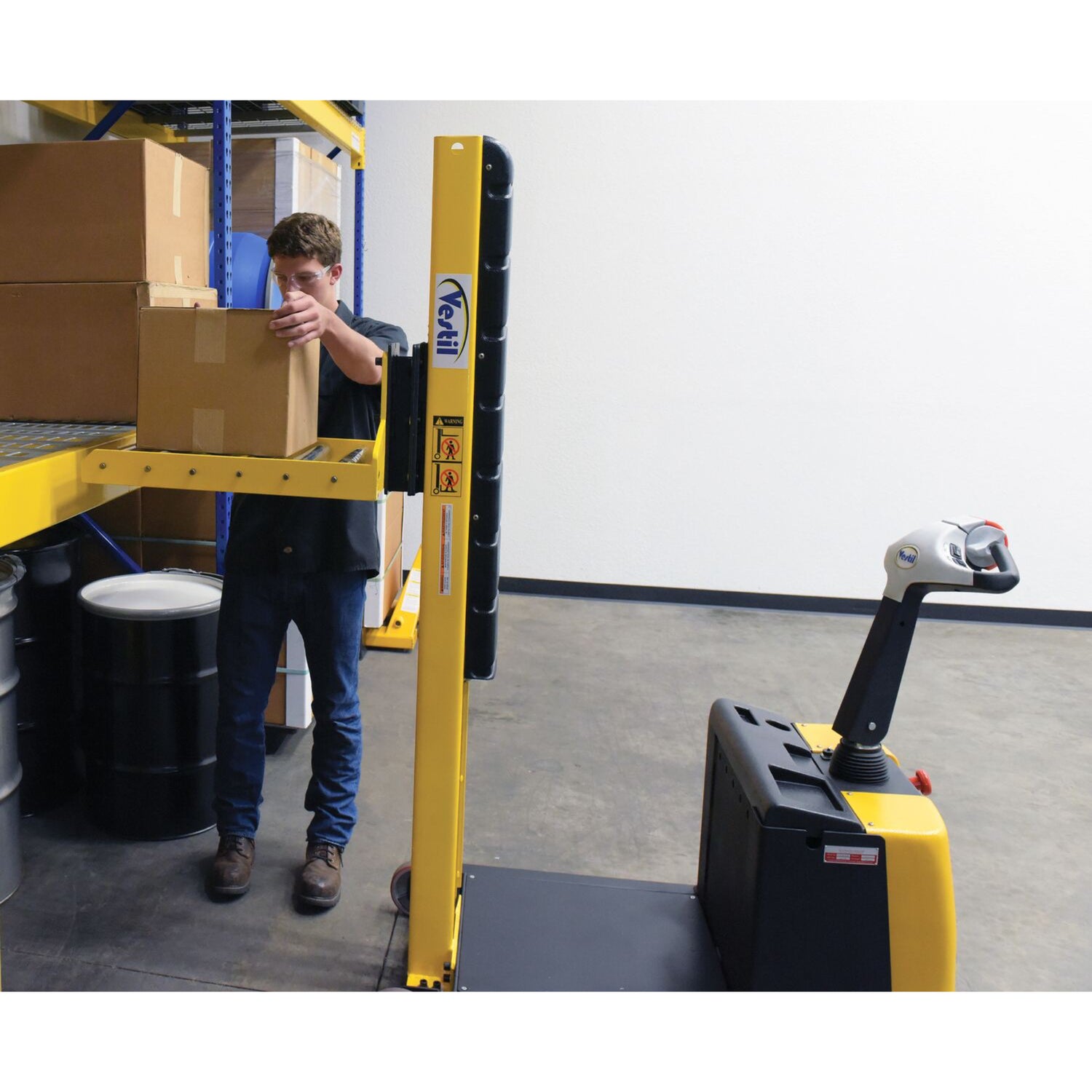

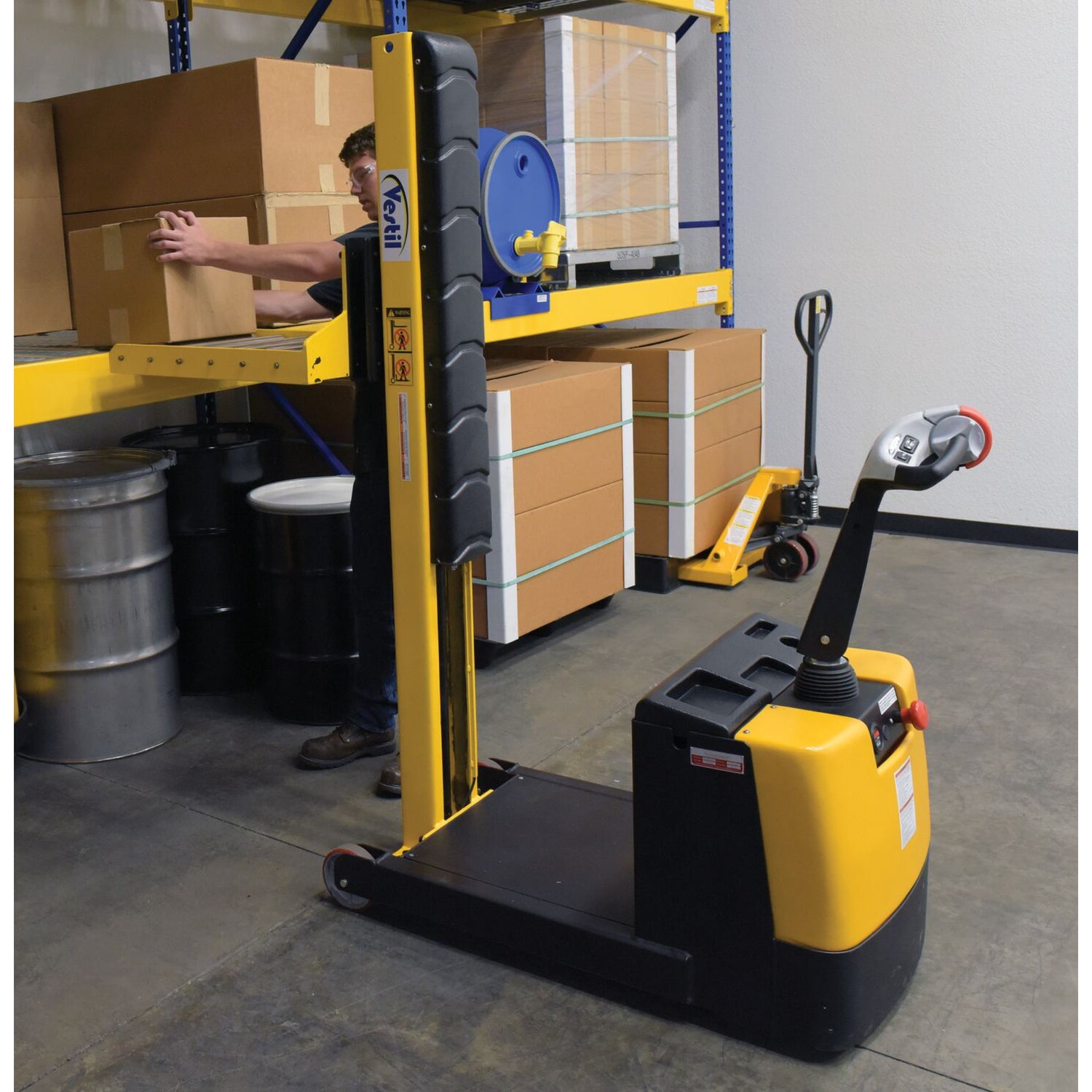

- Platform/specialty: roller platform, ball hitch, buggy lifter
- Engineering drawing and testing certificates available for unit and all attachments
- Marketing brochure available
- ⚠️ 600 lb base capacity — compact light-duty unit
- ⚠️ Powered industrial truck — OSHA operator training required
- ⚠️ Lead-acid battery — Prop 65 applies
- ⚠️ Attachment capacities vary — match to load
- ⚠️ LTL freight required
Specifications
| S-CB-NM-60 |
| Description |
Steel Counter-Balanced Powered Drive Narrow Mast Stacker, 60" Lift, 600 lb Capacity, Black/Yellow |
| Capacity |
600 lb uniform |
| Raised Lift Height |
60" |
| Overall Dimensions |
51-9/16"L × 25-9/16"W × 61-13/16"H |
| Drive |
Powered drive, ergonomic throttle, walk-behind |
| Lift |
Powered lift, integrated lift/lower controls |
| Mast Design |
Counter-balanced narrow mast |
| Battery |
Lead-acid + integral charger + level gauge ⚠️ Prop 65 |
| Attachment System |
Quick-attach — 17 interchangeable attachments available |
| Safety |
Emergency reverse function, automatic dead-man |
| Operator Position |
Walk-behind |
| Color |
Black / Yellow |
| Net Weight |
815 lb |
Manuals & Documentation
- Engineering Drawing: S-CB-NM-60
- Testing Certificates: S-CB-NM-60 + all 17 attachments
- SDS: Acid Battery (Superior Midwest)
- Marketing Brochure: Narrow Mast Stacker and Attachments (available on request)
Owner's manual not yet published for this new model — contact us and we will request it from Vestil through our dealership. Multiple product videos available on the Vestil Manufacturing YouTube channel.
⚠️ California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds (lead-acid battery), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
