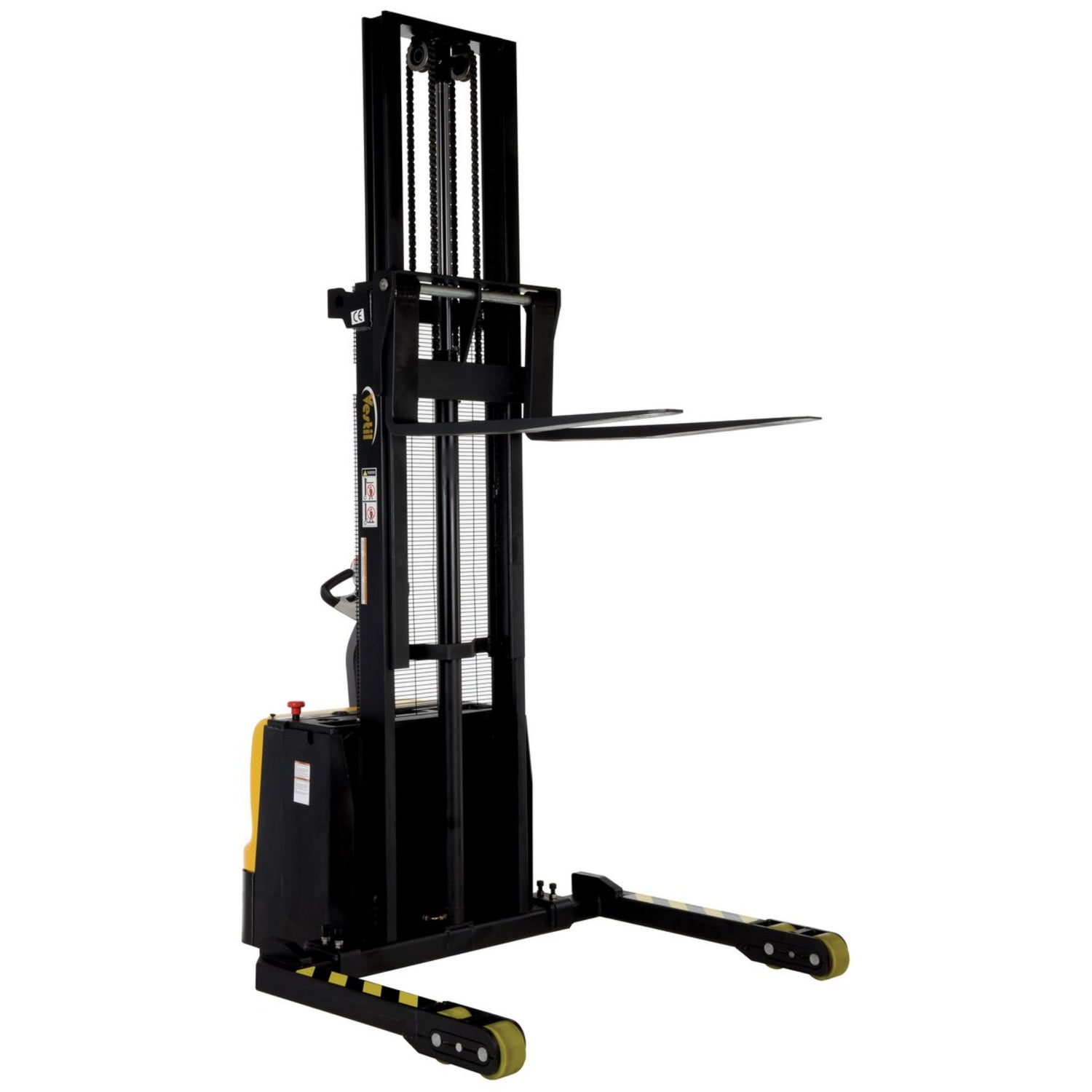

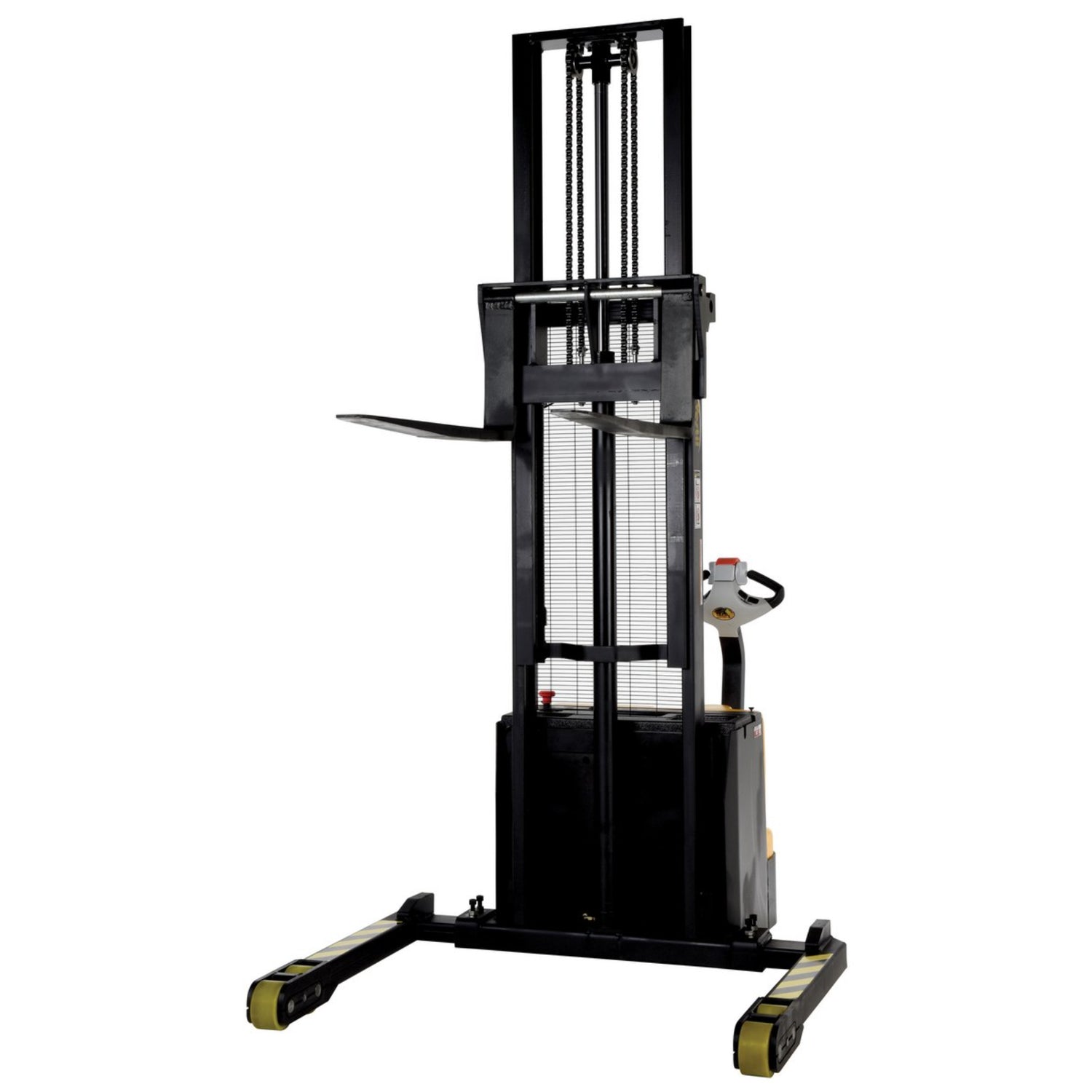

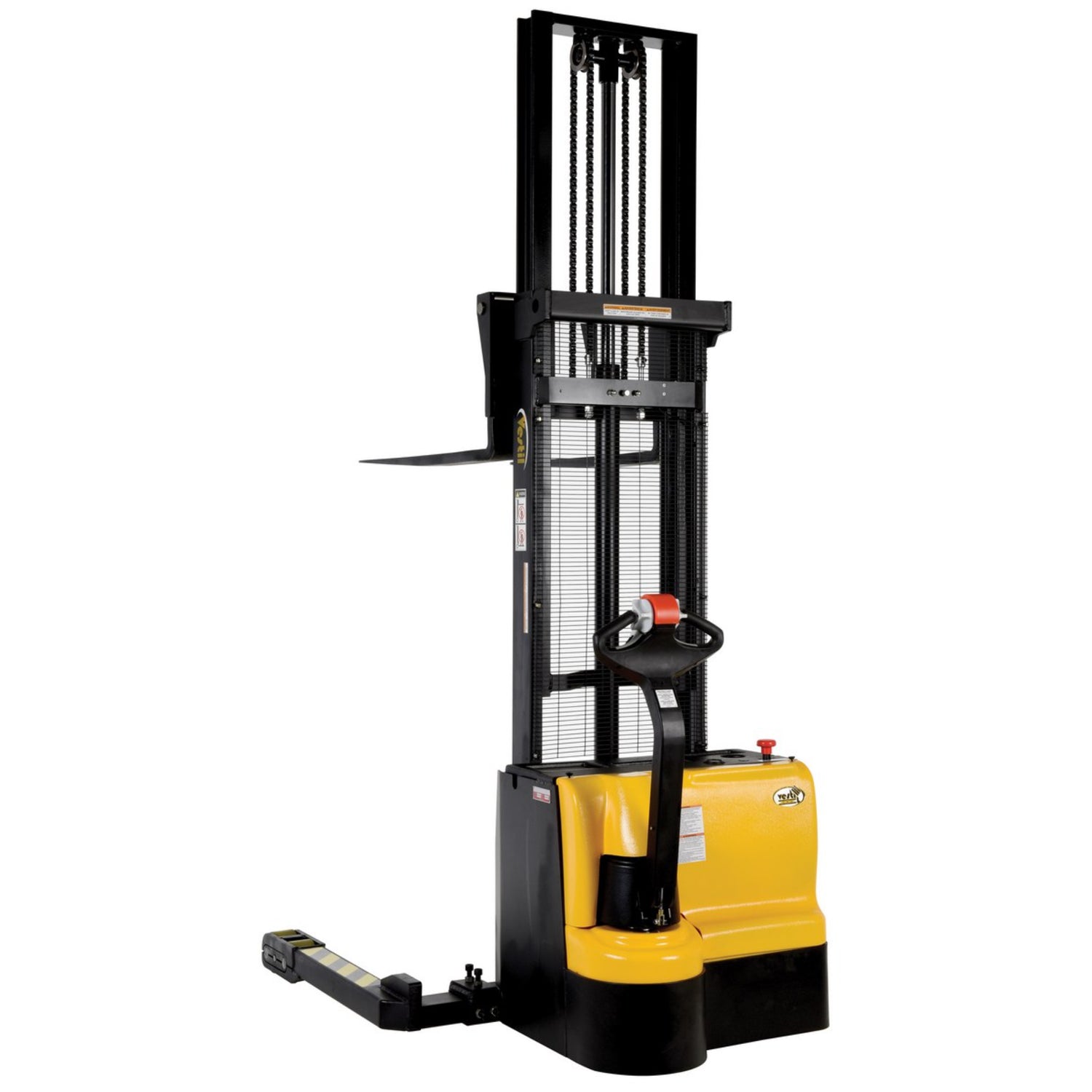

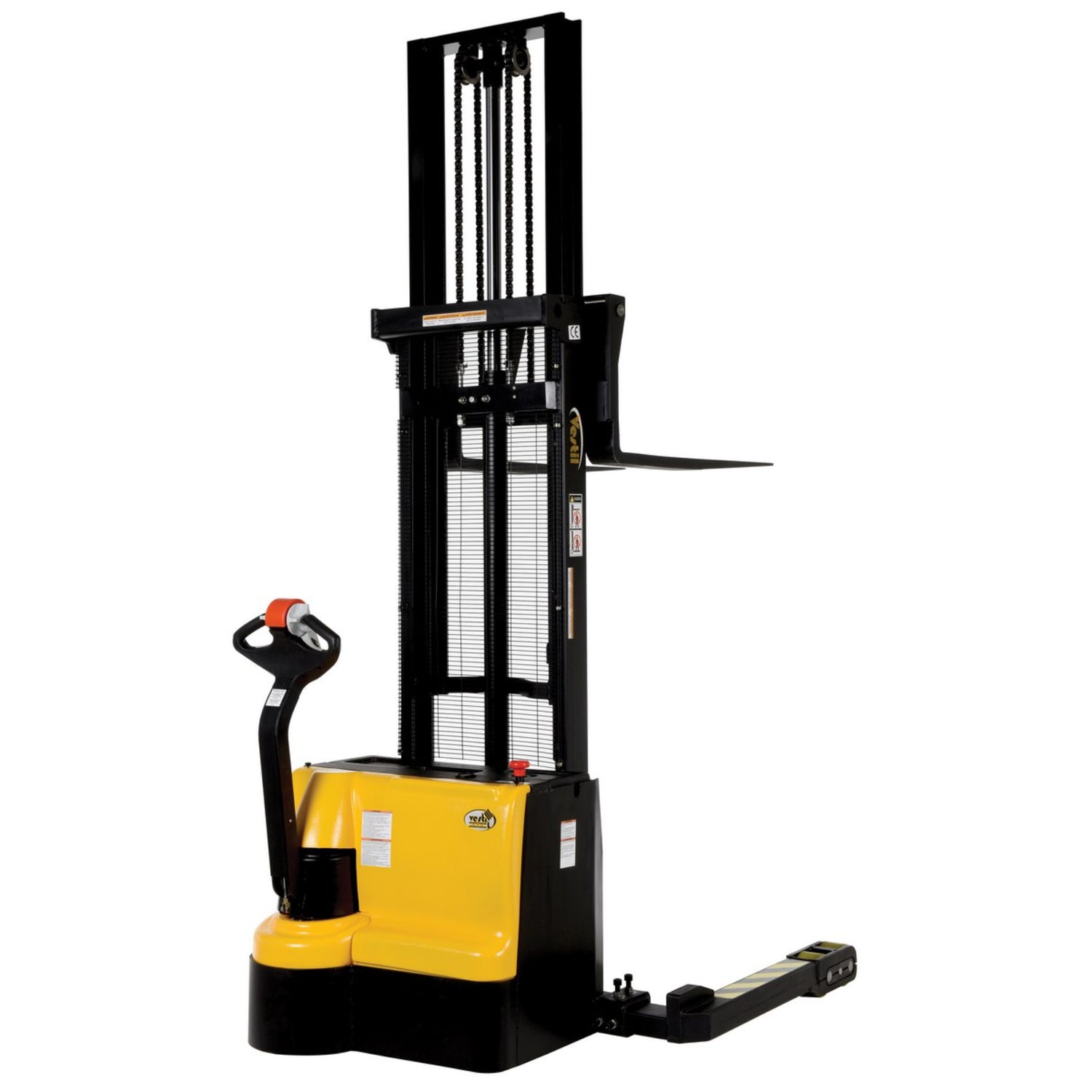

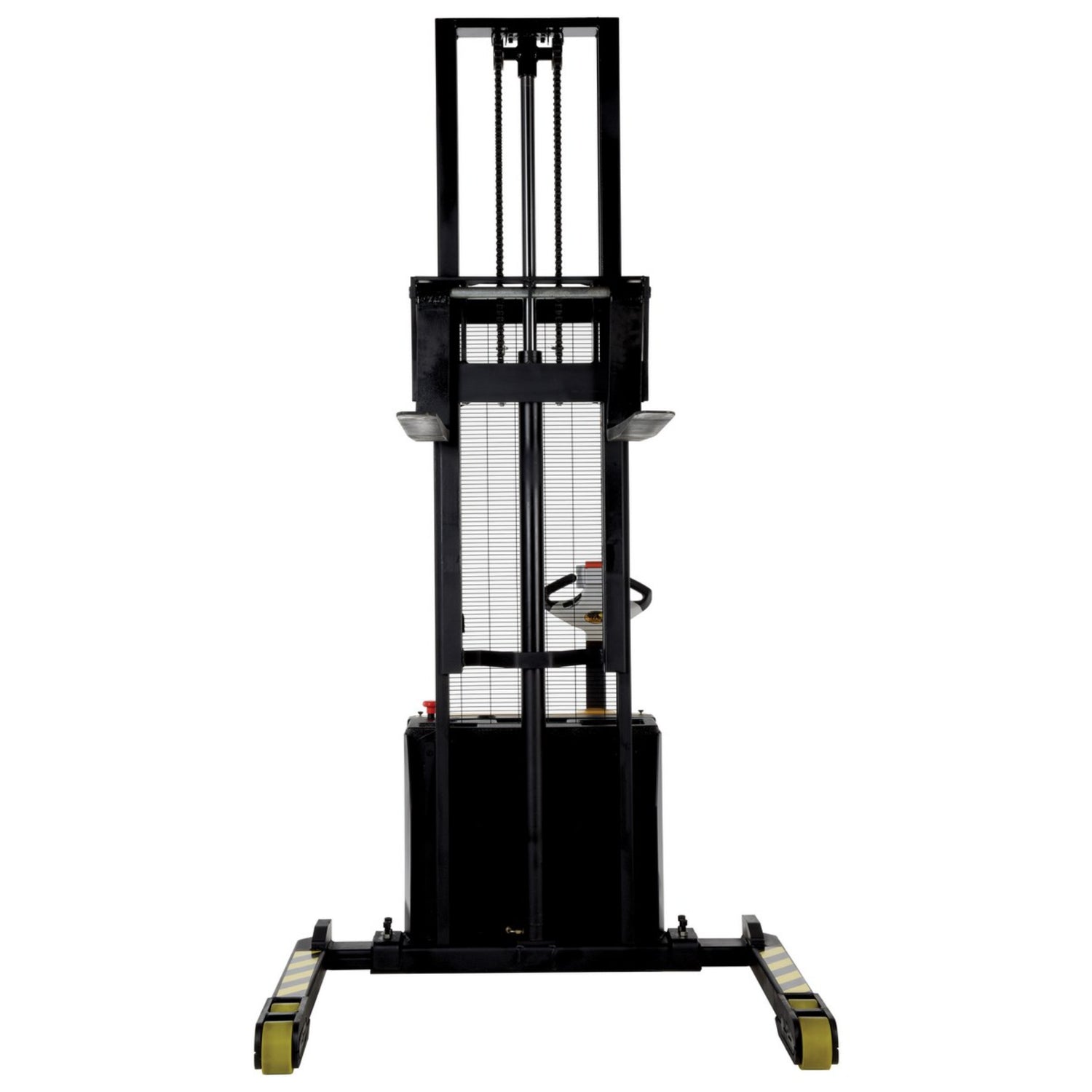

Vestil S3 Double Mast Stacker with Powered Drive & Lift — 3,000 lb Capacity, Up to 125" Lift, Fully Powered
The Vestil S3 is the heavy-duty 3,000 lb member of the double mast fully powered stacker family. A high-torque 24VDC system drives both travel and lift, transporting and stacking loads throughout warehouse facilities quickly and with less effort. Available from a low 43" up to 125" raised height, the double mast design delivers high lift while keeping a compact collapsed mast for doorways and low-clearance areas.
Why It's Different: 3,000 lb capacity with fully powered drive and lift, plus Vestil's proprietary emergency reverse belly switch for a high degree of operator protection — heavy-duty performance in standard aisles without a counterbalance footprint.
Best For: High-throughput warehouses, distribution centers, and manufacturing facilities needing the heaviest double-mast capacity. The 43" and 62" models suit workstation and conveyor heights at full 3,000 lb; the 118" and 125" models reach high racking for put-away and order picking.
⚠️ Tall models de-rate above 62": the 118" and 125" units carry 3,000 lb to 62", then 2,500 lb above 62". The 43" and 62" models carry full 3,000 lb throughout their range.
⚠️ Powered industrial truck — OSHA operator training required. Operators must be trained and authorized, including on the emergency reverse safety circuit.
⚠️ High lift heights raise stability considerations — keep loads low while traveling and lift only on firm, level floors.
⚠️ Lead-acid batteries (two 12V) — California Prop 65 applies. Maintenance-free AGM battery upgrade available (see accessories).
⚠️ LTL freight required — units weigh 1,564–2,038 lb; tall masts may require a flatbed. Receiving location must accommodate freight delivery with means to offload.
Features
-
Made in Indiana, USA by Vestil Manufacturing
- 3,000 lb capacity (tall models de-rate to 2,500 lb above 62")
- Choice of 43", 62", 118", or 125" raised lift height
-
Fully powered: 24VDC powered drive AND powered lift
- Double mast design — high lift with compact collapsed height
- High-torque 1.0 KW drive motor + 2.0 KW lift motor

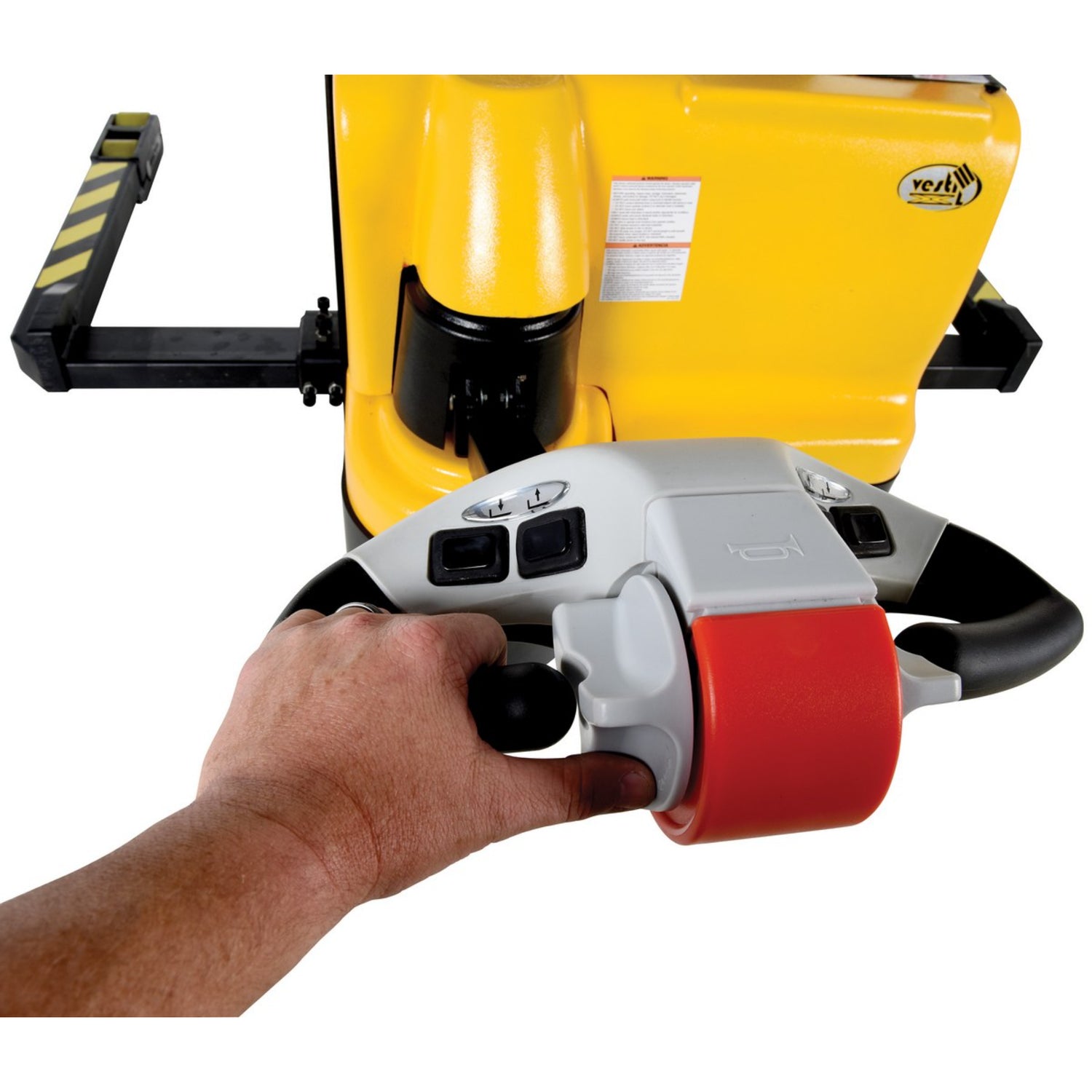

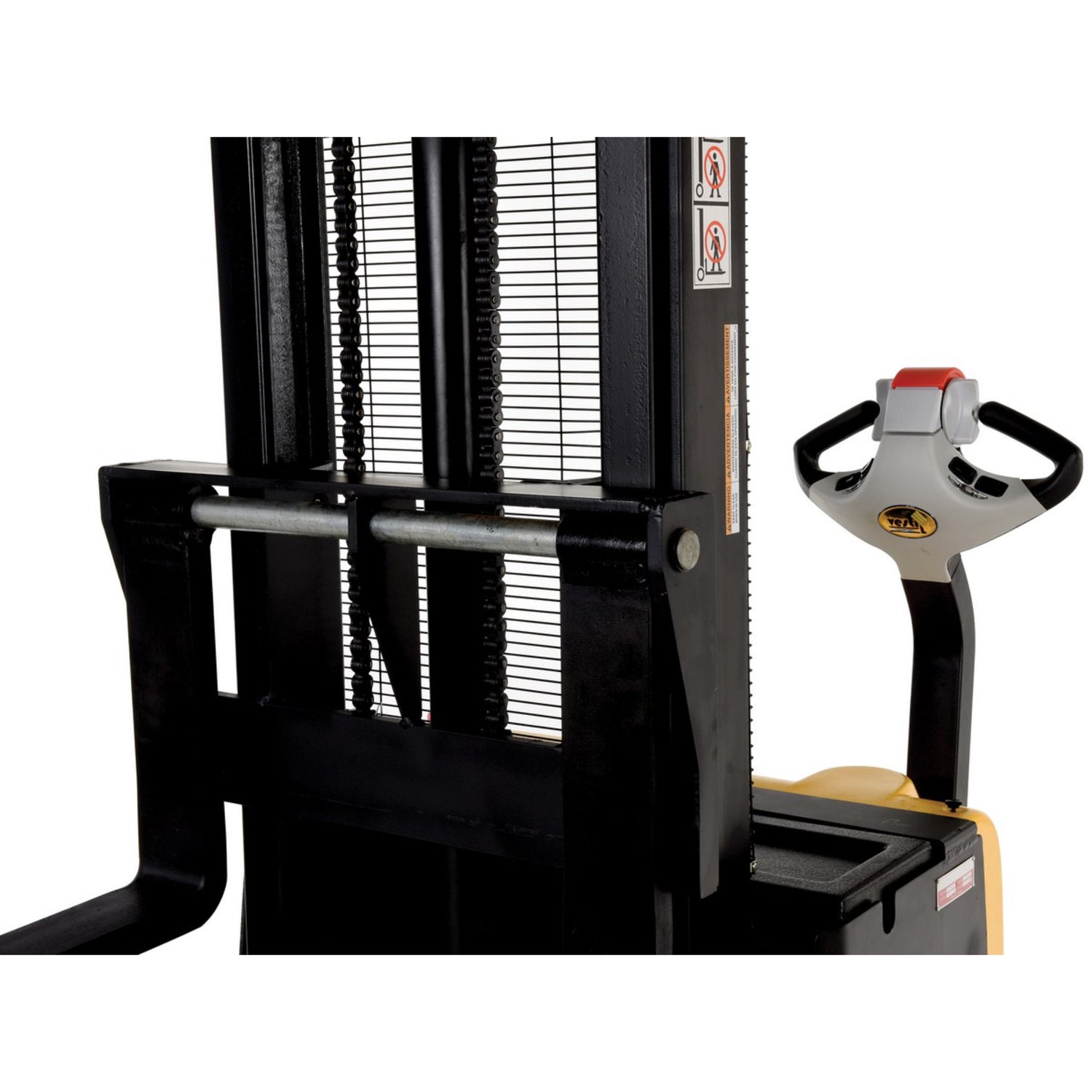

- Ergonomic handle with infinitely adjustable forward/reverse throttle
- Integrated lift/lower controls
-
Proprietary emergency reverse belly switch — instant directional reversal with 5-second safety auto-disable and reset
- Horn standard
- Electromagnetic disc brake with automatic dead-man feature

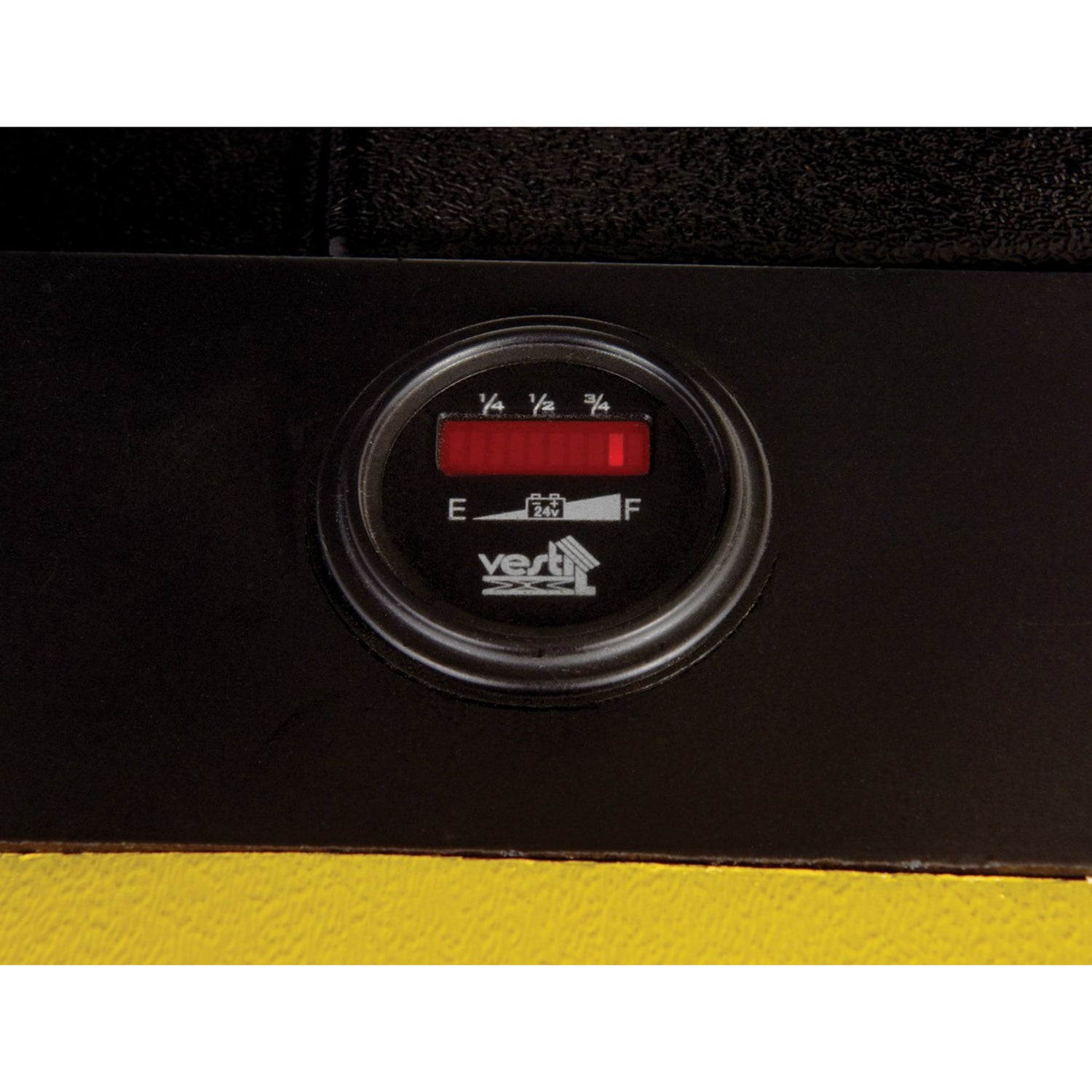

- Two 12V lead-acid deep-cycle batteries + integral charger + level gauge
- 3-4 hour continuous / 8-hour intermittent operation per charge
- Poly-on-steel steer and load wheels for smooth rolling
- Adjustable forks across all models
- Quick Ship available on select models
- Optional AGM maintenance-free battery upgrade available
- Optional single drum gripper attachment available
- Owner's manual, engineering drawings, and testing certificates available
- ⚠️ Tall models (118"/125") de-rate to 2,500 lb above 62"
- ⚠️ Powered industrial truck — OSHA operator training required
- ⚠️ Lead-acid batteries — Prop 65 applies (AGM upgrade available)
- ⚠️ LTL freight required (tall masts may need flatbed)
Specifications
| S3-43-AA (43", Adjustable) |
| Description |
Steel Adjustable Double Mast Stacker, 43" Raised Height, 3,000 lb Capacity, Black/Yellow |
| Capacity |
3,000 lb uniform |
| Raised Height |
43" |
| Service Range |
2-1/8" to 43" |
| Forks |
Adjustable |
| Drive / Lift |
24VDC powered drive + powered lift |
| Net Weight |
1,564 lb |
| S3-62-AA (62", Adjustable) |
| Description |
Steel Adjustable Double Mast Stacker, 62" Raised Height, 3,000 lb Capacity, Black/Yellow |
| Capacity |
3,000 lb uniform |
| Raised Height |
62" |
| Service Range |
2-9/16" to 62" |
| Forks |
Adjustable |
| Drive / Lift |
24VDC powered drive + powered lift |
| Net Weight |
1,564 lb |
| S3-118-AA (118", Adjustable) |
| Description |
Steel Adjustable Double Mast Stacker, 118" Raised Height, 3,000 lb Capacity, Black/Yellow |
| Capacity |
3,000 lb @ 0–62" / 2,500 lb @ 62–118" ⚠️ |
| Raised Height |
118" |
| Forks |
Adjustable |
| Drive / Lift |
24VDC powered drive + powered lift |
| Net Weight |
1,868 lb |
| S3-125-AA (125", Adjustable) |
| Description |
Steel Adjustable Double Mast Stacker, 125" Raised Height, 3,000 lb Capacity, Black/Yellow |
| Capacity |
3,000 lb @ 0–62" / 2,500 lb @ 62–125" ⚠️ |
| Raised Height |
125" |
| Forks |
Adjustable |
| Drive / Lift |
24VDC powered drive + powered lift |
| Net Weight |
2,038 lb |
Shared specifications (all S3 models): 24VDC fully powered drive + lift · 1.0 KW drive / 2.0 KW lift motors · two 12V lead-acid deep-cycle batteries + integral charger + level gauge · 3-4 hr continuous / 8 hr intermittent runtime · poly-on-steel steer & load wheels · emergency reverse belly switch + horn · electromagnetic disc brake with dead-man · walk-behind · Black/Yellow.
Manuals & Documentation
- Owner's Manual: S3 (available on request)
- Engineering Drawings: S3-62-AA, S3-118-AA, S3-125-AA (S3-43 available on request)
- Testing Certificates: All four S3 models + S3-SDG-RF drum gripper
- SDS: Lead/Acid Battery (Midwest) + Hydraulic Oil (HO150)
- Marketing Brochures: S3 Double Mast Stacker; S-DM Double Mast Stacker (available on request)
Product videos available on the Vestil Manufacturing YouTube channel. Contact us for additional documentation through our dealership.
⚠️ California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds (lead-acid batteries) and hydraulic oil components, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
