Vestil SE/HP Combination Hand Pump & Electric Stacker — 2,000 lb, Dual-Power, Skid Stacker
The Vestil SE/HP is an economical dual-power skid stacker that works as a manual hand-pump lift OR a DC electric powered lift — so you can keep lifting even when power isn't available. Rated at 2,000 lb capacity in 63", 98", or 118" lift heights, it's ideal for maintenance and commercial applications: transporting dies, molds, and skids. A high-quality hydraulic pump, DC lift system, and compact steel-profile construction make it a dependable, budget-friendly workhorse.
Why It's Different: Most powered stackers are useless when the battery dies or no outlet is near. The SE/HP gives you a hand-pump fallback in the same machine — power flexibility no single-mode lift can match.
Best For: Maintenance shops, tool-and-die operations, and commercial facilities handling skids, dies, and molds — especially where reliable power isn't guaranteed. Choose fixed or adjustable forks, and the lift height that matches your racking.
⚠️ Works with SKIDS only — not standard closed-bottom pallets. The forks and support legs are designed to straddle skids (open-bottom loads). Verify your load type before ordering; this will not handle a standard bottom-decked pallet.
⚠️ Dual-power applies to LIFT only — hand-pump or electric lift; the operator pushes the unit to move it (manual drive). This is not a powered-drive stacker.
⚠️ 118" models de-rate above 63": 2,000 lb to 63", then 1,500 lb in the 63"–118" range.
⚠️ Fixed vs Adjustable forks: fixed forks have a set 26-3/4" outside spacing; adjustable forks span roughly 8-3/8"–26-3/4" (varies by height). Match to your skid width.
⚠️ Lead-acid batteries (two 12V 40Ah) — California Prop 65 applies. Requires a charging outlet.
⚠️ LTL freight required — units weigh 768–1,160 lb. Receiving location must accommodate freight delivery with means to offload.
Features
-
Made in Indiana, USA by Vestil Manufacturing
- 2,000 lb capacity (118" models de-rate to 1,500 lb above 63")
-
Dual-power lift: manual hand pump OR DC electric — ideal when power isn't available
- Choice of 63", 98", or 118" raised lift height
- Choice of fixed or adjustable forks (with support legs)
- High-quality hydraulic pump + DC lift system
- Compact design, strong steel-profile construction

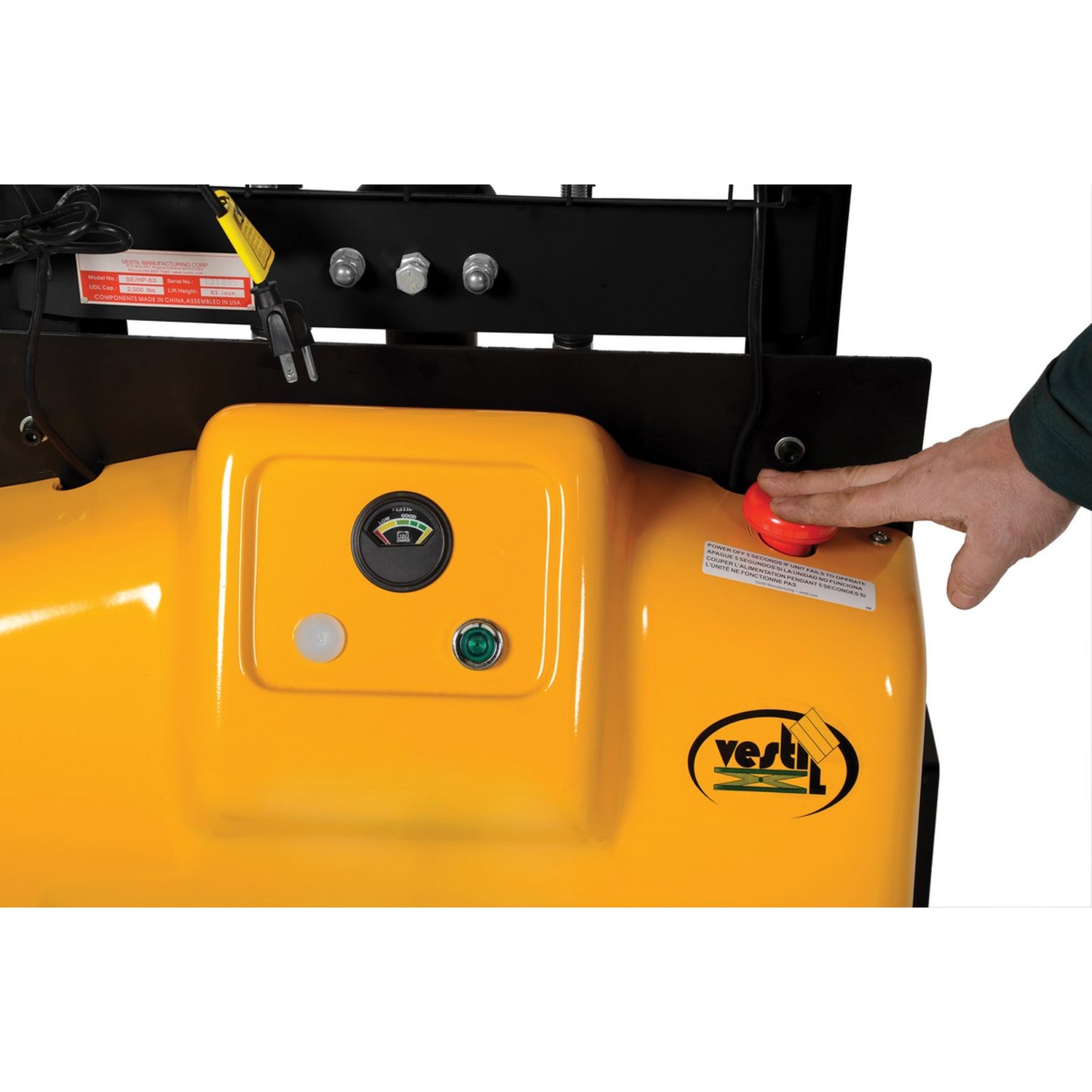

- Two 12V 40Ah batteries + integral charger + battery level gauge
- Adjustable lowering speed
- Standard pull handle for easy maneuvering (manual push drive)
- 6" wide individual forks
- Designed for skids — transporting dies, molds, and skids
- Optional factory-installed removable platform available
- Quick Ship available on select models
- Owner's manual and engineering drawings available
- ⚠️ Works with skids only — not standard closed-bottom pallets
- ⚠️ Dual-power is lift only — manual push drive
- ⚠️ 118" models de-rate to 1,500 lb above 63"
- ⚠️ Lead-acid batteries — Prop 65 applies
- ⚠️ LTL freight required
Specifications

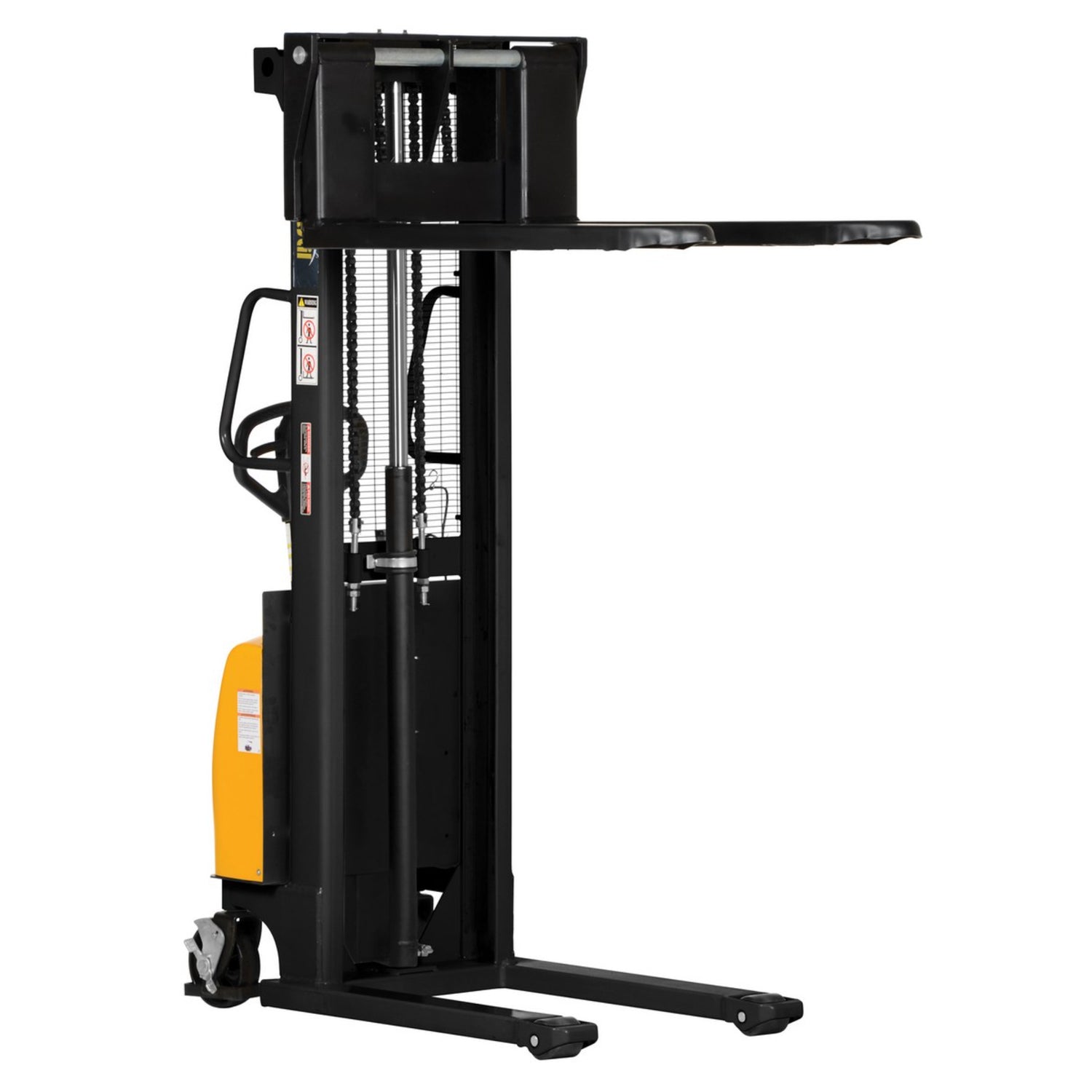

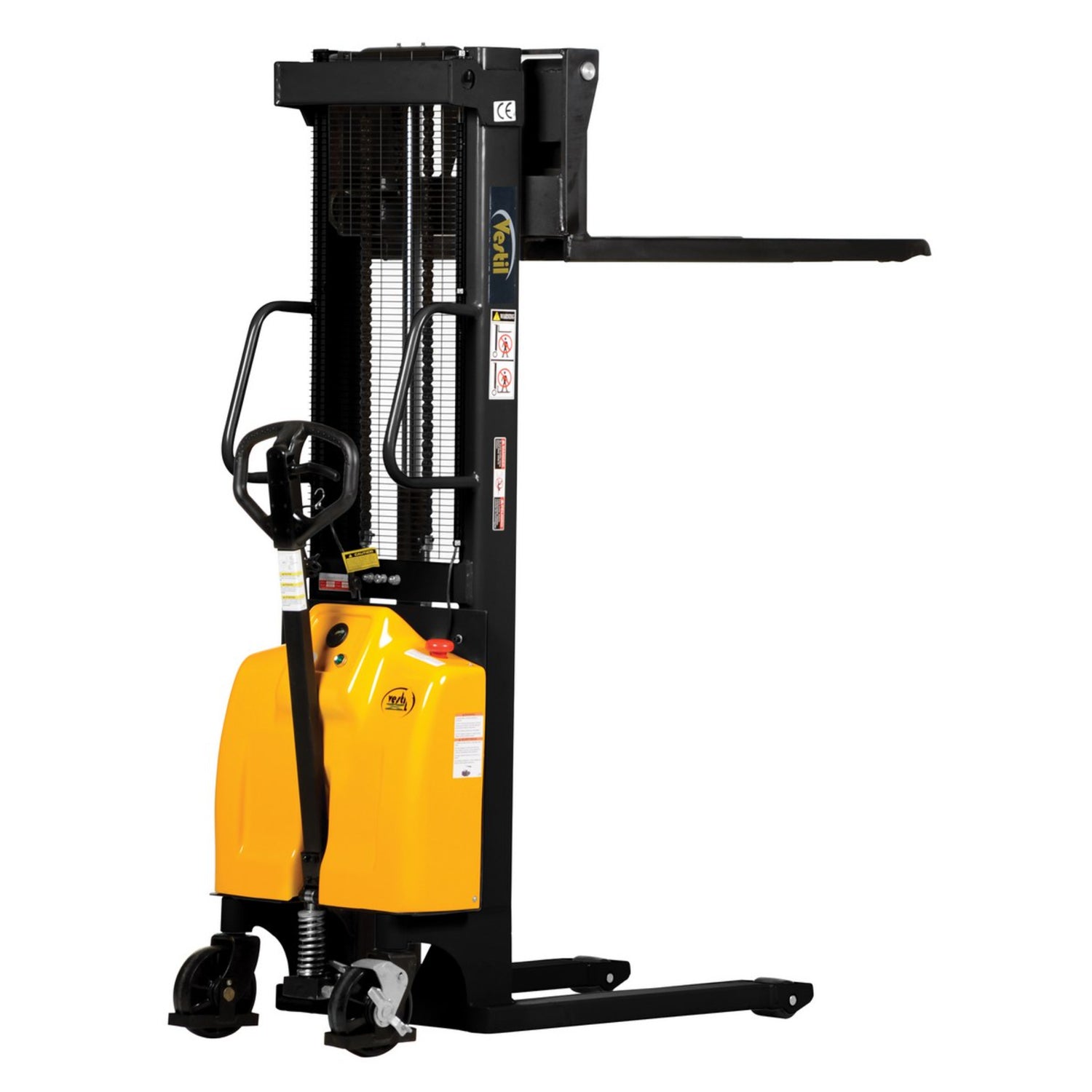

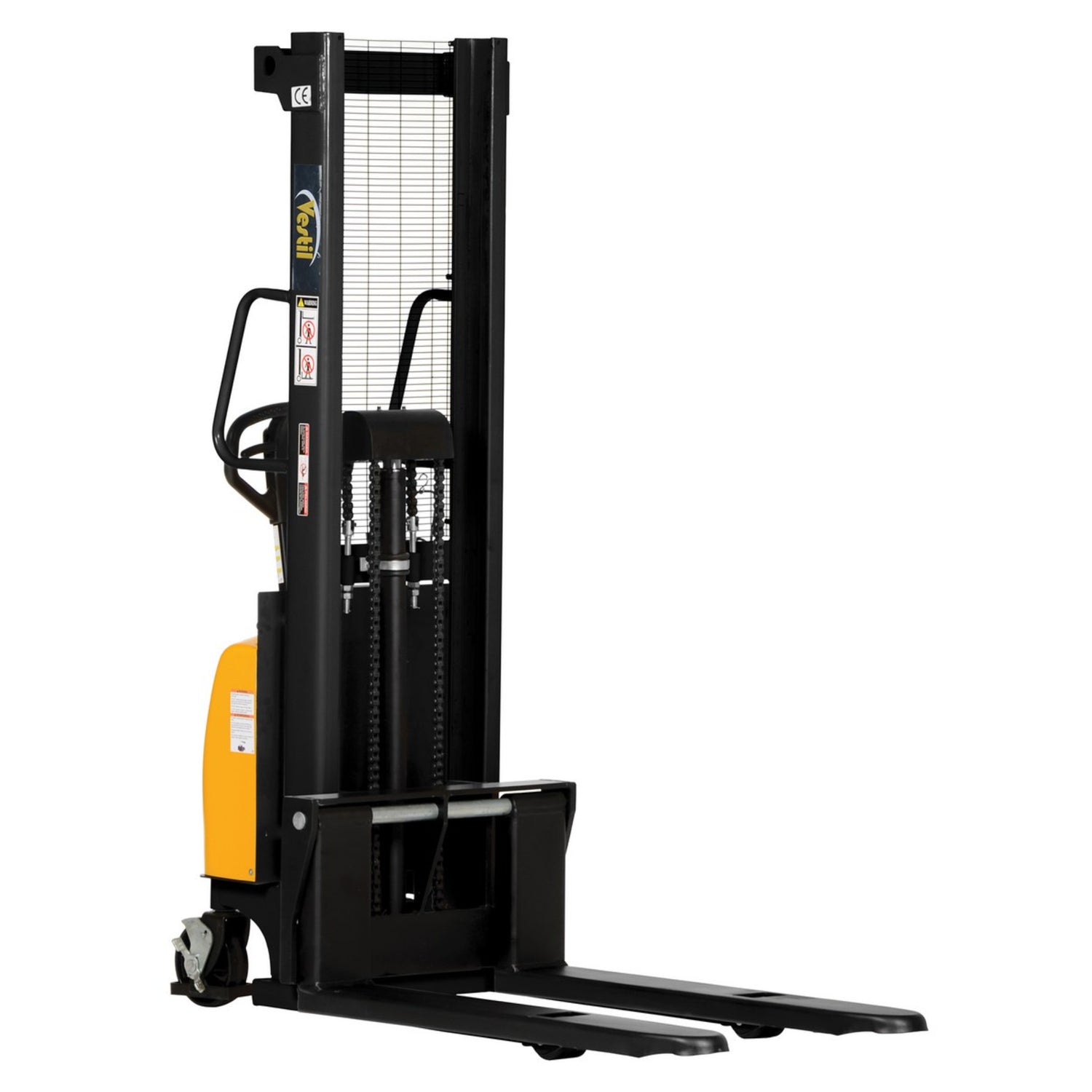

| SE/HP-63 (63", Fixed) |
| Description |
Steel Hand Pump DC Powered Stacker, Fixed Forks & Legs, 63" Raised Height, 2,000 lb, Black/Yellow |
| Capacity |
2,000 lb uniform |
| Raised Height |
63" |
| Forks |
Fixed, 26-3/4" OD spacing, 6" wide |
| Power |
Hand pump + DC electric (2×12V 40Ah) |
| Net Weight |
768 lb |

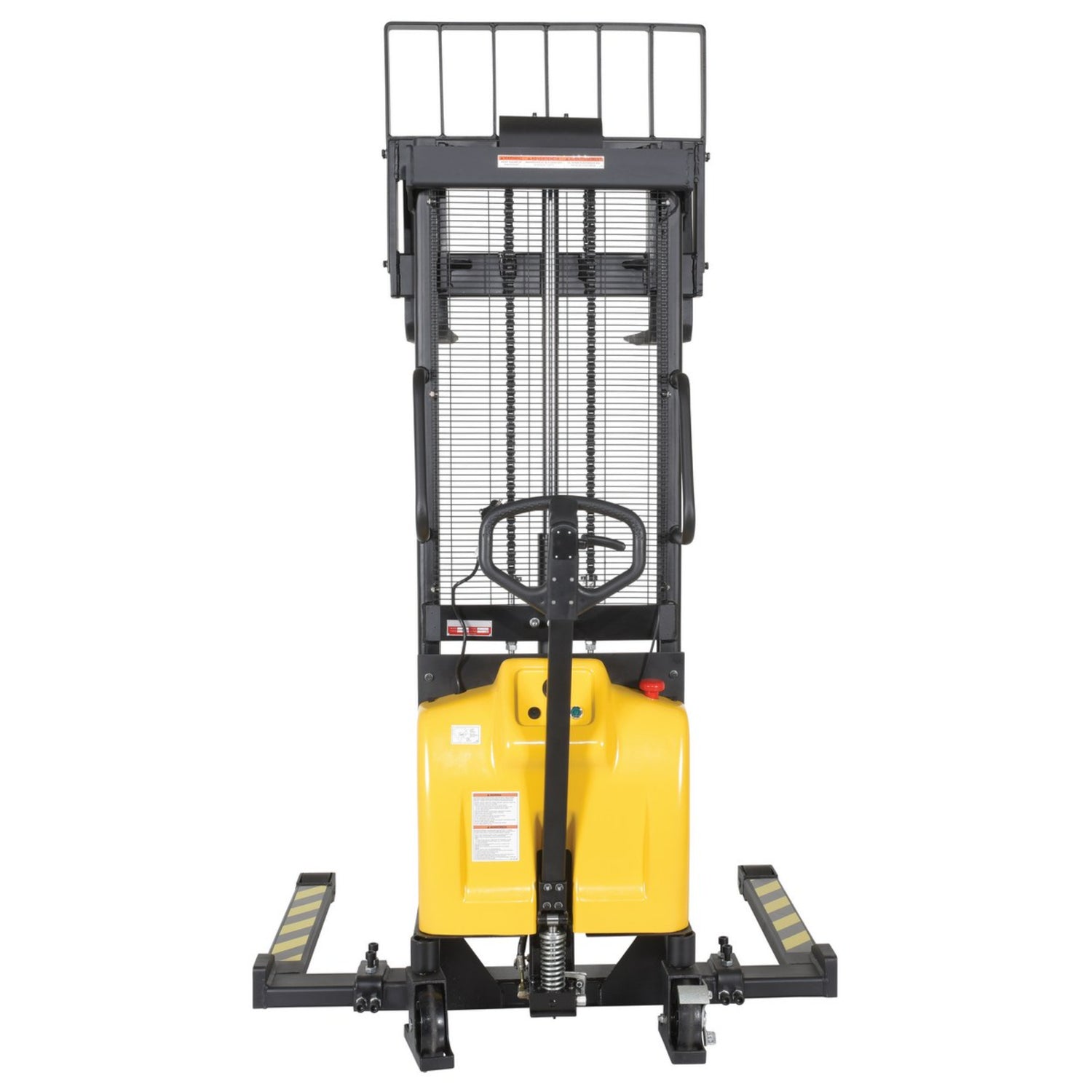

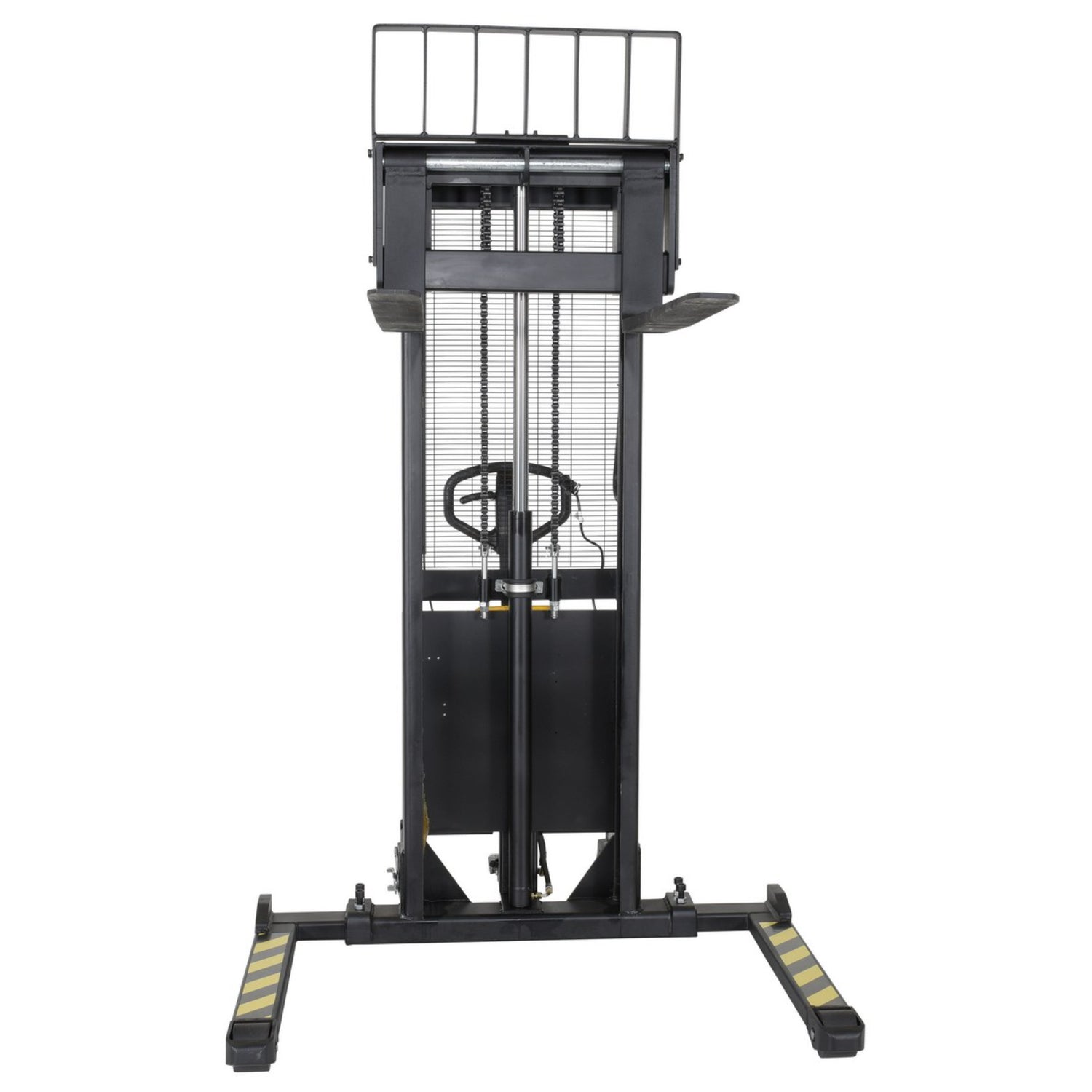

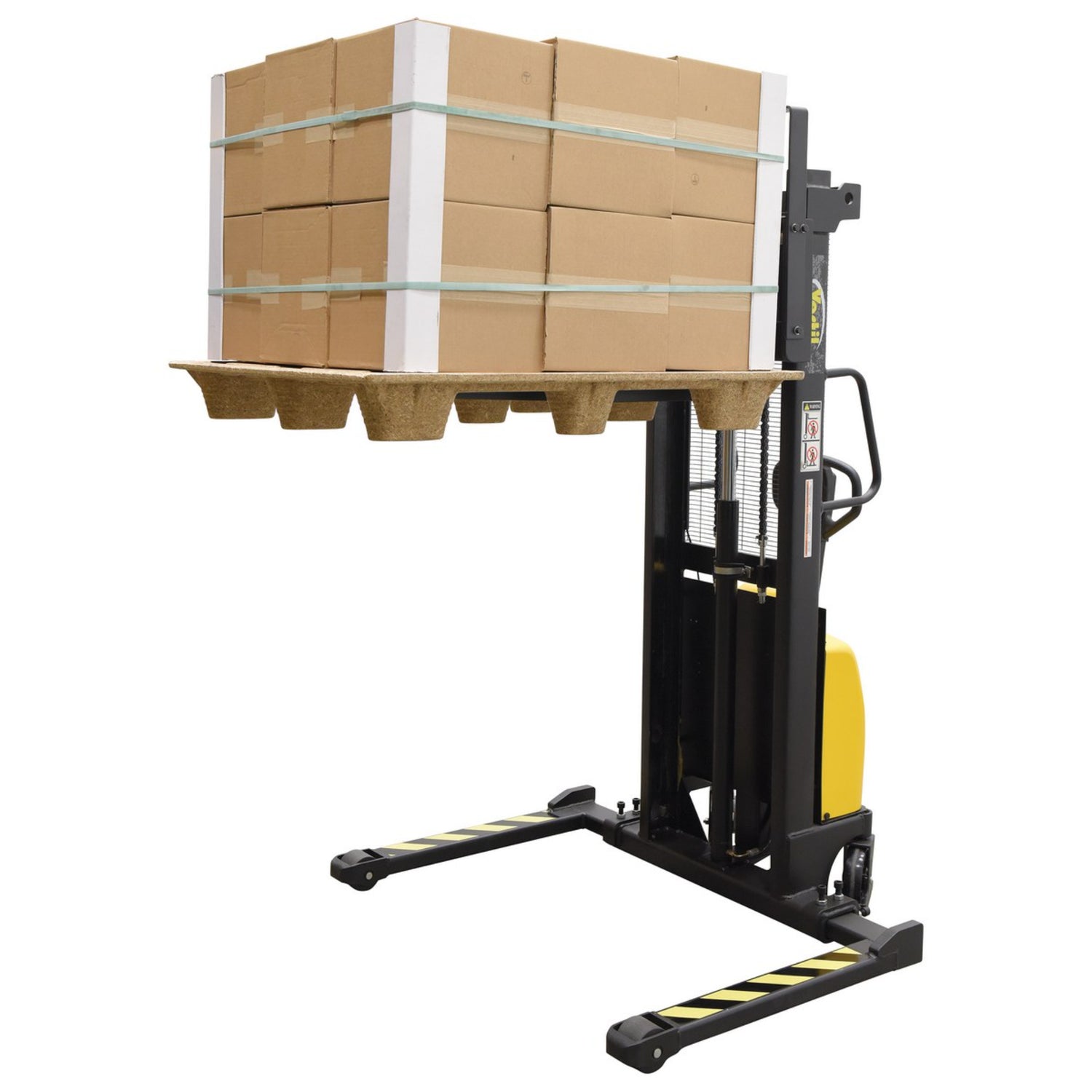

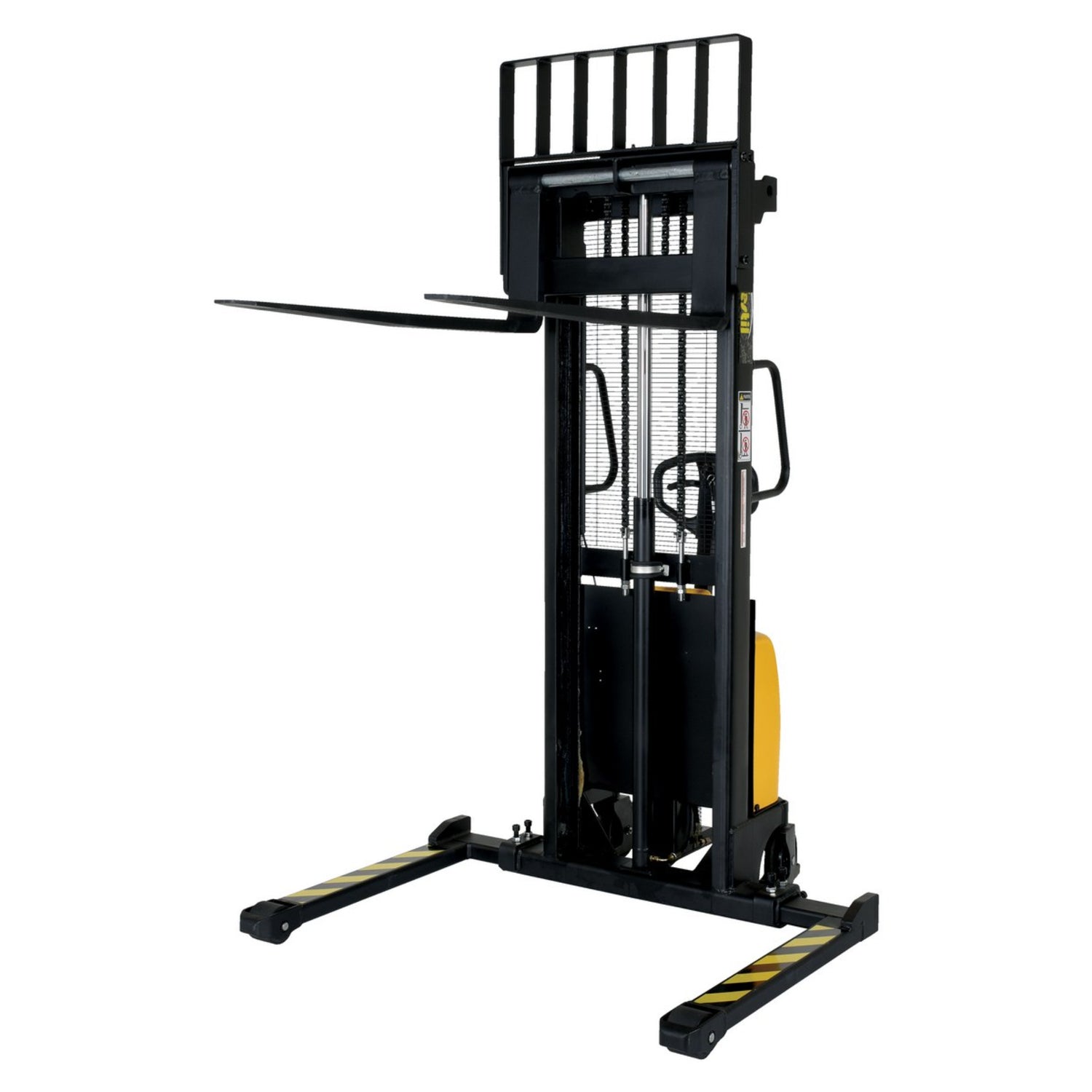

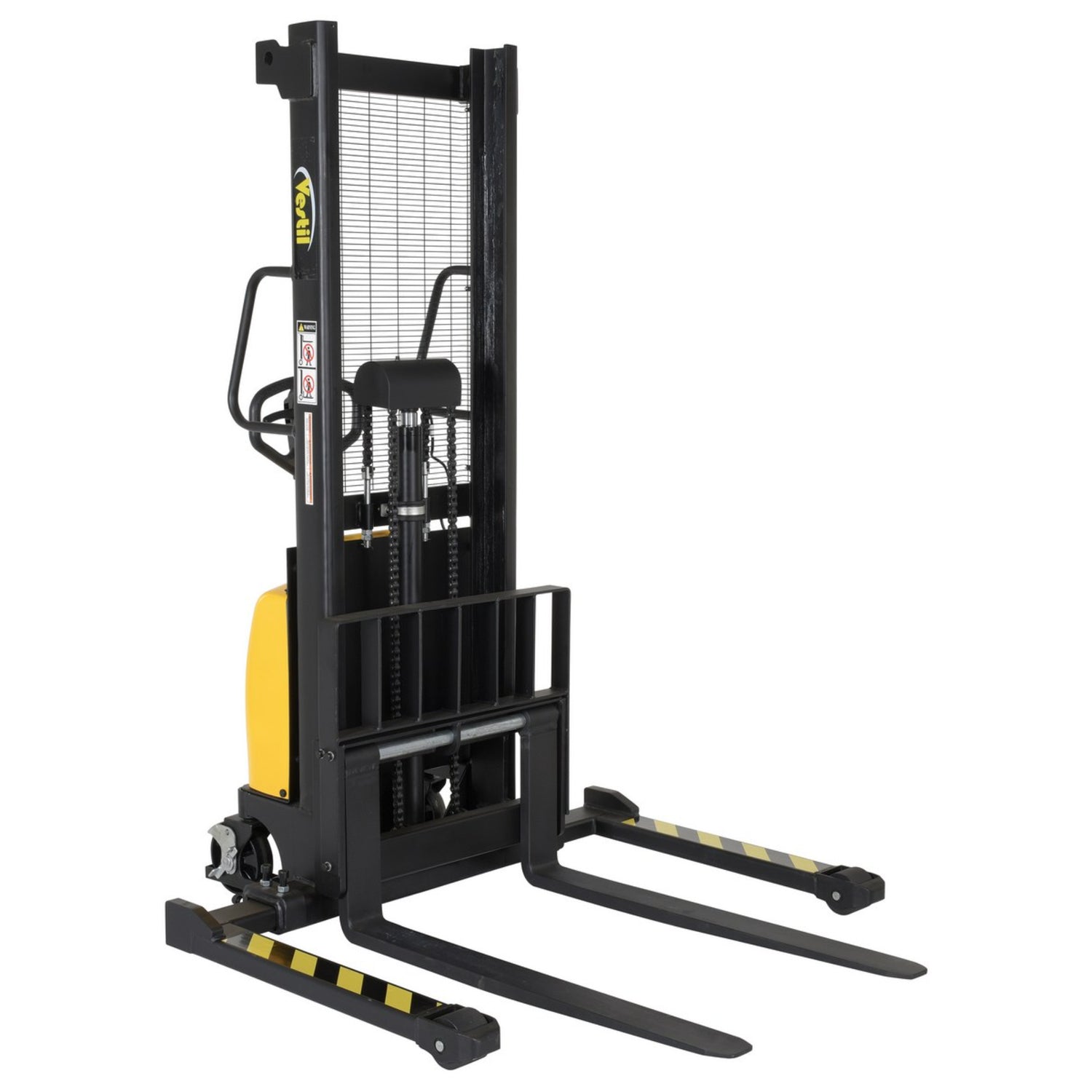

| SE/HP-63-AA (63", Adjustable) |
| Description |
Steel/Plastic Hand Pump DC Powered Stacker, Adjustable Forks & Legs, 63" Raised Height, 2,000 lb, Black/Yellow |
| Capacity |
2,000 lb uniform |
| Raised Height |
63" |
| Forks |
Adjustable, 8-3/8"–26-3/4" OD spacing, 6" wide |
| Power |
Hand pump + DC electric (2×12V 40Ah) |
| Net Weight |
958 lb |
| SE/HP-98 (98", Fixed) |
| Description |
Steel Hand Pump DC Powered Stacker, Fixed Forks & Legs, 98" Raised Height, 2,000 lb, Yellow |
| Capacity |
2,000 lb uniform |
| Raised Height |
98" |
| Forks |
Fixed, 26-3/4" OD spacing, 6" wide |
| Power |
Hand pump + DC electric (2×12V 40Ah) |
| Net Weight |
941 lb |

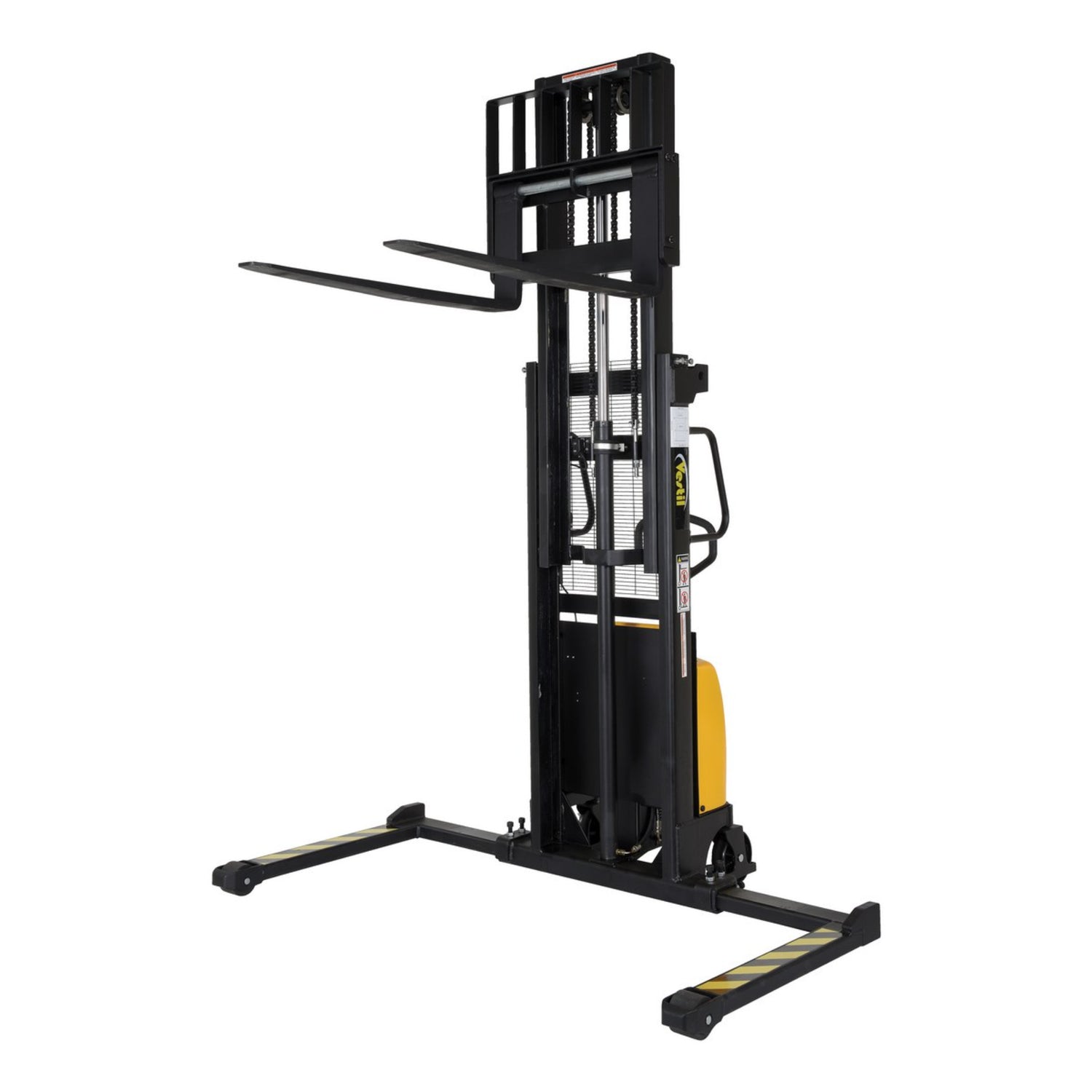

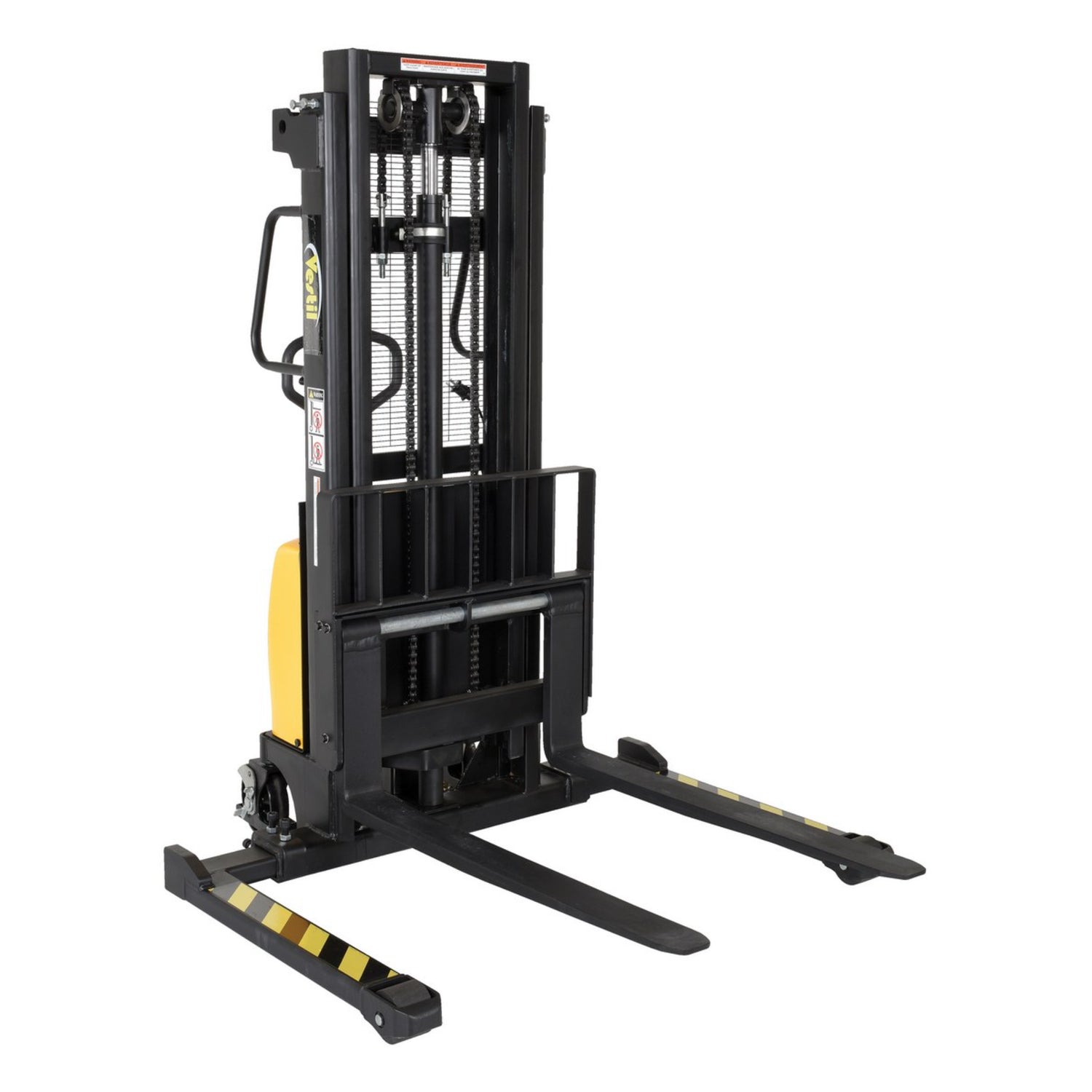

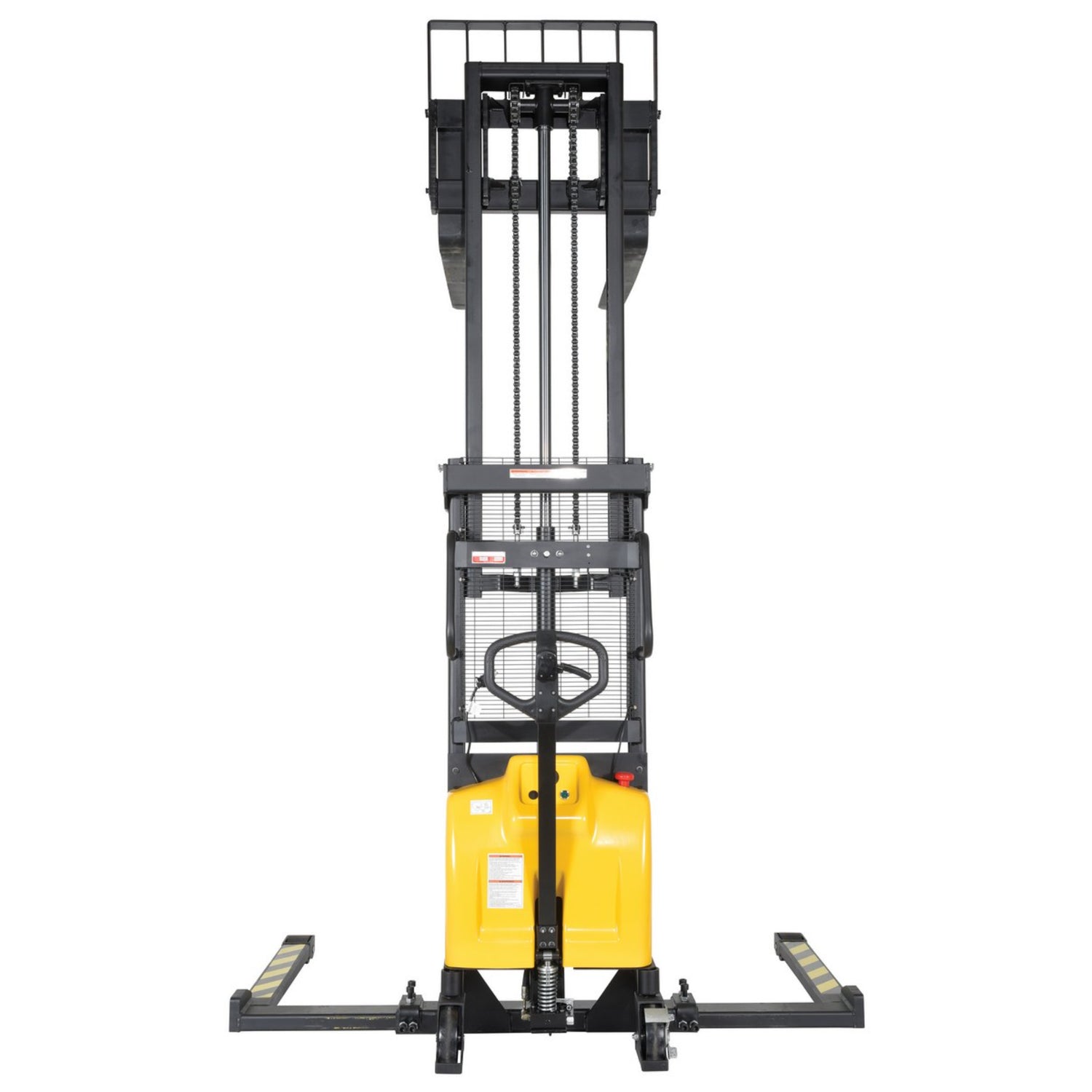

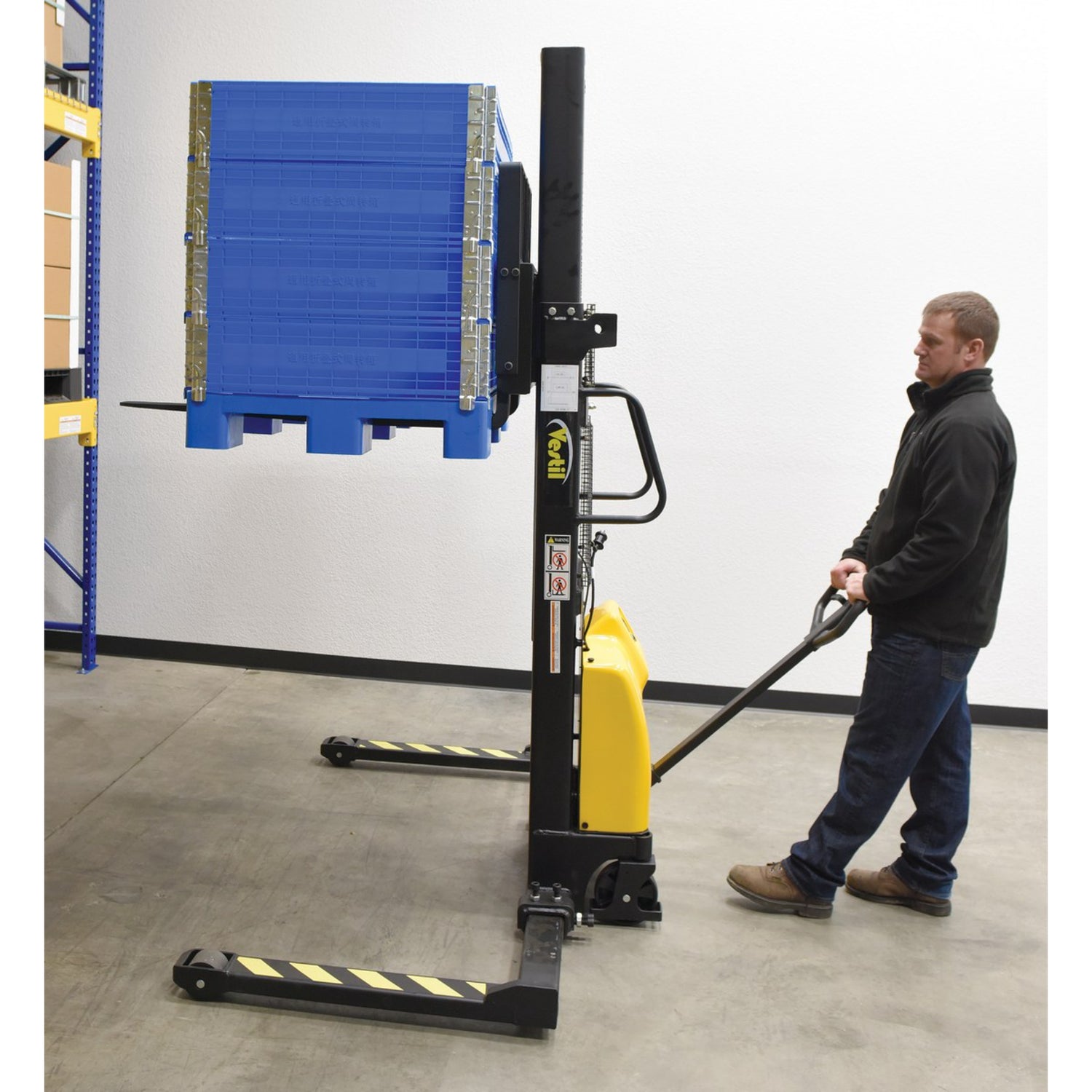

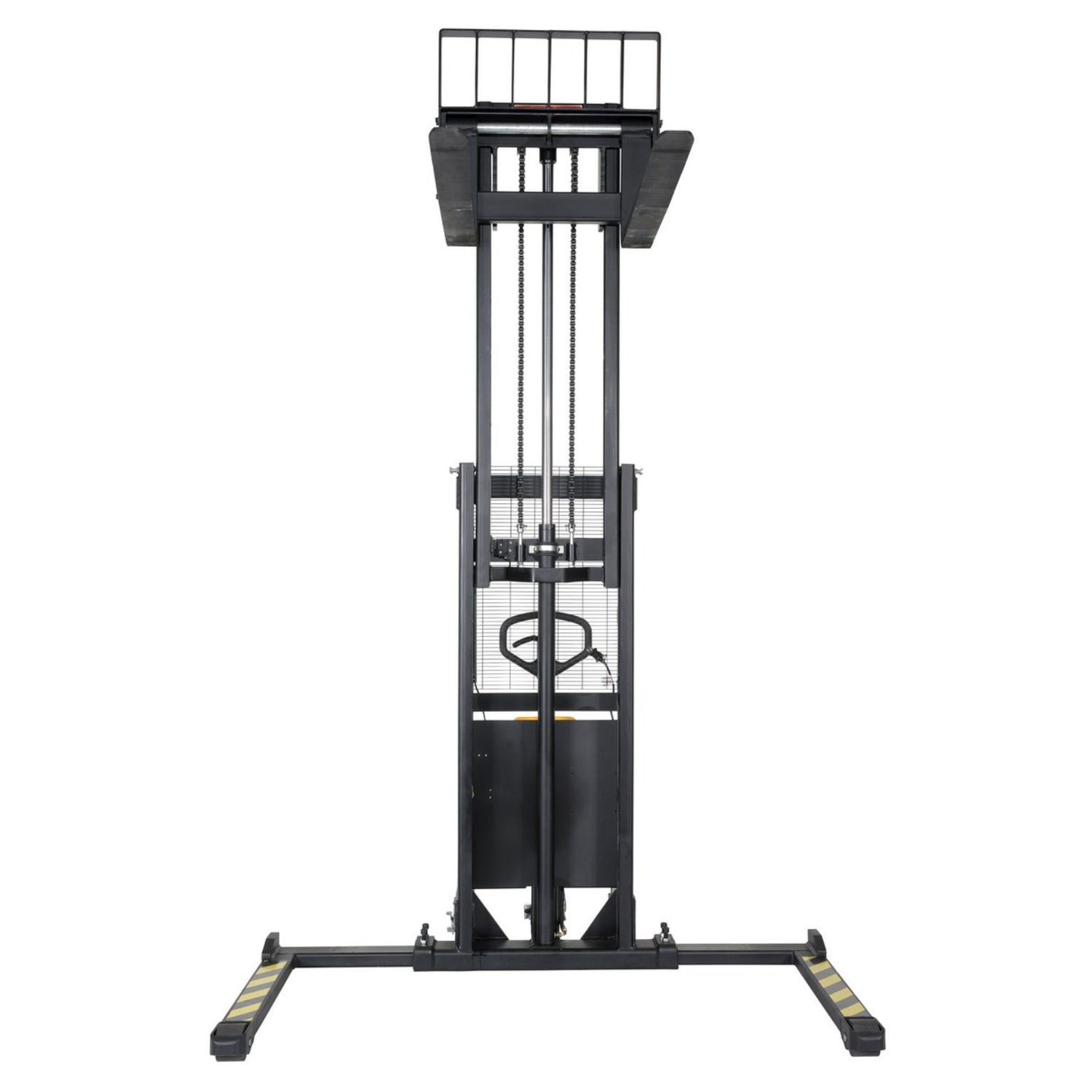

| SE/HP-98-AA (98", Adjustable) |
| Description |
Steel/Plastic Hand Pump DC Powered Stacker, Adjustable Forks & Legs, 98" Raised Height, 2,000 lb, Black/Yellow |
| Capacity |
2,000 lb uniform |
| Raised Height |
98" |
| Forks |
Adjustable, 12-1/4"–26-3/4" OD spacing, 6" wide |
| Power |
Hand pump + DC electric (2×12V 40Ah) |
| Net Weight |
1,108 lb |

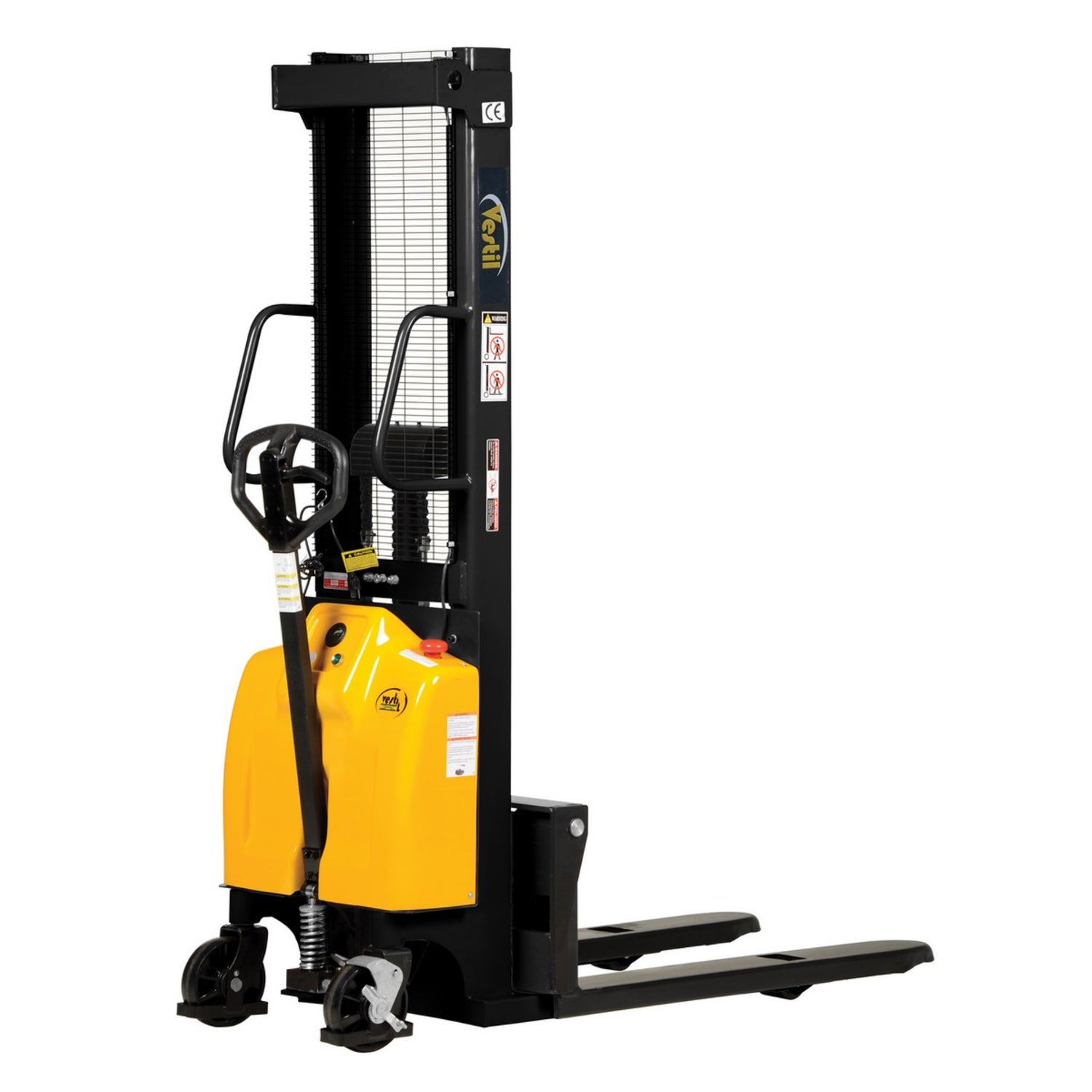

| SE/HP-118 (118", Fixed) |
| Description |
Steel Hand Pump DC Powered Stacker, Fixed Forks & Legs, 118" Raised Height, 2,000 lb, Black/Yellow |
| Capacity |
2,000 lb @ 0–63" / 1,500 lb @ 63–118" ⚠️ |
| Raised Height |
118" |
| Forks |
Fixed, 26-3/4" OD spacing, 6" wide |
| Power |
Hand pump + DC electric (2×12V 40Ah) |
| Net Weight |
984 lb |

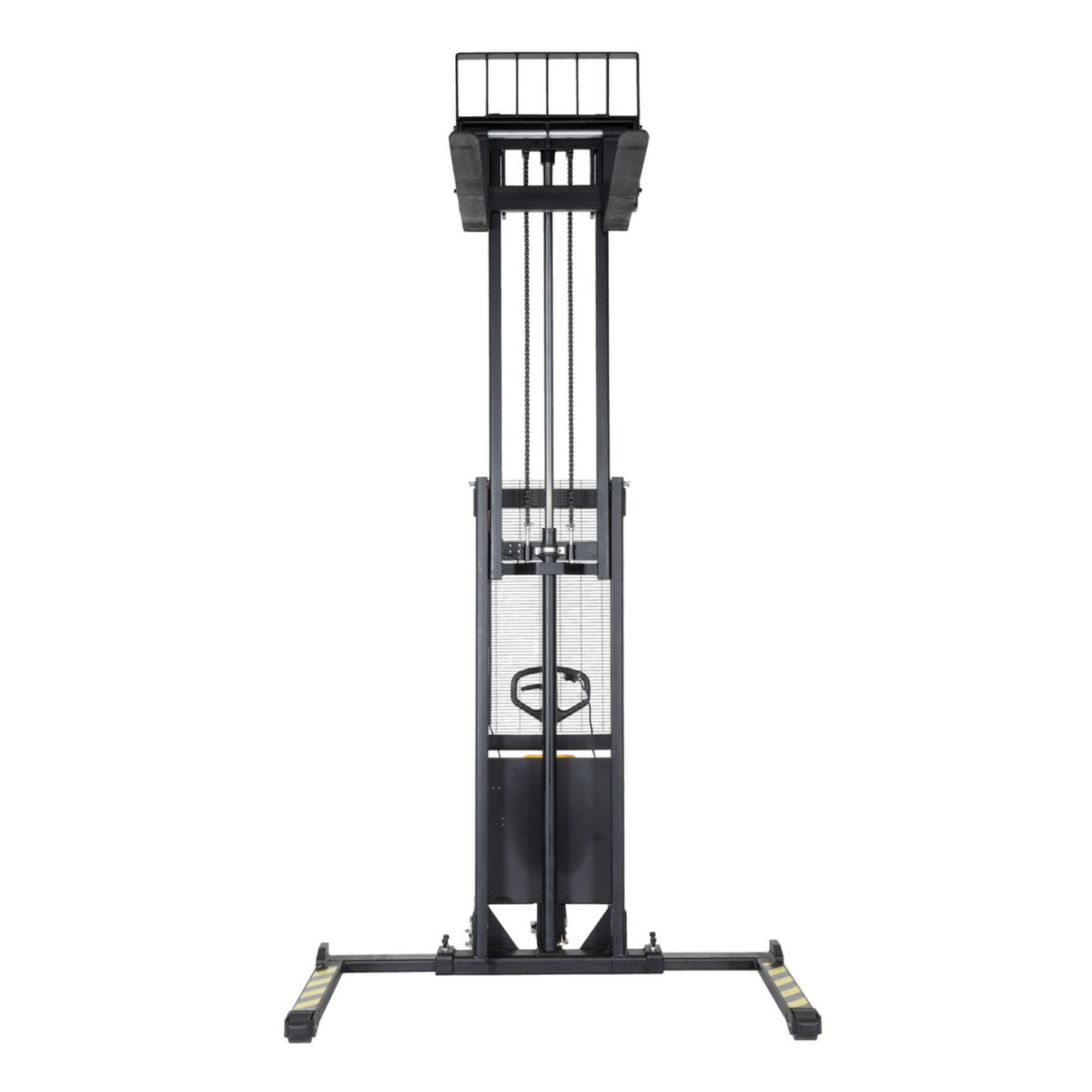

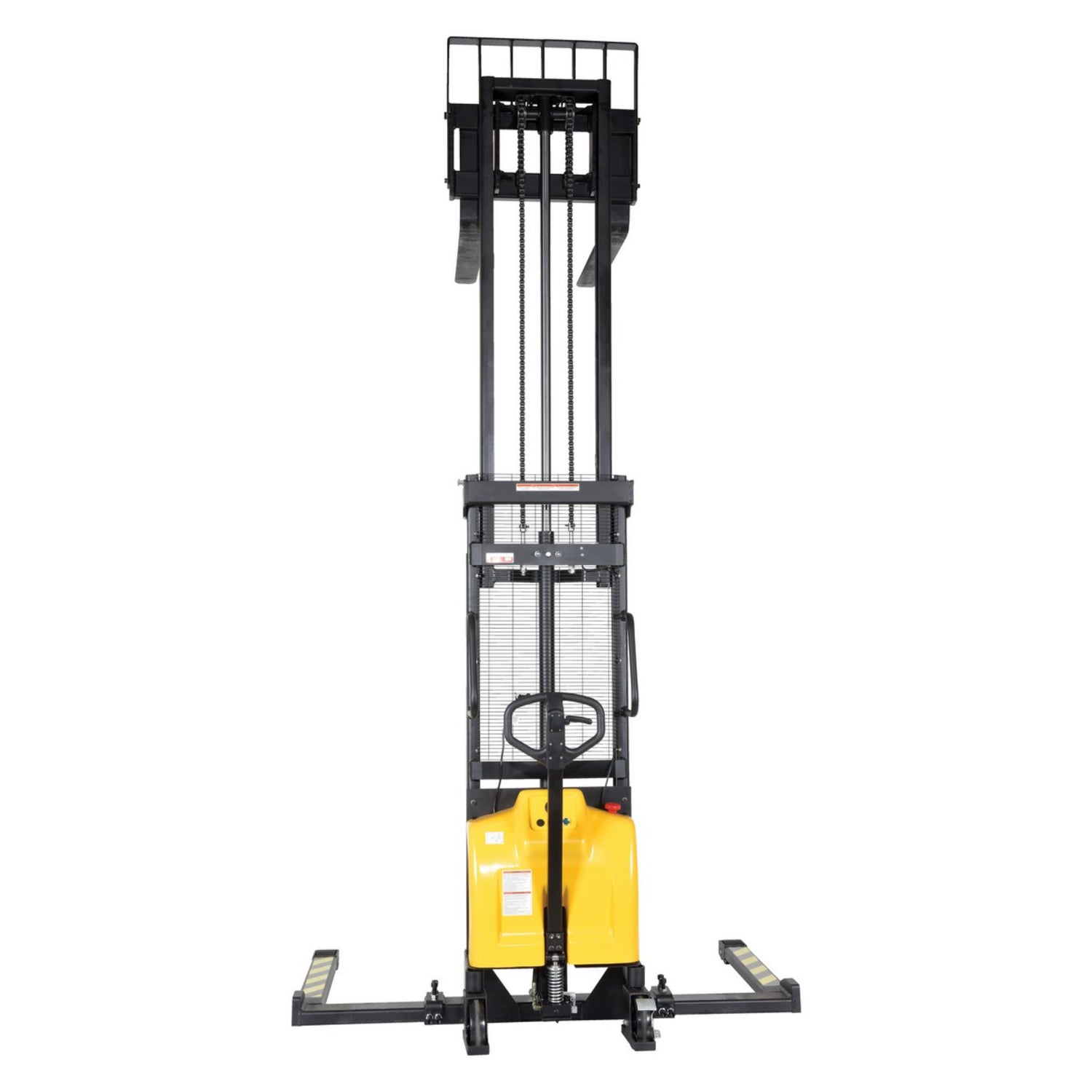

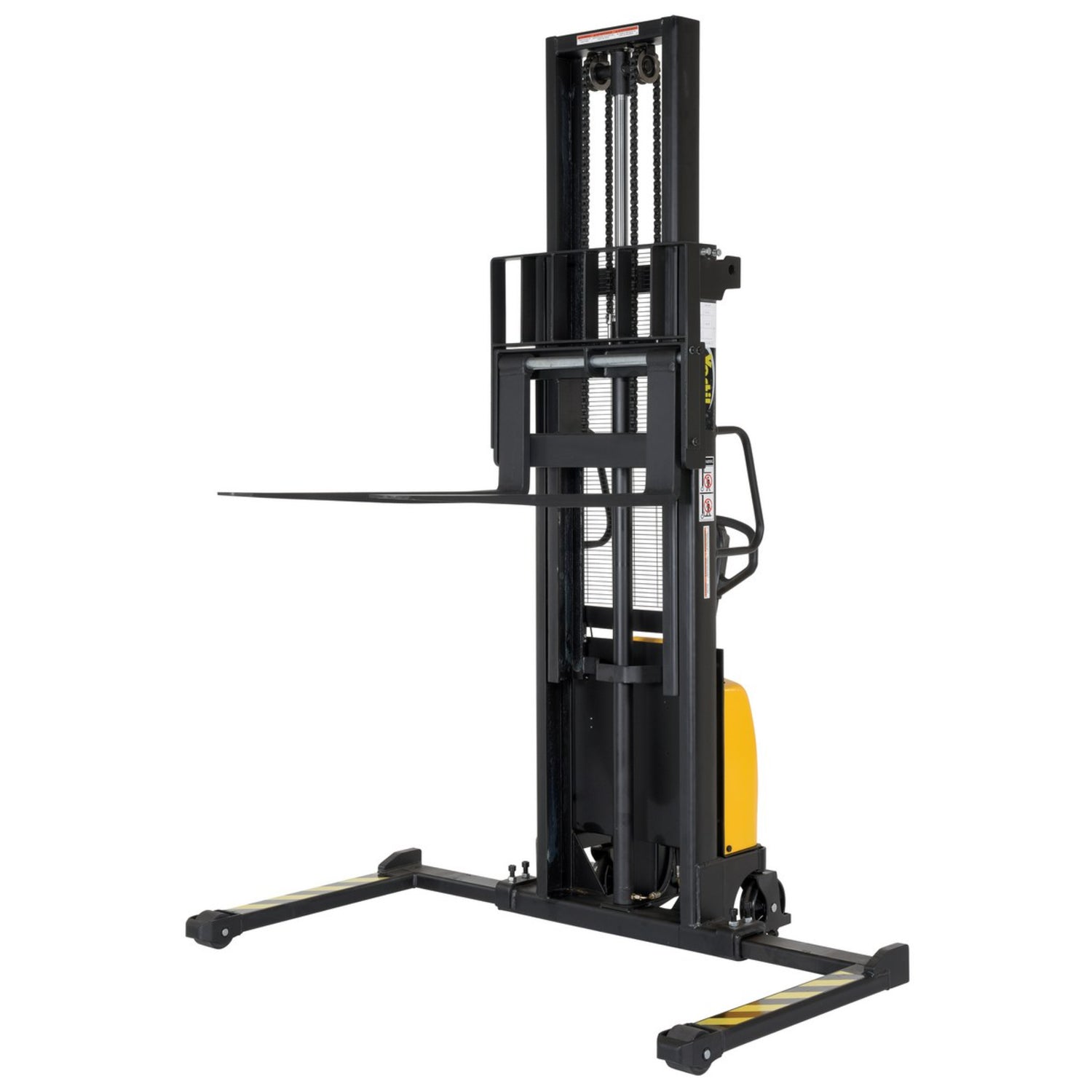

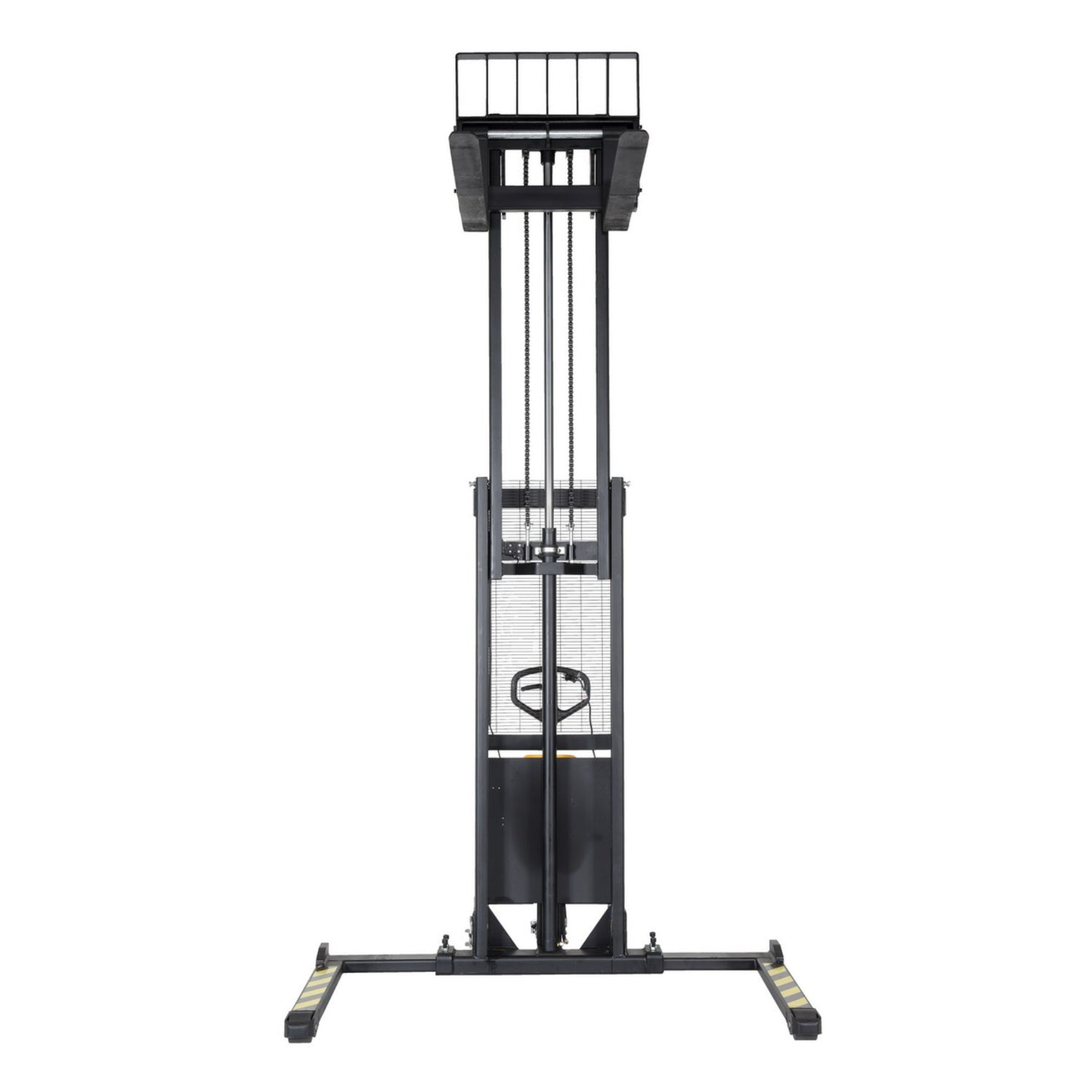

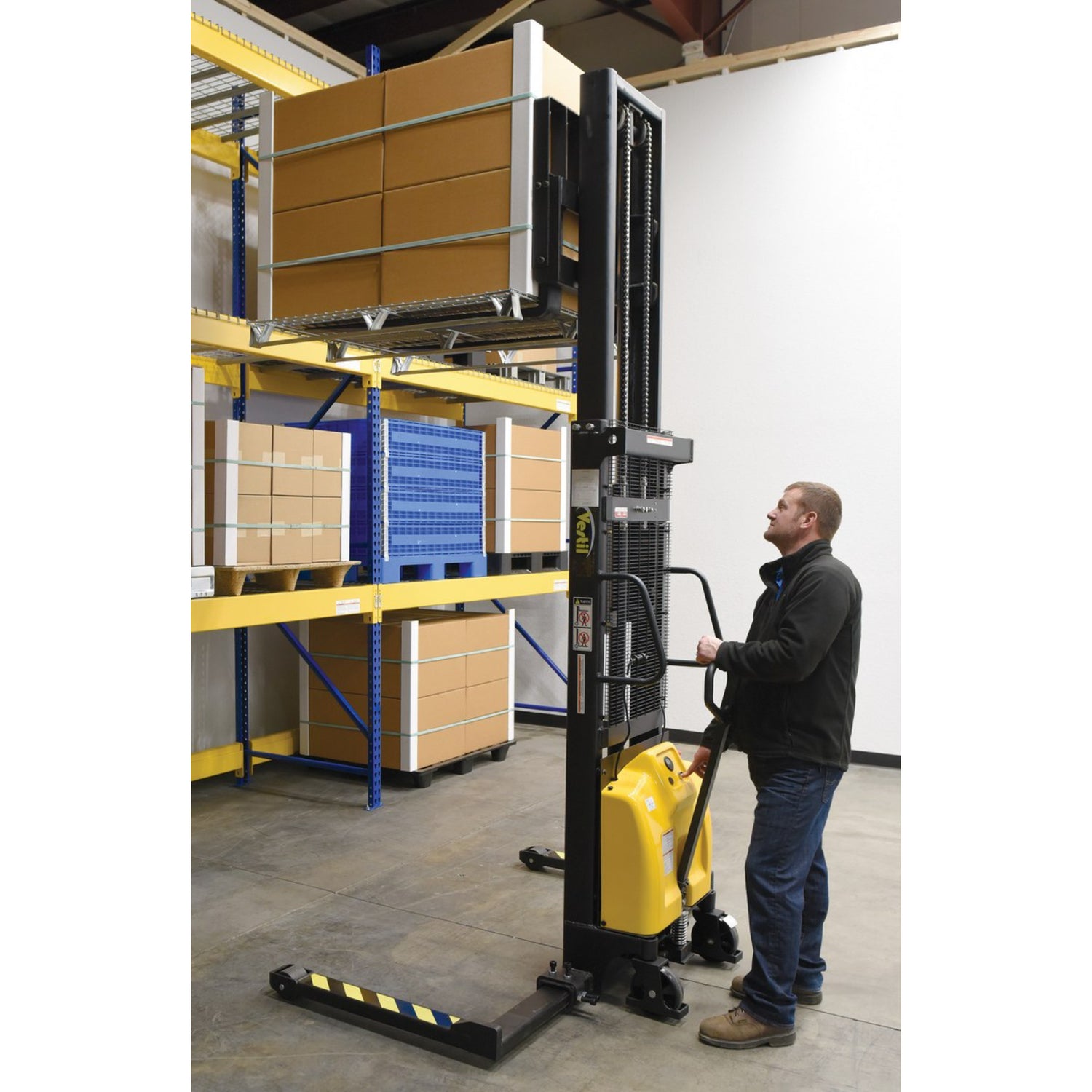

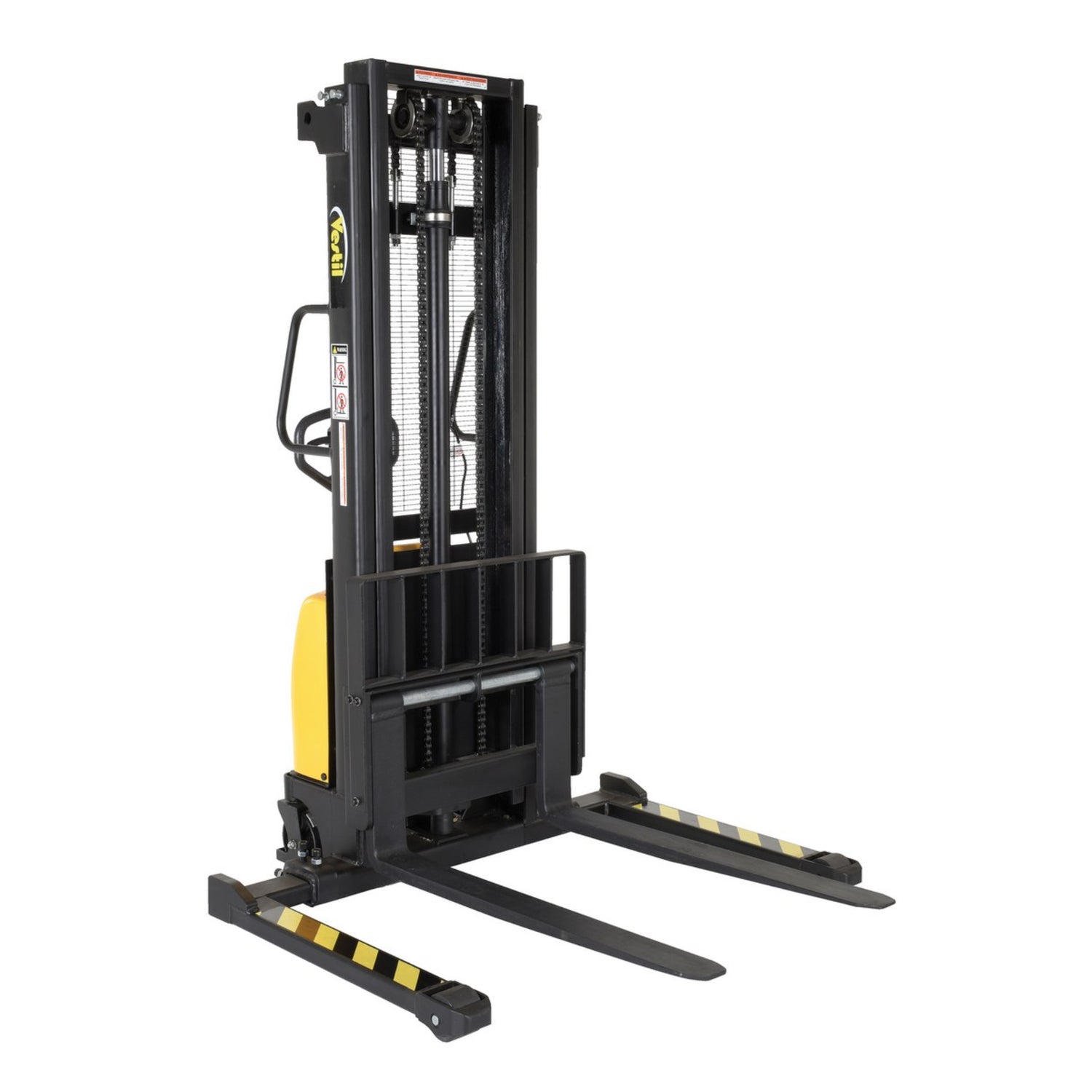

| SE/HP-118-AA (118", Adjustable) |
| Description |
Steel/Plastic Hand Pump DC Powered Stacker, Adjustable Forks & Legs, 118" Raised Height, 2,000 lb, Black/Yellow |
| Capacity |
2,000 lb @ 0–63" / 1,500 lb @ 63–118" ⚠️ |
| Raised Height |
118" |
| Forks |
Adjustable, 26-3/4" OD spacing, 6" wide |
| Power |
Hand pump + DC electric (2×12V 40Ah) |
| Net Weight |
1,160 lb |
Shared specifications (all models): 2,000 lb capacity · dual-power lift (hand pump + DC electric) · two 12V 40Ah batteries + integral charger + level gauge · adjustable lowering speed · 6" wide forks with support legs · standard pull handle (manual push drive) · skid-only design · Black/Yellow (98" fixed is Yellow).
Manuals & Documentation
- Owner's Manual: SE-HP (available on request)
- Engineering Drawings: SE/HP-63, SE/HP-63-AA, SE/HP-98, SE/HP-98-AA, SE/HP-118, SE/HP-118-AA
- SDS: Hydraulic Oil (HO150)
Testing certificates and a dedicated marketing brochure are not currently published for this line — contact us and we will request them from Vestil through our dealership. A product video is available on the Vestil Manufacturing YouTube channel.
⚠️ California Prop 65 Warning: This product can expose you to chemicals including lead and lead compounds (lead-acid batteries) and hydraulic oil components, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
