Vestil TAL Tote-A-Load — Open-Design Foot Pump or DC Powered Tote Lifter for Workstation Operations

Open-Design Foot Pump or DC Powered Tote Lifter — Three-Side Access for Workstation Operations

The Vestil TAL Tote-A-Load is the workstation-focused tote lifter in Vestil's ergonomic solutions catalog — engineered with an OPEN design that gives workers access to the load from three sides simultaneously, foot pump (HD) or 12V DC battery (DC) operation options, polyurethane swivel casters with brakes on all four wheels, and a compact 43" fork length optimized for tight workstation footprints. Where standard tote lifters force workers to reposition equipment to access the load from different angles, the TAL's open three-sided design eliminates that workflow inefficiency: assemblers, inspectors, kitters, and pickers can stand around the same load and work simultaneously from front, left, and right. With 2,200 lb load capacity, your choice of 21" or 27" fork width, foot pump or DC battery operation, brake-equipped all-caster wheel system for positive stationary positioning, and high-visibility safety yellow color, the TAL is the right tool for operations using tote lifters as quasi-stationary workstations: assembly operations, quality control inspection stations, kitting and picking workflows, order fulfillment, multi-worker collaboration, light manufacturing, sub-assembly handling, e-commerce fulfillment, print and binding shops, pharmaceutical and biotech production, and trade school training programs.

Why Open Three-Side Access Matters: Standard tote lifters have a mast and frame structure that blocks worker access from one side. For operations using lifters as transport-only equipment, this isn't an issue. But for operations where workers actually WORK with the elevated load (assembly, inspection, kitting, picking), the blocked side becomes a real productivity bottleneck — workers must reposition the entire lifter to access the blocked area, or reposition the load on the lifter, or stop work entirely to move the equipment. The TAL's open three-sided design eliminates the bottleneck: workers can stand around the load and access it from front, left, or right without repositioning the lifter. For multi-worker operations or workflows where multiple operations happen on the same load, this access advantage translates directly to throughput gains.

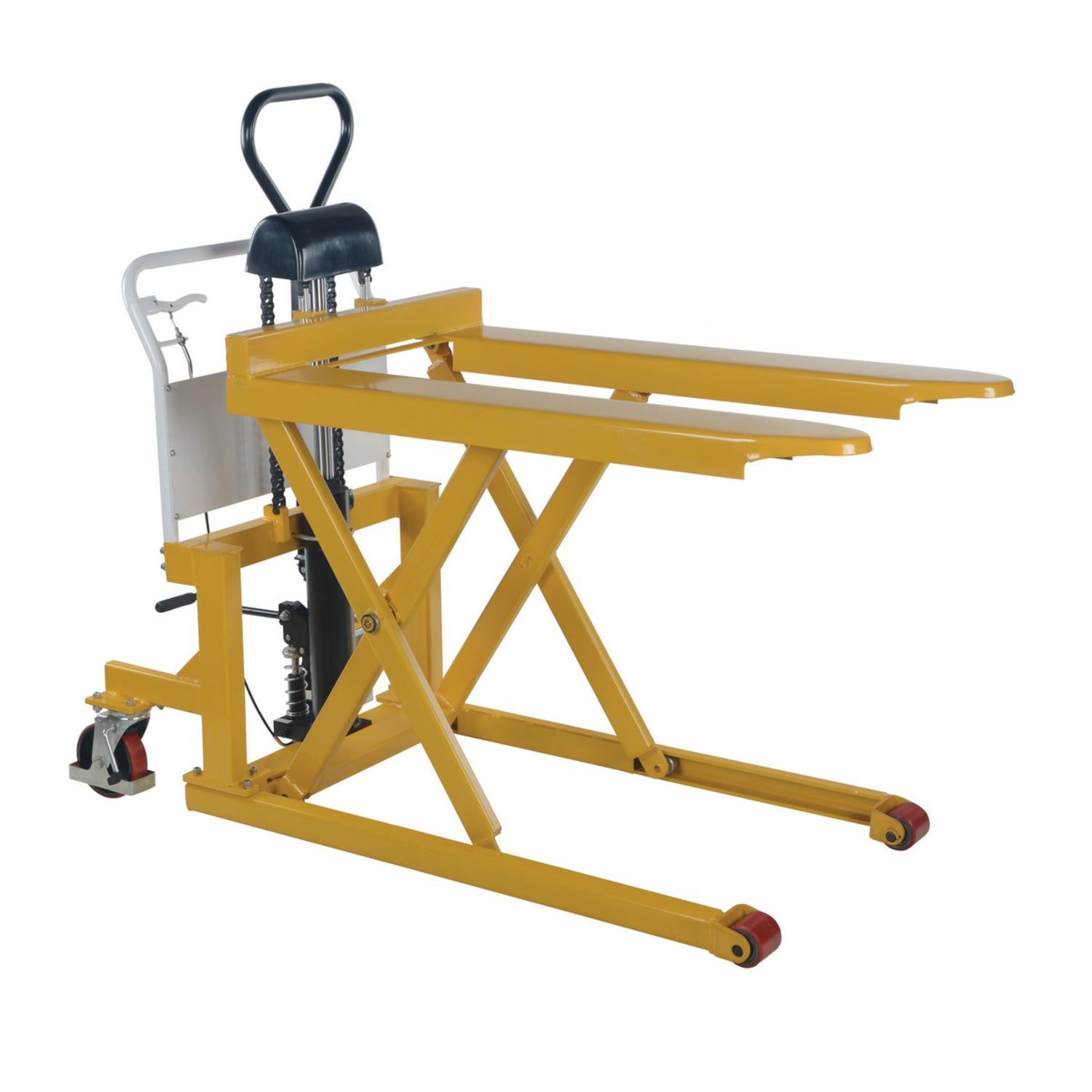

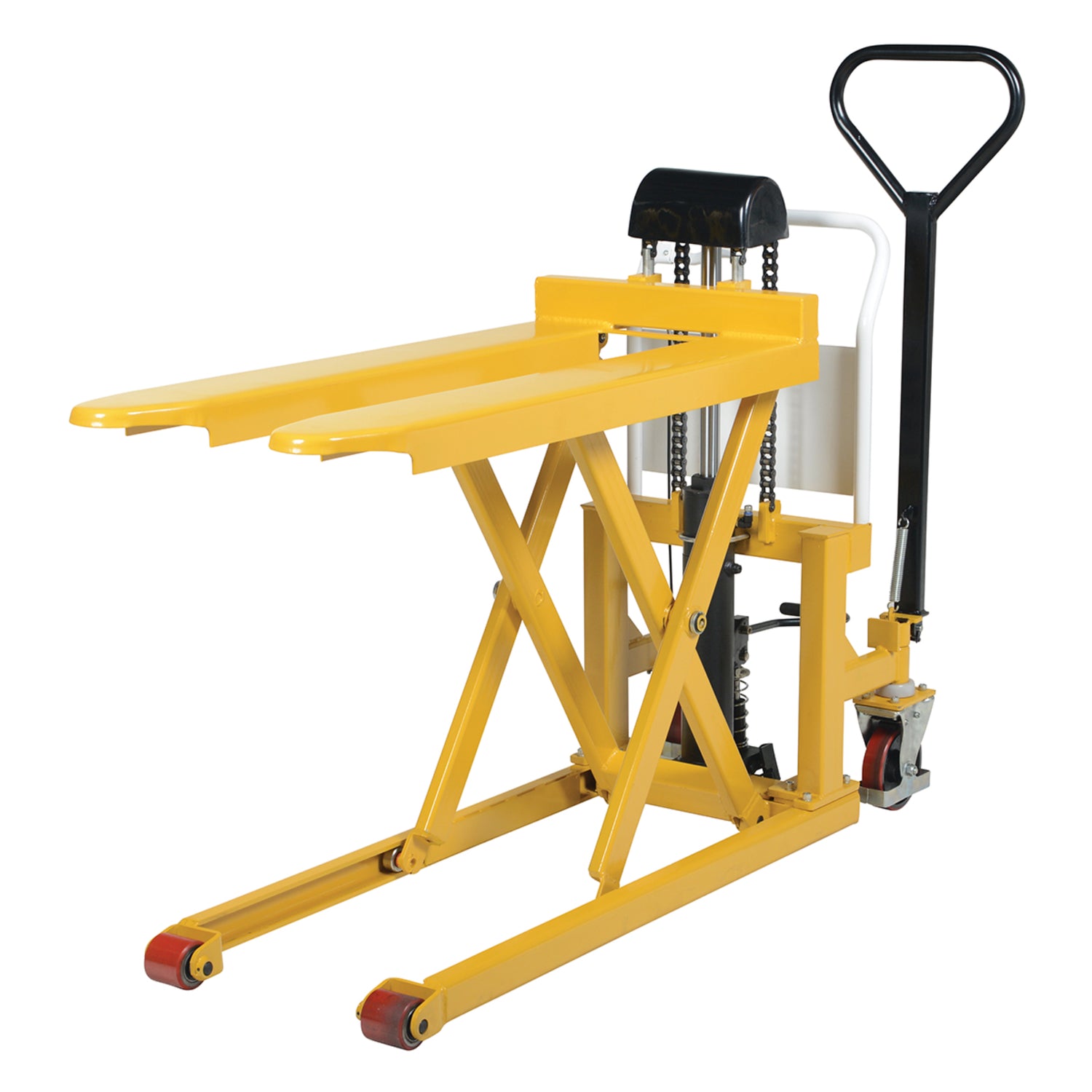

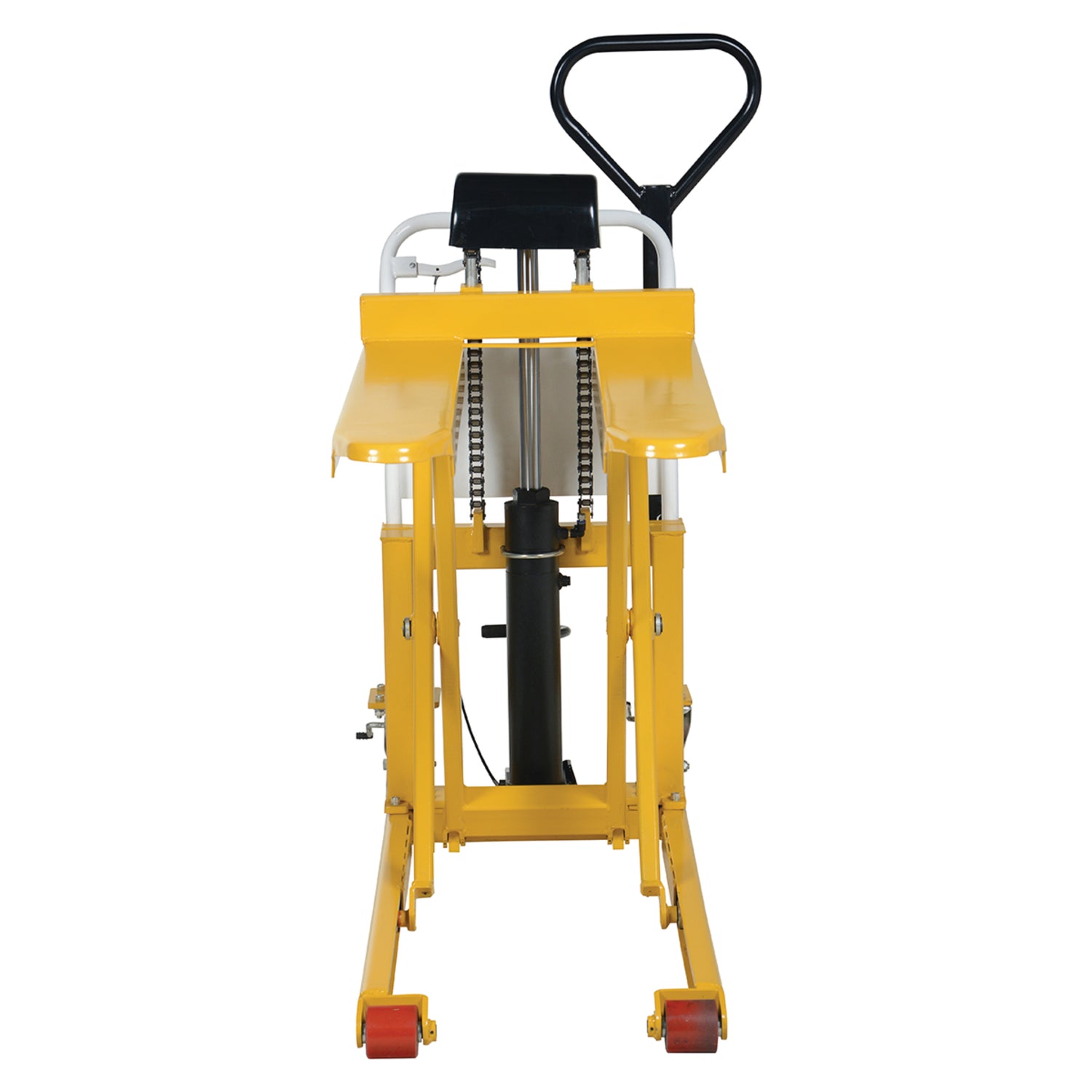

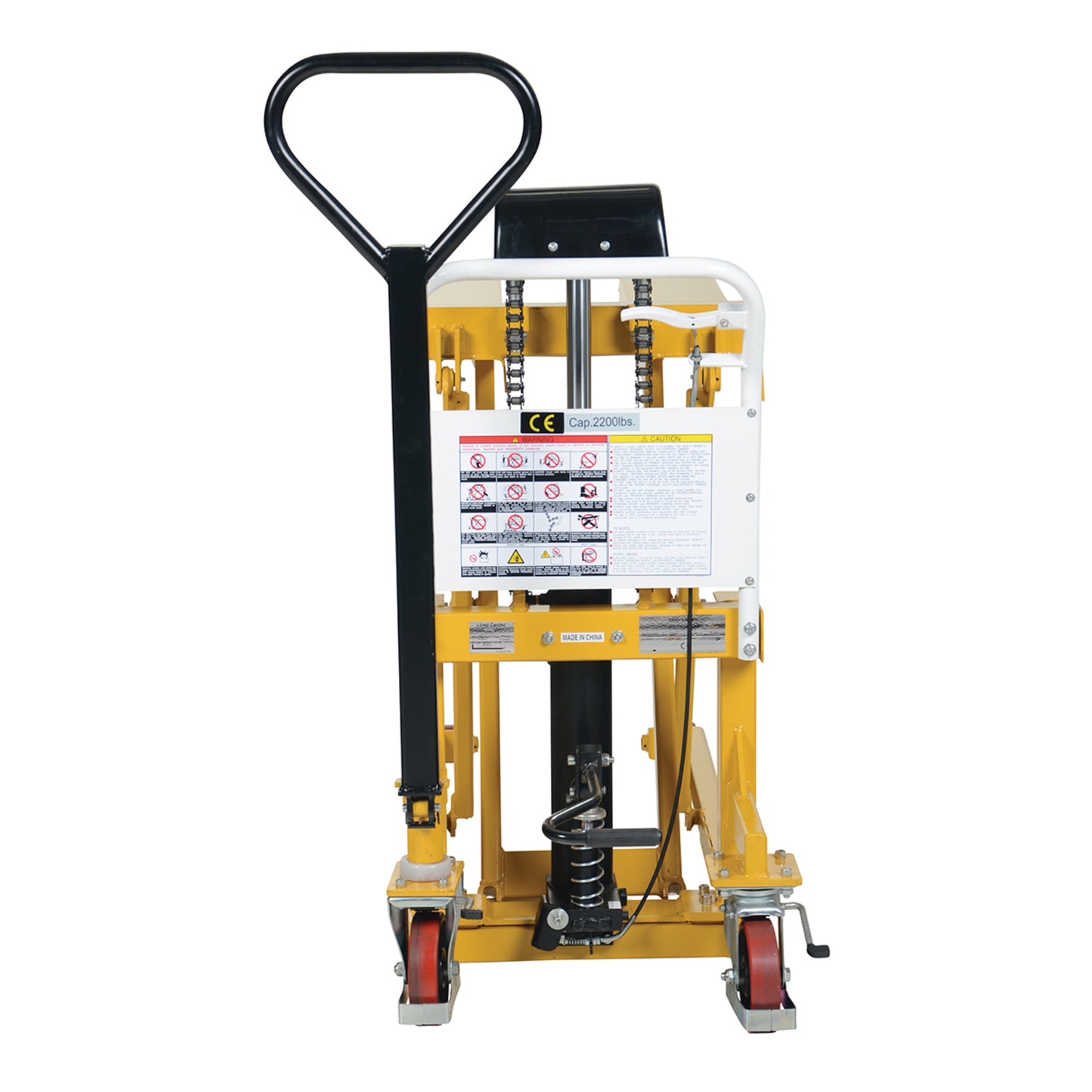

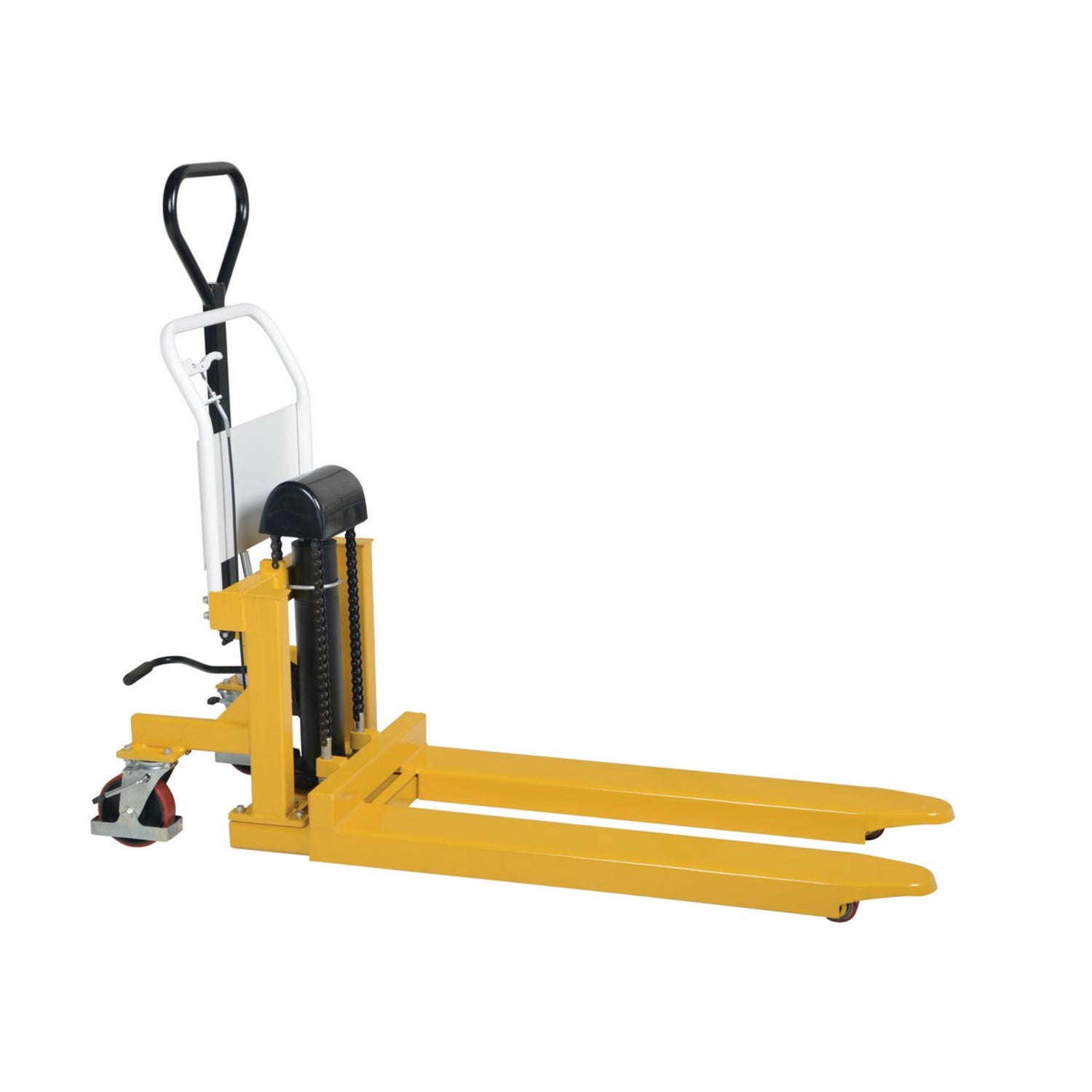

Foot Pump Operation (HD Variants) — Hands-Free Manual Lifting: The HD variants (TAL-220-HD and TAL-260-HD) use a FOOT PUMP for manual hydraulic operation — operators pump with their foot via a treadle-style pedal that travels approximately 1/2" per stroke. This is meaningfully different from standard hand-pump tote lifters: operators' hands remain free to guide the load, hold tools, or interact with the workstation while pumping. Foot pumping also reduces hand and wrist repetitive stress injuries (RSI) common in high-cycle hand-pump operations, distributes physical effort to larger leg muscles (less fatigue across long shifts), and improves overall ergonomics for repetitive lifting work. For high-volume manual operations, the foot pump is a significant ergonomic upgrade vs hand-pump equivalents.

Bicycle-Style Descent Grip (HD Variants): To lower the HD variants, operators depress a bicycle-style grip mounted on the white push bar — squeeze to lower, release to stop. This intuitive control mechanism (similar to bicycle brake levers, familiar to most operators) provides precise descent control without requiring training on rocker switches or hand levers. Operators can fine-tune descent speed by varying grip pressure for fragile or sensitive loads.

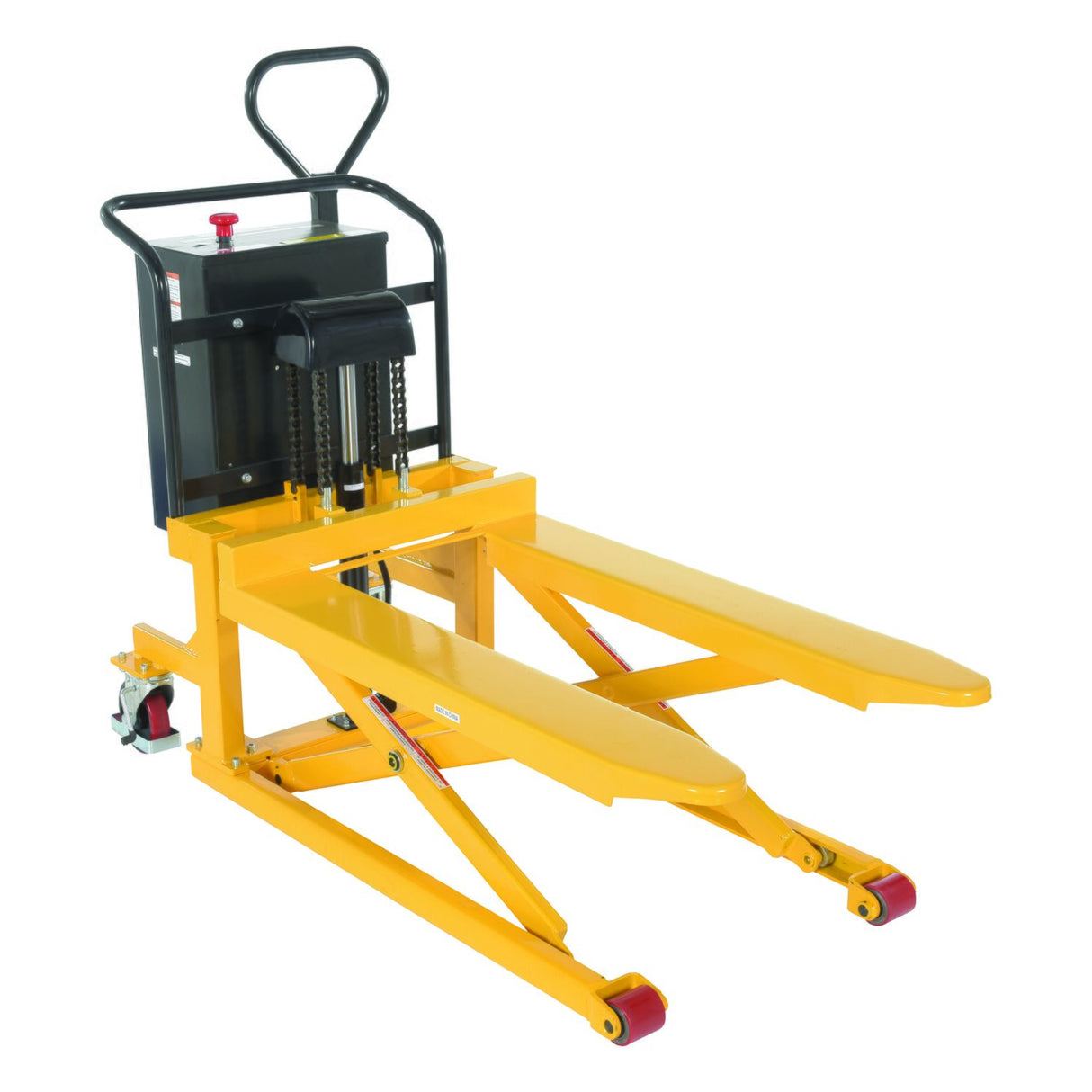

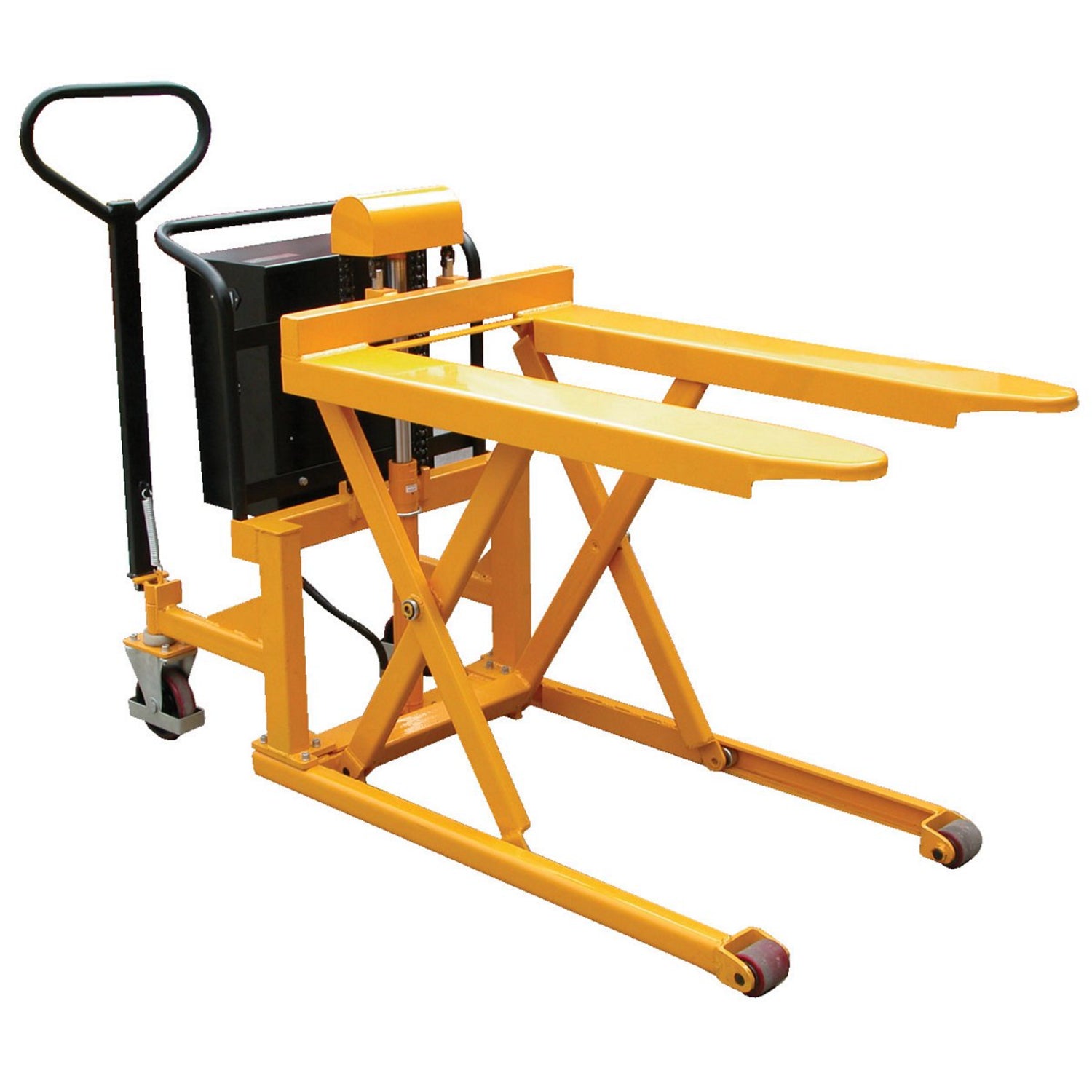

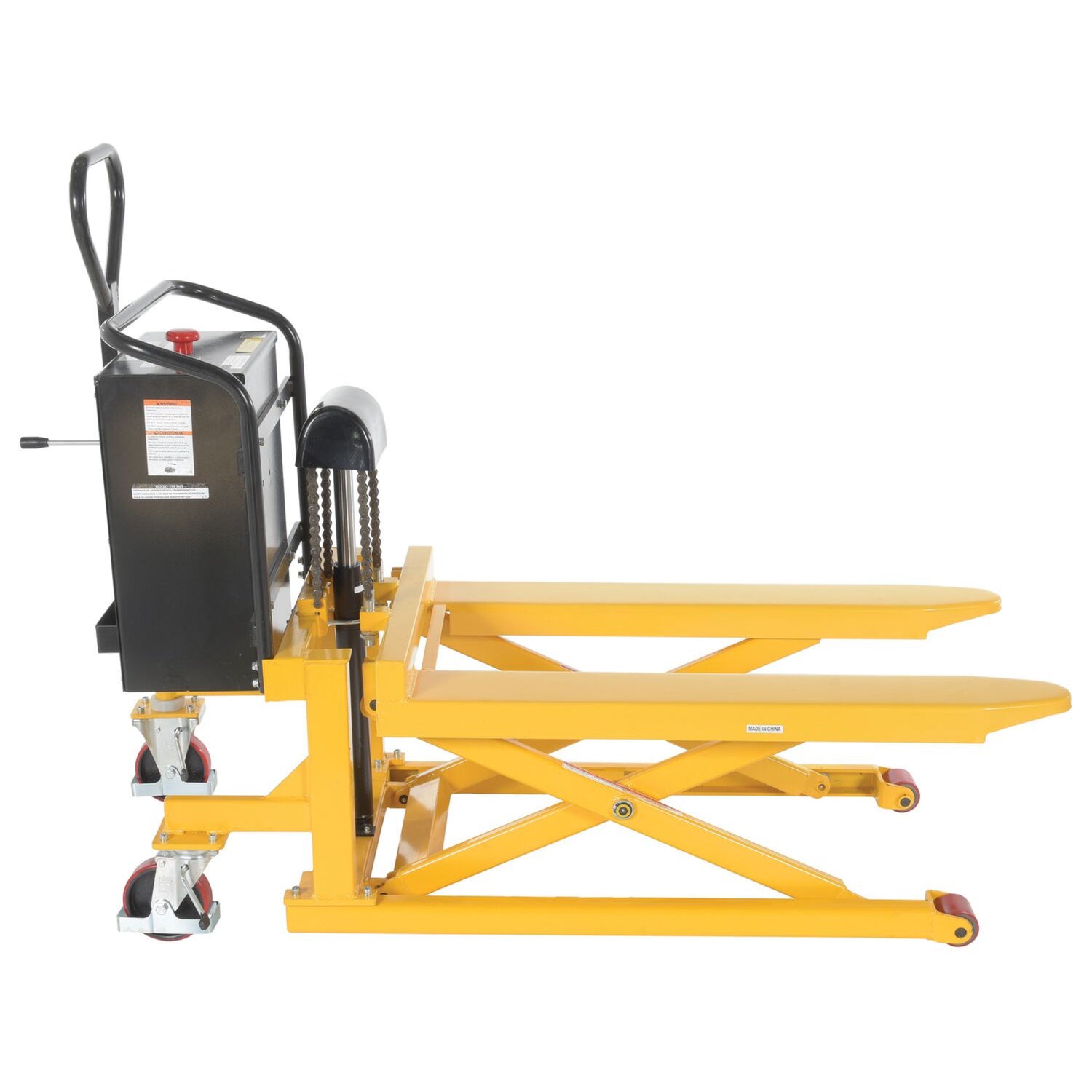

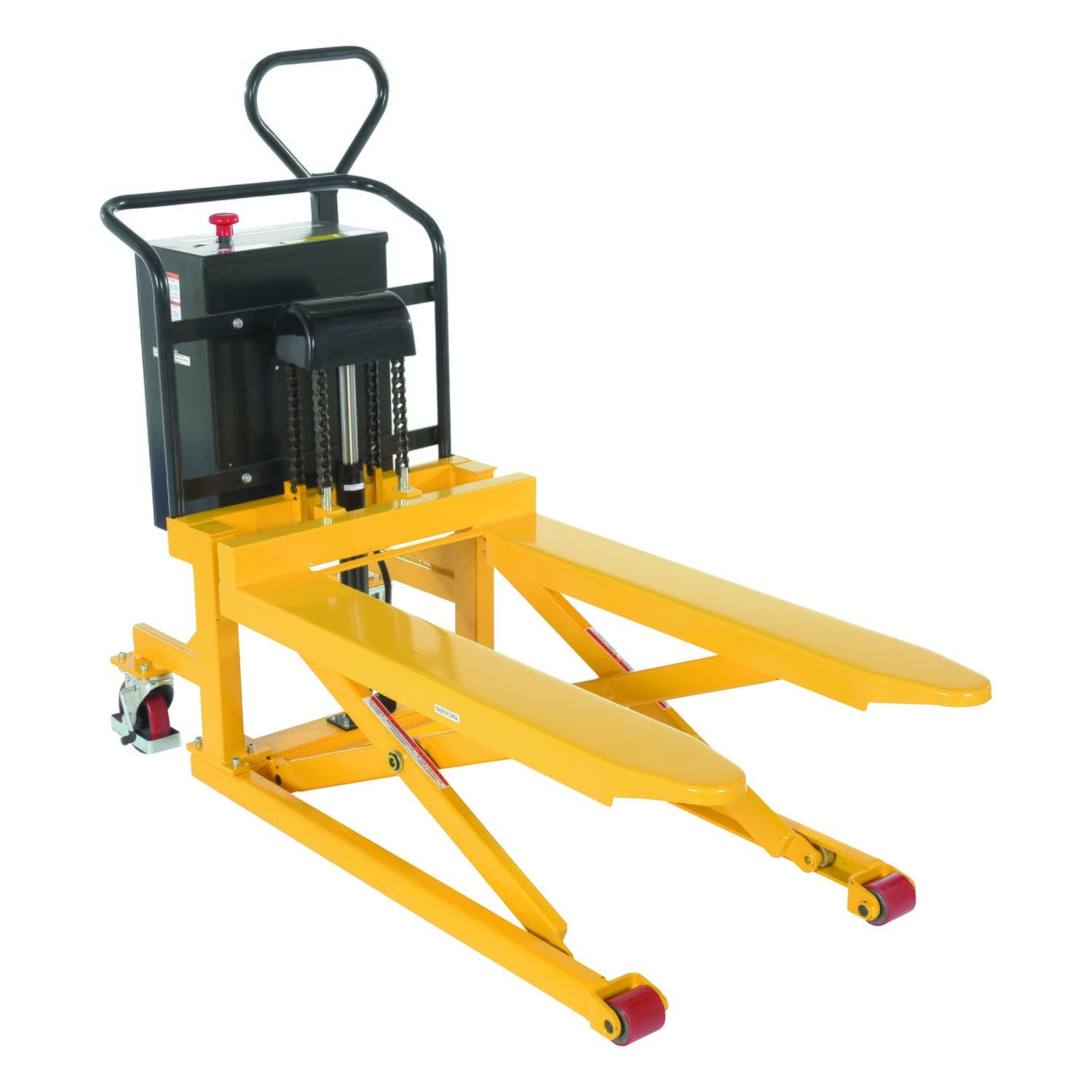

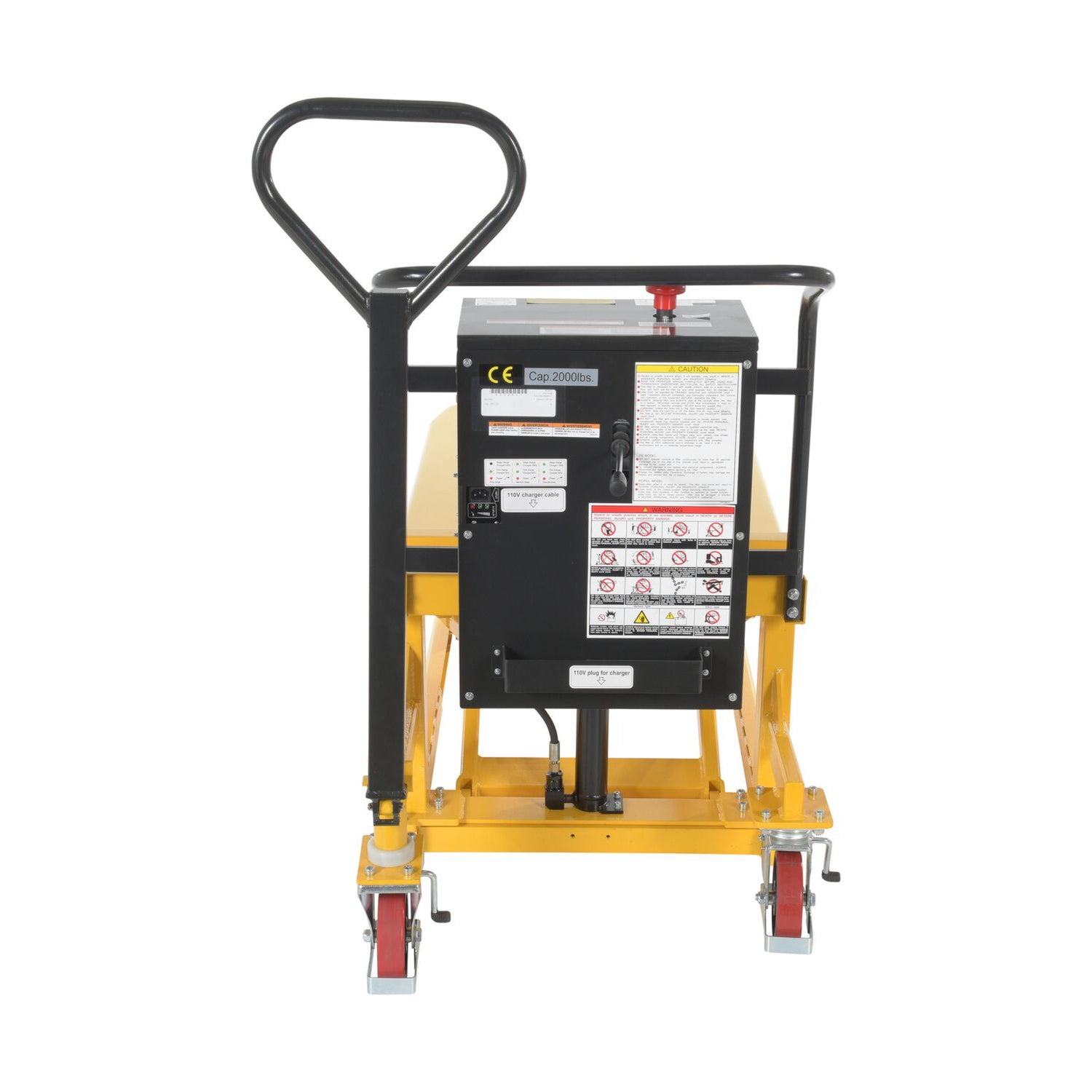

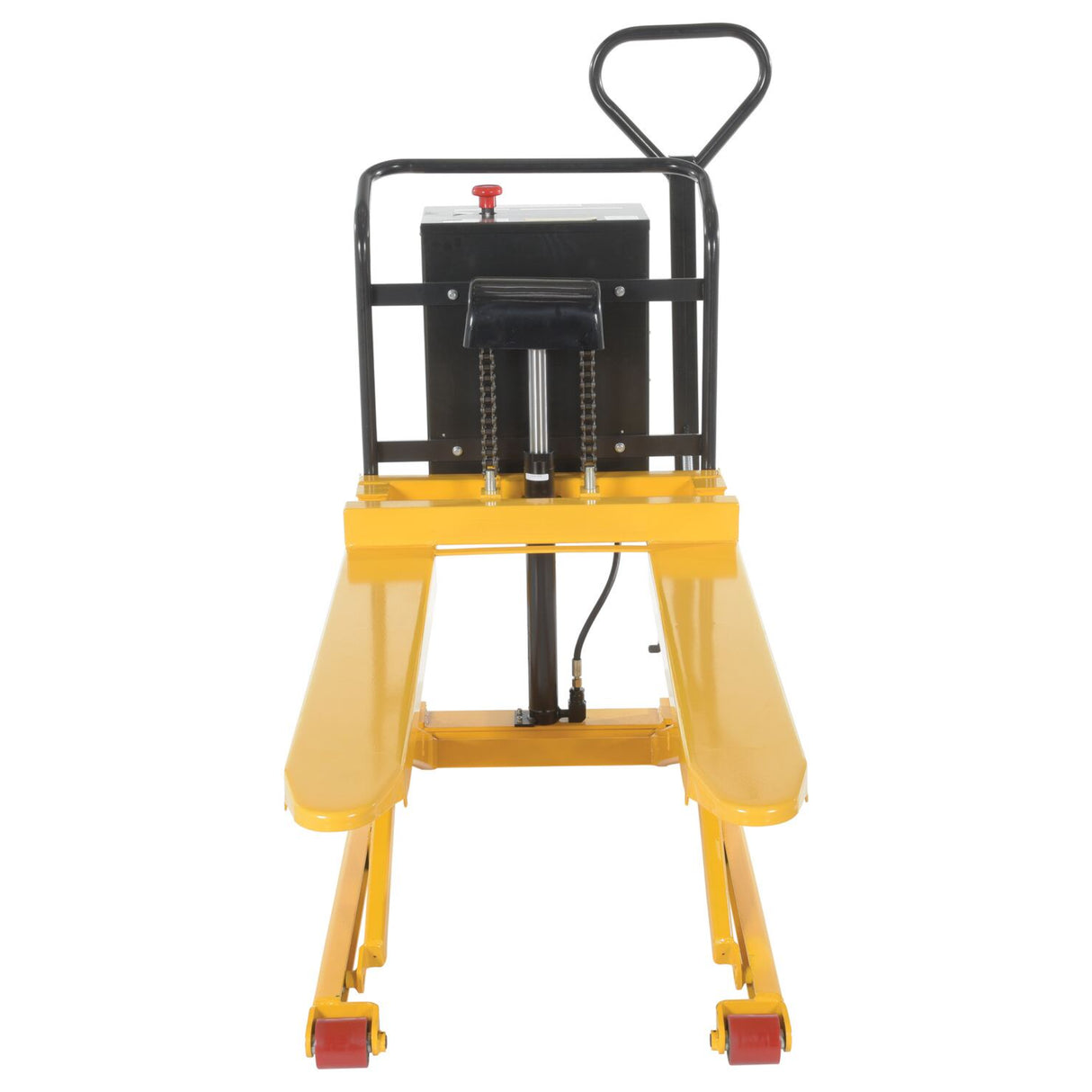

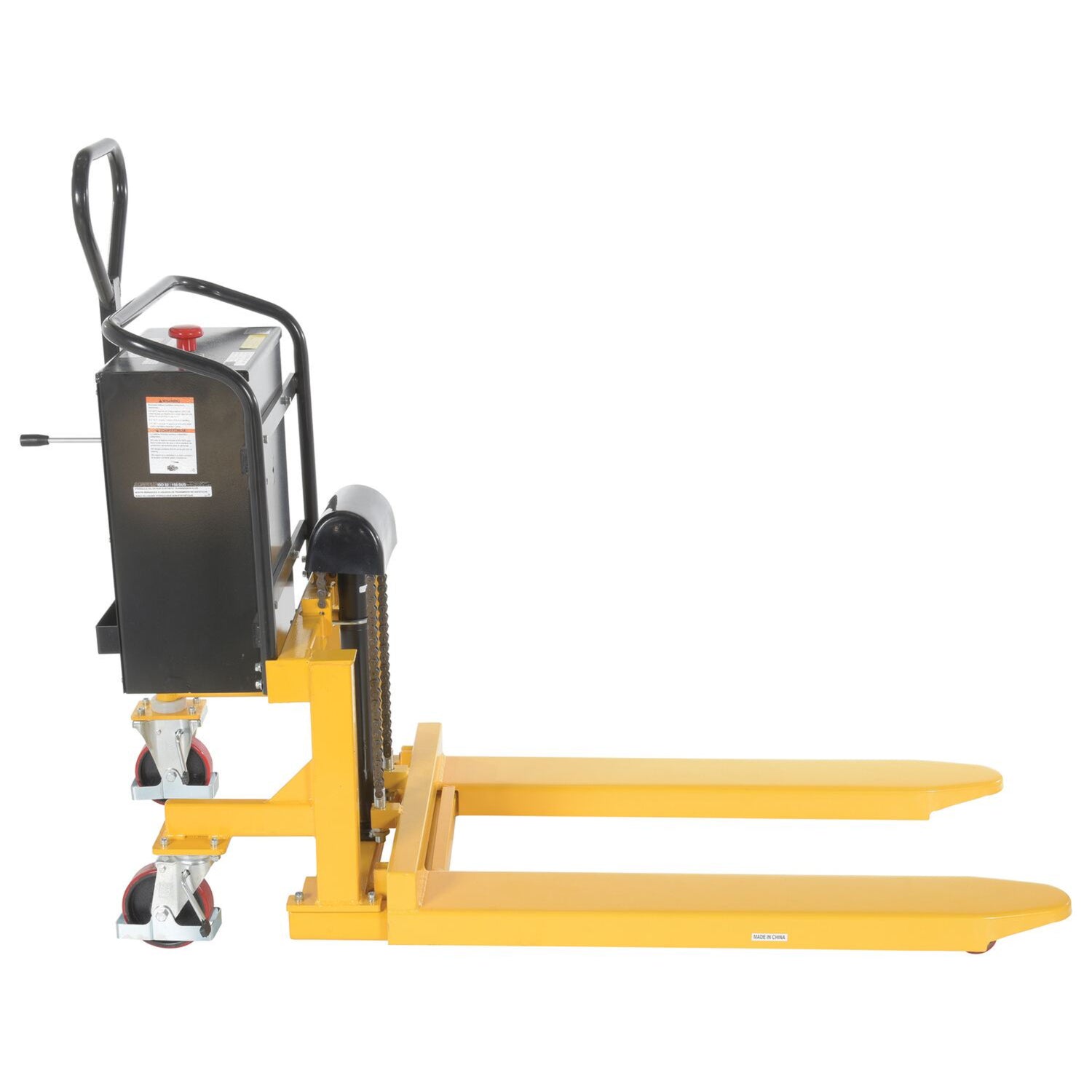

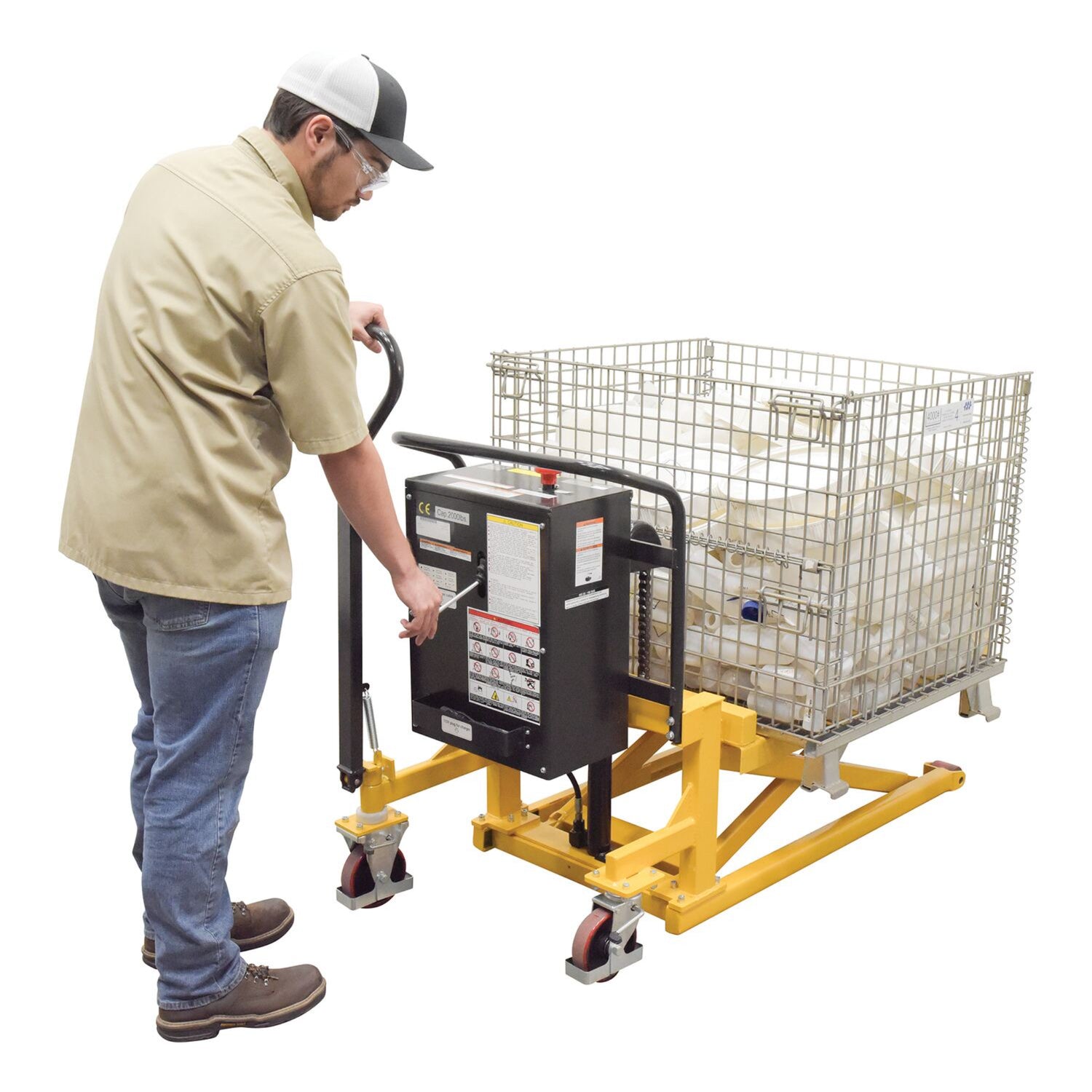

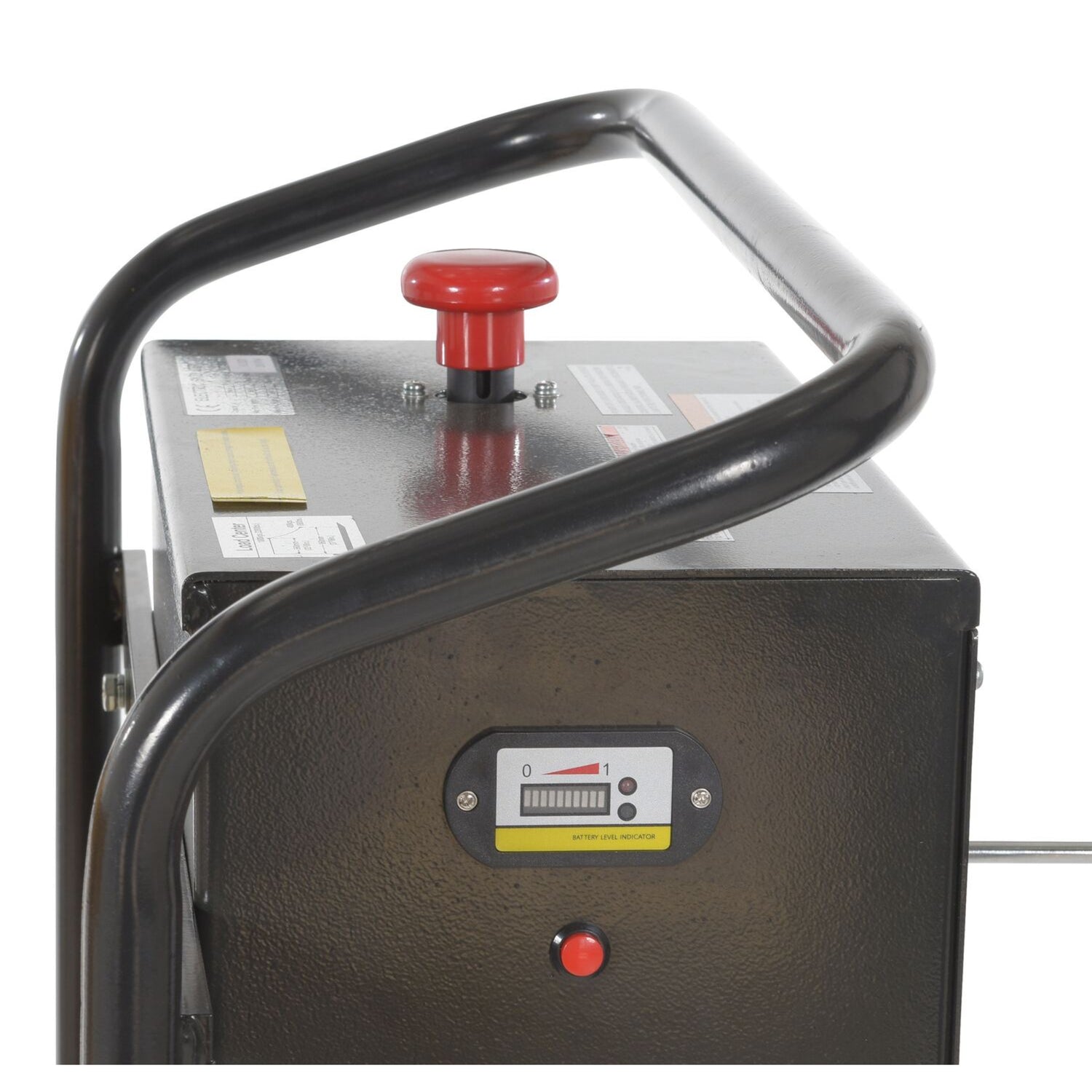

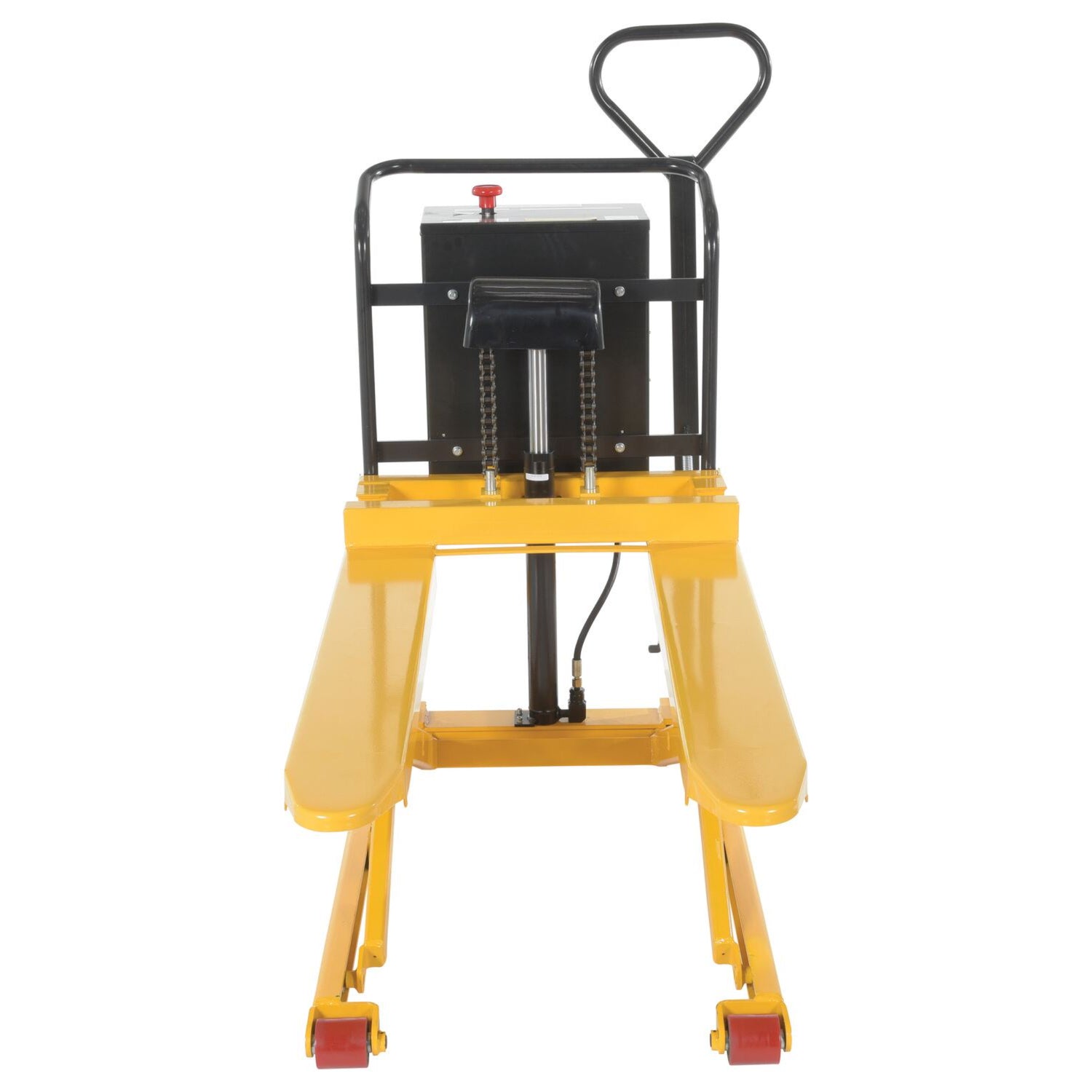

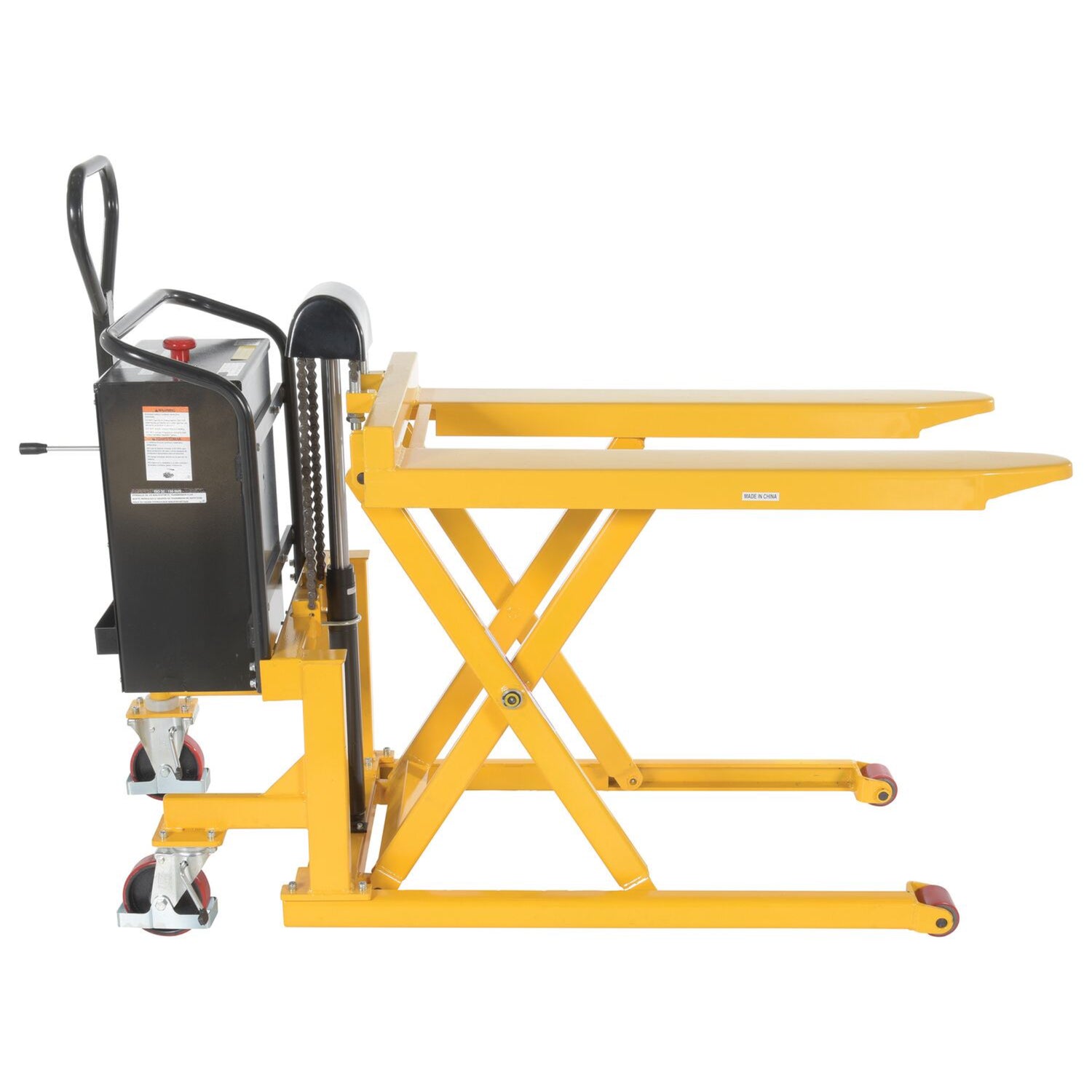

DC Battery Operation (DC Variants) — Workstation-Productive Lifting: The DC variants (TAL-220-DC and TAL-260-DC) use a 12V DC battery with rocker-style UP/DOWN lever control on the power unit. Includes one 12V battery, onboard battery charger, and battery charge indicator gauge. DC operation is ideal for high-volume workstation operations where positioning products at work height is the primary use case — operators raise the load once, lock the lifter in place with the all-caster brake system, and perform their workstation tasks without repeated pumping cycles. The onboard charger plugs into any standard 115V outlet for overnight or between-shift charging.

Choose Your Configuration — Two Critical Decisions:

• Fork Width — 21" or 27": Choose 21" (TAL-220 series) for narrower totes and tighter workstation footprints, or 27" (TAL-260 series) for wider totes and more stable load support. Both widths use 43" fork length (shorter than standard pallet truck forks — optimized for workstation maneuverability).
• Operation — Foot Pump (HD) or DC Battery (DC): Foot Pump (HD) is lower cost, no battery to maintain, fully portable to any location without power, and provides hands-free pumping for high-cycle operations. DC Battery is higher cost but eliminates pumping entirely — ideal for high-volume workstations where operators raise the load once and work with it for extended periods. For mixed workflows, consider one of each.

All-Caster Brake System — Positive Stationary Positioning: The TAL rolls on FOUR polyurethane swivel casters, all equipped with brakes. This is a significant upgrade vs typical tote lifters with brakes on only one or two casters. The all-caster brake system provides positive stationary positioning when the lifter is being used as a workstation — no roll-away risk during simultaneous multi-worker access, no movement on sloped floors, no need for operators to physically block the wheels during use. Operators set the brakes once when positioning the workstation, work for as long as needed, then release brakes to roll the lifter elsewhere.

Polyurethane Casters: Unlike the poly-on-steel wheels used on standard L-Series lifters, the TAL uses solid polyurethane swivel casters. Polyurethane casters are non-marking on industrial floors, quieter at higher weights, more chemical-resistant, and provide better floor protection (no metal-on-floor contact at the load points). For operations with finished concrete, epoxy, or sealed industrial floors, the polyurethane casters are a meaningful upgrade.

Safety Yellow Color: The TAL ships in high-visibility safety yellow color (different from the blue used on L-Series). Yellow provides better visibility in industrial environments where pedestrian/equipment proximity matters — important for operations with active foot traffic, mixed equipment zones, or facilities subject to OSHA visibility requirements for moving equipment.

43" Fork Length — Compact Workstation Footprint: The TAL uses 43" fork length — slightly shorter than standard pallet truck forks (typically 45-48"). This compact dimension matches the workstation-focused design philosophy — better maneuverability in tight workstation footprints, less aisle space required, easier positioning at workstations, and reduced overall equipment footprint in production facilities. The shorter fork length also makes the unit easier to maneuver in confined operations where standard lifter dimensions create congestion.

⚠️ WORKS WITH OPEN-BOTTOM LOADS: The TAL engages loads via forks that slide UNDER the load. This requires open-bottom geometry — skids with runners, totes with feet, boxes on supports, baskets with under-clearance. Closed-bottom containers are NOT compatible. For closed-bottom loads, see the TAL-PLATE accessories (available as add-on below) which provide a flat lifting surface over the forks.

⚠️ 2,200 lb Capacity Ceiling: The TAL is rated for 2,200 lbs — lower than standard L-Series (3,000 lbs) and HIPM (2,500 lbs). For operations with loads exceeding 2,200 lbs, consider the L-Series Steel (3,000 lb capacity, hand pump or DC) or HIPM (2,500 lb capacity, multiple power options) instead. The TAL's value proposition is workstation-focused open design, not maximum capacity.

Optional TAL-PLATE Platform Accessory: For loads that DON'T have open-bottom geometry (flat boxes, closed containers, loose loads, irregular items), Vestil offers TAL-PLATE solid steel platforms that lay across the forks to create a flat lifting surface. Two sizes are available: TAL-PLATE-21 (44" × 21-1/4") for the 21" width variants, and TAL-PLATE-27 (44" × 27-3/4") for the 27" width variants. Platforms convert the TAL into a flat-platform lifter — same workstation benefits, broader load compatibility. Platforms ship separately from the lifter and carry a 30-day limited warranty (vs the 90-day warranty on the main lifters).

Documentation Note: The TAL-220-HD engineering drawing is not currently published on Vestil's product page (drawings for the other three SKUs ARE published). If you require the TAL-220-HD engineering drawing for facility planning or compliance documentation, contact us and we can request it from Vestil for your specific purchase.

⚠️ LTL Freight Delivery Required: At 356-512 lbs depending on configuration, the TAL ships via LTL freight — not UPS or FedEx. Verify freight delivery access at your receiving location before ordering.
