Triumph NSS-11000 Standard 11,000 lb Portable 4-Post Storage & Service Car Lift — 110V

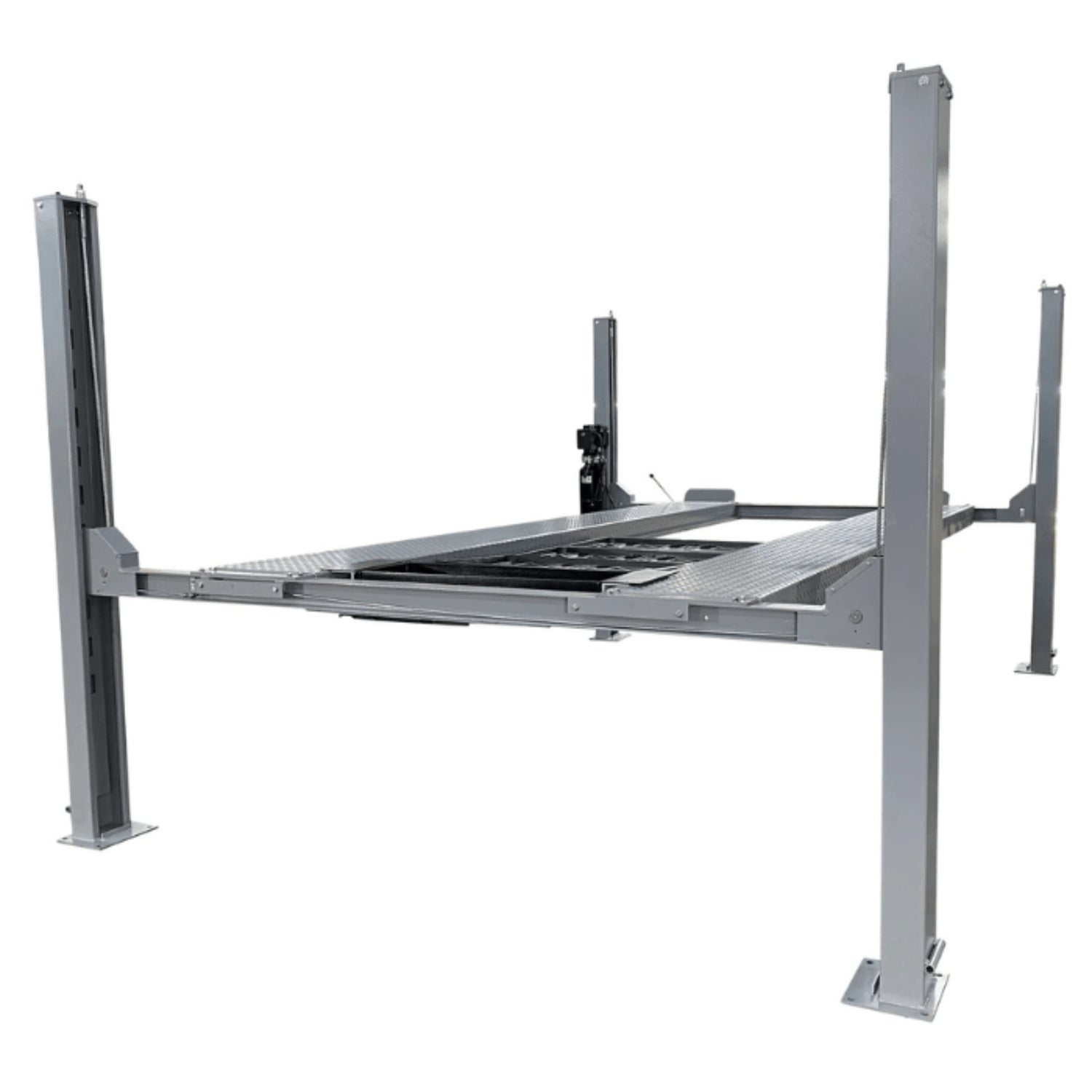

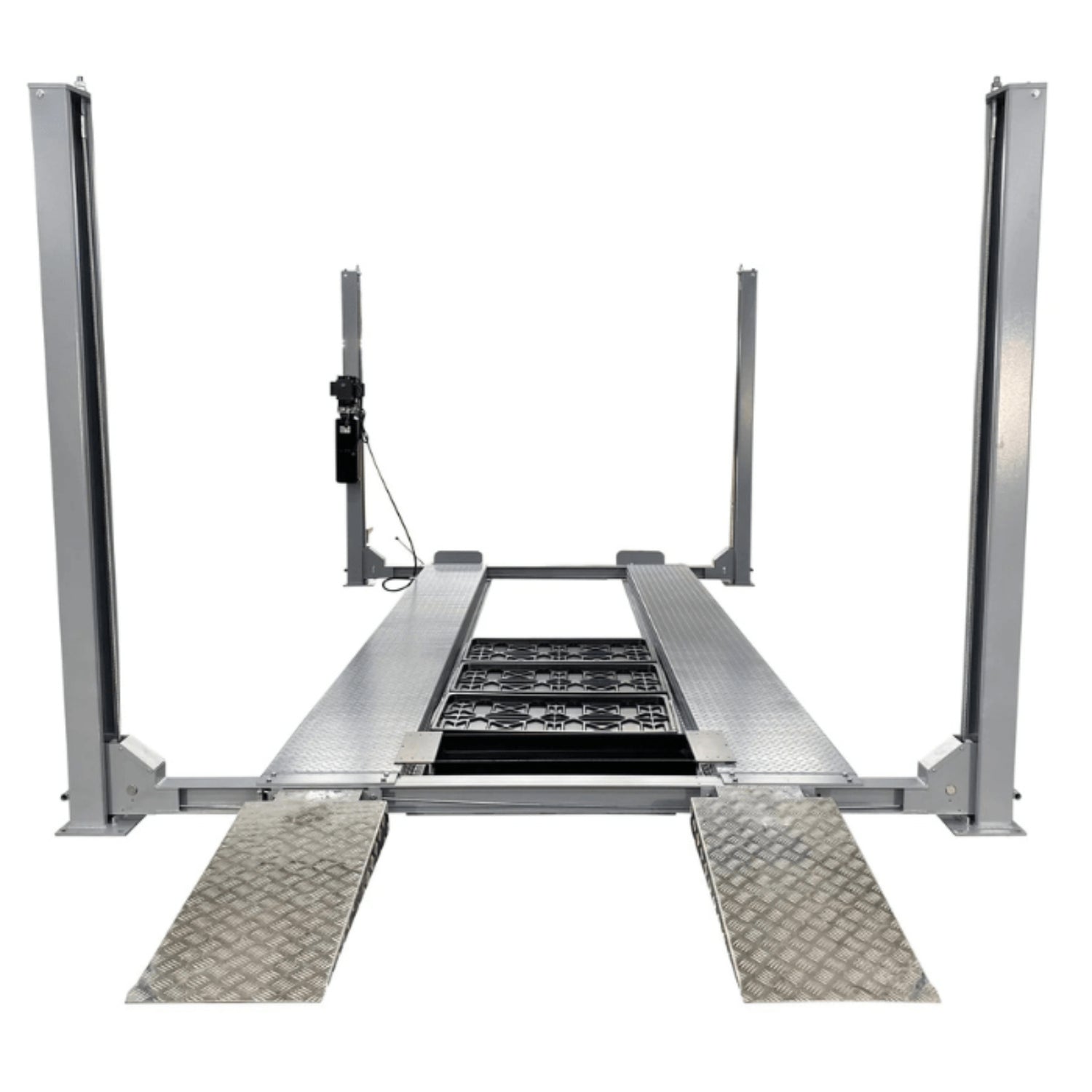

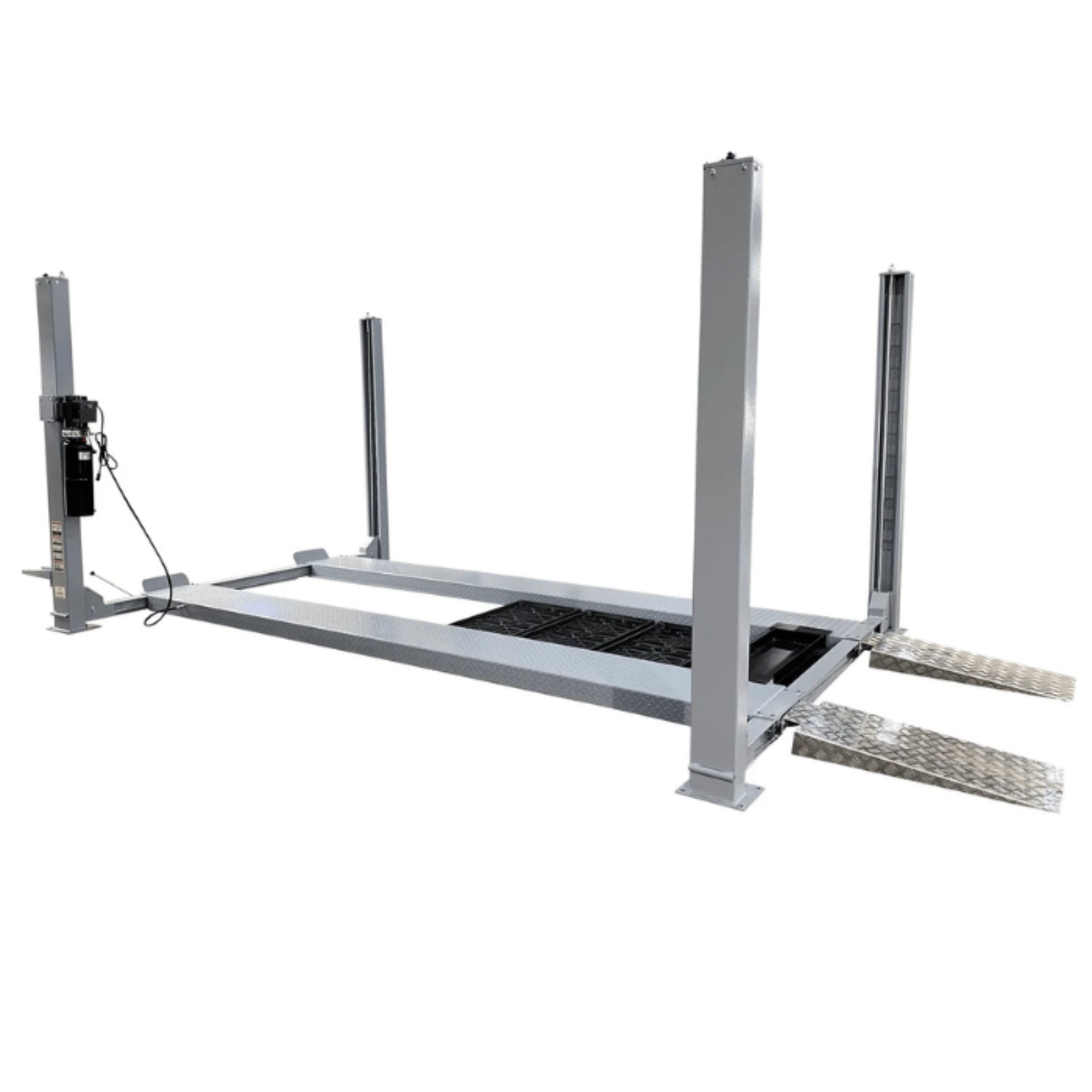

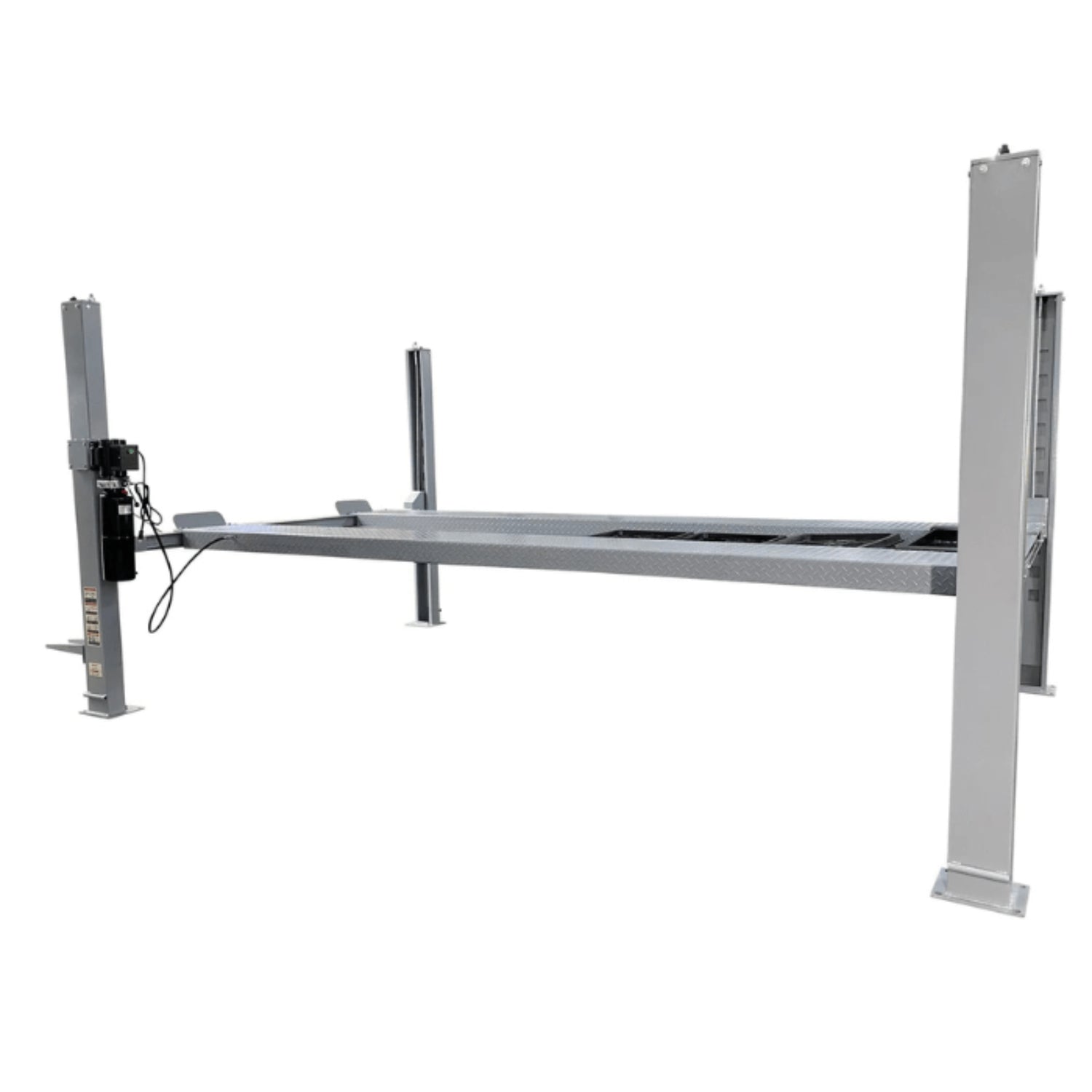

The Triumph NSS-11000 is the heavy-duty member of the NSS storage family — 11,000 lb capacity on a portable 4-post platform with 196" runways long enough for full-size trucks and vans, and 81" of clearance under the runway for parking even an extra-tall vehicle underneath. It ships as a complete package — caster kit, jack tray, and six drip trays — so you can store a second vehicle, work underneath one, or roll the lift to a new spot in the garage. Built on Triumph's time-tested 20-year design and powered by a standard 110V outlet, with 11 automatic locking positions that engage as the lift rises. Standard finish is silver/grey.
Why It's Different: Where the NSS-8 family tops out at 8,000 lb, the NSS-11000 takes the same proven storage-lift design and scales it up — 11,000 lb capacity, 196" runways, 86.5" lift height, and 118" drive-thru width — so it handles full-size pickups, heavy-duty trucks, and large SUVs that the smaller lifts can't safely store or service. And it still runs on a standard 110V outlet, no electrician required.
Best For: Home garages and home shops storing or servicing heavy-duty pickups, full-size trucks, SUVs, and vans — owners who need the higher capacity and longer runways the 8K family can't deliver. Excellent for stacking two vehicles vertically in a tall garage.
⚠️ This lift ships LTL freight at roughly 2,400 lb — liftgate delivery is NOT available. You are responsible for unloading using a forklift, Bobcat, tractor, tow truck, or backhoe. If you can't unload on-site, the carrier can ship to its nearest freight terminal for pickup.
⚠️ Measure before ordering — runways 196", overall length 215"+ without ramps, lift height 86.5". Confirm ceiling clearance, floor space, drive-thru access, and the height of the vehicle you intend to park on top.
⚠️ Concrete: install on adequate reinforced concrete per the manufacturer's specifications. Improper concrete can cause serious injury or death.
⚠️ Operate safely: never exceed the 11,000 lb rated capacity, center and balance the vehicle before lifting, and always confirm the locks have engaged before working underneath.
Features
-
11,000 lb capacity — handles heavy-duty pickups, full-size SUVs, vans, and large trucks
-
196" runway length — fits extended-cab and long-bed trucks
-
81" under-runway clearance — store extra-tall vehicles underneath
-
86.5" lift height / 118" drive-thru width
-
11 automatic locking positions with single-point release
-
Portable caster kit included — roll the lift across the garage as needed
-
Jack tray included — accepts a standard floor or bottle jack for one-end lifting and service work
-
Six drip trays included — protect the lower vehicle during long-term storage
-
110V operation — runs on a standard household outlet, no electrician required
- 40-second lift time
-
Time-tested 20-year design — proven Triumph storage-lift platform
- Standard silver/grey finish
- Typical installation about six hours, no special foundation required (verify concrete spec)
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NSS-11000 (Standard) |
| Lift Type |
4-Post Storage & Service Lift |
| Capacity |
11,000 lbs. |
| Lift Height |
86.5" |
| Height Under Runway |
81" |
| Runway Length |
196" |
| Overall Length (without ramps) |
215"+ |
| Drive Thru Width |
118" |
| Locking Positions |
11 (automatic) |
| Lock Release |
Single Point |
| Lift Time |
40 Seconds |
| Voltage |
110 Volts |
| Standard Finish |
Silver / Grey |
| Typical Installation Time |
~6 hours |
| Warranty |
Triumph 1-year parts warranty (no labor) |
What's Included
- Complete lift structure — four posts, runways, and crossbar/cable assemblies

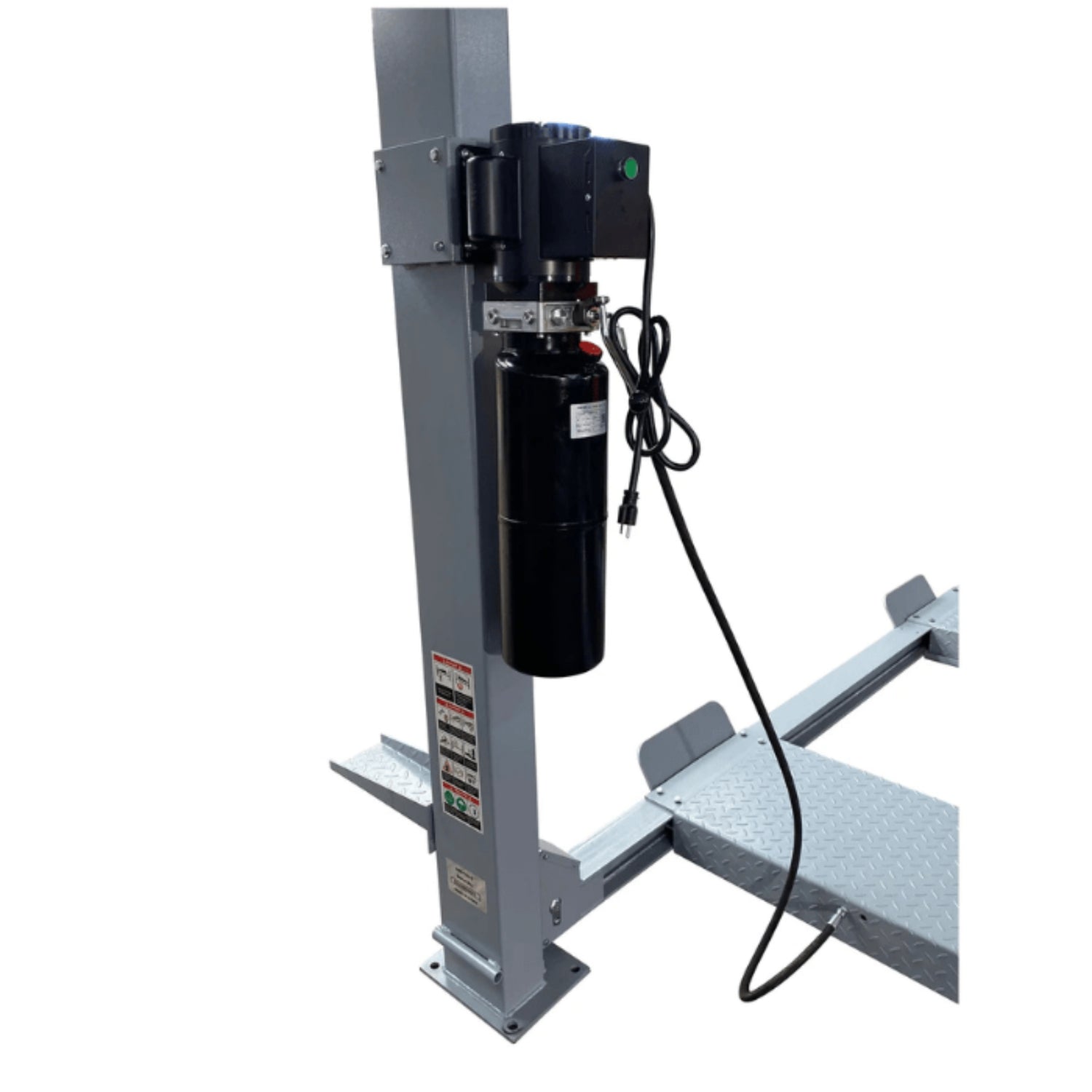

- Hydraulic power unit (110V)

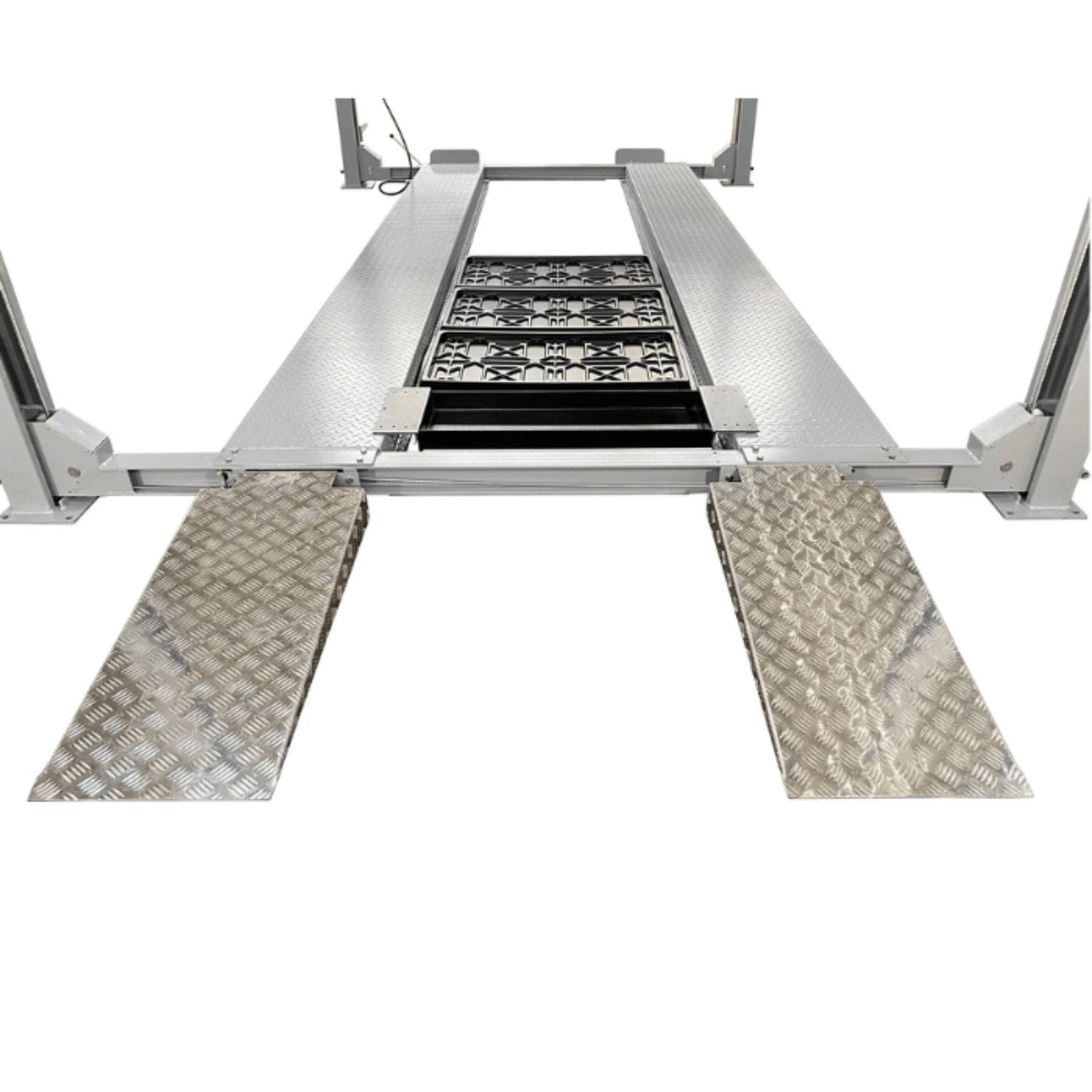

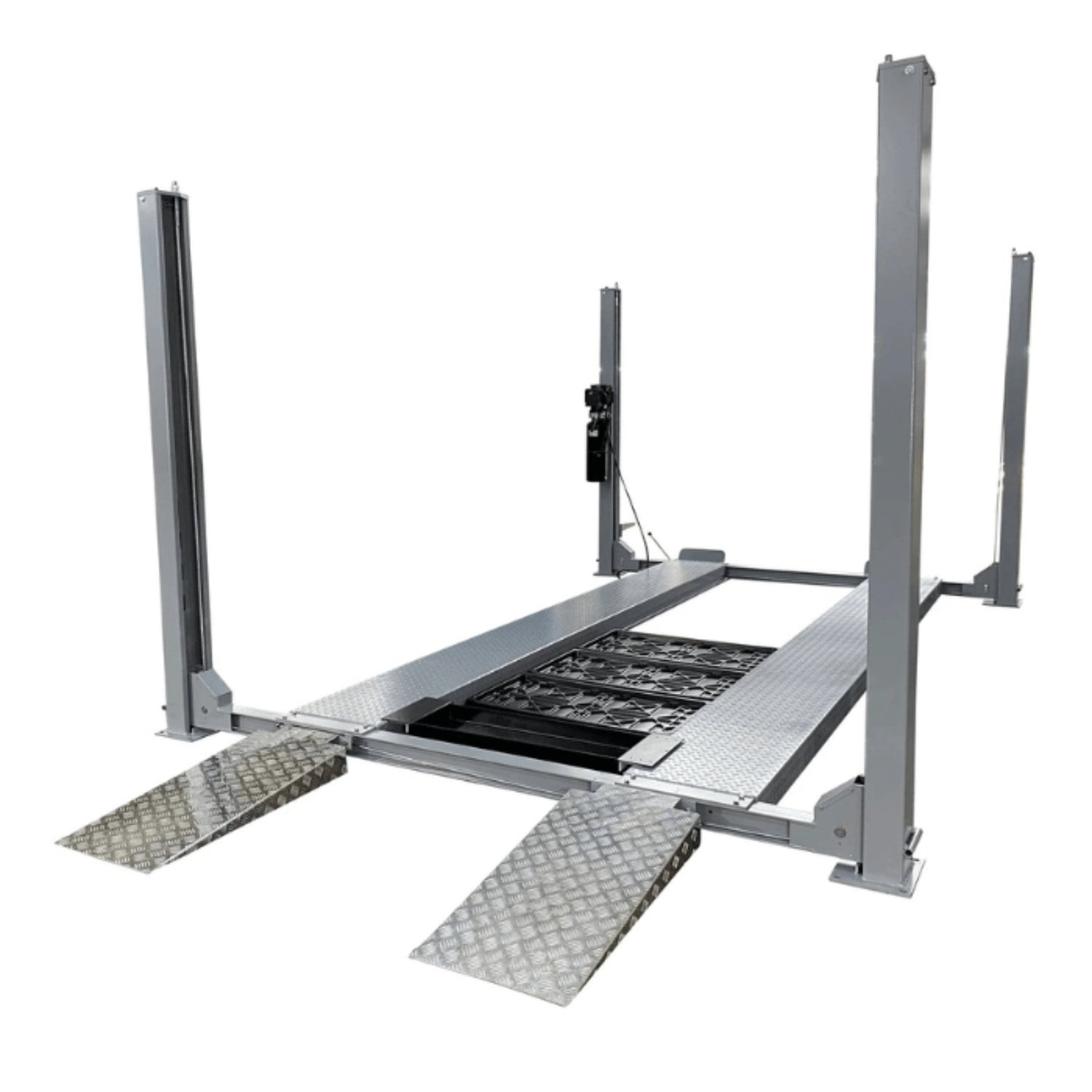

- (2) approach ramps
- Six drip trays

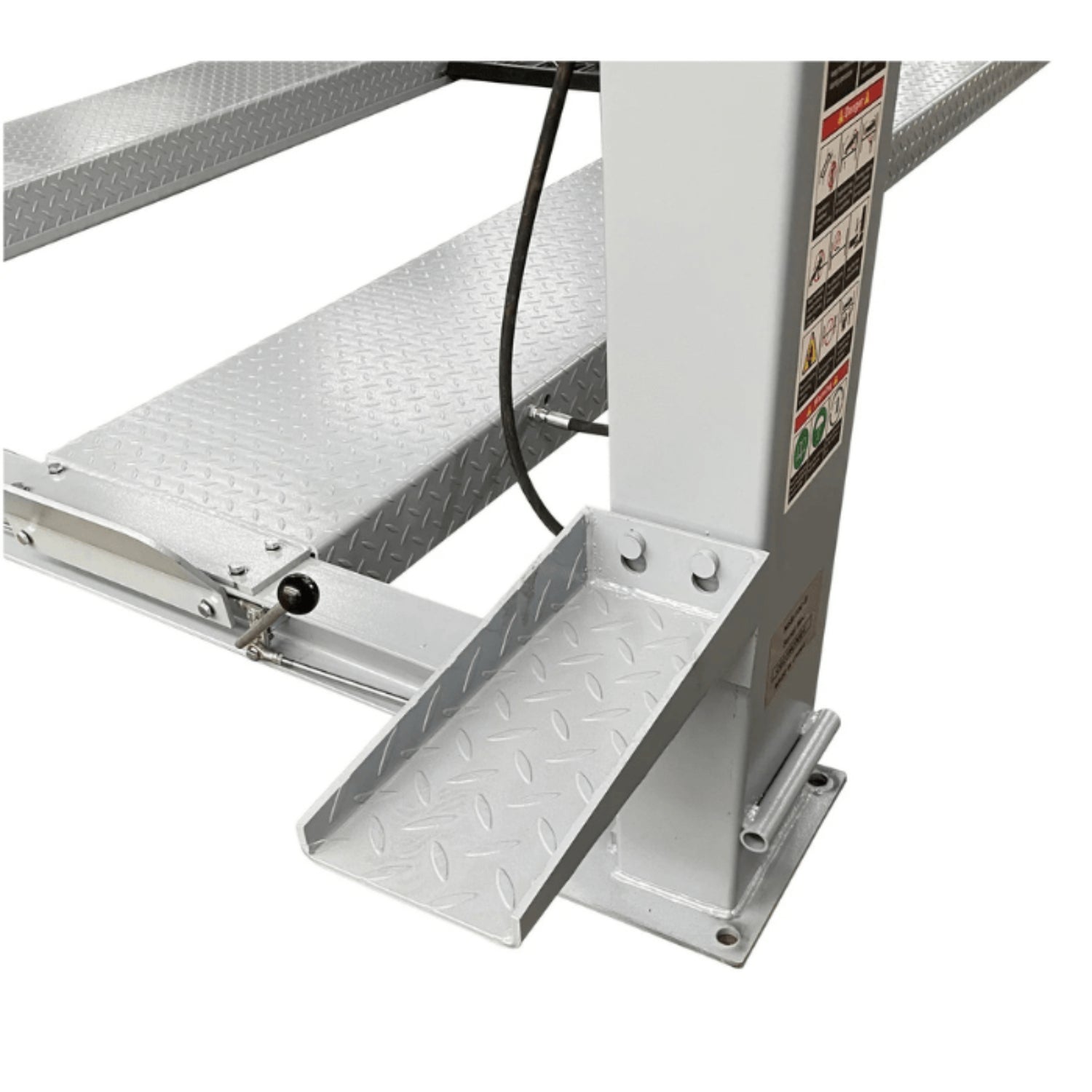

- Jack tray (for floor or bottle jack)
- Portable caster kit
- Automatic locking system (11 positions) with single-point release
- Base plates and anchor hardware
- Installation and operation documentation
