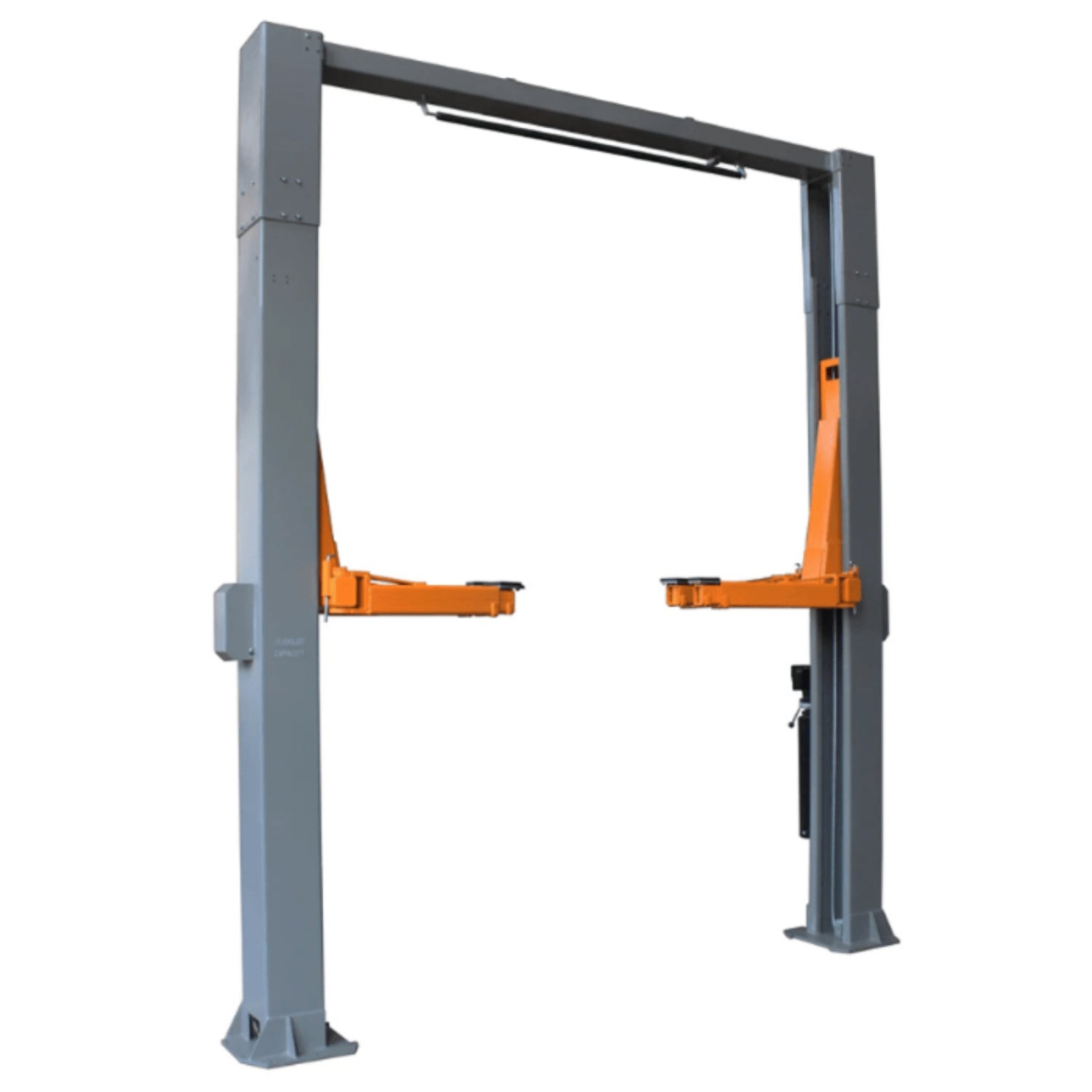

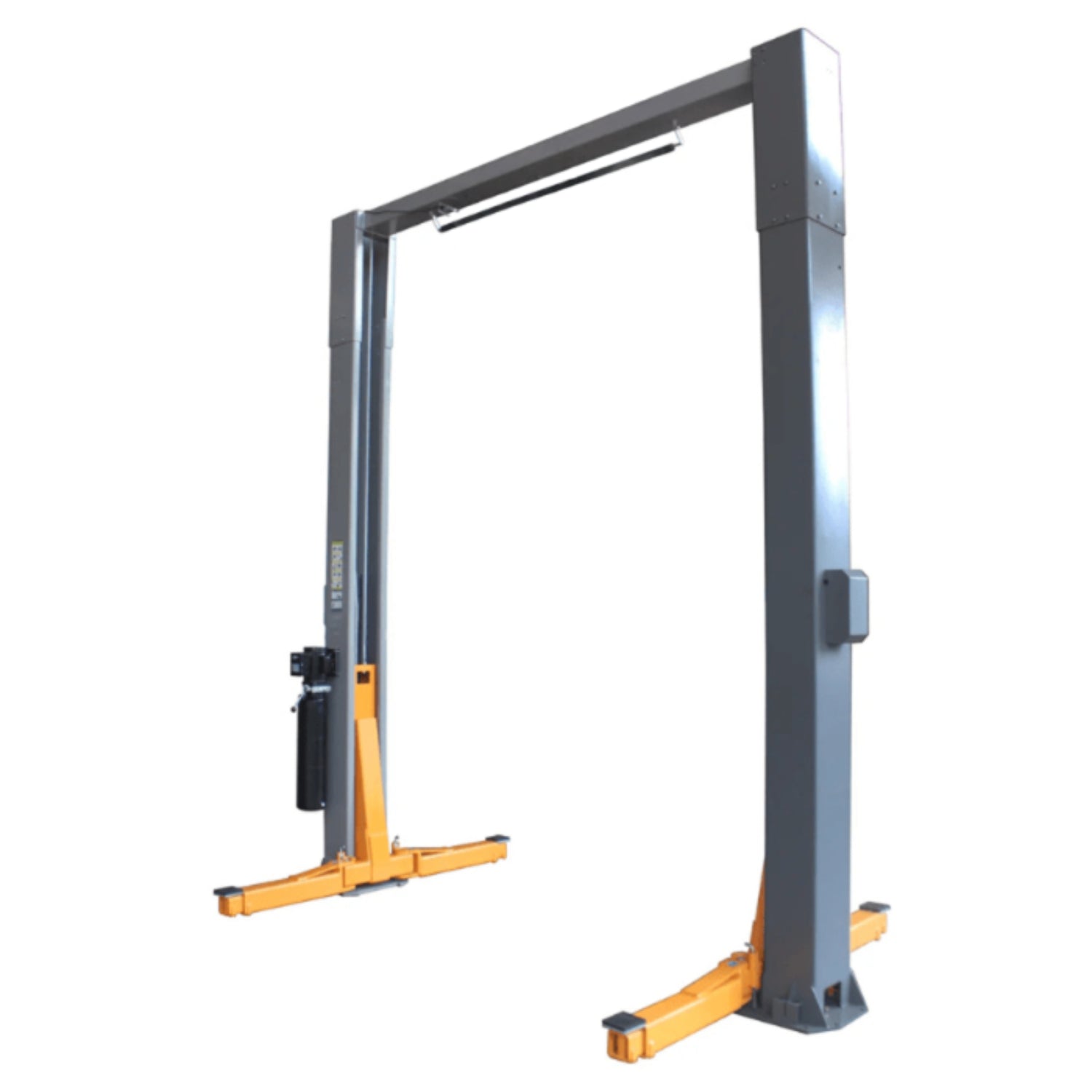

Triumph NTO-16 16,000 lb Two-Post Overhead Auto Lift — ISO 9001 / CE Certified
The Triumph NTO-16 is a 16,000 lb capacity two-post overhead lift built for shops servicing heavy trucks, dual-rear-wheel vans, and large diesel pickups that put smaller lifts at the edge of their rating. Engineered and manufactured to ISO 9001 and CE Certified / Compliant standards, it pairs direct-drive cylinders with single-point lock release and an electrical override automatic safety shut-off so the operator stays in control through every cycle. Truck adapters and mounting hardware ship included in the standard kit.
Why It's Different: The NTO-16 slots between the 10,000 lb NTO-10A and the 20,000 lb NTO-20S, giving heavy-duty shops a 16,000 lb option without jumping to the largest (and most demanding) frame. The overhead design routes the equalizer cables across the top crossbar, keeping the floor between the columns clear for jacks and tooling, and the overhead shut-off bar prevents over-lifting.
Best For: Commercial and heavy-duty shops lifting full-size trucks, dual-rear-wheel vans, large diesel pickups, and service vehicles that exceed a standard 10,000–12,000 lb 2-post — but don't need the full 20,000 lb frame.
⚠️ Requires a 220V circuit for the 3 HP motor. Confirm the service is in place before installation day — running a new circuit after the lift is anchored adds cost. Verify single-phase vs three-phase for your shipment.
⚠️ Concrete and clearance: install on a 6" slab rated to 3,000 PSI minimum, with 165" (≈13.75 ft) overall height clearance and 142" of base width. Improper concrete at 16,000 lb can cause serious injury or death.
⚠️ Vehicle balance is critical on any two-post lift — the load rests on the arm pads, not the wheels. Reference the vehicle's lifting points, seat all four arms on solid contact points, and engage the locks before working underneath. Trained operators only.
⚠️ Ships LTL freight with NO liftgate — you'll need a forklift, Bobcat, tractor, tow truck, or backhoe to unload; the driver does not unload it. If you can't unload on-site, the carrier can hold it at the nearest freight terminal for trailer pickup.
Features
-
16,000 lb lifting capacity — heavy-duty service vehicles, dual-rear-wheel trucks, and full-size diesel pickups
-
Two-post overhead design — cables route across the top crossbar, leaving the floor between columns clear
-
Direct-drive cylinders — smooth, reliable lifting without chain or screw-drive complexity
-
Single-point lock release — one control disengages both columns in sync
-
Electrical override with automatic safety shut-off protects against over-travel
-
Overhead shut-off bar across the top crossbar prevents over-lifting
-
40-second lift time from lowered to full height
-
7" lowered arm height with 32"–50" arm reach — positions under most sedans and crossovers
-
ISO 9001 and CE Certified / Compliant — quality and conformity verified by the manufacturer
-
Free truck adapters and mounting hardware included in the standard ship kit
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NTO-16 (SKU NTO-16) |
| Lift Type / Style |
Two-Post Overhead Lift (Commercial) |
| Capacity |
16,000 lbs. |
| Overall Height |
165" |
| Overall Width |
142" |
| Maximum Lifting Height |
72" |
| Lowered Arm Height |
7" |
| Distance Between Posts |
116" |
| Drive-Thru Width |
102" |
| Arm Reach |
32" – 50" |
| Base Plate Size |
20" × 20" |
| Lock Release |
Single Point |
| Electric Safety Cutoff |
Yes (overhead) |
| Cylinders |
Direct drive |
| Lift Time |
40 Seconds |
| Voltage |
220 Volts |
| Motor |
3 HP |
| Concrete Requirement |
6" slab, 3,000 PSI minimum |
| Truck Adapters |
Included |
| Mounting Hardware |
Included |
| Certifications |
ISO 9001, CE Certified / Compliant |
| Warranty |
1-year parts (cylinders 30-day full, then seal kit; rubber pads excluded; no labor) |
What's Included
- Triumph NTO-16 two-post lift assembly (two columns, overhead crossbar with safety shut-off bar, four swing arms with adapters)
- Truck adapters
- Mounting hardware
- Installation instruction manual
