Triumph NTO-20S 20,000 lb Overhead Two-Post Auto Lift — 220V
The Triumph NTO-20S is a commercial-grade two-post overhead lift with a true 20,000 lb capacity — built to handle full-size trucks, fleet vehicles, ambulances, work vans, and light-commercial vehicles that smaller two-posts can't safely lift. The overhead design routes the equalizer cables across a top crossmember, keeping the floor between the posts completely clear so you can roll jacks, transmissions, and tooling under the vehicle while it's raised. Direct-drive cylinders deliver smooth, consistent 40-second lifts across the full capacity range, and an electrical override safety shut-off stops the lift before operator error becomes structural damage. ISO 9001 and CE certified/compliant; ships with free mounting hardware and truck adapters.
Why It's Different: This is true 20,000 lb capacity with full international certification (ISO 9001 + CE) at a price aimed at working shops rather than premium-brand budgets. Direct-drive cylinders keep cycle speed consistent even at full load, the overhead cut-off prevents over-lifting into the crossmember, and truck adapters are included rather than an upcharge.
Best For: Commercial repair shops, fleet maintenance operations, truck and heavy-vehicle service centers, and municipal/ambulance fleets that need to lift vehicles well beyond the 10,000–12,000 lb range of standard 2-posts.
⚠️ Requires a 220V outlet and a 3 HP circuit near the install location. This is a commercial machine, not a household-outlet lift.
⚠️ Concrete is critical at this capacity: install on a minimum 6" slab rated at 4,000 PSI (dealer sources cite both 4,000 PSI and a 6"/3,000 PSI combination — confirm the manufacturer's current requirement before pouring or installing). Improper concrete at 20,000 lb can cause catastrophic failure, serious injury, or death.
⚠️ Vehicle balance is critical on any two-post lift — and the stakes are far higher at 20,000 lb. The load rests on the arm pads, not the wheels. Reference the vehicle's lifting points, seat all four arms on solid contact points, and engage the locks before working underneath. Trained operators only.
⚠️ Ceiling clearance: the overhead crossmember sits at roughly 165"–170" overall height — confirm your ceiling accommodates the lift plus the tallest vehicle you'll raise.
⚠️ Heavy LTL freight — confirm unloading method (forklift/equipment) with the carrier; this is a multi-thousand-pound commercial lift.
Features
-
20,000 lb capacity — full-size trucks, fleet vehicles, ambulances, work vans, light-commercial
-
Two-post overhead design — cables route across the top crossmember, leaving the floor clear under the vehicle
-
Direct-drive cylinders — smooth, consistent lifting across the full capacity range
-
Electrical override automatic safety shut-off — prevents over-lifting into the overhead crossmember
-
Single-point lock release for controlled, even lowering
-
Free truck adapters included — lift at correct frame contact points across vehicle types
- Free mounting hardware included
- 40-second lift time
-
ISO 9001 and CE certified/compliant — structural design and manufacturing both meet international standards
-
220V / 3 HP power
- Backed by Triumph's 1-year parts warranty (5-year structural per several dealers — confirm)
Specifications
| Specification |
Detail |
| Model |
Triumph NTO-20S |
| Lift Type |
Two-Post Overhead Lift (Commercial) |
| Capacity |
20,000 lbs. |

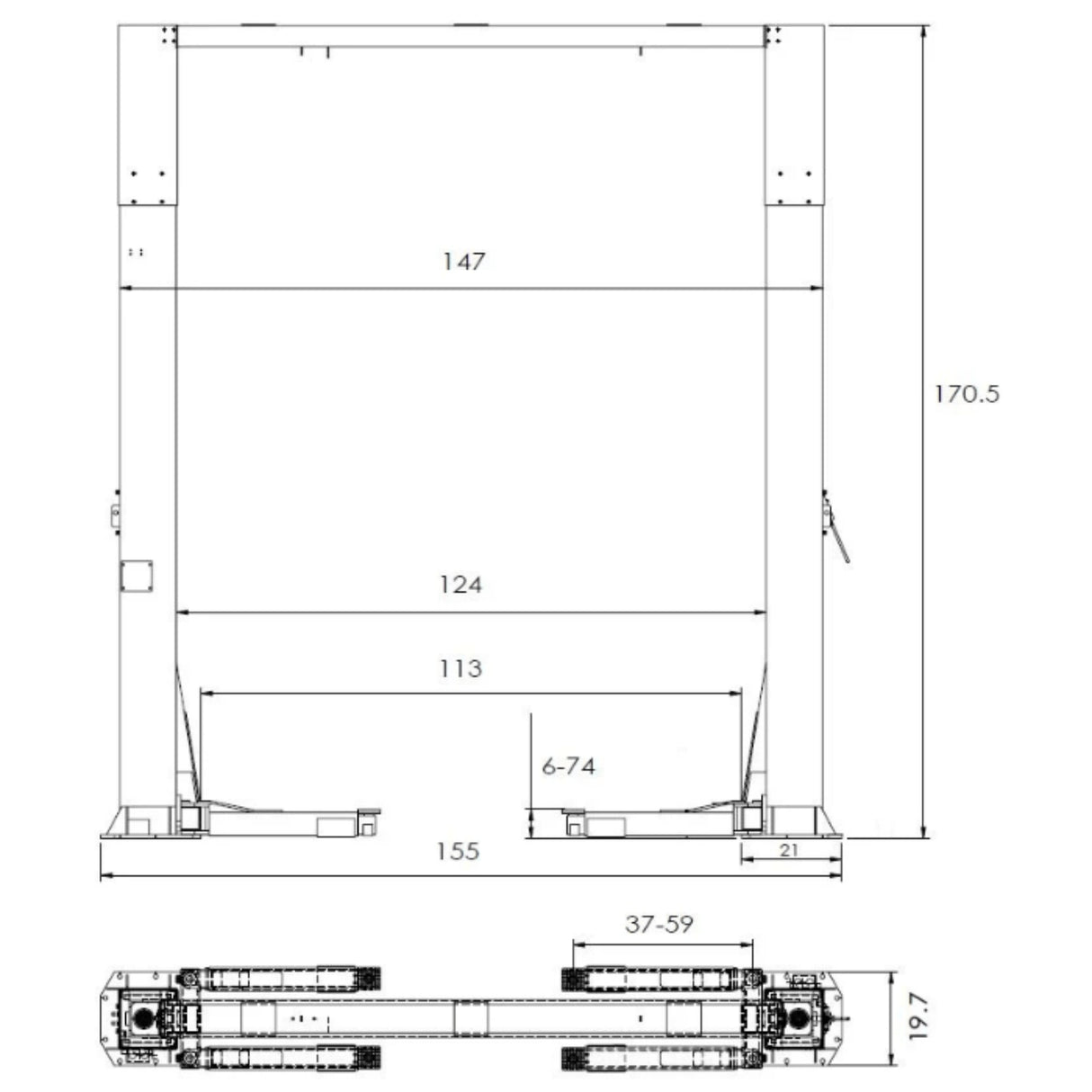

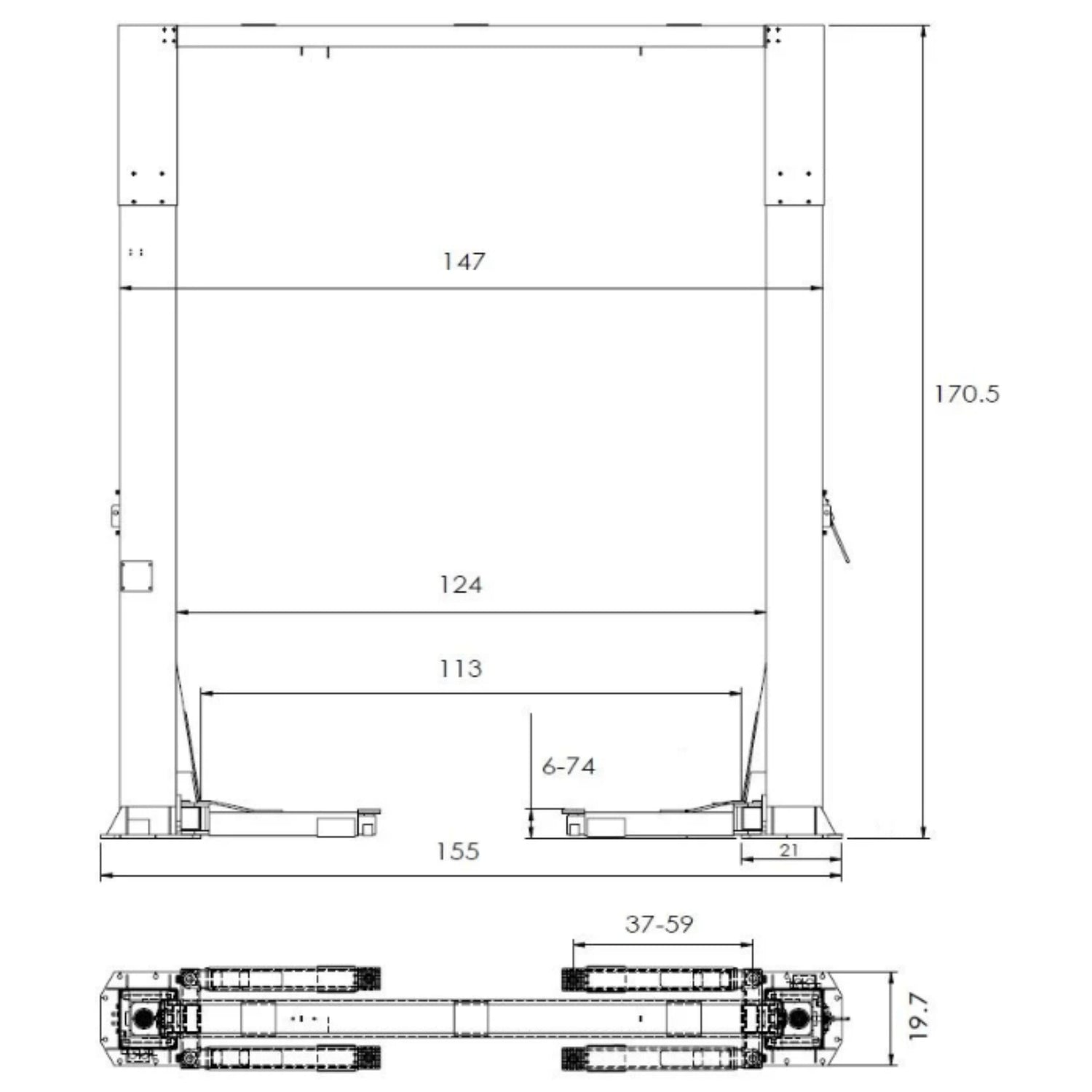

| Overall Height |
170.5" |
| Overall Width |
155" |
| Lifting Height |
74" |
| Distance Between Posts |
124" |
| Drive-Thru Width |
113" |
| Lowered Height |
6" |
| Base Plate Size |
21" × 20" |
| Truck Adapters |
Included |
| Lock Release |
Single Point |
| Electric Safety Cutoff |
Yes (overhead) |
| Cylinders |
Direct drive |
| Lift Time |
40 Seconds |
| Voltage |
220 Volts |
| Motor |
3 HP |
| Concrete Requirement |
6" slab, 4,000 PSI minimum (verify with manufacturer) |
| Certification |
ISO 9001 and CE Certified/Compliant |
| Warranty |
1-year parts (5-year structural per several dealers; cylinders seal kit after 30 days; rubber pads excluded; no labor) |
What's Included
- Two-post lift structure with overhead crossmember and equalizer cables
- Direct-drive hydraulic cylinders and power unit (220V, 3 HP)
- Truck adapters
- Mounting hardware and anchor bolts
- Single-point lock release and overhead electric safety cut-off
- Installation and operation documentation
