Triumph C7000 7,000 lb Portable Two-Post Auto Lift
The Triumph C7000 is a 7,000 lb portable two-post auto lift built for shops and home garages where ceiling clearance, floor space, or available electrical service rule out a permanent installation. It runs on standard 110V single-phase service, stands just 7' 11" overall — low enough for garages and basements that disqualify most commercial two-posts — and the post-to-post width is field-adjustable from 48" to 120" center-to-center, so the same lift services a Miata or an F-150 without remounting.
Why It's Different: The C7000's defining engineering choice is the absence of an overhead crossbeam and equalization cable. Conventional two-post lifts use a synchronization cable strung between the columns, which fixes the post spacing and locks the lift in place once installed. The C7000 replaces that cable with a fully independent column-and-cylinder pair, so a single operator can disassemble, store, or reposition the lift in under ten minutes. Recessed anchor pockets accept removable bolts, and the flush mounting system leaves a clean concrete surface when the lift is broken down — preserving 100% of the bay's usable floor space.
Best For: Shops with limited bays and hobbyists whose garage doubles as a workshop — anyone who needs full two-post service capability but can't commit a permanent footprint, lacks the ceiling height for an overhead lift, or wants to free the bay for storage, alignment work, or a second vehicle when the lift isn't in use.
⚠️ This lift ships LTL freight at 1,200 lb — liftgate delivery is NOT available. You'll need a forklift, Bobcat, tractor, tow truck, or backhoe to unload, or route the shipment to the carrier's nearest freight terminal for pickup with a trailer or moving van. Hardware ships separately via UPS.
⚠️ Electrical: the 3 HP power unit runs on 110V single-phase with a 30-amp breaker recommended. Confirm your circuit before ordering.
⚠️ Vehicle balance is critical on any two-post lift. The vehicle is supported by four arm pads on the frame, not by its wheels — reference your vehicle's lifting points, confirm the arms are seated on solid contact points, and engage the locks before working underneath.
⚠️ Concrete: verify your slab thickness and PSI rating against local code before ordering. Improper concrete can cause serious injury or death.
⚠️ Sold separately: column casters and rear-mounted post wheels are not included. Rubber lifting pads and cylinder seals are not covered under the parts warranty (beyond the first 30 days for seals).
Features
-
7,000 lb capacity — handles passenger cars, SUVs, and light trucks
-
Portable design — disassembles and stores in under 10 minutes by one operator
-
Cable-free operation — no overhead crossbeam or equalization cable; independent column-and-cylinder pair
-
Field-adjustable width — 48" to 120" post-to-post (center-to-center)
-
Low 95" (7' 11") overall height — fits low-ceiling garages and basements
-

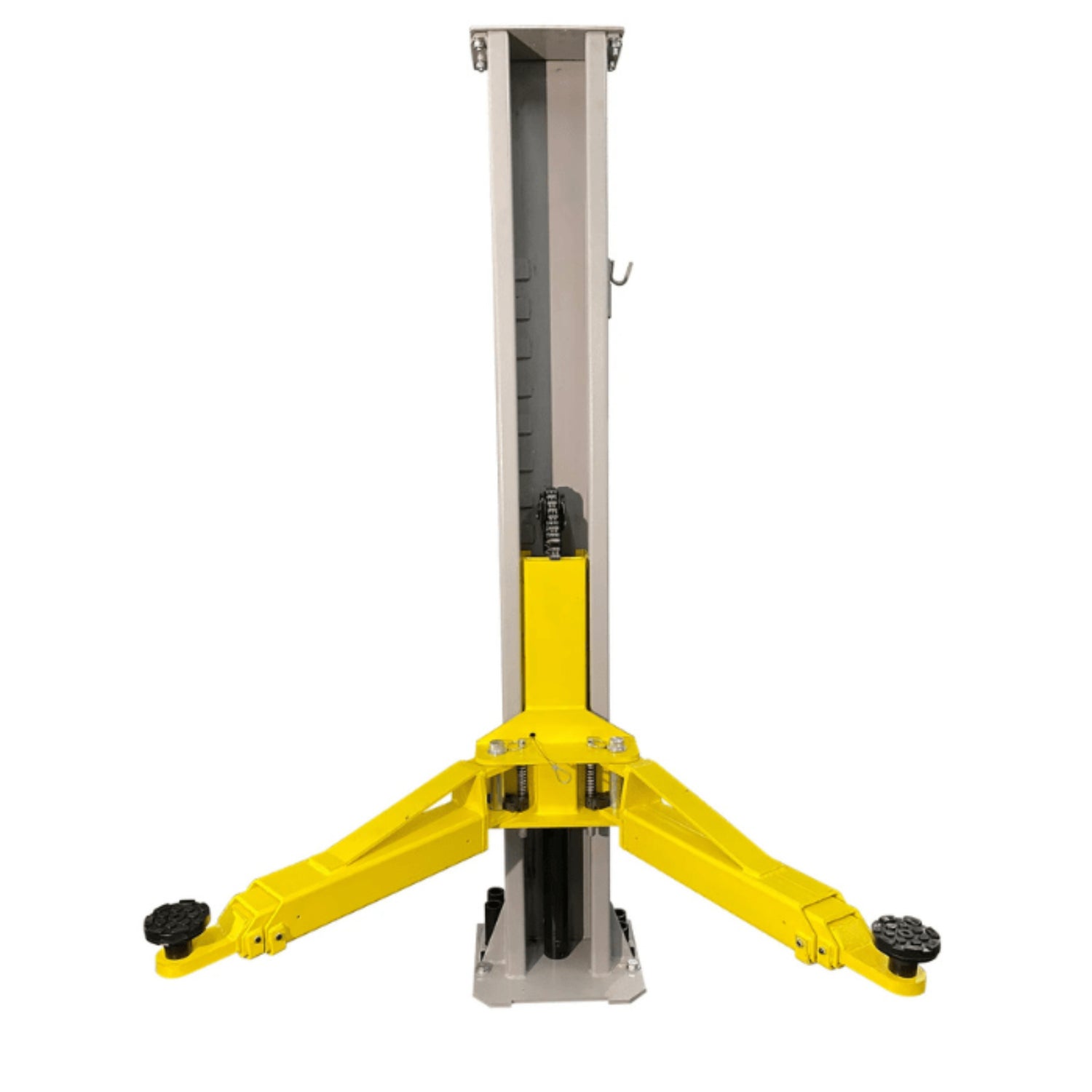

Welded automatic locking ladder — mechanical safety stops at multiple positions hold the load on steel, not hydraulic pressure
-
Automatic arm restraints — engage as soon as the lift leaves the ground
-
69" maximum lifting height with 4.5" lowered arm clearance
-
3 HP power unit on standard 110V single-phase (30-amp breaker recommended)
-

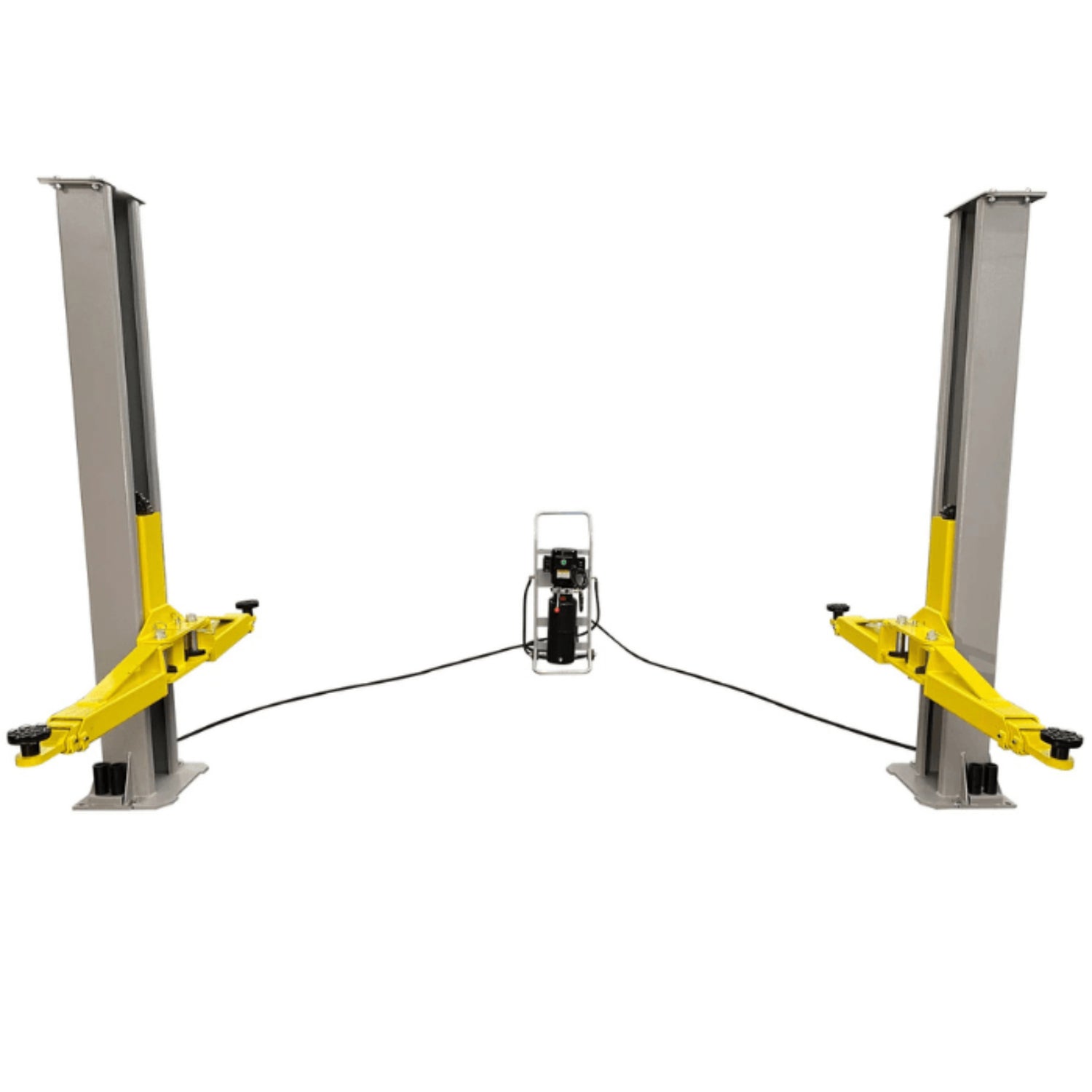

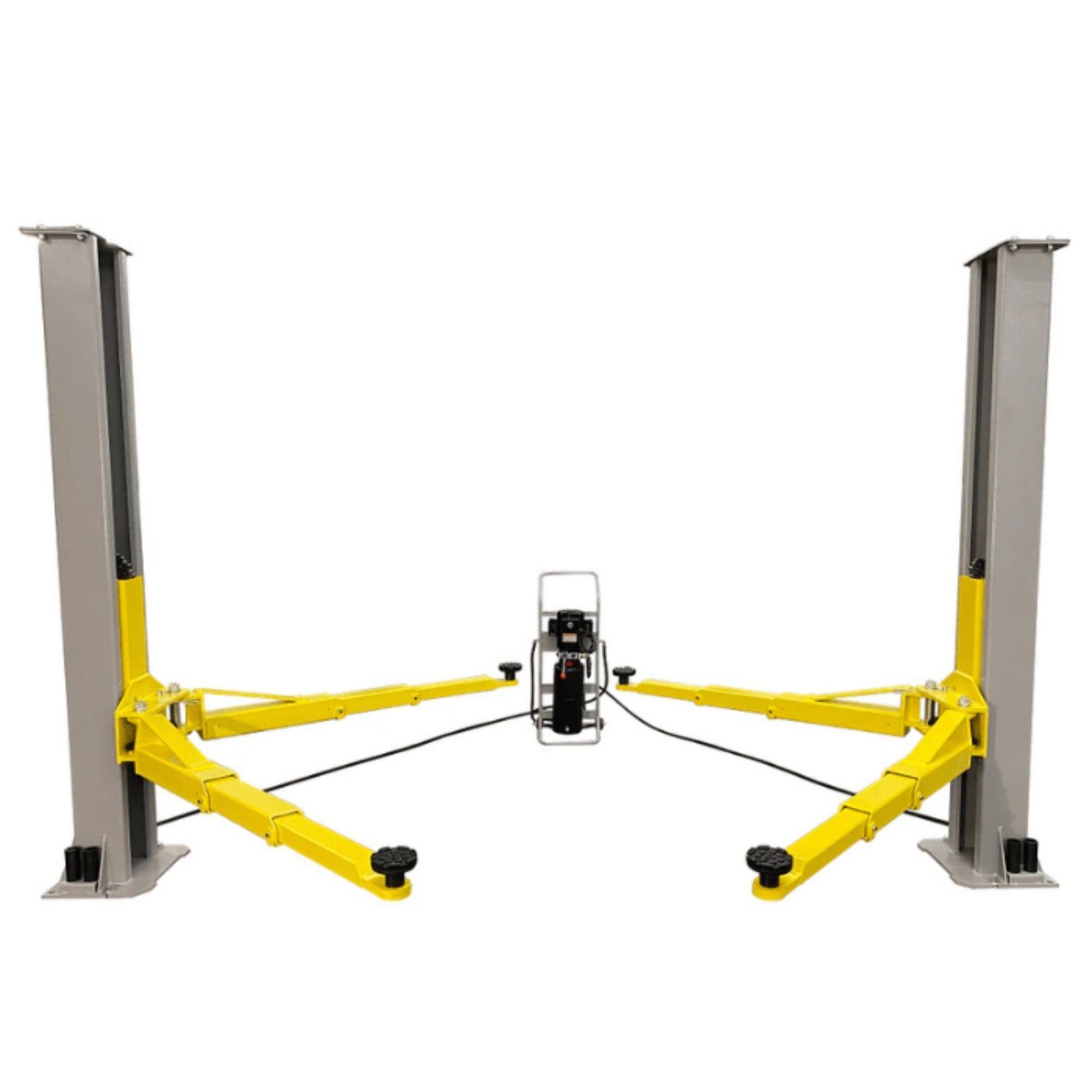

Wheeled dolly power unit — stages out of the way during use, rolls into storage
-
Recessed removable anchors + flush mounting — preserves 100% usable floor space when stored
-

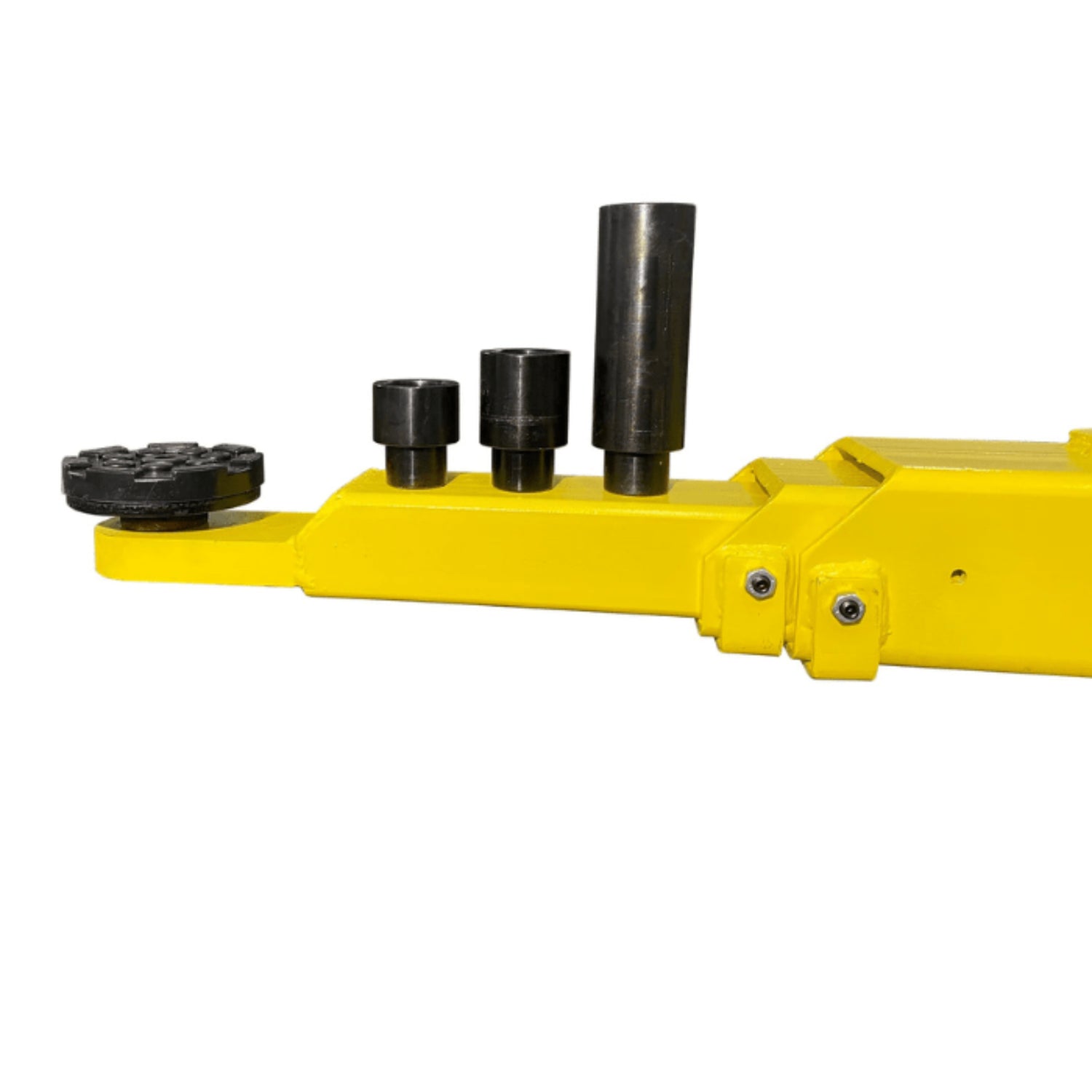

Pad extensions included — 3" and 6" heights for trucks, vans, and SUVs above standard frame contact points
-
18" × 15" base plate footprint per column
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph C7000 (SKU C-7000) |
| Lift Type |
Portable Two-Post Lift |
| Capacity |
7,000 lbs. |
| Maximum Lifting Height |
69" |
| Lowered Arm Clearance |
4.5" |
| Overall Height |
95" (7' 11") |
| Width Between Posts (Center-to-Center) |
48" – 120" (field-adjustable) |
| Base Plate Size |
18" × 15" |
| Motor |
3 HP |
| Voltage |
110V single-phase (30-amp breaker recommended) |
| Locking System |
Welded automatic locking ladder, multi-position |
| Pad Extensions / Truck Adapters |
3" and 6" included |
| Mounting |
Recessed removable anchors, flush mounting system |
| Pallet Dimensions |
98" × 19" × 35" (hardware ships separately via UPS) |
| Unit / Shipping Weight |
1,200 lbs. |
| Warranty |
1-year parts warranty (excludes rubber lifting pads, and cylinder seals after 30 days) |
Column casters and rear-mounted post wheels sold separately. Verify concrete slab thickness and PSI rating against local code before ordering. Product manual available on request.
