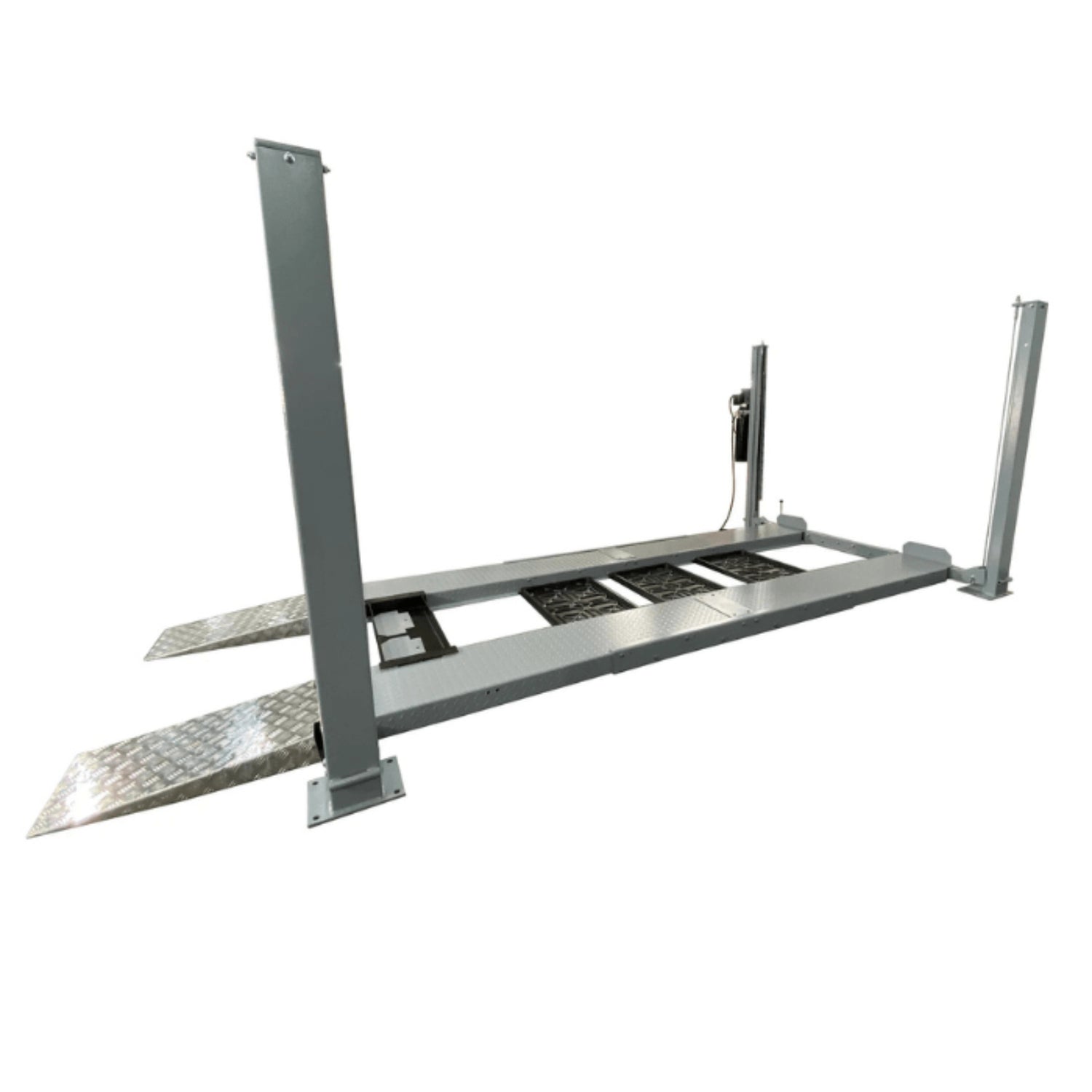

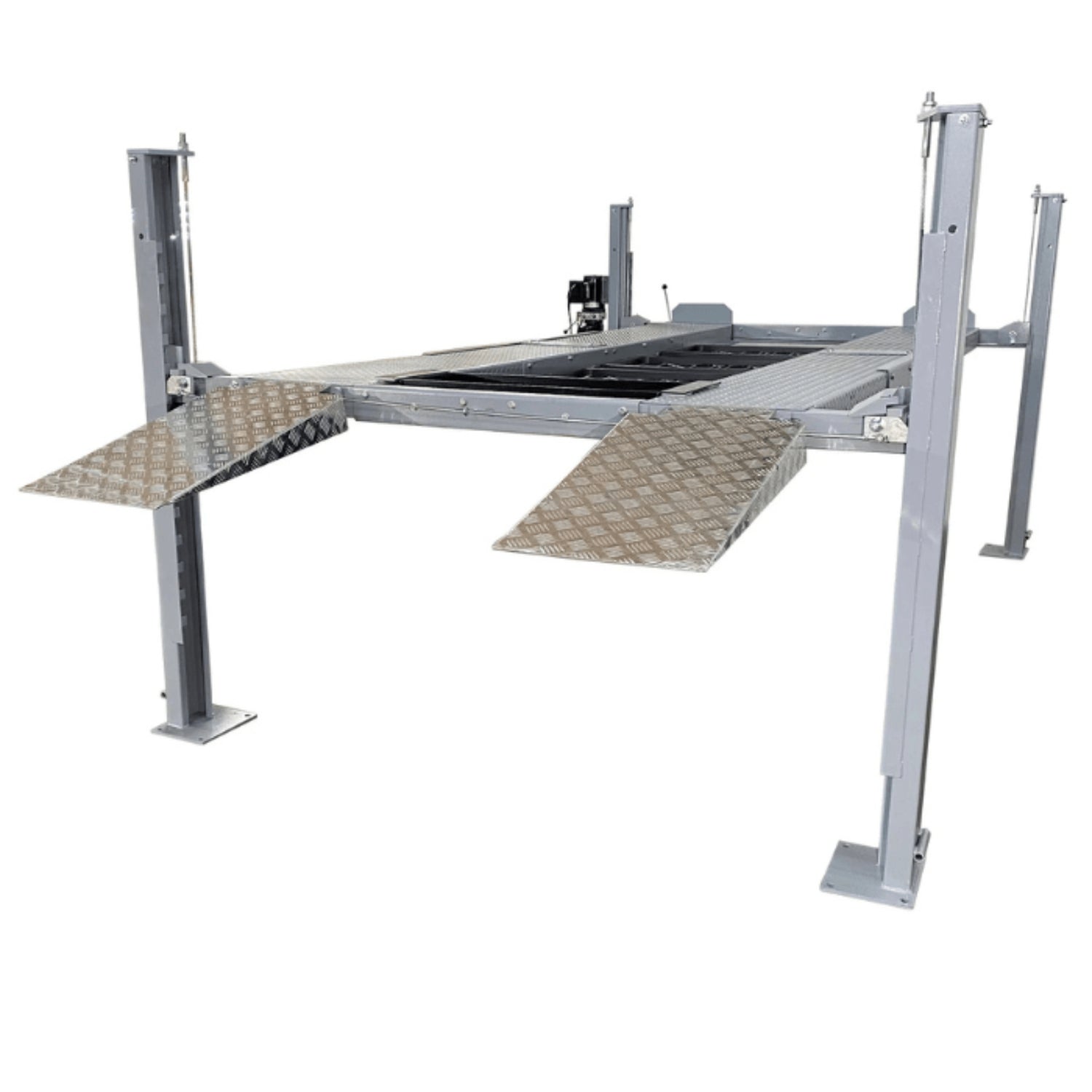

Triumph NSS-8 X1 8,000 lb 4-Post Storage & Service Lift — Lift-Gate Delivery
The Triumph NSS-8 X1 Easy Park is an 8,000 lb four-post lift built to do two jobs in the same garage footprint: park a second vehicle in the air for storage, or raise one car to a comfortable working height for service. Lift height tops out at 72", with 69" of working height under the runway, so a passenger car parks cleanly underneath while you walk through the bay without ducking. Ships with a caster kit, jack tray, and three drip trays, runs on standard 110V household power, and is built on a design that's been in continuous service for over 20 years.
Why It's Different: The NSS-8 X1 is engineered for lift-gate delivery — it ships in two crates rather than one heavy pallet, so the freight carrier can unload it at your location with a standard lift gate. No forklift, crane, or off-loading equipment required on your end. The runways and crossrails use bolted reinforcement plates at the assembly seams, giving the same load path as a one-piece factory weld while shipping flat enough for two people to handle.
Best For: Home garages and home shops that want both vertical storage and service capability for sedans, SUVs, and mid-size trucks — and buyers who don't have a forklift to unload a traditional single-pallet lift.
⚠️ Measure before ordering — overall length 175", overall width 106", overall height 84", lift height 72", under-runway 69". Tall SUVs and lifted trucks should be measured against the 69" under-runway clearance before purchase.
⚠️ Concrete: install on adequate reinforced concrete per the manufacturer's specifications. Improper concrete can cause serious injury or death.
⚠️ Operate safely: never exceed the 8,000 lb rated capacity, center and balance the vehicle before lifting, and confirm the locks have engaged before working underneath.
Features
-
8,000 lb capacity — handles most passenger cars, SUVs, and mid-size trucks
-
Dual-purpose 4-post design — vertical storage or raise-to-service in one lift
-
72" lift height / 69" under-runway clearance — park a car underneath and walk through without ducking
-

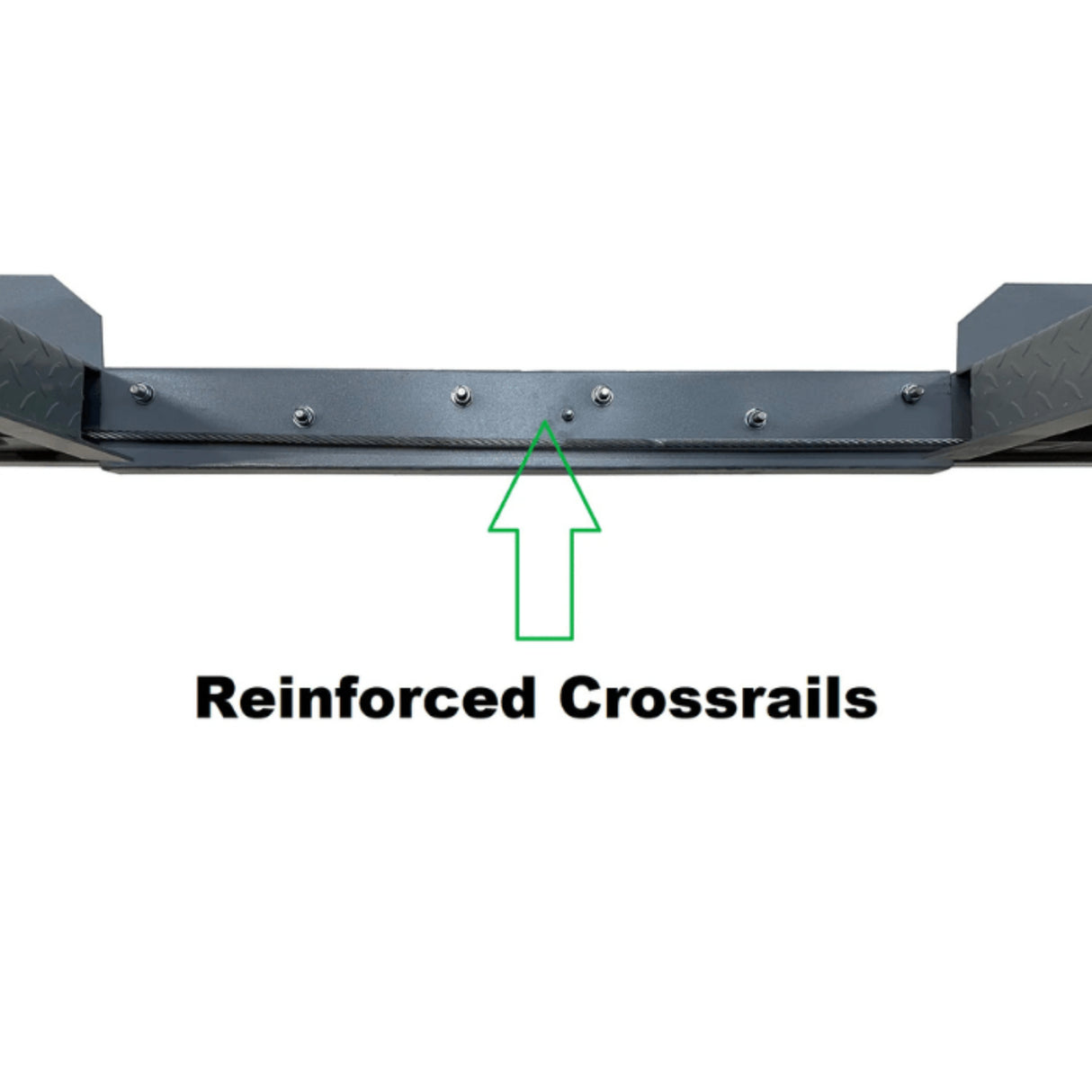

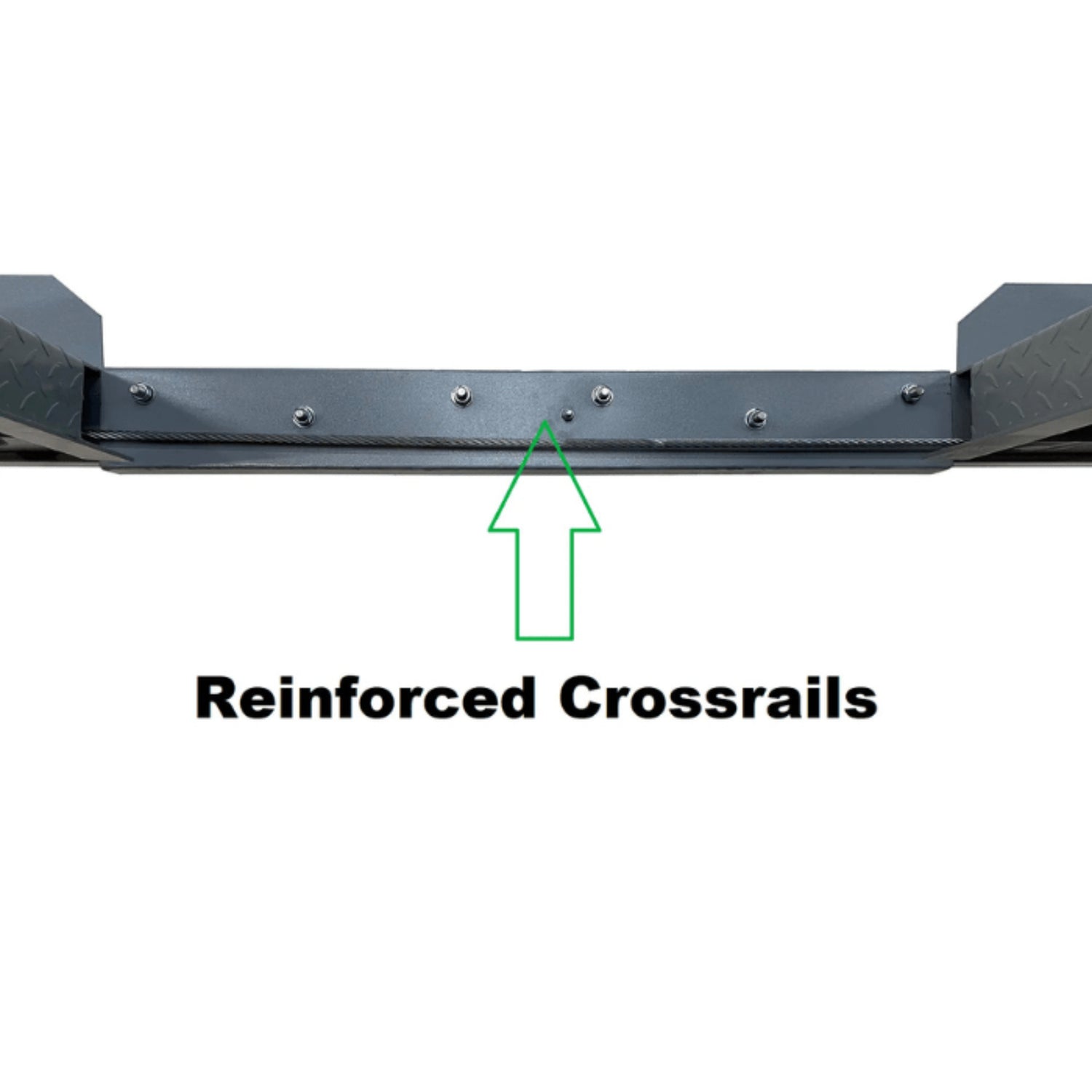

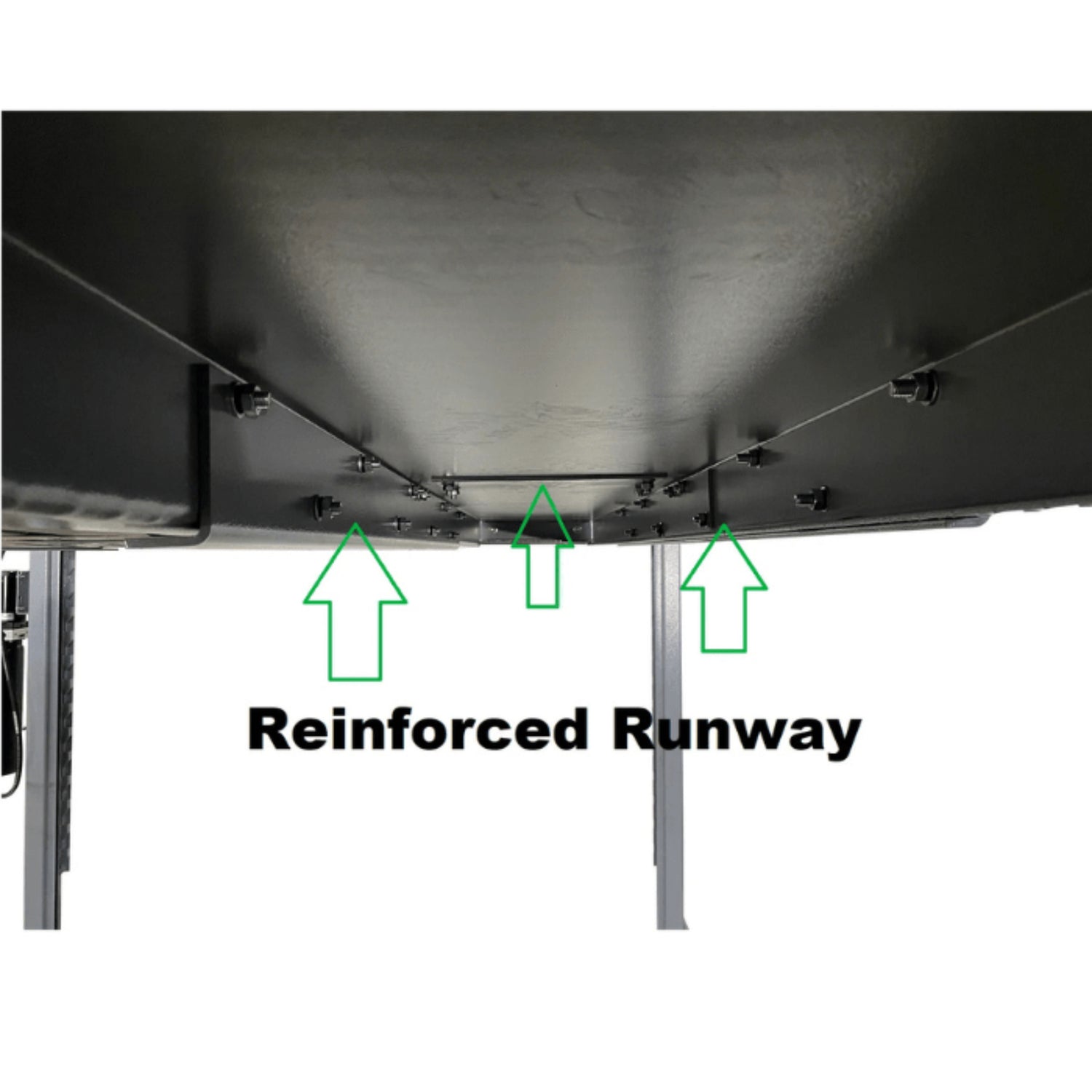

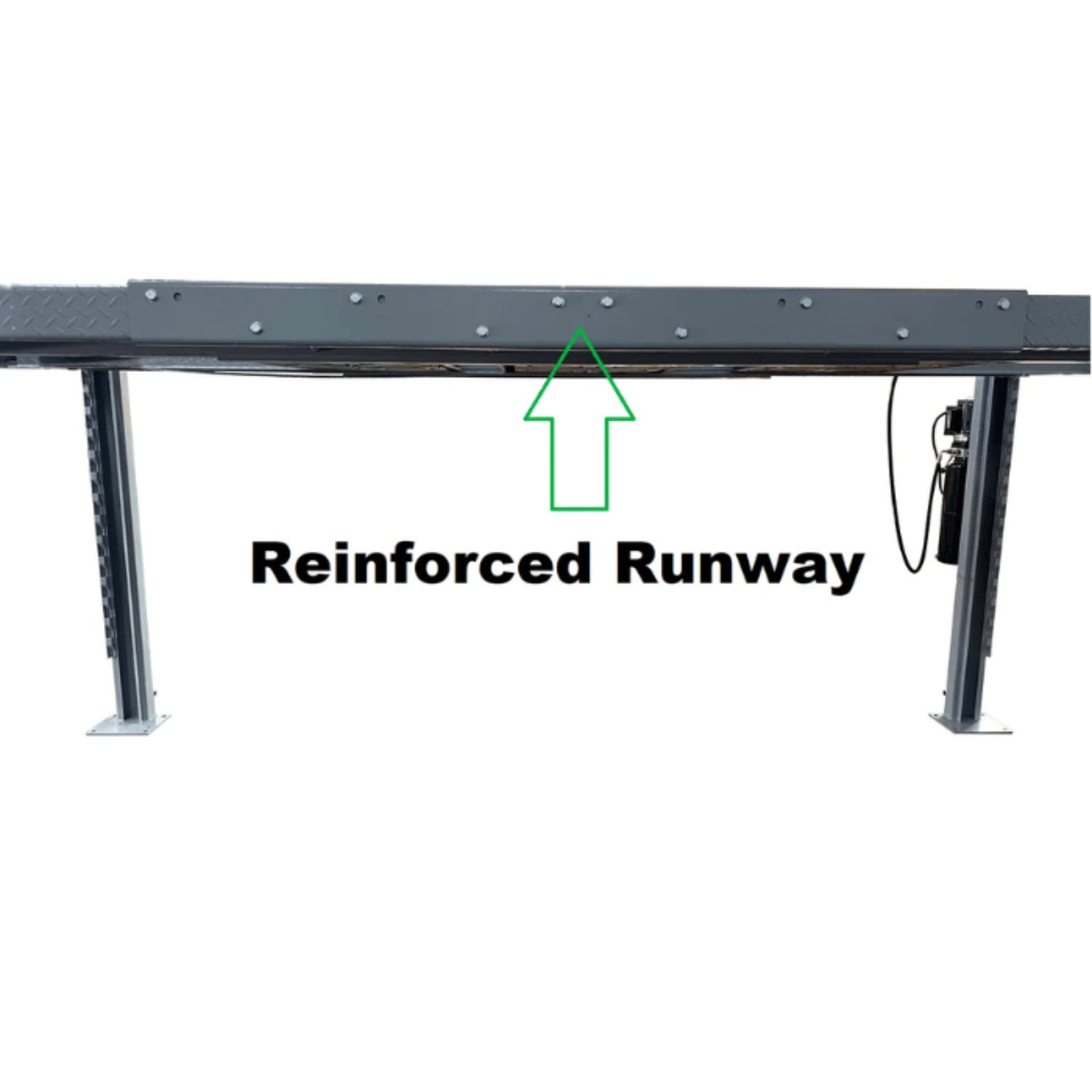

Reinforced runway and crossrail construction — bolted steel reinforcement plates at the assembly joints match a one-piece weld's load path
-
10-position automatic locking — locks engage automatically as the lift rises
-
Single-point lock release — pull one handle and the whole lift descends evenly instead of corner-by-corner
-

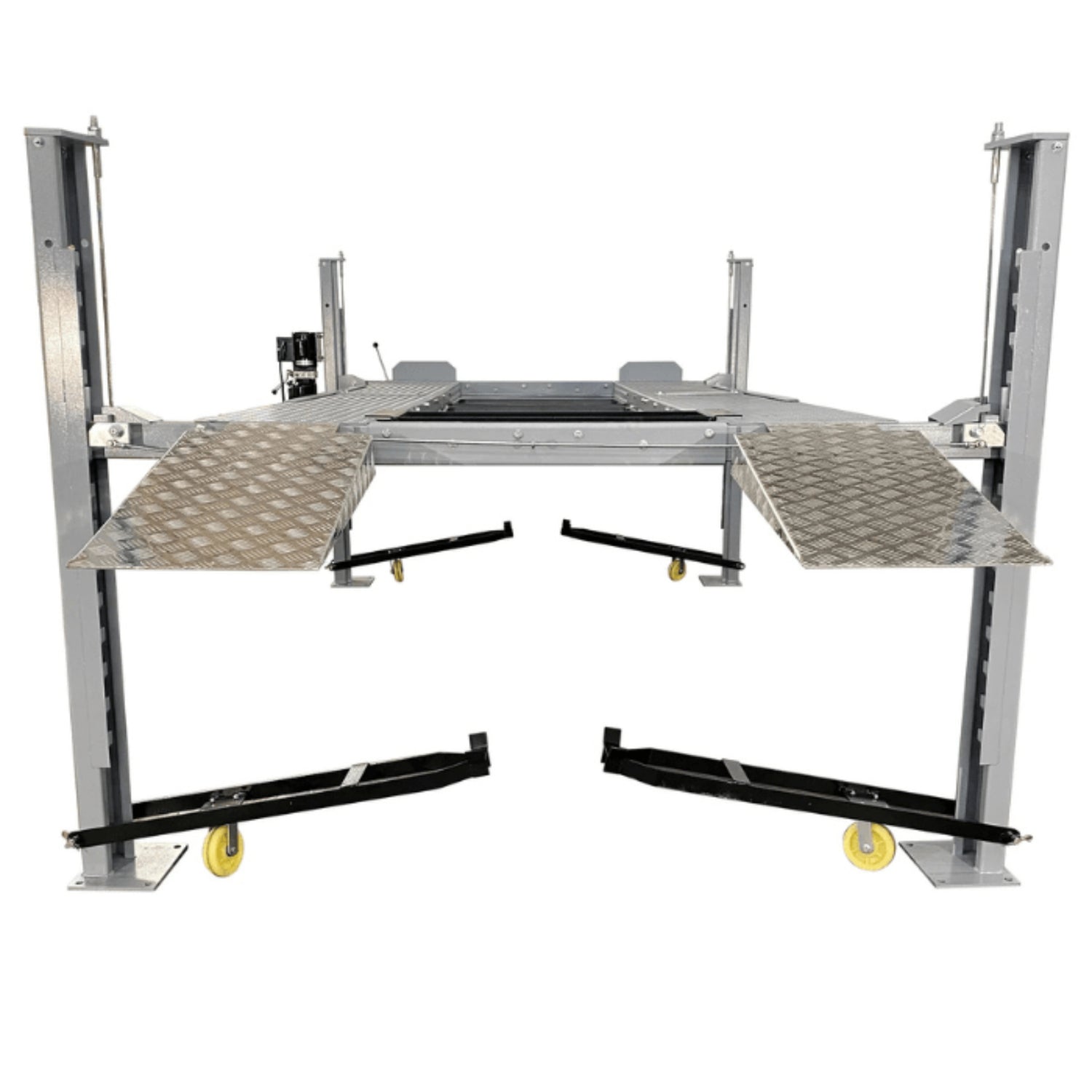

Caster kit included — two people can roll the assembled lift across the garage floor
-

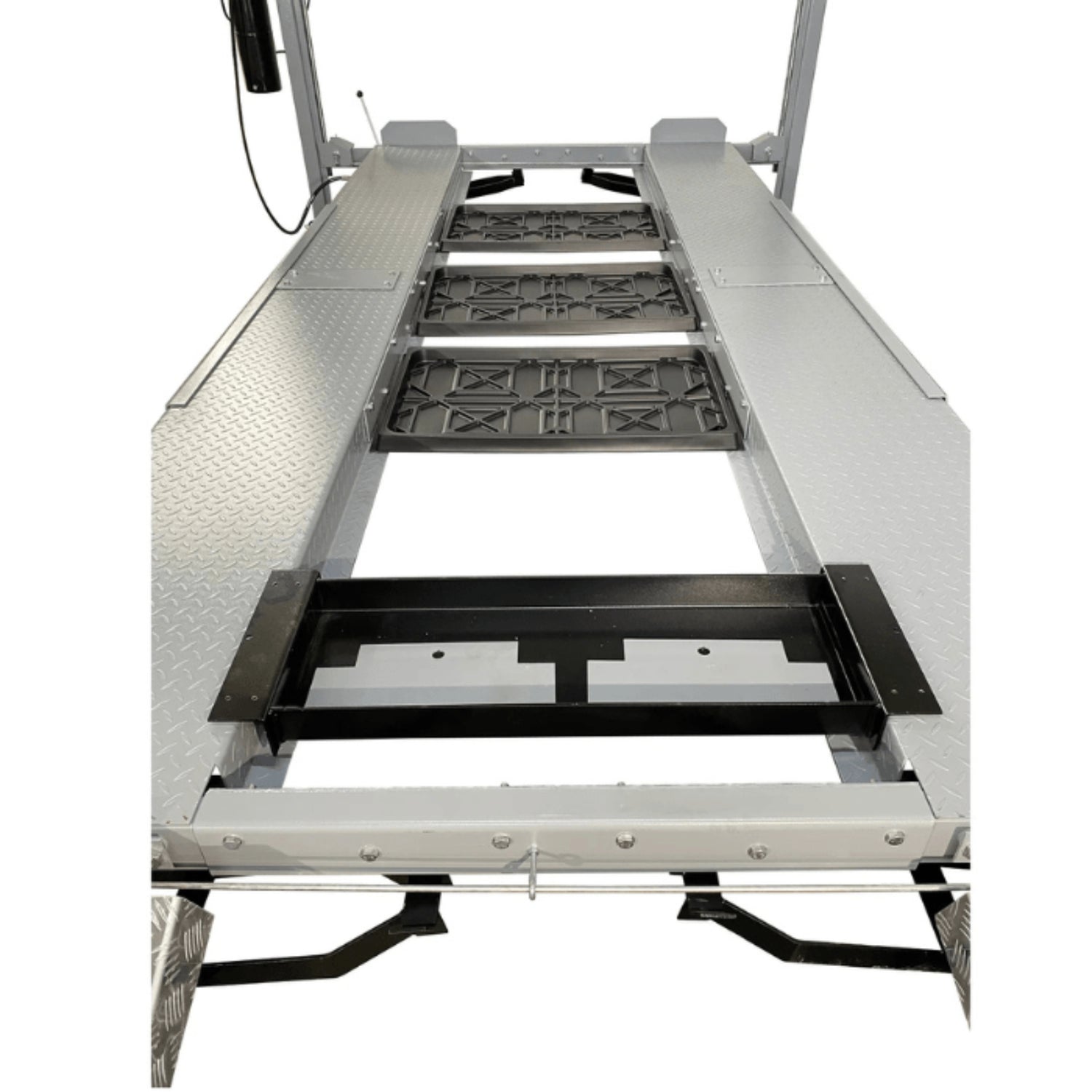

Jack tray included — drops into the runway gap for a bottle or floor jack to lift one end
-
Three drip trays included — sit under the upper vehicle's drivetrain to catch oil, coolant, or transmission fluid
-
Lift-gate delivery — ships in two crates, no forklift required to unload
-
Standard 110V single-phase power — household garage circuit, no wiring upgrade
-
40-second lift time from full down to full up
- Compatible with the optional Triumph SJ-35 rolling bridge jack (sold separately)
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NSS-8 X1 (SKU NSS8X-1) |
| Lift Type |
4-Post Storage & Service Lift |
| Capacity |
8,000 lbs. |
| Lift Height |
72" |
| Height Under Runway |
69" |
| Overall Height |
84" |
| Overall Length |
175" |
| Overall Width |
106" |
| Runway Length |
165" |
| Runway Width |
18" |
| Drive-Thru Width |
93" |
| Lowered Height |
5" |
| Locking Positions |
10 (automatic) |
| Lock Release |
Single Point |
| Lift Time |
40 seconds |
| Voltage |
110 Volts |
| Base Plate Size |
12" × 12" |
| Shipping Weight |
1,600 lbs. (ships in 2 crates) |
| Warranty |
Triumph 1-year parts warranty (cylinders 30-day full, then seal kit; rubber pads excluded; no labor) |
What's Included

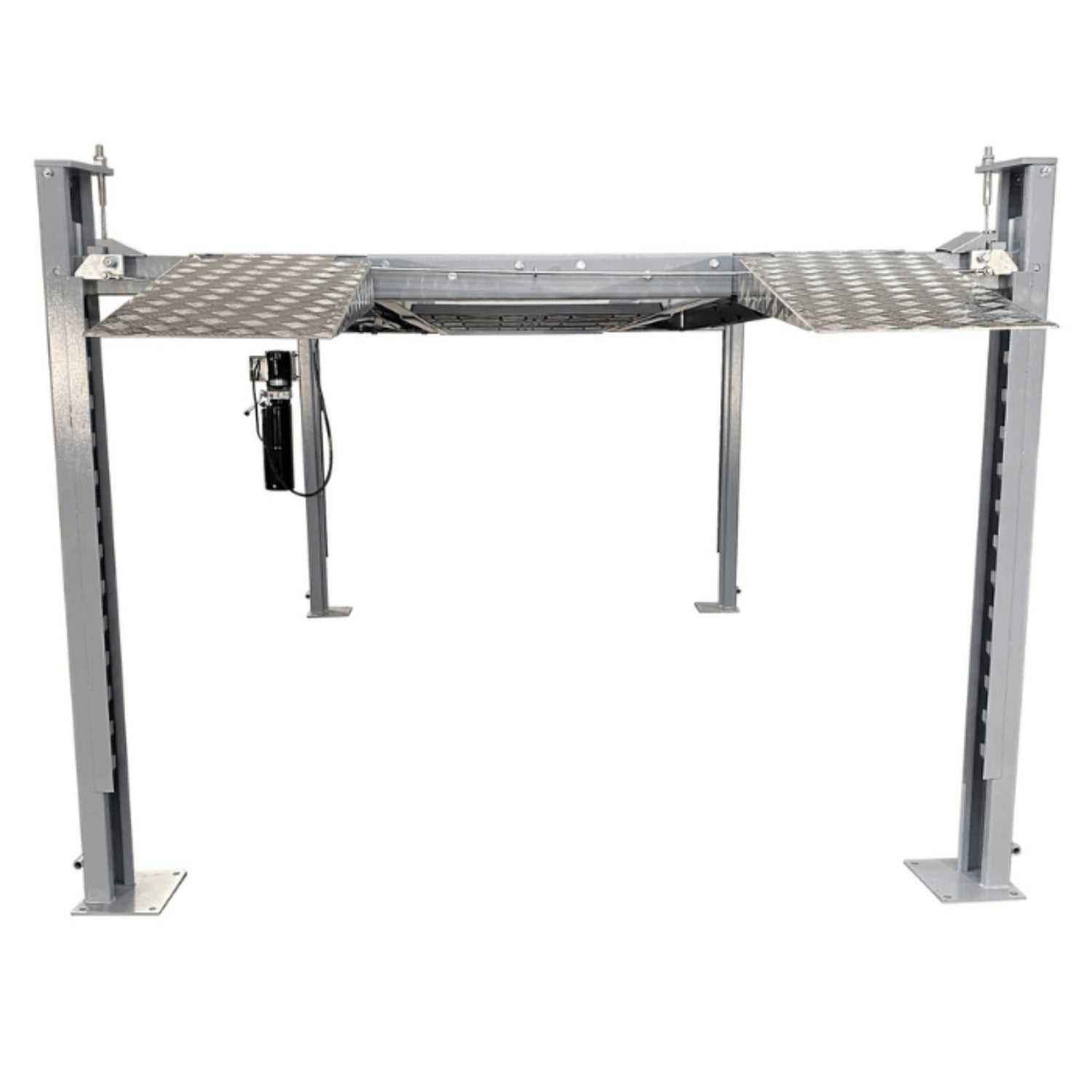

- Four lifting columns with bolt-down base plates

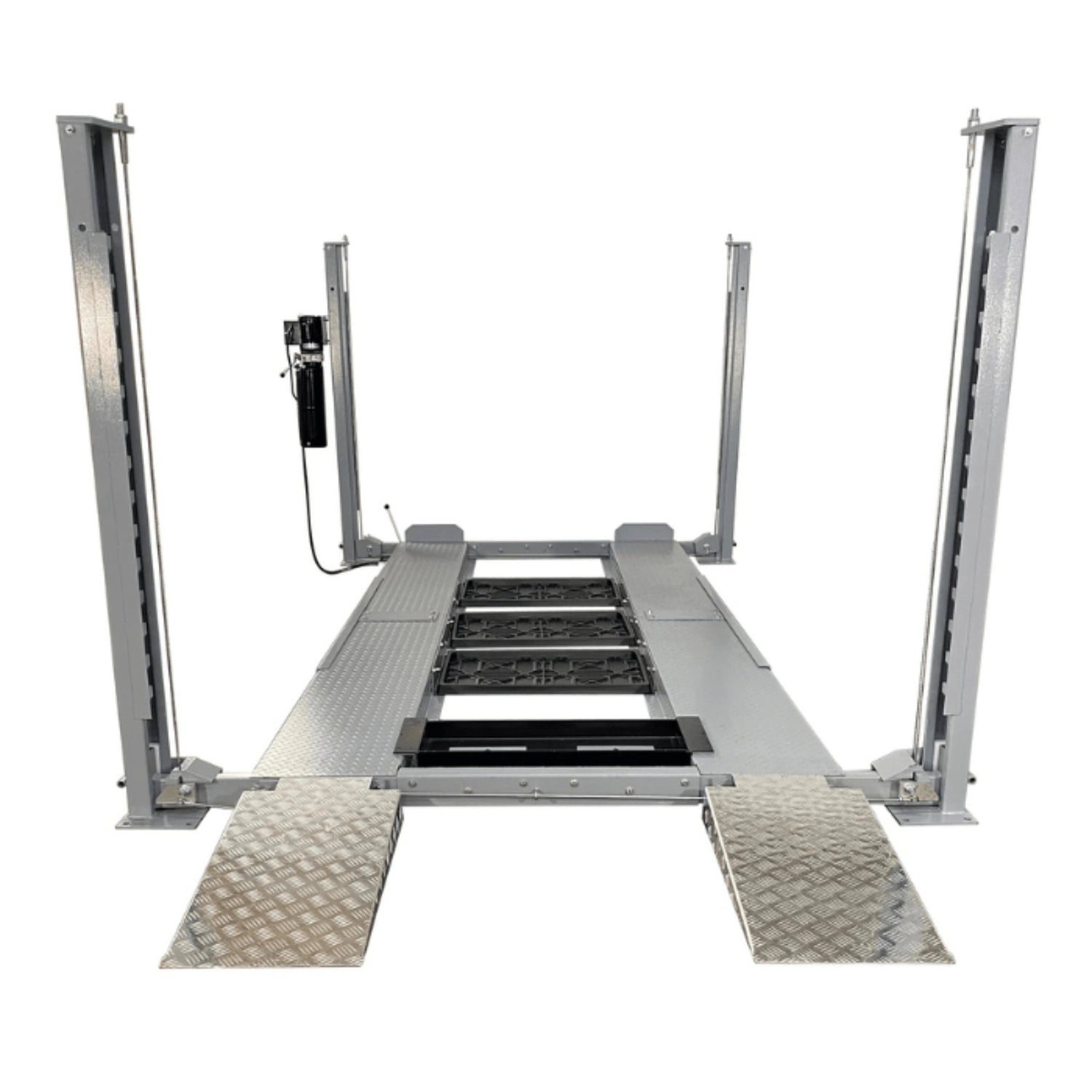

- Two diamond-plate runways with reinforcement at the assembly joints
- Two reinforced crossrails

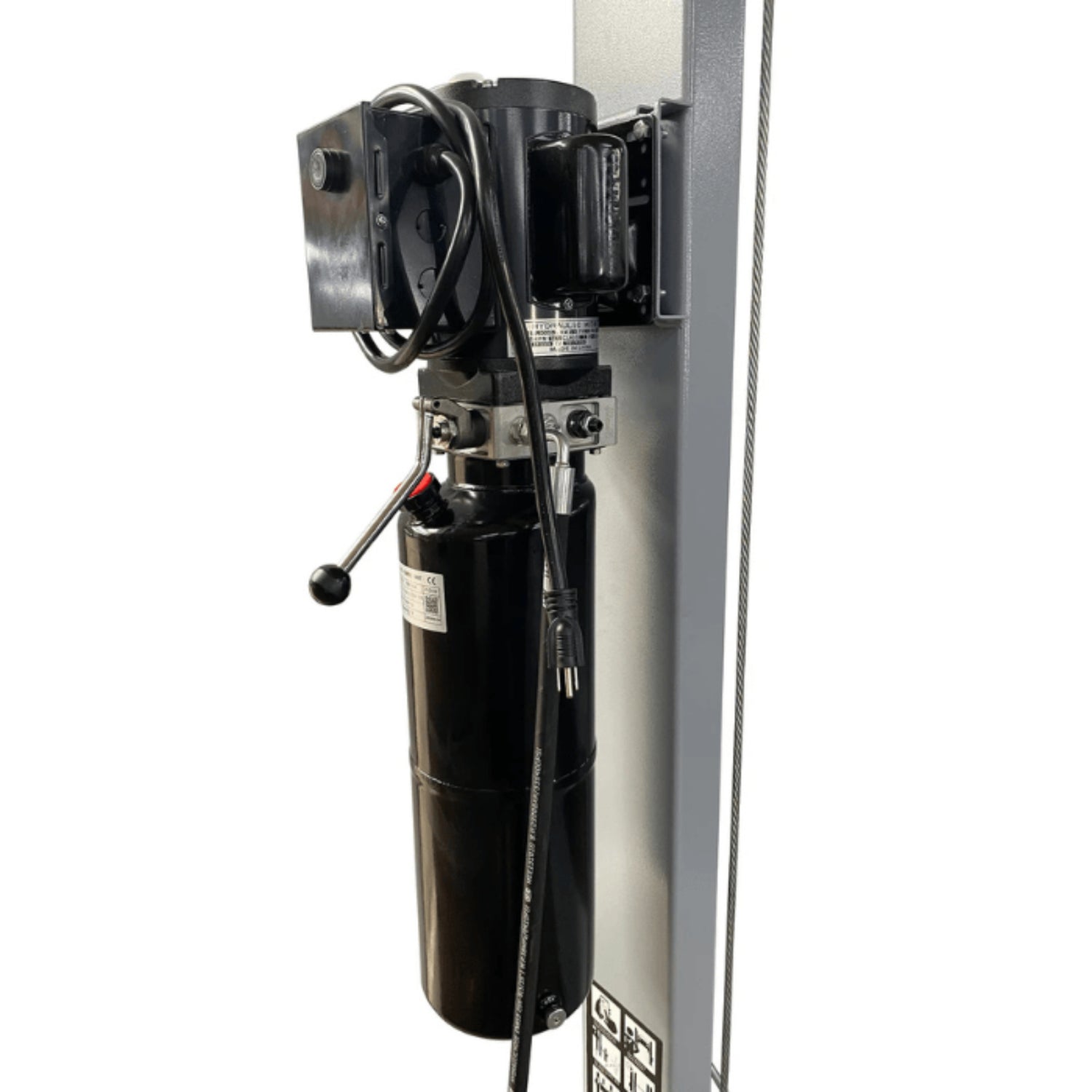

- Hydraulic power unit (110V)
- Approach ramps
- Caster kit for rolling the assembled lift
- Jack tray (for use with a bottle or floor jack)
- Three drip trays
- Cables, hoses, hardware, and assembly manual
