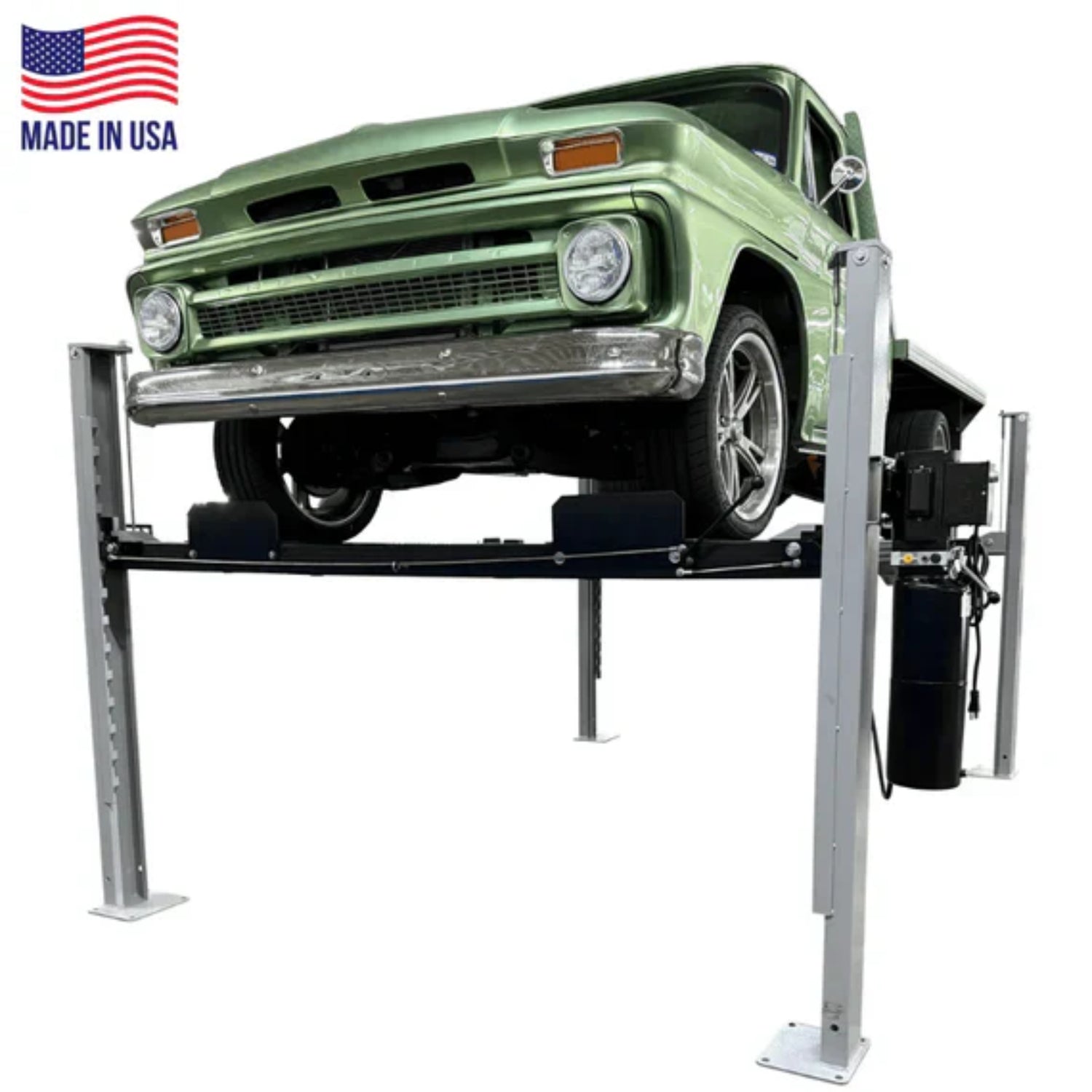

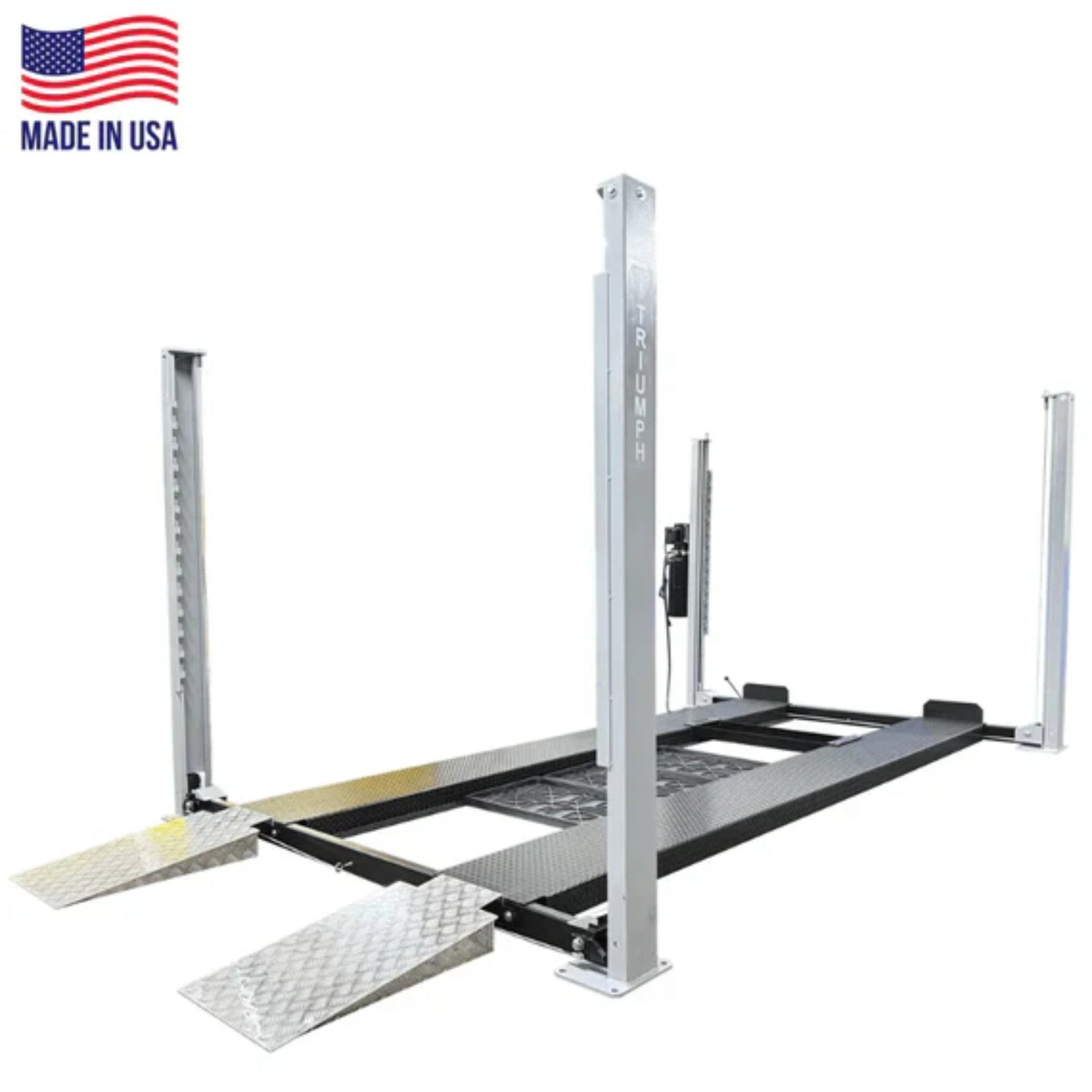

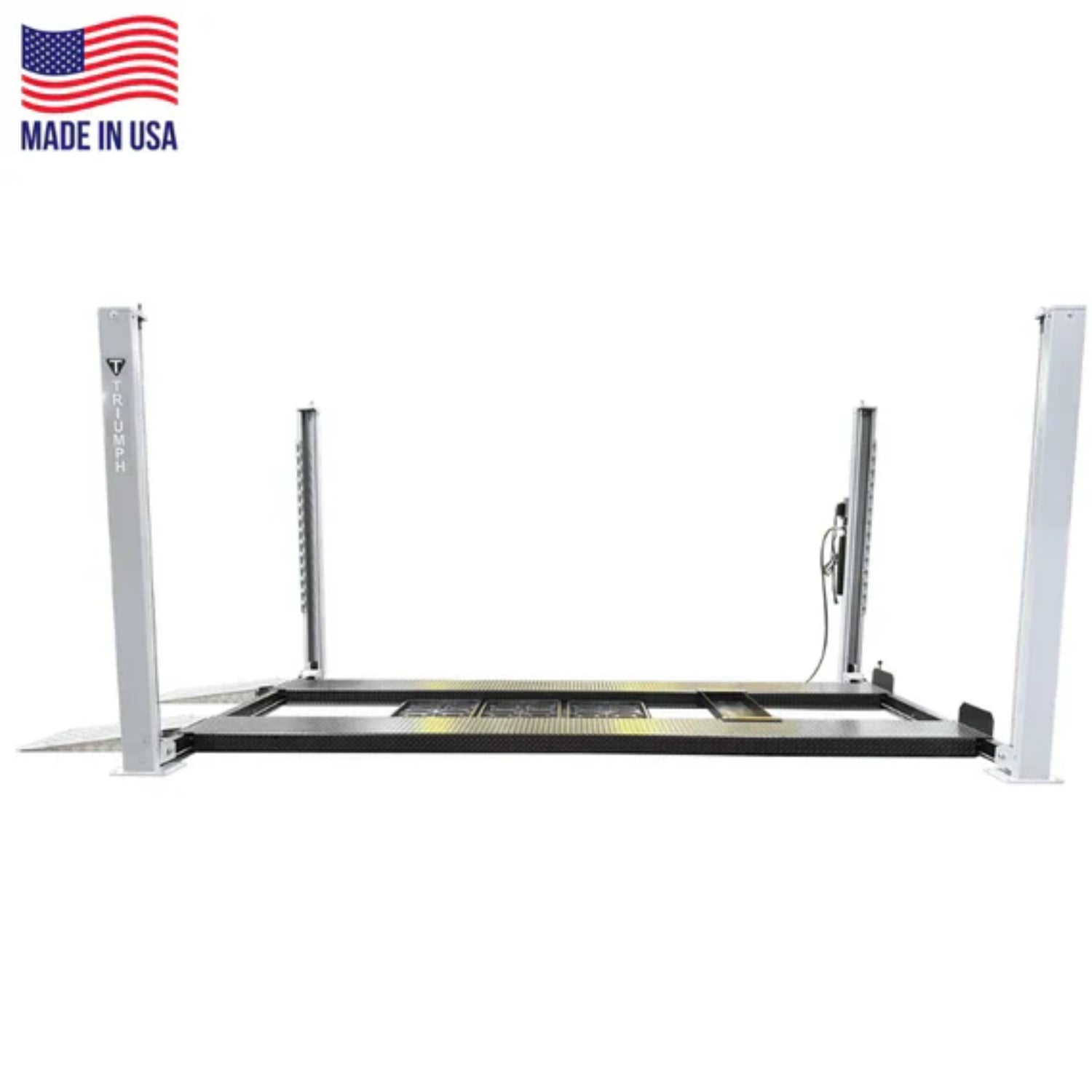

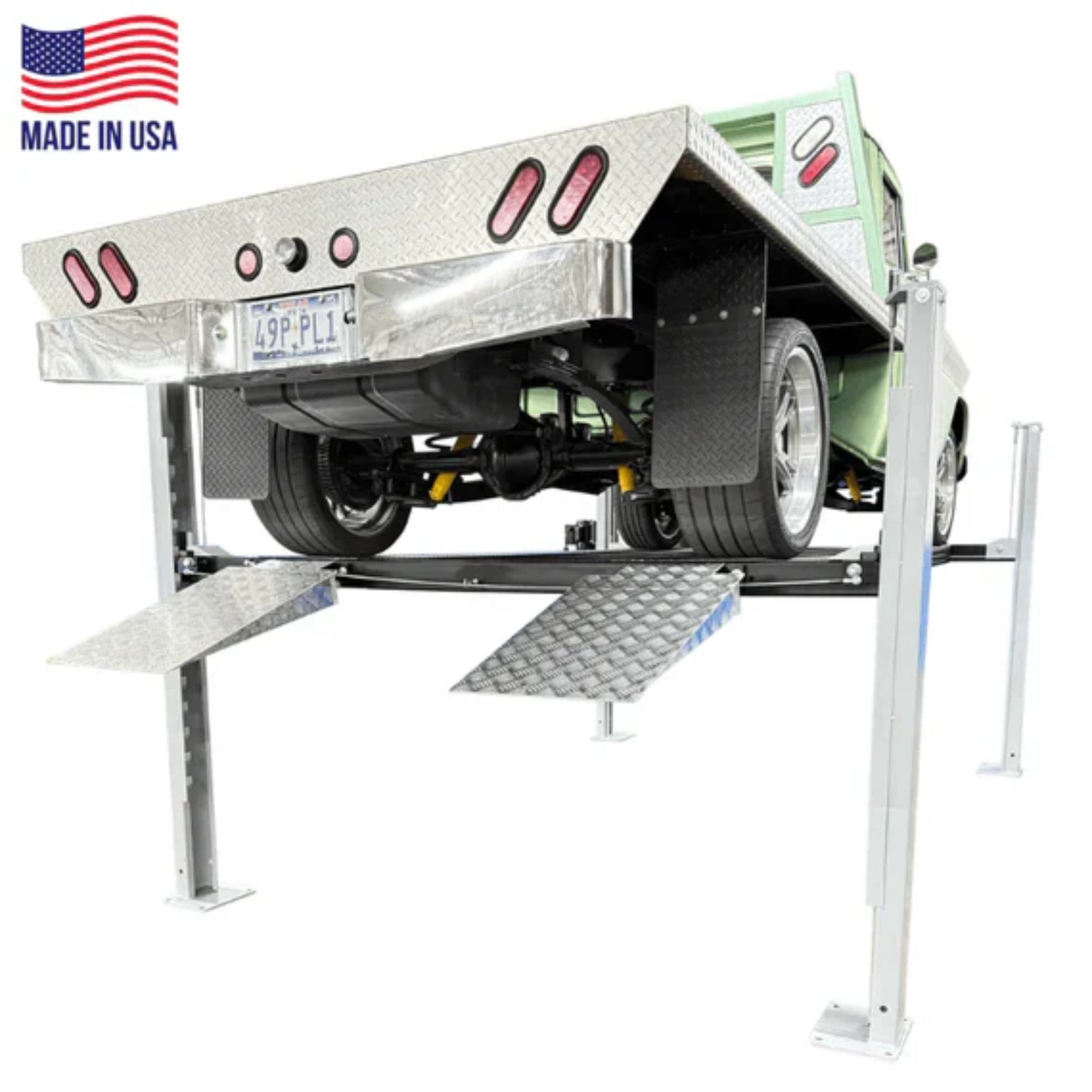

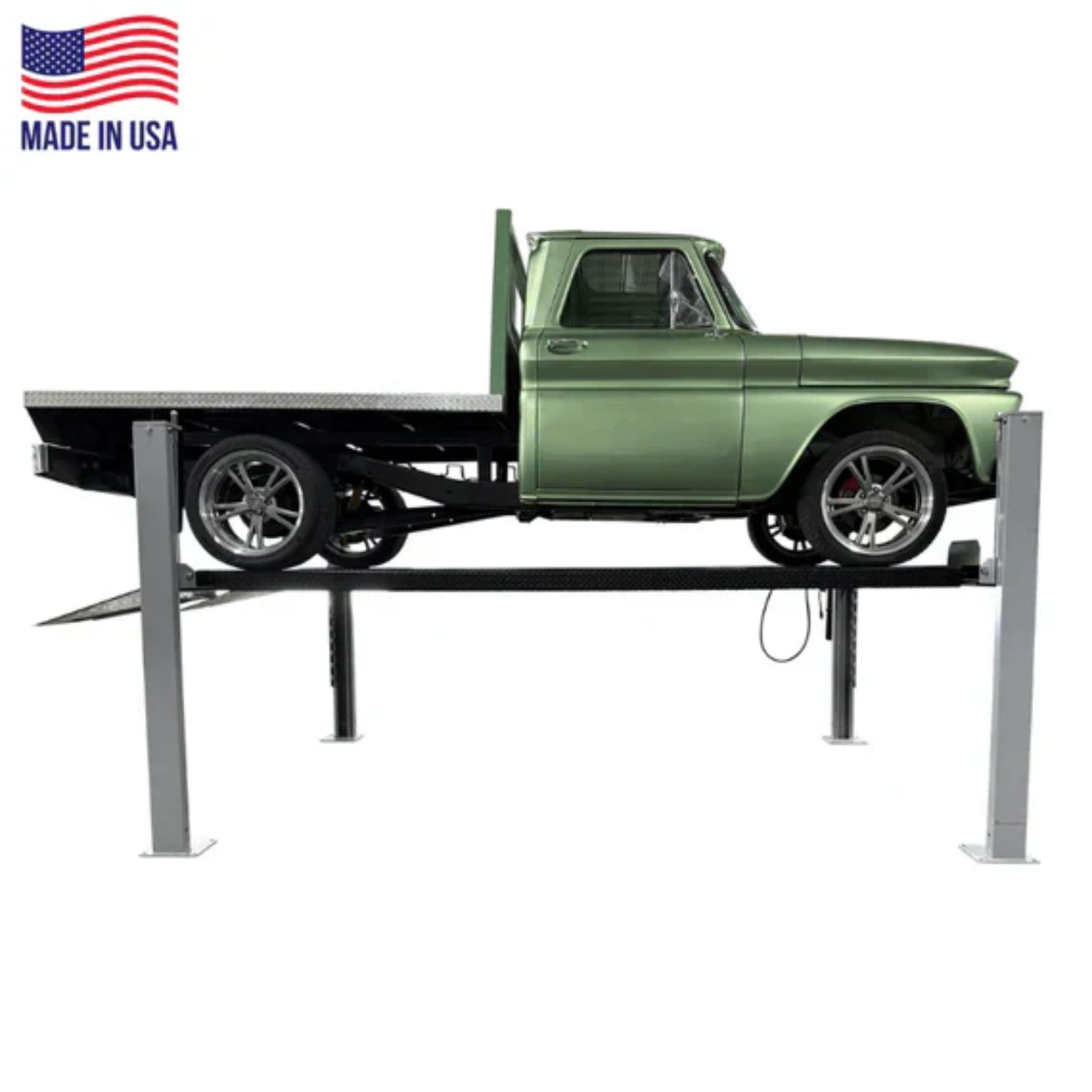

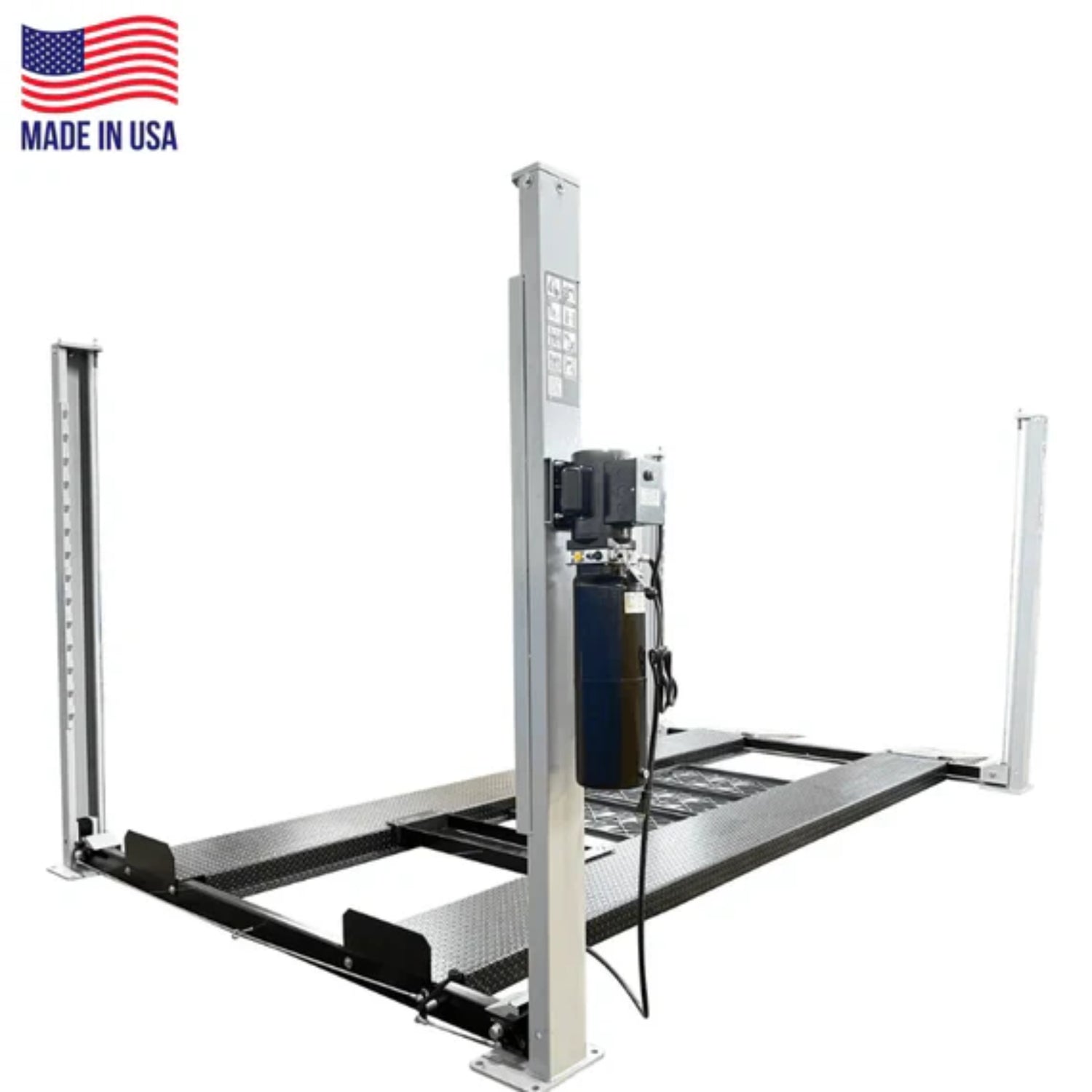

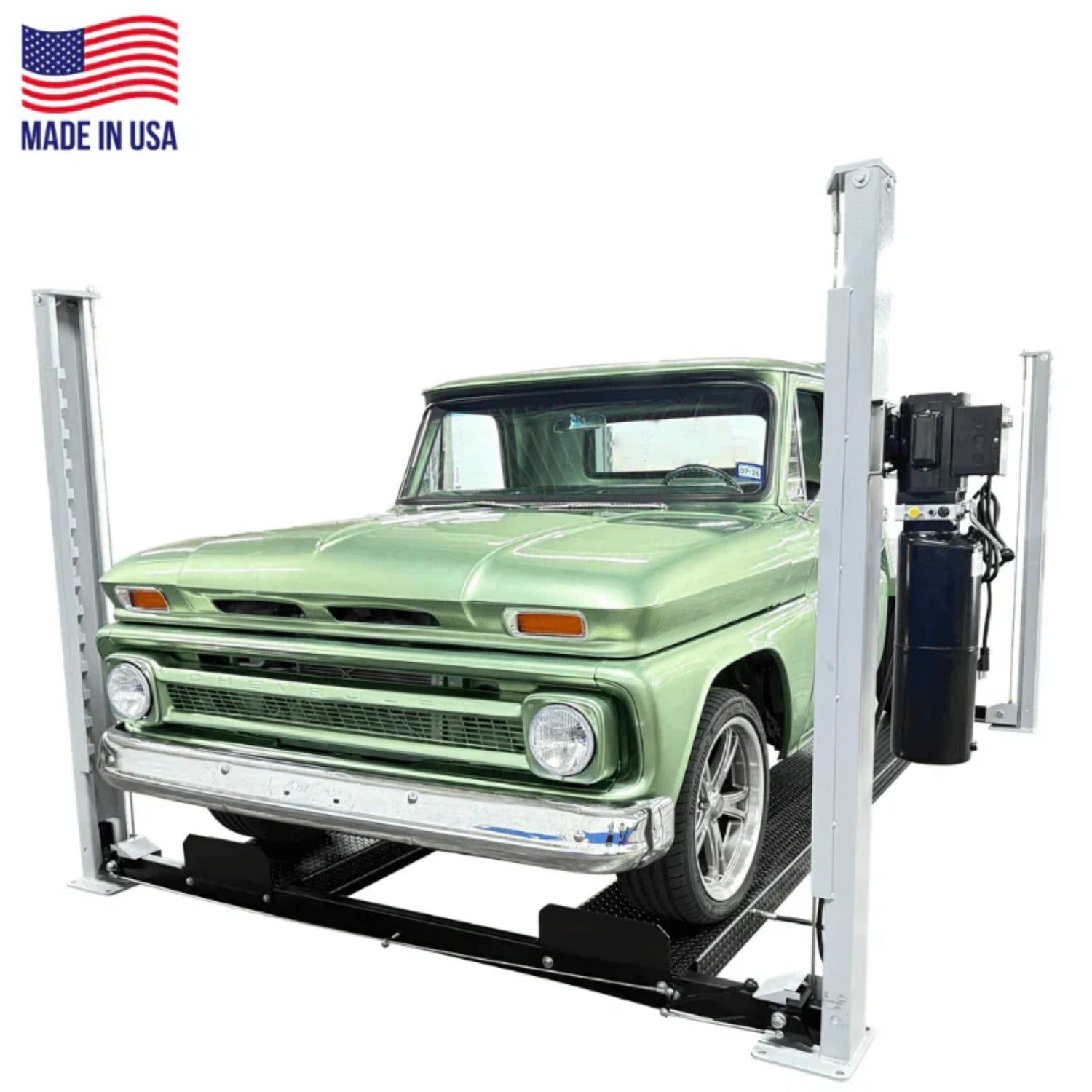

Triumph USA8000 8,000 lb Made in the USA Service & Storage 4-Post Lift
The Triumph USA8000 is a Made-in-the-USA four-post lift that pulls double duty: weekend storage for a prized vehicle, and rock-solid service access when it's time to wrench. Rated at a true 8,000 lb, it sets up fast, rolls easily with the included caster kit, and locks automatically at 14 positions as you raise the vehicle. A jack tray and three drip trays round out a tidy, flexible package built on a design trusted for over 20 years. Runs on standard 110V power; standard finish is Grey & Black.
Why It's Different: The USA8000 is built in the USA, and the 14-position automatic locking gives finer height control than the 10-position imported lifts. It pairs the storage-plus-service versatility of a 4-post with US construction and a complete accessory kit included in the box.
Best For: Home garages and home shops that want both vertical storage and service capability for sedans, sports cars, light trucks, and SUVs — and buyers who specifically want a US-built lift.
⚠️ Made-in-USA disclosure: The lift is made in the USA. The hydraulic power unit is not made in the USA — the manufacturer discloses this directly.
⚠️ Measure before ordering — overall length 175" without ramps / 207" with ramps, overall width 112" (124" with the power unit), overall height 82", lift height 73", under-runway 69". Confirm ceiling clearance, floor space, and the height of the vehicle you'll park on top.
⚠️ Concrete: install on adequate reinforced concrete per the manufacturer's specifications. Improper concrete can cause serious injury or death.
⚠️ Operate safely: never exceed the 8,000 lb rated capacity, center and balance the vehicle before lifting, and confirm the locks have engaged before working underneath.
Features
-
Made in the USA — built domestically (power unit is not USA-made; see disclosure above)
-
True 8,000 lb capacity — sedans, sports cars, light trucks, and SUVs
-
Storage + service in one — park long-term or lift for maintenance without changing equipment
-
14-position automatic safety locks — engage at incremental heights as the lift rises
-
Single-point lock release for even, controlled lowering
-
Portable caster kit included — roll the lift to reclaim floor space or reposition
-
Jack tray included — use a bottle or floor jack to raise one end for wheel/brake service
-

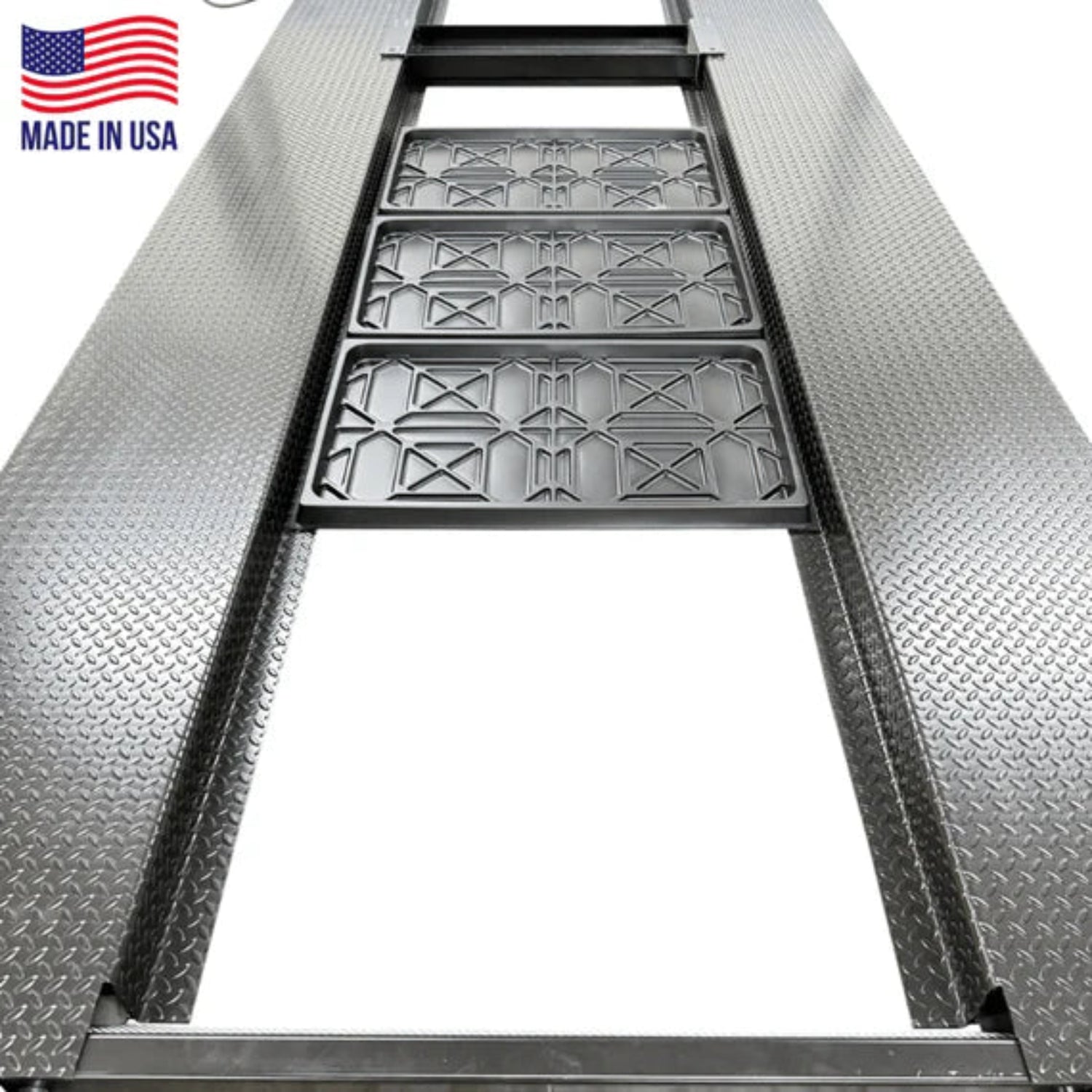

Three drip trays included — capture fluids so the lower vehicle stays clean
-

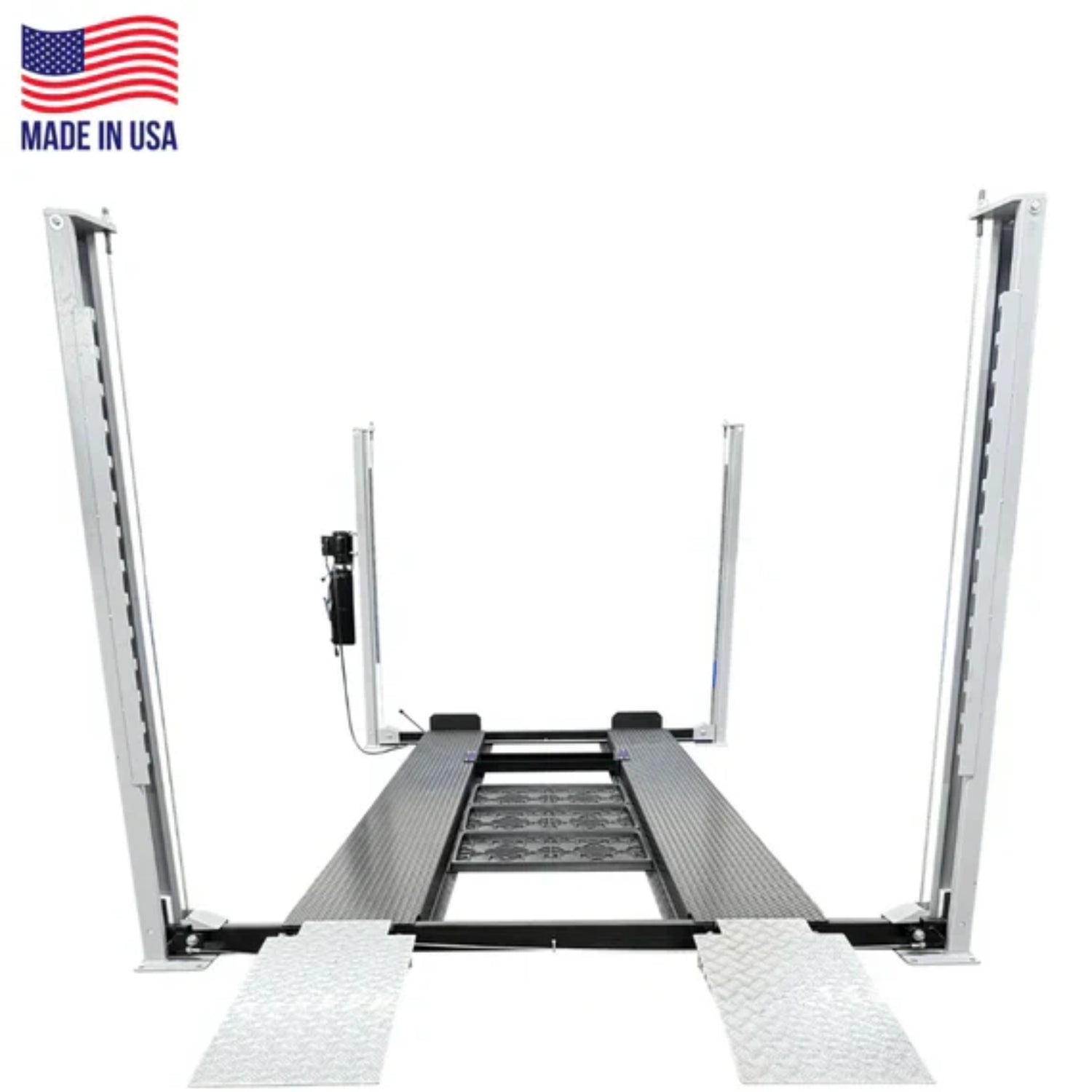

Wide 102.5" drive-thru width simplifies vehicle approach and exit
-
110V power — plugs into a standard outlet, no special wiring
- ~40-second lift time
- Grey & Black standard finish
- Compatible with the optional Triumph SJ-35 rolling bridge jack (sold separately)
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph USA8000 (SKU USA8000) |
| Origin |
Made in the USA (power unit not USA-made) |
| Lift Type |
4-Post Service & Storage Lift |
| Capacity |
8,000 lbs. |
| Overall Height |
82" |
| Overall Length (without ramps) |
175" |
| Overall Length (with ramps) |
207" |
| Overall Width |
112" |
| Overall Width (with power unit) |
124" |
| Lift Height |
73" |
| Height Under Runway |
69" |
| Runway Length |
165" |
| Runway Width |
19" |
| Space Between Runways |
37" |
| Drive-Thru Width |
102.5" |
| Lowered Height |
5" |
| Locking Positions |
14 |
| Lock Release |
Single Point |
| Base Plate Size |
12" × 10" |
| Lift Time |
~40 seconds |
| Voltage |
110 Volts |
| Standard Finish |
Grey & Black |
| Shipping Weight |
1,600 lbs. |
| Warranty |
Triumph 1-year parts warranty (cylinders 30-day full, then seal kit; rubber pads excluded; no labor) |
What's Included
- USA8000 four-post lift (Grey/Black)
- Caster kit (for portability)
- Jack tray (bottle jack or floor jack compatible)
- Three (3) drip trays
- Single-point lock release system

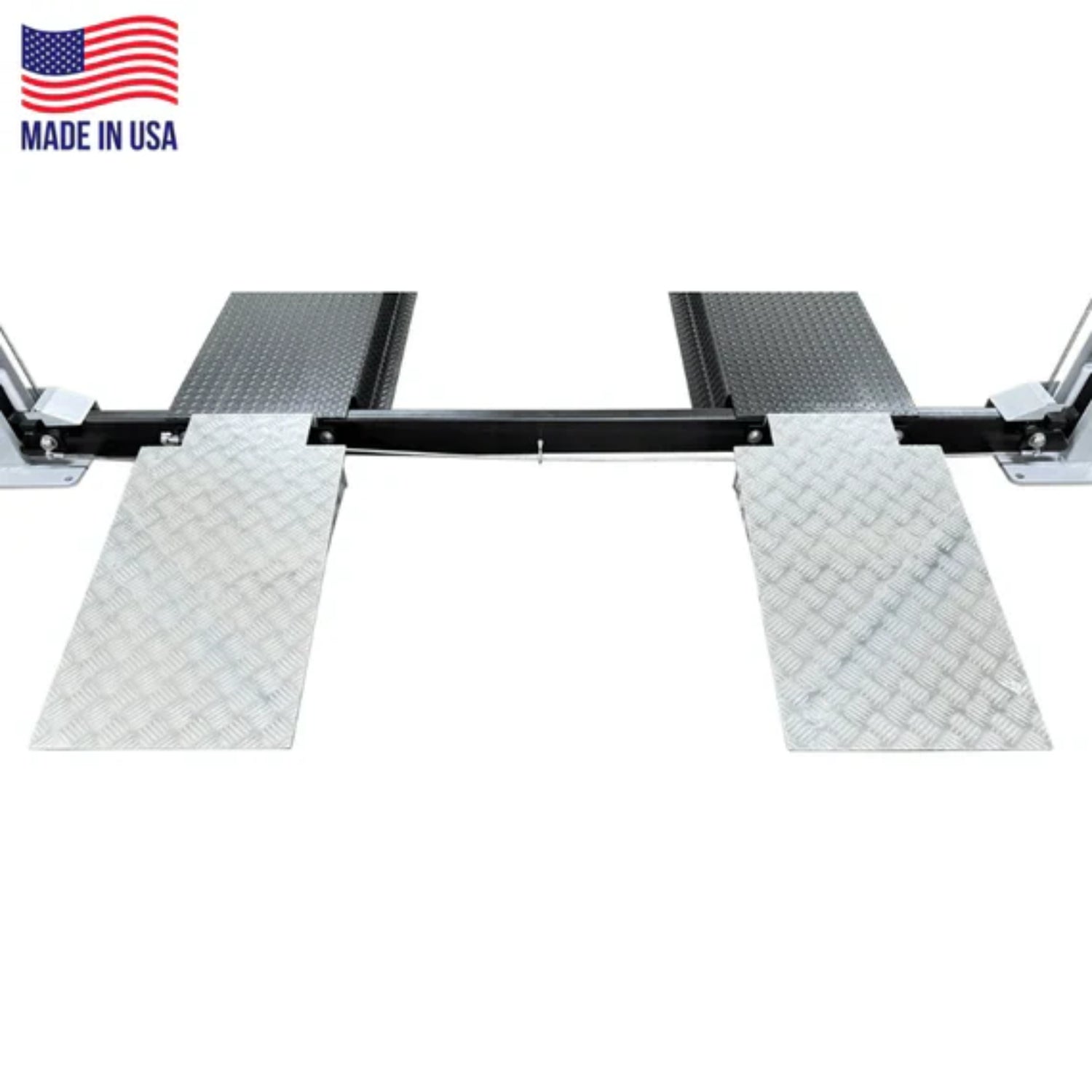

- Approach ramps
- Cables, hoses, hardware, and assembly manual
