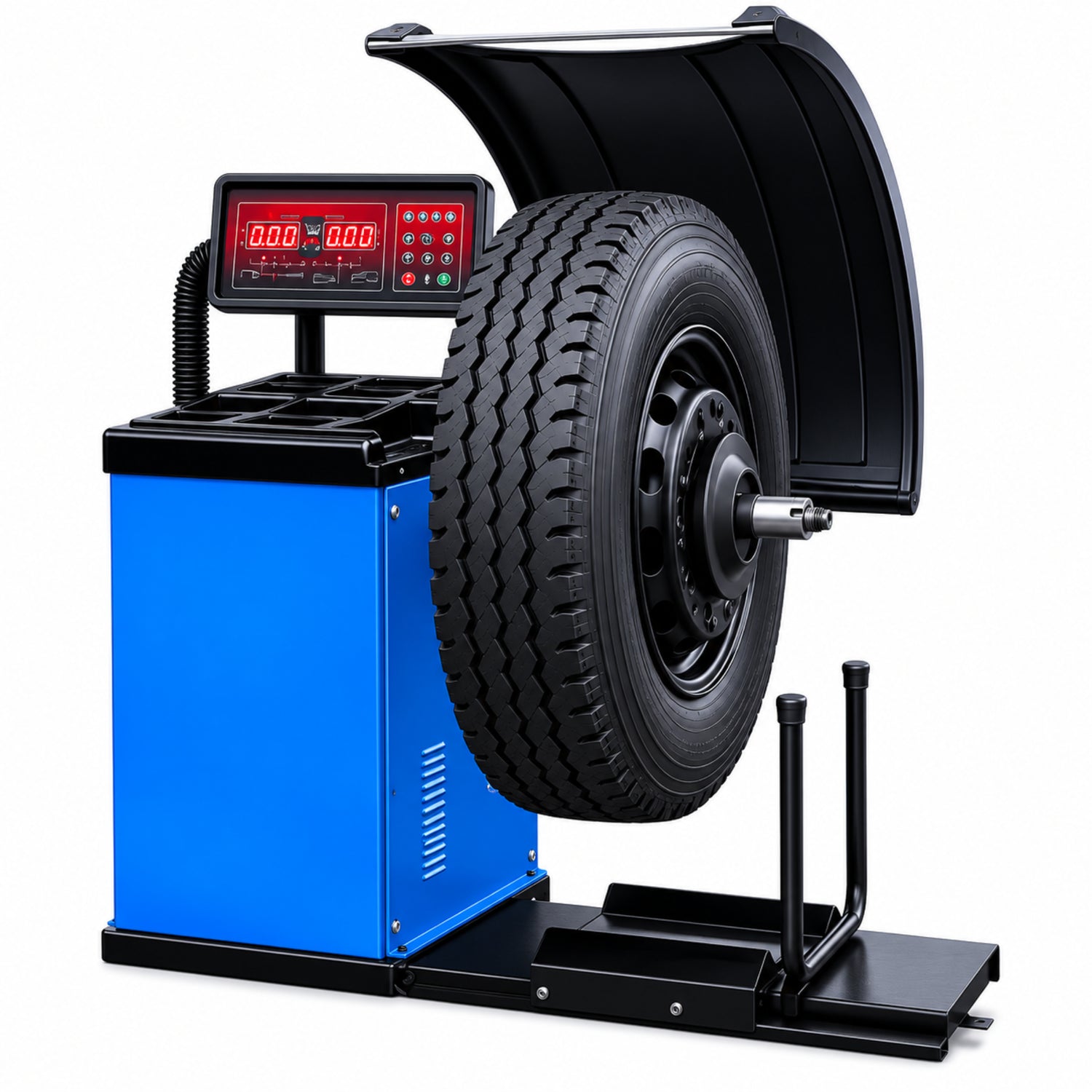

Triumph NTB-1200 Electronic Truck Wheel Balancer — 10–28", 350 lb Capacity
The Triumph NTB-1200 is a true heavy-duty electronic wheel balancer built to handle large truck wheels and small passenger wheels on the same machine. The 42 mm shaft and 350 lb wheel capacity are sized for medium-duty truck rims, while the 10"–28" rim range, 51" max tire diameter, and 1.5"–20" rim-width range cover everything from light passenger wheels up to commercial truck rubber. Comes standard with auto distance and wheel-diameter measuring, a protective wheel hood, and a switchable standard / metric display. Balances a wheel in 8 seconds with ±1 gram accuracy.
Why It's Different: Most passenger-only balancers cap out around 175 lb wheel weight and a 36 mm shaft. The NTB-1200's 42 mm shaft, 350 lb wheel capacity, and 28" rim ceiling step it into truck territory while still keeping the precision (±1 gram) and cycle time (8 sec) you'd expect on a quality passenger machine. The auto distance and diameter sensors cut data entry to just the rim width on most jobs.
Best For: Tire shops, fleet maintenance, truck dealerships, performance shops, and serious home garages servicing both passenger and medium-duty truck wheels on one machine.
⚠️ Bolt the balancer to a level floor before operation. Heavy and high-speed-spinning wheels require a rigid mount for accurate readings and safe operation — install per the manufacturer's instructions.
⚠️ Always lower the protective wheel hood before spinning the wheel. The hood is a safety guard — it protects the operator from a thrown weight, loose hub adaptor, or detached wheel during the spin cycle.
⚠️ Auto data entry is not full automatic — the machine auto-measures distance and wheel diameter, but rim width is manually entered for each job.
⚠️ Stay within rated capacity: 350 lb wheel weight, 28" max rim diameter, 51" max tire diameter, 1.5"–20" rim width.
⚠️ Tire equipment ships LTL with liftgate service included (unlike auto lifts) — the driver will lower the unit to the ground at the back of the truck, but will not move it inside the shop or assemble it. You're responsible for moving and installing the machine.
Features
-
Heavy-duty 42 mm shaft — sized for medium-duty truck wheels, not just passenger
-
350 lb max wheel capacity — doubles the typical passenger-only balancer ceiling
-
10"–28" rim diameter range covers light passenger up to commercial truck wheels
-
51" max tire diameter / 1.5"–20" rim width range
-
Auto distance and wheel diameter measuring — sensors set two of three dimensions automatically
-
±1 gram / ±10 gram accuracy for precision balancing
-
8-second cycle time for fast throughput
-
Standard / Metric display — switch units on the fly
-
Protective wheel hood included — safety guard for the spin cycle
-
110V operation — runs on a standard household outlet, no commercial wiring required
- 1/3 HP motor
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NTB-1200 |
| Type |
Electronic Truck & Passenger Wheel Balancer |
| Wheel / Rim Size Range |
10" – 28" |
| Max Tire Diameter |
51" |
| Rim Width Range |
1.5" – 20" |
| Max Wheel Weight |
350 lbs. |
| Shaft Size |
42 mm |
| Automatic Data Entry |
Distance + diameter auto-measured (rim width manual) |
| Display |
Standard or Metric (switchable) |
| Accuracy |
±1 gram / ±10 gram |
| Cycle Time |
8 seconds |
| Motor |
1/3 HP |
| Voltage |
110 Volts |
| Shipping Size |
47" × 39" × 50" |
| Shipping Weight |
720 lbs. |
| Warranty |
Triumph 1-year parts warranty (no labor) |
What's Included
- NTB-1200 wheel balancer body with 42 mm shaft
- Protective wheel hood (safety guard)
- Auto distance and wheel-diameter measuring sensors (built in)
- Standard cone set and quick-release wing nut for wheel mounting
- Wheel weight hammer
- Display console with Standard / Metric mode selection
- Operation and maintenance documentation
Warranty exclusions on tire equipment: quick-release wing nut, wheel hood cover, top tray cover, and wheel weight hammer are wear items not covered under the standard parts warranty.
