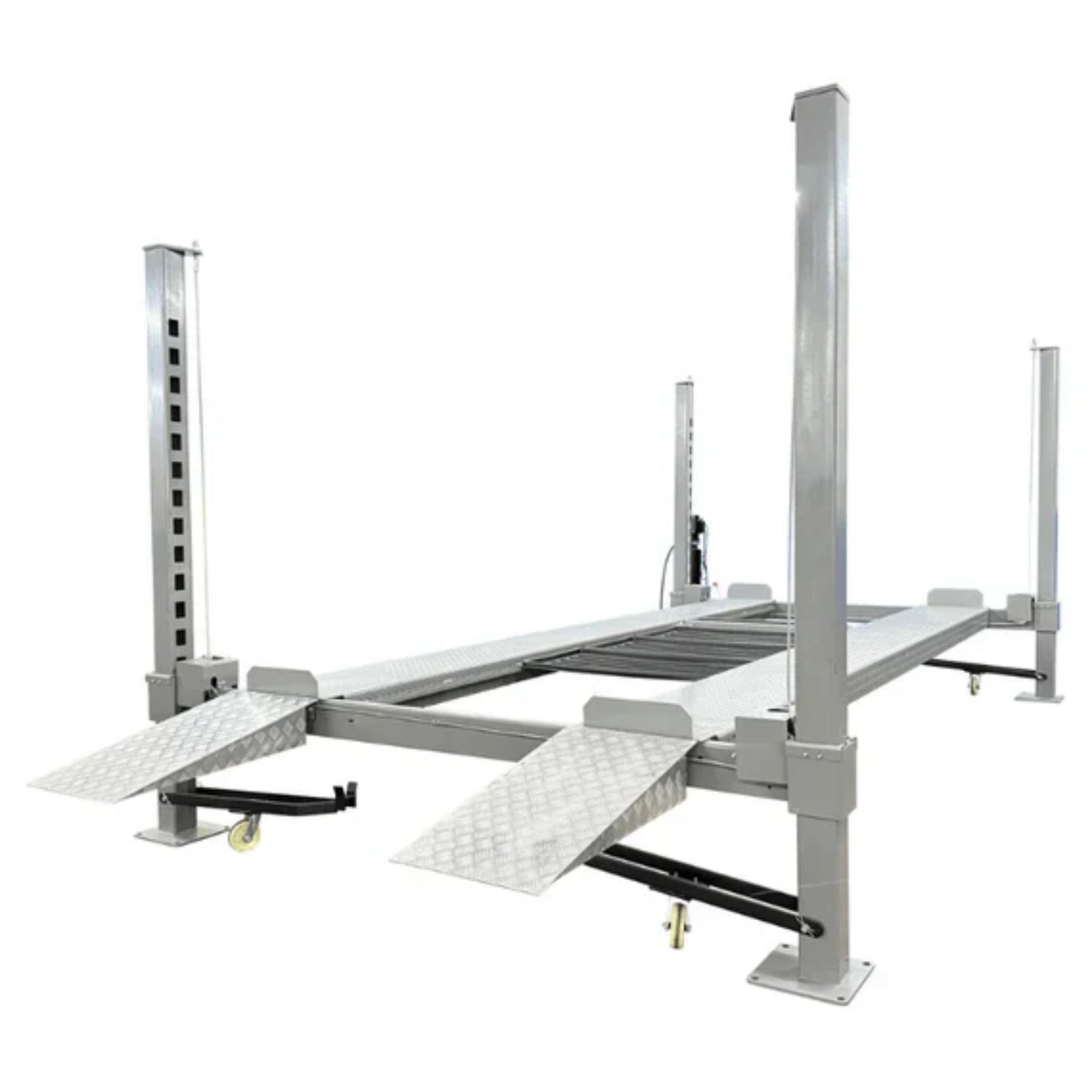

Triumph NOS10000 Heavy-Duty 10,000 lb 4 Post Lift

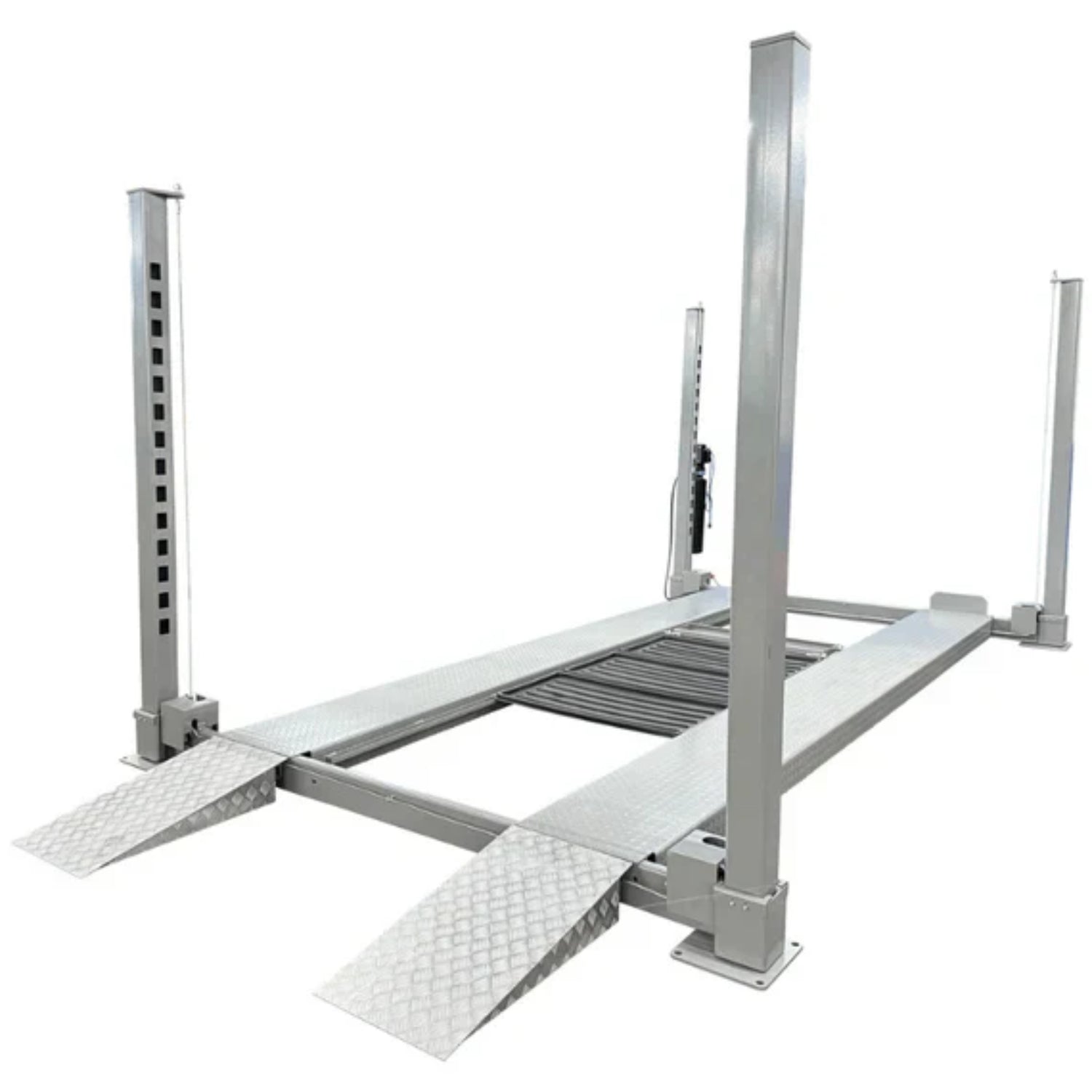

The NOS10000 is a 10,000 lb capacity service-and-storage 4-post automotive lift built on the proven outside slider design for a sturdy, rigid stance. Heavy-duty 4.75" × 4.75" posts ride in 6.5" × 6.5" slide collars, with boxed runway tracks for extra strength and 14 locking positions backed by a secondary redundant safety system. Set of drip trays, rolling jack tray, heavy-duty poly-coated casters, and 36" aluminum approach ramps all ship included — making it a complete storage and service package right out of the crate.
Why It's Different: The outside-slider construction with 6.5" slide collars gives a noticeably rigid lifting profile, and the secondary redundant safety system backs up the primary deadbolt locks for added peace of mind during long-term vehicle storage. Aluminum ramps at just 29 lb each make swap and storage easy, and the lift runs on a standard 110V outlet — no commercial wiring required.
Best For: Home enthusiasts and serious DIY mechanics storing a second vehicle vertically and doing service work underneath — sedans, SUVs, and trucks up to 10,000 lb. The 204" runways and 109" drive-thru width accommodate full-size pickups.
⚠️ This lift ships LTL freight at 2,535 lb — liftgate delivery is NOT available. You are responsible for unloading from the truck using a forklift, Bobcat, tractor, tow truck, or backhoe; the truck driver will not unload it. If you can't unload at your location, the carrier can ship to the nearest freight terminal for pickup with a trailer or moving van.
⚠️ Measure before ordering — overall length 210.5", overall width 123", overall height 99.5". Confirm ceiling clearance, floor space, and drive-thru access.
⚠️ Concrete: install on adequate reinforced concrete per the manufacturer's specifications. Improper concrete can cause serious injury or death.
⚠️ Operate safely: never exceed the 10,000 lb rated capacity, center and balance the vehicle before lifting, and always engage the locks before working underneath.
Features
Outside Slider Design with 6.5" Slide Collars

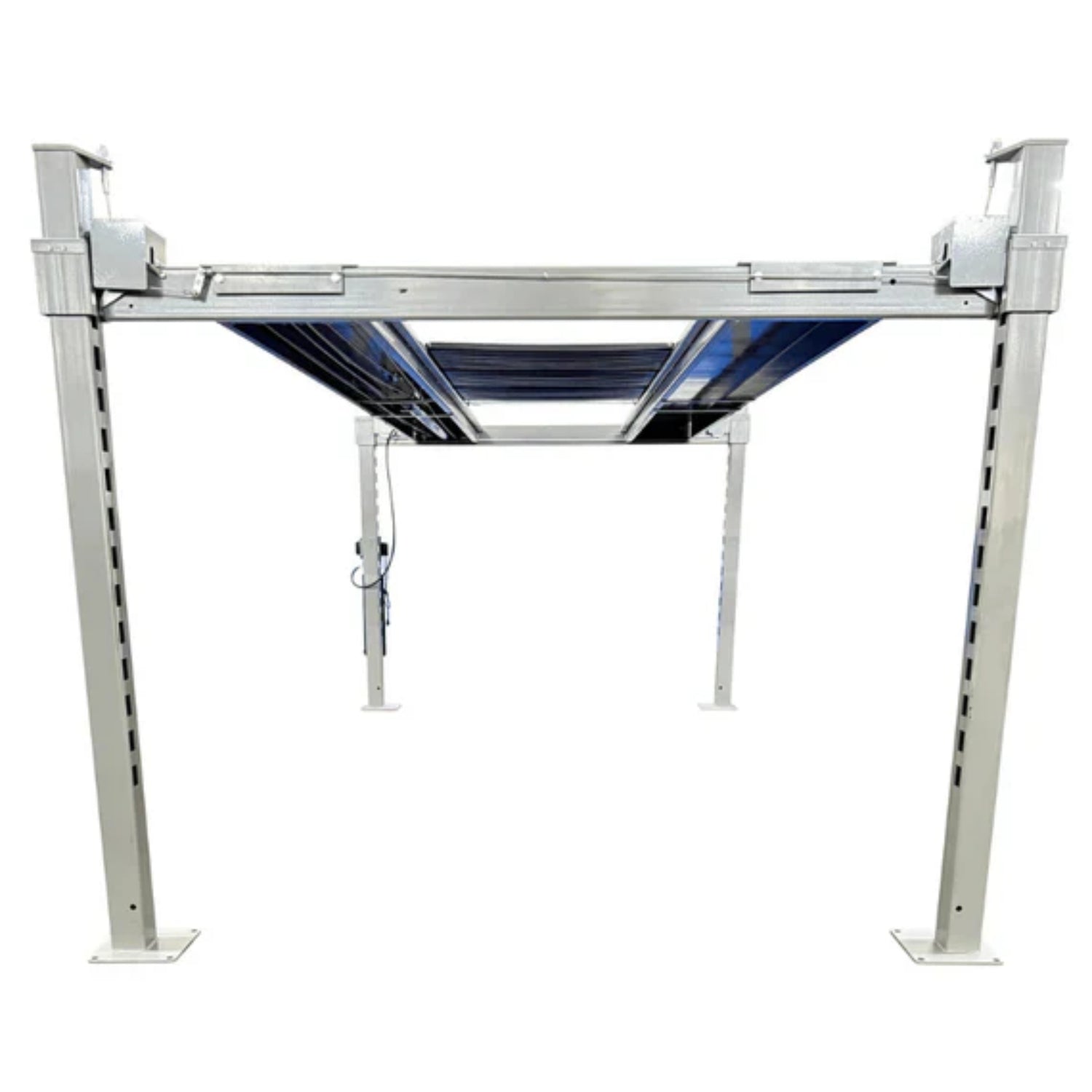

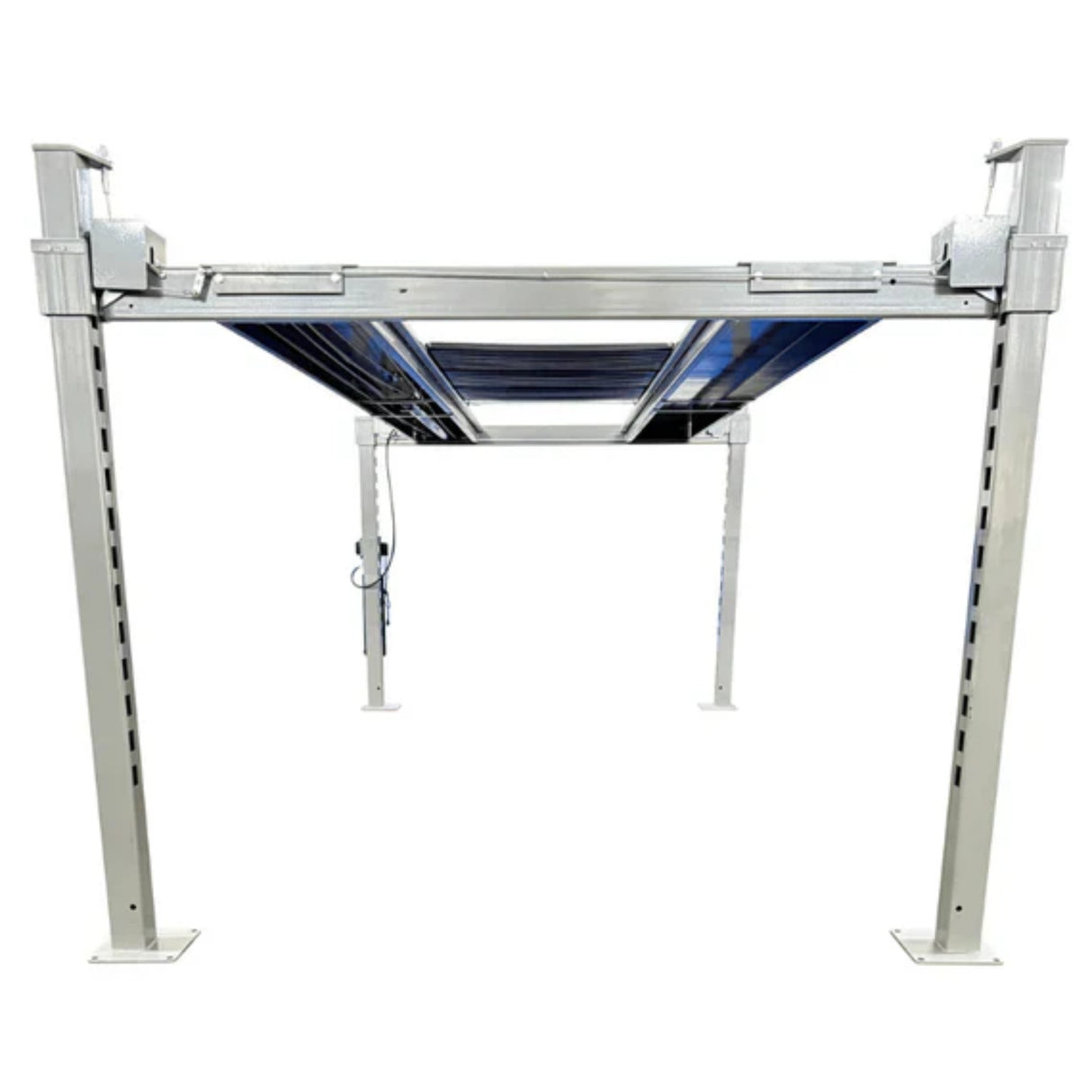

The posts measure 4.75" square and ride inside 6.5" square slide collars, which is what gives this lift its rigid stance under load. Boxed runway tracks add strength along the length of the vehicle. On a 10,000 lb lift holding a full-size truck, that construction is what keeps the runways from flexing at full height.
Up to 10,000 lb
4.75 in posts, 6.5 in collars
Boxed runway tracks
14 Lock Positions Plus a Redundant Safety System
Manual deadbolt locks engage at fourteen positions, with a single-point release and oversized linkage so a technician lowers the lift from one spot rather than corner by corner. A secondary redundant safety system backs up the primary locks, which matters most when a vehicle is stored overhead for months at a time. Cable keepers prevent run-off during operation.
14 deadbolt lock positions
Redundant safety system
Single-point release
204" Runways and 81.5" of Clearance on 110V Power

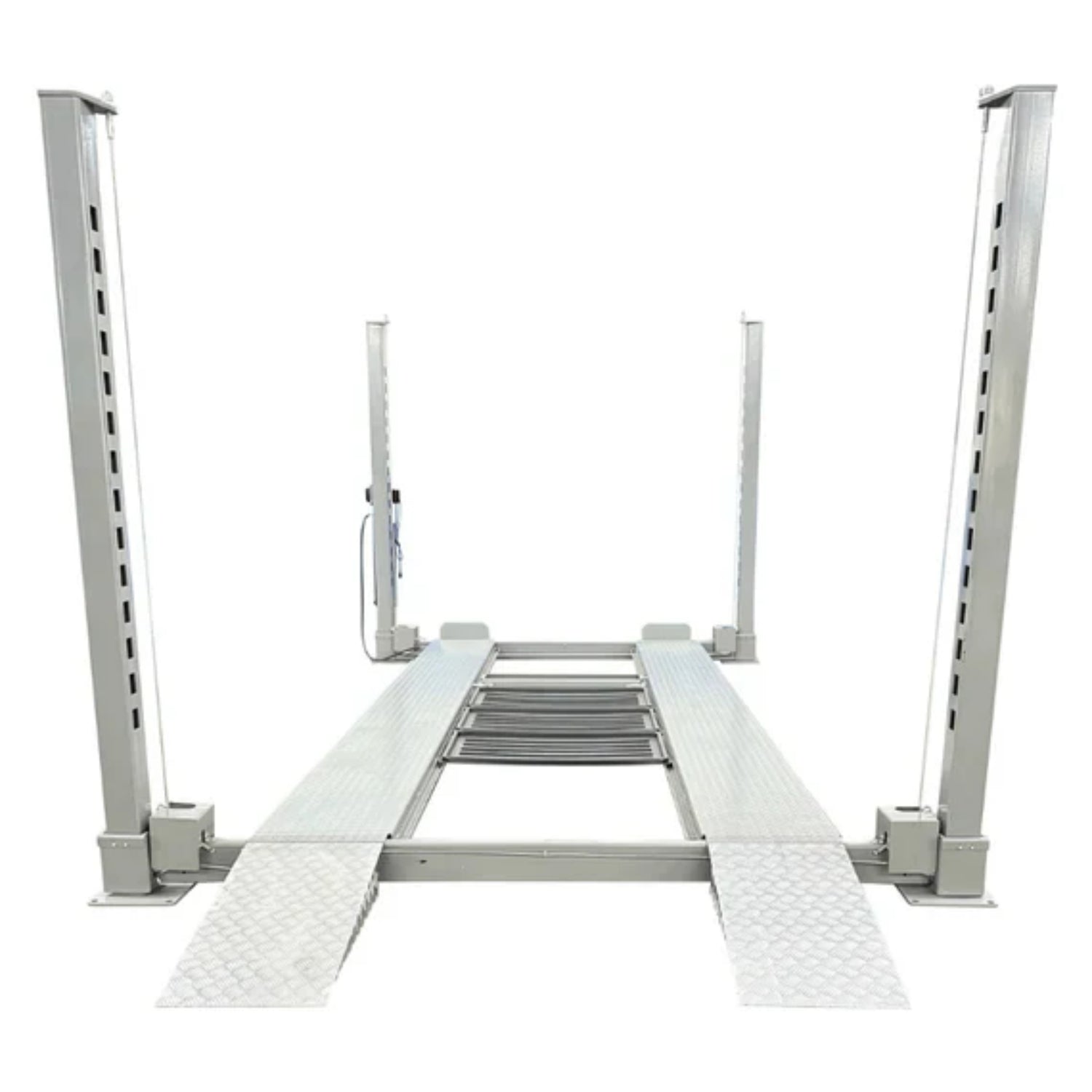

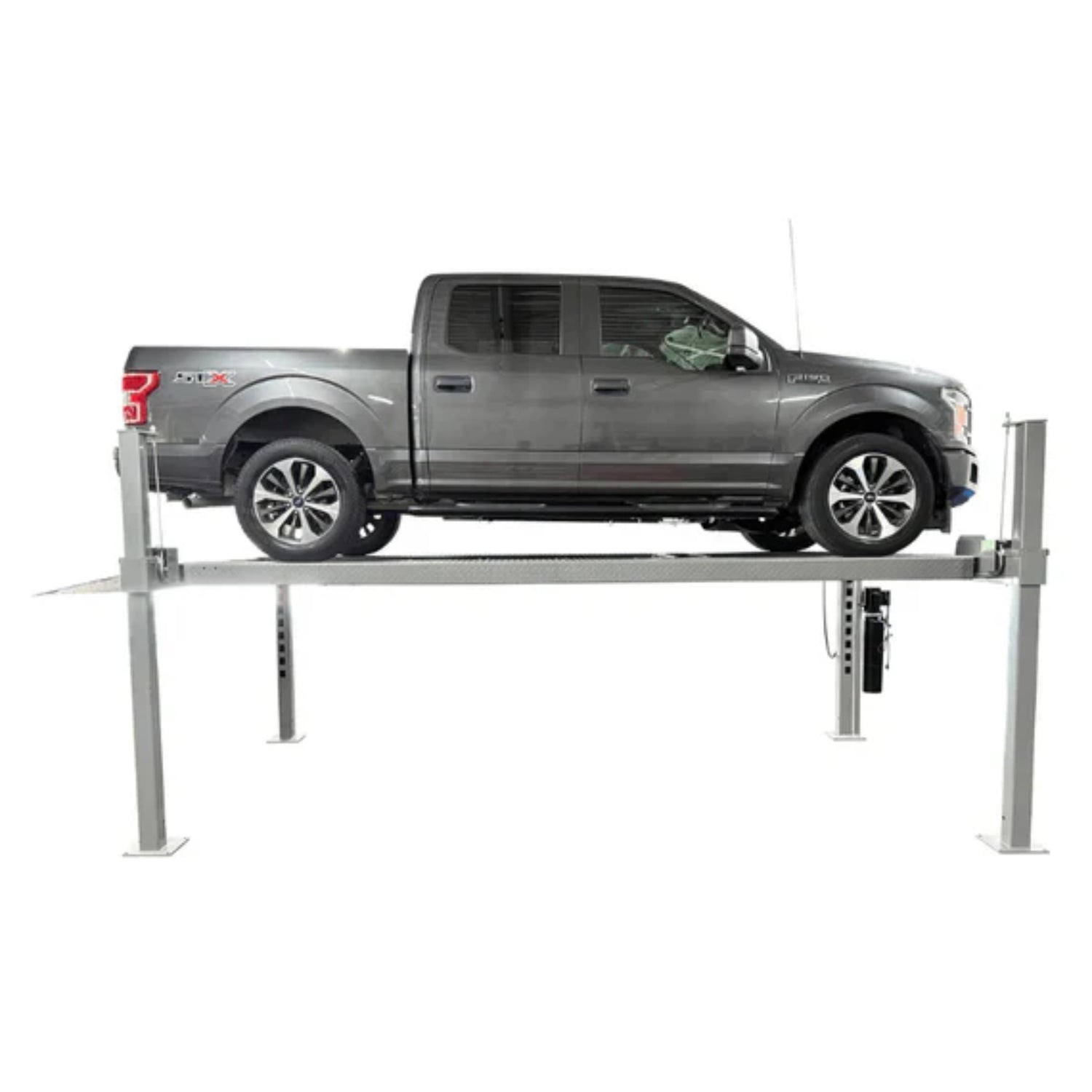

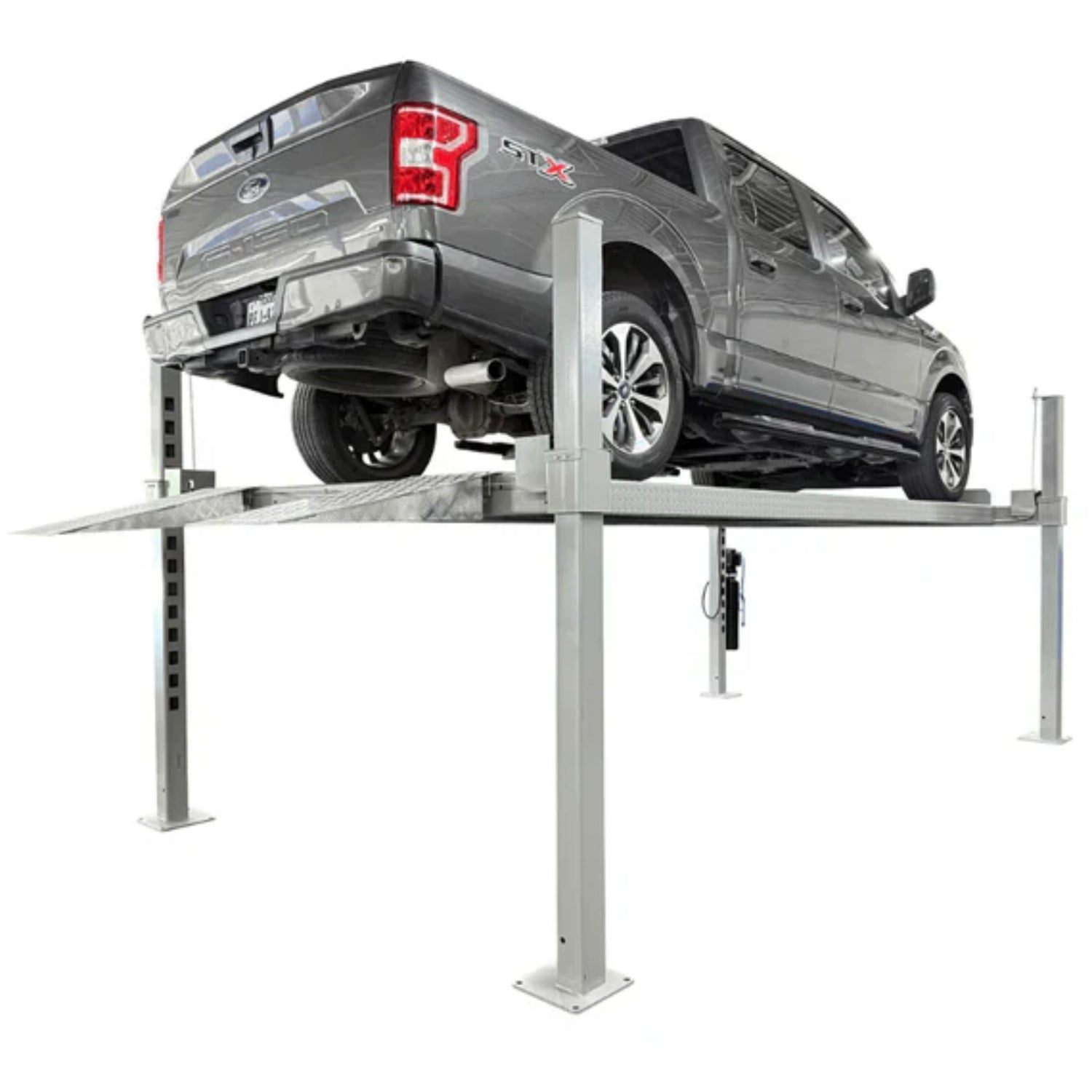

The runways run seventeen feet long with a 109" drive-through, so full-size pickups sit fully supported with room to open the doors. At full lift there's 81.5" underneath, enough to park a tall vehicle below or stand upright while working. It runs on a standard household outlet, and the 36" aluminum ramps weigh only 29 lbs each, so one person can move and store them.
204 in runways
81.5 in clearance below
29 lb aluminum ramps
Specifications
| Specification |
Detail |
| Model |
NOS10000 |
| Lift Type |
4-Post Service & Storage Lift |
| Capacity |
10,000 lbs. |
| Overall Height |
99.5" |
| Overall Length |
210.5" |
| Overall Width |
123" |
| Lift Height |
87" |
| Height Under Runway |
81.5" |
| Runway Length |
204" |
| Runway Width |
20" |
| Drive Thru Width |
109" |
| Lowered Height |
5.5" |
| Locking Positions |
14 |
| Lock Release |
Single Point |
| Post Size |
4.75" × 4.75" |
| Slide Collars |
6.5" × 6.5" |
| Base Plate Size |
12" × 12" × 5/8" |
| Ramp Length / Weight |
36" aluminum, 29 lb each |
| Lift Time |
60 Seconds |
| Voltage |
110 Volts |
| Safety System |
Manual deadbolt locks + secondary redundant safety |
| Warranty |
Triumph 1-year parts warranty (no labor) |
| Shipping Weight |
2,535 lbs. |
What's Included
- Complete lift structure — four posts, runways, and overhead/crossbar assembly

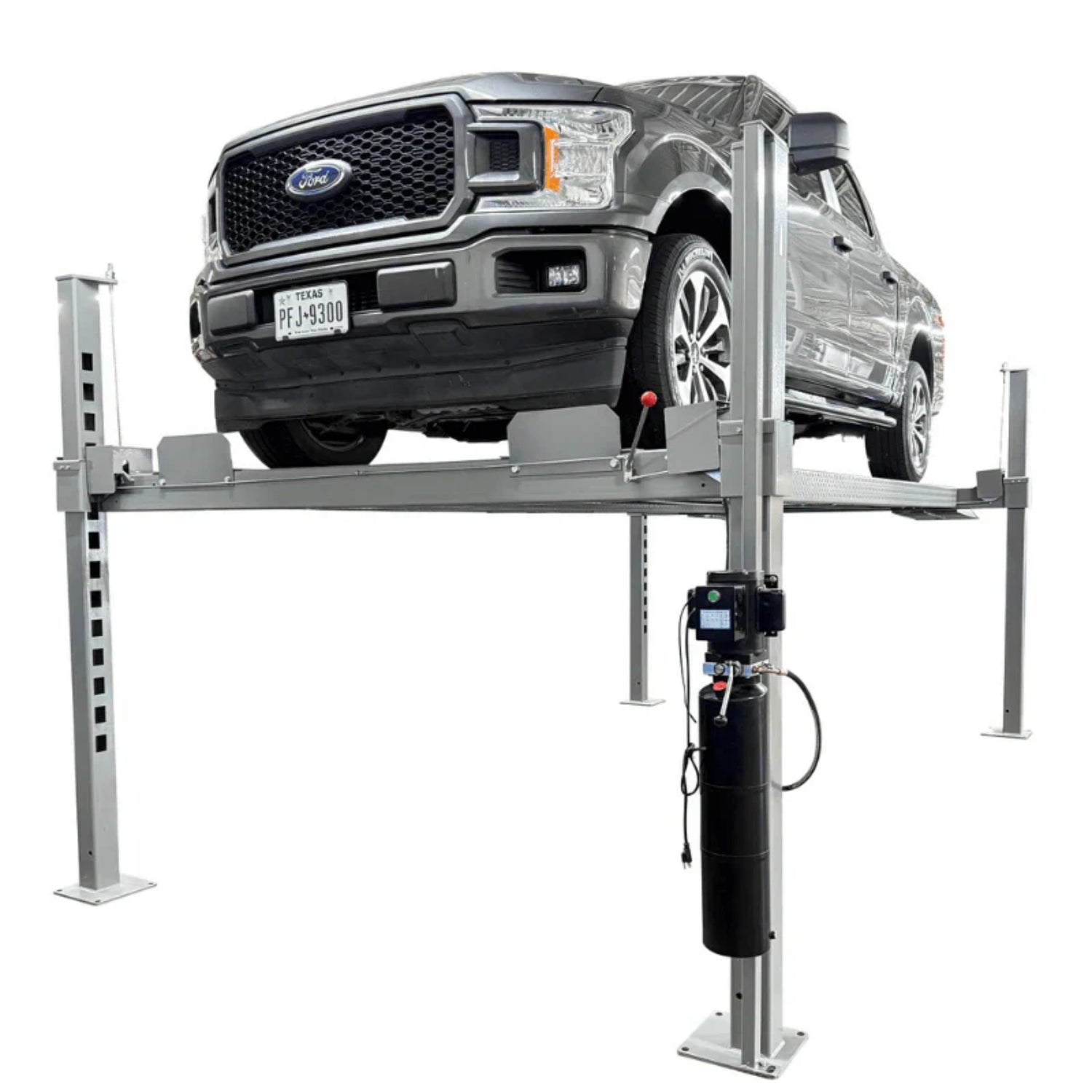

- Hydraulic power unit (110V)
- (2) 36" aluminum approach ramps

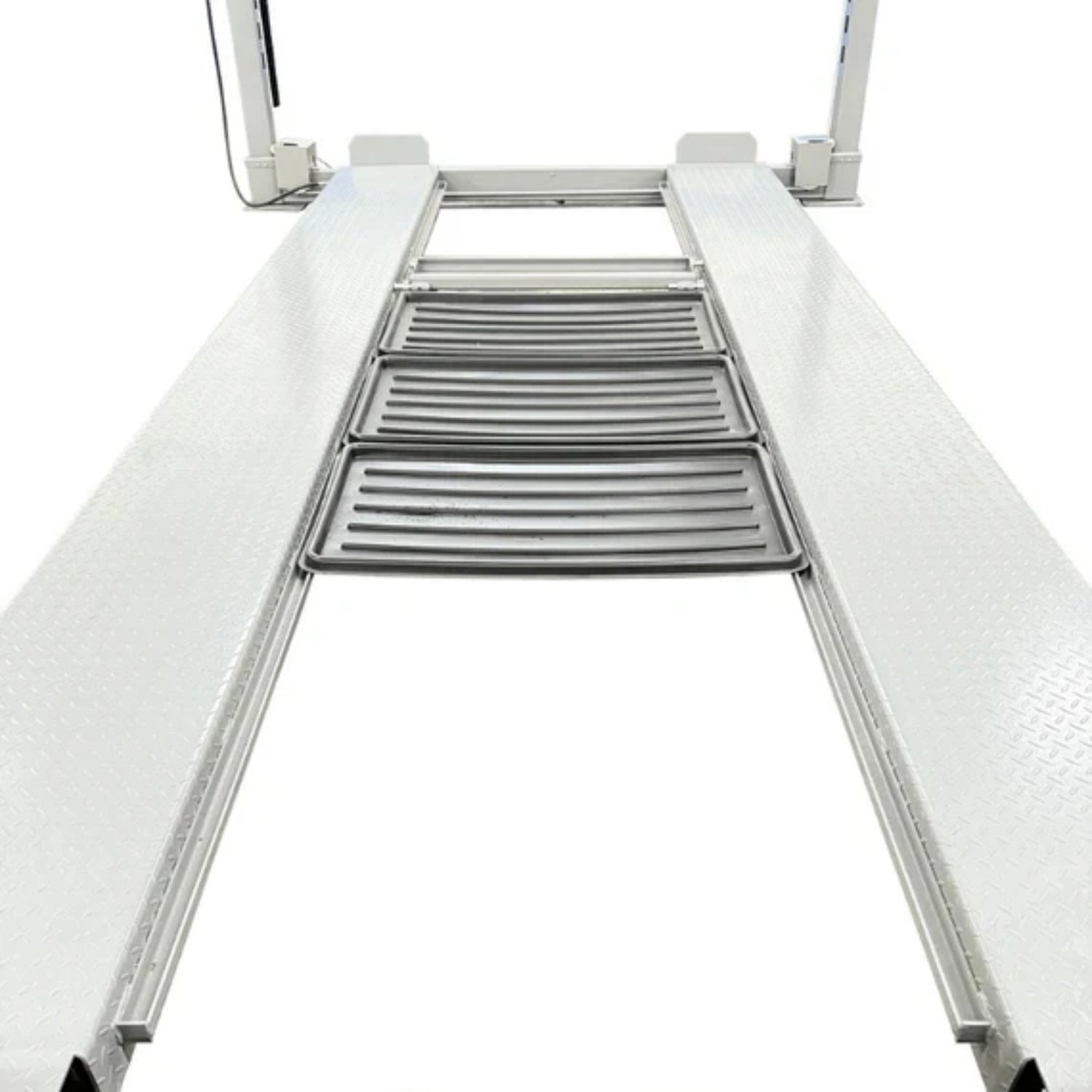

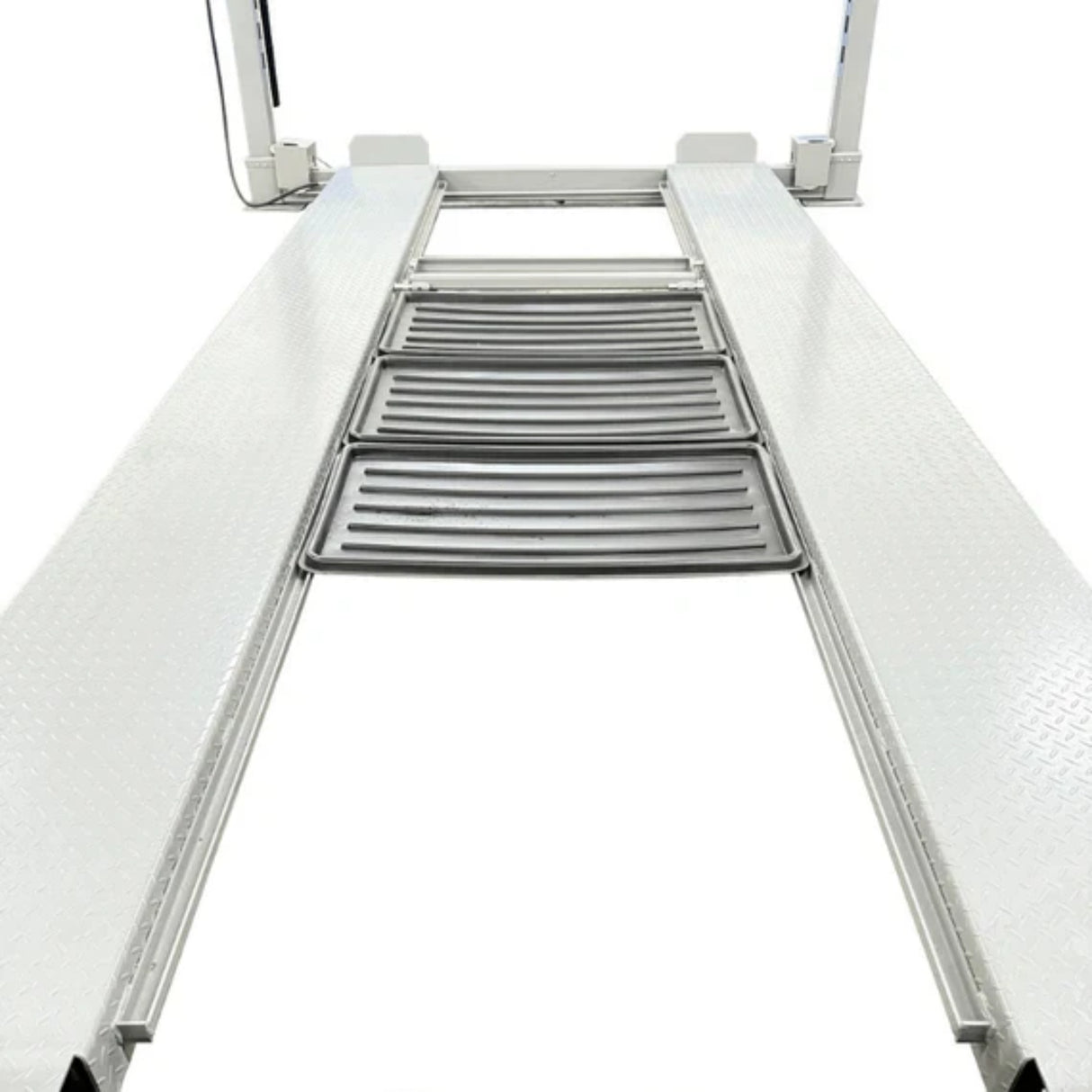

- Set of drip trays
- Rolling jack tray
- Heavy-duty poly-coated caster kit
- Cable keepers
- Manual deadbolt locks and single-point release linkage
- Secondary redundant safety system
- 12" × 12" × 5/8" base plates and anchor hardware
- Installation and operation documentation
