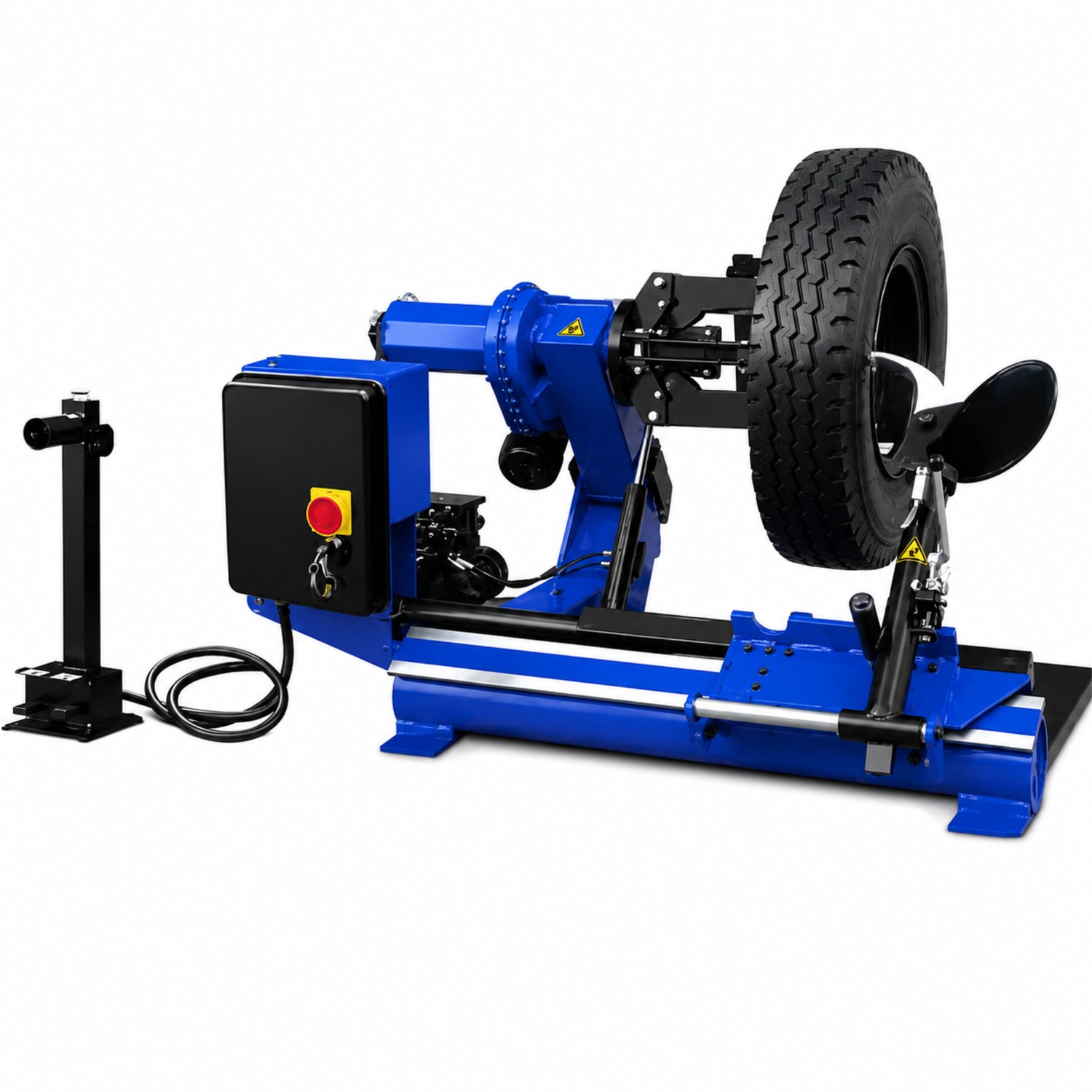

Triumph NTC-690 Heavy-Duty Truck Tire Changer

Triumph NTC-690 Heavy-Duty Truck Tire Changer — Up to 90" Tire Diameter, Robotic Arm, Wireless Remote

The Triumph NTC-690 is a heavy-duty commercial tire changer built to service the largest wheels on the road and in the field — big trucks, buses, tractors, and other industrial vehicles. A 14"–56" clamping range, 42" max wheel width, and 90" max tire diameter let it handle wheels that bench-top passenger machines can't even fit, and a robotic arm with wireless remote control does the heavy work — eliminating the back-breaking manual prying that comes with oversized tires. Hydraulic operation, 220V power, and an instructional video are included.

Why It's Different: Two features turn this from a tire changer into a tire-changing system. First, the robotic arm automates the demount/mount sequence — no two-person prying on a 200 lb truck tire. Second, the wireless remote lets the operator stand back and run the machine safely from the side, which matters when you're working a 600 lb agricultural wheel. Together they open a service category most shops have to turn away.

Best For: Commercial truck service centers, fleet maintenance shops, tractor and agricultural dealers, bus depots, industrial-equipment shops, and tire-service businesses pursuing oversized-tire work that passenger-class changers can't handle.

⚠️ This is a SPECIAL-ORDER item with a 2–3 month lead time. Confirm timing fits your project before ordering — the machine is built and shipped to order, not stocked on the shelf.

⚠️ Requires a 220V single-phase outlet near the install location. This is not a 110V household-outlet machine.

⚠️ Heavy LTL freight — 2,400 lb shipping weight. Tire equipment from NAT typically ships with liftgate service included, but verify with the carrier given this unit's weight before scheduling delivery. The truck driver will not move the machine into your shop or assemble it.

⚠️ No bead blast / bead seater. If you regularly seat stubborn truck-tire beads on dropped-center rims, plan for a separate inflation cage or bead-seating tool — this changer is not equipped with a bead-blast assist.

⚠️ Operate safely: commercial tire equipment requires trained operators; review the included instructional video and the manufacturer's safety procedures, and inflate large tires inside a safety cage to OSHA recommendations. Never exceed 120 PSI inflation rating.

Features

56" Rims and 90" Tires — Wheels Most Shops Turn Away

The 14" to 56" clamping range with a 42" maximum wheel width and 90" tire diameter covers big-rig, bus, tractor, and industrial wheels that a bench-class changer can't physically mount. For a shop currently sending oversized agricultural and construction tires to a specialist, this opens a service category rather than just speeding up an existing one.

14–56 in rims Tires up to 90 in 42 in maximum width

Robotic Arm Replaces the Prying

The robotic arm runs the mount and demount sequence, so a 200 lb truck tire doesn't take two technicians and a bar. On oversized wheels the manual method is where injuries and rim damage happen, and removing it changes both the labor cost and the risk profile of every job.

Robotic mount and demount One-operator jobs Less rim damage risk

Wireless Remote Keeps the Operator Clear

The operator runs the machine from the side rather than standing over a 600 lb agricultural wheel while it turns. Hydraulic operation supplies the force smoothly throughout, and the machine ships with a hydraulic chuck, crowbar, rim-protecting clamp covers, a bead press clamp, and an instructional video for operator training.

Wireless remote control Hydraulic operation Full tooling and training video

Specifications

What's Included

• NTC-690 tire changer with hydraulic chuck and robotic arm
• Wireless remote control
• Crowbar
• Clamp covers (protect wheel rim surfaces during clamping)
• Bead press clamp
• Instructional video
• Operation and maintenance documentation

Warranty exclusions on tire changers: all plastic protective pads and tooling on clamps, heads, bead breakers, assist arms, the single tire-inflation hose, lube brush, and bucket are wear items not covered under the standard parts warranty.
