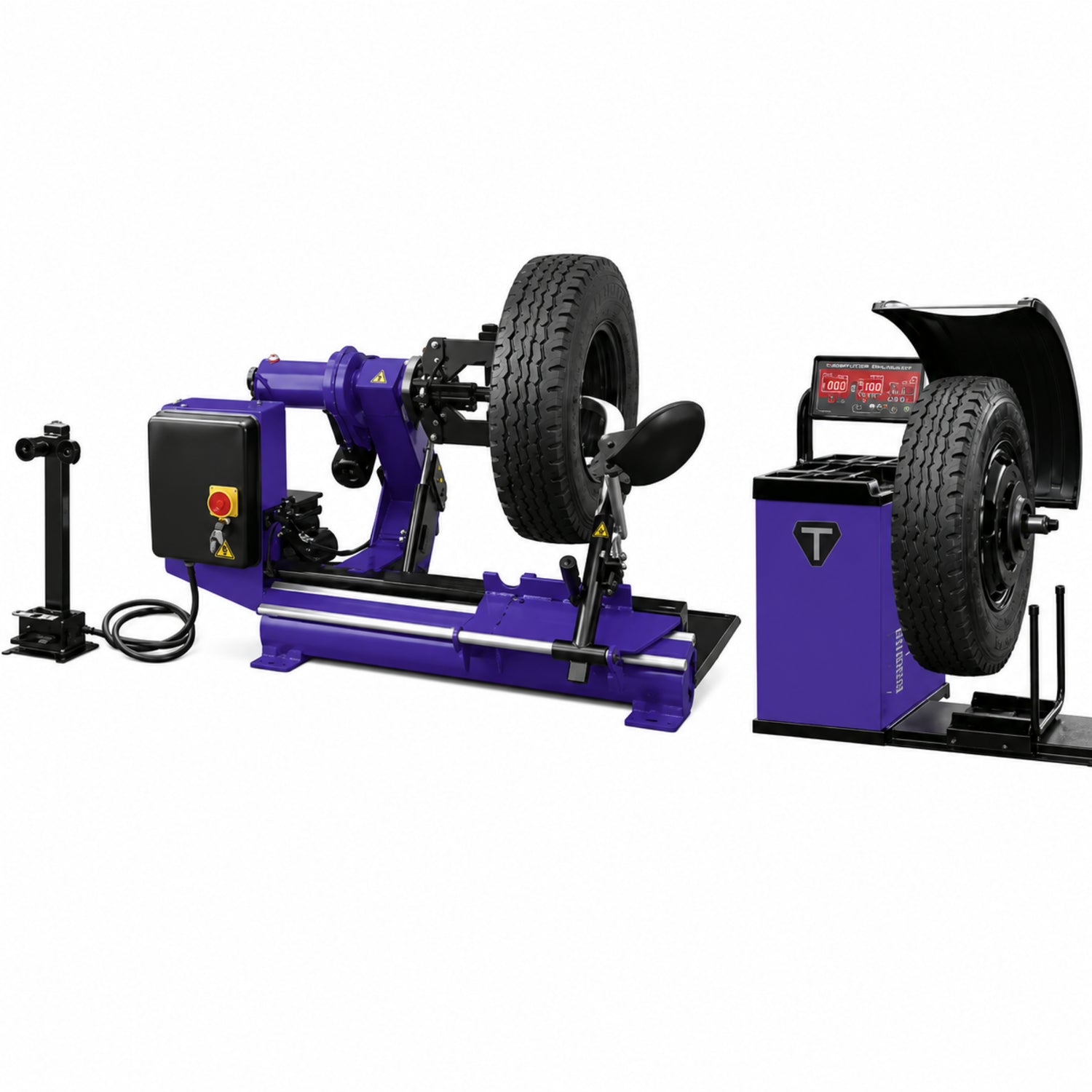

Triumph NTC-650 Tire Changer + NTB-1200 Wheel Balancer Combo
This combo pairs two truck-capable machines for shops that service large trucks: the robotic-arm NTC-650 heavy-duty tire changer and the truck-grade NTB-1200 electronic wheel balancer. The NTC-650 uses a robotic arm and wireless remote to automate the mount/demount of truck, bus, and tractor tires up to 63" diameter, while the NTB-1200 balances heavy wheels up to 28" and 350 lb on a 40 mm truck shaft. Together they make a complete heavy-duty mount-and-balance station.
Why It's Different: This is a true truck-service combo, not a passenger setup. The NTC-650's robotic arm eliminates the manual prying that makes heavy commercial tires a two-person job, and the NTB-1200's truck-grade shaft and 350 lb capacity handle wheels that passenger balancers can't. Buying them together is the cost-effective way to outfit a heavy-duty bay.
Best For: Commercial truck service shops, fleet maintenance, and tire shops servicing medium-duty trucks, buses, and tractors up to 63" tires. For oversized agricultural/industrial tires up to 90", step up to the NTC-690.
⚠️ This is a SPECIAL-ORDER item with a 2–3 month lead time. The combo is built and shipped to order — confirm timing fits your project before ordering.
⚠️ Mixed power requirements: the NTC-650 changer runs on 220V; the NTB-1200 balancer runs on 110V. Both the changer and balancer require compressed air — confirm your shop's electrical and air supply before ordering.
⚠️ No bead blast on the NTC-650. If you regularly seat stubborn tubeless truck-tire beads on dropped-center rims, plan for a separate inflation cage or bead-seating tool.
⚠️ Heavy LTL freight, liftgate included (tire equipment) — the driver lowers each unit to the ground but will not move them inside or assemble them. Two heavy crates (1,420 lb changer + 720 lb balancer). Trained operators only; inflate large tires in a safety cage to OSHA recommendations.
Features
Robotic Arm Replaces the Prying on Commercial Tires
The NTC-650's robotic arm runs the mount and demount sequence, and a wireless remote lets the operator work from a safe distance rather than standing over a turning 200 lb wheel. On truck, bus, and tractor tires up to 63", the manual method is a two-person job and the place where injuries and rim damage happen. Removing it changes both the labor cost and the risk of every ticket.
Robotic mount and demount
Wireless remote control
Tires up to 63 in
Truck-Grade Balancing to 350 lbs
Most balancers stop around 150 lbs on a 36 mm shaft, which is why heavy commercial wheels get sent out. The NTB-1200's truck shaft and 350 lb capacity take them in-house, covering 10"–28" wheels and tire diameters to 51" at ±1 gram in an 8-second cycle. The changer and balancer are matched in capability, so the balancer never becomes the bottleneck behind a machine that can mount anything.
Wheels up to 350 lb
±1 gram, 8-second cycle
10–28 in wheels
A Complete Heavy-Duty Bay in One Order
Both machines ship with their working tooling included — crowbar, clamp covers, bead press clamp, and wireless remote on the changer; safety hood, cone adapters, weight hammer, and rim caliper on the balancer. For a shop moving into commercial tire service, that's a full mount-and-balance station from a single purchase and a single delivery.
Changer tooling included
Balancer cones and hood
One purchase, one delivery
Specifications
NTC-650 Tire Changer
| Specification |
Detail |
| Clamping Distance |
14" – 26" |
| Max Wheel Width |
30.5" |
| Max Tire Diameter |
63" |
| Operation |
Robotic arm + wireless remote |
| Bead Blast |
No |
| Max Inflation Pressure |
120 PSI |
| Voltage |
220 Volts (compressed air required) |
| Shipping Size |
80" × 63" × 36" |
| Shipping Weight |
1,420 lbs. |
NTB-1200 Wheel Balancer
| Specification |
Detail |
| Wheel Size Range |
10" – 28" |
| Max Tire Diameter |
51" |
| Rim Width |
1.5" – 20" |
| Max Wheel Weight |
350 lbs. |
| Shaft Size |
40 mm |
| Automatic Data Entry |
No (manual data entry) |
| Display |
Standard or Metric |
| Accuracy |
±1 gram / ±10 gram |
| Cycle Time |
8 seconds |
| Horsepower |
1/3 HP |
| Voltage |
110 Volts |
| Shipping Size |
47" × 39" × 50" |
| Shipping Weight |
720 lbs. |
Combo warranty: Triumph tire equipment carries a 1-year parts warranty (no labor). Wear items excluded — on the tire changer: plastic protective pads/tooling on clamps, heads, bead breakers, assist arms, the tire-inflation hose, lube brush, and bucket; on the balancer: quick-release wing nut, hood cover, top tray cover, and wheel weight hammer.
What's Included
-
NTC-650 Tire Changer with robotic arm and wireless remote
- Crowbar
- Clamp covers
- Bead press clamp
- Wireless remote control
- Instructional video
- NTB-1200 Wheel Balancer
- Plastic safety hood
- Quick-release wing nut
- Cone adapters
- Wheel weight hammer
- Rim caliper
