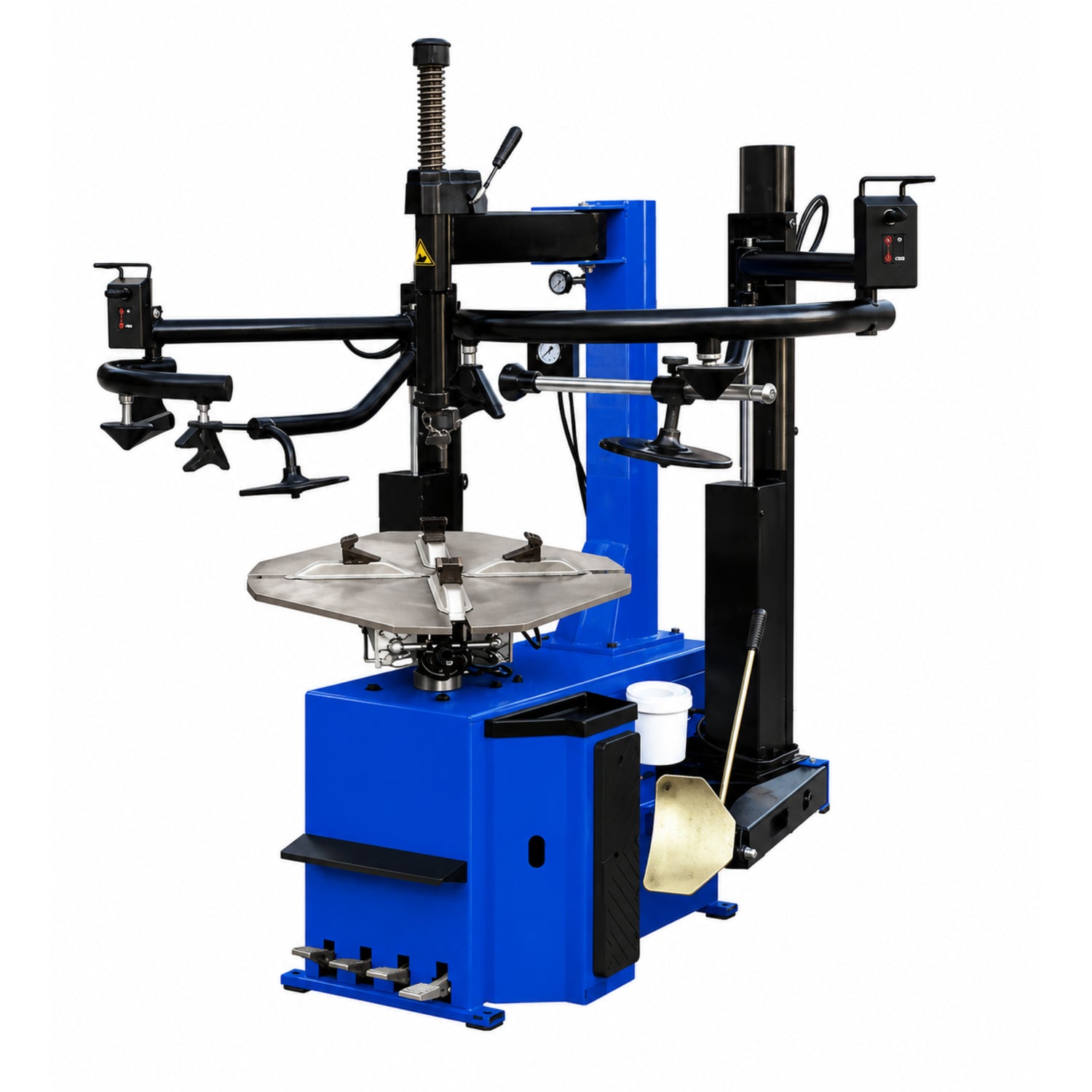

Triumph NTC-950-2 Swing-Arm Tire Changer — Dual Assist Arms + Bead Blast
The Triumph NTC-950-2 is a high-volume swing-arm tire changer with dual pneumatic assist arms and bead-blast technology — every feature a busy shop needs to handle the toughest tires. The dual assist arms make it easy to change even difficult tires, including wide-profile, low-profile, and run-flats, while the bead-blast system shoots a powerful blast of air into the sidewall to help set beads and inflate the tire. A powerful side-mounted bead breaker delivers 5,500 lb of breaking force. Ships with a full tooling set so you're ready to change almost any tire that comes through the door.
Why It's Different: The dual pneumatic assist arms and bead-blast are the features that separate a high-volume shop machine from a basic changer — they tame run-flats and stiff low-profile sidewalls that fight a single-arm machine. Combined with the heavy 5,500 lb bead breaker, the NTC-950-2 is built for daily production work on passenger and light-truck wheels.
Best For: High-volume tire shops, general repair shops, and dealerships changing passenger and light-truck tires — especially shops that regularly see run-flats, low-profile, and wide-profile tires.
⚠️ Requires compressed air to operate — confirm your shop air supply before ordering. Runs on 110V.
⚠️ This is a passenger / light-truck changer, not an oversized-commercial machine. It handles tires up to 43" diameter and 15" wheel width; for big-rig, bus, or tractor tires up to 90", the robotic-arm NTC-690 is the right machine.
⚠️ Bolt the machine to a level floor before use and follow the manufacturer's installation and operating instructions.
⚠️ Tire equipment ships LTL with liftgate service included — the driver lowers the unit to the ground at the back of the truck, but will not move it inside your shop or assemble it. Heavy unit (900 lb shipping).
Features
-
Dual pneumatic assist arms — easily change wide-profile, low-profile, and run-flat tires
-
Bead-blast technology — powerful air blast into the sidewall helps set beads and inflate the tire
-
Powerful side-mounted bead breaker — 5,500 lb breaking force
-
Swing-arm design with inside (16"–28") and outside (14"–26") clamping
- Handles tires up to 43" diameter and 15" wheel width
-
1.5 HP motor, 120 PSI max
-
110V operation (compressed air required)
- Complete tooling set included — steel and plastic mount/demount heads, clamp covers, soap tank + brush, tire tool bar
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NTC-950-2 |
| Type |
Swing-Arm Tire Changer (with bead blast) |
| Inside Clamping |
16" – 28" |
| Outside Clamping |
14" – 26" |
| Max Wheel Width |
15" |
| Max Tire Diameter |
43" |
| Bead Blast |
Yes |
| Bead Breaker Force |
5,500 lbs |
| Horsepower |
1.5 HP |
| Max Inflation Pressure |
120 PSI |
| Voltage |
110 Volts (compressed air required) |
| Assembled Size |
56" × 93" × 80" |
| Shipping Size |
38" × 65" × 51" |
| Shipping Weight |
900 lbs. |
| Warranty |
Triumph 1-year parts warranty (no labor; wear items excluded) |
What's Included
- NTC-950-2 tire changer with dual pneumatic assist arms and bead blast
- Steel mount and demount head
- Plastic mount and demount head
- Plastic wheel clamp covers
- Soap tank and application brush
- Tire tool bar
Warranty exclusions: plastic protective pads and tooling on clamps, heads, bead breakers, and assist arms, plus the tire-inflation hose, lube brush, and bucket are wear items not covered under the standard parts warranty.
