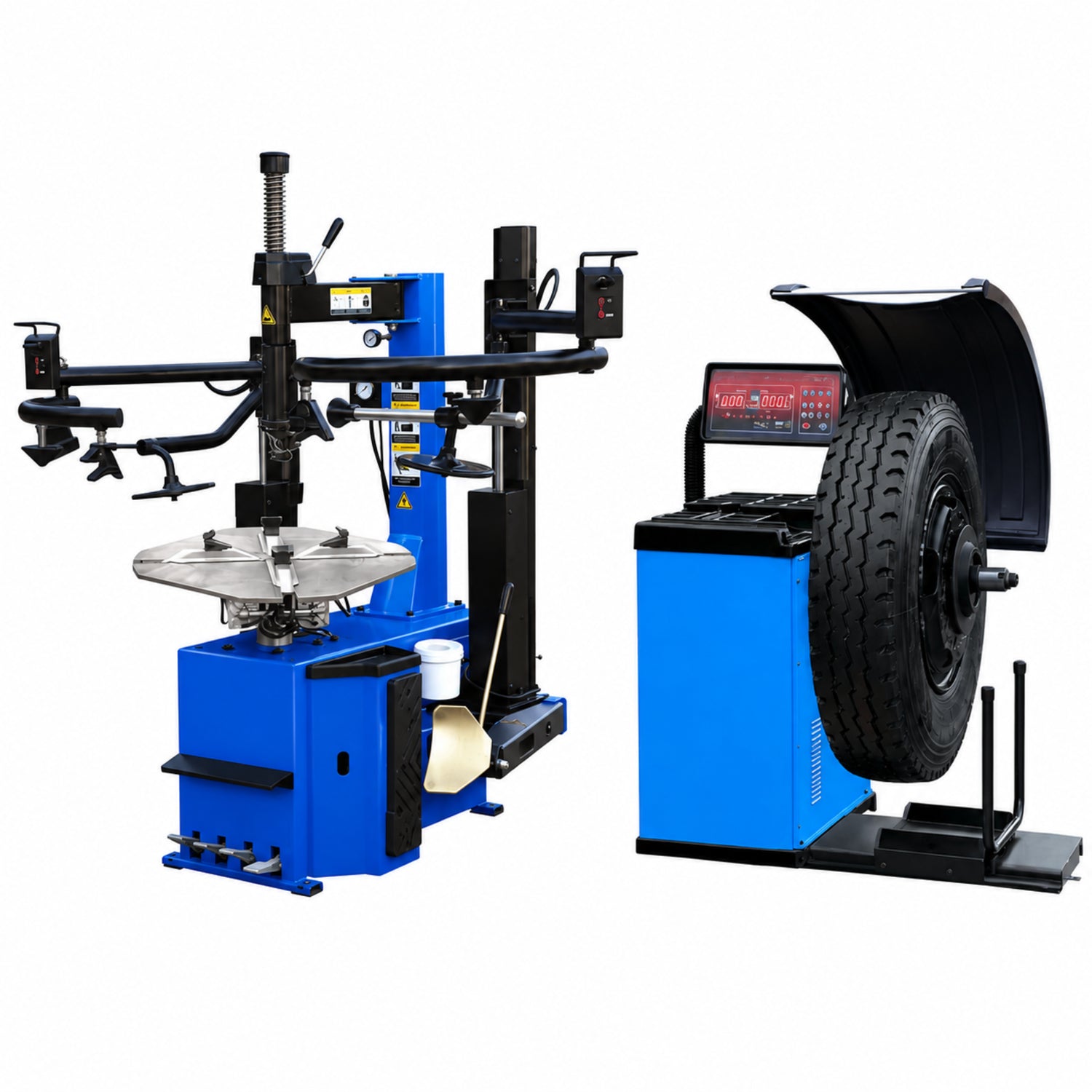

Triumph NTC-950-2 Tire Changer + NTB-1200 Wheel Balancer Combo
This combo pairs two high-volume shop machines: the Triumph NTC-950-2 swing-arm tire changer with dual pneumatic assist arms and bead-blast, and the truck-grade NTB-1200 electronic wheel balancer. Together they cover the full mount-balance workflow for a busy bay. The NTC-950-2's dual assist arms make even the most difficult tires easy to change — wide-profile, low-profile, and run-flats — while the bead-blast system shoots a powerful blast of air into the sidewall to break and seat stubborn beads. The NTB-1200 balances wheels up to 28" and 350 lb in 6–9 seconds with ±1 gram accuracy.
Why It's Different: Buying the changer and balancer together as a bundle is the cost-effective way to outfit a complete tire bay. The NTC-950-2 steps above the robotic-arm NTC-650/690 in a different direction — it's a swing-arm changer with bead-blast and a 5,500 lb bead breaker, built for passenger and light-truck volume rather than oversized commercial tires, and the matched NTB-1200 handles the same passenger-through-medium-truck wheel range.
Best For: High-volume tire shops, general repair shops, and dealerships that want a complete mount-and-balance station for passenger and light-truck wheels — including wide-profile, low-profile, and run-flat tires.
⚠️ Both machines require compressed air to operate — confirm your shop air supply before ordering. Both run on 110V.
⚠️ This is a passenger / light-truck combo, not an oversized-commercial setup. The NTC-950-2 handles tires up to 43" diameter and 15" wheel width; for big-rig, bus, or tractor tires up to 90", the robotic-arm NTC-690 is the right machine.
⚠️ Bolt both machines to a level floor before use and always lower the balancer's safety hood before spinning a wheel. Install per the manufacturer's instructions.
⚠️ Tire equipment ships LTL with liftgate service included — the driver lowers the units to the ground at the back of the truck, but will not move them inside or assemble them. Two heavy crates (900 lb + 720 lb).
Features
NTC-950-2 Tire Changer
-
Dual pneumatic assist arms — make changing wide-profile, low-profile, and run-flat tires easy
-
Bead-blast technology — blasts air into the sidewall to break and seat stubborn beads
-
Powerful side-mounted bead breaker — 5,500 lb breaking force
-
Swing-arm design with inside (16"–28") and outside (14"–26") clamping
- Handles tires up to 43" diameter and 15" wheel width
- Steel mount/demount head, plastic mount/demount head, plastic wheel clamp covers, soap tank + application brush, and tire tool bar included
- 1.5 HP, 120 PSI max, 110V (requires compressed air)
NTB-1200 Wheel Balancer
-
Truck-grade 40 mm shaft and 350 lb max wheel weight
-
10"–28" wheel range, up to 51" tire diameter, 1.5"–20" rim width
-
Integrated wheel lift for handling heavy wheels
-
±1 gram accuracy, 6–9 second cycle time
- Standard / metric display
- Plastic safety hood, quick-release wing nut, cone adapters, wheel weight hammer, and rim caliper included
- 1/3 HP, 110V
Specifications
NTC-950-2 Tire Changer
| Specification |
Detail |
| Inside Clamping |
16" – 28" |
| Outside Clamping |
14" – 26" |
| Max Wheel Width |
15" |
| Max Tire Diameter |
43" |
| Bead Blast |
Yes |
| Bead Breaker Force |
5,500 lbs |
| Horsepower |
1.5 HP |
| Max Inflation Pressure |
120 PSI |
| Voltage |
110 Volts (compressed air required) |
| Assembled Size |
56" × 93" × 80" |
| Shipping Size |
38" × 65" × 51" |
| Shipping Weight |
900 lbs. |
NTB-1200 Wheel Balancer
| Specification |
Detail |
| Wheel Size Range |
10" – 28" |
| Max Tire Diameter |
51" |
| Rim Width |
1.5" – 20" |
| Max Wheel Weight |
350 lbs. |
| Shaft Size |
40 mm |
| Automatic Data Entry |
No (manual data entry) |
| Display |
Standard or Metric |
| Accuracy |
±1 gram |
| Cycle Time |
6 – 9 seconds |
| Horsepower |
1/3 HP |
| Voltage |
110 Volts |
| Assembled Size |
28" × 47" × 56" |
| Shipping Size |
47" × 39" × 50" |
| Shipping Weight |
720 lbs. |
Combo warranty: Triumph tire equipment carries a 1-year parts warranty (no labor). Wear items excluded — on the tire changer: plastic protective pads/tooling on clamps, heads, bead breakers, assist arms, the tire-inflation hose, lube brush, and bucket; on the balancer: quick-release wing nut, hood cover, top tray cover, and wheel weight hammer.
What's Included
-
NTC-950-2 Tire Changer with dual pneumatic assist arms and bead-blast
- Steel mount and demount head
- Plastic mount and demount head
- Plastic wheel clamp covers
- Soap tank and application brush
- Tire tool bar
-
NTB-1200 Wheel Balancer with integrated wheel lift
- Plastic safety hood
- Quick-release wing nut
- Cone adapters
- Wheel weight hammer
- Rim caliper
