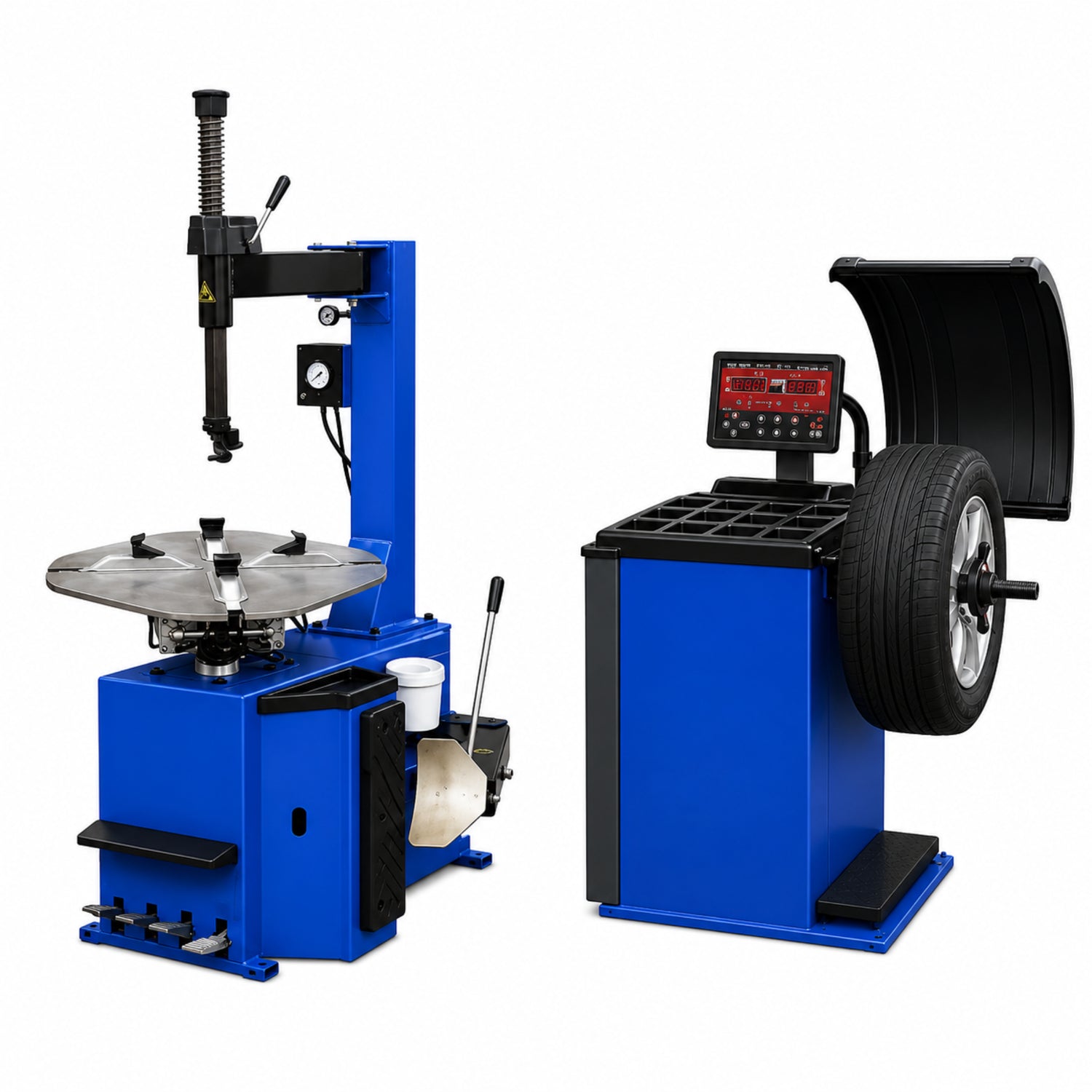

Triumph NTC-950 Tire Changer + NTB-800 Wheel Balancer Combo
Triumph's best-selling tire changer matched with the auto-data-entry NTB-800 balancer — the cost-effective way to start a wheel-service shop with a faster-to-operate balancer. The NTC-950 handles wheels up to 28" with the Jet Blast Inflation System and a powerful 5,500 lb bead breaker. The NTB-800 adds two standout features: a wheel brake to hold the wheel steady while placing weights, and automatic data entry — enter just the wheel width and the machine fills the other two parameters automatically (an estimated 25% labor savings per balance). Buying the combo saves hundreds off the standalone prices.
Why It's Different: The NTC-950 ships as a base machine without helper arms — but it's the upgrade-friendly chassis. As your shop grows, you can add one or two helper arms later instead of replacing the changer. Paired here with the NTB-800, which is the only Triumph balancer with automatic data entry, this combo gives you the lowest entry price plus the fastest balancer setup. The full-time-saver bundle without the assist-arm premium.
Best For: Commercial shops starting up tire service, used-car lots, growing automotive businesses, and serious home garages servicing cars and light trucks — who want the faster auto-data-entry balancer without paying for assist arms they don't need yet.
⚠️ Both machines require compressed air to operate — confirm your shop air supply before ordering. Both run on 110V.
⚠️ The base NTC-950 has no assist arm. Without a helper arm, run-flats, low-profile, and wide-profile tires are difficult to change. The machine is upgradeable — add one or two helper arms later — but if your work already includes those tires, step up to the NTC-950-1 or NTC-950-2 combo now.
⚠️ Passenger / light-truck only. The NTB-800 balances wheels up to 150 lb and 44" tire diameter — confirm your wheel weights and sizes are within rating. For truck-grade wheel weight (up to 350 lb), the NTB-1200 combo is the right pick.
⚠️ Bolt both machines to a level floor before use and always lower the balancer's safety hood before spinning a wheel. Install per the manufacturer's instructions.
⚠️ Tire equipment ships LTL with liftgate service included — the driver lowers the units to the ground at the back of the truck, but will not move them inside or assemble them. Two crates (700 lb + 300 lb).
Features
NTC-950 Tire Changer
-
Jet Blast Inflation System — helps seat and inflate stubborn beads
-
Powerful 5,500 lb bead breaker for clean, controlled bead breaks
-
Stand-alone wheel-clamp design — no helper arms on the base machine
-
Expandable — add one or two helper arms later as your business grows
- Inside clamping 16"–28", outside clamping 14"–26"
- Handles tires up to 43" diameter and 15" wheel width
- Includes metal and plastic demount head, plastic wheel clamp covers, tire iron, and lube bucket/brush
- 1.5 HP, 120 PSI max, 110V (requires compressed air)
NTB-800 Wheel Balancer
-
Automatic data entry — enter only the wheel width; distance and diameter are captured automatically by touching the distance ruler to the wheel
-
~25% faster than a manual-entry balancer, with reduced user error
-
Wheel brake — holds the wheel in place while placing weights for better accuracy
-
10"–28" wheel range, up to 44" tire diameter, 1.5"–20" rim width
-
150 lb max wheel weight — passenger and light-truck class
- 36 mm shaft
-
±1 gram accuracy, 6–9 second cycle time
- 1/4 HP, 110V
- Plastic safety hood, quick-release wing nut, cone adapters, wheel weight hammer, and rim caliper included
Specifications
NTC-950 Tire Changer
| Specification |
Detail |
| Inside Clamping |
16" – 28" |
| Outside Clamping |
14" – 26" |
| Max Wheel Width |
15" |
| Max Tire Diameter |
43" |
| Bead Blast |
Yes (Jet Blast Inflator) |
| Bead Breaker Force |
5,500 lbs |
| Assist Arm |
None (add 1 or 2 later) |
| Horsepower |
1.5 HP |
| Max Inflation Pressure |
120 PSI |
| Voltage |
110 Volts (compressed air required) |
| Assembled Size |
56" × 40" × 80" |
| Shipping Size |
51" × 38" × 51" |
| Shipping Weight |
700 lbs. |
NTB-800 Wheel Balancer
| Specification |
Detail |
| Wheel Size Range |
10" – 28" |
| Max Tire Diameter |
44" |
| Rim Width |
1.5" – 20" |
| Max Wheel Weight |
150 lbs. |
| Shaft Size |
36 mm |
| Automatic Data Entry |
Yes (enter width only; distance + diameter automatic) |
| Wheel Brake |
Yes |
| Display |
Standard or Metric |
| Accuracy |
±1 gram |
| Cycle Time |
6 – 9 seconds |
| Horsepower |
1/4 HP |
| Voltage |
110 Volts |
| Assembled Size |
28" × 48" × 62" |
| Shipping Size |
30" × 39" × 51" |
| Shipping Weight |
300 lbs. |
Combo warranty: Triumph tire equipment carries a 1-year parts warranty (no labor). Wear items excluded — on the tire changer: plastic protective pads/tooling on clamps, heads, bead breakers, the tire-inflation hose, lube brush, and bucket; on the balancer: quick-release wing nut, hood cover, top tray cover, and wheel weight hammer.
What's Included
-
NTC-950 Tire Changer (stand-alone) with Jet Blast Inflator and bead breaker
- Metal demount head
- Plastic demount head
- Plastic wheel clamp covers
- Tire iron
- Lube bucket and brush
-
NTB-800 Wheel Balancer with wheel brake and automatic data entry
- Plastic safety hood
- Quick-release wing nut
- Cone adapters
- Wheel weight hammer
- Rim caliper
