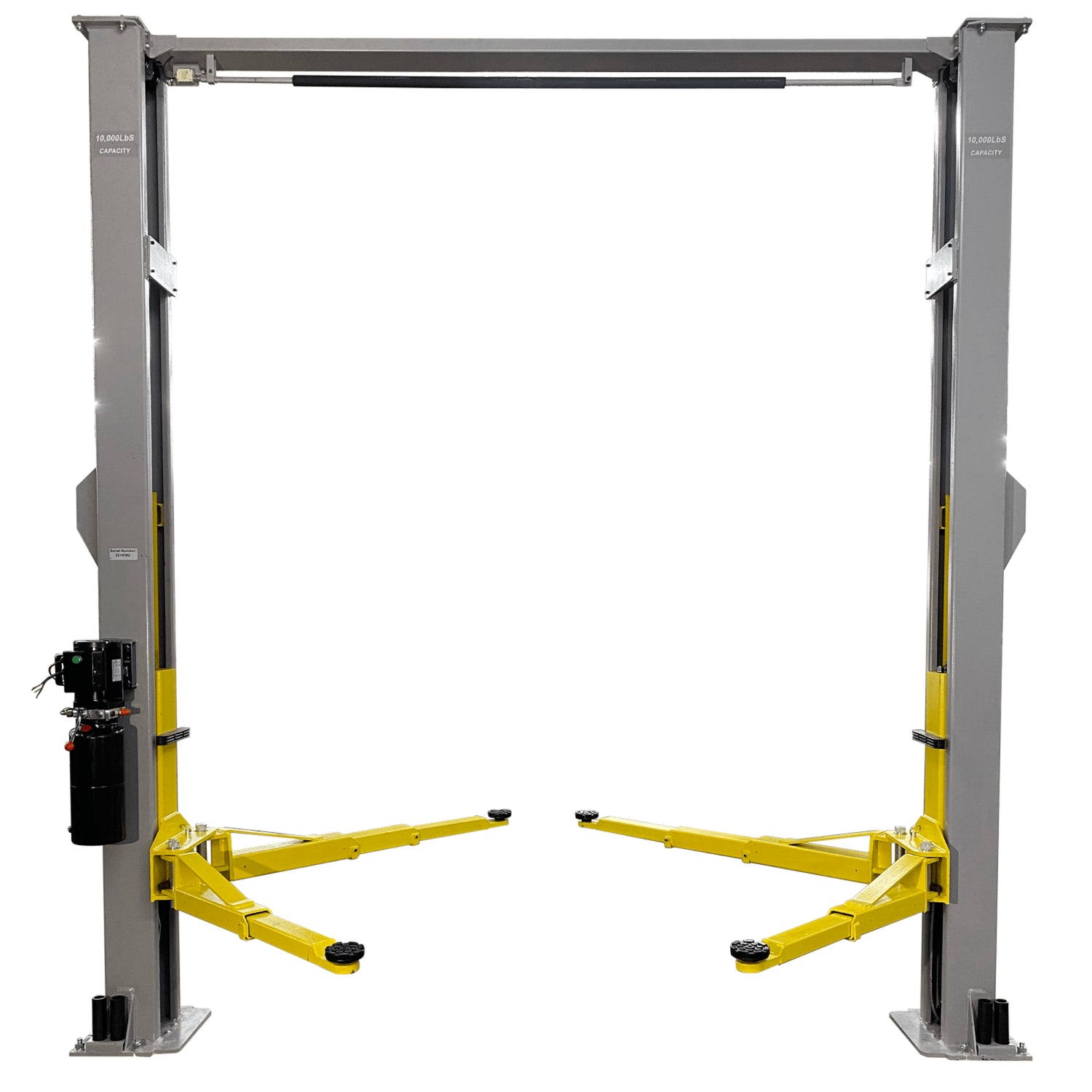

NTO-10A 10,000 lb Two-Post Overhead Auto Lift
The NTO-10A is a 10,000 lb two-post overhead service lift built to deliver pro features at a commercial-shop price. Three-stage telescoping arms reach a wide range of vehicles from compact sedans to extended-cab pickups, and single-point lock release speeds up every service cycle. The overhead cable-and-hose bar keeps the equalizer cables off the floor — no trip hazard, no floor plate to drive over, and a clear shop floor under the vehicle. Includes power unit/motor, truck adapters, and floor-mounting hardware. Runs on 220V single-phase with a 3 HP motor.
Why It's Different: The overhead style routes the equalizer cables across the top of the lift instead of through a floor plate — leaving the shop floor clear, easier to roll a creeper or transmission jack under the vehicle, and no plate to wear out or trip over. Three-stage arms reach short and long wheelbases that two-stage arms can't, and truck adapters ship included so you don't have to add them later.
Best For: Auto repair shops, dealerships, performance shops, and serious home service garages. This is a service lift — not a storage lift — built to lift the wheels clear of the ground for full undercarriage access. Choose a 2-post lift over a 4-post when undercarriage and wheel access matters more than long-term parking.
⚠️ Vehicle balance is critical on any two-post lift. The vehicle is supported by four arm pads, not by its wheels — improper centering or arm placement can cause the vehicle to slip or fall. Always reference your vehicle's lifting points and confirm the arms are seated against solid frame contact points before lifting.
⚠️ Requires 145" (≈12 ft) ceiling clearance for the overhead bar, plus the height of the tallest vehicle you intend to lift. Measure before ordering.
⚠️ Requires a 220V single-phase outlet — confirm your electrical service before ordering. This lift does not run on a standard 110V household outlet.
⚠️ Concrete: minimum 4" reinforced slab at 3,000 PSI. Two-post lifts impose significantly higher anchor stresses than four-posts because of arm overturning moment — confirm thickness AND PSI strength, and consider professional installation for proper anchor-bolt setup.
⚠️ This lift ships LTL freight — liftgate delivery is NOT available. You are responsible for unloading from the truck using a forklift, Bobcat, tractor, tow truck, or backhoe. If you can't unload on-site, the carrier can ship to its nearest freight terminal for pickup.
Features
-
10,000 lb capacity — handles passenger cars, SUVs, and light trucks
-

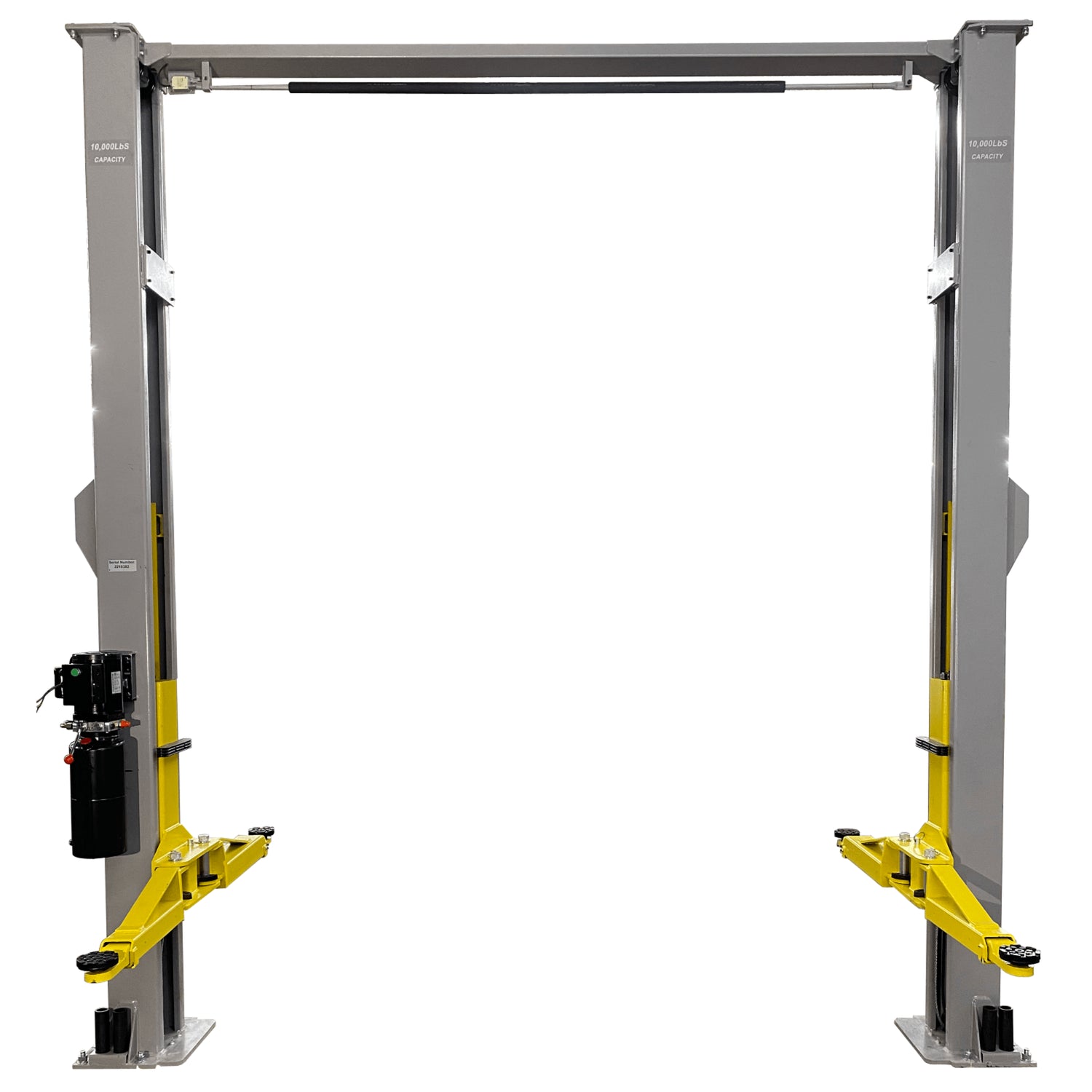

Two-post overhead design — equalizer cables route across the top; clear shop floor with no floor plate to drive over
-

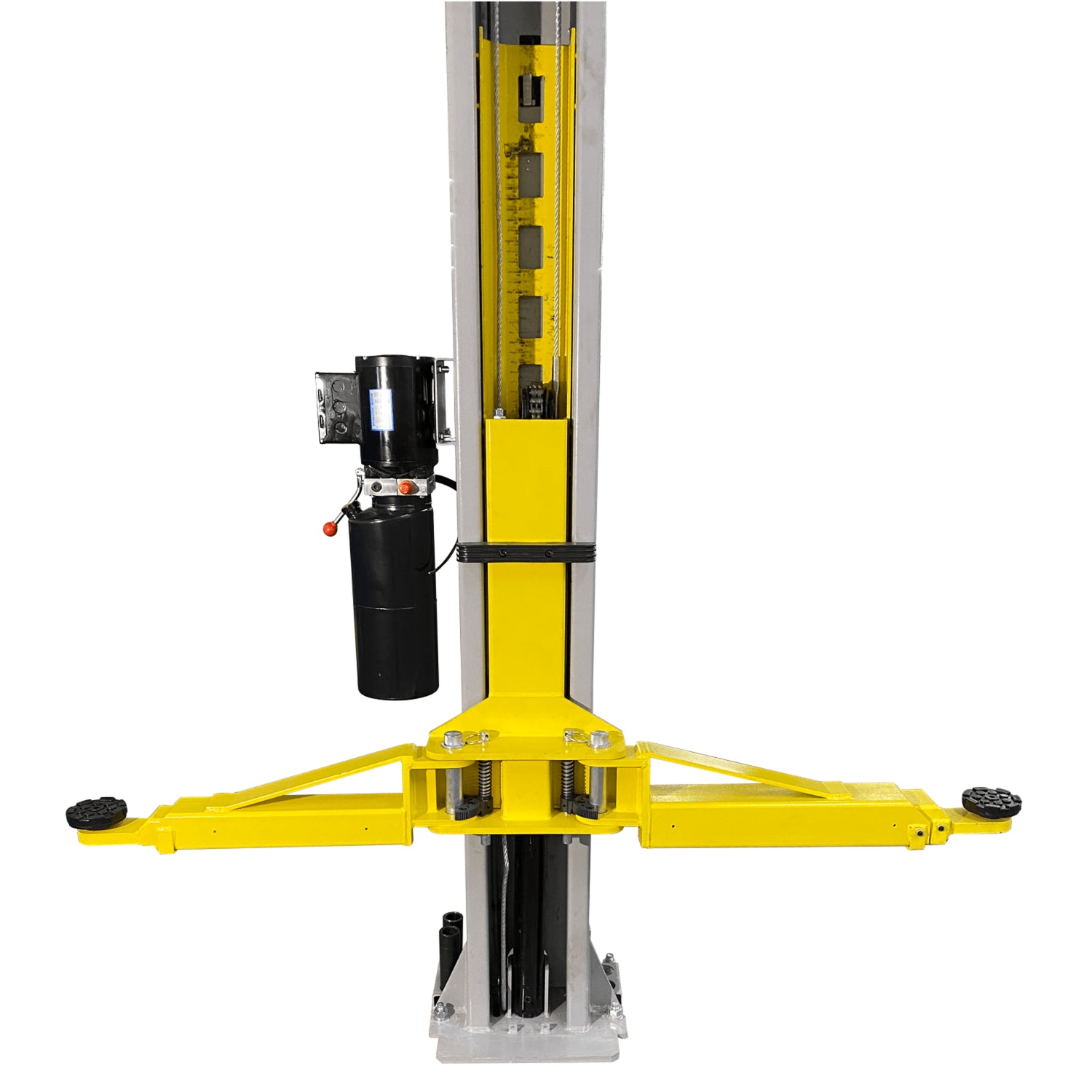

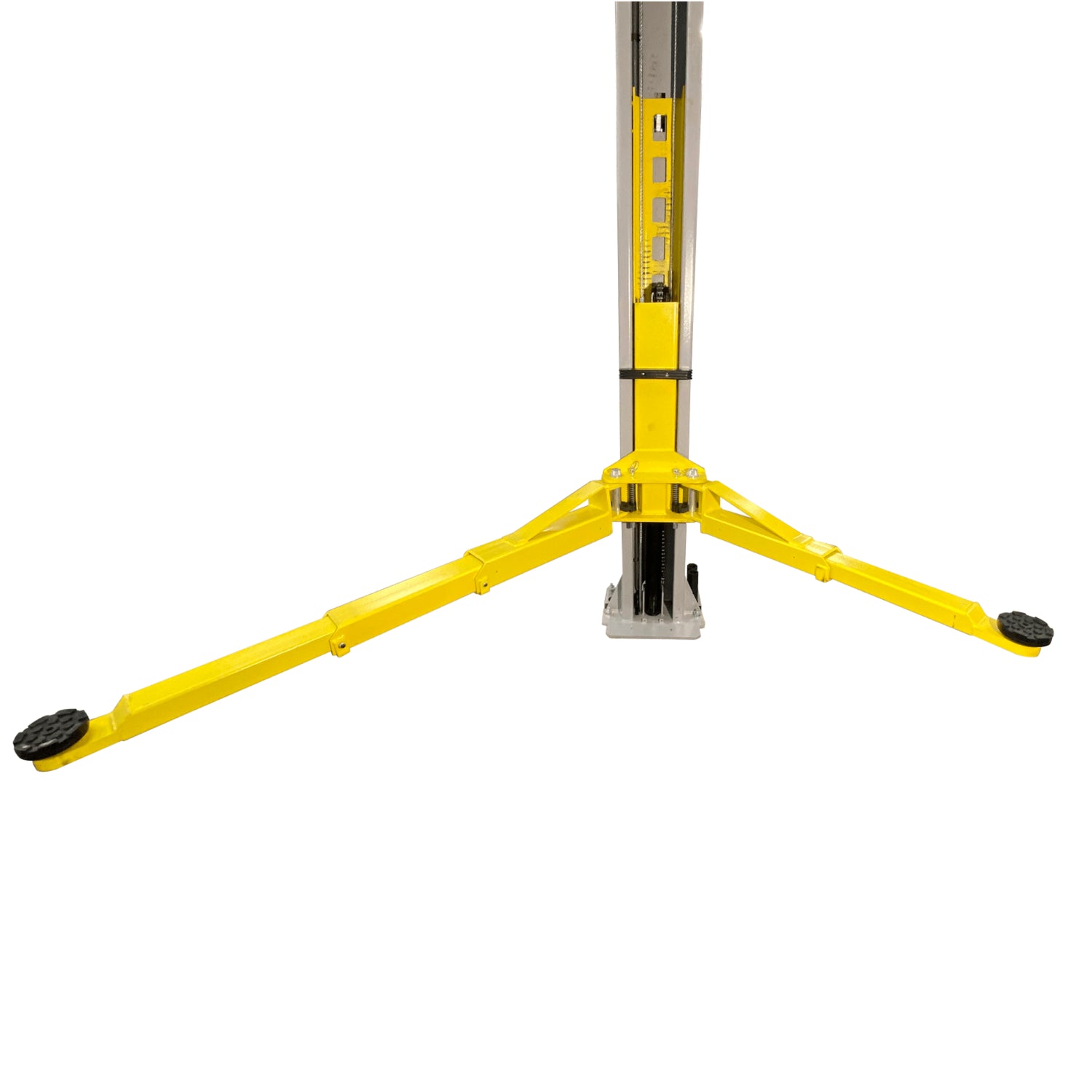

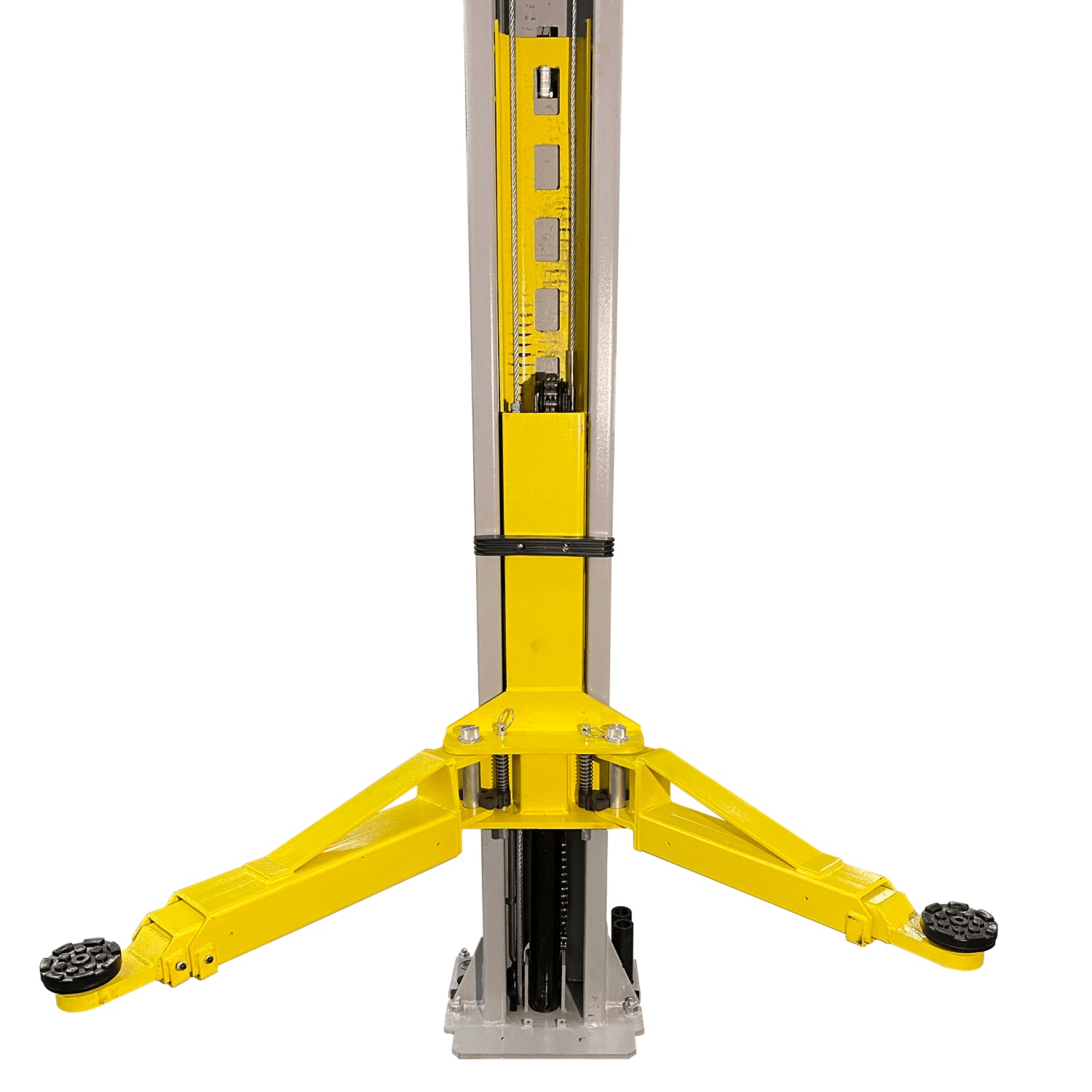

Three-stage telescoping arms — excellent reach across short and long wheelbases
-
Single-point lock release for faster service cycles
-
Overhead cable & hose bar keeps the floor clear underneath the vehicle
-
Electric safety cutoff — overhead bar stops the lift if the vehicle contacts it, preventing roof damage
-

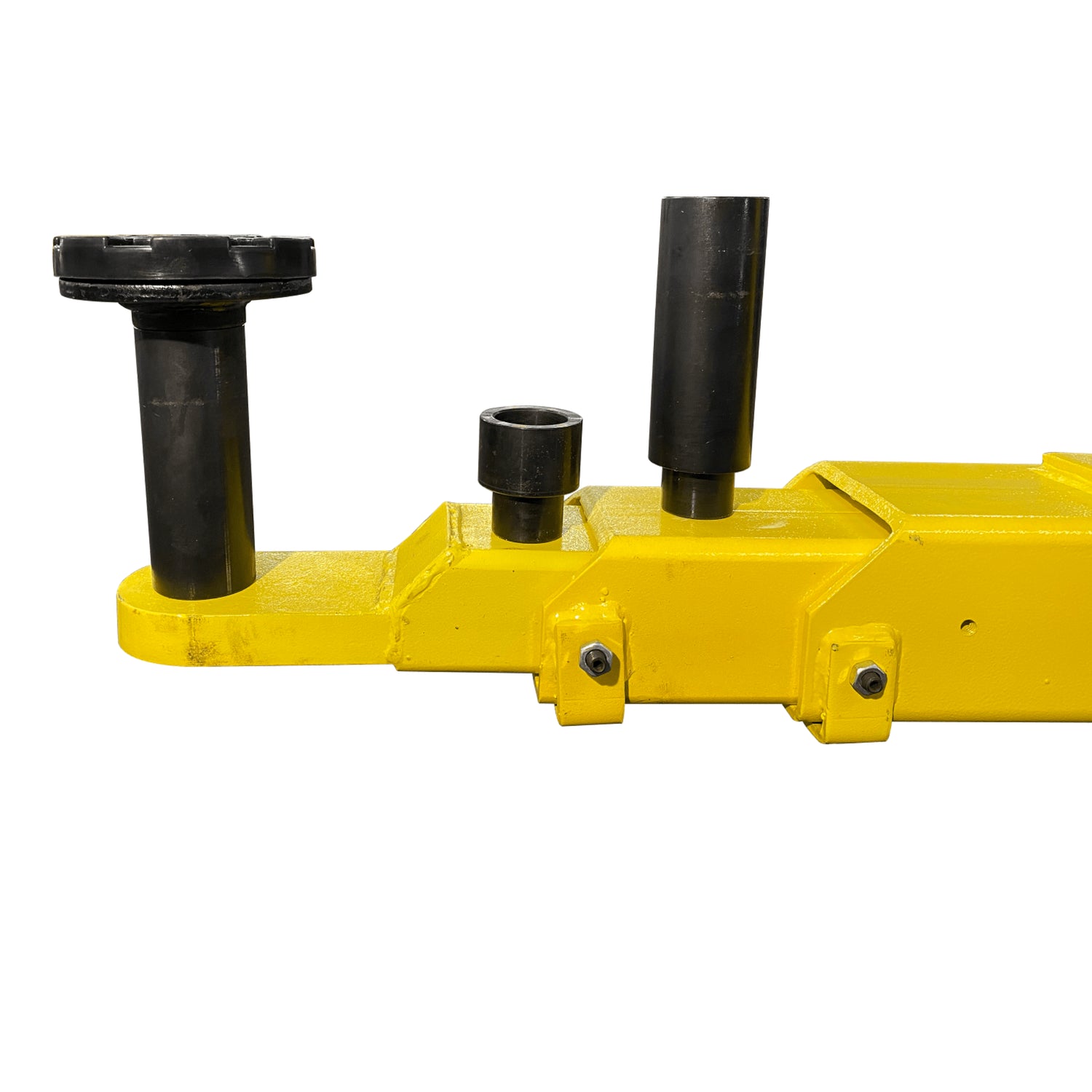

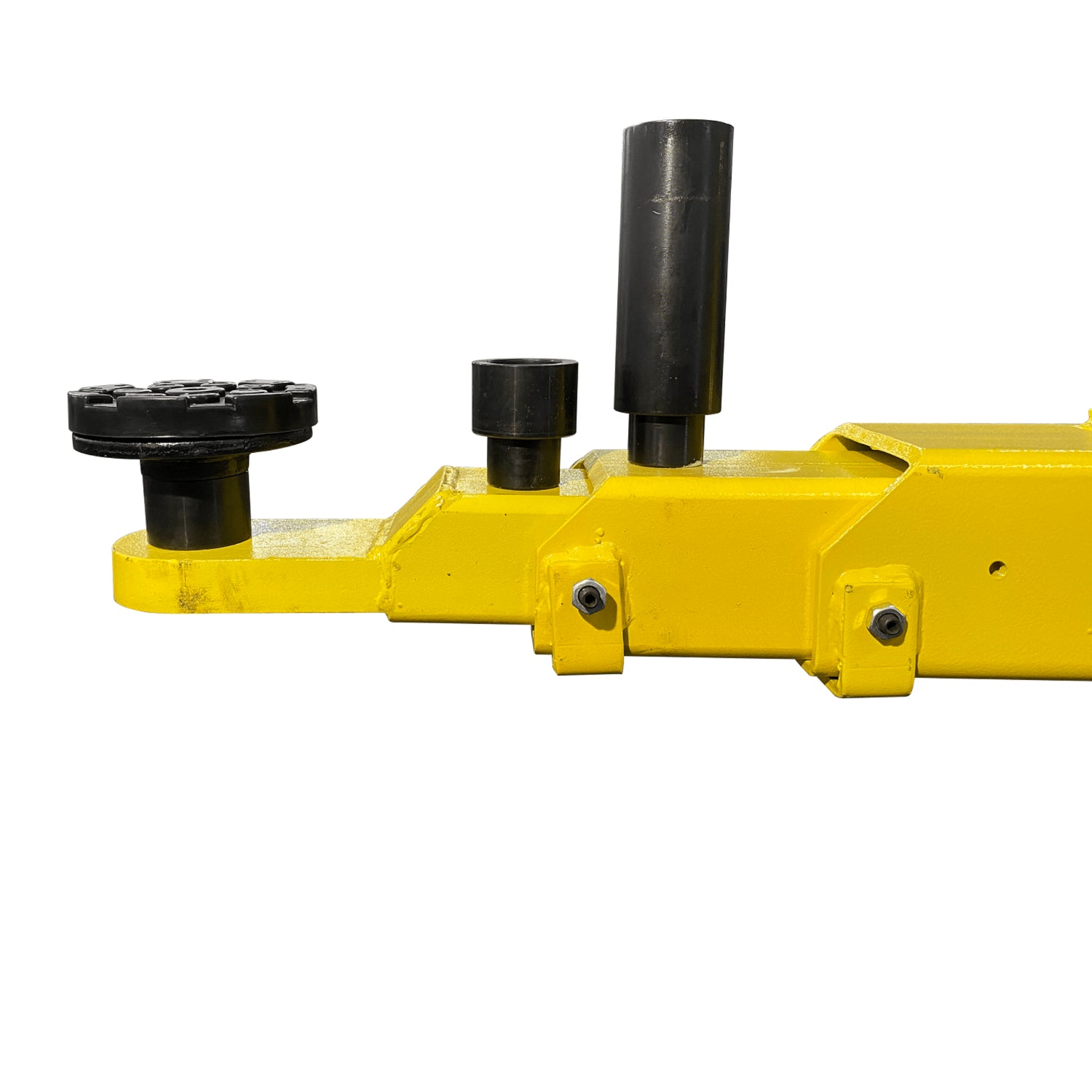

Truck adapters included — lift trucks and SUVs at the correct frame contact points
-

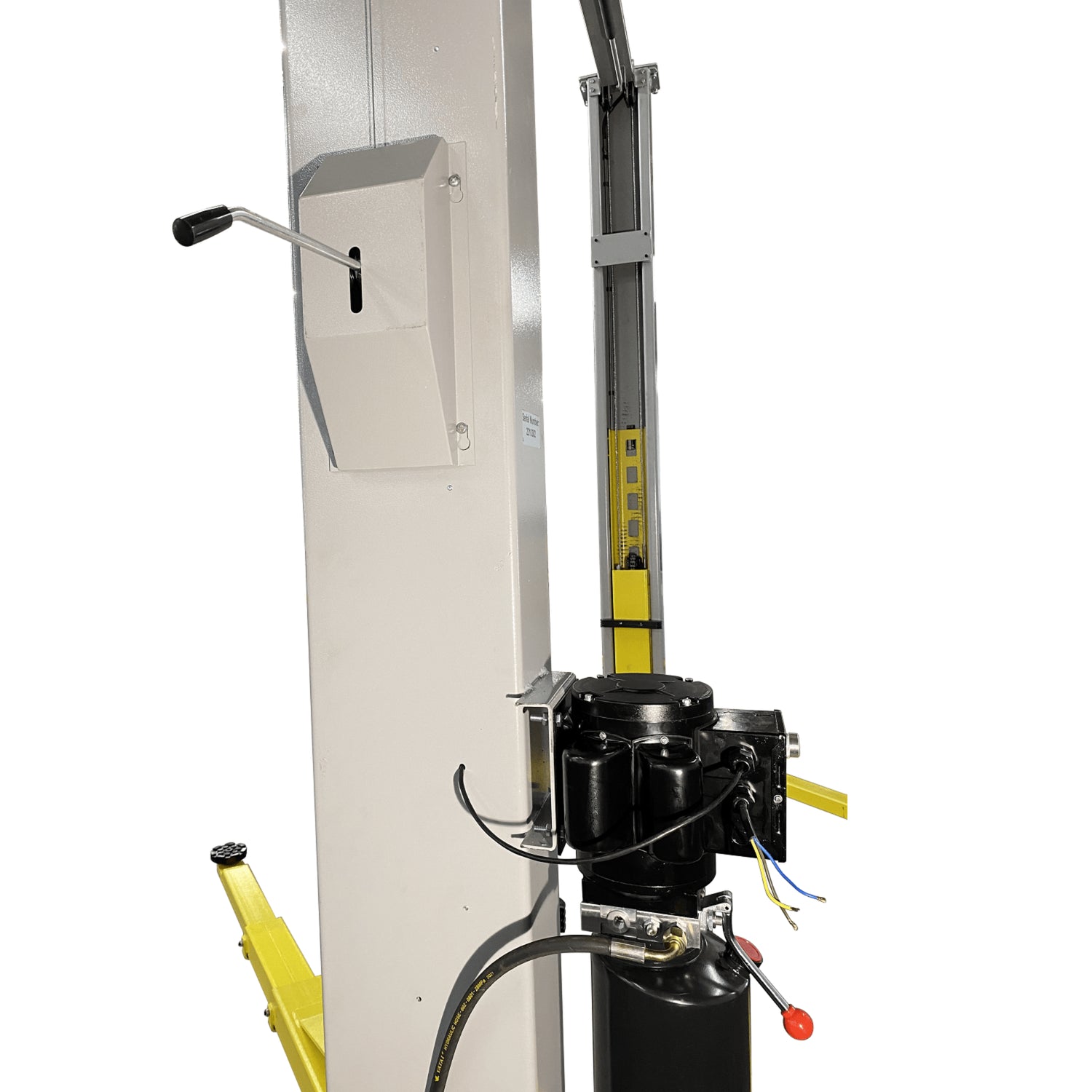

Power unit/motor included — 220V, 3 HP
- Floor mounting hardware included
-
40-second lift time; 72" lifting height
-

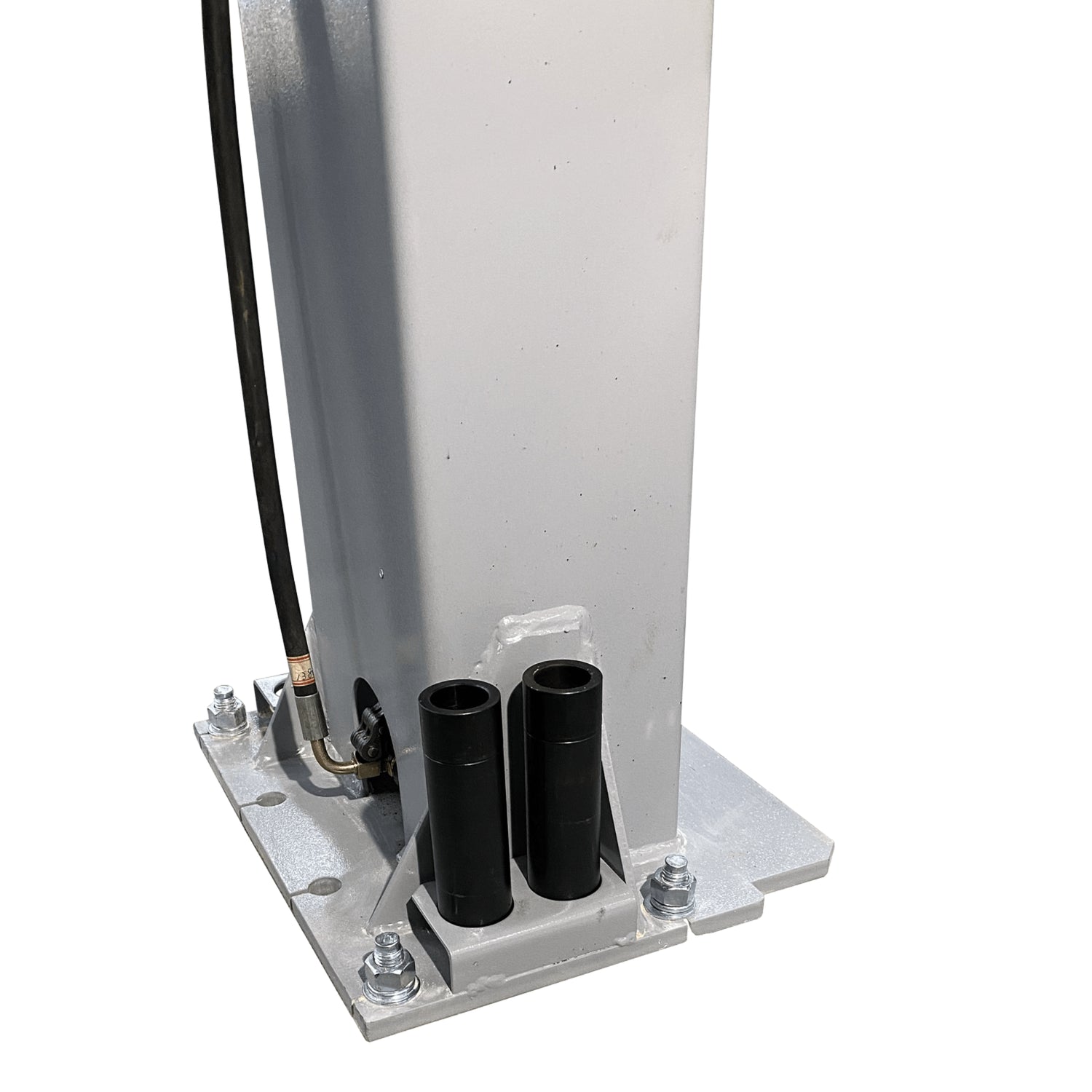

18" × 17" base plates for solid anchoring
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
NTO-10A |
| Lift Type |
Two-Post Overhead Service Lift |
| Capacity |
10,000 lbs. |
| Overall Height |
145" |
| Overall Width |
133" |
| Distance Between Posts |
107" |
| Drive Thru Width |
96" |
| Lifting Height |
72" |
| Lowered Height |
4.5" |
| Base Plate Size |
18" × 17" |
| Arm Configuration |
Three-stage telescoping |
| Lock Release |
Single Point |
| Electric Safety Cutoff |
Yes (overhead bar) |
| Truck Adapters |
Included |
| Lift Time |
40 Seconds |
| Voltage |
220 Volts (single-phase) |
| Motor |
3 HP |
| Concrete Requirement |
4" slab, 3,000 PSI minimum |
| Warranty |
Triumph 1-year parts warranty (no labor) |
What's Included
- Complete lift structure — two posts and overhead crossbar with equalizer cables and hoses

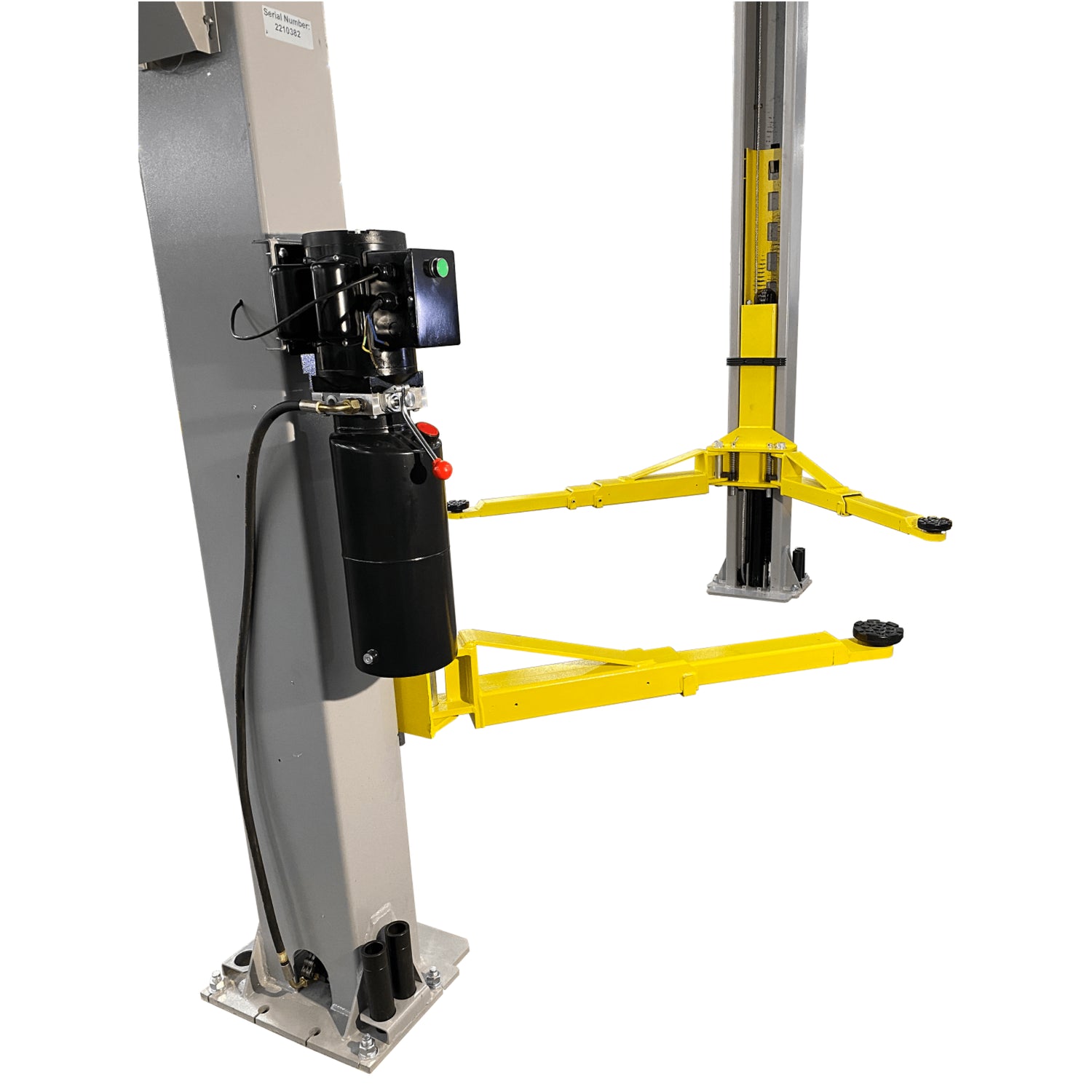

- Hydraulic power unit / motor (220V, 3 HP)
- (2) front and (2) rear three-stage telescoping arms with rubber lifting pads
- Truck adapters for higher contact points
- Overhead bar with electric safety cutoff
- Single-point lock release linkage
- Floor-mounting hardware and anchor bolts
- Installation and operation documentation
