Triumph NTO-13A 13,000 lb Two-Post Overhead Auto Lift — ISO 9001 / CE Certified
The Triumph NTO-13A is a 13,000 lb capacity two-post overhead lift built for heavier trucks, long-wheelbase vehicles, and busy-shop repetition. A rugged above-ground overhead design pairs with smooth direct-drive cylinders, a single-point lock release, and an electrical override automatic safety shut-off to keep the operator in control through every cycle. It climbs to a full 74" lifting height and is ISO 9001 and CE Certified / Compliant. Truck adapters and mounting hardware ship included; runs on 220V / 3 HP.
Why It's Different: The NTO-13A slots between the 10,000 lb NTO-10A and the 16,000 lb NTO-16 — giving a shop 13,000 lb of capacity for trucks and SUVs that push a standard 10K lift to its limit, without stepping up to the larger frame and clearance the 16K needs. The overhead design keeps the floor clear between the columns for jacks and tooling.
Best For: Repair shops and serious home garages servicing heavier trucks, SUVs, and long-wheelbase vehicles that need more than a 10,000 lb 2-post but don't require a full 16K or 20K frame.
⚠️ Requires a 220V circuit for the 3 HP motor. Confirm the service is in place before installation — this is not a household-outlet lift.
⚠️ Concrete and clearance: install on a 6" slab rated to 4,000 PSI minimum, with 162" overall height clearance. Improper concrete at 13,000 lb can cause serious injury or death.
⚠️ Vehicle balance is critical on any two-post lift — the load rests on the arm pads, not the wheels. Reference the vehicle's lifting points, seat all four arms on solid contact points, and engage the locks before working underneath. Trained operators only.
⚠️ Ships LTL freight with NO liftgate — you'll need a forklift, Bobcat, tractor, tow truck, or backhoe to unload; the driver does not unload it. If you can't unload on-site, the carrier can hold it at the nearest freight terminal for trailer pickup.
Features
13,000 lbs — Headroom Without the Bigger Frame
Shops servicing heavier trucks and long-wheelbase vehicles often run a 10,000 lb lift right at its limit. The NTO-13A adds 3,000 lbs of margin without moving up to the 16,000 lb frame, which needs more ceiling and a wider footprint. It handles trucks, SUVs, and long-wheelbase vehicles at 74" of lift with a 109" drive-through.
Up to 13,000 lb
74 in lift height
109 in drive-through
Clear Floor with Overhead Cut-Off
Equalizer cables route across the top crossbar, so the floor between the columns stays open for jacks, drain pans, and tool carts under a raised vehicle. An electrical override shut-off stops the lift before a tall vehicle contacts the crossbar, and a single-point release lowers both columns in sync without running side to side.
Clear-floor design
Electrical override shut-off
Synced single-point release
Direct-Drive Cylinders and Truck Adapters Included
Direct-drive cylinders lift without chains or screw drives to wear or service. The 5" lowered height makes arm placement easy under low vehicles, and truck adapters plus mounting hardware ship in the standard kit rather than as an upcharge.
Direct-drive cylinders
5 in lowered height
Truck adapters included

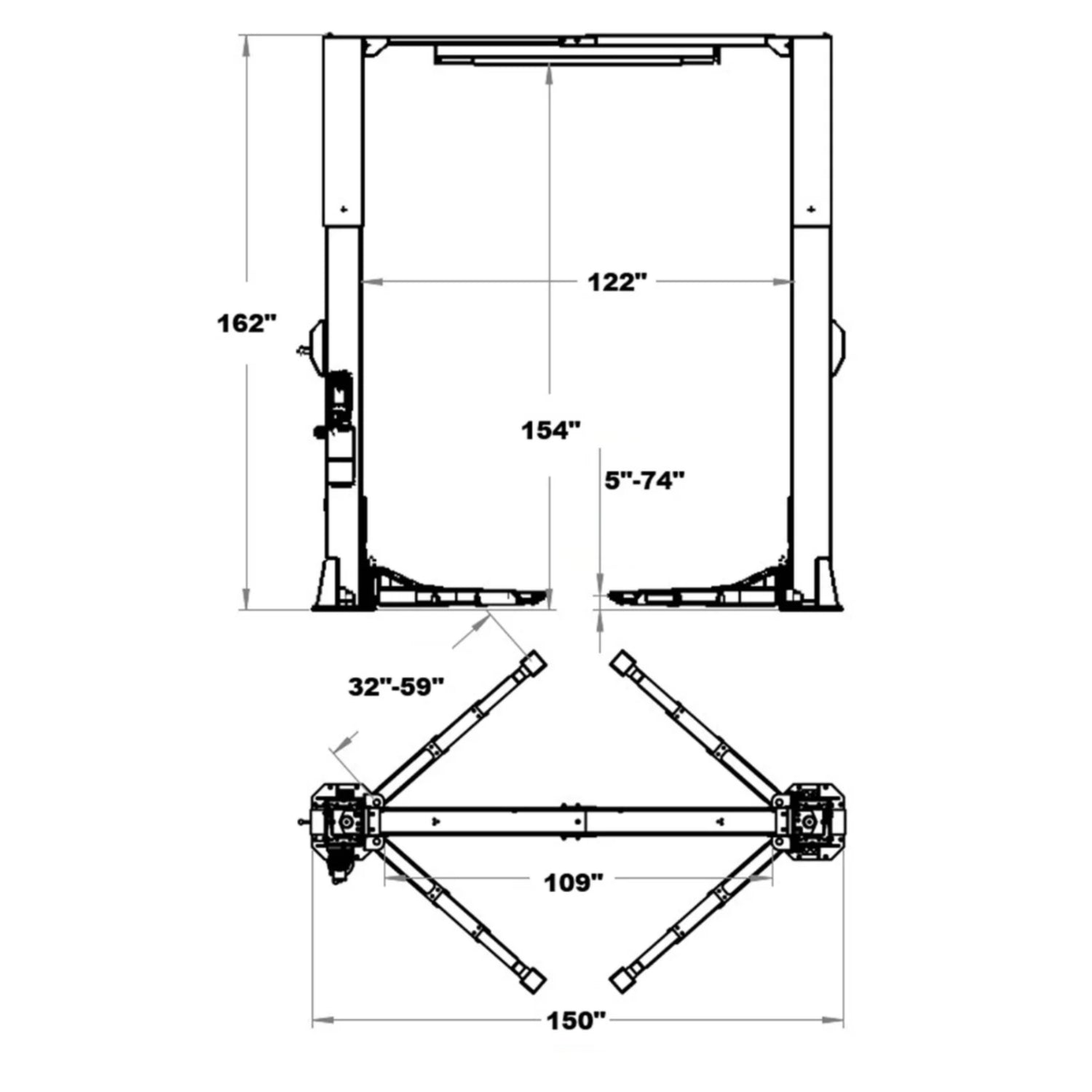

Specifications
| Specification |
Detail |
| Model |
Triumph NTO-13A (SKU NTO-13A) |
| Lift Type / Style |
Two-Post Overhead Lift (Commercial) |
| Capacity |
13,000 lbs. |
| Overall Height |
162" |
| Overall Width |
150" |
| Lifting Height |
74" |
| Lowered Height |
5" |
| Distance Between Posts |
122" |
| Drive-Thru Width |
109" |
| Base Plate Size |
20" × 20" |
| Truck Adapters |
Included |
| Lock Release |
Single Point |
| Electric Safety Cutoff |
Yes (overhead) |
| Cylinders |
Direct drive |
| Lift Time |
55 Seconds |
| Voltage |
220 Volts |
| Horsepower |
3 HP |
| Concrete Requirement |
6" slab, 4,000 PSI minimum |
| Certifications |
ISO 9001, CE Certified / Compliant |
| Warranty |
1-year parts (cylinders 30-day full, then seal kit; rubber pads excluded; no labor) |
What's Included
- Triumph NTO-13A overhead two-post lift (two columns, overhead crossbar with safety shut-off, swing arms)
- Truck adapters
- Free mounting hardware
- Single-point lock release system
- Electrical override automatic safety shut-off
- Installation and operation documentation
