Triumph SJ-35 Sliding Bridge Jack — 3,500 lb for NSS-8 Family 4-Post Lifts

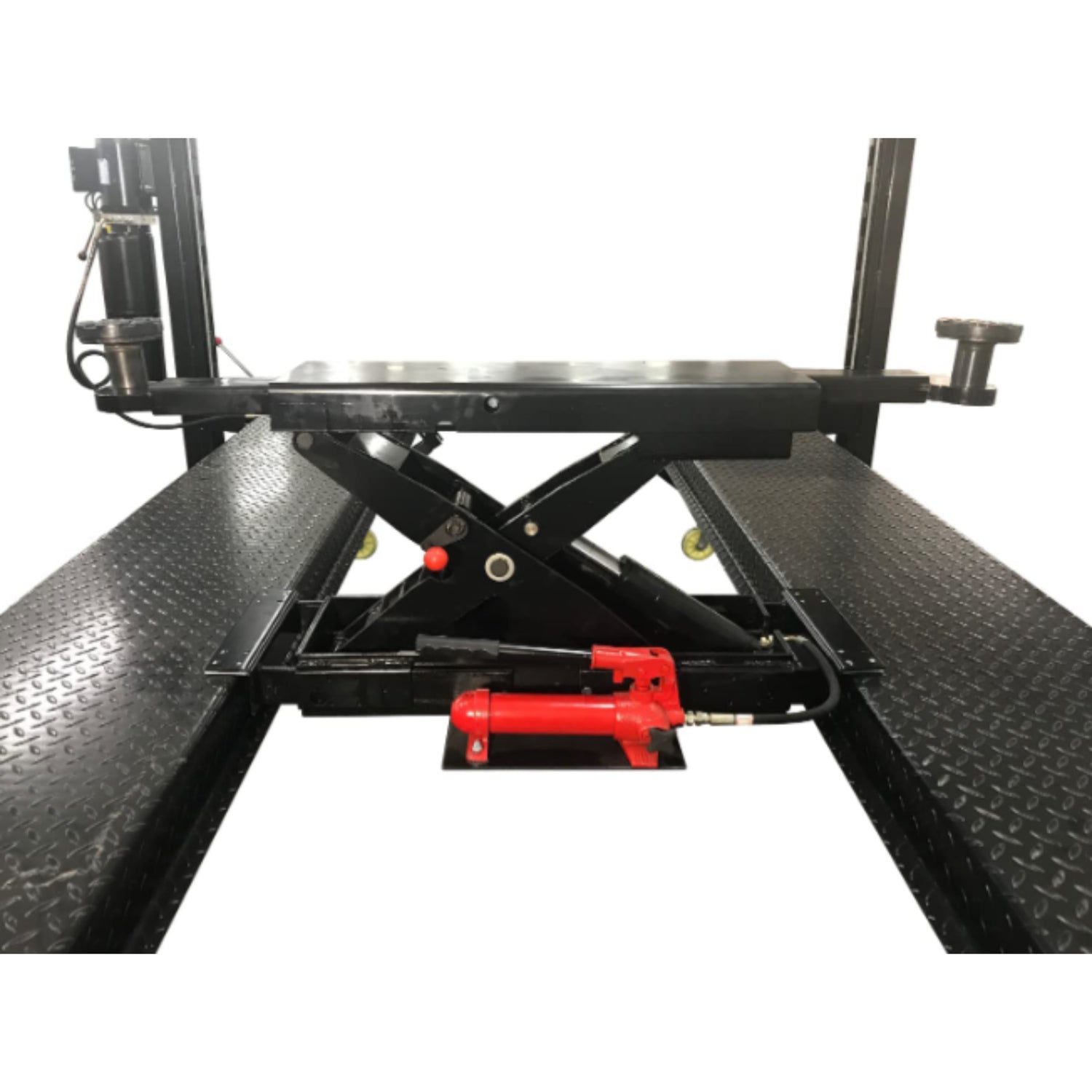

The Triumph SJ-35 Sliding Bridge Jack turns a 4-post storage lift into a true service lift. It slides along the runways of a Triumph NSS-8 series lift, letting you raise the wheels off the runway for brake work, tire changes, suspension service, and wheel-bearing maintenance — all without having to take the vehicle off the lift. The jack carries 3,500 lb per lift cycle and is operated by a manual hydraulic hand pump (pump included). A 3-position locking latch holds at full-rise and two intermediate heights, with stackable adaptors (1.5" and 5") extending reach up to 16.5" for taller vehicles. Powder-coated to resist rust.
Why It's Different: Without a bridge jack, a 4-post storage lift is limited to undercarriage access only — you can't lift the wheels off the runways for tire/brake/suspension work. The SJ-35 unlocks the second half of your lift's usefulness: it slides anywhere along the runways and lifts either end (or one corner) of the vehicle while the lift remains in its locked position.
Best For: Owners of Triumph NSS-8, NSS-8SQ Classic, and NSS-8XLT 4-post lifts who want to do their own brake, tire, wheel, suspension, or driveline service in their garage without buying a separate service lift.
⚠️ Lift compatibility: Designed for current Triumph 8,000 lb NSS-8 family 4-post storage lifts — specifically the NSS-8, NSS-8SQ (Classic), and NSS-8XLT. Not guaranteed to fit other brands of 4-post lifts. The runway gap must be approximately 38" (matches the NSS-8 family's 37" between-runway spec).
⚠️ Note on availability: Some Triumph dealers report that as of May 1, 2025, the SJ-35 must be purchased together with a new NSS-8 family lift and cannot be ordered standalone. Confirm current availability before ordering.
⚠️ 3,500 lb maximum capacity — do not exceed. Confirm the wheel-end weight of your vehicle is within rating before lifting.
⚠️ Hand-pump operation: the jack is manually pumped by hand — no electrical/pneumatic supply required. Hydraulic oil may need to be added to the pump on initial setup.
⚠️ Watch the linkage pinch points during operation per Triumph's manual.
Features
-
3,500 lb lifting capacity — handles passenger cars and light vehicles for wheel-end service
-
Slides along the runways of an NSS-8 family 4-post lift — position anywhere along the vehicle
-
Manual hydraulic hand-pump operation — pump included; no electrical or pneumatic supply required
-
3-position locking latch — locks at full-rise and two intermediate positions, released by a lock-release lever
-
Adjustable inside runway width — 30" (accommodates the NSS-8 family's 37"–38" between-runway dimension)
-
Min gap width 31" / max gap width 46" — flexible reach for different vehicles
- Collapsed pad width 39" / extended pad width 63"
-
Collapsed pad height 4.75" for easy storage and maneuvering
-
Stackable height adaptors (1.5" and 5") — reach up to 16.5" of total lift height with extensions
-
Pair of contact pad adaptors with rubber pad inserts protect contact surfaces
-
Heavy-duty nylon pads let the jack slide smoothly along the runway tops
-
Powder-coated finish resists rust and wear
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph SJ-35 |
| Type |
Sliding bridge jack for 4-post lifts |
| Lifting Capacity |
3,500 lbs (1,600 kg) |
| Lift Compatibility |
Triumph NSS-8, NSS-8SQ Classic, and NSS-8XLT 4-post lifts |
| Power Type |
Manual hydraulic hand pump |
| Lock Positions |
3 (full-rise + 2 intermediate) |
| Min Gap Width |
31" |
| Max Gap Width |
46" |
| Inside Runway Width (adjustable) |
30" (762 mm) |
| Collapsed Pad Width |
39" |
| Extended Pad Width |
63" |
| Collapsed Pad Height |
4.75" |
| Extended Pad Height |
11" |
| Max Height with Extensions |
16.5" |
| Finish |
Powder-coated |
| Net Weight |
275 lbs |
| Gross Weight |
307 lbs |
| Warranty |
Triumph 1-year parts warranty (no labor); rubber pads not covered |
What's Included
- SJ-35 sliding bridge jack body with adjustable arms
- Hydraulic hand pump (manual operation)
- (1) pair of contact pad adaptors with rubber pad inserts
- (2) sets of stackable height adaptors — 1.5" and 5"
- 3-position locking latch with release lever
- Heavy-duty nylon glide pads (for sliding along runway tops)
- Operation and maintenance documentation
May require addition of hydraulic oil to the pump on initial setup.
