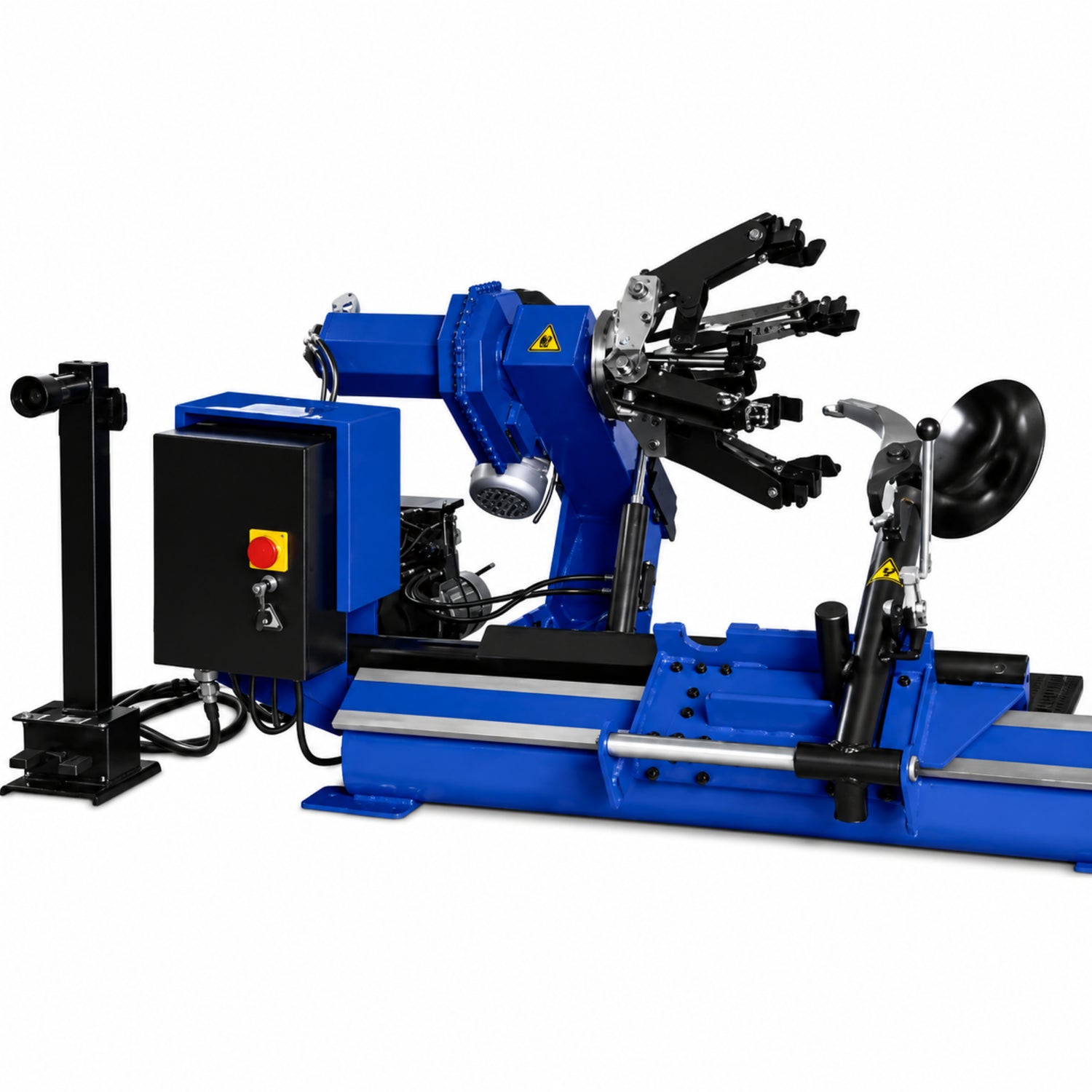

Triumph NTC-650 Heavy-Duty Tire Changer — Up to 63" Tire Diameter, Robotic Arm, Wireless Remote
The Triumph NTC-650 is a heavy-duty tire changer sized for truck, bus, tractor, and other industrial vehicles. A 14"–26" clamping range, 30.5" max wheel width, and 63" max tire diameter cover the bulk of commercial light-truck and medium-duty truck service work, and the included robotic arm with wireless remote control automates the mount/demount sequence so the operator isn't manually prying heavy commercial tires. 120 PSI inflation, 220V power, and an instructional video round out the package.
Why It's Different: Most commercial tire changers in this price class ask you to swing a tire bar by hand on a 100+ lb truck wheel. The NTC-650's robotic arm and wireless remote are the same labor-saving features found on the larger NTC-690 — at lower price and weight, sized for shops that don't regularly service oversized agricultural or 90"+ industrial tires.
Best For: Commercial truck service shops, fleet maintenance, tire shops servicing light-to-medium-duty trucks and buses, agricultural shops working standard tractor tires, and dealerships expanding into heavier wheel service. If your work runs into the 90" oversized-agricultural / industrial range, step up to the NTC-690 instead.
⚠️ Requires a 220V single-phase outlet near the install location. This is not a 110V household-outlet machine.
⚠️ Heavy LTL freight — 1,420 lb shipping weight. Tire equipment from NAT ships with liftgate service included, so the driver will lower the unit to the ground at the back of the truck, but will not move it inside your shop or assemble it. You're responsible for moving and installing the machine.
⚠️ Confirm clamping range against your wheel mix. 14"–26" clamping handles standard passenger up to medium-duty truck wheels — but if you regularly service rims larger than 26" (super-singles, oversized agricultural, industrial), this isn't the right machine; the NTC-690 reaches 56".
⚠️ No bead blast / bead seater. If you regularly seat stubborn tubeless truck-tire beads on dropped-center rims, plan for a separate inflation cage or bead-seating tool — this changer is not equipped with a bead-blast assist.
⚠️ Operate safely: commercial tire equipment requires trained operators; review the included instructional video and the manufacturer's safety procedures, and inflate large tires inside a safety cage to OSHA recommendations. Never exceed 120 PSI inflation rating.
Features
-
14"–26" clamping range — handles passenger up to medium-duty commercial rims
-
30.5" max wheel width / 63" max tire diameter — sized for truck, bus, and tractor tires
-
Robotic arm automates the demount/mount sequence — dramatically reduces manual labor
-
Wireless remote control — versatile, safer operation from a distance
-
Heavy-duty workhorse construction — built for daily commercial-shop service
-
120 PSI max inflation rating
- 220V operation
-
Instructional video included to support operator training
- Stocked unit — no special-order lead time
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NTC-650 |
| Type |
Heavy-Duty Tire Changer (Medium-Duty Commercial) |
| Clamping Distance |
14" – 26" |
| Max Wheel Width |
30.5" |
| Max Tire Diameter |
63" |
| Operation |
Robotic arm + wireless remote |
| Bead Blast |
No |
| Max Inflation Pressure |
120 PSI |
| Voltage |
220 Volts |
| Shipping Size |
80" × 63" × 36" |
| Shipping Weight |
1,420 lbs. |
| Warranty |
Triumph 1-year parts warranty (no labor) |
What's Included
- NTC-650 tire changer with hydraulic chuck and robotic arm
- Wireless remote control
- Crowbar
- Clamp covers (protect wheel rim surfaces during clamping)
- Bead press clamp
- Instructional video
- Operation and maintenance documentation
Warranty exclusions on tire changers: all plastic protective pads and tooling on clamps, heads, bead breakers, assist arms, the single tire-inflation hose, lube brush, and bucket are wear items not covered under the standard parts warranty.
