USA8000XLT 8,000 lb Made in the USA Service & Storage 4-Post Lift — Longer & Taller

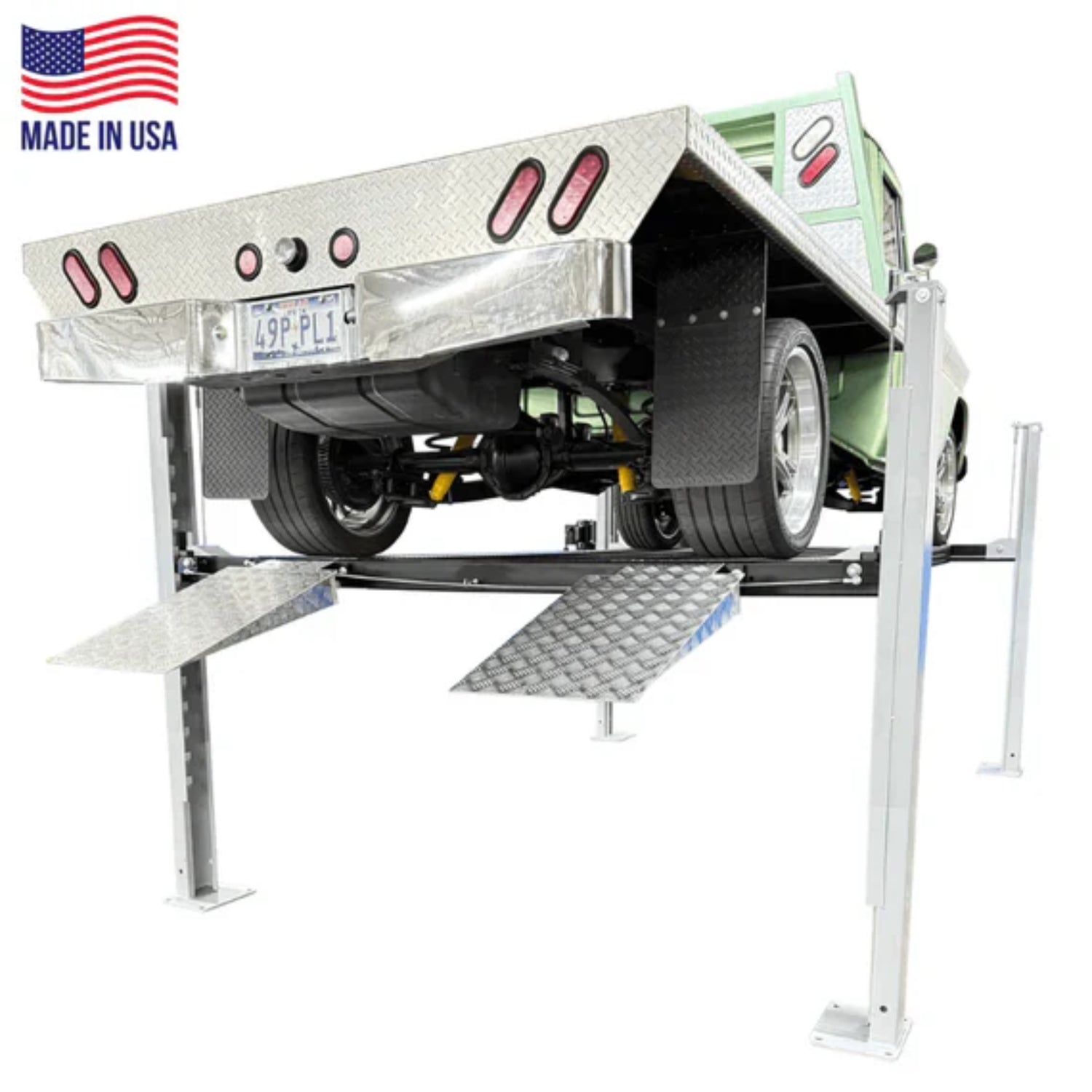

The Triumph USA8000XLT is a Made-in-the-USA 8,000 lb service-and-storage 4-post lift, built in the longer and taller XLT configuration for full-size pickups, SUVs, and taller vehicles. It ships as a complete package — caster kit, jack tray, and three drip trays all included — so you can store a second vehicle vertically, work underneath one, or roll the whole lift to a new spot in the garage. The locking system engages automatically at 14 different positions as the lift rises, and the unit runs on a standard 110V outlet. Default finish is Grey and Black, with custom colors available.
Why It's Different: Built in the USA on a time-tested design used for over 20 years — heavier-duty, longer, and taller than the standard NSS-8, with 14 lock positions and a portable caster kit standard. Easy to set up, completely portable, and pro-grade in fit and finish.
Best For: Home enthusiasts and DIY mechanics needing the longer/taller XLT footprint for full-size trucks or extended-cab vehicles, who want a US-built lift with a complete out-of-the-box storage + service kit.
⚠️ Made-in-USA disclosure: The lift structure is made in the USA. The hydraulic power unit is not made in the USA — the manufacturer discloses this directly.
⚠️ This lift ships LTL freight at 1,800 lb — liftgate delivery is NOT available. You are responsible for unloading from the truck using a forklift, Bobcat, tractor, tow truck, or backhoe; the driver will not unload it. If you can't unload on-site, the carrier can ship to its nearest freight terminal for pickup with a trailer or moving van.
⚠️ Measure before ordering — overall length 222" (with ramps), overall width 124" (with power unit), overall height 90". Confirm ceiling clearance, floor space, drive-thru access, and the height of the vehicle you intend to park on top.
⚠️ Concrete: install on adequate reinforced concrete per the manufacturer's specifications. Improper concrete can cause serious injury or death.
⚠️ Operate safely: never exceed the 8,000 lb rated capacity, center and balance the vehicle before lifting, and always confirm the locks have engaged before working underneath.
Features
-
Made in the USA — built domestically (power unit is not USA-made; see disclosure above)
-
8,000 lb capacity — most passenger cars, SUVs, and mid-size trucks
-

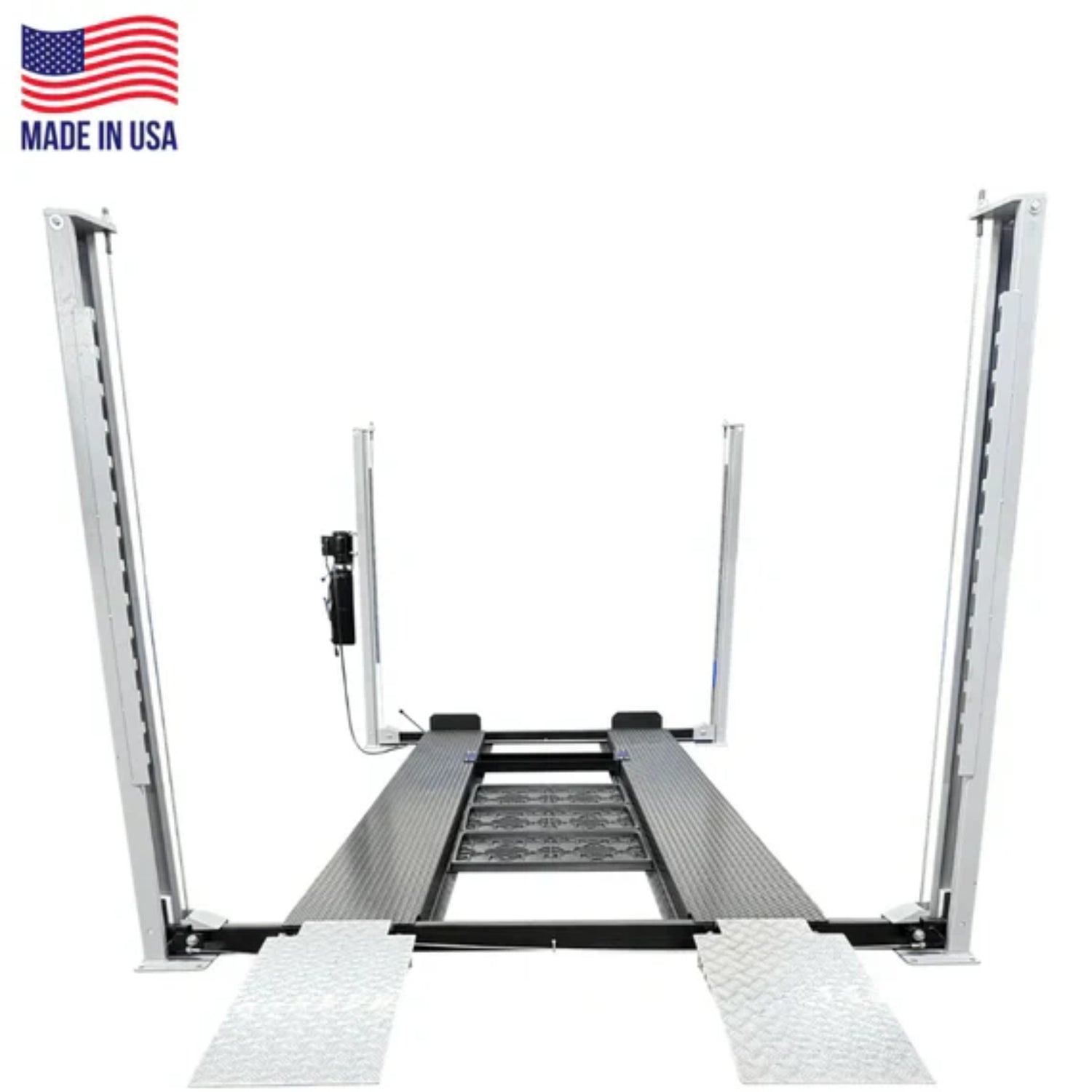

"Longer and Taller" XLT configuration — 180" runways and 83" lift height for full-size and extended-cab vehicles
-
Time-tested 20-year design — proven platform with established reliability
-
14 automatic locking positions — engage as the lift rises, with single-point release
-
Portable caster kit included — roll the lift across the garage, swap bays, or store against a wall
-
Jack tray included — accepts a standard floor or bottle jack to lift one end for service work
-

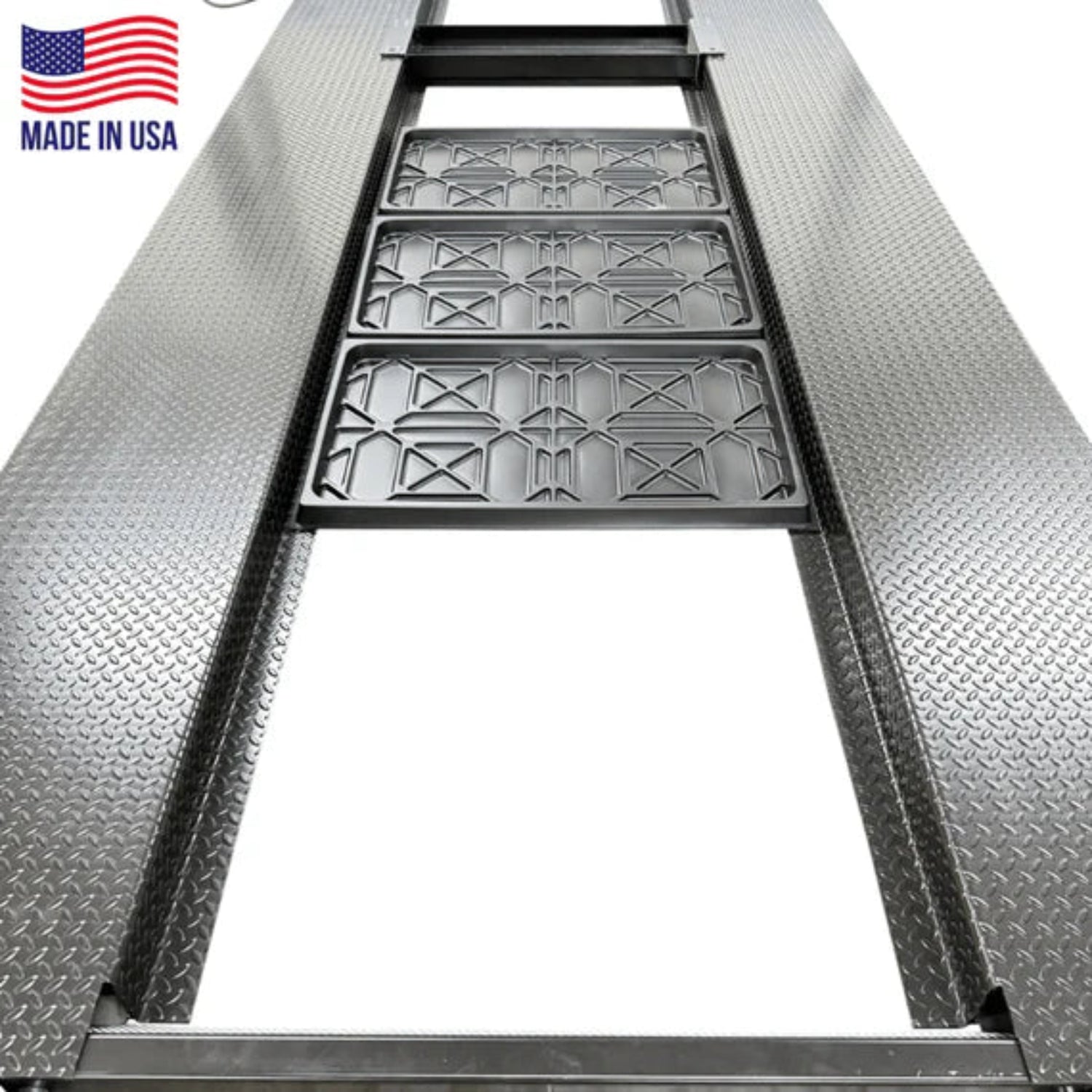

Three drip trays included — catch oil, coolant, and brake fluid to protect the lower vehicle during storage
-
110V operation — runs on a standard household outlet, no electrician required
- 40-second lift time
- Grey and Black standard finish; custom colors available
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph USA8000XLT |
| Origin |
Made in the USA (power unit not USA-made) |
| Lift Type |
4-Post Service & Storage Lift (Longer & Taller) |
| Capacity |
8,000 lbs. |
| Overall Height |
90" |
| Overall Length (without ramps) |
190" |
| Overall Length (with ramps) |
222" |
| Overall Width |
112" |
| Overall Width (with power unit) |
124" |
| Lift Height |
83" |
| Height Under Runway |
79" |
| Runway Length |
180" |
| Runway Width |
19" |
| Space Between Runways |
37" |
| Drive Thru Width |
102.5" |
| Lowered Height |
5" |
| Locking Positions |
14 (automatic) |
| Lock Release |
Single Point |
| Base Plate Size |
12" × 10" |
| Lift Time |
40 Seconds |
| Voltage |
110 Volts |
| Standard Finish |
Grey and Black (custom colors available) |
| Warranty |
Triumph 1-year parts warranty (no labor) |
| Shipping Weight |
1,800 lbs. |
What's Included
- Complete lift structure — four posts, runways, and crossbar/cable assemblies

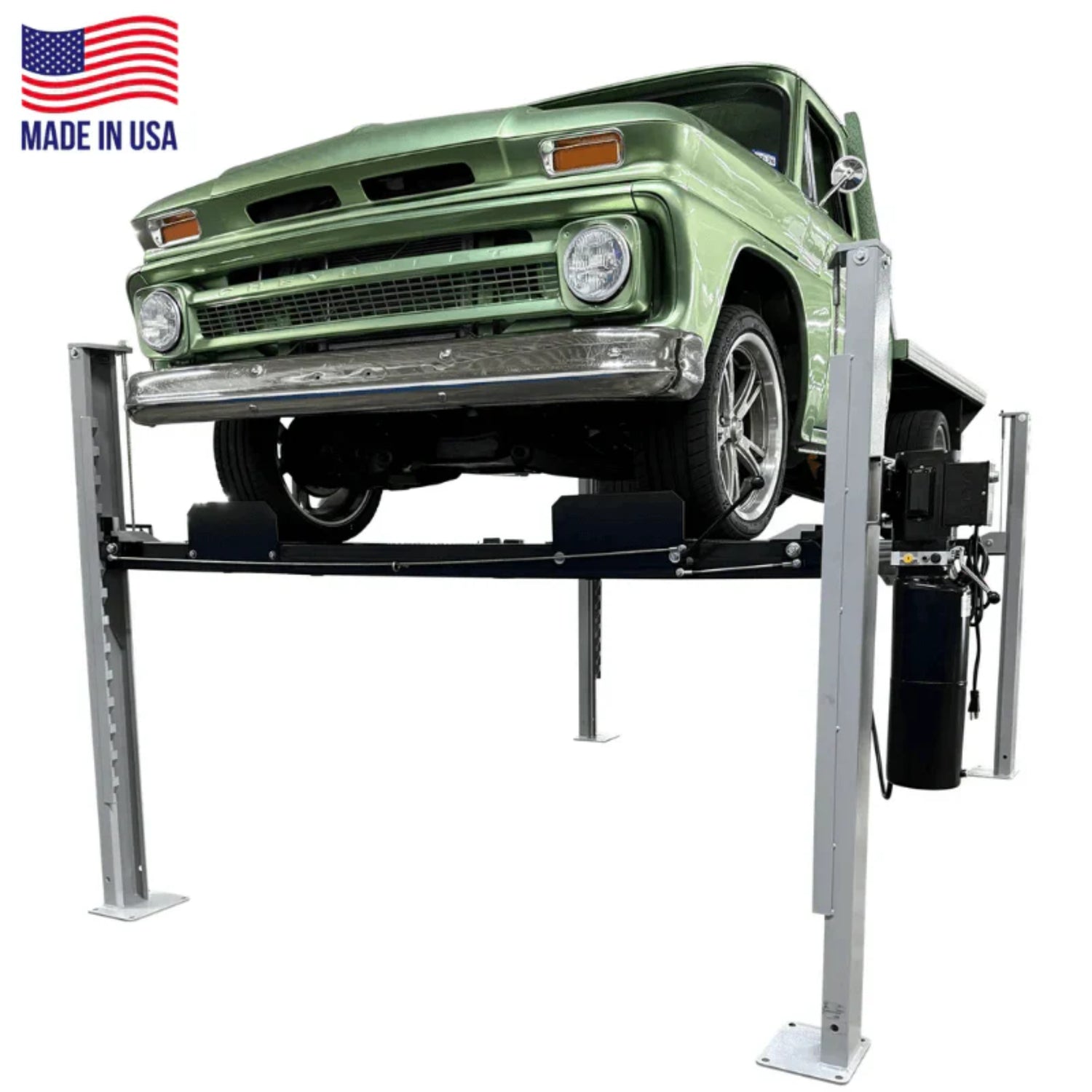

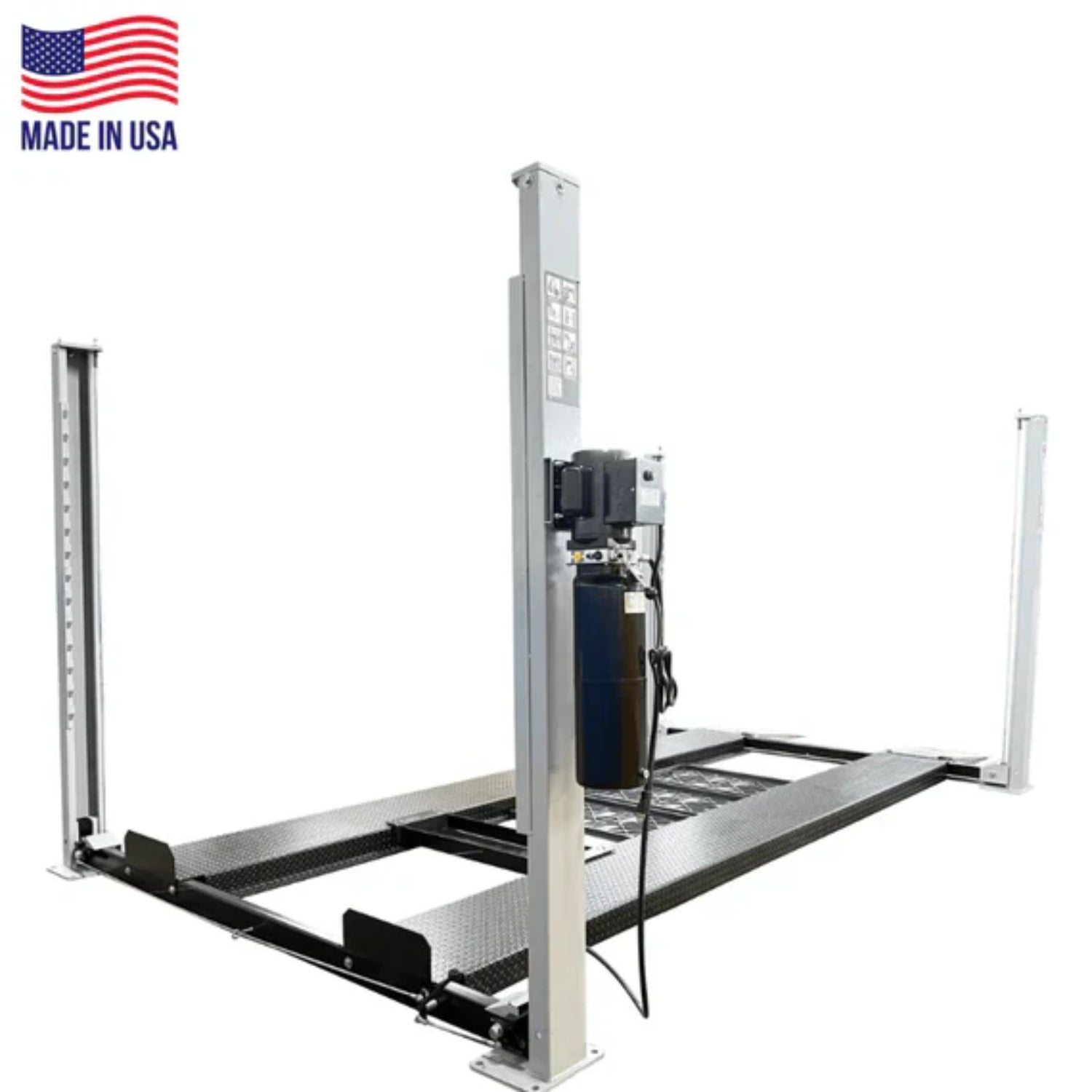

- Hydraulic power unit (110V)

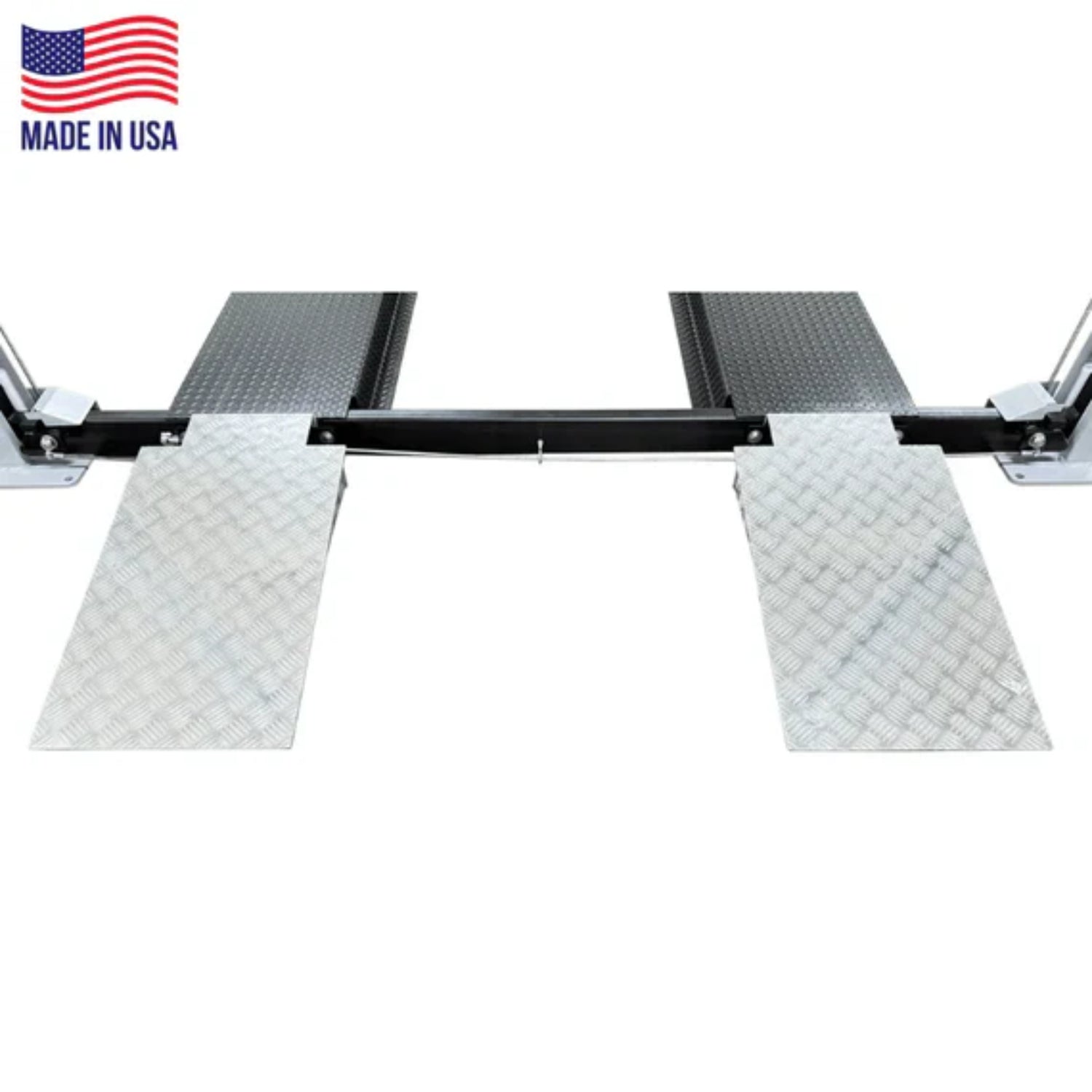

- (2) approach ramps
- Three drip trays
- Jack tray (for floor or bottle jack)
- Portable caster kit
- Automatic locking system (14 positions) with single-point release
- 12" × 10" base plates and anchor hardware
- Installation and operation documentation
