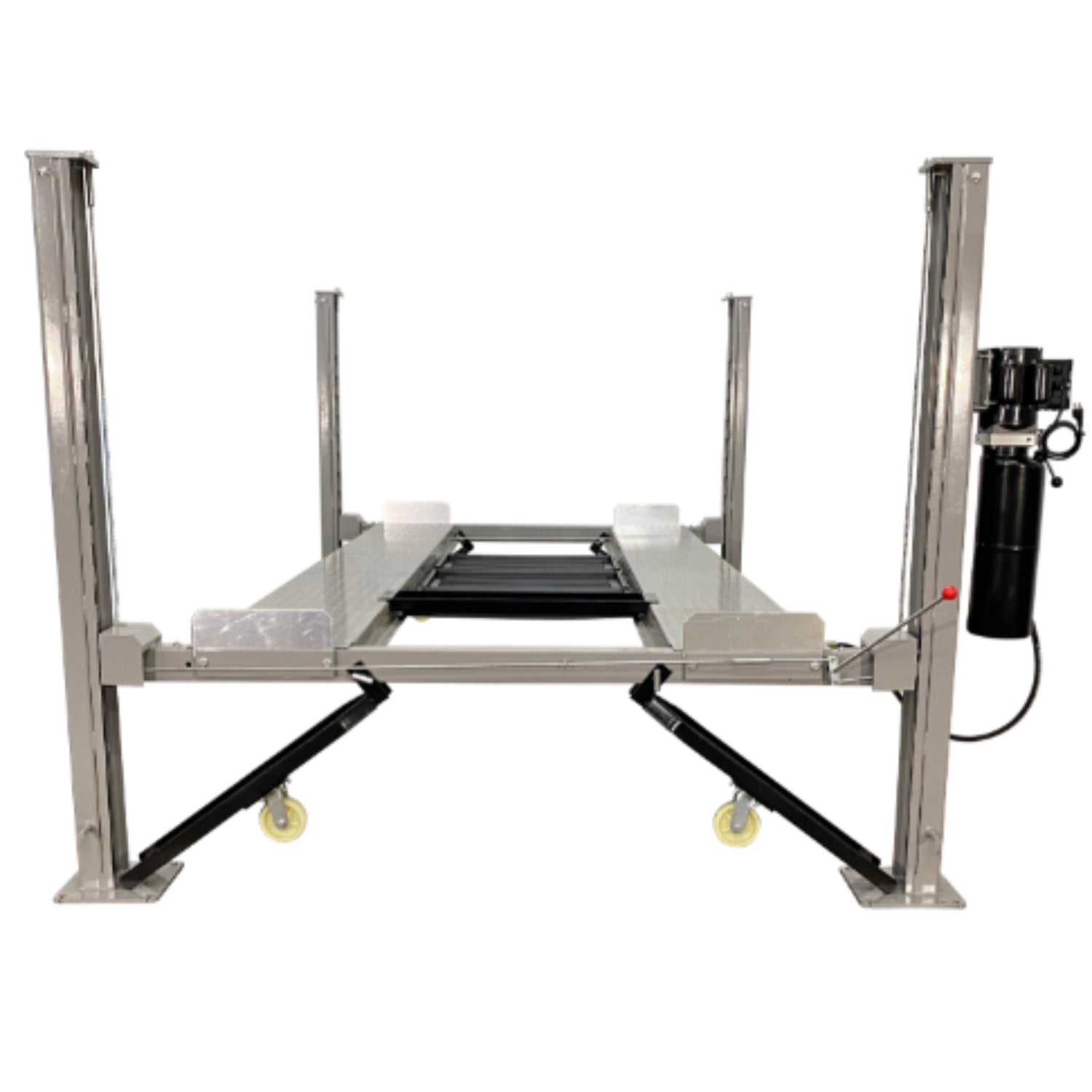

Triumph NSS-8SQ Classic 8,000 lb Portable 4-Post Storage & Service Car Lift — 141" Short Length, 110V
The Triumph NSS-8SQ ("Classic") is the short-length variant of the proven NSS-8 storage lift — designed for garages that can't quite fit a standard 4-post. Triumph kept the same width, the same lifting height, and the same 8,000 lb capacity, but trimmed the runways by 2.5 feet so the overall length sits at under 12 feet (141") without the ramps. Ships with the same complete kit: caster kit, jack tray, three drip trays, and aluminum approach ramps. Runs on a standard 110V outlet, with 10 automatic locking positions and a 40-second lift time. Standard Grey finish.
Why It's Different: Same NSS-8 platform, same 8,000 lb capacity, same lift height — just shorter. If your garage is too tight for the standard NSS-8's 175" footprint, the Classic was purpose-built to solve that with the same proven 20-year design.
Best For: Home garages with shorter bays storing or servicing sedans, mid-size SUVs, and shorter pickups. Buyers who chose the NSS-8 platform but can't accommodate the standard runway length.
⚠️ This lift ships LTL freight (≈1,600 lb) — liftgate delivery is NOT available. You are responsible for unloading using a forklift, Bobcat, tractor, tow truck, or backhoe. If you can't unload on-site, the carrier can ship to its nearest freight terminal for pickup.
⚠️ Measure your garage before ordering — 175" overall length WITH the ramps attached (141" without), 106" overall width, 84" overall height. Account for the height of the vehicle you'll park on top of the lift.
⚠️ Vehicle fit: shorter runway length means this lift suits sedans, mid-size SUVs, and shorter pickups — not full-size or long-bed trucks. Verify your wheelbase against the 132" runway before ordering.
⚠️ Concrete: install on adequate reinforced concrete per the manufacturer's specifications. Improper concrete can cause serious injury or death.
⚠️ Operate safely: never exceed the 8,000 lb rated capacity, center and balance the vehicle before lifting, and always confirm the locks have engaged before working underneath.
Features
-
8,000 lb capacity — handles most passenger cars, SUVs, and mid-size trucks
-
Short 141" overall length (without ramps) — fits garages where the standard NSS-8 won't
-
Same lift height and width as the standard NSS-8 — only the runway length is shorter
-

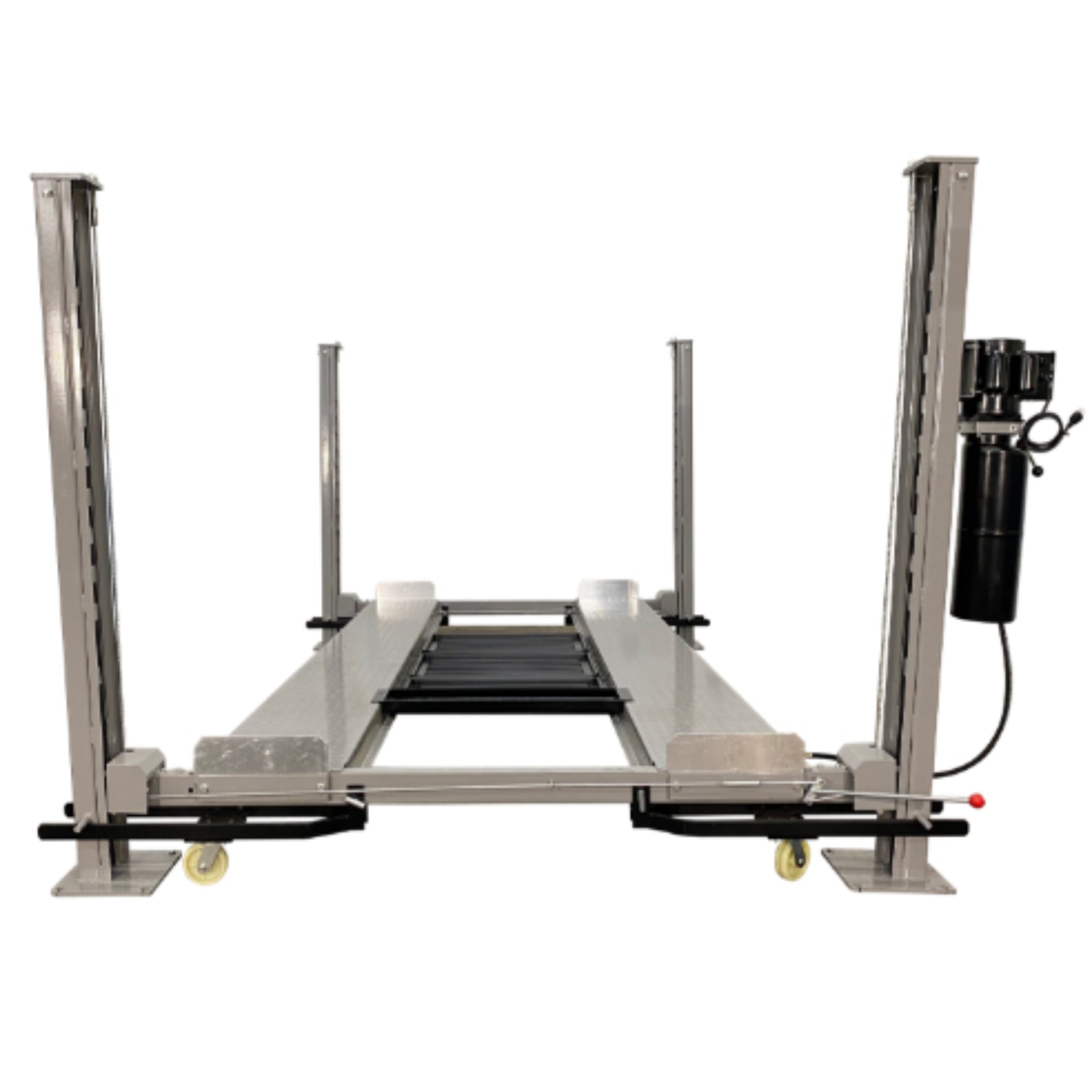

Portable caster kit included — roll the lift across the garage as needed
-
Jack tray included — accepts a standard floor or bottle jack to lift one end for service
-

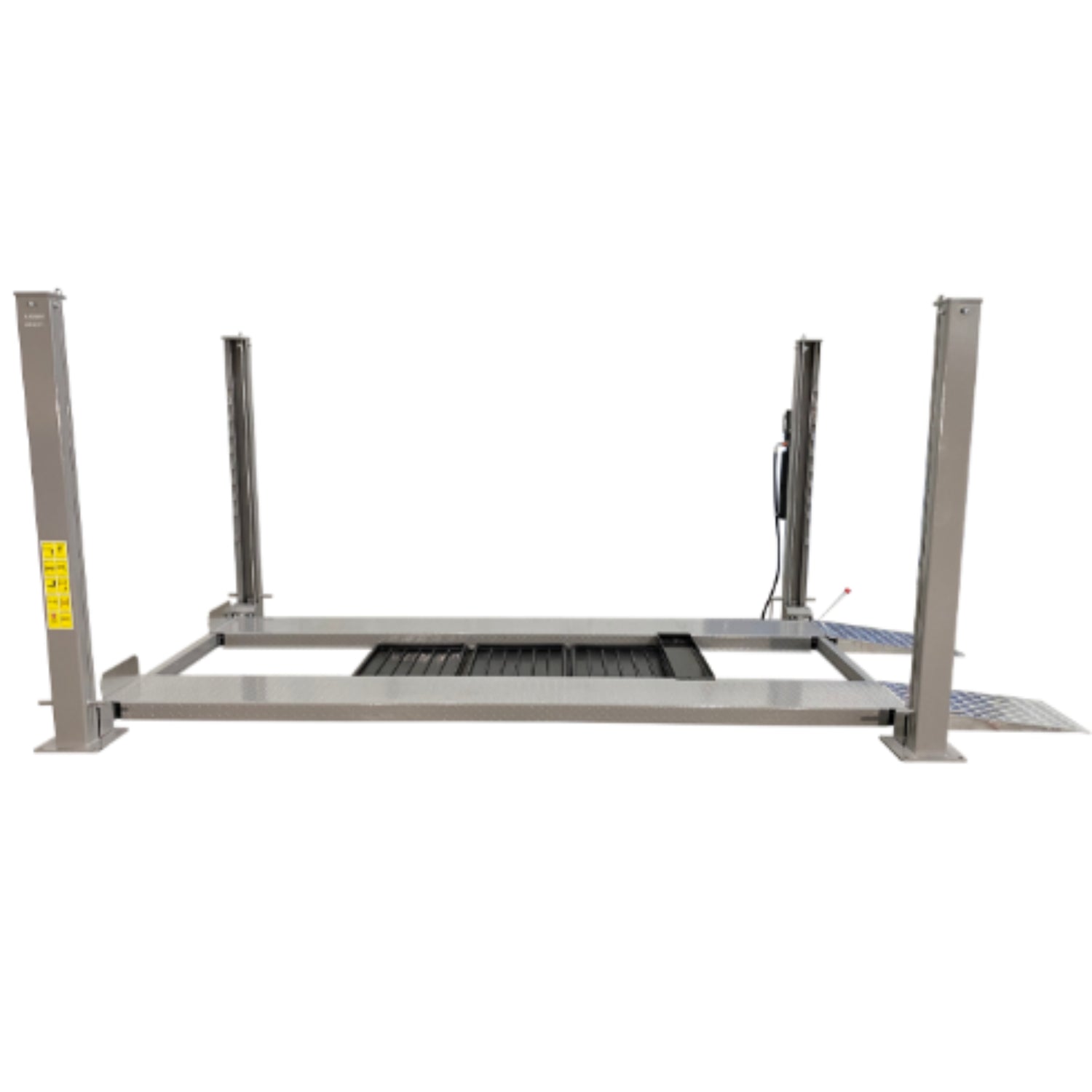

Three drip trays included — protect the lower vehicle during storage
-

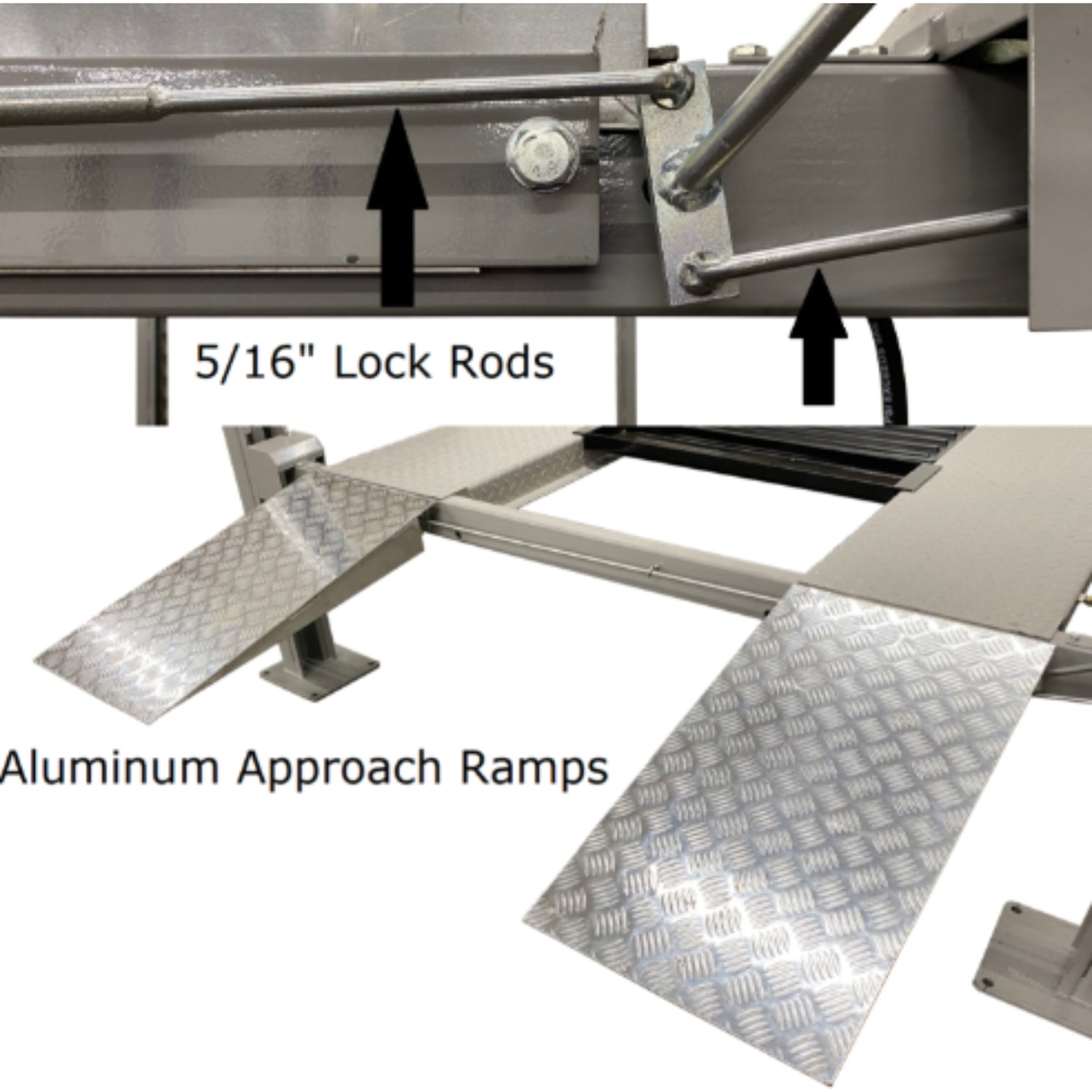

Aluminum approach ramps included — lightweight with underside reinforcement, easy to move
-
10 automatic locking positions with single-point release
-
110V operation — runs on a standard household outlet, no electrician required
- 40-second lift time
-
Time-tested 20-year design — proven Triumph storage-lift platform
- Standard Grey finish
- Optional SJ-35 Hydraulic Center Slide Jack available for one-end lifting with telescoping arms
- Backed by Triumph's 1-year parts warranty
Specifications
| Specification |
Detail |
| Model |
Triumph NSS-8SQ (Classic, Short) |
| Lift Type |
4-Post Storage & Service Lift |
| Capacity |
8,000 lbs. |
| Overall Height |
84" |
| Overall Length (without ramps) |
141" |
| Overall Length (with ramps) |
175" |
| Overall Width |
106" |
| Lift Height |
72" |
| Height Under Runway |
69" |
| Runway Length |
132" |
| Runway Width |
18" |
| Space Between Runways |
37" |
| Drive Thru Width |
93" |
| Lowered Height |
5" |
| Locking Positions |
10 (automatic) |
| Lock Release |
Single Point |
| Base Plate Size |
12" × 12" |
| Lift Time |
40 Seconds |
| Voltage |
110 Volts |
| Standard Finish |
Grey |
| Warranty |
Triumph 1-year parts warranty (no labor) |
| Shipping Weight |
1,600 lbs. |
What's Included
- Complete lift structure — four posts, runways, and crossbar/cable assemblies

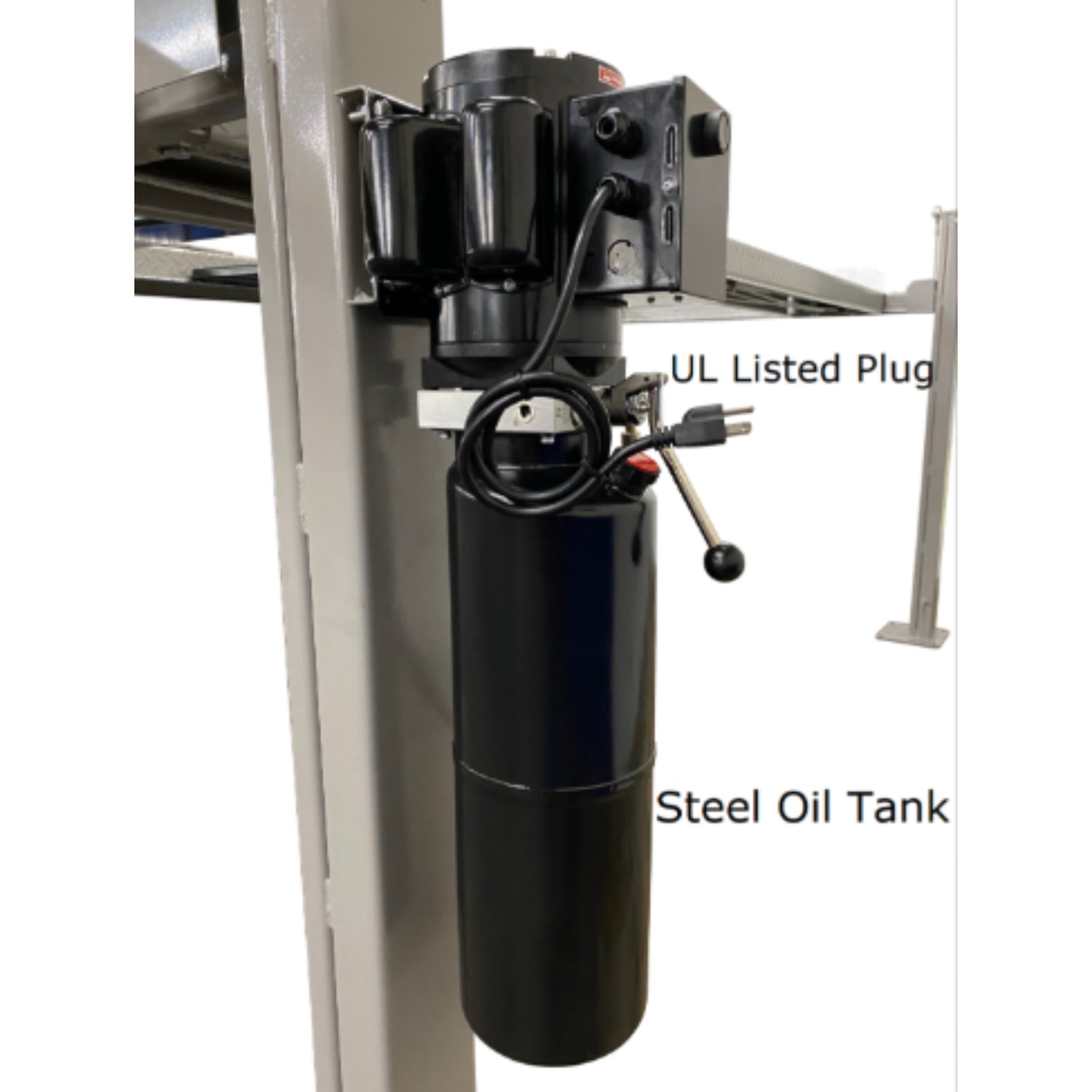

- Hydraulic power unit (110V)
- (2) lightweight aluminum approach ramps with underside reinforcement
- Three drip trays
- Jack tray (for floor or bottle jack)
- Portable caster kit
- Automatic locking system (10 positions) with single-point release
- 12" × 12" base plates and anchor hardware
- Installation and operation documentation
Optional accessory: SJ-35 Hydraulic Center Slide Jack — telescoping arms extend over the runways for one-end lifting during service work. Sold separately.
