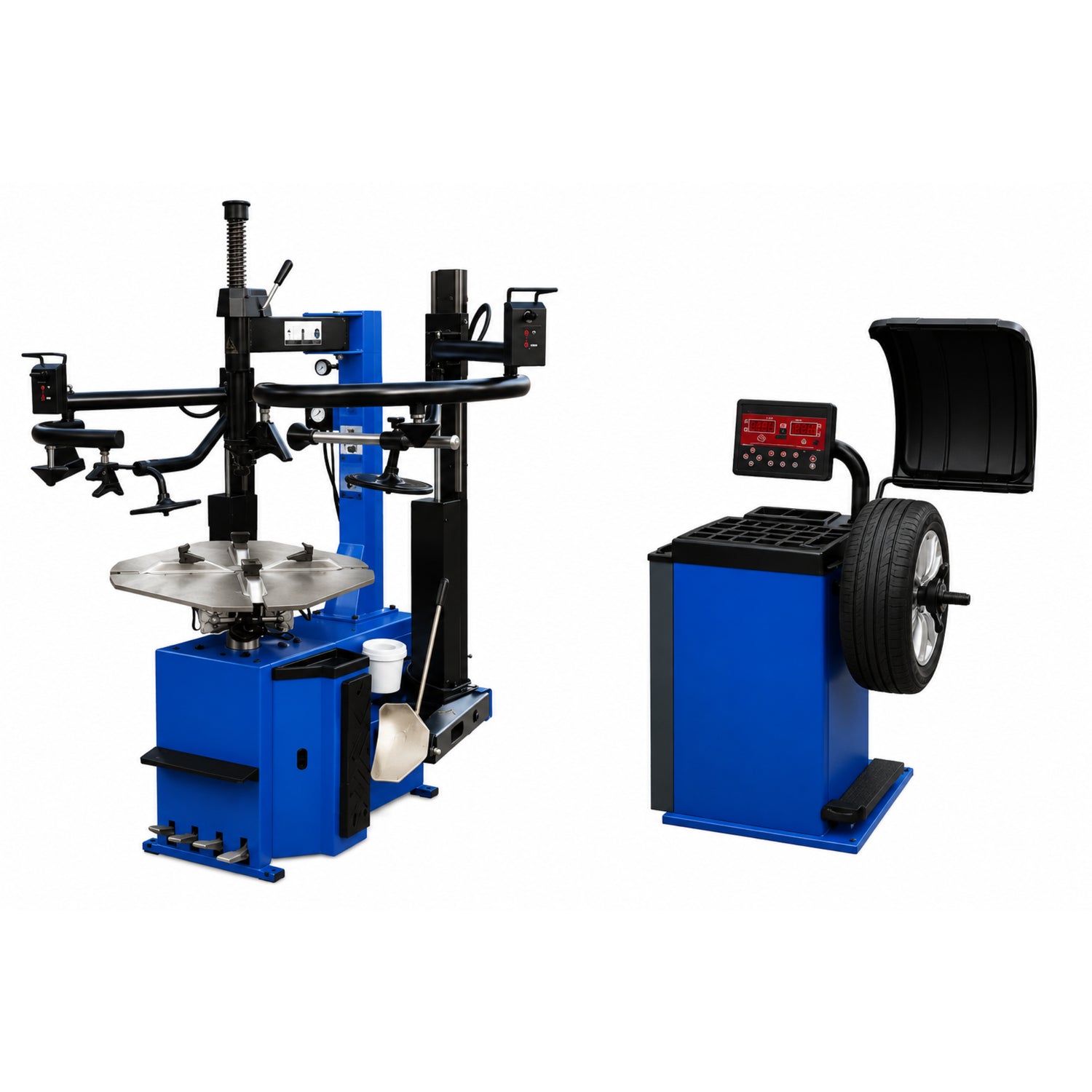

Triumph NTC-950-2 Tire Changer + NTB-800 Wheel Balancer Combo
This combo pairs the dual-assist-arm NTC-950-2 tire changer with the auto-data-entry NTB-800 wheel balancer — every feature a high-volume shop needs without stepping up to truck-grade balancer cost. The NTC-950-2's dual pneumatic assist arms make even the toughest tires easy to change — wide-profile, low-profile, and run-flats — while bead-blast technology shoots a powerful blast of air into the sidewall to help break and seat stubborn beads. The NTB-800 adds two standout features: a foot-pedal wheel brake that holds the wheel steady while you place weights, and automatic data entry that needs only one input (wheel width) instead of three — an estimated 25% labor savings per balance.
Why It's Different: This combo gets you the pro-grade NTC-950-2 changer (with dual arms and bead blast) plus the fastest-to-operate balancer in the line. If your work is passenger and light-truck wheels and you don't need truck-grade 350 lb / 40 mm capacity, the NTB-800 actually saves time per balance compared to the truck-grade NTB-1200's manual data entry.
Best For: High-volume passenger and light-truck shops, performance shops, and serious home garages that want the dual-arm changer plus the fastest balancer setup — without paying for truck-grade balancer capacity they won't use.
⚠️ Both machines require compressed air to operate — confirm your shop air supply before ordering. Both run on 110V.
⚠️ This is a passenger / light-truck combo. The NTC-950-2 handles tires up to 43" diameter and 15" wheel width, and the NTB-800 balances wheels up to 150 lb and 44" tire diameter — confirm your wheel sizes and weights are within rating. For truck-grade wheel weight (up to 350 lb), step up to the NTC-950-2/NTB-1200 combo.
⚠️ Bolt both machines to a level floor before use and always lower the balancer's safety hood before spinning a wheel. Install per the manufacturer's instructions.
⚠️ Tire equipment ships LTL with liftgate service included — the driver lowers the units to the ground at the back of the truck, but will not move them inside or assemble them. Two crates (900 lb + 300 lb).
Features
NTC-950-2 Tire Changer
-
Dual pneumatic assist arms — easily change wide-profile, low-profile, and run-flat tires
-
Bead-blast technology — air blast into the sidewall helps break and seat stubborn beads
-
Powerful side-mounted bead breaker — 5,500 lb breaking force
-
Swing-arm design with inside (16"–28") and outside (14"–26") clamping
- Handles tires up to 43" diameter and 15" wheel width
- Steel mount/demount head, plastic mount/demount head, plastic wheel clamp covers, soap tank + application brush, and tire tool bar included
- 1.5 HP, 120 PSI max, 110V (requires compressed air)
NTB-800 Wheel Balancer
-
Automatic data entry — enter only the wheel width; distance and diameter are captured automatically by touching the distance ruler to the wheel
-
~25% faster than a manual-entry balancer, with reduced user error
-
Foot-pedal wheel brake — holds the wheel in place while placing weights for better accuracy
-
10"–28" wheel range, up to 44" tire diameter, 1.5"–20" rim width
-
150 lb max wheel weight — passenger and light-truck class
- 36 mm shaft
-
±1 gram accuracy, 6–9 second cycle time
- 1/4 HP, 110V
- Plastic safety hood, quick-release wing nut, cone adapters, wheel weight hammer, and rim caliper included
Specifications
NTC-950-2 Tire Changer
| Specification |
Detail |
| Inside Clamping |
16" – 28" |
| Outside Clamping |
14" – 26" |
| Max Wheel Width |
15" |
| Max Tire Diameter |
43" |
| Bead Blast |
Yes |
| Bead Breaker Force |
5,500 lbs |
| Horsepower |
1.5 HP |
| Max Inflation Pressure |
120 PSI |
| Voltage |
110 Volts (compressed air required) |
| Assembled Size |
56" × 93" × 80" |
| Shipping Size |
38" × 65" × 51" |
| Shipping Weight |
900 lbs. |
NTB-800 Wheel Balancer
| Specification |
Detail |
| Wheel Size Range |
10" – 28" |
| Max Tire Diameter |
44" |
| Rim Width |
1.5" – 20" |
| Max Wheel Weight |
150 lbs. |
| Shaft Size |
36 mm |
| Automatic Data Entry |
Yes (enter width only; distance + diameter automatic) |
| Wheel Brake |
Foot pedal |
| Display |
Standard or Metric |
| Accuracy |
±1 gram |
| Cycle Time |
6 – 9 seconds |
| Horsepower |
1/4 HP |
| Voltage |
110 Volts |
| Assembled Size |
28" × 48" × 62" |
| Shipping Size |
30" × 39" × 51" |
| Shipping Weight |
300 lbs. |
Combo warranty: Triumph tire equipment carries a 1-year parts warranty (no labor). Wear items excluded — on the tire changer: plastic protective pads/tooling on clamps, heads, bead breakers, assist arms, the tire-inflation hose, lube brush, and bucket; on the balancer: quick-release wing nut, hood cover, top tray cover, and wheel weight hammer.
What's Included
-
NTC-950-2 Tire Changer with dual pneumatic assist arms and bead-blast
- Steel mount and demount head
- Plastic mount and demount head
- Plastic wheel clamp covers
- Soap tank and application brush
- Tire tool bar
-
NTB-800 Wheel Balancer with foot-pedal brake and automatic data entry
- Plastic safety hood
- Quick-release wing nut
- Cone adapters
- Wheel weight hammer
- Rim caliper
