What is the difference between the 44060 and 44060E? ▾

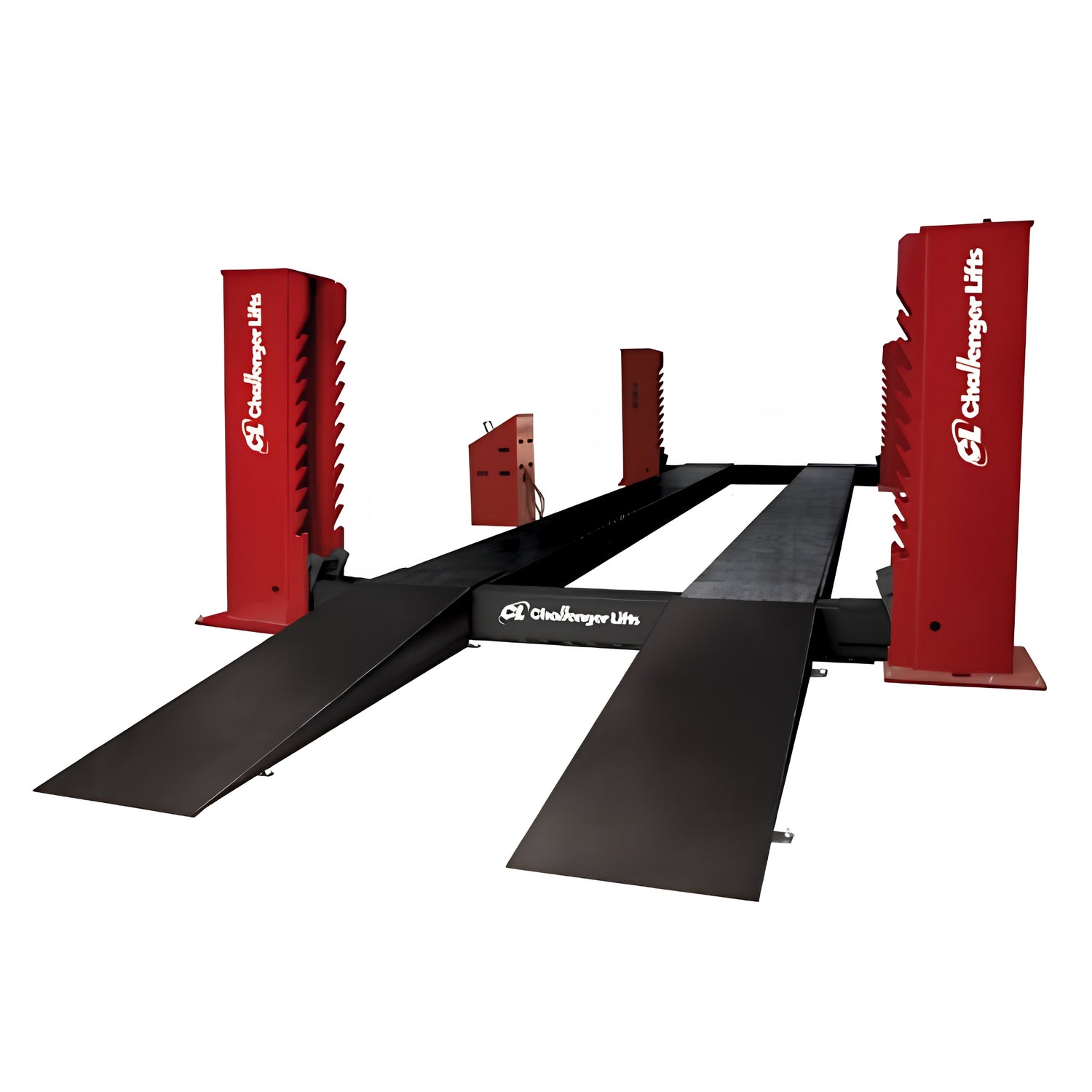

The 44060E is the extended-length version of the Challenger 44060. The standard 44060 accommodates wheelbases up to 310 inches, while the 44060E extends that capacity to 370 inches. This additional length is necessary for longer transit buses, extended-cab commercial trucks, and motorcoaches that exceed standard lift dimensions. Both models share the same 60,000 lb lifting capacity and feature set.
What vehicles can the 44060E lift? ▾
The Challenger 44060E can lift commercial vehicles up to 60,000 lb with wheelbases up to 370 inches. This includes transit buses, class 7 and class 8 trucks, waste haulers, fire apparatus, concrete mixers, large RVs and motorcoaches, and construction equipment. The variable-synchro system makes it particularly suited for vehicles with uneven front-to-rear weight distribution.
What are the electrical requirements for the 44060E? ▾
The Challenger 44060E requires 230V single-phase power at 29 amps. A dedicated circuit with a 30-amp time delay fuse or circuit breaker is required. Minimum 10-gauge wire is required, though 8-gauge is preferred for longer runs. A licensed electrician should install and verify the electrical supply before operating the lift.
What concrete specifications are required for installation? ▾
The floor must be a minimum of 4 inches of steel-reinforced concrete with a minimum compressive strength of 3,000 PSI. Anchors must be at least 5 inches from any slab edge or seam. Maximum floor variation between any two posts is 2 inches. Failure to meet these specifications could result in unsafe operation and will void warranty coverage.
What does the warranty cover? ▾
Challenger provides a 5-year warranty on structural components including columns, runways, and frame assemblies. Functional parts including hydraulic cylinders, power unit, chains, and mechanical components are covered for 1 year, including labor. Professional installation according to Challenger specifications is required for warranty coverage.
What is included with the lift purchase? ▾
The 44060E ships complete with the four post lift assembly, extended-length runways, dual hydraulic cylinders with velocity fuse safety system, power unit, diamond plate approach ramps, all mounting hardware and anchor bolts, hydraulic hoses and fittings, pneumatic control components, and the installation manual. Hydraulic oil, electrical installation, and optional accessories are not included.
How is the 44060E shipped and delivered? ▾
The lift ships via freight truck to commercial addresses in the 48 contiguous states with free shipping. A forklift or loading dock is required for unloading. Delivery is curbside - the freight carrier will not bring the lift inside your facility. Inspect all packages before signing and note any damage on the bill of lading.
Can I use rolling jacks with the 44060E? ▾
Yes, the 44060E includes a built-in runway rail system that accepts optional rolling jacks without modification. This allows wheel-off brake service, tire changes, and other operations requiring wheel removal while the vehicle remains elevated. Rolling jacks are sold separately and are rated to match the lift's heavy-duty capacity.
What is the variable-synchro power system? ▾
The variable-synchro power system uses dual hydraulic cylinders that can operate in synchronized or independent mode. In synchronized mode, both cylinders lift evenly for balanced loads. In independent mode, technicians can apply more power to the front or rear cylinder to compensate for vehicles with uneven weight distribution. This is essential for safely lifting front-heavy buses, waste trucks, and construction equipment.
How much space do I need for the 44060E? ▾
The 44060E requires a minimum bay area of 15'-6" x 35'-0" for the extended model. Ceiling height should be at least 16 feet, though higher ceilings may be required depending on the vehicles you service. Additional length is needed if optional track extensions are purchased. Allow adequate clearance around all sides of the lift for technician access and safe vehicle approach.
What maintenance does the 44060E require? ▾
Perform 30-day maintenance including checking all bolts and nuts for tightness, inspecting equalizer chains for proper tension, checking hydraulic lines and fittings for leaks, verifying locking latches and releases operate properly, and visually inspecting concrete for cracks near the base plates. During the first week after installation, check and tighten anchor bolts daily. Use SAE-10 hydraulic oil or automatic transmission fluid.
Is professional installation required? ▾
While not strictly required, professional installation is strongly recommended and is necessary for full warranty coverage. Proper installation ensures safe operation, correct leveling and alignment, proper hydraulic system setup, and optimal lift performance. The installation manual provides complete instructions for qualified technicians.
